Types of Manufacturing Processes • Primary Processing – Raw materials to industrial materials – Raw materials are renewable or exhaustible • Secondary Processing – Create final products from primary product

Manufacturing Process Example Mine Extracting Raw Materials Secondary Processing to Manufacture A Ladder Primary Processing to Manufacture Bar Stock

Manufacturing Process Input Process Feedback Output

Materials • Ceramics, metals, and plastics are wellsuited to manufacturing. • Their properties determine the process for which they are best suited.

Materials Organic Materials Solid Engineering (Industrial) Materials Inorganic Materials Liquid Gas Non. Engineering Materials Polymeric Metallic Ceramic

Composite Video

Selecting Materials Internal Structure Types of atoms Bonds between atoms Molecular structure Property Physical Mechanical Chemical Thermal Electrical – Magnetic Acoustical Optical Conditions Chemicals Radiation Mechanical Loads Thermal Electromagnetic Fields Sonic Forces

Casting and Molding

Casting and Molding Videos

Separating • Involves the removal of material • Also referred to as the subtractive process • Includes two types of processes – Chip Forming – Non-Chip Forming

Separating Videos

Joining • Also referred to as the additive process • Materials added in layers to build a finished part • Examples – – Welding Gluing Soldering Prototyping

Forming • Uses force to cause a material to permanently take a shape • Changes some of the material properties

Forming Videos

Finishing • May be completed before or after assembly • Used primarily to protect a product from various conditions • Also used to enhance a product’s appearance

Finishing: Deburring • Methods include filing, scraping, and trimming • Considerations include actual requirements regarding work piece specifications, production quantities, and cost

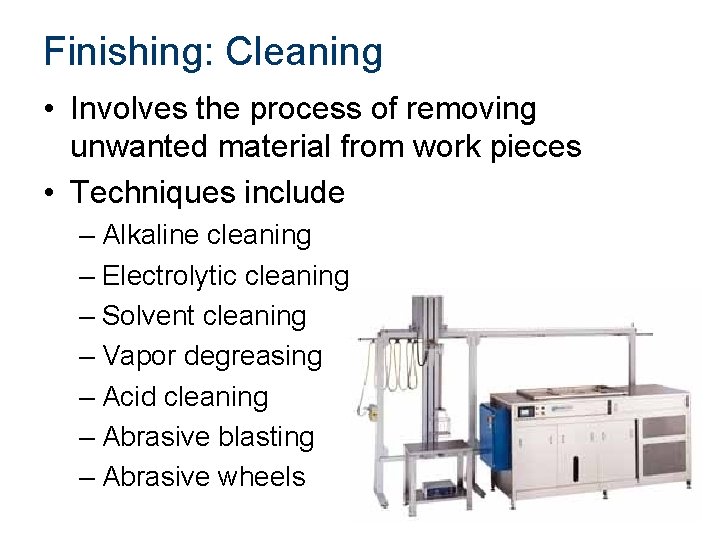

Finishing: Cleaning • Involves the process of removing unwanted material from work pieces • Techniques include – Alkaline cleaning – Electrolytic cleaning – Solvent cleaning – Vapor degreasing – Acid cleaning – Abrasive blasting – Abrasive wheels

Finishing: Coating • Involves a material being applied to a work piece • May be mechanical, electrolytic, or conversion

Finishing: Assembling • Involves putting parts together • May be temporary or permanent • Includes bonding and mechanical fastening

Finishing: Conditioning • Refers to changing the physical or mechanical properties of a material • Includes thermal, chemical, and mechanical
