Introduction to LEGO RCX robotics and Robot Sumo
Introduction to LEGO RCX robotics and Robot Sumo Workshop Day 1 CJ Chung Associate Professor of Computer Science Lawrence Technological University
This program is possible thanks to: a grant from Detroit Auto Dealers Association (DADA) Charitable Foundation Fund, ¡ which is a fund of the Community Foundation for Southeast Michigan. ¡ ¡ For more details, check out a press release at: http: //www. ltu. edu/news/detail. asp? Content. Id=F 43 D 8217 -293 D-480 E-B 657 -54392 CB 1171 A
Schedule First Workshop Day (3 hours) ¡ Second Workshop Day (3 hours) ¡ Third Workshop Day (2 hours) ¡ Meetings with your school staff/teachers to improve your sumo. Bot (3 hours x 2 meetings suggested) ¡ Official Competition at your school to select one team to advance to the World Robofest Championship on April 26. Guests will be invited. ¡
Workshop First Day (3 hours) Introduction to Robotics ¡ Introduction to Robofest and Robot Sumo ¡ Introduction to Lego Mindstorms and RCX ¡ Introduction to RCX Code programming using RIS (Robotics Invention System) 2. 0 ¡ Basic programs ¡ l l Motors Wait
Introduction to Robotics ¡ What is a true robot? l l ¡ Autonomous robot with an on board computer Mechanical, electrical, and computational components Six fundamental components of a robot l l l A brain or brains – computer Body: physical chasses that holds other pieces Actuators: motors, hydraulic pistons, pneumatics Sensors Power sources Communication mechanism
What is Robofest? 100% Autonomous ¡ Affordable ¡ Challenging: Unknown problem ¡ No direct adult help allowed during the competition ¡ Qualifiers and a World Championship ¡ Various categories including Robot Sumo ¡ Two divisions: ¡ l l 5 th – 9 th grade: Jr. Division 9 th – 12 th grade: Sr. Division
Robo. Sumo Push the other robot out of the Sumo ring
Specifications Junior Division Senior Division Sumo ring diameter 77 cm (30 inches) 122 cm (48 in) Maximum robot mass 2 kg (4. 4 lbs) 1 kg (2. 2 lbs) Maximum robot 23 cm (9 inches) width and length 30 cm (11. 75 inches) Maximum robot height no limit 30 cm (11. 75 inches) Robot type Any; Lego Mindstorms or NXT recommended. any
Why Sumo? The most popular robot competition in the world ¡ Integrator in Science Education – Math, Logic, Computers, Mechanics, and Physics ¡ Good for rookie teams ¡ Fun Motivator ¡

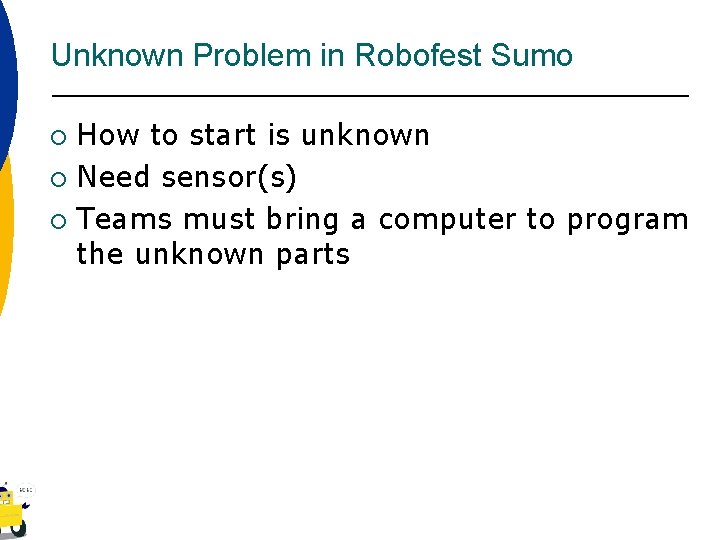

Unknown Problem in Robofest Sumo How to start is unknown ¡ Need sensor(s) ¡ Teams must bring a computer to program the unknown parts ¡

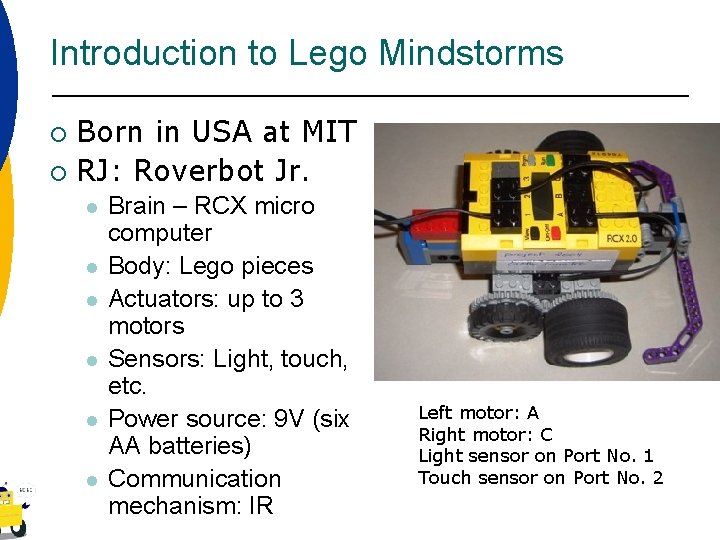

Introduction to Lego Mindstorms Born in USA at MIT ¡ RJ: Roverbot Jr. ¡ l l l Brain – RCX micro computer Body: Lego pieces Actuators: up to 3 motors Sensors: Light, touch, etc. Power source: 9 V (six AA batteries) Communication mechanism: IR Left motor: A Right motor: C Light sensor on Port No. 1 Touch sensor on Port No. 2

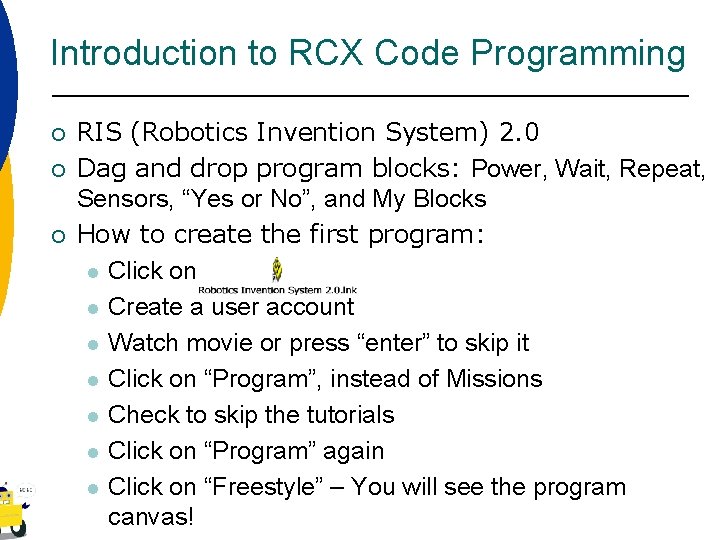

Introduction to RCX Code Programming ¡ ¡ ¡ RIS (Robotics Invention System) 2. 0 Dag and drop program blocks: Power, Wait, Repeat, Sensors, “Yes or No”, and My Blocks How to create the first program: l Click on l Create a user account l Watch movie or press “enter” to skip it l Click on “Program”, instead of Missions l Check to skip the tutorials l Click on “Program” again l Click on “Freestyle” – You will see the program canvas!

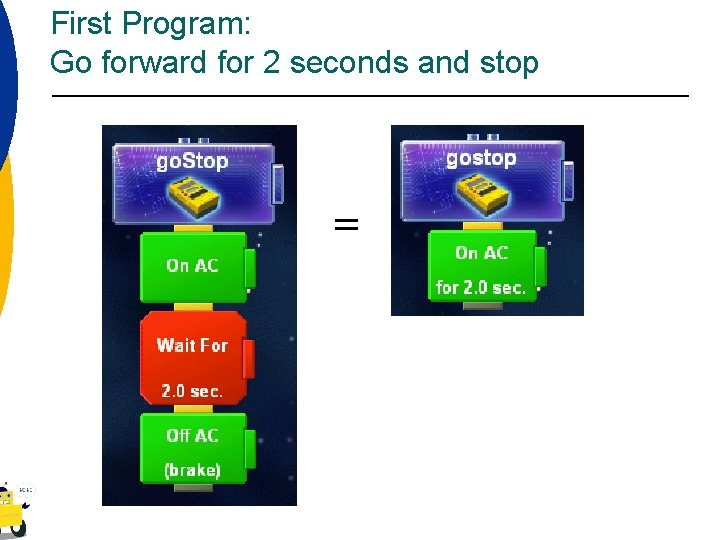

First Program: Go forward for 2 seconds and stop =

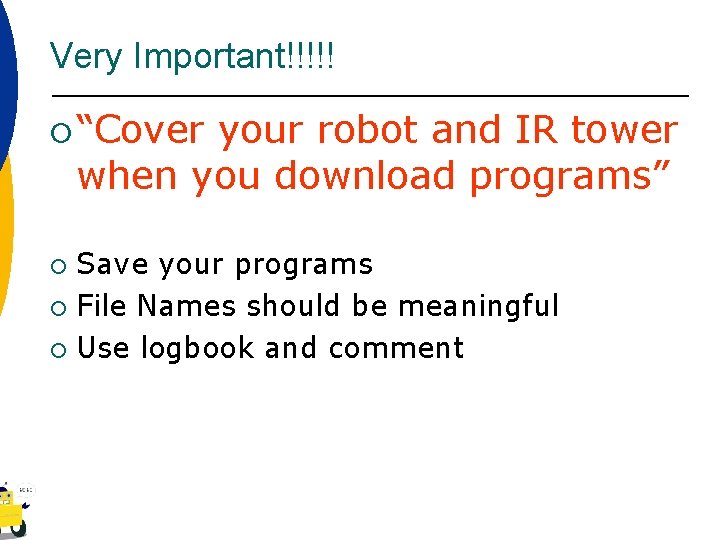

Very Important!!!!! ¡ “Cover your robot and IR tower when you download programs” Save your programs ¡ File Names should be meaningful ¡ Use logbook and comment ¡

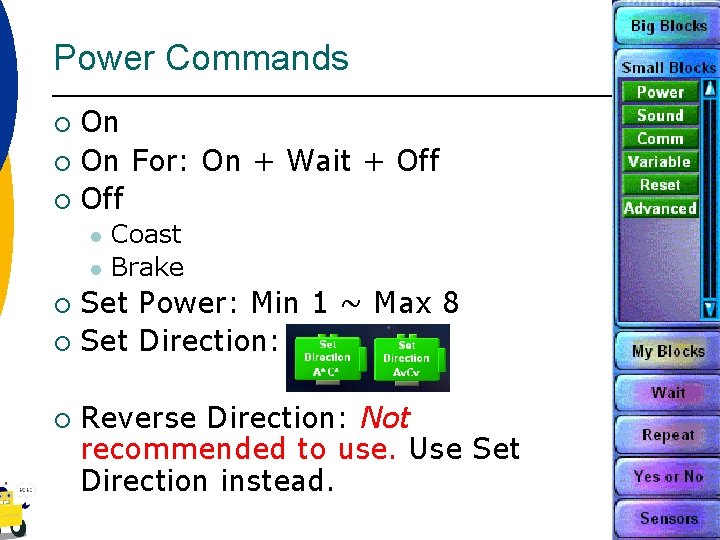

Power Commands On ¡ On For: On + Wait + Off ¡ l l Coast Brake Set Power: Min 1 ~ Max 8 ¡ Set Direction: ¡ ¡ Reverse Direction: Not recommended to use. Use Set Direction instead.

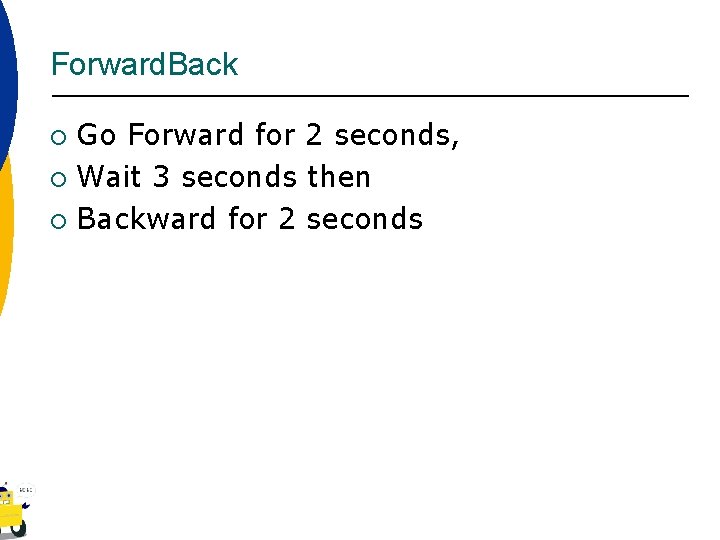

Forward. Back Go Forward for 2 seconds, ¡ Wait 3 seconds then ¡ Backward for 2 seconds ¡
Forward. Back

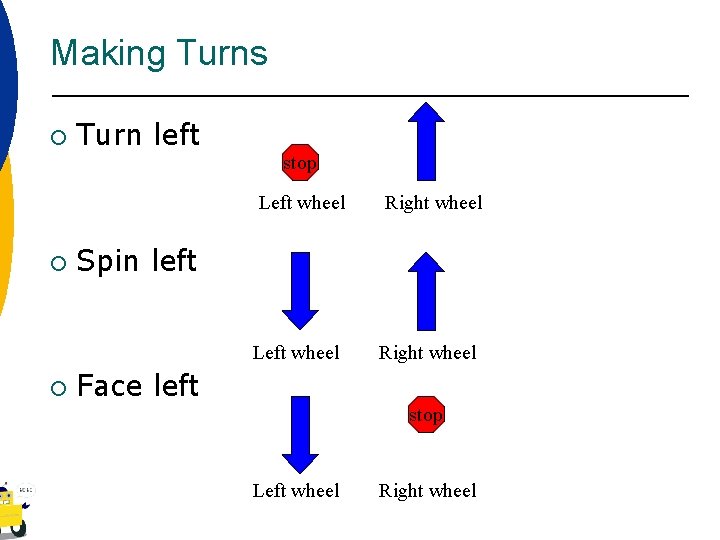

Making Turns ¡ Turn left stop Left wheel ¡ Spin left Left wheel ¡ Right wheel Face left stop Left wheel Right wheel

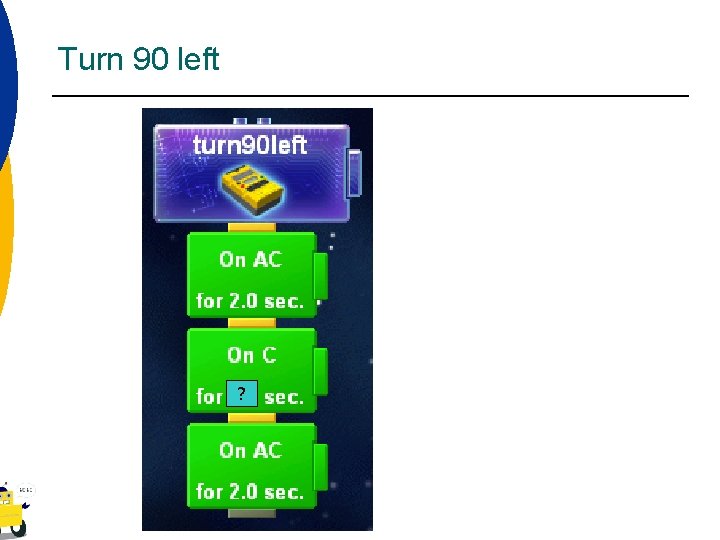

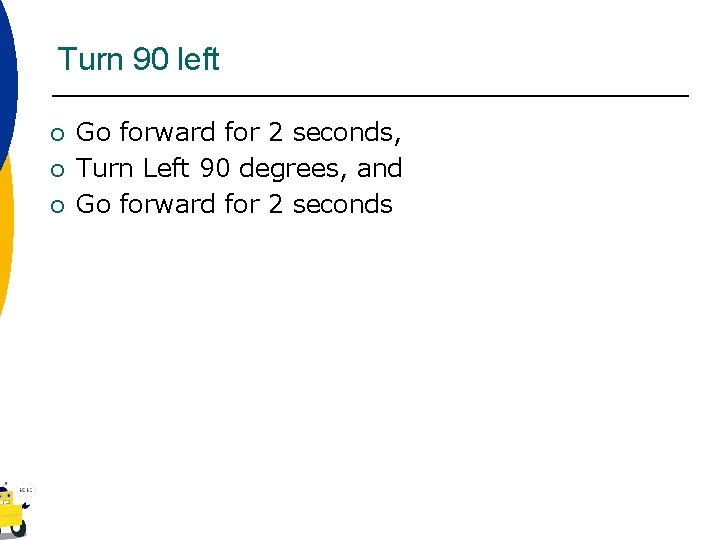

Turn 90 left ¡ ¡ ¡ Go forward for 2 seconds, Turn Left 90 degrees, and Go forward for 2 seconds
Turn 90 left ?

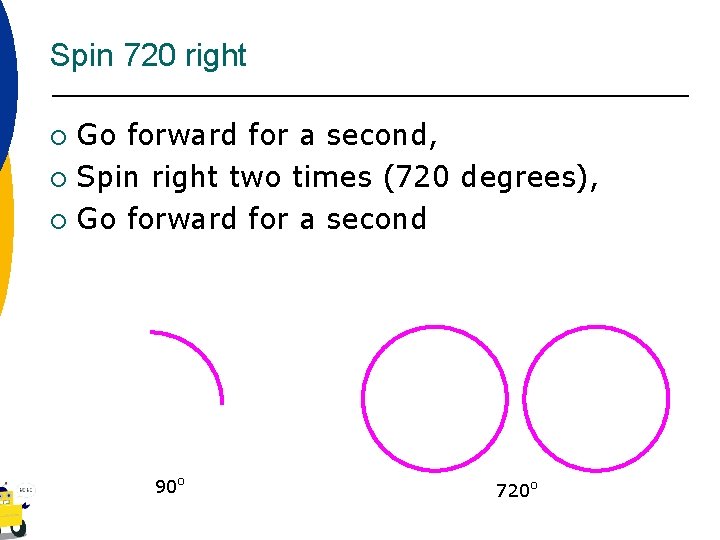

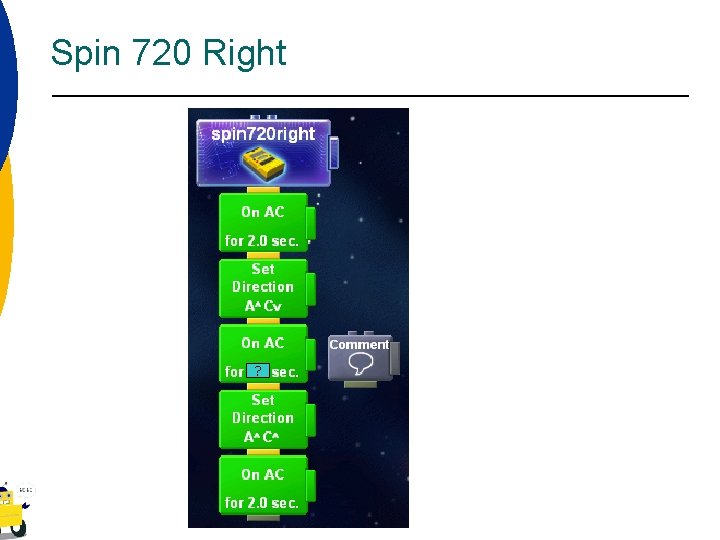

Spin 720 right Go forward for a second, ¡ Spin right two times (720 degrees), ¡ Go forward for a second ¡ 90 o 720 o
Spin 720 Right ?

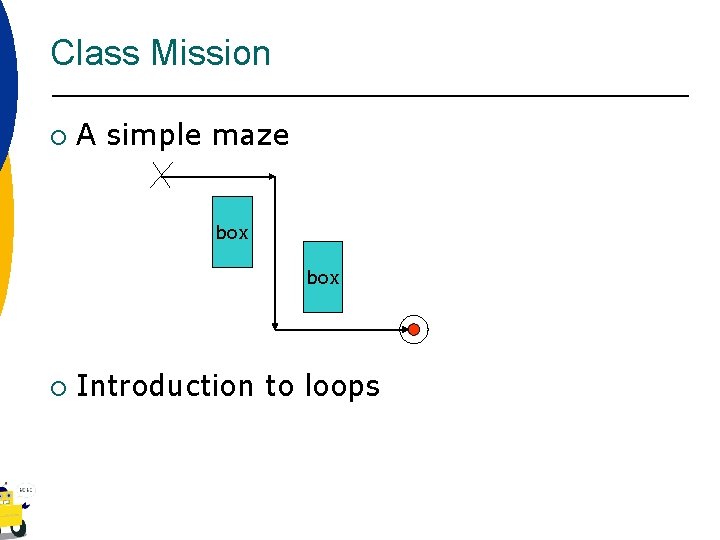

Class Mission ¡ A simple maze box ¡ Introduction to loops

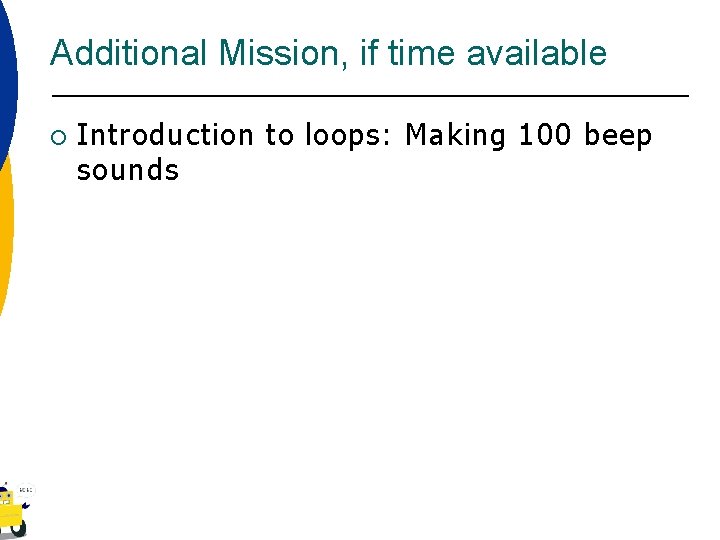

Additional Mission, if time available ¡ Introduction to loops: Making 100 beep sounds
- Slides: 24
