Introduction to Kinesiology

Kinesiology • Study of movement • Combination of anatomy, physiology, physics and geometry and relates them to human movement • Utilizes principles of mechanics, musculoskeletal anatomy & neuromuscular phisiology

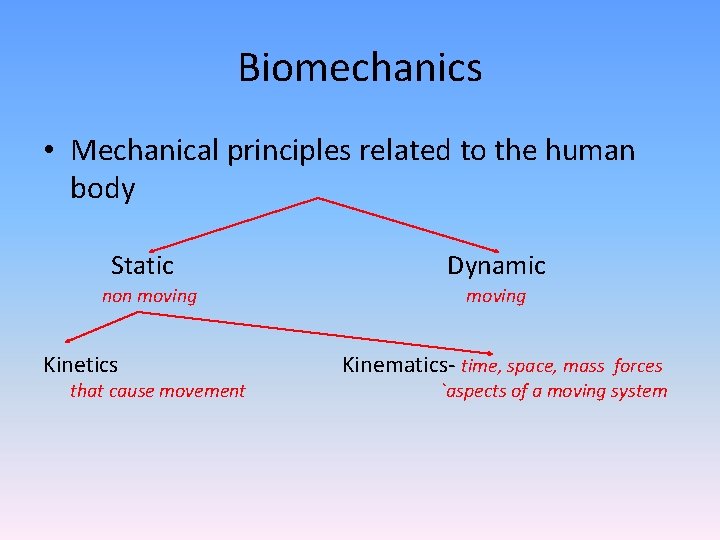

Biomechanics • Mechanical principles related to the human body Static non moving Kinetics that cause movement Dynamic moving Kinematics- time, space, mass forces `aspects of a moving system

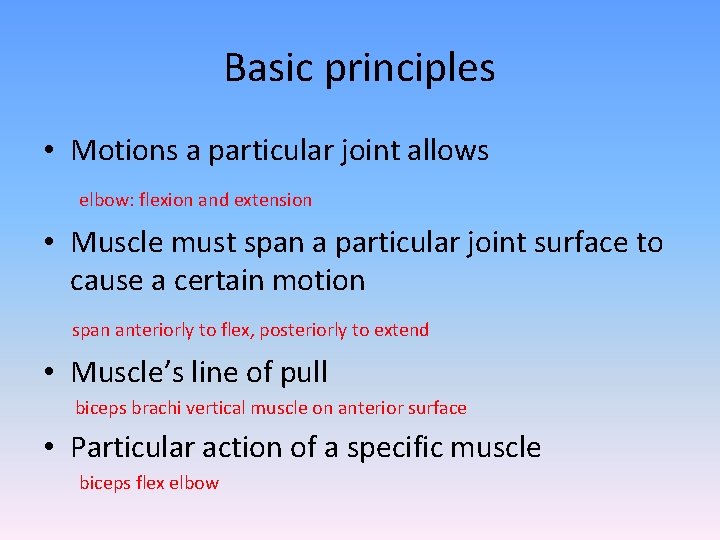

Basic principles • Motions a particular joint allows elbow: flexion and extension • Muscle must span a particular joint surface to cause a certain motion span anteriorly to flex, posteriorly to extend • Muscle’s line of pull biceps brachi vertical muscle on anterior surface • Particular action of a specific muscle biceps flex elbow

Anatomical Position Anatomical position Standing upright Eyes facing forward Feet parallel and close together Arms at side of body Palms facing forward Fundamental position Same as anatomical position Except palms facing side of body

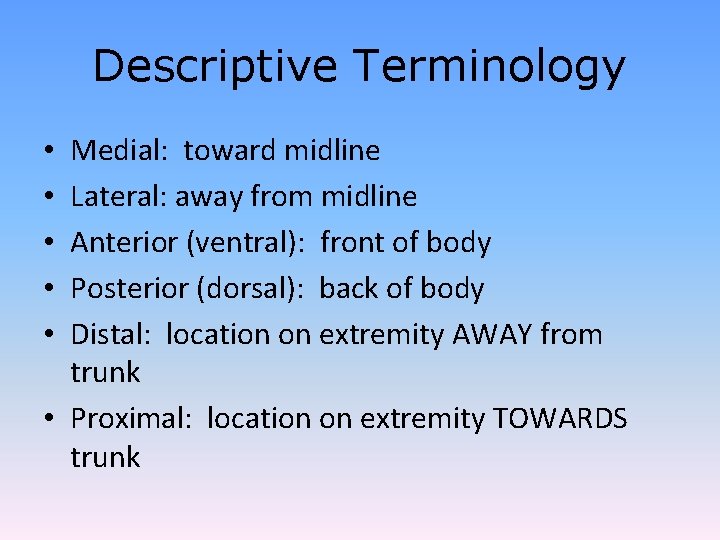

Descriptive Terminology Medial: toward midline Lateral: away from midline Anterior (ventral): front of body Posterior (dorsal): back of body Distal: location on extremity AWAY from trunk • Proximal: location on extremity TOWARDS trunk • • •

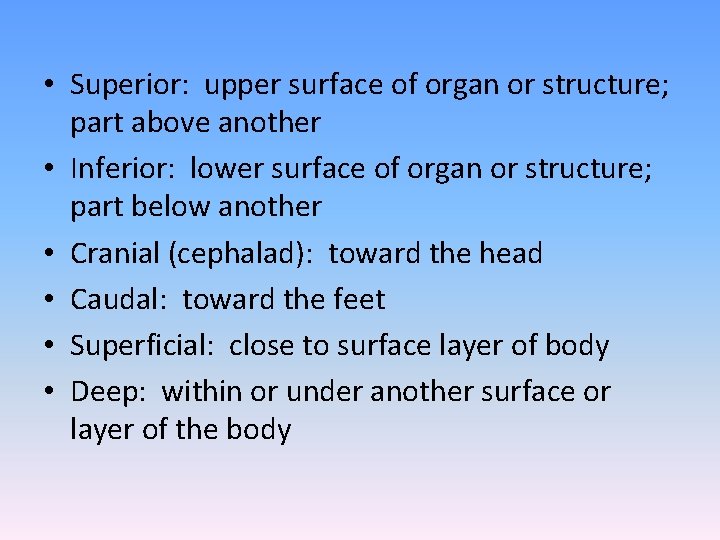

• Superior: upper surface of organ or structure; part above another • Inferior: lower surface of organ or structure; part below another • Cranial (cephalad): toward the head • Caudal: toward the feet • Superficial: close to surface layer of body • Deep: within or under another surface or layer of the body

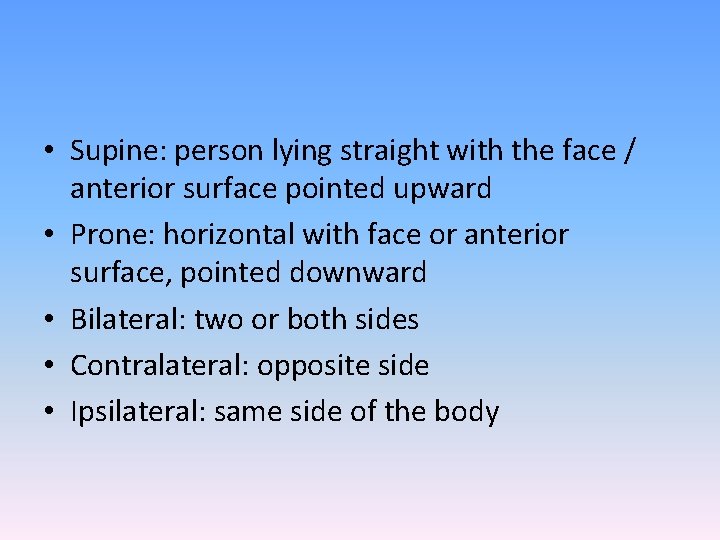

• Supine: person lying straight with the face / anterior surface pointed upward • Prone: horizontal with face or anterior surface, pointed downward • Bilateral: two or both sides • Contralateral: opposite side • Ipsilateral: same side of the body

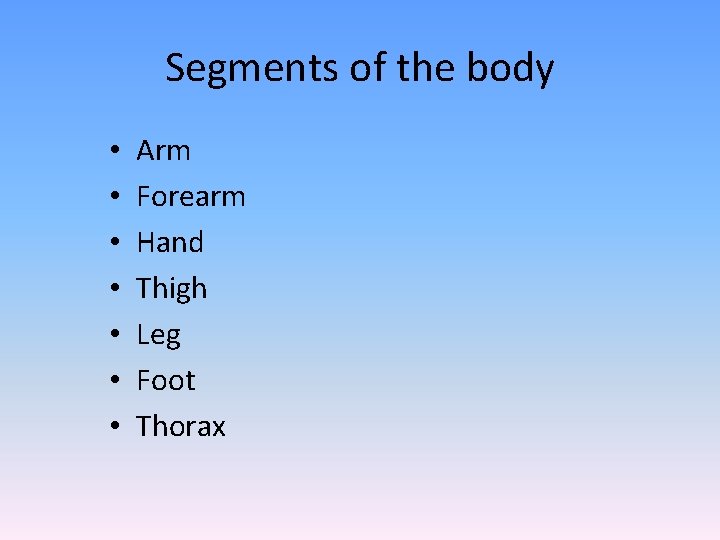

Segments of the body • • Arm Forearm Hand Thigh Leg Foot Thorax

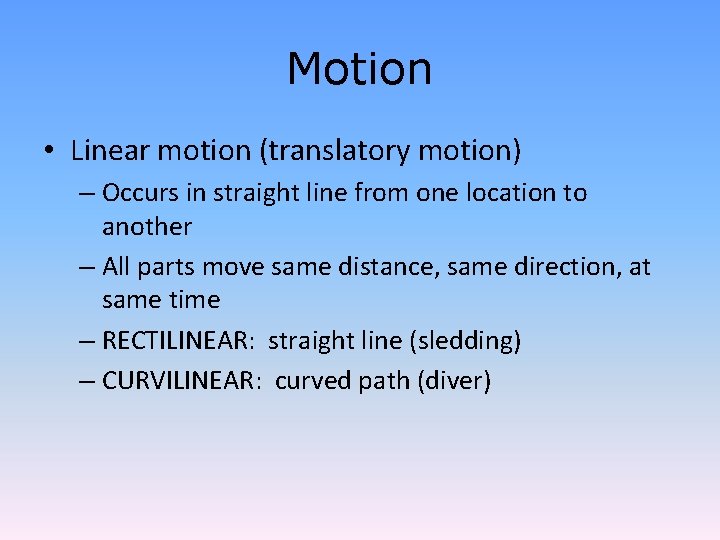

Motion • Linear motion (translatory motion) – Occurs in straight line from one location to another – All parts move same distance, same direction, at same time – RECTILINEAR: straight line (sledding) – CURVILINEAR: curved path (diver)

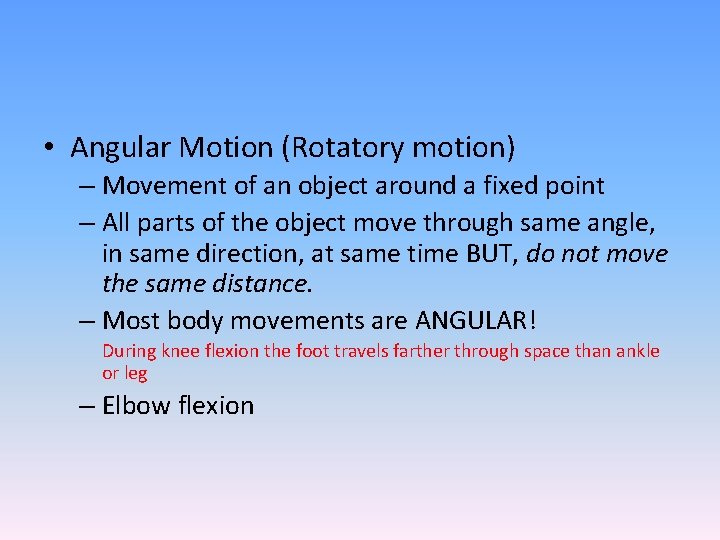

• Angular Motion (Rotatory motion) – Movement of an object around a fixed point – All parts of the object move through same angle, in same direction, at same time BUT, do not move the same distance. – Most body movements are ANGULAR! During knee flexion the foot travels farther through space than ankle or leg – Elbow flexion

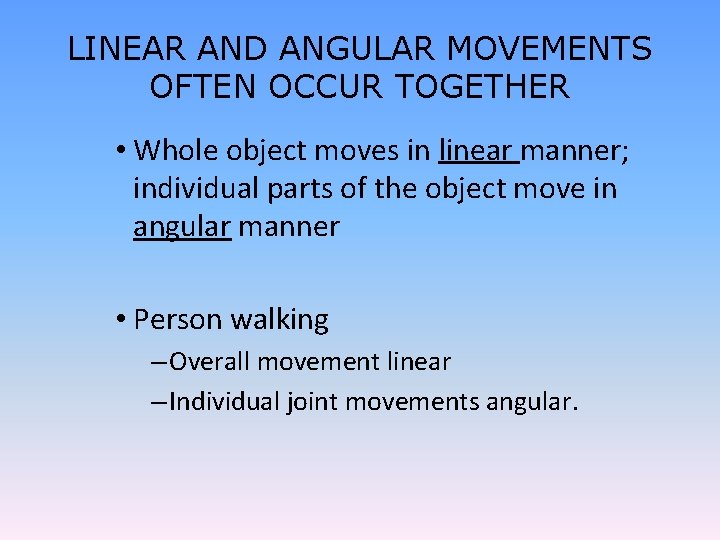

LINEAR AND ANGULAR MOVEMENTS OFTEN OCCUR TOGETHER • Whole object moves in linear manner; individual parts of the object move in angular manner • Person walking – Overall movement linear – Individual joint movements angular.

Joint Movements Osteokinematics Relationship of movement of bones around a joint axis Arthrokinematics relationship of joint surface movement

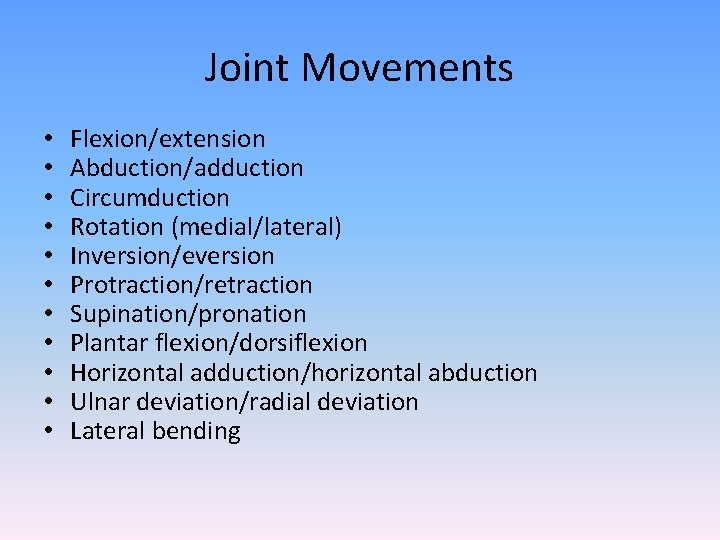

Joint Movements • • • Flexion/extension Abduction/adduction Circumduction Rotation (medial/lateral) Inversion/eversion Protraction/retraction Supination/pronation Plantar flexion/dorsiflexion Horizontal adduction/horizontal abduction Ulnar deviation/radial deviation Lateral bending

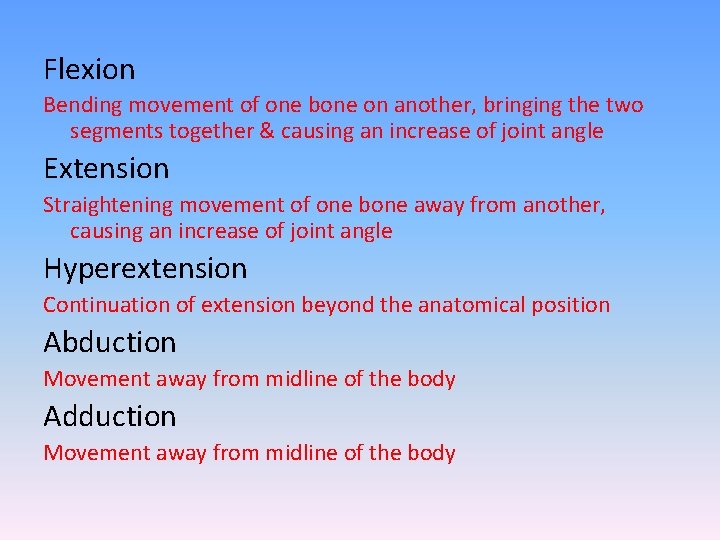

Flexion Bending movement of one bone on another, bringing the two segments together & causing an increase of joint angle Extension Straightening movement of one bone away from another, causing an increase of joint angle Hyperextension Continuation of extension beyond the anatomical position Abduction Movement away from midline of the body Adduction Movement away from midline of the body

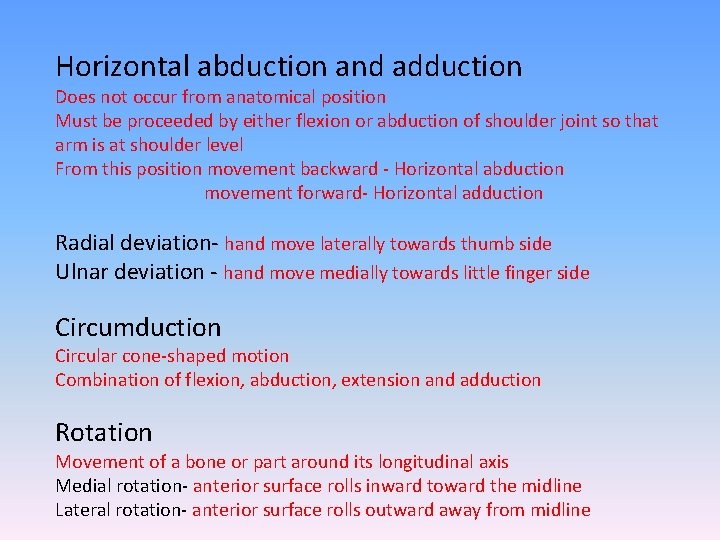

Horizontal abduction and adduction Does not occur from anatomical position Must be proceeded by either flexion or abduction of shoulder joint so that arm is at shoulder level From this position movement backward - Horizontal abduction movement forward- Horizontal adduction Radial deviation- hand move laterally towards thumb side Ulnar deviation - hand move medially towards little finger side Circumduction Circular cone-shaped motion Combination of flexion, abduction, extension and adduction Rotation Movement of a bone or part around its longitudinal axis Medial rotation- anterior surface rolls inward toward the midline Lateral rotation- anterior surface rolls outward away from midline

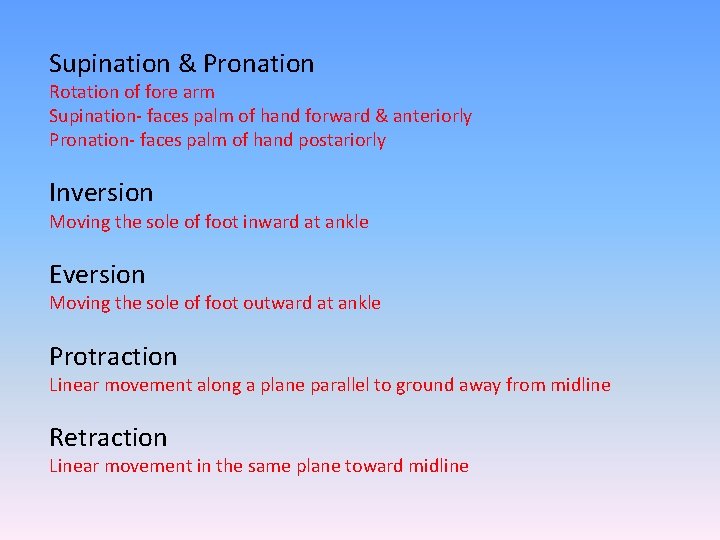

Supination & Pronation Rotation of fore arm Supination- faces palm of hand forward & anteriorly Pronation- faces palm of hand postariorly Inversion Moving the sole of foot inward at ankle Eversion Moving the sole of foot outward at ankle Protraction Linear movement along a plane parallel to ground away from midline Retraction Linear movement in the same plane toward midline

Thank You
