Introduction to Information Retrieval Web search basics Introduction

Introduction to Information Retrieval Web search basics

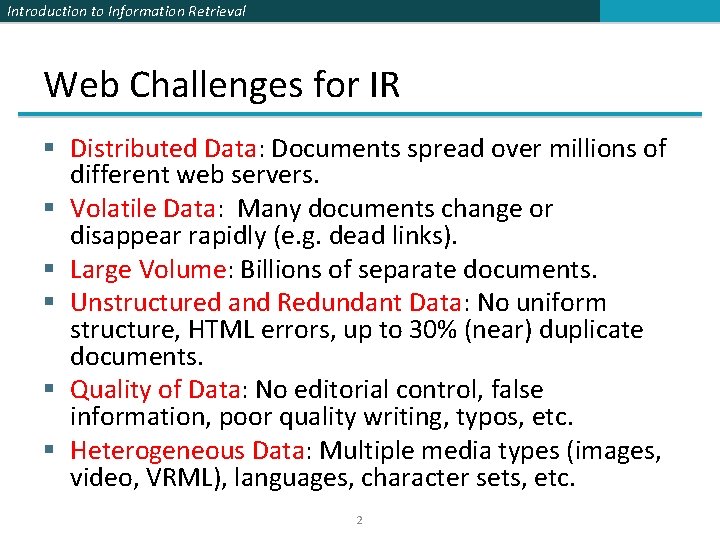

Introduction to Information Retrieval Web Challenges for IR § Distributed Data: Documents spread over millions of different web servers. § Volatile Data: Many documents change or disappear rapidly (e. g. dead links). § Large Volume: Billions of separate documents. § Unstructured and Redundant Data: No uniform structure, HTML errors, up to 30% (near) duplicate documents. § Quality of Data: No editorial control, false information, poor quality writing, typos, etc. § Heterogeneous Data: Multiple media types (images, video, VRML), languages, character sets, etc. 2

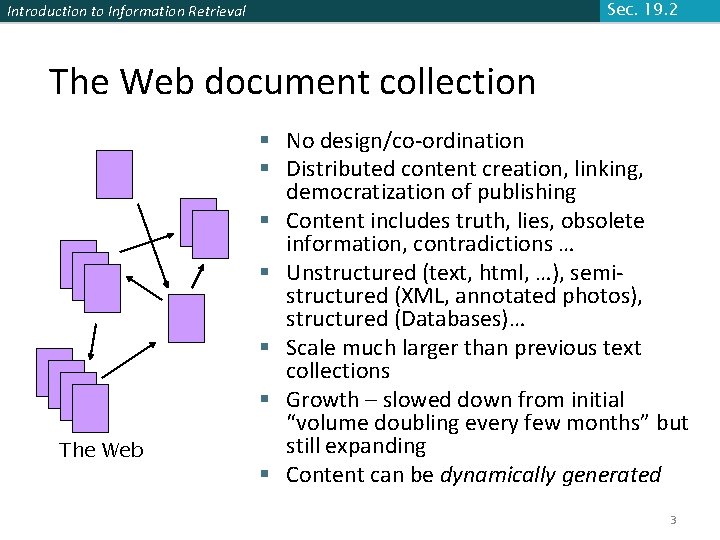

Sec. 19. 2 Introduction to Information Retrieval The Web document collection The Web § No design/co-ordination § Distributed content creation, linking, democratization of publishing § Content includes truth, lies, obsolete information, contradictions … § Unstructured (text, html, …), semistructured (XML, annotated photos), structured (Databases)… § Scale much larger than previous text collections § Growth – slowed down from initial “volume doubling every few months” but still expanding § Content can be dynamically generated 3

Introduction to Information Retrieval Web Search Using IR Web Spider Document corpus IR System Query 1. Page 1 2. Page 2 3. Page 3. . 4 Ranked Documents

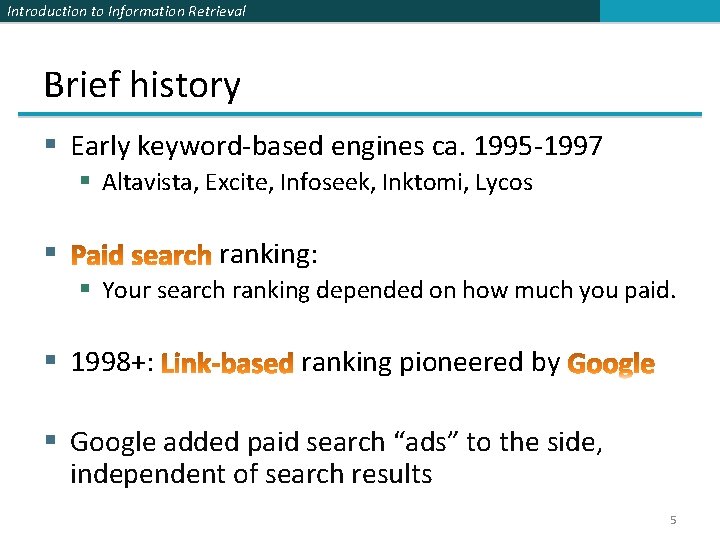

Introduction to Information Retrieval Brief history § Early keyword-based engines ca. 1995 -1997 § Altavista, Excite, Infoseek, Inktomi, Lycos ranking: § § Your search ranking depended on how much you paid. § 1998+: ranking pioneered by § Google added paid search “ads” to the side, independent of search results 5

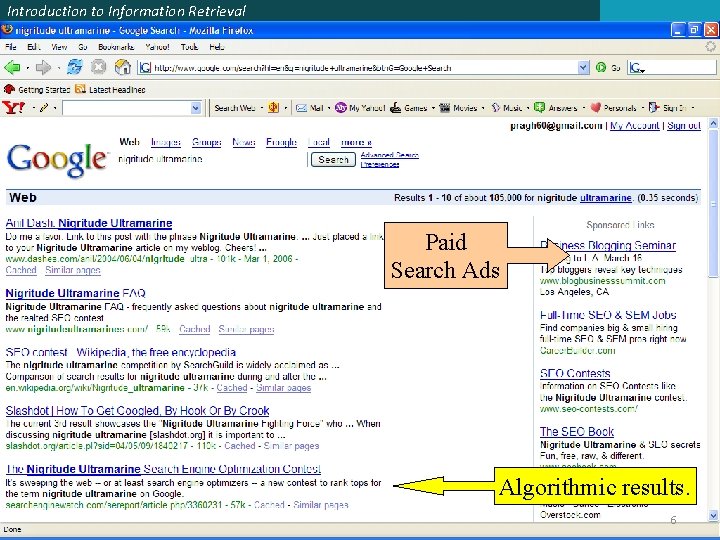

Introduction to Information Retrieval Paid Search Ads Algorithmic results. 6

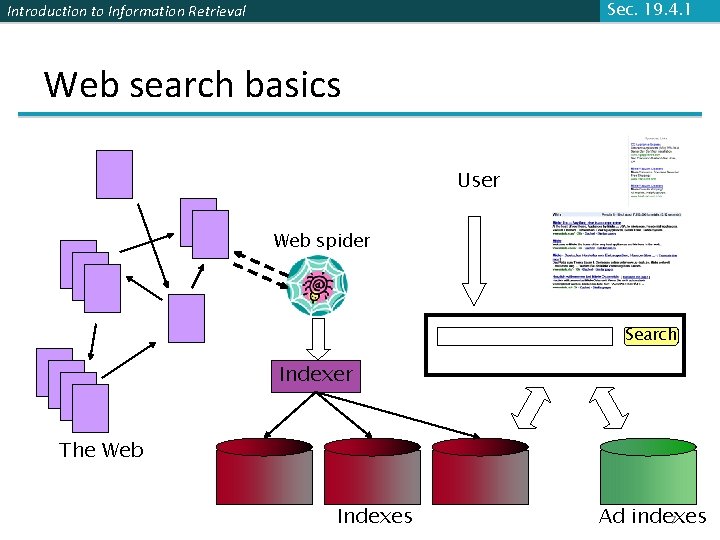

Sec. 19. 4. 1 Introduction to Information Retrieval Web search basics User Web spider Search Indexer The Web Indexes Ad indexes 7

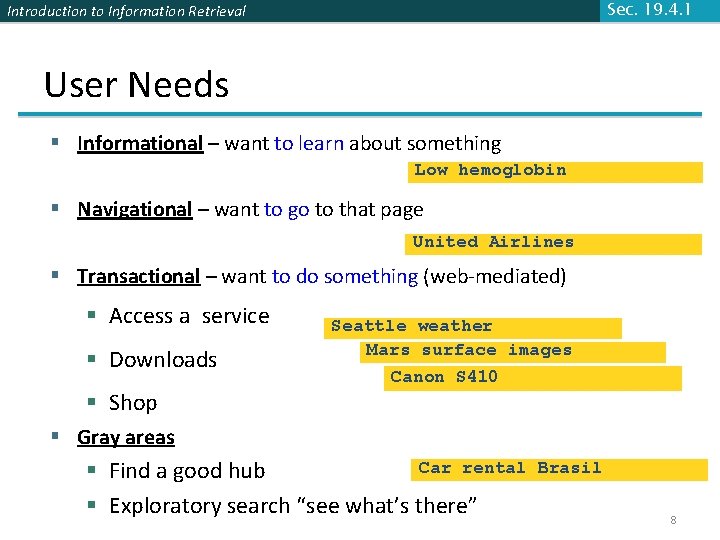

Sec. 19. 4. 1 Introduction to Information Retrieval User Needs § Informational – want to learn about something Low hemoglobin § Navigational – want to go to that page United Airlines § Transactional – want to do something (web-mediated) § Access a service § Downloads § Shop Seattle weather Mars surface images Canon S 410 § Gray areas Car rental § Find a good hub § Exploratory search “see what’s there” Brasil 8

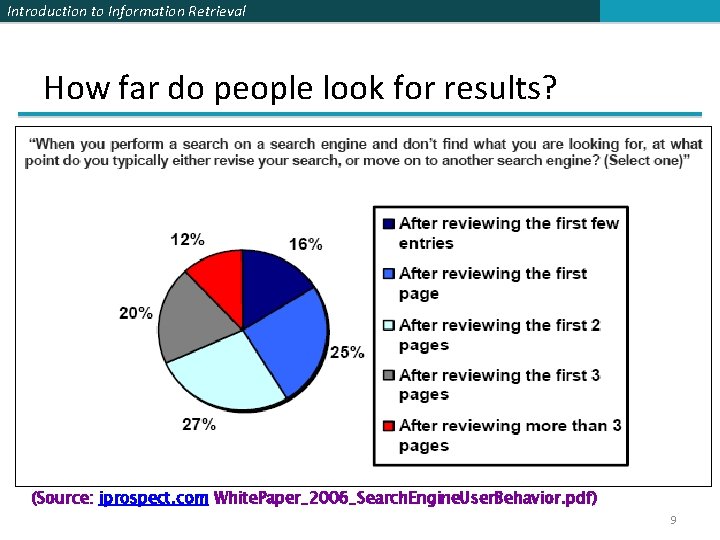

Introduction to Information Retrieval How far do people look for results? (Source: iprospect. com White. Paper_2006_Search. Engine. User. Behavior. pdf) 9

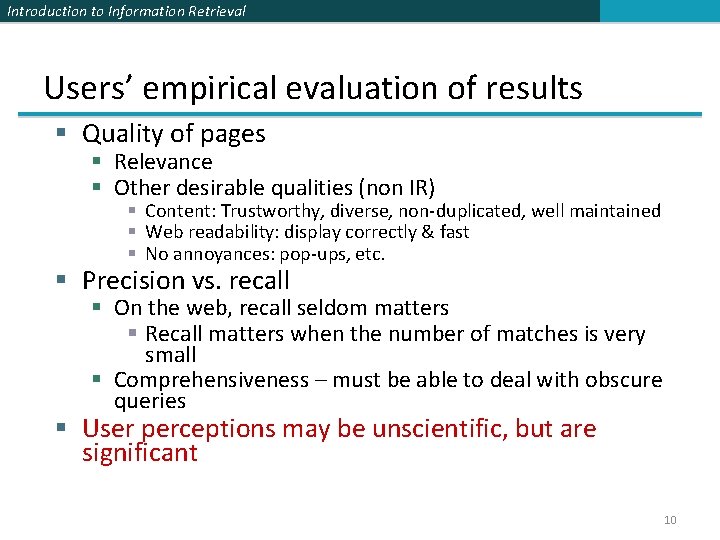

Introduction to Information Retrieval Users’ empirical evaluation of results § Quality of pages § Relevance § Other desirable qualities (non IR) § Content: Trustworthy, diverse, non-duplicated, well maintained § Web readability: display correctly & fast § No annoyances: pop-ups, etc. § Precision vs. recall § On the web, recall seldom matters § Recall matters when the number of matches is very small § Comprehensiveness – must be able to deal with obscure queries § User perceptions may be unscientific, but are significant 10

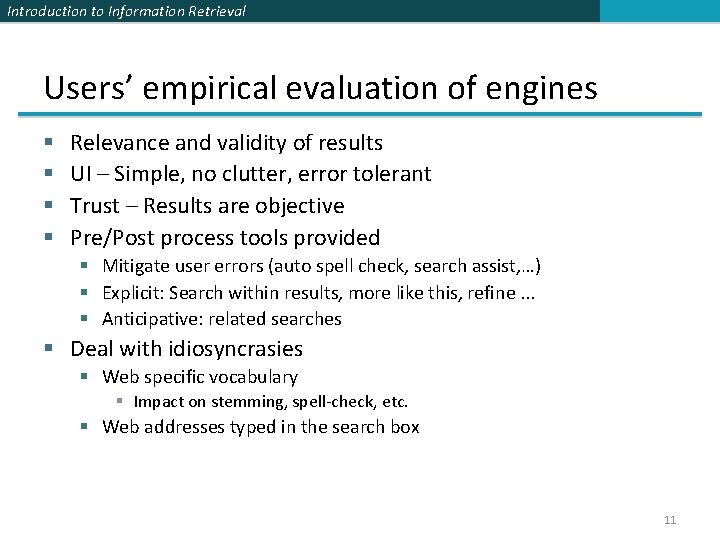

Introduction to Information Retrieval Users’ empirical evaluation of engines § § Relevance and validity of results UI – Simple, no clutter, error tolerant Trust – Results are objective Pre/Post process tools provided § Mitigate user errors (auto spell check, search assist, …) § Explicit: Search within results, more like this, refine. . . § Anticipative: related searches § Deal with idiosyncrasies § Web specific vocabulary § Impact on stemming, spell-check, etc. § Web addresses typed in the search box 11

Introduction to Information Retrieval Sec. 19. 6 Spidering 12

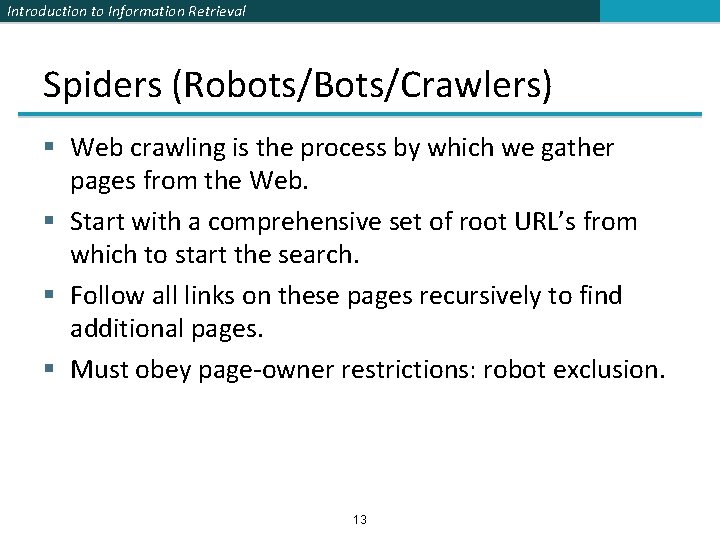

Introduction to Information Retrieval Spiders (Robots/Bots/Crawlers) § Web crawling is the process by which we gather pages from the Web. § Start with a comprehensive set of root URL’s from which to start the search. § Follow all links on these pages recursively to find additional pages. § Must obey page-owner restrictions: robot exclusion. 13

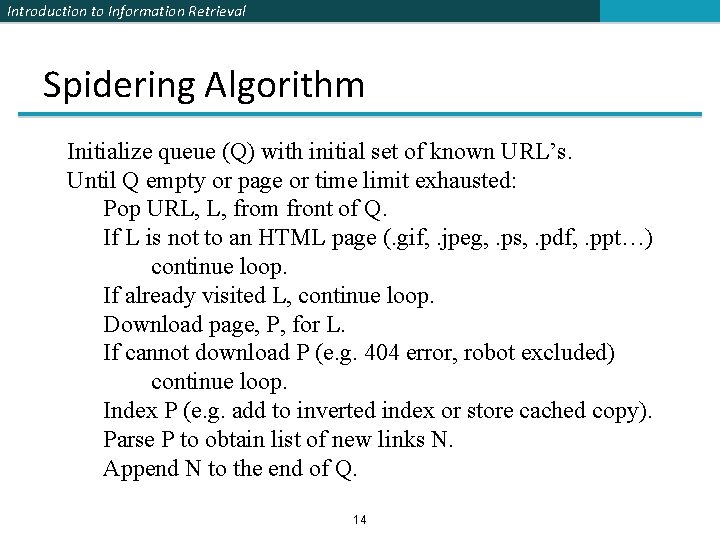

Introduction to Information Retrieval Spidering Algorithm Initialize queue (Q) with initial set of known URL’s. Until Q empty or page or time limit exhausted: Pop URL, L, from front of Q. If L is not to an HTML page (. gif, . jpeg, . ps, . pdf, . ppt…) continue loop. If already visited L, continue loop. Download page, P, for L. If cannot download P (e. g. 404 error, robot excluded) continue loop. Index P (e. g. add to inverted index or store cached copy). Parse P to obtain list of new links N. Append N to the end of Q. 14

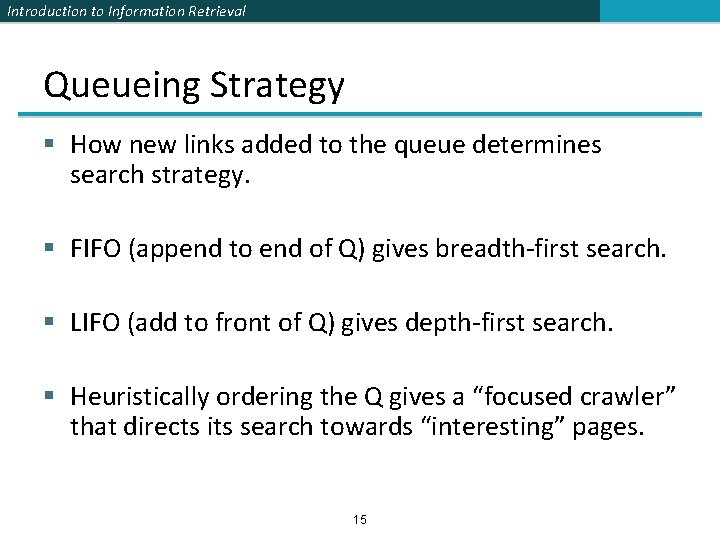

Introduction to Information Retrieval Queueing Strategy § How new links added to the queue determines search strategy. § FIFO (append to end of Q) gives breadth-first search. § LIFO (add to front of Q) gives depth-first search. § Heuristically ordering the Q gives a “focused crawler” that directs its search towards “interesting” pages. 15

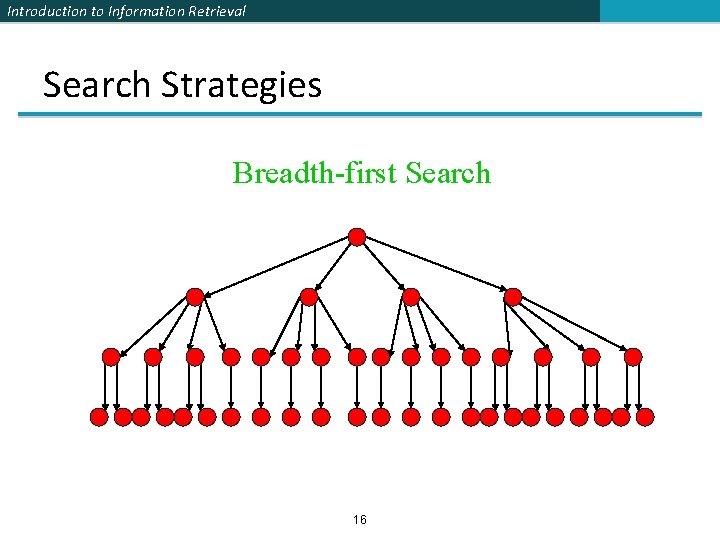

Introduction to Information Retrieval Search Strategies Breadth-first Search 16

Introduction to Information Retrieval Search Strategies (cont) Depth-first Search 17

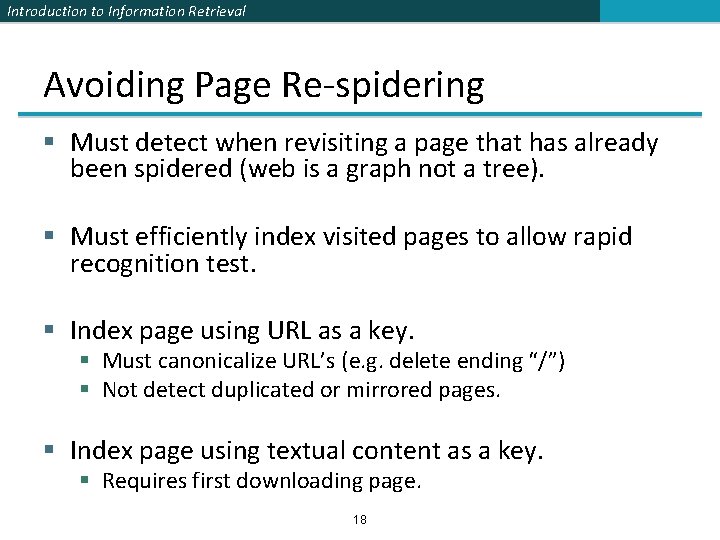

Introduction to Information Retrieval Avoiding Page Re-spidering § Must detect when revisiting a page that has already been spidered (web is a graph not a tree). § Must efficiently index visited pages to allow rapid recognition test. § Index page using URL as a key. § Must canonicalize URL’s (e. g. delete ending “/”) § Not detect duplicated or mirrored pages. § Index page using textual content as a key. § Requires first downloading page. 18

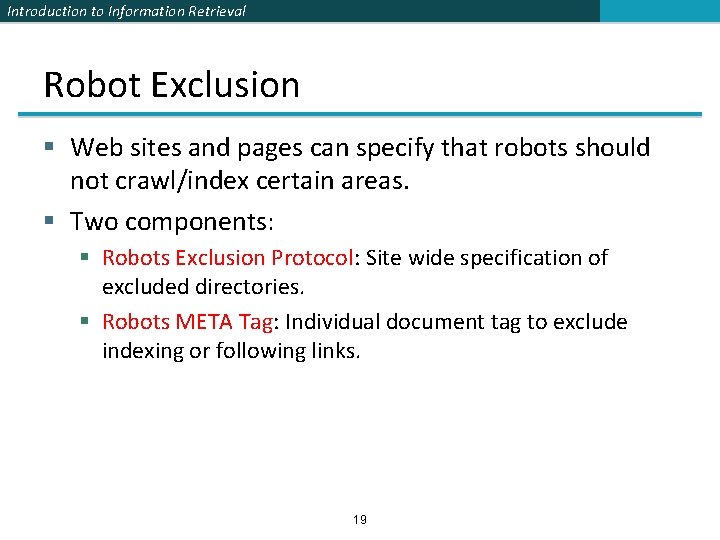

Introduction to Information Retrieval Robot Exclusion § Web sites and pages can specify that robots should not crawl/index certain areas. § Two components: § Robots Exclusion Protocol: Site wide specification of excluded directories. § Robots META Tag: Individual document tag to exclude indexing or following links. 19

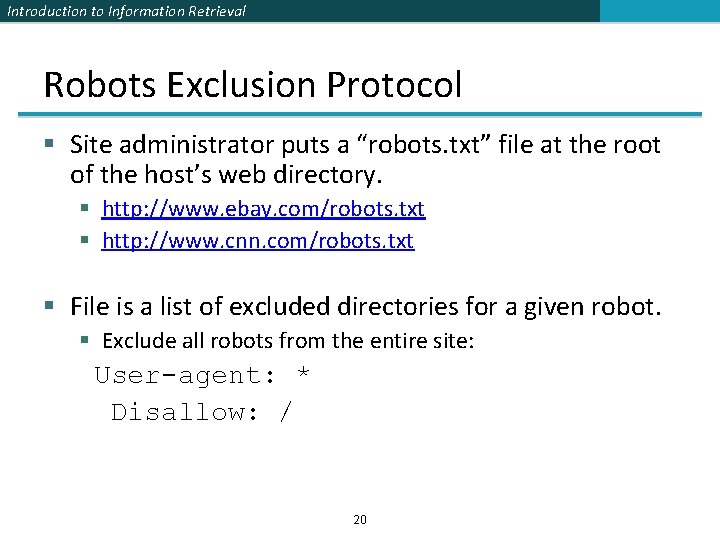

Introduction to Information Retrieval Robots Exclusion Protocol § Site administrator puts a “robots. txt” file at the root of the host’s web directory. § http: //www. ebay. com/robots. txt § http: //www. cnn. com/robots. txt § File is a list of excluded directories for a given robot. § Exclude all robots from the entire site: User-agent: * Disallow: / 20

Introduction to Information Retrieval Robot Exclusion Protocol Examples § Exclude specific directories: User-agent: * Disallow: /tmp/ Disallow: /cgi-bin/ Disallow: /users/paranoid/ § Exclude a specific robot: User-agent: Google. Bot Disallow: / § Allow a specific robot: User-agent: Google. Bot Disallow: User-agent: * Disallow: / 21

Introduction to Information Retrieval Keeping Spidered Pages Up to Date § Web is very dynamic: many new pages, updated pages, deleted pages, etc. § Periodically check spidered pages for updates and deletions: § Just look at header info (e. g. META tags on last update) to determine if page has changed, only reload entire page if needed. § Track how often each page is updated and preferentially return to pages which are historically more dynamic. § Preferentially update pages that are accessed more often to optimize freshness of more popular pages. 22

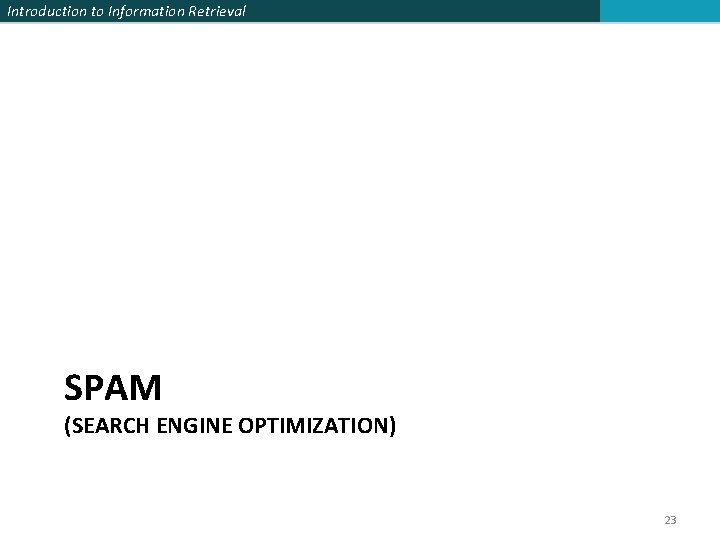

Introduction to Information Retrieval SPAM (SEARCH ENGINE OPTIMIZATION) 23

Introduction to Information Retrieval Sec. 19. 2. 2 The trouble with paid search ads § It costs money. What’s the alternative? § Search Engine Optimization: § “Tuning” your web page to rank highly in the algorithmic search results for select keywords § Alternative to paying for placement § Thus, intrinsically a marketing function § Performed by companies, webmasters and consultants (“Search engine optimizers”) for their clients § Some perfectly legitimate, some very shady 24

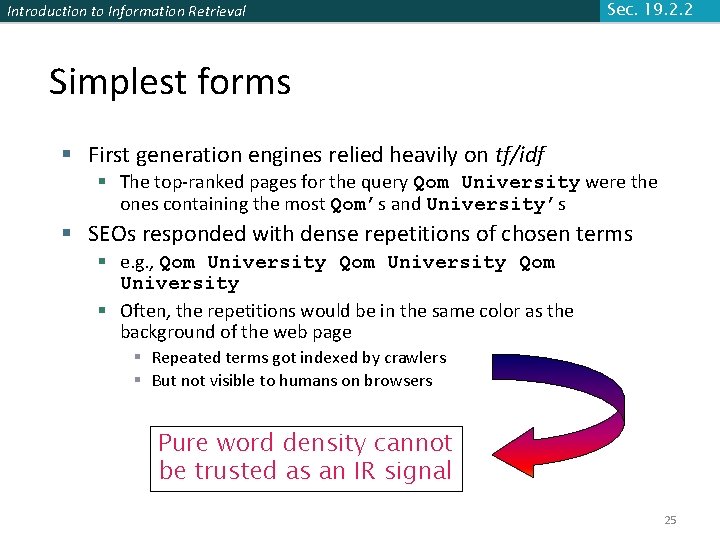

Introduction to Information Retrieval Sec. 19. 2. 2 Simplest forms § First generation engines relied heavily on tf/idf § The top-ranked pages for the query Qom University were the ones containing the most Qom’s and University’s § SEOs responded with dense repetitions of chosen terms § e. g. , Qom University § Often, the repetitions would be in the same color as the background of the web page § Repeated terms got indexed by crawlers § But not visible to humans on browsers Pure word density cannot be trusted as an IR signal 25

Introduction to Information Retrieval Sec. 19. 2. 2 Cloaking § Serve fake content to search engine spider 26

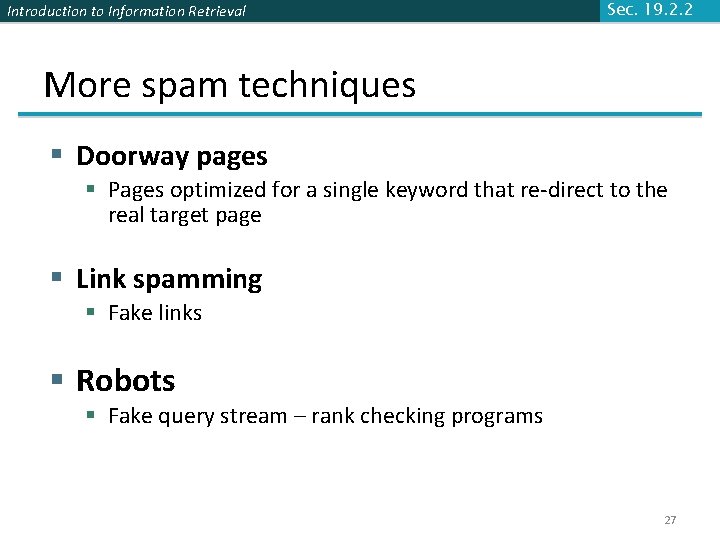

Introduction to Information Retrieval Sec. 19. 2. 2 More spam techniques § Doorway pages § Pages optimized for a single keyword that re-direct to the real target page § Link spamming § Fake links § Robots § Fake query stream – rank checking programs 27

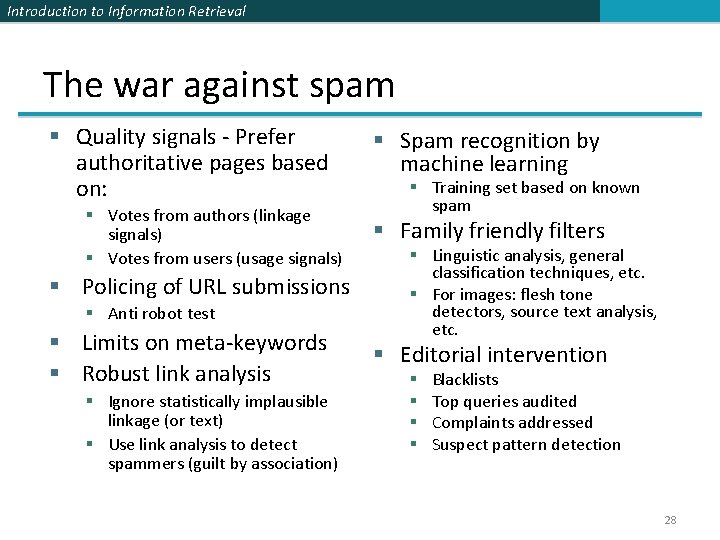

Introduction to Information Retrieval The war against spam § Quality signals - Prefer authoritative pages based on: § Votes from authors (linkage signals) § Votes from users (usage signals) § Policing of URL submissions § Anti robot test § Limits on meta-keywords § Robust link analysis § Ignore statistically implausible linkage (or text) § Use link analysis to detect spammers (guilt by association) § Spam recognition by machine learning § Training set based on known spam § Family friendly filters § Linguistic analysis, general classification techniques, etc. § For images: flesh tone detectors, source text analysis, etc. § Editorial intervention § § Blacklists Top queries audited Complaints addressed Suspect pattern detection 28

Introduction to Information Retrieval More on spam § Web search engines have policies on SEO practices they tolerate/block § http: //help. yahoo. com/help/us/ysearch/index. html § http: //www. google. com/intl/en/webmasters/ § Adversarial IR: the unending (technical) battle between SEO’s and web search engines § Research http: //airweb. cse. lehigh. edu/ 29

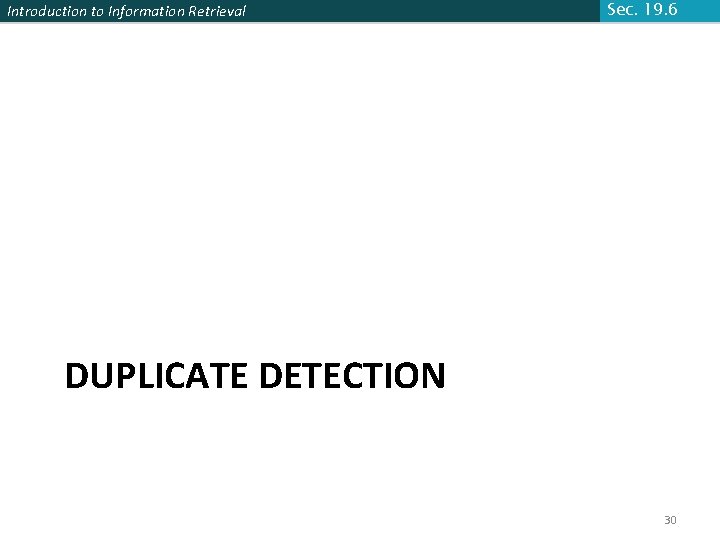

Introduction to Information Retrieval Sec. 19. 6 DUPLICATE DETECTION 30

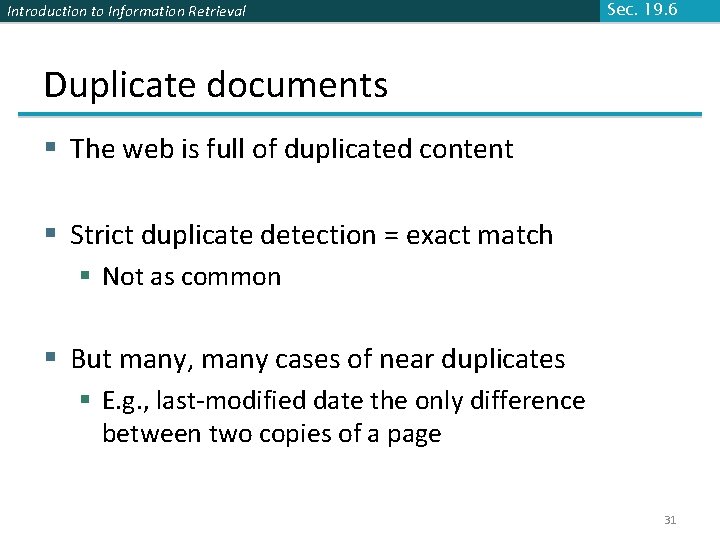

Introduction to Information Retrieval Sec. 19. 6 Duplicate documents § The web is full of duplicated content § Strict duplicate detection = exact match § Not as common § But many, many cases of near duplicates § E. g. , last-modified date the only difference between two copies of a page 31

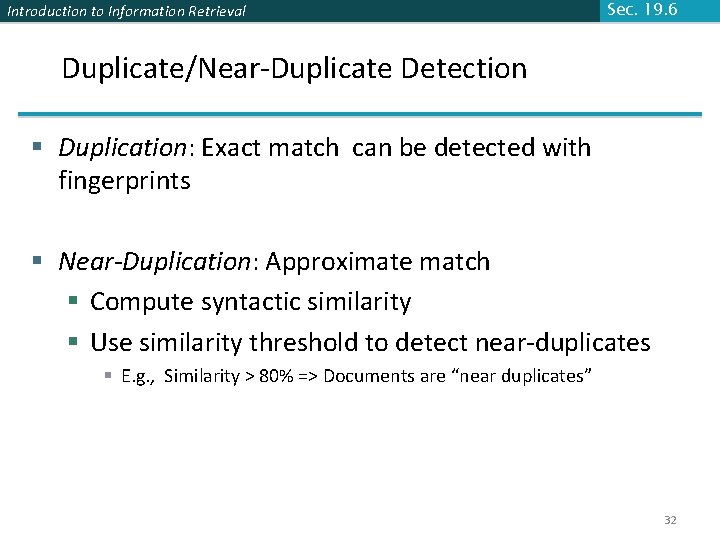

Introduction to Information Retrieval Sec. 19. 6 Duplicate/Near-Duplicate Detection § Duplication: Exact match can be detected with fingerprints § Near-Duplication: Approximate match § Compute syntactic similarity § Use similarity threshold to detect near-duplicates § E. g. , Similarity > 80% => Documents are “near duplicates” 32

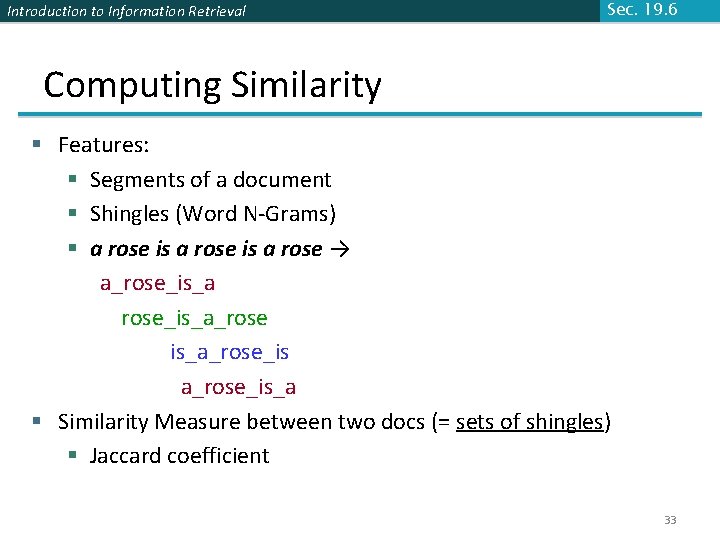

Introduction to Information Retrieval Sec. 19. 6 Computing Similarity § Features: § Segments of a document § Shingles (Word N-Grams) § a rose is a rose → a_rose_is_a_rose is_a_rose_is_a § Similarity Measure between two docs (= sets of shingles) § Jaccard coefficient 33
