Introduction to Geometry Shaders Patrick Cozzi Analytical Graphics

Introduction to Geometry Shaders Patrick Cozzi Analytical Graphics, Inc.

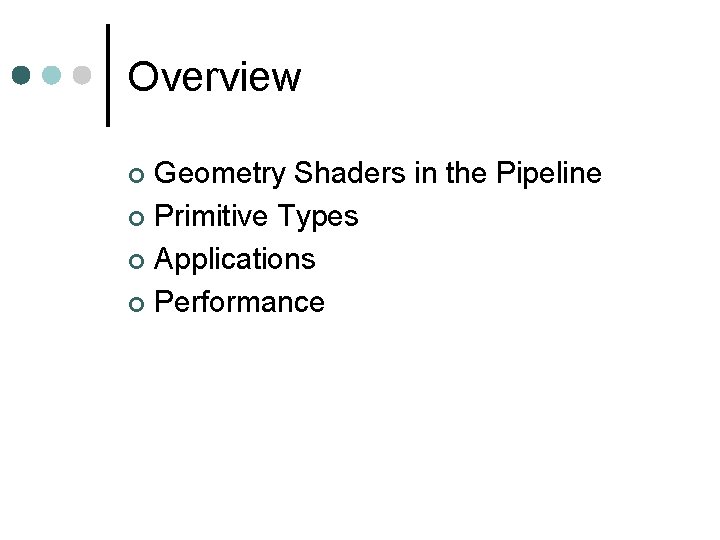

Overview Geometry Shaders in the Pipeline ¢ Primitive Types ¢ Applications ¢ Performance ¢

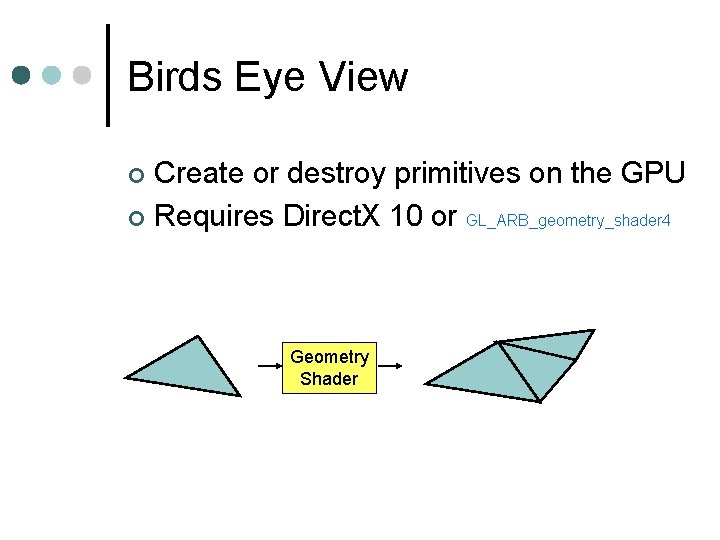

Birds Eye View Create or destroy primitives on the GPU ¢ Requires Direct. X 10 or GL_ARB_geometry_shader 4 ¢ Geometry Shader

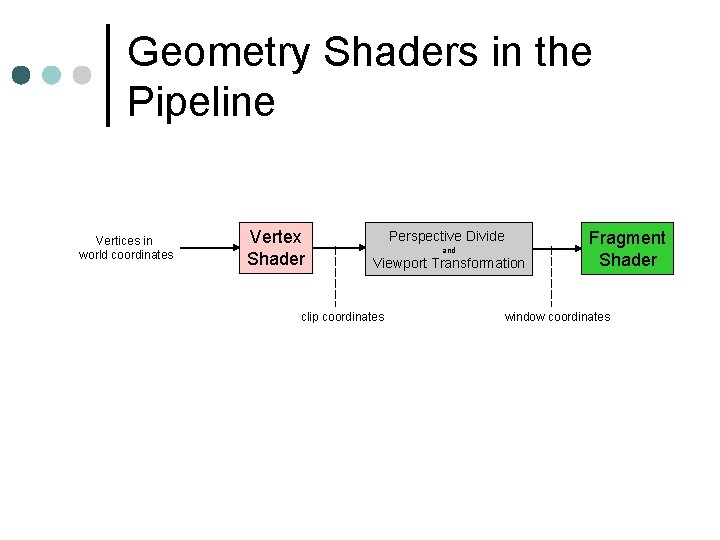

Geometry Shaders in the Pipeline Vertices in world coordinates Vertex Shader Perspective Divide Fragment and Shader Viewport Transformation clip coordinates Fragment Shader window coordinates

Geometry Shaders in the Pipeline window coordinates clip coordinates Vertex Shader clip coordinates Primitive Geometry Assembly Shader PD Geometry and Shader VT PD PD Fragment and Clipping Shader VT VT Fragment Shader

Primitive Types Geometry Shader Output primitives can be disconnected

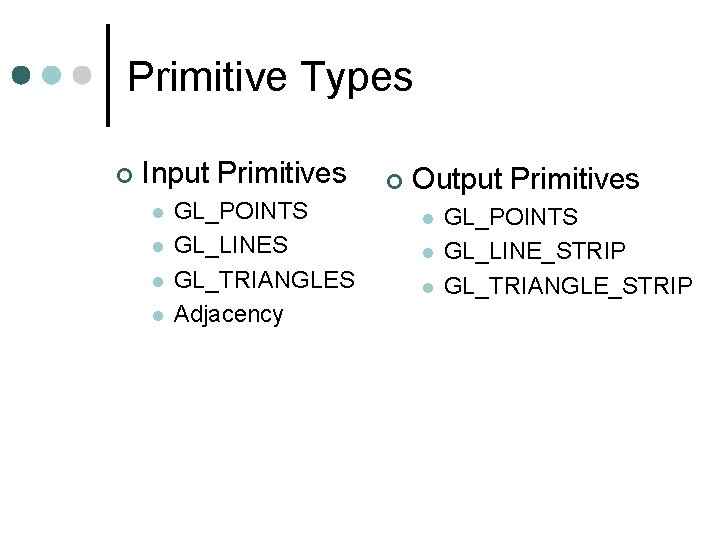

Primitive Types ¢ Input Primitives l l GL_POINTS GL_LINES GL_TRIANGLES Adjacency ¢ Output Primitives l l l GL_POINTS GL_LINE_STRIP GL_TRIANGLE_STRIP

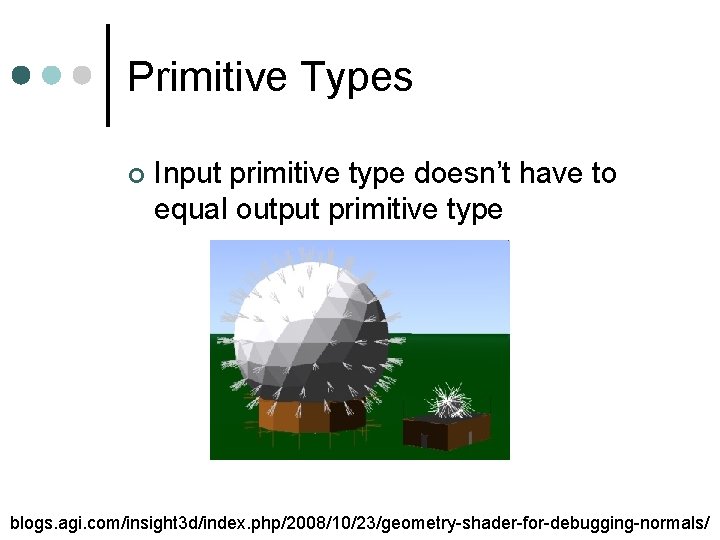

Primitive Types ¢ Input primitive type doesn’t have to equal output primitive type blogs. agi. com/insight 3 d/index. php/2008/10/23/geometry-shader-for-debugging-normals/

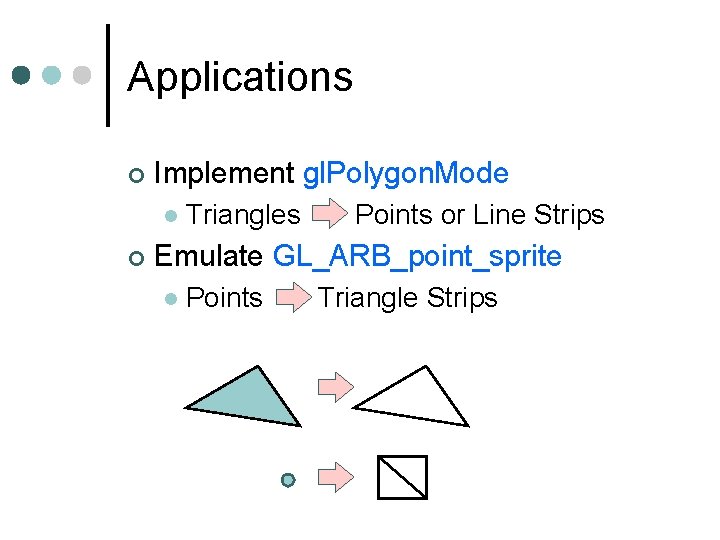

Applications ¢ Implement gl. Polygon. Mode l ¢ Triangles Points or Line Strips Emulate GL_ARB_point_sprite l Points Triangle Strips

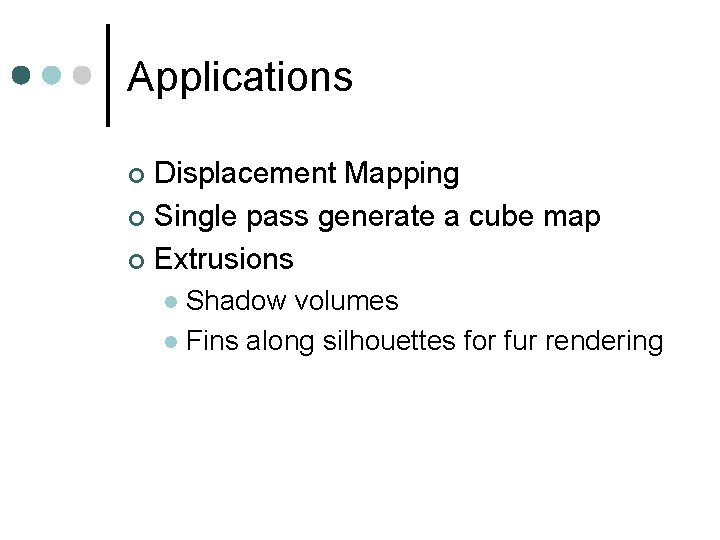

Applications Displacement Mapping ¢ Single pass generate a cube map ¢ Extrusions ¢ Shadow volumes l Fins along silhouettes for fur rendering l

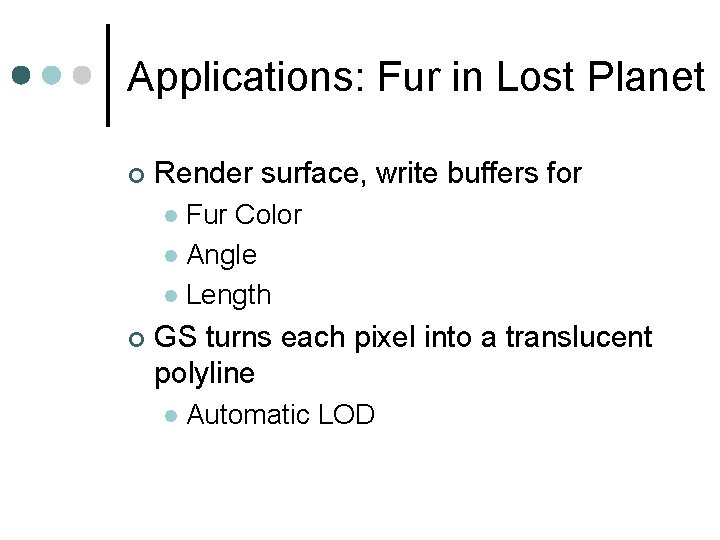

Applications: Fur in Lost Planet ¢ Render surface, write buffers for Fur Color l Angle l Length l ¢ GS turns each pixel into a translucent polyline l Automatic LOD

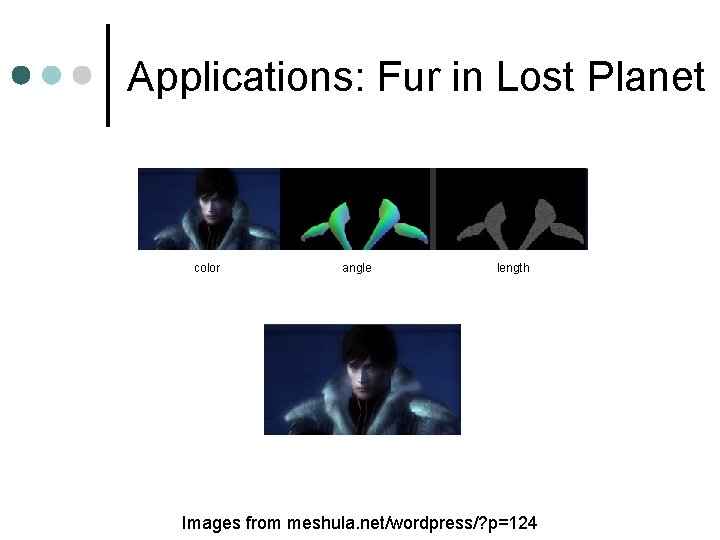

Applications: Fur in Lost Planet color angle length Images from meshula. net/wordpress/? p=124

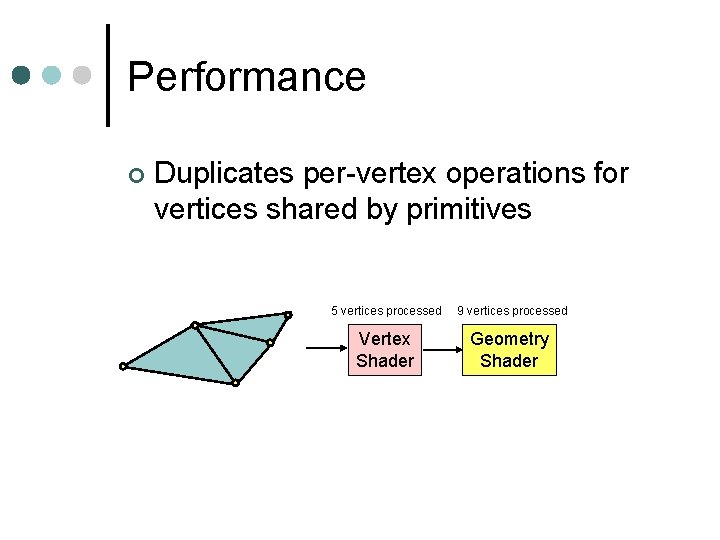

Performance ¢ Duplicates per-vertex operations for vertices shared by primitives 5 vertices processed 9 vertices processed Vertex Shader Geometry Shader

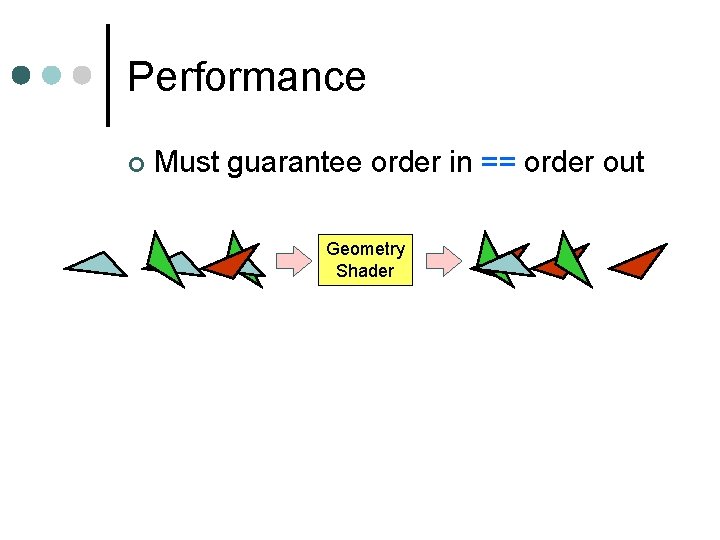

Performance ¢ Must guarantee order in == order out Geometry Shader

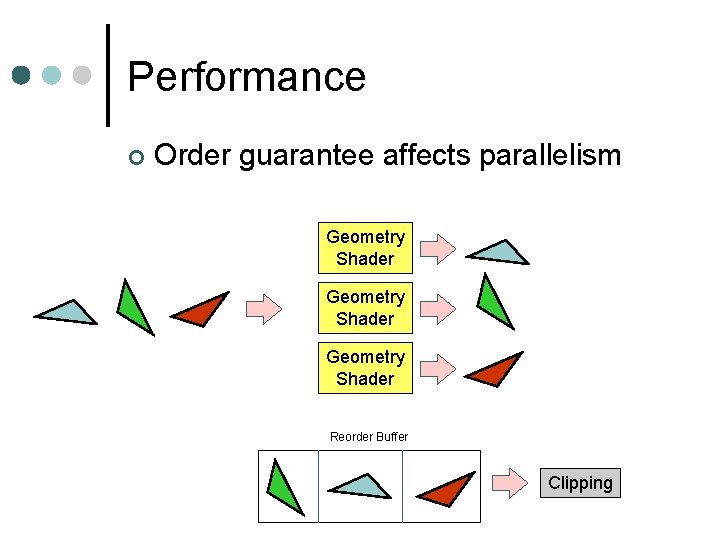

Performance ¢ Order guarantee affects parallelism Geometry Shader Reorder Buffer Clipping

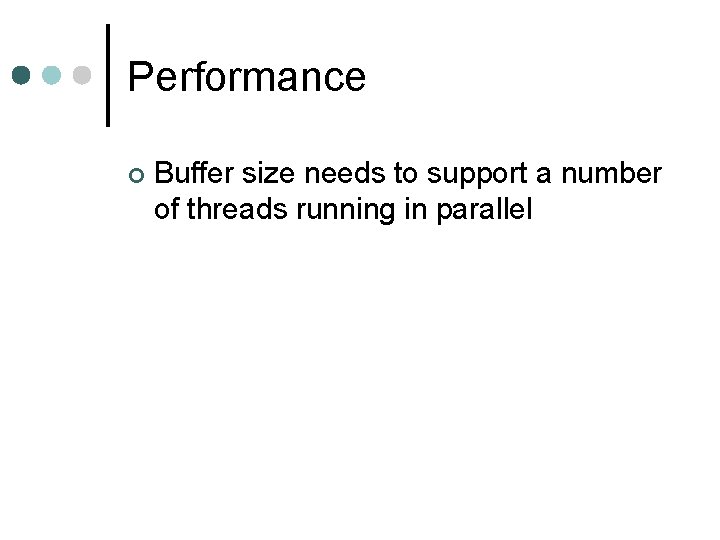

Performance ¢ Buffer size needs to support a number of threads running in parallel

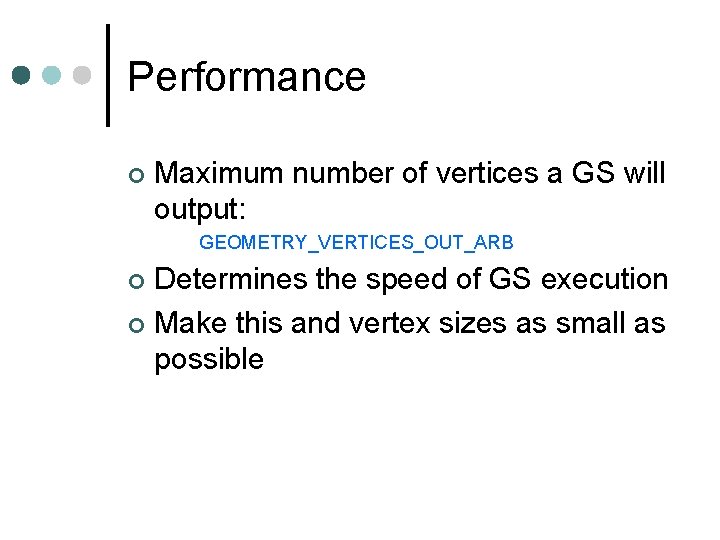

Performance ¢ Maximum number of vertices a GS will output: GEOMETRY_VERTICES_OUT_ARB Determines the speed of GS execution ¢ Make this and vertex sizes as small as possible ¢

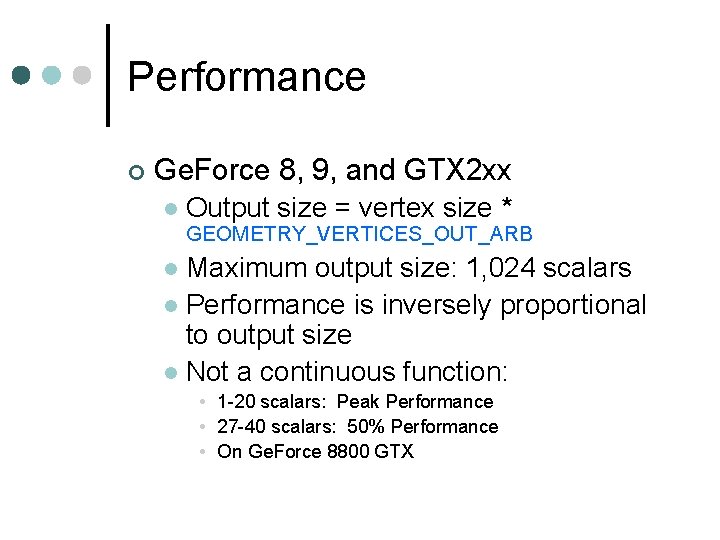

Performance ¢ Ge. Force 8, 9, and GTX 2 xx l Output size = vertex size * GEOMETRY_VERTICES_OUT_ARB Maximum output size: 1, 024 scalars l Performance is inversely proportional to output size l Not a continuous function: l • 1 -20 scalars: Peak Performance • 27 -40 scalars: 50% Performance • On Ge. Force 8800 GTX

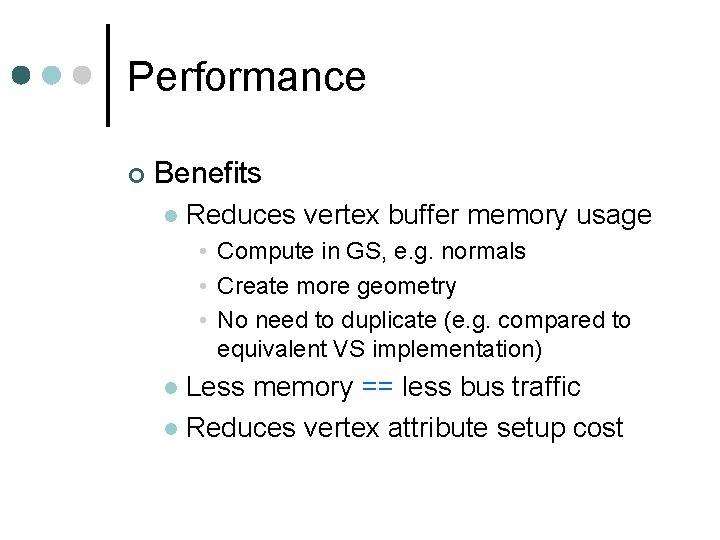

Performance ¢ Benefits l Reduces vertex buffer memory usage • Compute in GS, e. g. normals • Create more geometry • No need to duplicate (e. g. compared to equivalent VS implementation) Less memory == less bus traffic l Reduces vertex attribute setup cost l

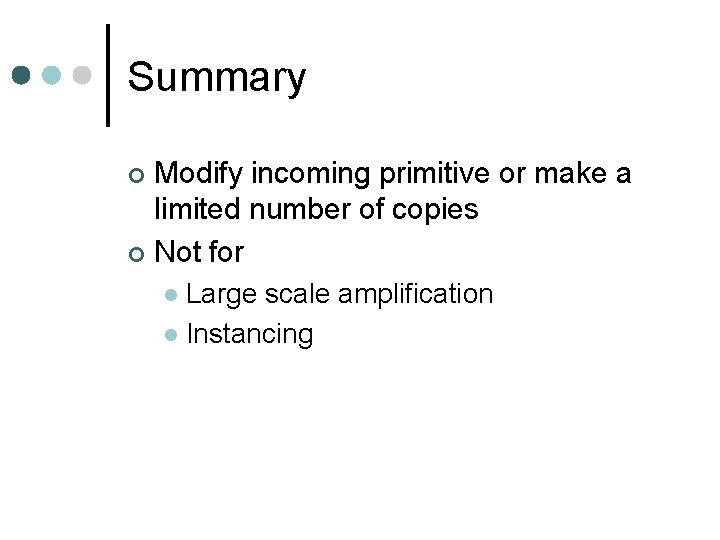

Summary Modify incoming primitive or make a limited number of copies ¢ Not for ¢ Large scale amplification l Instancing l

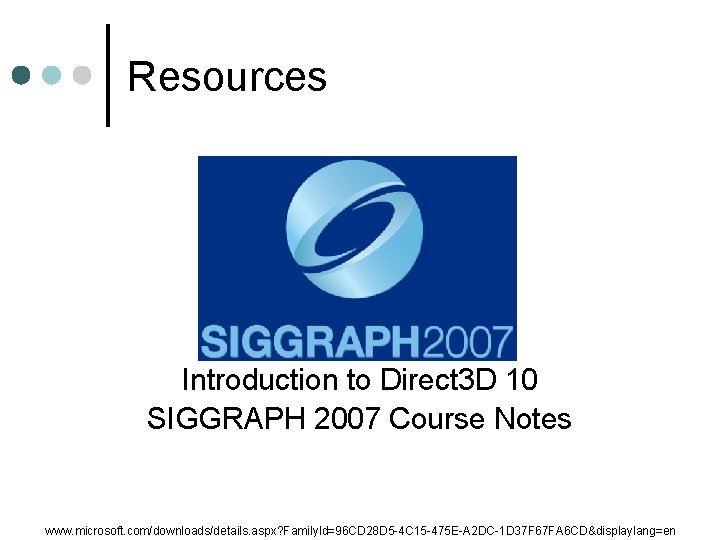

Resources Introduction to Direct 3 D 10 SIGGRAPH 2007 Course Notes www. microsoft. com/downloads/details. aspx? Family. Id=96 CD 28 D 5 -4 C 15 -475 E-A 2 DC-1 D 37 F 67 FA 6 CD&displaylang=en

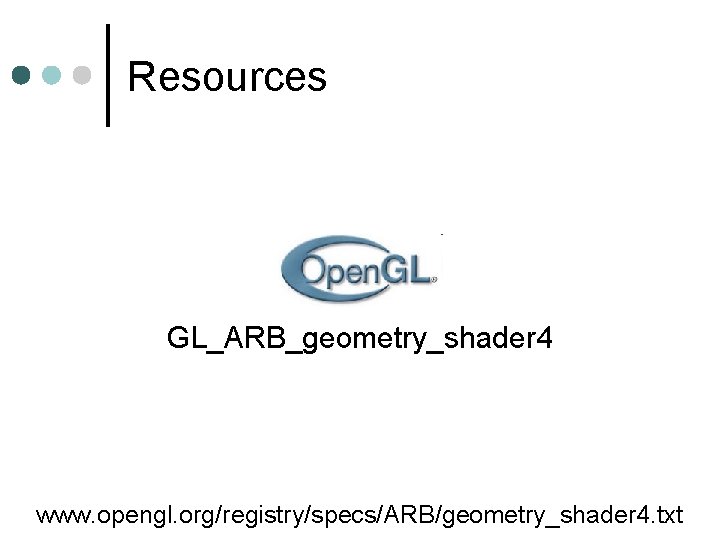

Resources GL_ARB_geometry_shader 4 www. opengl. org/registry/specs/ARB/geometry_shader 4. txt

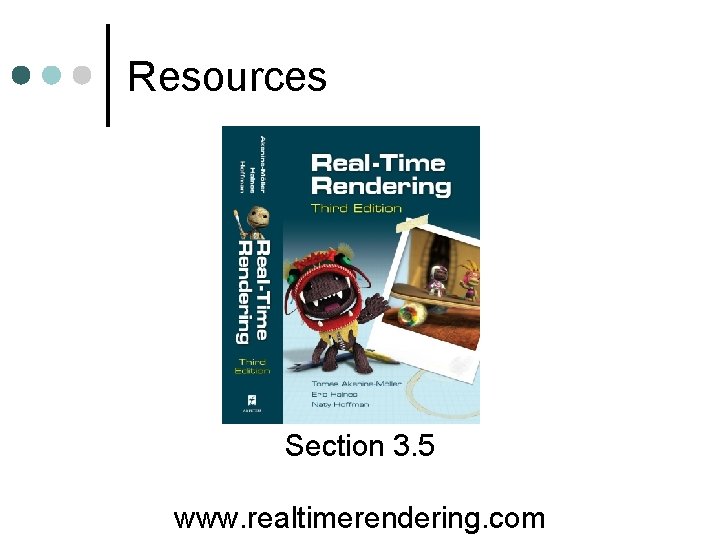

Resources Section 3. 5 www. realtimerendering. com

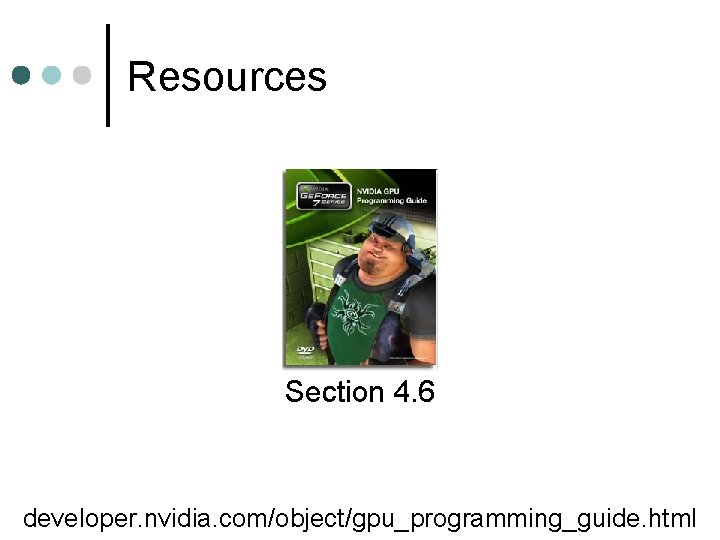

Resources Section 4. 6 developer. nvidia. com/object/gpu_programming_guide. html
