Introduction to Facility Design Chapter 1 S S

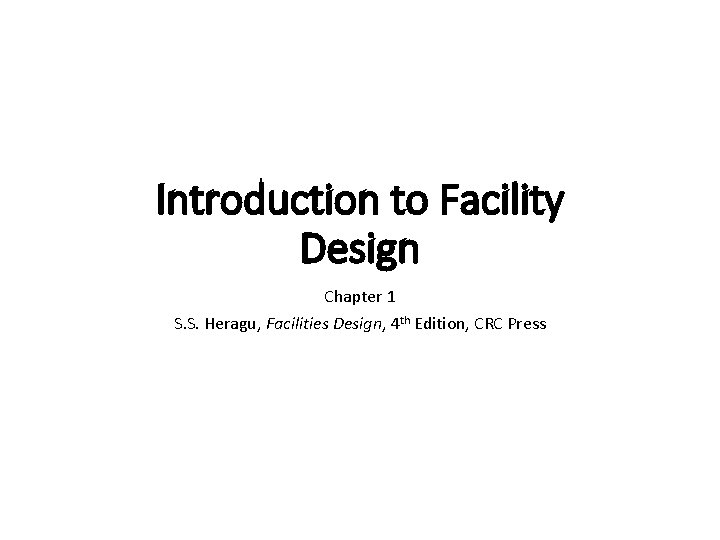

Introduction to Facility Design Chapter 1 S. S. Heragu, Facilities Design, 4 th Edition, CRC Press

Case Study – Ann, Inc • Founded in 1954 • 1, 000 Ann Taylor and Loft stores • DC in Louisville, KY – Why? • 60% of the items cross-docked – Why? • Many part-time workers – Why?

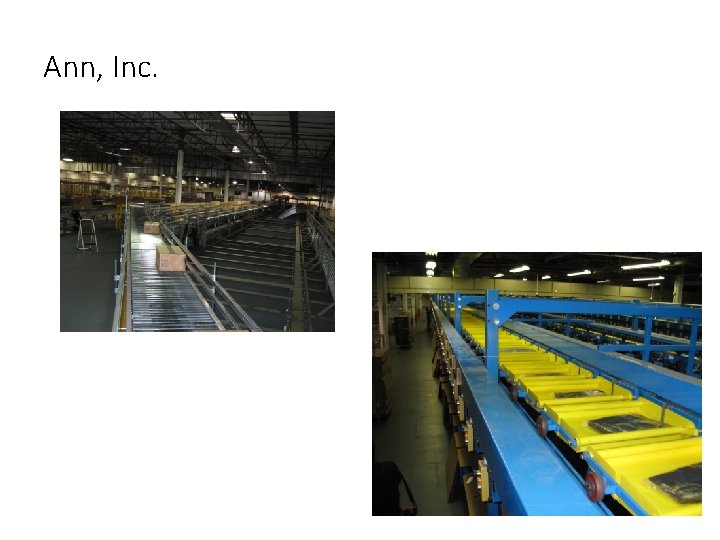

Ann, Inc.

Ann, Inc.

Ann, Inc.

Chronological list of facilities planning and design activities Date Event 4000 B. C. Egyptians developed expertise in finding suitable locations for pyramids according to their astrological calculations 100 B. C. - 100 A. D. Romans developed full-fledged methods for the construction of temples, arenas, and other buildings. Detailed planning of public and residential buildings 1700 - 1900 Industrial revolution period 1910 First industrial engineering text book Factory Organization and Administration published by Hugo Diemer. 1913 First moving automotive assembly line introduced by Henry Ford. 1954 1955 -1995 1959 1963 Early 1980 s 1985 -present 1990 s-present Quadratic assignment problem for micro- and macro-level location problems introduced by Koopmans and Beckman Optimal and heuristic algorithms for the quadratic assignment problem Systematic layout planning approach introduced by Muther CRAFT (Computerized relative allocation of facilities technique) introduced by Armour and Buffa The flexible manufacturing system concept is introduced and attention shifts towards achieving plant-wide flexibility via mediumvolume, medium-variety production using cellular manufacturing techniques Modern software for facilities design problems Research on new layout concepts including dynamic layouts, robust layouts, and reconfigurable layouts introduced to support mass customization techniques

Typical Design and Planning Problems

Levels of decisions • Strategic or Design or Long-term • Planning or Intermediate • Operational or short-term

Why is facilities layout important? • 30 -75% of product cost attributed to materials handling (Sule, 1991 and Tompkins et al. 2003) • Layout of facilities affects materials handling costs • Facilities includes machines, departments, workstations, locker rooms, service areas, etc.

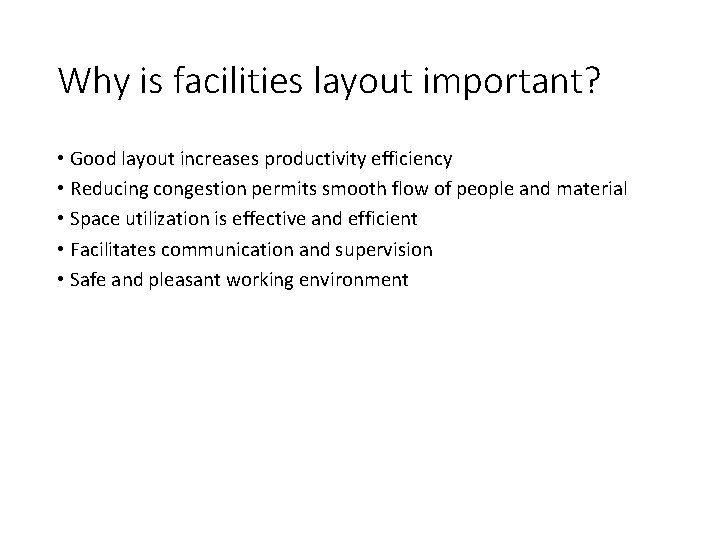

Why is facilities layout important? • Good layout increases productivity efficiency • Reducing congestion permits smooth flow of people and material • Space utilization is effective and efficient • Facilitates communication and supervision • Safe and pleasant working environment

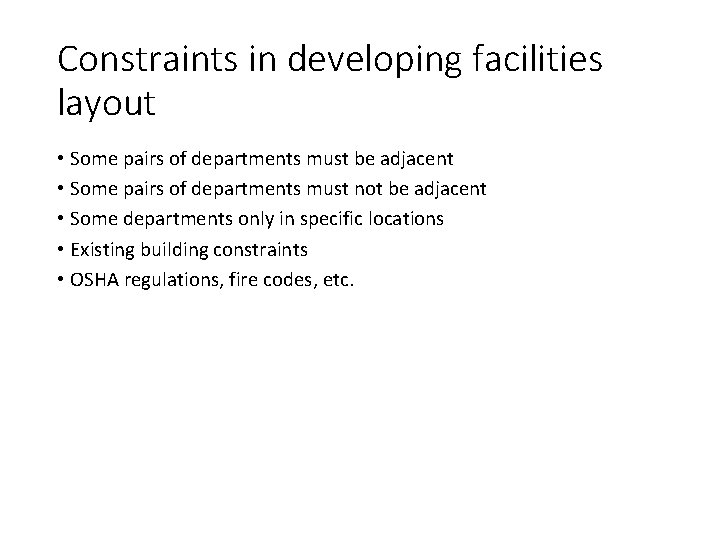

Constraints in developing facilities layout • Some pairs of departments must be adjacent • Some pairs of departments must not be adjacent • Some departments only in specific locations • Existing building constraints • OSHA regulations, fire codes, etc.

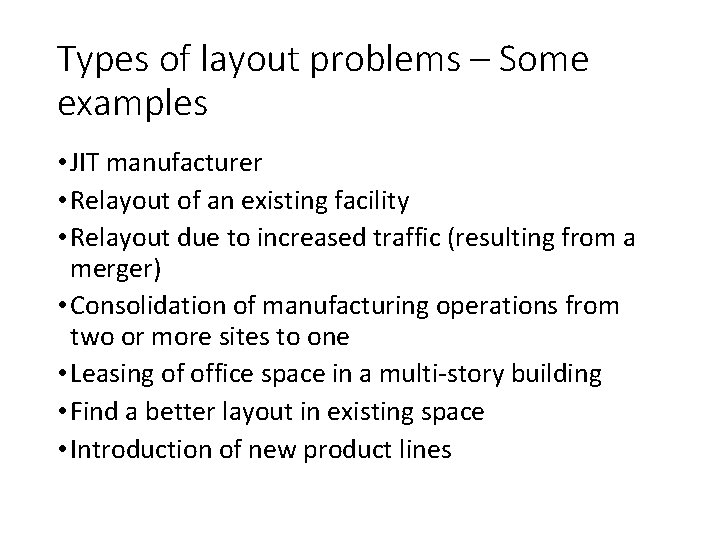

Types of layout problems – Some examples • JIT manufacturer • Relayout of an existing facility • Relayout due to increased traffic (resulting from a merger) • Consolidation of manufacturing operations from two or more sites to one • Leasing of office space in a multi-story building • Find a better layout in existing space • Introduction of new product lines

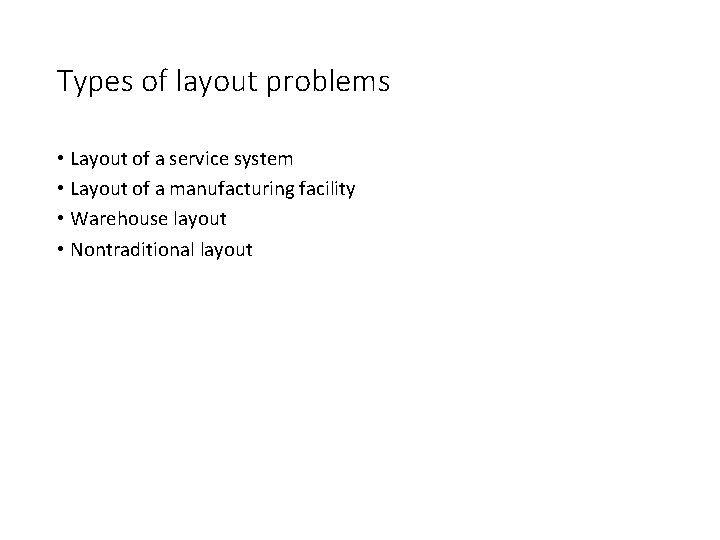

Types of layout problems • Layout of a service system • Layout of a manufacturing facility • Warehouse layout • Nontraditional layout

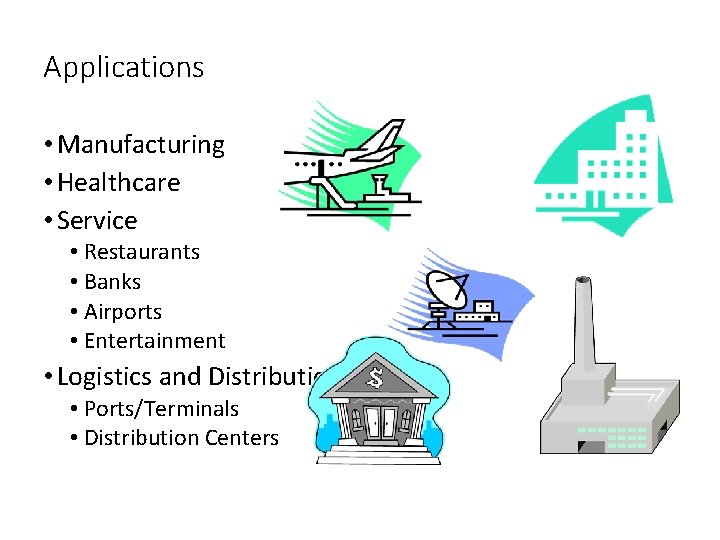

Applications • Manufacturing • Healthcare • Service • Restaurants • Banks • Airports • Entertainment • Logistics and Distribution • Ports/Terminals • Distribution Centers

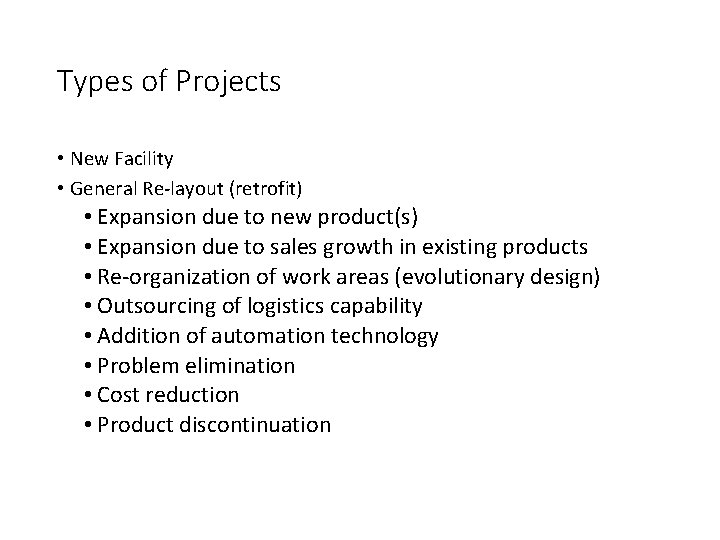

Types of Projects • New Facility • General Re-layout (retrofit) • Expansion due to new product(s) • Expansion due to sales growth in existing products • Re-organization of work areas (evolutionary design) • Outsourcing of logistics capability • Addition of automation technology • Problem elimination • Cost reduction • Product discontinuation

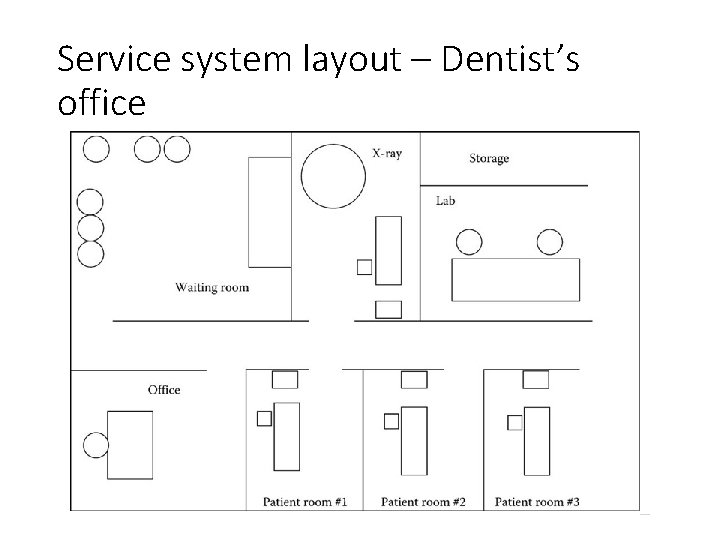

Service system layout – Dentist’s office

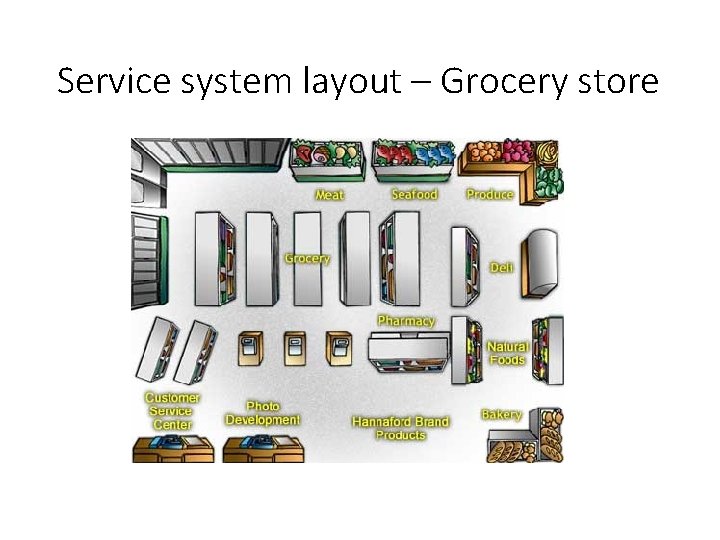

Service system layout – Grocery store

Operations review for office layouts (Suskind, 1989) • Is the company outgrowing its space? • Is available space too expensive? • Is building in the proper location? • How will a new layout affect the organization and service? • Are office operations too centralized or decentralized? • Does the office structure support the strategic plan? • Is the new layout in tune with the company’s image • Does customer physically participate in service delivery?

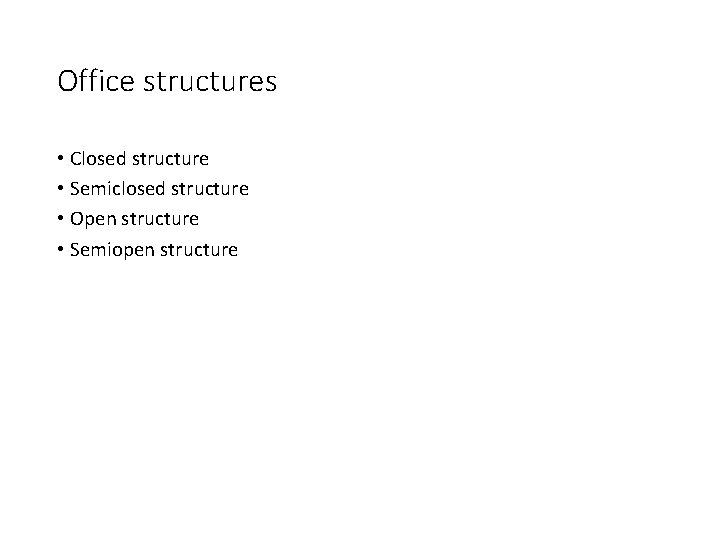

Office structures • Closed structure • Semiclosed structure • Open structure • Semiopen structure

Closed structure

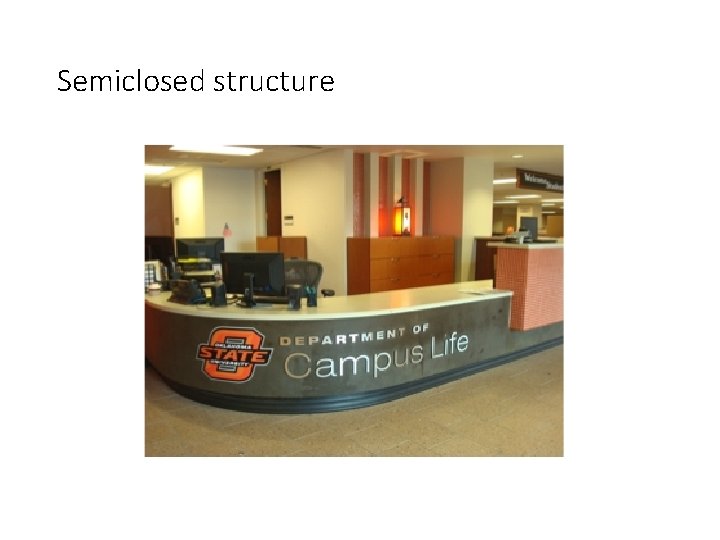

Semiclosed structure

Open structure

Semiopen structure

Manufacturing layout • Minimize transportation cost of raw materials, subassemblies, work-in-process inventory, tools, parts, finished products, etc. • Facilitate traffic flow • Improve employee morale • Minimize or eliminate risk of injury and property damage • Ease of supervision and face-to-face communication

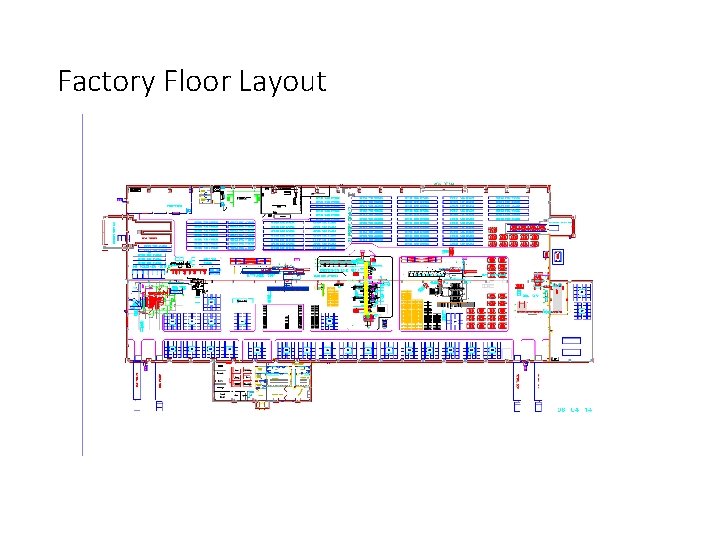

Factory Floor Layout

Warehouse layout

Driveway layout

Nontraditional layout • Keyboard layout • IC board layout • Computer disk storage layout • Airport gate layout

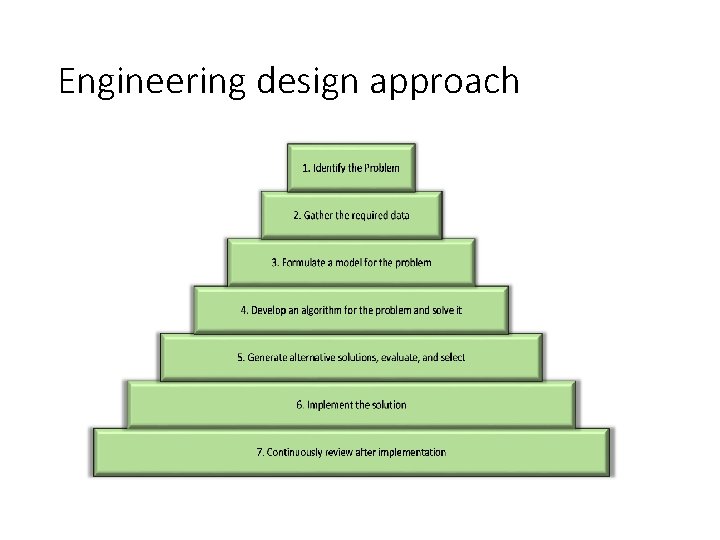

Engineering design approach

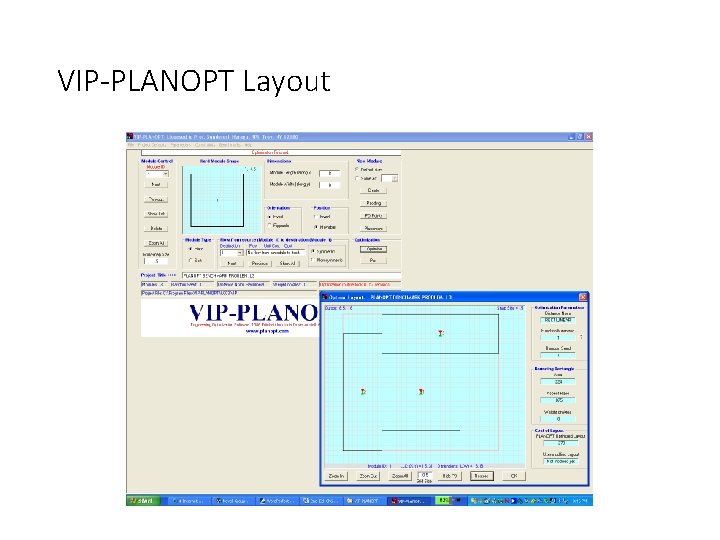

VIP-PLANOPT Layout
