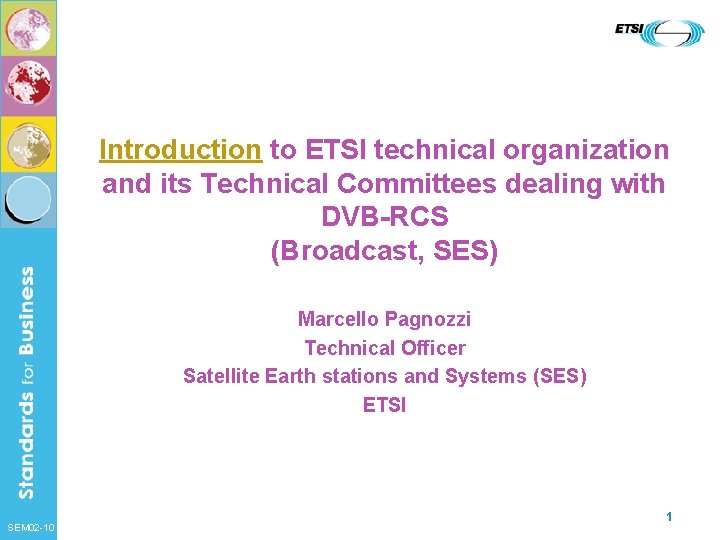

Introduction to ETSI technical organization and its Technical Committees dealing with DVB-RCS (Broadcast, SES) Marcello Pagnozzi Technical Officer Satellite Earth stations and Systems (SES) ETSI SEM 02 -10 1

ETSI Structure General Assembly Board ES ETSI Secretariat EPs EPPs Technical Committees ETSI Projects ETSI Partnership Projects IMPACT Finance committee International Marketing & Promotional Activities Special Committees "Technical Organization" TCs FC "Technical Bodies" SAGE Security Algorithms Group of Experts EMTEL SEM 02 -10 Emergency Telecommunications JEEC Joint ETSI-ECMA Committee OCG Operational Co-ordination Group USERS User Group 2

Technical Organization q Produces and approves technical standards q Work programme determined by ETSI members q Consists of Technical Bodies (TB) Ø Technical Committees (TC) Ø ETSI Projects (EP) Ø ETSI Partnership Projects (EPP) q More than 200 groups q More than 3500 experts 3 SEM 02 -10

Status: 2005 -04 -28 Legend: Chairman Act Ch: Acting Chairman Int Ch: Interim Chairman Conv: Convenor CP: Contact Person Secr: Secretary General Assembly BOARD Technical Committees SEM 02 -10 ETSI Projects TC AT Access and Terminals Ch: Nuno Encarnaçao - OFCOM CP: Ted Laverack TC BRAN Broadband Radio Access Networks Ch: Bernd Friedrichs - Marconi Communications CP: Bernt Mattsson EP DECT Digital Enhanced Cordless Telecommunication Ch: Günter Kleindl - Siemens AG CP: Marcello Pagnozzi JTC Broadcast EBU/CENELEC/ETSI On Broadcasting Ch: Philip Laven - EBU CP: Michael Sharpe ECMATC 32 Standardizing information & communication systems Ch: Bernard Hammer – Siemens CP: Christian Julien EP SCP Smart Card Platform Ch: Klaus Vedder - Giesecke & Devrient Gmbh CP: Kimmo Kymalainen TC EE Environmental Engineering Ch: Maurizio Grossoni - Telecom Italia CP: Laurent Vreck TC ERM EMC and Radio Spectrum Matters Ch: Oliver Wheaton - DTI CP: Michael Sharpe TC ESI Electronic Signatures & Infrastructures Ch: Riccardo Genghini - Studio Notarile Genghini CP: Ted Laverack TC HF Human Factors Ch: Stephen Furner - BT Group plc CP: Ted Laverack TC LI Lawful Interception Ch: Peter van der Arend - KPN N. V. CP: Ted Laverack TC MSG Mobile Standards Group Ch: Francois Courau - ALCATEL S. A. CP: Cesar Gutierrez TC MTS Methods for Testing & Specification Ch: Dieter Hogrefe - IITB CP: Laurent Vreck TC PLT Power. Line Telecommunications Ch: Richards Victor Dominguez - DS 2 CP: Bernt Mattsson TC Safety Telecommunications Equipment Safety Ch: Ian Marshall – Nortel Networks CP: Michael Sharpe TC SES Satellite Earth Stations & Systems Ch: Alain Richard - Alcatel S. A. CP: Marcello Pagnozzi TC STQ Speech processing Transmission & Quality Ch: Jean-Yves Monfort – FT CP: Ted Laverack TC TISPAN Telecoms & Internet converged Services & Protocols for Advanced Networks Ch: Alain Le Roux – France Telecom CP: Christian Julien TC TM Transmission and Multiplexing Ch: Manfred Gindel - Telekom Austria AG EP RT Railway Telecommunications CP: Cesar Gutierrez EP TETRA Terrestrial Trunked RAdio Ch: Douglas Gray - Motorola Ltd. CP: Marcello Pagnozzi ETSI Partnership Projects Special Committees 4

Special Committees Finance Committee Ch: Kiritkumar P. Lathia - Siemens Mobile Communications Secr: Wil Dekkers IMPACT International. Marketing & Promotional Activities Ch: Bernard Vilain – Alcatel S. A. CP: Margot Dor JEEC Joint ETSI/ECMA committee Ch: Jan van den Beld - ECMA Secr: Christian Julien OCG Operational Co-ordination Group Ch: Alistair Urie - Alcatel S. A. Secr: Julian Pritchard SAGE Security Algorithms Group of Experts Ch: Steve Babbage - Vodafone CP: Ted Laverack User Group Ch: Karine Iffour - Normapme CP: Bernt Mattsson ETSI Partnership Projects EPP 3 GPP Third Generation Partnership Project CP: John Meredith 3 GPP-GERAN 3 GPP-CT GSM/EDGE Radio Core Network & Terminals Access Network Ch: Hannu Hietalahti Ch: Andrew Howell - Nokia (ETSI) - Motorola (ETSI) CP: Kimmo Kymalainen CP: Paolo Usai 3 GPP-SA Services and System Aspects Ch: Stephen Hayes - Ericsson (ATIS) CP: Maurice Pope 3 GPP-RAN Radio Access Networks Ch: François Courau - Alcatel S. A. (ETSI) CP: Cesar Gutierrez EMTEL Ch: Raymond Forbes - Marconi Communications CP: Chantal Rihet EPP MESA Public Safety Partnership Project CP: Marcello Pagnozzi MESA SC Steering Committee Ch: Gianluigi Redaelli, CEFRIEL CP: Marcello Pagnozzi MESA SSG SA Services and Applications Ch: Craig M. Jorgensen - APCO Project 25 CP: Marcello Pagnozzi MESA TSG SYS Systems Ch: Jeffrey Bratcher -NTIA CP: Marcello Pagnozzi 5 SEM 02 -10

ETSI's fixed network includes… q q q q Next Generation Networks Plain Old Telephone Service (POTS) Fax, modems, etc Telecoms networks x. DSL Cable distribution systems Exchange equipment Protocols Power line telecommunications Safety Speech recognition Testing SMS for fixed networks … 6 SEM 02 -10

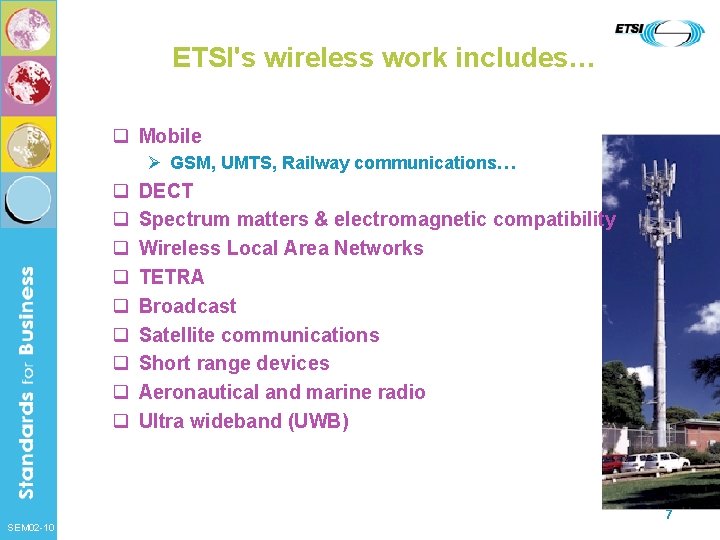

ETSI's wireless work includes… q Mobile Ø GSM, UMTS, Railway communications… q q q q q DECT Spectrum matters & electromagnetic compatibility Wireless Local Area Networks TETRA Broadcast Satellite communications Short range devices Aeronautical and marine radio Ultra wideband (UWB) 7 SEM 02 -10

JTC Broadcast q The EBU/ETSI JTC Broadcast was established in 1990 to co-ordinate the drafting of standards in the specific field of broadcasting and related fields. q Since 1995 the JTC Broadcast became a tripartite body by including in the Memorandum of Understanding also CENELEC, which is responsible for the standardization of radio and television receivers. q The European Broadcasting Union (EBU) is a professional association of broadcasting organizations whose work includes the co-ordination of its members' activities in the technical, legal, programme-making and programmeexchange domains. The European Broadcasting Union (EBU) has active members in about 60 countries in the European broadcasting area; 8 SEM 02 -10

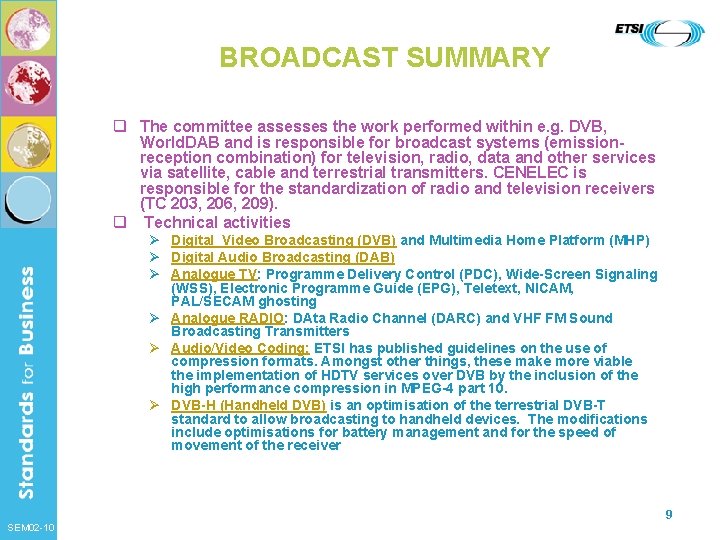

BROADCAST SUMMARY q The committee assesses the work performed within e. g. DVB, World. DAB and is responsible for broadcast systems (emissionreception combination) for television, radio, data and other services via satellite, cable and terrestrial transmitters. CENELEC is responsible for the standardization of radio and television receivers (TC 203, 206, 209). q Technical activities Ø Digital Video Broadcasting (DVB) and Multimedia Home Platform (MHP) Ø Digital Audio Broadcasting (DAB) Ø Analogue TV: Programme Delivery Control (PDC), Wide-Screen Signaling (WSS), Electronic Programme Guide (EPG), Teletext, NICAM, PAL/SECAM ghosting Ø Analogue RADIO: DAta Radio Channel (DARC) and VHF FM Sound Broadcasting Transmitters Ø Audio/Video Coding: ETSI has published guidelines on the use of compression formats. Amongst other things, these make more viable the implementation of HDTV services over DVB by the inclusion of the high performance compression in MPEG-4 part 10. Ø DVB-H (Handheld DVB) is an optimisation of the terrestrial DVB-T standard to allow broadcasting to handheld devices. The modifications include optimisations for battery management and for the speed of movement of the receiver 9 SEM 02 -10

Digital Video Broadcasting (DVB) q The work of ETSI falls into two parts: system specifications and standards to assist equipment to be placed on the market in line with European legislation (Harmonized Standards). q DVB System Specifications Ø The Digital Video Broadcasting Project (DVB) is an industry-led consortium of over 260 broadcasters, manufacturers, network operators, software developers, regulatory bodies and others in over 35 countries committed to designing global standards for the global delivery of digital television and data services. Services using DVB standards are available on every continent. Ø ETSI standards for DVB system specifications are developed in the EBU/CENELEC/ETSI Joint Technical Committee Broadcast, based on proposals from the DVB Project. 10 SEM 02 -10

DVB Return Channel by Satellite (RCS) q EN 301 790 - Interaction channel for satellite distribution systems q The document forms the specification for the provision of the interaction channel for GEO satellite interactive networks with fixed Return Channel Satellite Terminals (RCST). q The document facilitates the use of RCSTs for individual or collective installation in a domestic environment. It also supports the connection of such terminals with in-house data networks. q The revision accomplished in 2002 provides the means to extend the applicability of the standard to regenerative satellite systems. This revision also allows for reduction in terminal costs without significantly impacting the performance. q The revision accomplished in 2004 integrates the DVB-S 2 standard forward link transmission. DVB-S 2 is the second generation standard for satellite transmission, which provides higher power and bandwidth efficiency as well as adaptive coding and modulation. 11 SEM 02 -10

TR 101 790 - Guidelines for the use of EN 301 790 q The document gives guidelines for the implementation of Digital Video Broadcasting (DVB) interaction channel for Satellite Distribution System (also known as DVB-RCS: DVB Return Channel via Satellite). q The document describes the DVB-RCS specification for geostationary satellite interactive system. It draws attention to the technical questions that need to be answered in setting up a DVB-RCS network and offers some guidance in finding answers to them. q It provides some examples of implementation details and details about Return Channel Satellite Terminal (RCST) Implementation guidelines. 12 SEM 02 -10

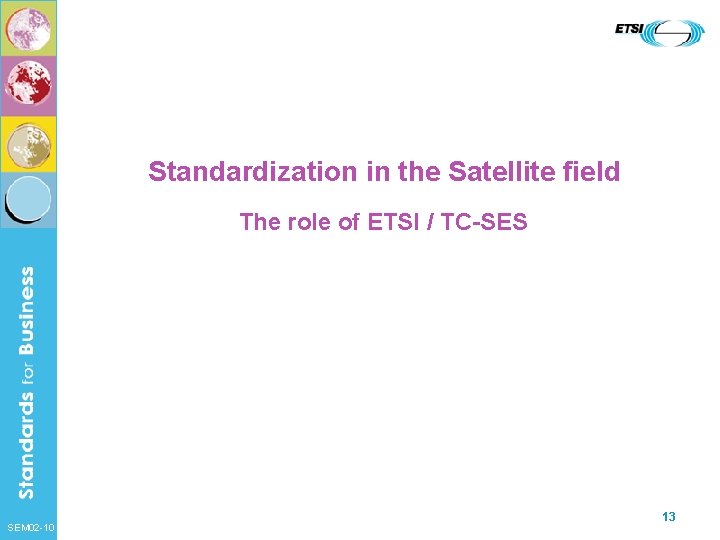

Standardization in the Satellite field The role of ETSI / TC-SES SEM 02 -10 13

Terms of reference for ETSI/TC SES q General task Ø the “Home” in ETSI for Satellite Earth Stations and Systems standardization. q The scope can include: Ø All types of satellite communication services and applications (including mobile and broadcasting), Ø All types of earth stations and earth station equipment, especially the radio frequency interfaces and network and/or user interfaces, Ø Protocols implemented in earth stations and satellite systems. 14 SEM 02 -10

Working Groups (WG) q Working groups dealing with Harmonized standards (R&TTE Directive): Ø Earth stations on board vessels and trains (MAR ESV) Ø Harmonisation (HARM) q Working groups dealing with specific systems Ø Ø Broadband Satellite Multimedia (BSM) GEO Mobile Radio Interface (GMR) Satellite Component of IMT 2000 (S-UMTS) Satellite Digital Radio (SDR) 15 SEM 02 -10

Working Group on Geo Mobile Radio GMR q Geo-Mobile Radio (GMR) is a satellite-based extension of the GSM terrestrial cellular standard q This WG produces air interface specifications to support mobile satellite service via geostationary satellites at L or S bands q GMR uses the standard GSM core network but the air interface is modified for the satellite path q GMR specifications include both circuit mode and packet mode services 16 SEM 02 -10

Working Group S-UMTS/IMT 2000 S-UMTS q This WG is responsible for standards in the field of the satellite component of UMTS and IMT 2000 q The Objective of ETSI activities in this field is to ensure the seamless integration of satellite component of UMTS/IMT 2000 enabling the satellite access network to directly interwork with other UMTS networks. q It studies compatibility of services defined for the terrestrial component with S-UMTS/IMT-2000 including, and it promotes adoption of specific satellite services as applicable. 17 SEM 02 -10

Working Group Satellite Digital Radio SDR q SDR: Satellite broadcast to fixed and mobile receivers, mainly for audio, with or without terrestrial repeater network q Objective: Creation of a Technical Specification for the radio interface of SDR broadcast receivers 18 SEM 02 -10

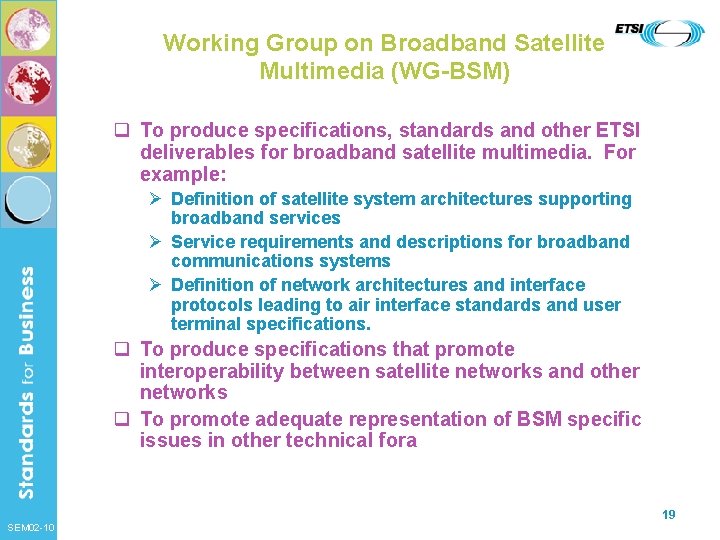

Working Group on Broadband Satellite Multimedia (WG-BSM) q To produce specifications, standards and other ETSI deliverables for broadband satellite multimedia. For example: Ø Definition of satellite system architectures supporting broadband services Ø Service requirements and descriptions for broadband communications systems Ø Definition of network architectures and interface protocols leading to air interface standards and user terminal specifications. q To produce specifications that promote interoperability between satellite networks and other networks q To promote adequate representation of BSM specific issues in other technical fora 19 SEM 02 -10

BSM Architecture Satellite Independent Upper Layers Families of Satellite Dependent Lower Layers IPV 4 or IPV 6 Satellite Independent Adaptation Functions (SIAF) SI-SAP SDAF-A SDAF-B SDAF-C SLC-A SLC-B SLC-C SMAC-A SMAC-B SMAC-C SPHY-A SPHY-B SPHY-C FAMILY A FAMILY B FAMILY C ETSI Harmonized (RTTE) Requirements SDAF = Satellite Dependent Adaptation Functions 20 SEM 02 -10

BSM Architecture q The BSM architecture divides the air interface into 2 parts: Ø Satellite independent upper layers Ø Satellite dependent lower layers q The upper layers contain a set of common BSM defined IP interworking functions: Ø Define Satellite Independent Adaptation Functions (SIAF) Ø Common ways of handling Quality of Service (Qo. S); Addressing; Multicast and Security etc. q Satellite Independent Service Access Point (SI-SAP) defined as the interface between the upper and lower layers Ø An abstract functional interface Ø Applicable to all satellite networks q The lower layers contain the satellite specific functions. Ø The lower layers are closely tied to the payload capability of the satellite and hence cannot be the same in all cases. Ø The SI-SAP supports multiple air interface families. 21 SEM 02 -10

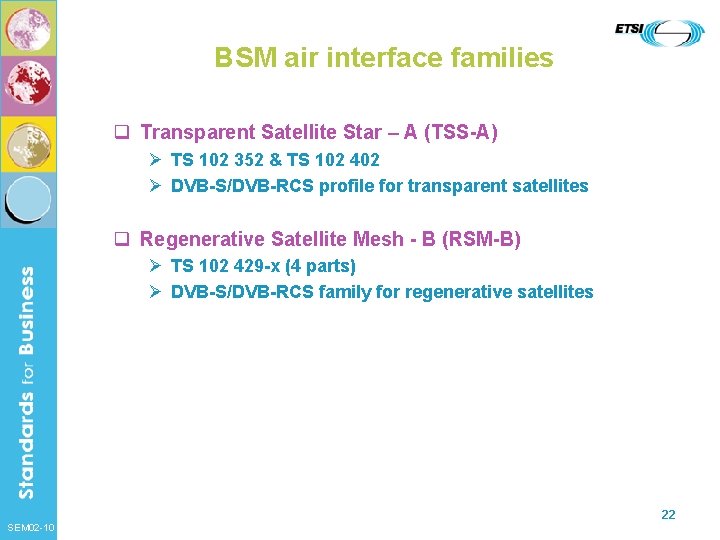

BSM air interface families q Transparent Satellite Star – A (TSS-A) Ø TS 102 352 & TS 102 402 Ø DVB-S/DVB-RCS profile for transparent satellites q Regenerative Satellite Mesh - B (RSM-B) Ø TS 102 429 -x (4 parts) Ø DVB-S/DVB-RCS family for regenerative satellites 22 SEM 02 -10

Preparation of the C 2 P standard (Connection Control Protocol) q Mesh networks requires enhancement of the control plane of the DVB-RCS systems q The task to develop two C 2 P-standards is taken on by ETSI TC SES Work Group BSM Broadband Satellite Multimedia (ETSI WG BSM) q One C 2 P standard specifically for DVB-RCS, in close cooperation with TIA, and in liaison with DVB q One generic C 2 P standard for broadband satellite multimedia systems 23 SEM 02 -10
