Introduction to Databases CIS 5. 2

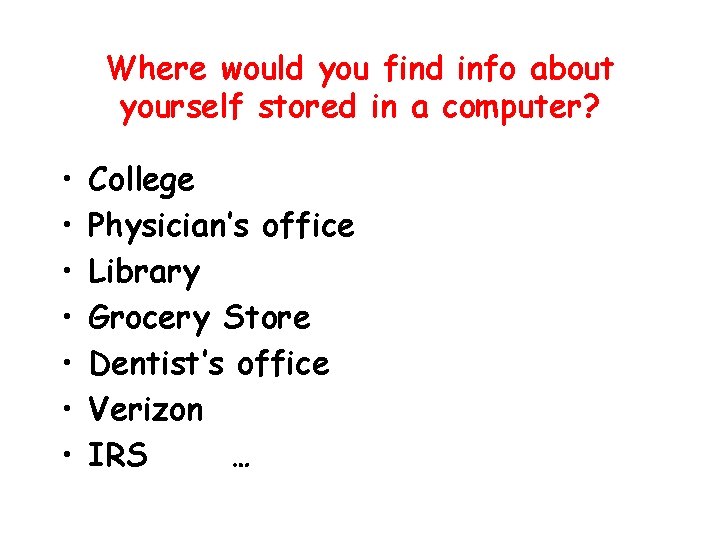

Where would you find info about yourself stored in a computer? • • College Physician’s office Library Grocery Store Dentist’s office Verizon IRS …

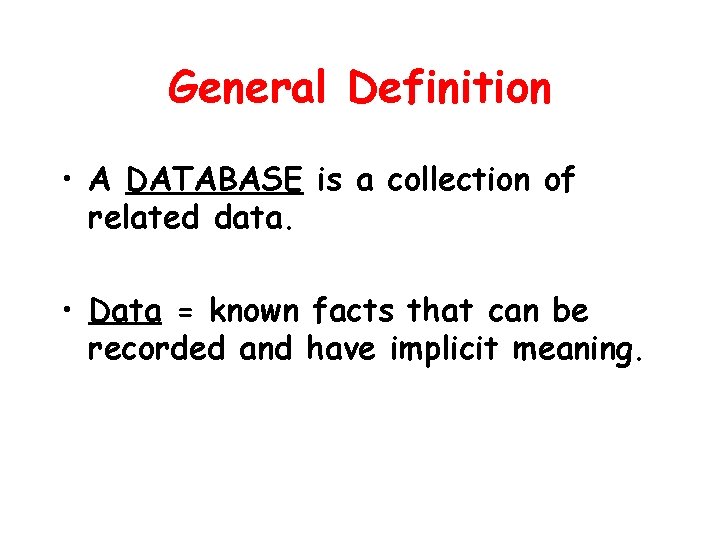

General Definition • A DATABASE is a collection of related data. • Data = known facts that can be recorded and have implicit meaning.

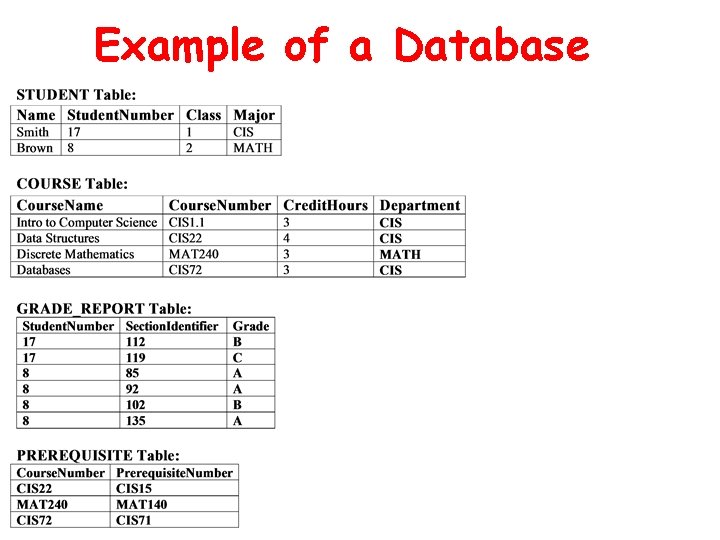

Example of a Database

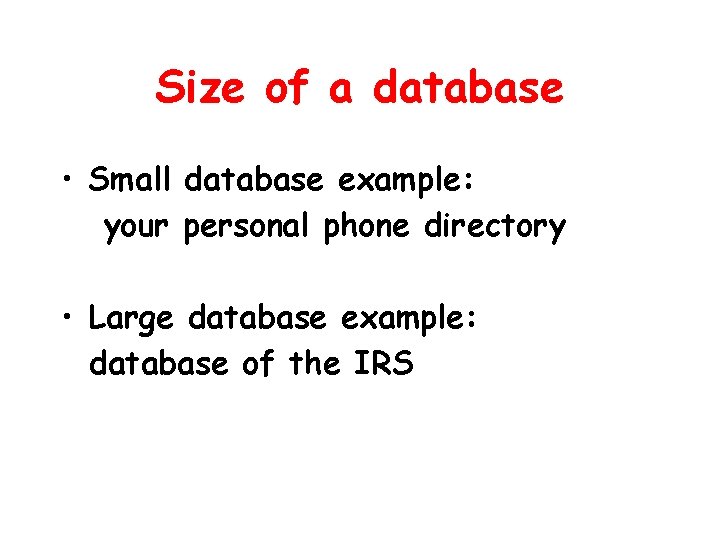

Size of a database • Small database example: your personal phone directory • Large database example: database of the IRS

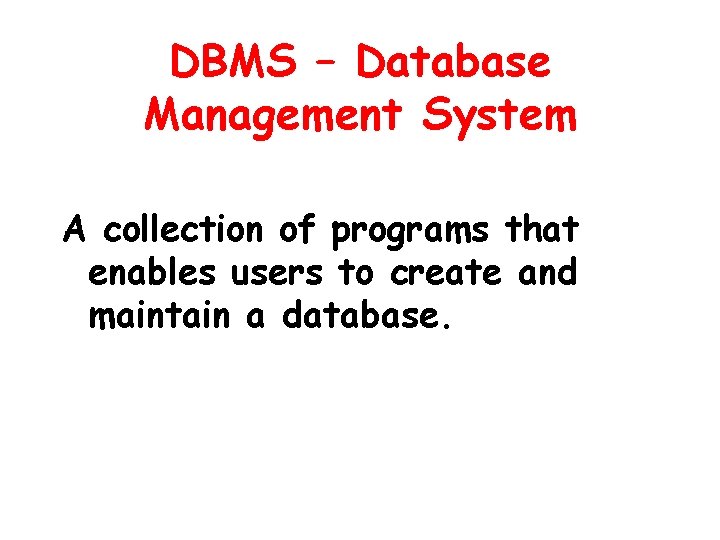

DBMS – Database Management System A collection of programs that enables users to create and maintain a database.

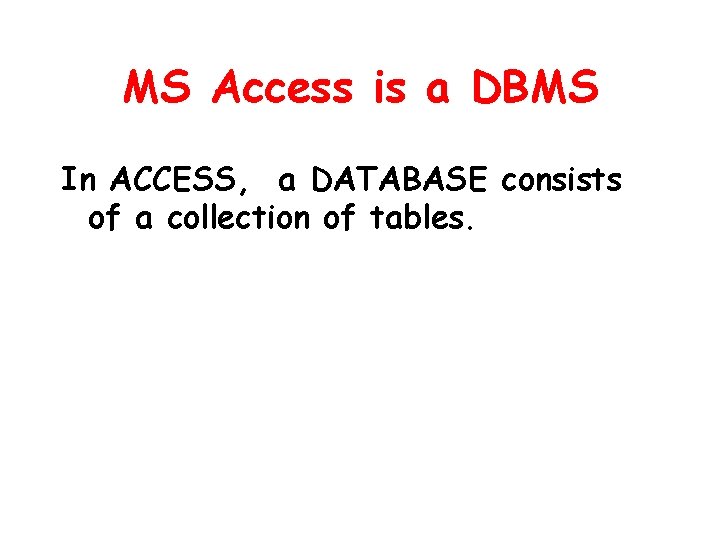

MS Access is a DBMS In ACCESS, a DATABASE consists of a collection of tables.

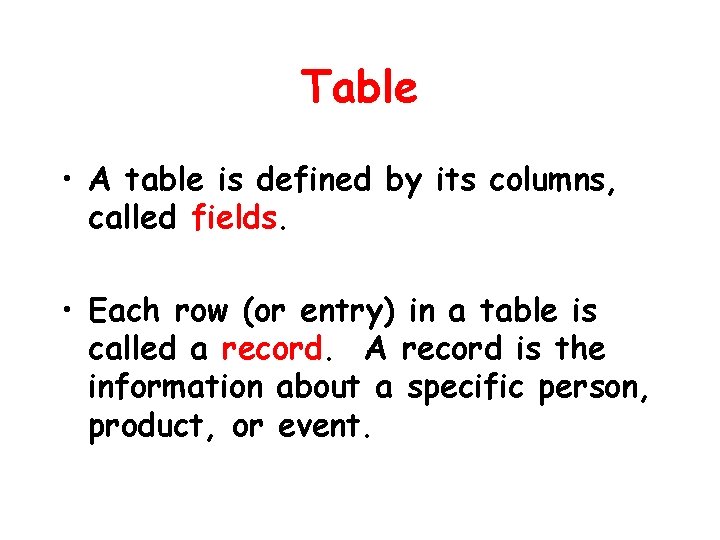

Table • A table is defined by its columns, called fields. • Each row (or entry) in a table is called a record. A record is the information about a specific person, product, or event.

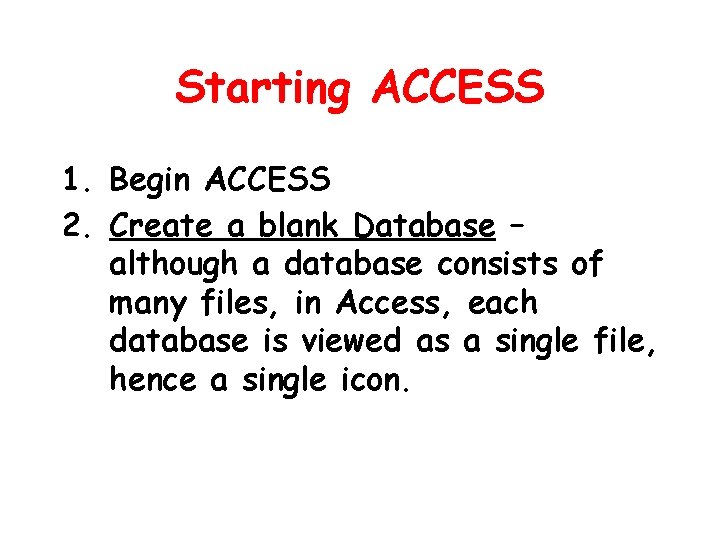

Starting ACCESS 1. Begin ACCESS 2. Create a blank Database – although a database consists of many files, in Access, each database is viewed as a single file, hence a single icon.

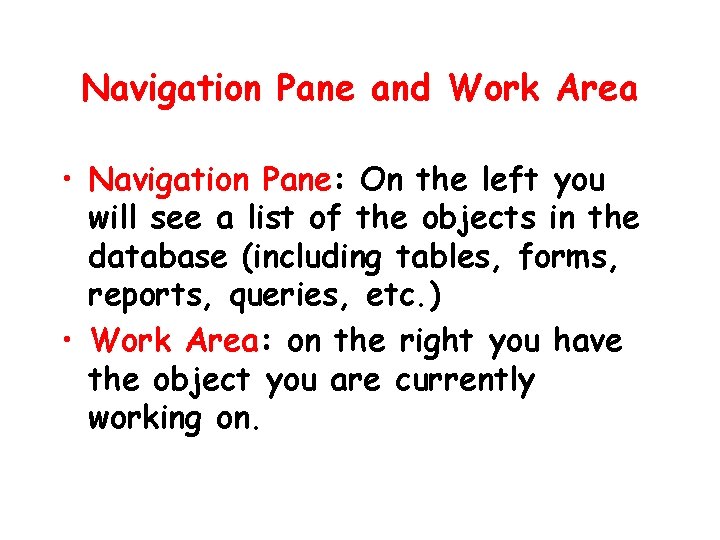

Navigation Pane and Work Area • Navigation Pane: On the left you will see a list of the objects in the database (including tables, forms, reports, queries, etc. ) • Work Area: on the right you have the object you are currently working on.

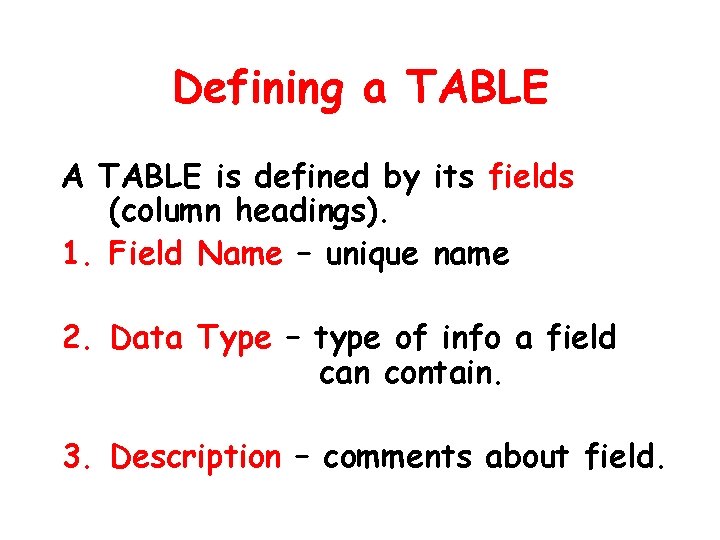

Defining a TABLE A TABLE is defined by its fields (column headings). 1. Field Name – unique name 2. Data Type – type of info a field can contain. 3. Description – comments about field.

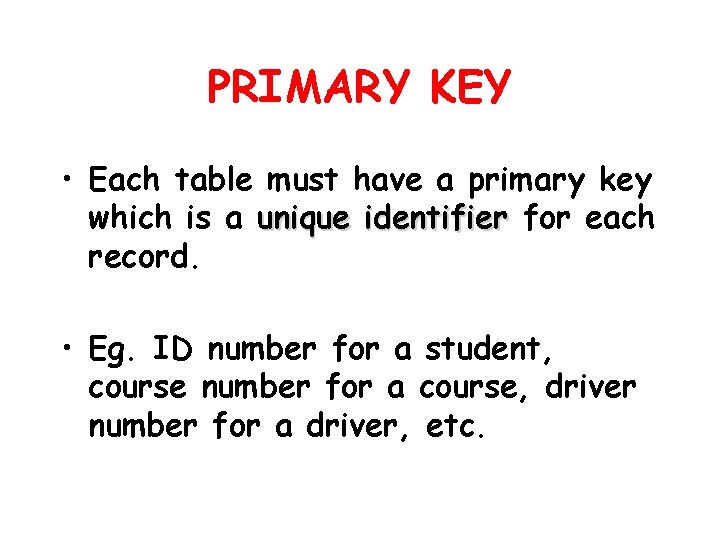

PRIMARY KEY • Each table must have a primary key which is a unique identifier for each record. • Eg. ID number for a student, course number for a course, driver number for a driver, etc.

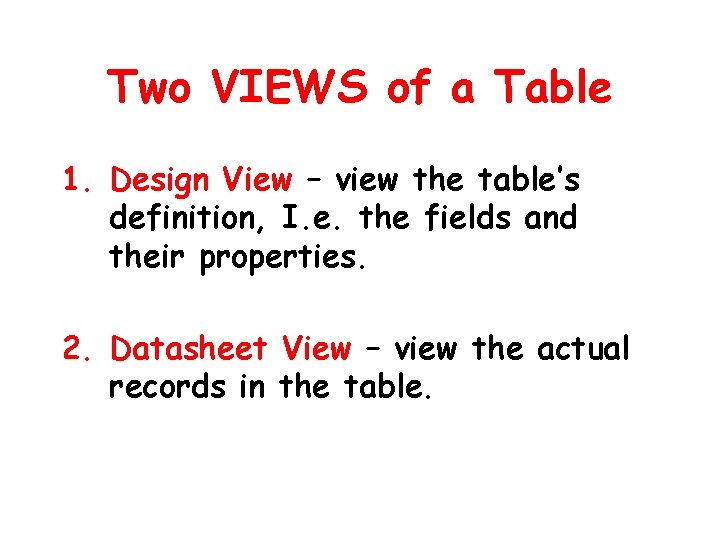

Two VIEWS of a Table 1. Design View – view the table’s definition, I. e. the fields and their properties. 2. Datasheet View – view the actual records in the table.

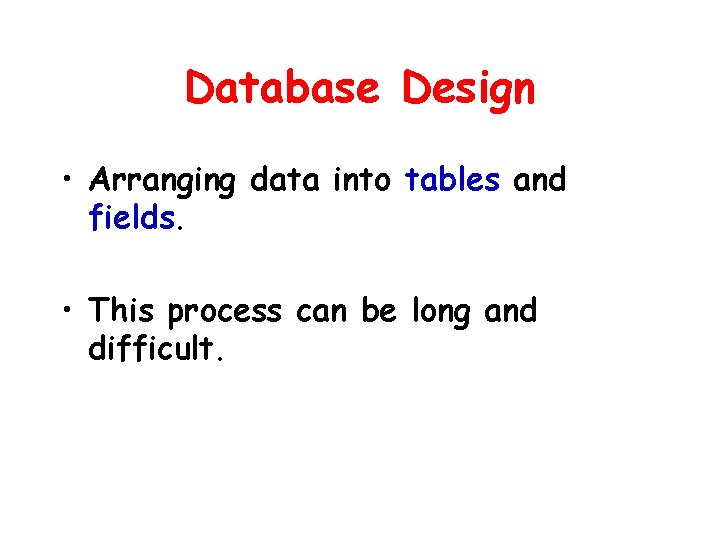

Database Design • Arranging data into tables and fields. • This process can be long and difficult.

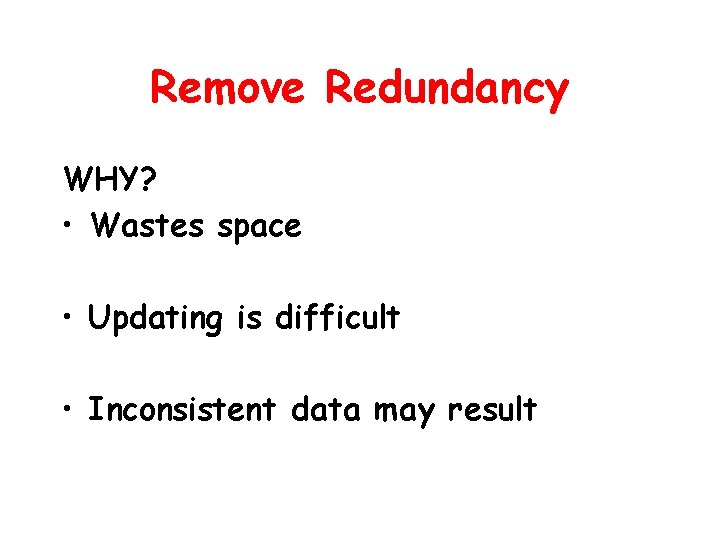

Remove Redundancy WHY? • Wastes space • Updating is difficult • Inconsistent data may result
