O U T L I N E Introduction to CST MWS Why 3 D electromagnetic simulation tools are needed? • 3 D simulation methods • CST MWS – Simulation example • Summary •

I N T R O D U C T I O N Why 3 D electromagnetic simulation tools are needed? � Radiating electric & magnetic fields are described by Maxwell´s equations Analytical calculation by solving the Maxwell´s equations > exact or approximation � Analytical equations are derived for simple antenna structures > dipole, monopole, microstrip antennas �

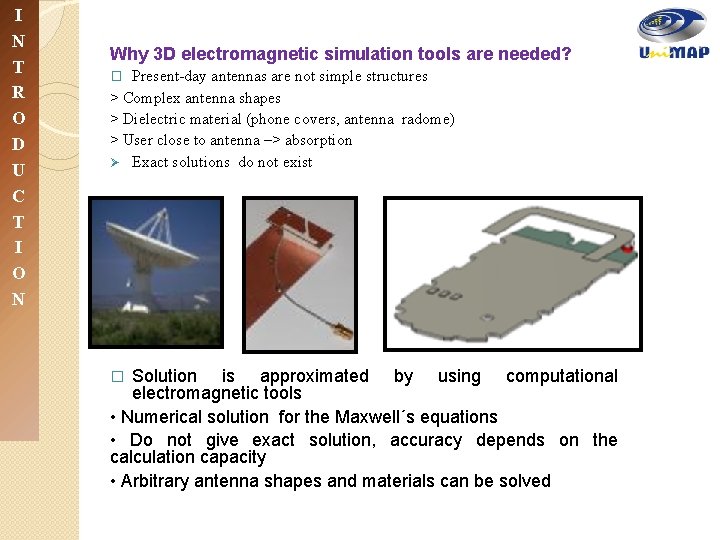

I N T R O D U C T I O N Why 3 D electromagnetic simulation tools are needed? Present-day antennas are not simple structures > Complex antenna shapes > Dielectric material (phone covers, antenna radome) > User close to antenna –> absorption Ø Exact solutions do not exist � Solution is approximated by using computational electromagnetic tools • Numerical solution for the Maxwell´s equations • Do not give exact solution, accuracy depends on the calculation capacity • Arbitrary antenna shapes and materials can be solved �

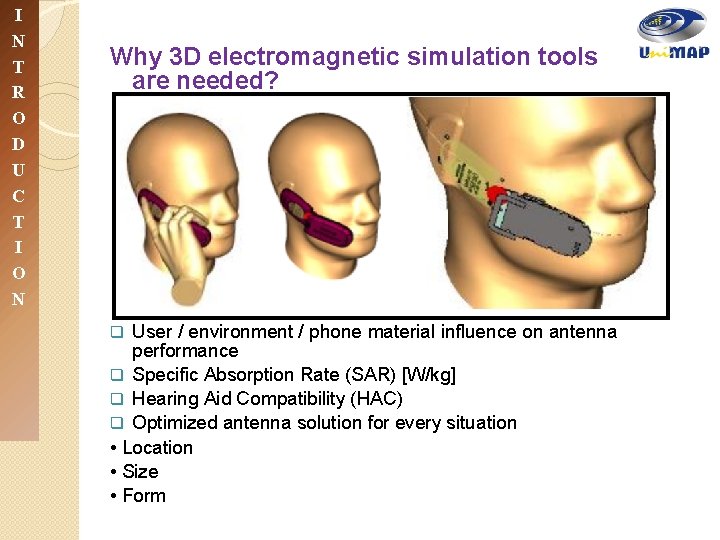

I N T R O D U C T I O N Why 3 D electromagnetic simulation tools are needed? User / environment / phone material influence on antenna performance q Specific Absorption Rate (SAR) [W/kg] q Hearing Aid Compatibility (HAC) q Optimized antenna solution for every situation • Location • Size • Form q

I N T R O D U C T I O N Why 3 D electromagnetic simulation tools are needed? Solution is visualized for the designer • Impedance matching • Radiation properties • Surface currents • SAR Prototype manufacturing and measurement rounds are replaced by simulations Ø Speeds up the design flow Final goal is an efficient antenna for a specific application

I N T R O D U C T I O N 3 D simulation methods Excitation signal in a certain location of the 3 -dimensional space. • This is typically antenna feed assuming 50Ω impedance • Can be also plane wave e. g. In radar cross section simulations Structure is surrounded by boundaries • Open, electric, magnetic • Antenna simulations are typically made with open boundaries -> radiation goes through boundary -> far field approximations are based on the power through boundary Time or frequency domain calculation is made for the excitation • Idea is to calculate wave propagation in simulated structure • When steady-state situation is met -> solver stopped • Criteria can be e. g. The energy of back-reflected signal

I N T R O D U C T I O N 3 D simulation methods Mesh q Simulated structure is meshed = divided in small subdomains (cubes) or triangular parts q Mesh type depends on the solver type (time or frequency domain) q Mesh is dense in critical points • Surface of the conductors • Feed area • Small details • High permittivity material • High loss material

I N T R O D U C T I O N 3 D simulation methods Method of Moments, Mo. M • Full wave solution of Maxwell's integral equations in the frequency domain. • Well suited for models including conductive materials only. One famous simulator is IE 3 D by Zeland Finite Element Method, FEM • Frequency domain calculation, ideal for low loss and resonance –type structures. Commercial simulator HFSS by Ansoft Finite Difference Time Domain, FDTD • Time domain simulation, good for broadband antennas. Commercial simulators SEMCAD-X by Speag and MWS by CST. Nowadays trend is toward simulation tools with different solvers for different simulation problems !!!

I N T R O D U C T I O N CST MWS Computer Simulation Technology CST • Several products for 3 D simulation • Microwave Studio is for electromagnetic high frequency problems • FDTD method -> large simulations are relatively fast • Not ideal for high Q resonators • Lately included also frequency domain solver • Widely used by antenna manufacturer and academia

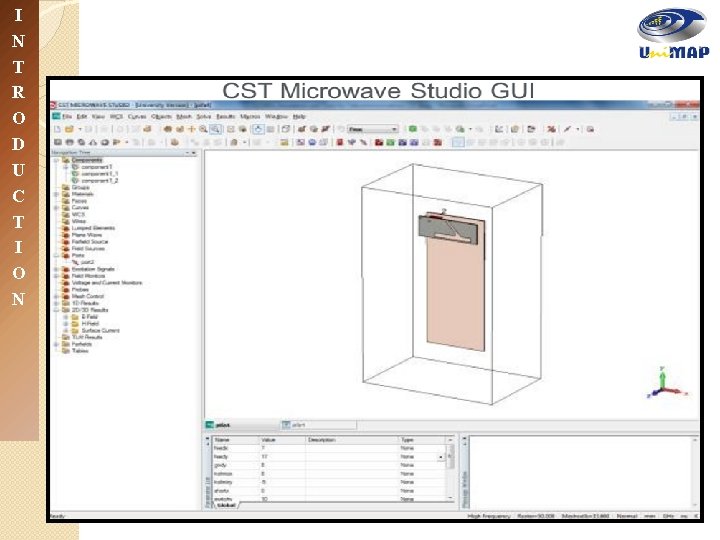

I N T R O D U C T I O N

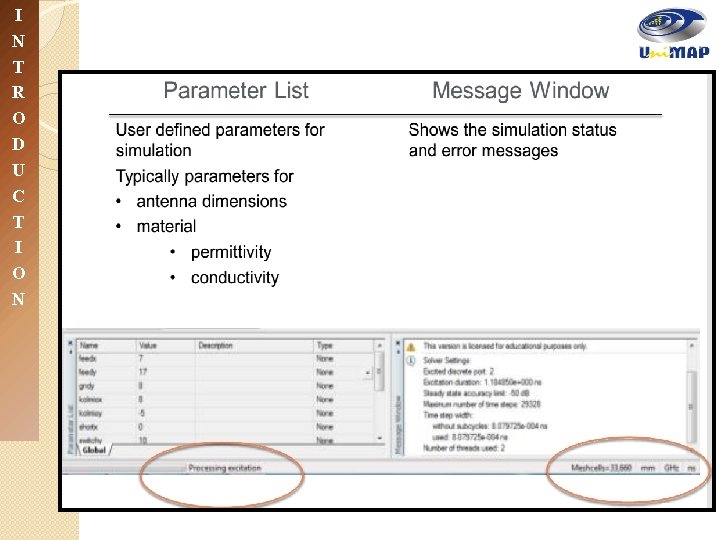

I N T R O D U C T I O N

I N T R O D U C T I O N

I N T R O D U C T I O N

I N T R O D U C T I O N

I N T R O D U C T I O N

I N T R O D U C T I O N

S U M M A R Y

R E F E R E N C E S References � http: //cst-simulation. blogspot. com/ � http: //www. cst. com/content/products/mws/overview. a spx. � Swanson D. G. , Hoefer W. J. R. “Microwave circuit modeling using electromagnetic field simulation

Q A Question and answer?
