INTRODUCTION TO COMPUTER SECURITY Dr Shahriar Bijani Shahed

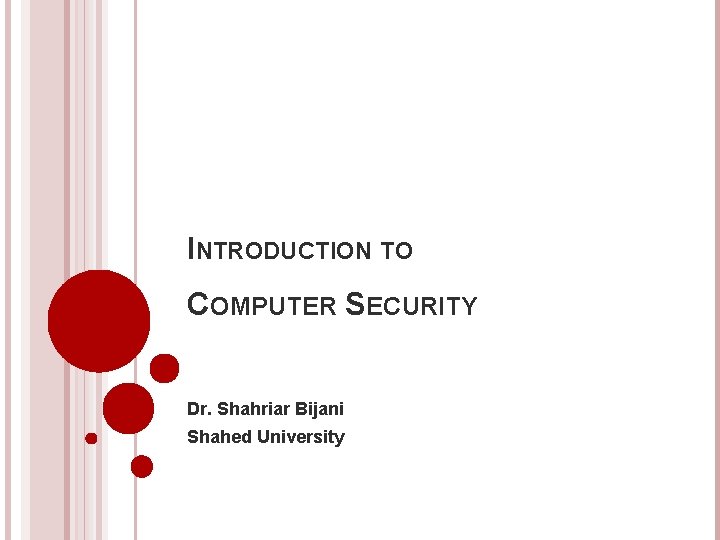

INTRODUCTION TO COMPUTER SECURITY Dr. Shahriar Bijani Shahed University

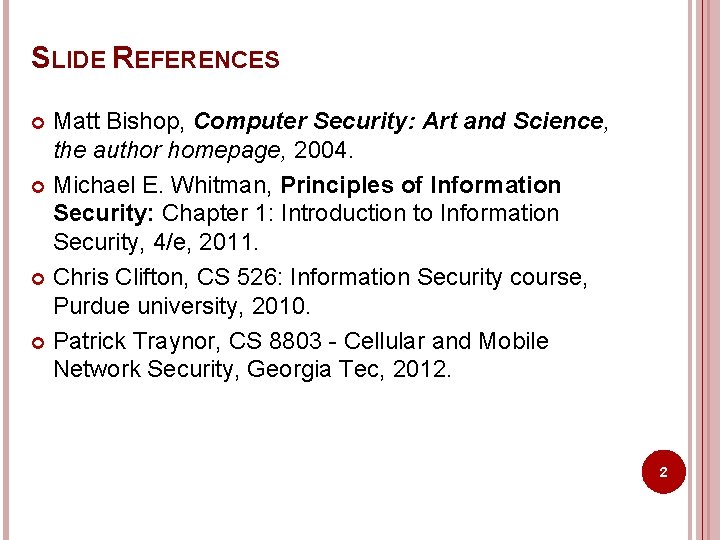

SLIDE REFERENCES Matt Bishop, Computer Security: Art and Science, the author homepage, 2004. Michael E. Whitman, Principles of Information Security: Chapter 1: Introduction to Information Security, 4/e, 2011. Chris Clifton, CS 526: Information Security course, Purdue university, 2010. Patrick Traynor, CS 8803 - Cellular and Mobile Network Security, Georgia Tec, 2012. 2

WHAT IS SECURITY? Security /sɪˈkjʊərɪti/ noun the state of being free from danger or threat. synonyms: certainty, safe future, assured future, safety, reliability, dependability, solidness, soundness 3

WHAT IS SECURITY? A successful organization should have multiple layers of security in place: � Physical security: to protect the physical items, objects, or areas of an organization from unauthorized access and misuse. � Personal security: to protect the (group of) authorized individual. � Operations security: to protect the details of a particular operation or series of activities. � Communications security: to protect an organization’s communications media, technology, and content. � Network security: to protect networking components, connections, and contents. � Information security 4

BASIC COMPONENTS An Information System is secure if it supports CIA: �Confidentiality Keeping data and resources hidden �Integrity Data integrity (integrity) Origin integrity (authentication) The CIA triangle �Availability Enabling access to data and resources 5

THE HISTORY OF INFORMATION SECURITY Began immediately following development first mainframes � Developed for code-breaking computations � During World War II � Multiple levels of security were implemented Physical controls Elementary � Mainly composed of simple document classification � Defending against physical theft, espionage, and sabotage

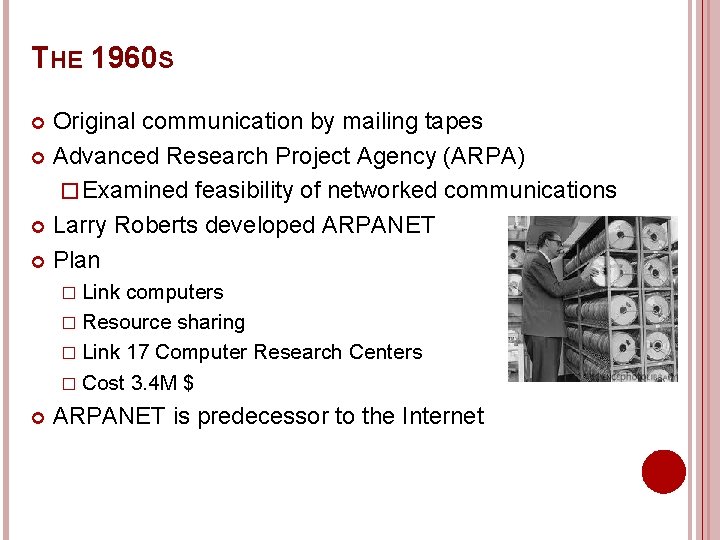

THE 1960 S Original communication by mailing tapes Advanced Research Project Agency (ARPA) � Examined feasibility of networked communications Larry Roberts developed ARPANET Plan � Link computers � Resource sharing � Link 17 Computer Research Centers � Cost 3. 4 M $ ARPANET is predecessor to the Internet

THE 1970 S AND 80 S ARPANET grew in popularity Potential for misuse grew Fundamental problems with ARPANET security � Individual remote sites were not secure from unauthorized users � Vulnerability of password structure and formats � No safety procedures for dial-up connections to ARPANET � Non-existent user identification and authorization to system

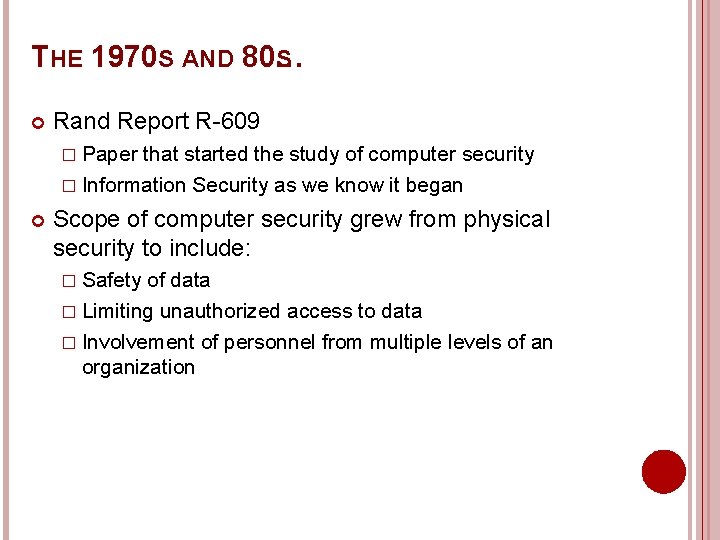

THE 1970 S AND 80… S Rand Report R-609 � Paper that started the study of computer security � Information Security as we know it began Scope of computer security grew from physical security to include: � Safety of data � Limiting unauthorized access to data � Involvement of personnel from multiple levels of an organization

THE 1990 S Networks of computers became more common Need to interconnect networks grew Internet became first demonstration of a global network of networks Initially based on de-facto standards In early Internet deployments, security was treated as a low priority

2000 TO PRESENT Millions of computer networks communicate Many of the communication unsecured Ability to secure a computer’s data influenced by the security of every computer to which it is connected Growing threat of cyber attacks has increased the need for improved security

CHALLENGES OF COMPUTER SECURITY 1. 2. 3. 4. 5. 6. 7. 8. 9. Computer security is not simple One must consider potential (unexpected) attacks Must decide where to deploy mechanisms Involve algorithms and secret info (keys) A battle between attacker / admin It is not perceived on benefit until fails Requires constant monitoring Too often incorporated after the design is complete (not integral) Regarded as a barrier to using system

KEY INFORMATION SECURITY CONCEPTS Access Adversary Asset Attack Control, Safeguard, or Countermeasure Exploit Exposure Hack Loss Nonrepudiation • • Subjects / Objects Risk Threat Vulnerability 14

RELATIONSHIPS OF SECURITY CONCEPTS

KEY INFORMATION SECURITY CONCEPTS Computer can be subject or object of an attack �When the subject of an attack An active tool to conduct attack �When the object of an attack An entity being attacked Source: Principles of Information Security, 4 th Edition 16

INFORMATION SECURITY VS. ACCESS Perfect security is impossible Security is a process Security should be considered balance between protection and availability Must allow reasonable access, yet protect against threats 17

INFORMATION SECURITY VS. ACCESS 18 Source: Principles of Information Security, 4 th Edition

VULNERABILITIES 19 Principles of Information Security, 4/e

THREATS A threat is a potential violation of security. 20

CLASSES OF THREATS Interruption (Disruption) � interruption or prevention of correct operation � DOS attack: Denial of Service Interception / Disclosure � Unauthorized access to information � Snooping: the unauthorized interception of information Modification � An unauthorized party not only gains access to but modify an asset. � Masquerading or spoofing: an impersonation of one entity by another. Fabrication � An 21 unauthorized party inserts fake objects into the system.

CLASSES OF THREATS 22

EXAMPLES OF THREATS

ADVERSARY An adversary is anyone attempting to bypass the security infrastructure. The curious and generally inexperienced (e. g. , scriptkiddies) Unintended attackers seeing to understand systems Malicious and terrorist groups Competitors (industrial espionage) Governments 25

ATTACK An attack occurs when someone attempts to exploit a vulnerability Type of attacks � Passive (e. g. , eavesdropping) � Active (e. g. , password guessing, Do. S) A compromise occurs when an attack is successful 26

TRUST Trust � The degree to which an entity is expected to behave. � Trust is a particular level of the subjective probability with which an agent assesses that another agent will perform a particular action in a context that affects his actions [Gambetta, 1990] Reputation � Expectation about an entity’s behavior based on past behavior [Abdul-Rahman, 2000] � May be used to determine trust 27

TRUST MANAGEMENT Trust Management as a countermeasure: � Trust relationships between peers help establish confidence Two types of trust management systems � Credential and Policy-based � Reputation-based 28

SECURITY MODEL A security model is the combination of a trust and threat models that address the: set of perceived risks The “security requirements” used to develop some cogent and comprehensive design � Every design must have security model � LAN network or global information system? Java applet or operating system? � � The single biggest mistake seen in use of security is the lack of a coherent security model � � � It is very hard to retrofit security (design time) This class is going to talk a lot about security models What are the security concerns (risks)? Threats? Who are our adversaries? Who do we trust and to do what? Systems must be explicit about these things to be secure 29

POLICIES AND MECHANISMS Policy says what is, and is not, allowed � This defines “security” for the site/system/etc. Mechanisms enforce policies Composition of policies � If policies conflict, inconsistencies may create security vulnerabilities 30

TRUST AND ASSUMPTIONS Underlie all aspects of security Policies � Unambiguously partition system states � Correctly capture security requirements Mechanisms � Assumed to enforce policy � Support mechanisms work correctly 31

GOALS OF SECURITY Prevention( )پیﺸگیﺮی � Prevent Detection ( )ﺗﺸﺨیﺺ � Detect attackers from violating security policy attackers’ violation of security policy Recovery ( )ﺗﺮﻣیﻢ � Stop attack, assess and repair damage � Continue to function correctly even if attack succeeds 32
