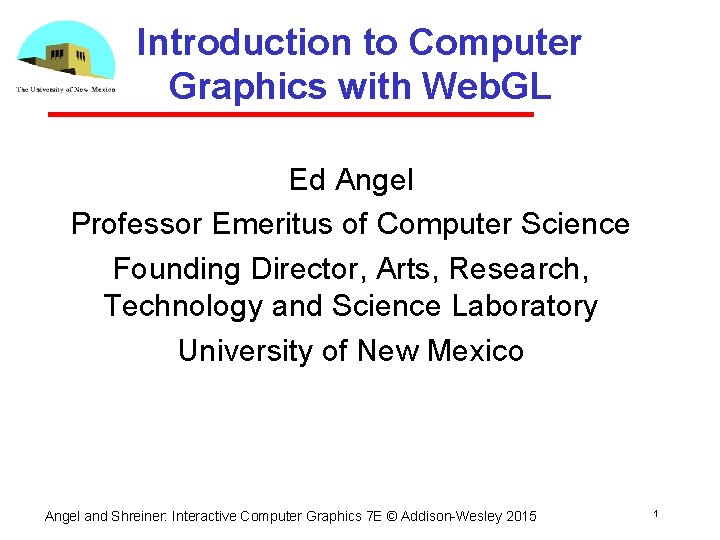

Introduction to Computer Graphics with Web. GL Ed Angel Professor Emeritus of Computer Science Founding Director, Arts, Research, Technology and Science Laboratory University of New Mexico Angel and Shreiner: Interactive Computer Graphics 7 E © Addison-Wesley 2015 1

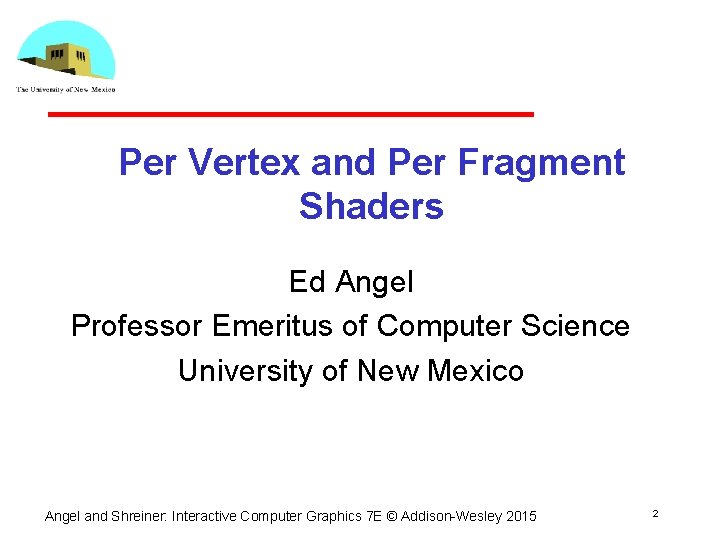

Per Vertex and Per Fragment Shaders Ed Angel Professor Emeritus of Computer Science University of New Mexico Angel and Shreiner: Interactive Computer Graphics 7 E © Addison-Wesley 2015 2

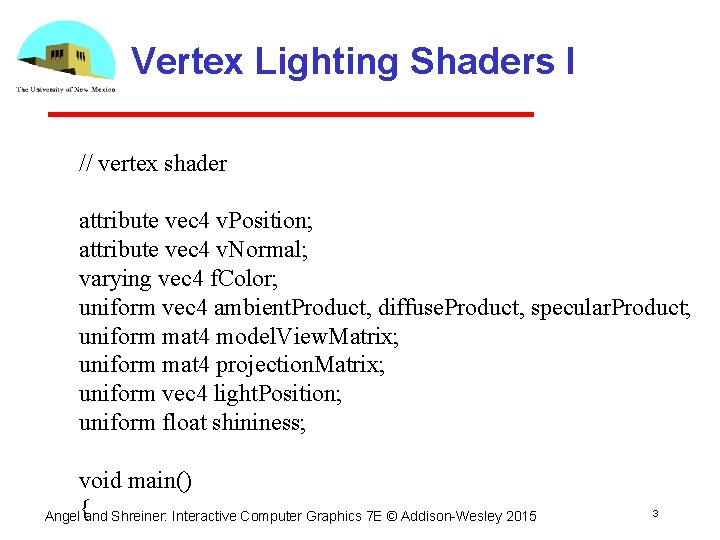

Vertex Lighting Shaders I // vertex shader attribute vec 4 v. Position; attribute vec 4 v. Normal; varying vec 4 f. Color; uniform vec 4 ambient. Product, diffuse. Product, specular. Product; uniform mat 4 model. View. Matrix; uniform mat 4 projection. Matrix; uniform vec 4 light. Position; uniform float shininess; void main() Angel{and Shreiner: Interactive Computer Graphics 7 E © Addison-Wesley 2015 3

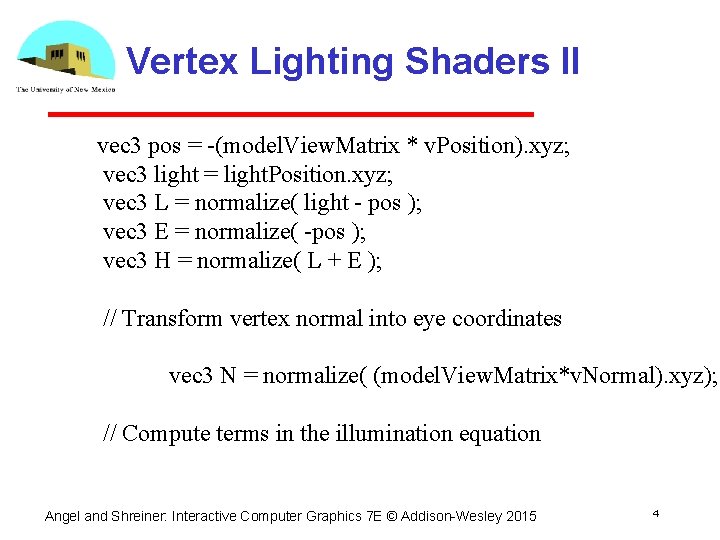

Vertex Lighting Shaders II vec 3 pos = -(model. View. Matrix * v. Position). xyz; vec 3 light = light. Position. xyz; vec 3 L = normalize( light - pos ); vec 3 E = normalize( -pos ); vec 3 H = normalize( L + E ); // Transform vertex normal into eye coordinates vec 3 N = normalize( (model. View. Matrix*v. Normal). xyz); // Compute terms in the illumination equation Angel and Shreiner: Interactive Computer Graphics 7 E © Addison-Wesley 2015 4

Vertex Lighting Shaders III // Compute terms in the illumination equation vec 4 ambient = Ambient. Product; float Kd = max( dot(L, N), 0. 0 ); vec 4 diffuse = Kd*Diffuse. Product; float Ks = pow( max(dot(N, H), 0. 0), Shininess ); vec 4 specular = Ks * Specular. Product; if( dot(L, N) < 0. 0 ) specular = vec 4(0. 0, 1. 0); gl_Position = Projection * Model. View * v. Position; color = ambient + diffuse + specular; color. a = 1. 0; } Angel and Shreiner: Interactive Computer Graphics 7 E © Addison-Wesley 2015 5

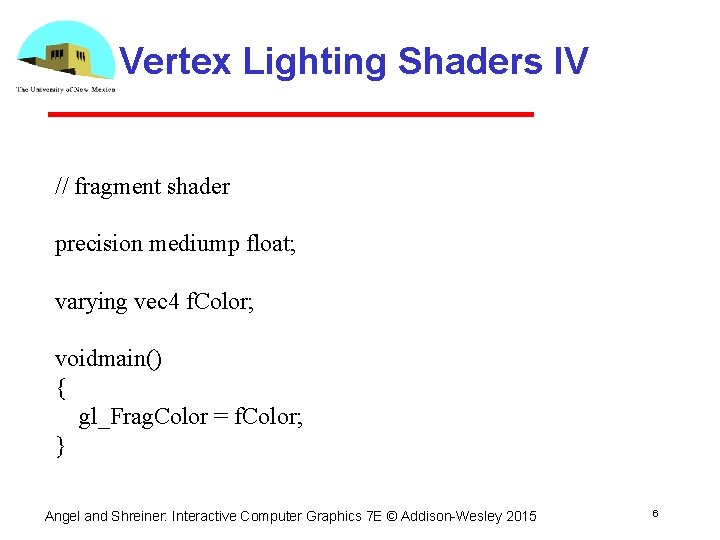

Vertex Lighting Shaders IV // fragment shader precision mediump float; varying vec 4 f. Color; voidmain() { gl_Frag. Color = f. Color; } Angel and Shreiner: Interactive Computer Graphics 7 E © Addison-Wesley 2015 6

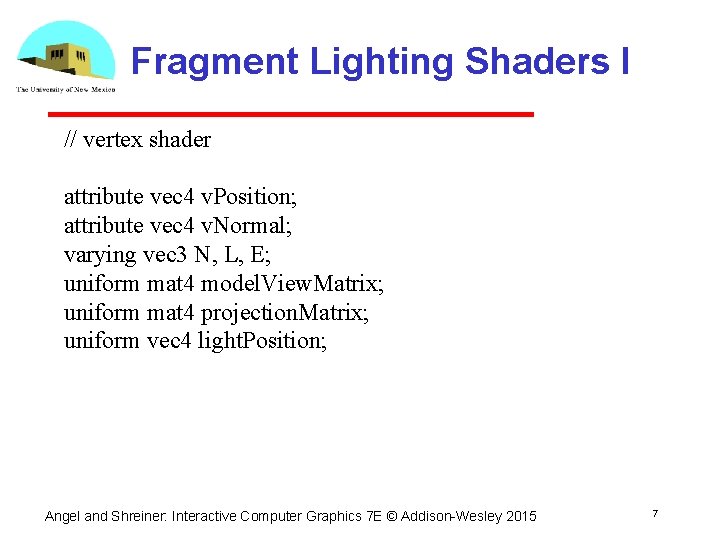

Fragment Lighting Shaders I // vertex shader attribute vec 4 v. Position; attribute vec 4 v. Normal; varying vec 3 N, L, E; uniform mat 4 model. View. Matrix; uniform mat 4 projection. Matrix; uniform vec 4 light. Position; Angel and Shreiner: Interactive Computer Graphics 7 E © Addison-Wesley 2015 7

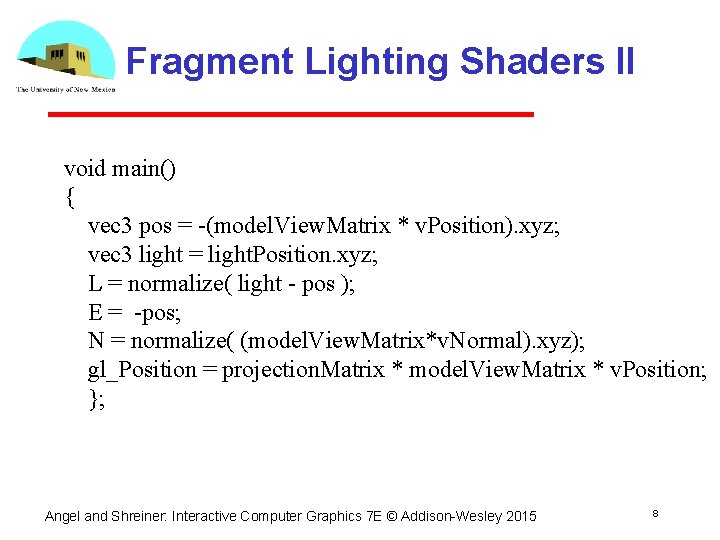

Fragment Lighting Shaders II void main() { vec 3 pos = -(model. View. Matrix * v. Position). xyz; vec 3 light = light. Position. xyz; L = normalize( light - pos ); E = -pos; N = normalize( (model. View. Matrix*v. Normal). xyz); gl_Position = projection. Matrix * model. View. Matrix * v. Position; }; Angel and Shreiner: Interactive Computer Graphics 7 E © Addison-Wesley 2015 8

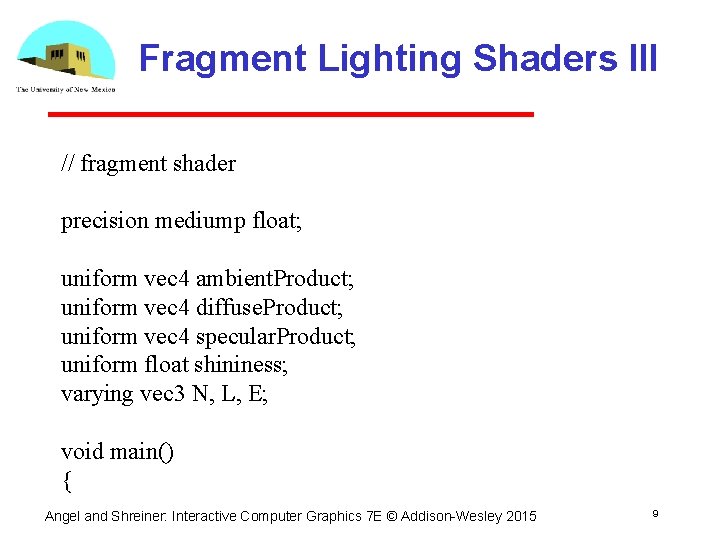

Fragment Lighting Shaders III // fragment shader precision mediump float; uniform vec 4 ambient. Product; uniform vec 4 diffuse. Product; uniform vec 4 specular. Product; uniform float shininess; varying vec 3 N, L, E; void main() { Angel and Shreiner: Interactive Computer Graphics 7 E © Addison-Wesley 2015 9

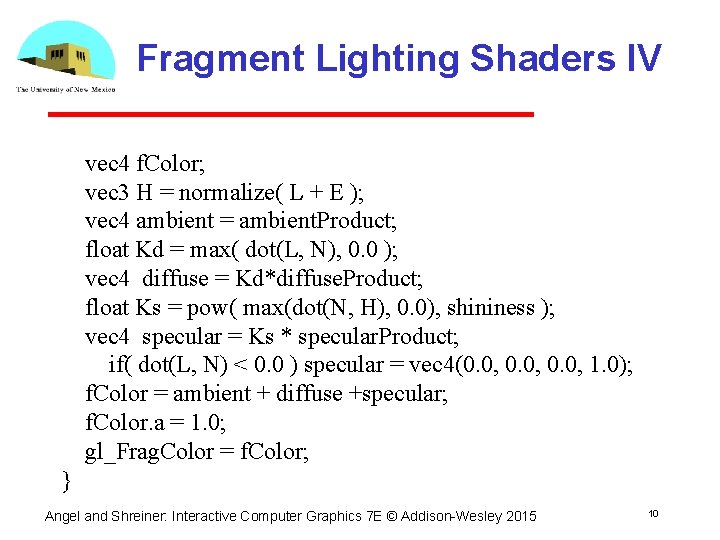

Fragment Lighting Shaders IV vec 4 f. Color; vec 3 H = normalize( L + E ); vec 4 ambient = ambient. Product; float Kd = max( dot(L, N), 0. 0 ); vec 4 diffuse = Kd*diffuse. Product; float Ks = pow( max(dot(N, H), 0. 0), shininess ); vec 4 specular = Ks * specular. Product; if( dot(L, N) < 0. 0 ) specular = vec 4(0. 0, 1. 0); f. Color = ambient + diffuse +specular; f. Color. a = 1. 0; gl_Frag. Color = f. Color; } Angel and Shreiner: Interactive Computer Graphics 7 E © Addison-Wesley 2015 10
