Introduction To Collision Detection Parts of these slides

Introduction To Collision Detection Parts of these slides are based on www 2. informatik. uni-wuerzburg. de/ mitarbeiter/holger/lehre/osss 02/schmidt/vortrag. pdf by Jakob Schmidt

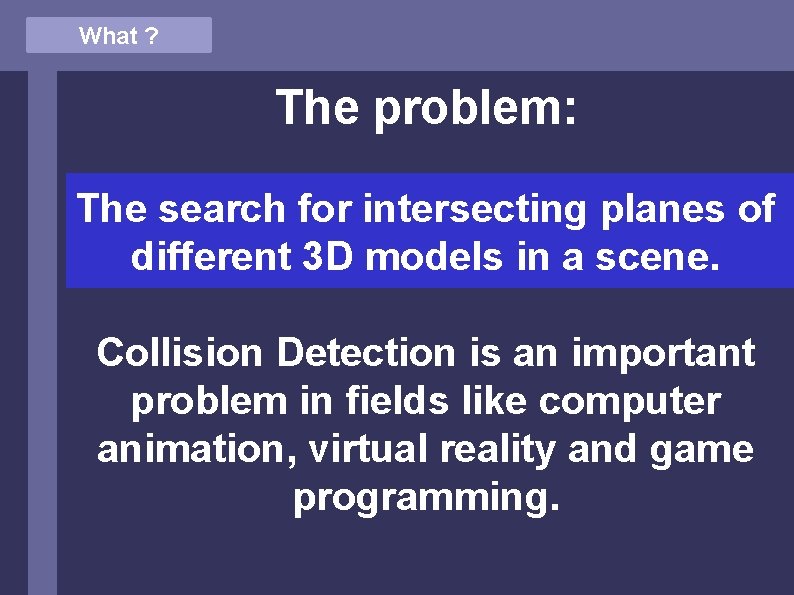

What ? The problem: The search for intersecting planes of different 3 D models in a scene. Collision Detection is an important problem in fields like computer animation, virtual reality and game programming.

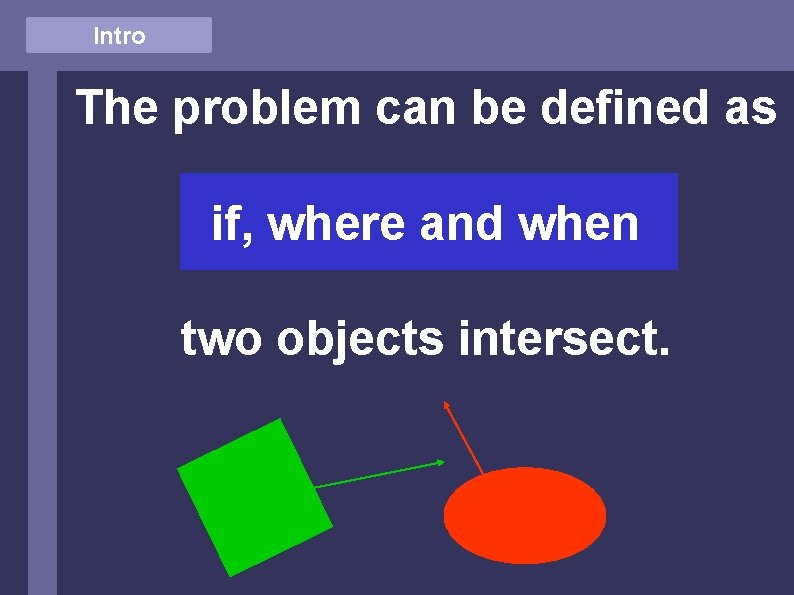

Intro The problem can be defined as if, where and when two objects intersect.

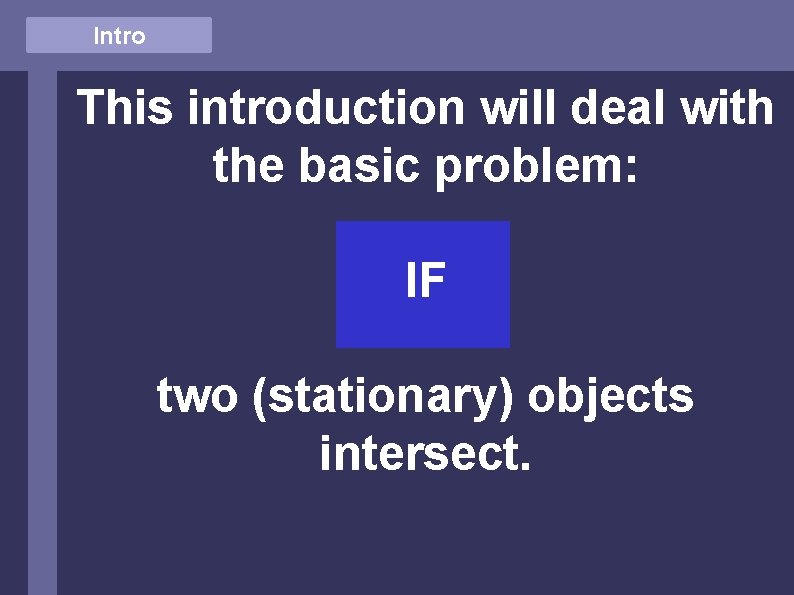

Intro This introduction will deal with the basic problem: IF two (stationary) objects intersect.

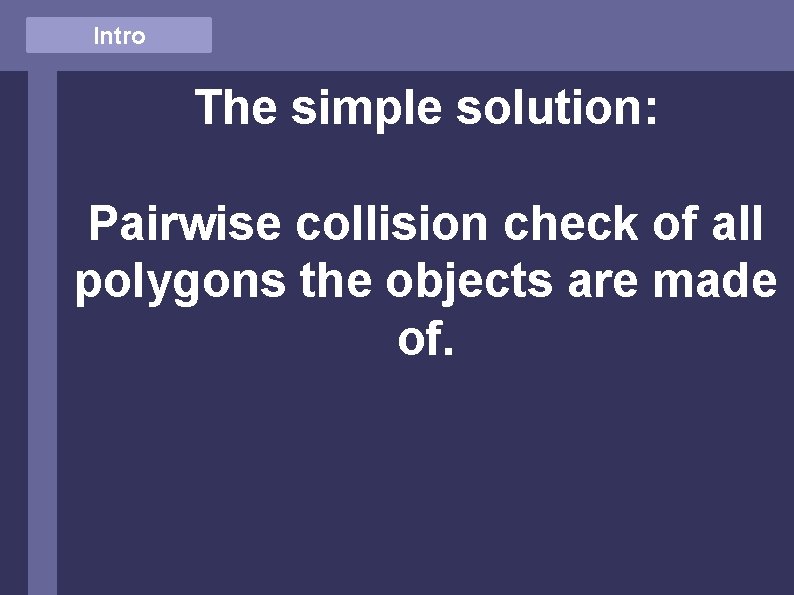

Intro The simple solution: Pairwise collision check of all polygons the objects are made of.

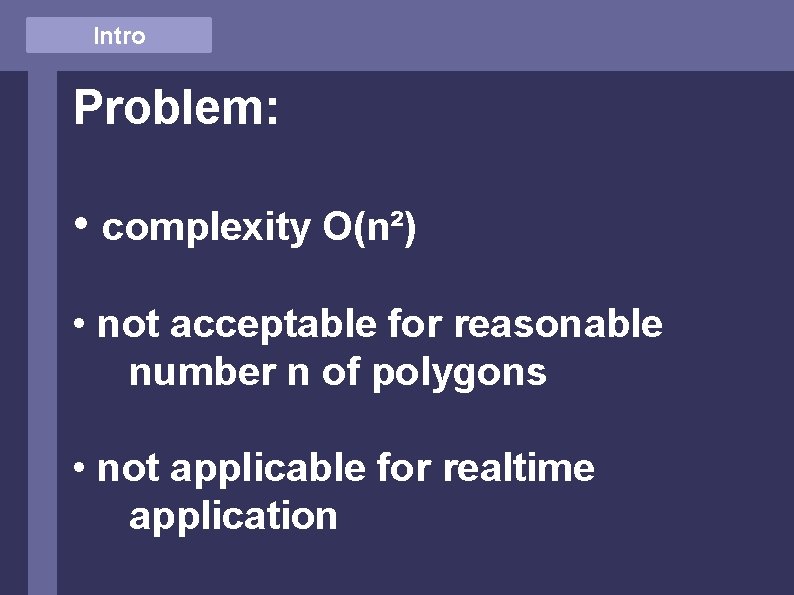

Intro Problem: • complexity O(n²) • not acceptable for reasonable number n of polygons • not applicable for realtime application

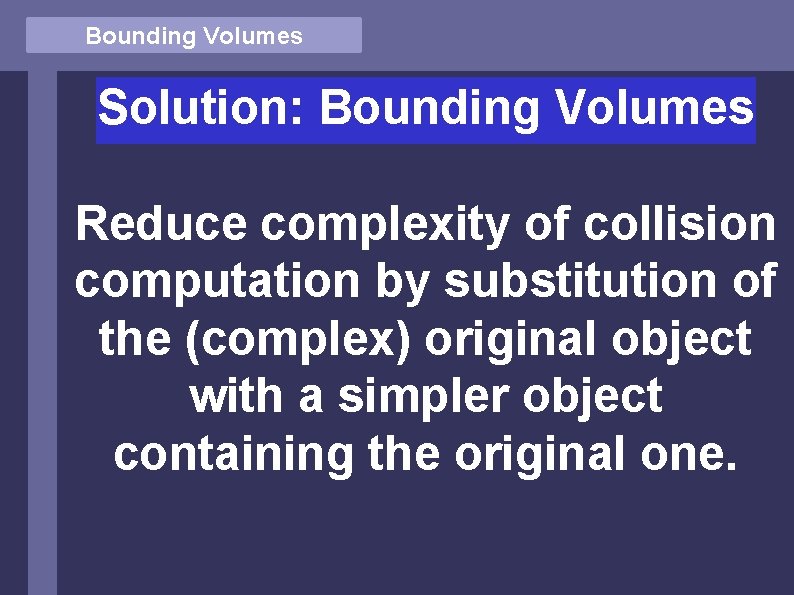

Bounding Volumes Solution: Bounding Volumes Reduce complexity of collision computation by substitution of the (complex) original object with a simpler object containing the original one.

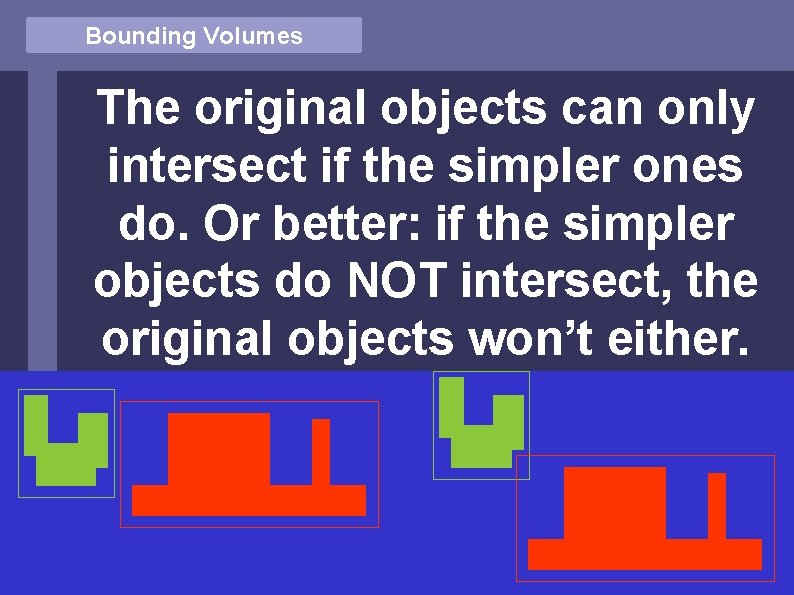

Bounding Volumes The original objects can only intersect if the simpler ones do. Or better: if the simpler objects do NOT intersect, the original objects won’t either.

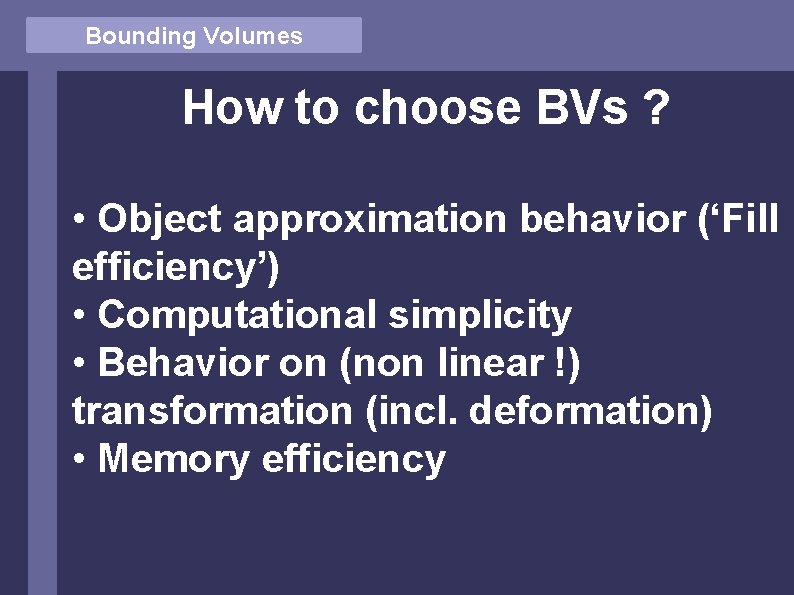

Bounding Volumes How to choose BVs ? • Object approximation behavior (‘Fill efficiency’) • Computational simplicity • Behavior on (non linear !) transformation (incl. deformation) • Memory efficiency

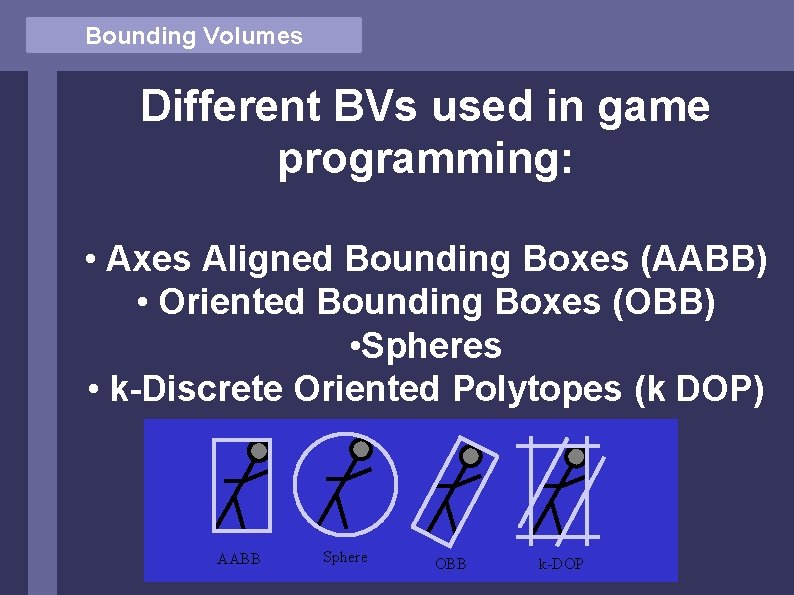

Bounding Volumes Different BVs used in game programming: • Axes Aligned Bounding Boxes (AABB) • Oriented Bounding Boxes (OBB) • Spheres • k-Discrete Oriented Polytopes (k DOP) AABB Sphere OBB k-DOP

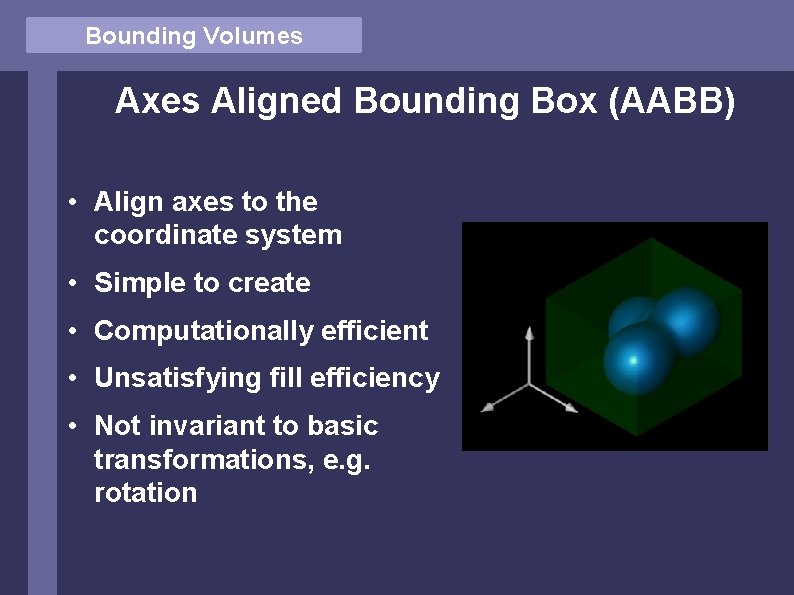

Bounding Volumes Axes Aligned Bounding Box (AABB) • Align axes to the coordinate system • Simple to create • Computationally efficient • Unsatisfying fill efficiency • Not invariant to basic transformations, e. g. rotation

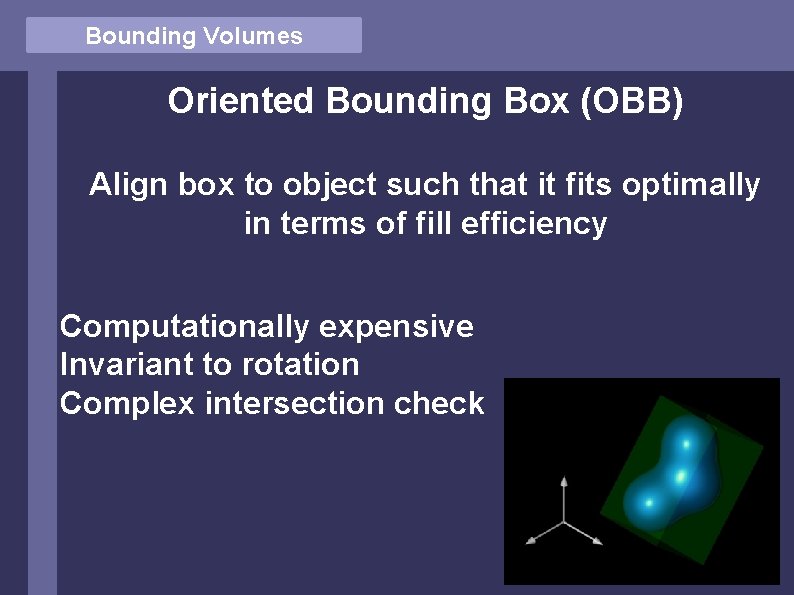

Bounding Volumes Oriented Bounding Box (OBB) Align box to object such that it fits optimally in terms of fill efficiency Computationally expensive Invariant to rotation Complex intersection check

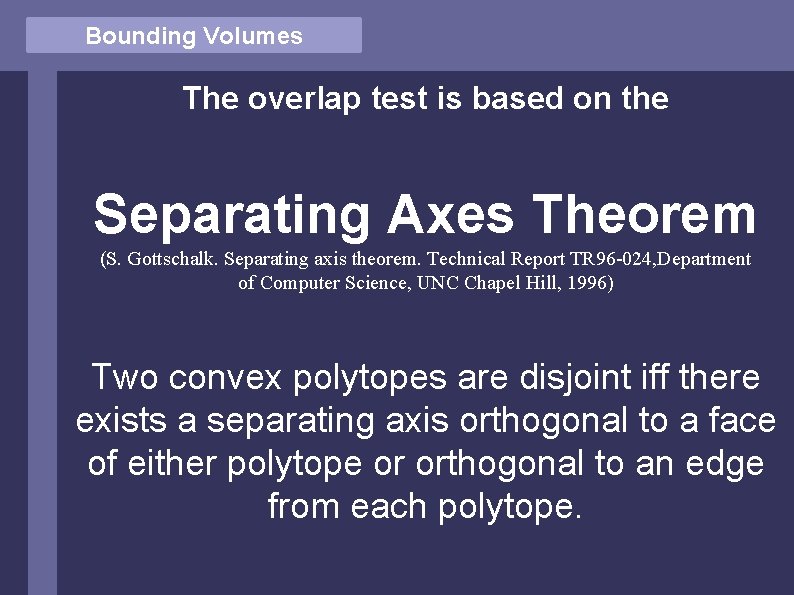

Bounding Volumes The overlap test is based on the Separating Axes Theorem (S. Gottschalk. Separating axis theorem. Technical Report TR 96 -024, Department of Computer Science, UNC Chapel Hill, 1996) Two convex polytopes are disjoint iff there exists a separating axis orthogonal to a face of either polytope or orthogonal to an edge from each polytope.

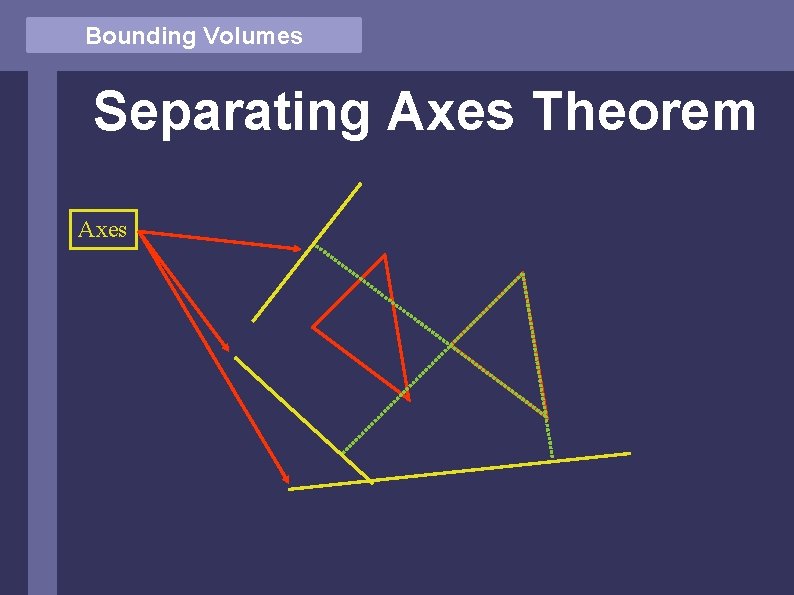

Bounding Volumes Separating Axes Theorem Axes

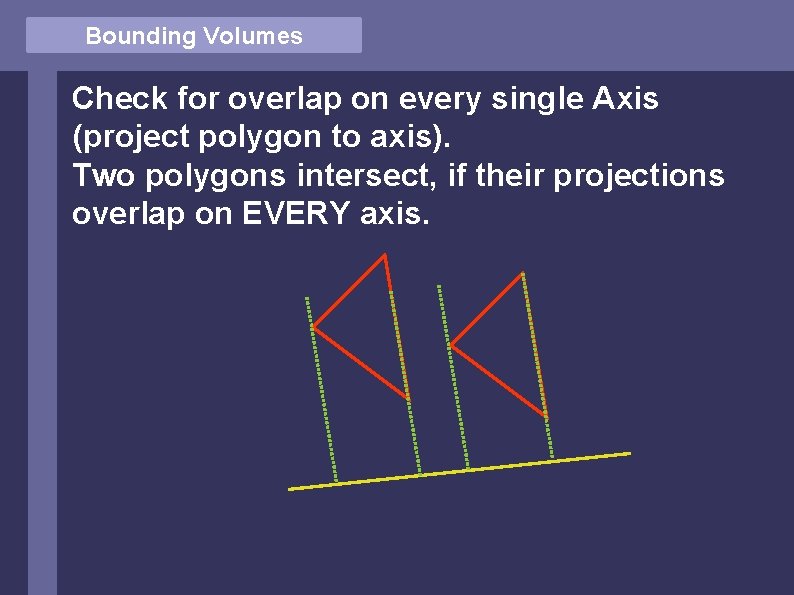

Bounding Volumes Check for overlap on every single Axis (project polygon to axis). Two polygons intersect, if their projections overlap on EVERY axis.

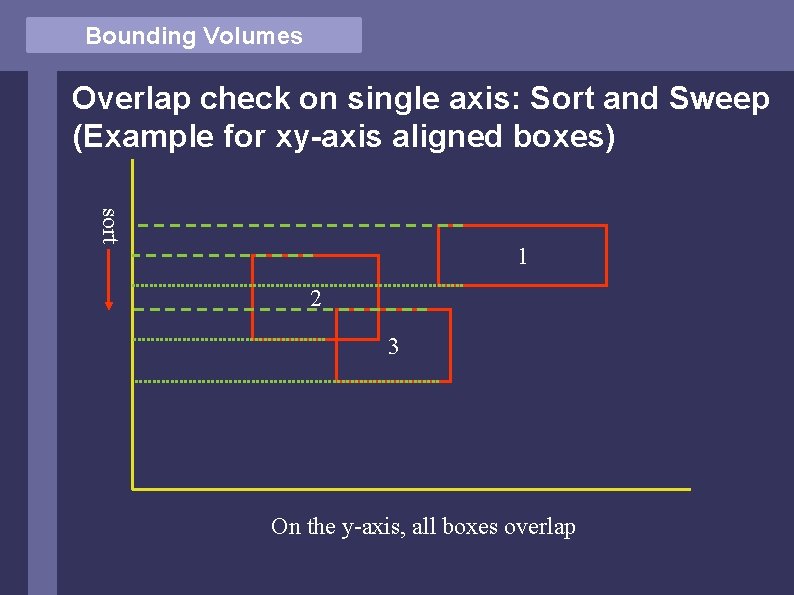

Bounding Volumes Overlap check on single axis: Sort and Sweep (Example for xy-axis aligned boxes) sort 1 2 3 On the y-axis, all boxes overlap

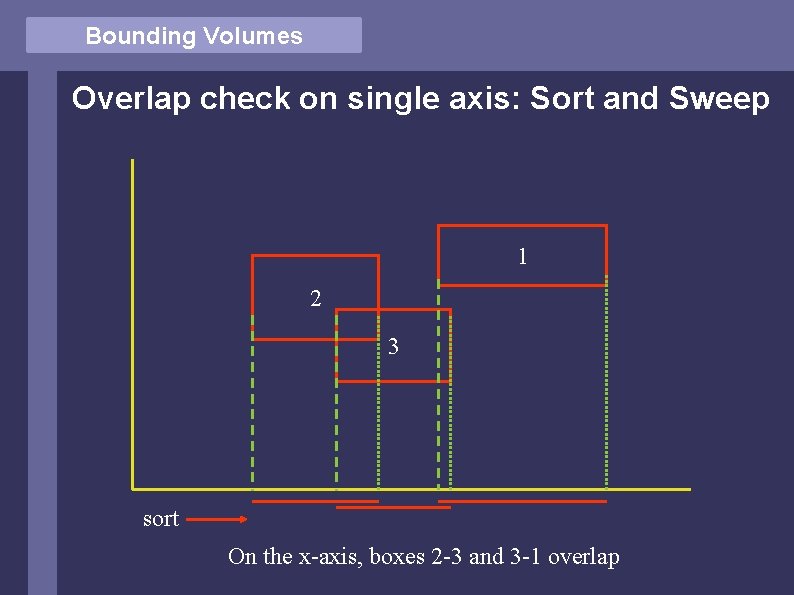

Bounding Volumes Overlap check on single axis: Sort and Sweep 1 2 3 sort On the x-axis, boxes 2 -3 and 3 -1 overlap

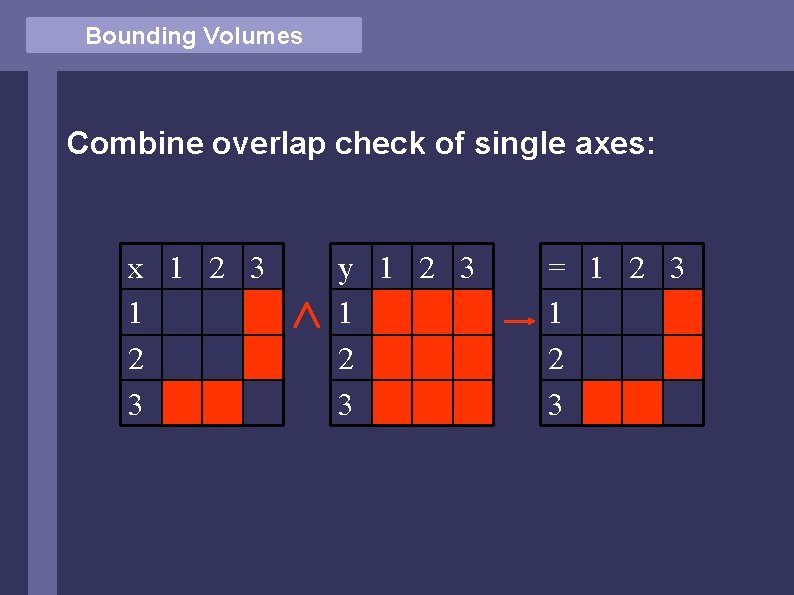

Bounding Volumes Combine overlap check of single axes: x 1 2 3 y 1 2 3 = 1 2 3

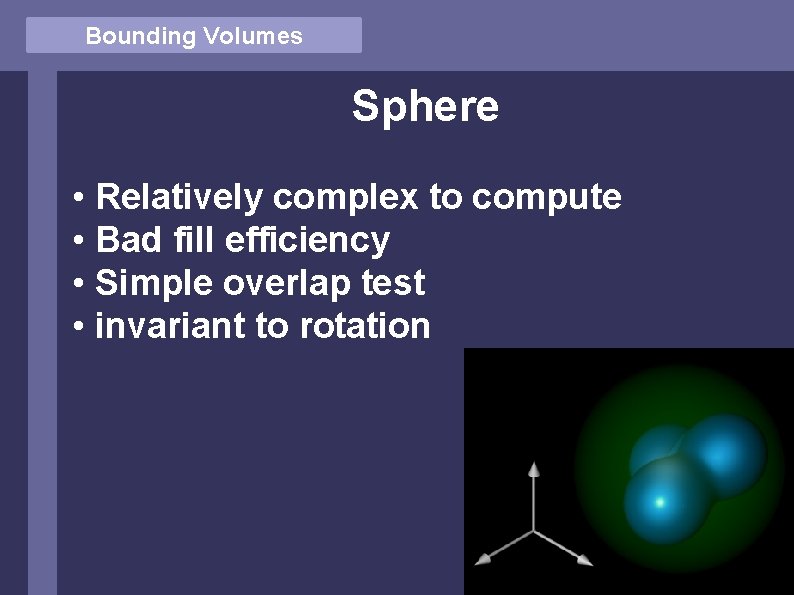

Bounding Volumes Sphere • Relatively complex to compute • Bad fill efficiency • Simple overlap test • invariant to rotation

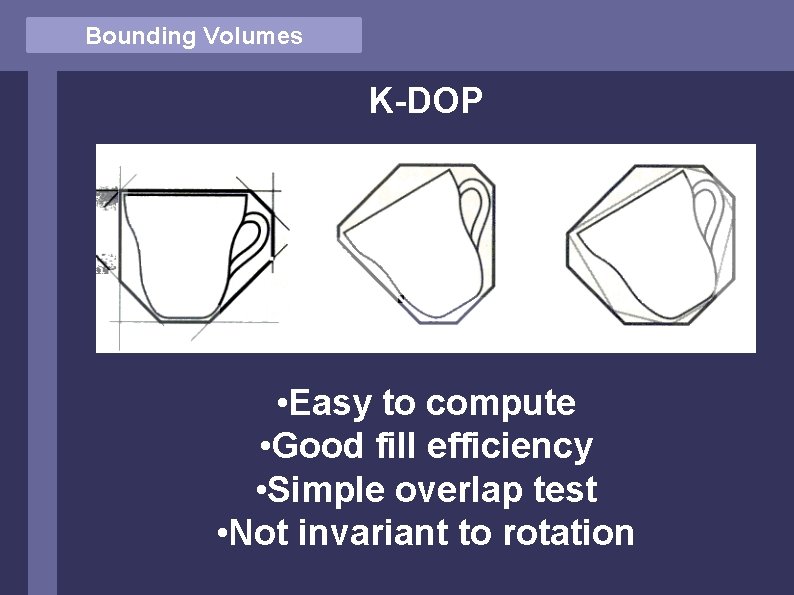

Bounding Volumes K-DOP • Easy to compute • Good fill efficiency • Simple overlap test • Not invariant to rotation

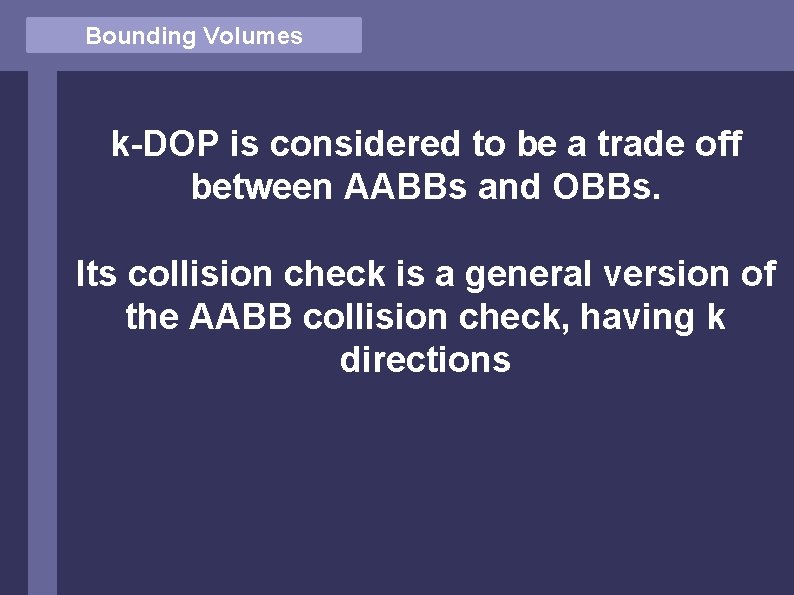

Bounding Volumes k-DOP is considered to be a trade off between AABBs and OBBs. Its collision check is a general version of the AABB collision check, having k directions

Bounding Volumes k-DOPs are used e. g. in the game ‘Cell Damage’ (XBOX, Pseudo Interactive, 2002)

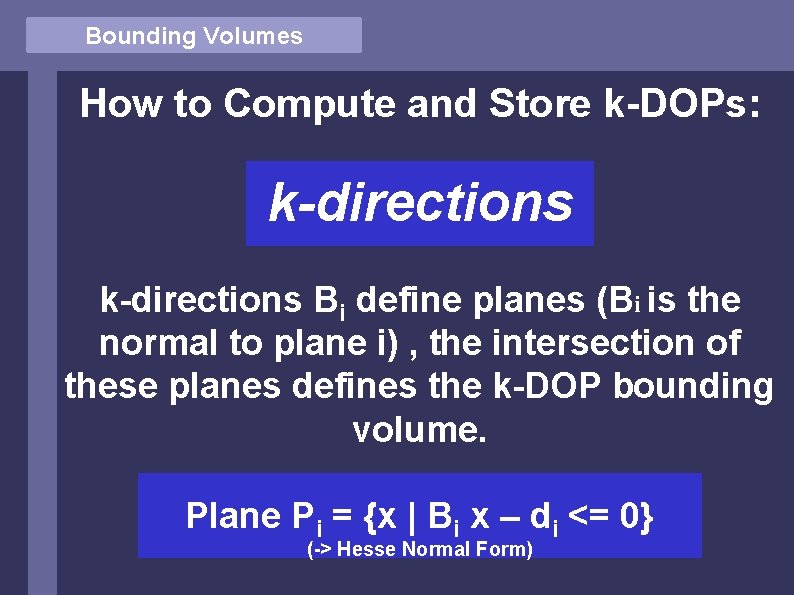

Bounding Volumes How to Compute and Store k-DOPs: k-directions Bi define planes (Bi is the normal to plane i) , the intersection of these planes defines the k-DOP bounding volume. Plane Pi = {x | Bi x – di <= 0} (-> Hesse Normal Form)

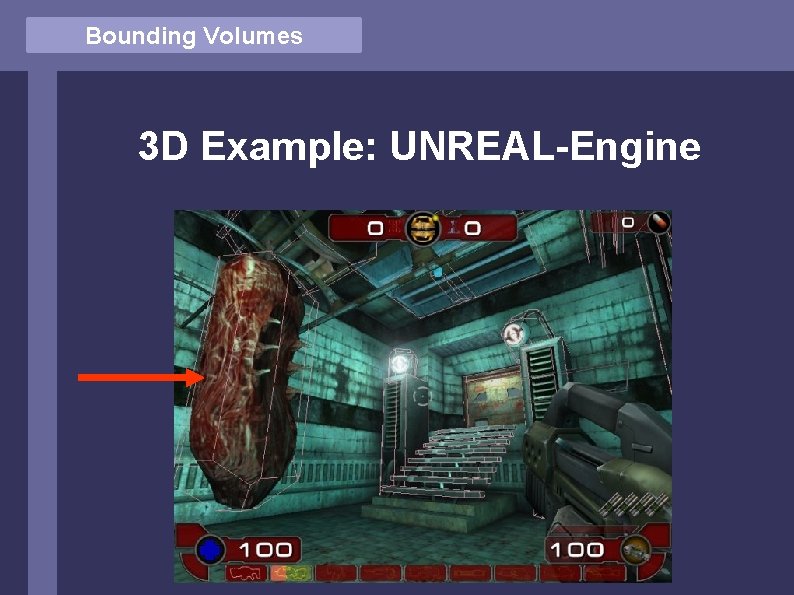

Bounding Volumes 3 D Example: UNREAL-Engine

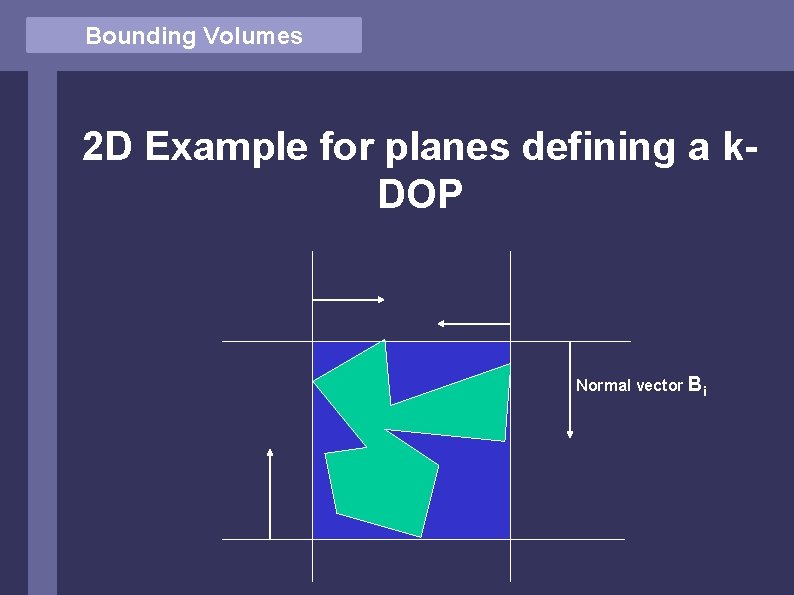

Bounding Volumes 2 D Example for planes defining a k. DOP Normal vector Bi

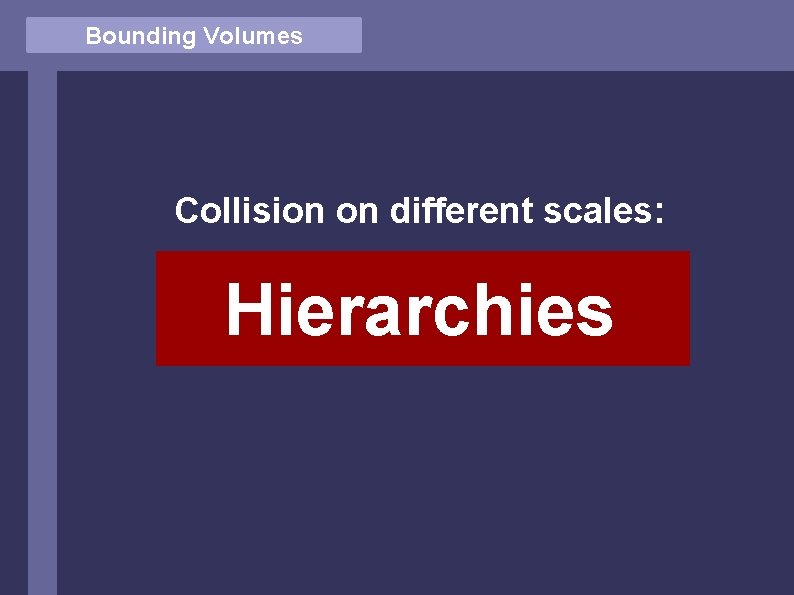

Bounding Volumes Collision on different scales: Hierarchies

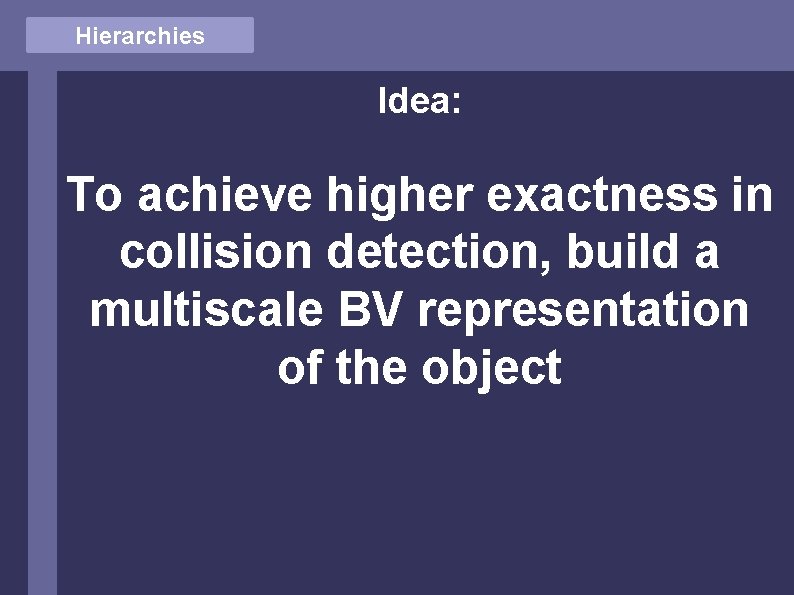

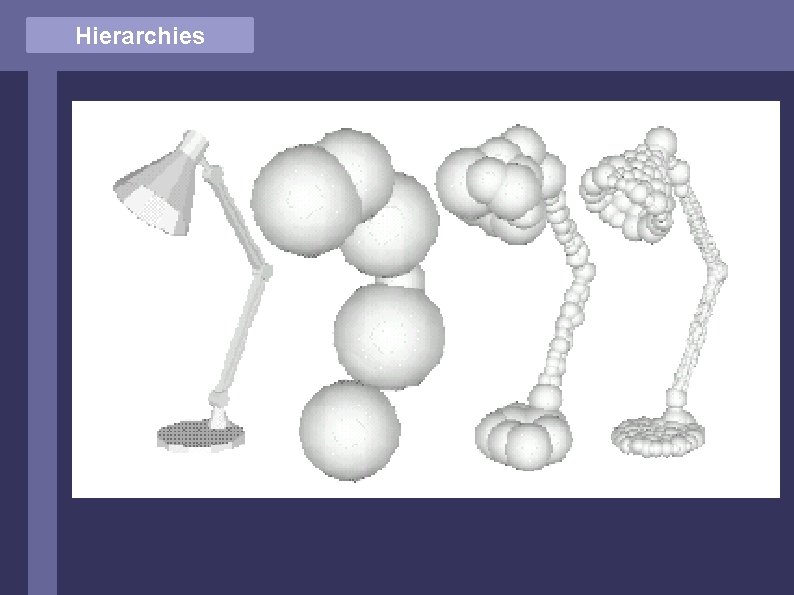

Hierarchies Idea: To achieve higher exactness in collision detection, build a multiscale BV representation of the object

Hierarchies

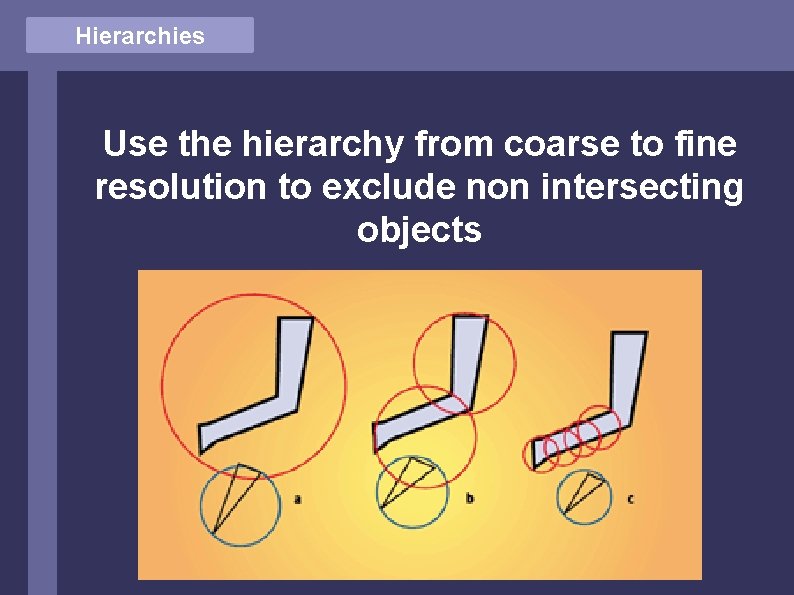

Hierarchies Use the hierarchy from coarse to fine resolution to exclude non intersecting objects

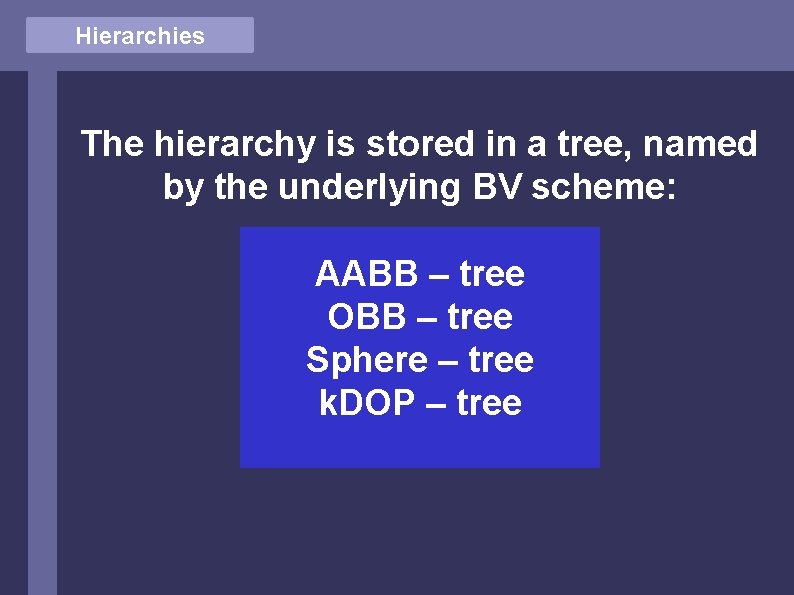

Hierarchies The hierarchy is stored in a tree, named by the underlying BV scheme: AABB – tree OBB – tree Sphere – tree k. DOP – tree

Hierarchies Sphere Trees are used for example in “Gran Tourismo”

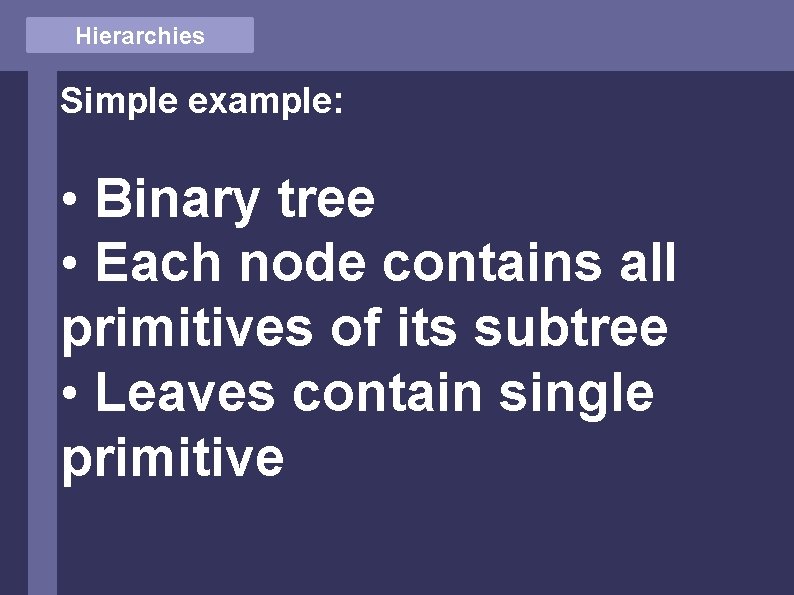

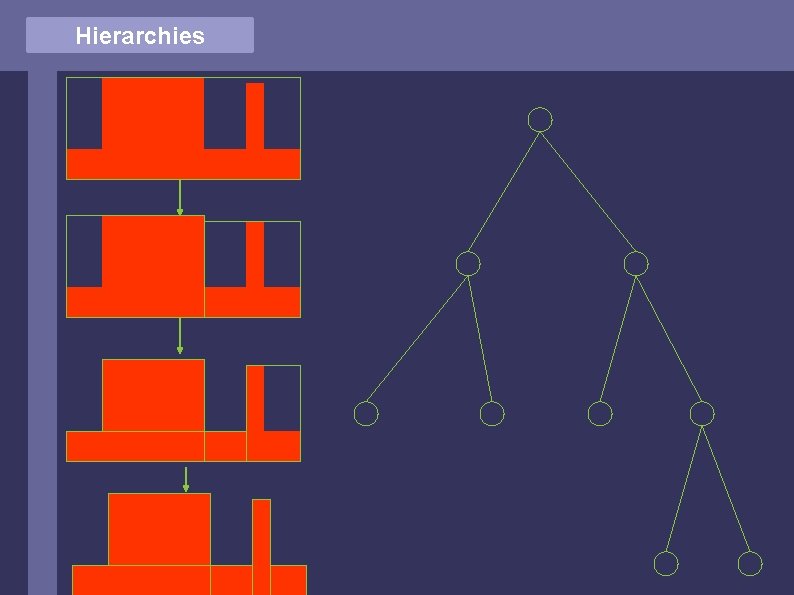

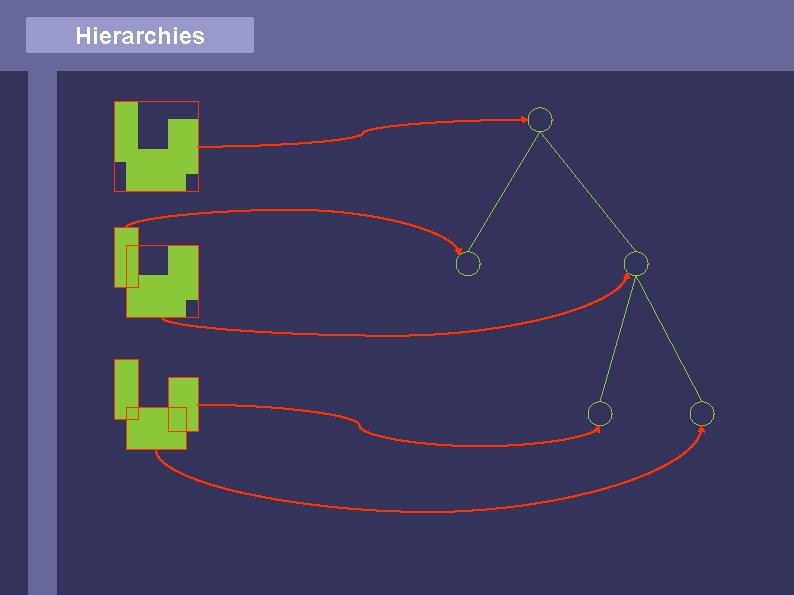

Hierarchies Simple example: • Binary tree • Each node contains all primitives of its subtree • Leaves contain single primitive

Hierarchies

Hierarchies

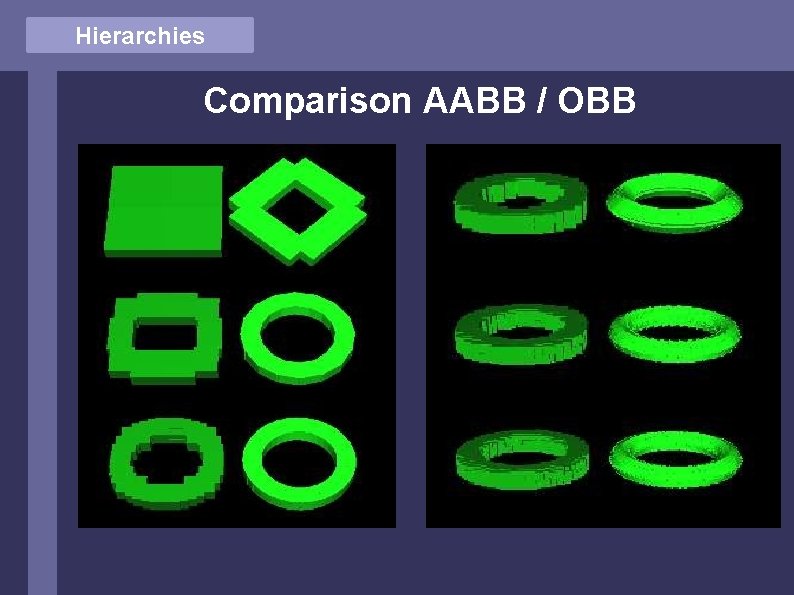

Hierarchies Comparison AABB / OBB
