Introduction to CMOS VLSI Design Lecture 15 Adders
- Slides: 44
Introduction to CMOS VLSI Design Lecture 15: Adders David Harris 15: Adders Harvey Mudd College Spring 2007 1
Outline q q q q Single-bit Addition Carry-Ripple Adder Carry-Skip Adder Carry-Lookahead Adder Carry-Select Adder Carry-Increment Adder Tree Adder 15: Adders CMOS VLSI Design 2
Single-Bit Addition Half Adder A B 0 A B C 0 0 0 1 0 1 1 1 0 1 15: Adders Cout Full Adder S CMOS VLSI Design Cout S 3
Single-Bit Addition Half Adder Full Adder A B Cout S A B C Cout S 0 0 0 0 0 1 0 0 1 1 0 0 1 1 1 0 0 0 1 1 0 1 1 15: Adders CMOS VLSI Design 4
PGK q For a full adder, define what happens to carries – Generate: Cout = 1 independent of C • G= – Propagate: Cout = C • P= – Kill: Cout = 0 independent of C • K= 15: Adders CMOS VLSI Design 5
PGK q For a full adder, define what happens to carries – Generate: Cout = 1 independent of C • G=A • B – Propagate: Cout = C • P=A B – Kill: Cout = 0 independent of C • K = ~A • ~B 15: Adders CMOS VLSI Design 6
Full Adder Design I q Brute force implementation from eqns 15: Adders CMOS VLSI Design 7
Full Adder Design II q Factor S in terms of Cout S = ABC + (A + B + C)(~Cout) q Critical path is usually C to Cout in ripple adder 15: Adders CMOS VLSI Design 8
Layout q Clever layout circumvents usual line of diffusion – Use wide transistors on critical path – Eliminate output inverters 15: Adders CMOS VLSI Design 9
Full Adder Design III q Complementary Pass Transistor Logic (CPL) – Slightly faster, but more area 15: Adders CMOS VLSI Design 10
Full Adder Design IV q Dual-rail domino – Very fast, but large and power hungry – Used in very fast multipliers 15: Adders CMOS VLSI Design 11

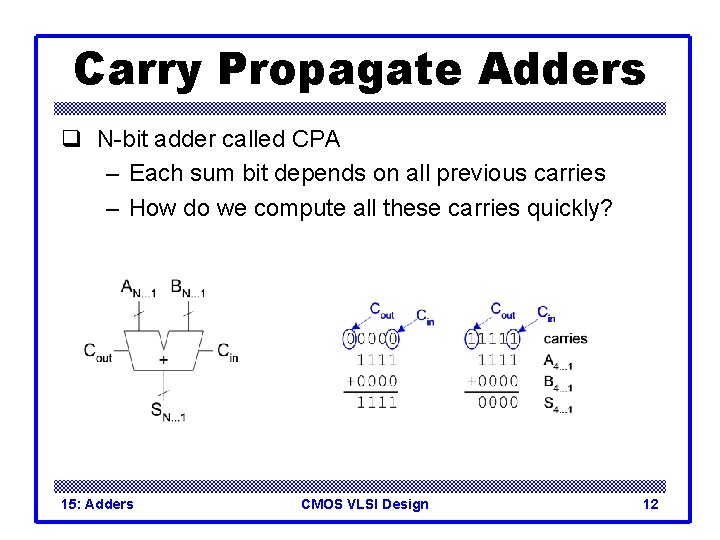

Carry Propagate Adders q N-bit adder called CPA – Each sum bit depends on all previous carries – How do we compute all these carries quickly? 15: Adders CMOS VLSI Design 12
Carry-Ripple Adder q Simplest design: cascade full adders – Critical path goes from Cin to Cout – Design full adder to have fast carry delay 15: Adders CMOS VLSI Design 13
Inversions q Critical path passes through majority gate – Built from minority + inverter – Eliminate inverter and use inverting full adder 15: Adders CMOS VLSI Design 14
Generate / Propagate q Equations often factored into G and P q Generate and propagate for groups spanning i: j q Base case q Sum: 15: Adders CMOS VLSI Design 15
Generate / Propagate q Equations often factored into G and P q Generate and propagate for groups spanning i: j q Base case q Sum: 15: Adders CMOS VLSI Design 16
PG Logic 15: Adders CMOS VLSI Design 17
Carry-Ripple Revisited 15: Adders CMOS VLSI Design 18
Carry-Ripple PG Diagram 15: Adders CMOS VLSI Design 19
Carry-Ripple PG Diagram 15: Adders CMOS VLSI Design 20
PG Diagram Notation 15: Adders CMOS VLSI Design 21
Carry-Skip Adder q Carry-ripple is slow through all N stages q Carry-skip allows carry to skip over groups of n bits – Decision based on n-bit propagate signal 15: Adders CMOS VLSI Design 22
Carry-Skip PG Diagram For k n-bit groups (N = nk) 15: Adders CMOS VLSI Design 23
Carry-Skip PG Diagram For k n-bit groups (N = nk) 15: Adders CMOS VLSI Design 24
Variable Group Size Delay grows as O(sqrt(N)) 15: Adders CMOS VLSI Design 25
Carry-Lookahead Adder q Carry-lookahead adder computes Gi: 0 for many bits in parallel. q Uses higher-valency cells with more than two inputs. 15: Adders CMOS VLSI Design 26
CLA PG Diagram 15: Adders CMOS VLSI Design 27
Higher-Valency Cells 15: Adders CMOS VLSI Design 28
Carry-Select Adder q Trick for critical paths dependent on late input X – Precompute two possible outputs for X = 0, 1 – Select proper output when X arrives q Carry-select adder precomputes n-bit sums – For both possible carries into n-bit group 15: Adders CMOS VLSI Design 29
Carry-Increment Adder q Factor initial PG and final XOR out of carry-select 15: Adders CMOS VLSI Design 30
Carry-Increment Adder q Factor initial PG and final XOR out of carry-select 15: Adders CMOS VLSI Design 31
Variable Group Size q Also buffer noncritical signals 15: Adders CMOS VLSI Design 32
Tree Adder q If lookahead is good, lookahead across lookahead! – Recursive lookahead gives O(log N) delay q Many variations on tree adders 15: Adders CMOS VLSI Design 33
Brent-Kung 15: Adders CMOS VLSI Design 34
Sklansky 15: Adders CMOS VLSI Design 35
Kogge-Stone 15: Adders CMOS VLSI Design 36
Tree Adder Taxonomy q Ideal N-bit tree adder would have – L = log N logic levels – Fanout never exceeding 2 – No more than one wiring track between levels q Describe adder with 3 -D taxonomy (l, f, t) – Logic levels: L+l – Fanout: 2 f + 1 – Wiring tracks: 2 t q Known tree adders sit on plane defined by l + f + t = L-1 15: Adders CMOS VLSI Design 37
Tree Adder Taxonomy 15: Adders CMOS VLSI Design 38
Tree Adder Taxonomy 15: Adders CMOS VLSI Design 39
Han-Carlson 15: Adders CMOS VLSI Design 40
Knowles [2, 1, 1, 1] 15: Adders CMOS VLSI Design 41
Ladner-Fischer 15: Adders CMOS VLSI Design 42
Taxonomy Revisited 15: Adders CMOS VLSI Design 43
Summary Adder architectures offer area / power / delay tradeoffs. Choose the best one for your application. Architecture Classification Logic Levels Max Fanout Tracks Cells Carry-Ripple N-1 1 1 N Carry-Skip n=4 N/4 + 5 2 1 1. 25 N Carry-Inc. n=4 N/4 + 2 4 1 2 N Brent-Kung (L-1, 0, 0) 2 log 2 N – 1 2 N Sklansky (0, L-1, 0) log 2 N N/2 + 1 1 0. 5 Nlog 2 N Kogge-Stone (0, 0, L-1) log 2 N 2 N/2 Nlog 2 N 15: Adders CMOS VLSI Design 44
