Introduction to Cloud Computing Bhavani Thuraisingham The University

Introduction to Cloud Computing Bhavani Thuraisingham The University of Texas at Dallas February 2014

Cloud Computing l l Cloud computing is the delivery of computing as a service rather than a product, whereby shared resources, software, and information are provided to computers and other devices as a metered service over a network Cloud computing provides computation, software, data access, and storage resources without requiring cloud users to know the location and other details of the computing infrastructure. End users access cloud based applications through a web browser or a light weight desktop or mobile app while the business software and data are stored on servers at a remote location. Cloud application providers strive to give the same or better service and performance as if the software programs were installed locally on end-user computers. At the foundation of cloud computing is the broader concept of infrastructure convergence and shared services. . This type of data centre environment allows enterprises to get their applications up and running faster, with easier manageability and less maintenance, and enables IT to more rapidly adjust IT resources (such as servers, storage, and networking) to meet fluctuating and unpredictable business demand. [ 2

Cloud Computing characteristics: l l Empowerment of end-users of computing resources by putting the provisioning of those resources in their own control, as opposed to the control of a centralized IT service (for example) Agility improves with users' ability to re-provision technological infrastructure resources. Application programming interface (API) accessibility to software that enables machines to interact with cloud software in the same way the user interface facilitates interaction between humans and computers. Cloud computing systems typically use REST-based APIs. Cost is claimed to be reduced and in a public cloud delivery model capital expenditure is converted to operational expenditure. [This is purported to lower barriers to entry, as infrastructure is typically provided by a third-party and does not need to be purchased for one-time or infrequent intensive computing tasks. Pricing on a utility computing basis is fine-grained with usage-based options and fewer IT skills are required for implementation (in-house). 3

Cloud Computing characteristics: l l l Device and location independence[ enable users to access systems using a web browser regardless of their location or what device they are using (e. g. , PC, mobile phone). As infrastructure is off-site (typically provided by a third-party) and accessed via the Internet, users can connect from anywhere. Virtualization technology allows servers and storage devices to be shared and utilization be increased. Applications can be easily migrated from one physical server to another. Multi-tenancy enables sharing of resources and costs across a large pool of users thus allowing for: l Centralization of infrastructure in locations with lower costs (such as real estate, electricity, etc. ) l Peak-load capacity increases (users need not engineer for highest possible loadlevels) l Utilisation and efficiency improvements for systems that are often only 10– 20% utilised. Reliability is improved if multiple redundant sites are used, which makes well-designed cloud computing suitable for business continuity and disaster recovery Scalability and Elasticity via dynamic ("on-demand") provisioning of resources on a finegrained, self-service basis near real-time, without users having to engineer for peak loads. 4

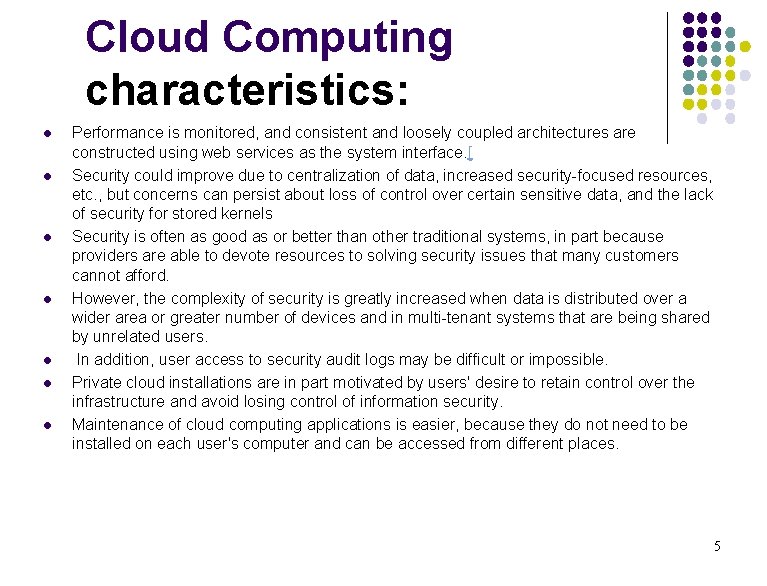

Cloud Computing characteristics: l l l l Performance is monitored, and consistent and loosely coupled architectures are constructed using web services as the system interface. [ Security could improve due to centralization of data, increased security-focused resources, etc. , but concerns can persist about loss of control over certain sensitive data, and the lack of security for stored kernels Security is often as good as or better than other traditional systems, in part because providers are able to devote resources to solving security issues that many customers cannot afford. However, the complexity of security is greatly increased when data is distributed over a wider area or greater number of devices and in multi-tenant systems that are being shared by unrelated users. In addition, user access to security audit logs may be difficult or impossible. Private cloud installations are in part motivated by users' desire to retain control over the infrastructure and avoid losing control of information security. Maintenance of cloud computing applications is easier, because they do not need to be installed on each user's computer and can be accessed from different places. 5

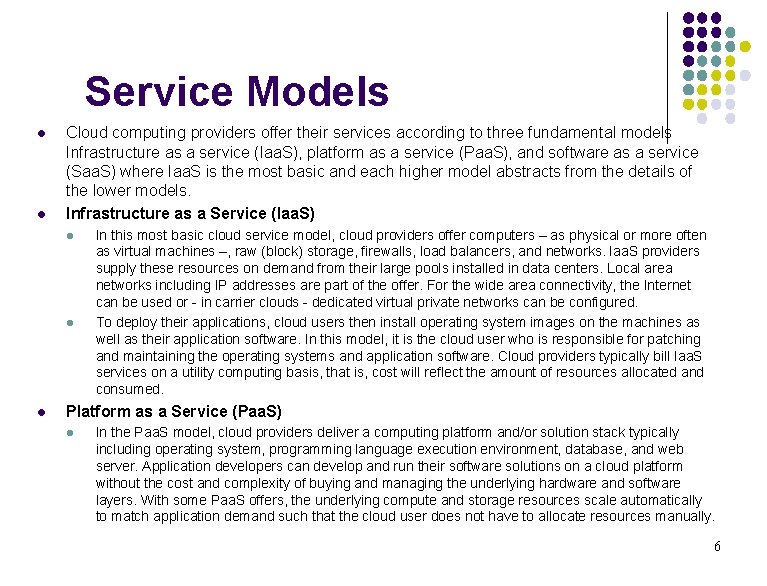

Service Models l l Cloud computing providers offer their services according to three fundamental models Infrastructure as a service (Iaa. S), platform as a service (Paa. S), and software as a service (Saa. S) where Iaa. S is the most basic and each higher model abstracts from the details of the lower models. Infrastructure as a Service (Iaa. S) l l l In this most basic cloud service model, cloud providers offer computers – as physical or more often as virtual machines –, raw (block) storage, firewalls, load balancers, and networks. Iaa. S providers supply these resources on demand from their large pools installed in data centers. Local area networks including IP addresses are part of the offer. For the wide area connectivity, the Internet can be used or - in carrier clouds - dedicated virtual private networks can be configured. To deploy their applications, cloud users then install operating system images on the machines as well as their application software. In this model, it is the cloud user who is responsible for patching and maintaining the operating systems and application software. Cloud providers typically bill Iaa. S services on a utility computing basis, that is, cost will reflect the amount of resources allocated and consumed. Platform as a Service (Paa. S) l In the Paa. S model, cloud providers deliver a computing platform and/or solution stack typically including operating system, programming language execution environment, database, and web server. Application developers can develop and run their software solutions on a cloud platform without the cost and complexity of buying and managing the underlying hardware and software layers. With some Paa. S offers, the underlying compute and storage resources scale automatically to match application demand such that the cloud user does not have to allocate resources manually. 6

Service Models l Software as a Service (Saa. S) l l l In this model, cloud providers install and operate application software in the cloud and cloud users access the software from cloud clients. The cloud users do not manage the cloud infrastructure and platform on which the application is running. This eliminates the need to install and run the application on the cloud user's own computers simplifying maintenance and support. What makes a cloud application different from other applications is its elasticity. This can be achieved by cloning tasks onto multiple virtual machines at run-time to meet the changing work demand. Load balancers distribute the work over the set of virtual machines. This process is transparent to the cloud user who sees only a single access point. To accomodate a large number of cloud users, cloud applications can be multitenant, that is, any machine serves more than one cloud user organization. It is common to refer to special types of cloud based application software with a similar naming convention: desktop as a service, business process as a service, Test Environment as a Service, communication as a service. The pricing model for Saa. S applications is typically a monthly or yearly flat fee per user 7

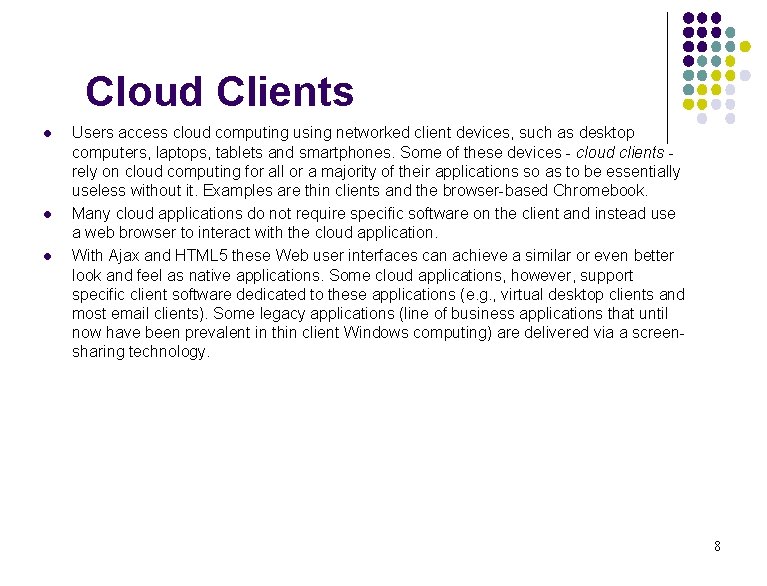

Cloud Clients l l l Users access cloud computing using networked client devices, such as desktop computers, laptops, tablets and smartphones. Some of these devices - cloud clients rely on cloud computing for all or a majority of their applications so as to be essentially useless without it. Examples are thin clients and the browser-based Chromebook. Many cloud applications do not require specific software on the client and instead use a web browser to interact with the cloud application. With Ajax and HTML 5 these Web user interfaces can achieve a similar or even better look and feel as native applications. Some cloud applications, however, support specific client software dedicated to these applications (e. g. , virtual desktop clients and most email clients). Some legacy applications (line of business applications that until now have been prevalent in thin client Windows computing) are delivered via a screensharing technology. 8

Deployment Models l l l Public cloud A public cloud is one based on the standard cloud computing model, in which a service provider makes resources, such as applications and storage, available to the general public over the Internet. Public cloud services may be free or offered on a pay-perusage model. Community cloud shares infrastructure between several organizations from a specific community with common concerns (security, compliance, jurisdiction, etc. ), whether managed internally or by a third-party and hosted internally or externally. The costs are spread over fewer users than a public cloud (but more than a private cloud), so only some of the cost savings potential of cloud computing are realized. Hybrid cloud is a composition of two or more clouds (private, community or public) that remain unique entities but are bound together, offering the benefits of multiple deployment models. It can also be defined as multiple cloud systems that are connected in a way that allows programs and data to be moved easily from one deployment system to another. 9

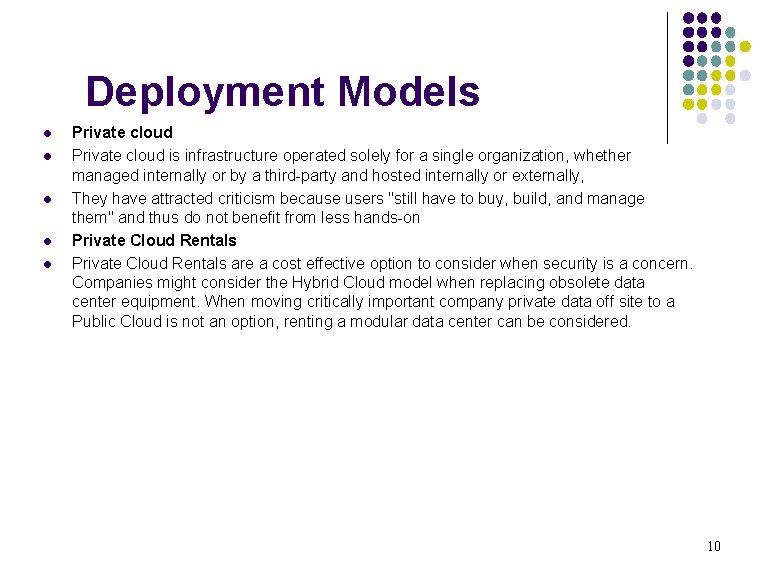

Deployment Models l l l Private cloud is infrastructure operated solely for a single organization, whether managed internally or by a third-party and hosted internally or externally, They have attracted criticism because users "still have to buy, build, and manage them" and thus do not benefit from less hands-on Private Cloud Rentals are a cost effective option to consider when security is a concern. Companies might consider the Hybrid Cloud model when replacing obsolete data center equipment. When moving critically important company private data off site to a Public Cloud is not an option, renting a modular data center can be considered. 10

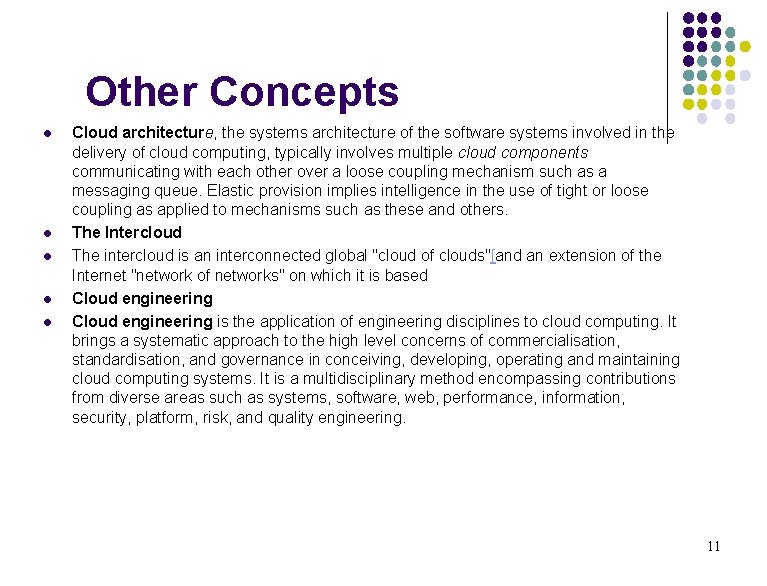

Other Concepts l l l Cloud architecture, the systems architecture of the software systems involved in the delivery of cloud computing, typically involves multiple cloud components communicating with each other over a loose coupling mechanism such as a messaging queue. Elastic provision implies intelligence in the use of tight or loose coupling as applied to mechanisms such as these and others. The Intercloud The intercloud is an interconnected global "cloud of clouds"[and an extension of the Internet "network of networks" on which it is based Cloud engineering is the application of engineering disciplines to cloud computing. It brings a systematic approach to the high level concerns of commercialisation, standardisation, and governance in conceiving, developing, operating and maintaining cloud computing systems. It is a multidisciplinary method encompassing contributions from diverse areas such as systems, software, web, performance, information, security, platform, risk, and quality engineering. 11

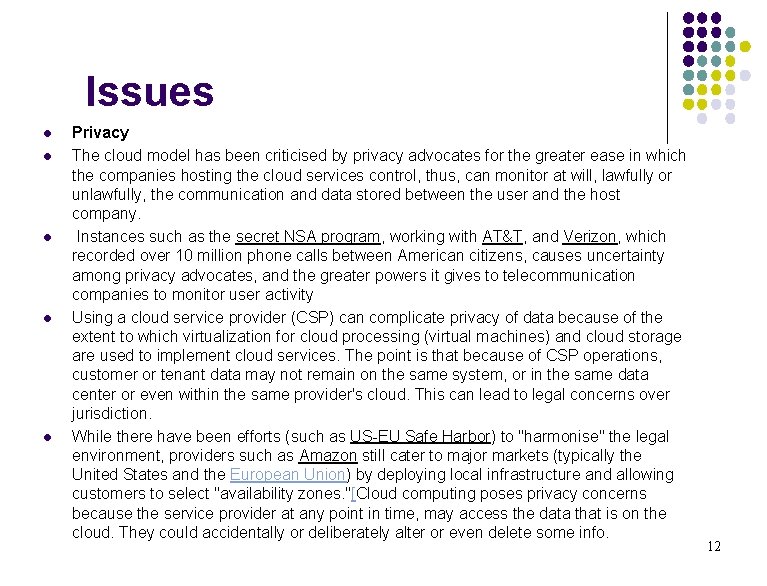

Issues l l l Privacy The cloud model has been criticised by privacy advocates for the greater ease in which the companies hosting the cloud services control, thus, can monitor at will, lawfully or unlawfully, the communication and data stored between the user and the host company. Instances such as the secret NSA program, working with AT&T, and Verizon, which recorded over 10 million phone calls between American citizens, causes uncertainty among privacy advocates, and the greater powers it gives to telecommunication companies to monitor user activity Using a cloud service provider (CSP) can complicate privacy of data because of the extent to which virtualization for cloud processing (virtual machines) and cloud storage are used to implement cloud services. The point is that because of CSP operations, customer or tenant data may not remain on the same system, or in the same data center or even within the same provider's cloud. This can lead to legal concerns over jurisdiction. While there have been efforts (such as US-EU Safe Harbor) to "harmonise" the legal environment, providers such as Amazon still cater to major markets (typically the United States and the European Union) by deploying local infrastructure and allowing customers to select "availability zones. "[Cloud computing poses privacy concerns because the service provider at any point in time, may access the data that is on the cloud. They could accidentally or deliberately alter or even delete some info. 12

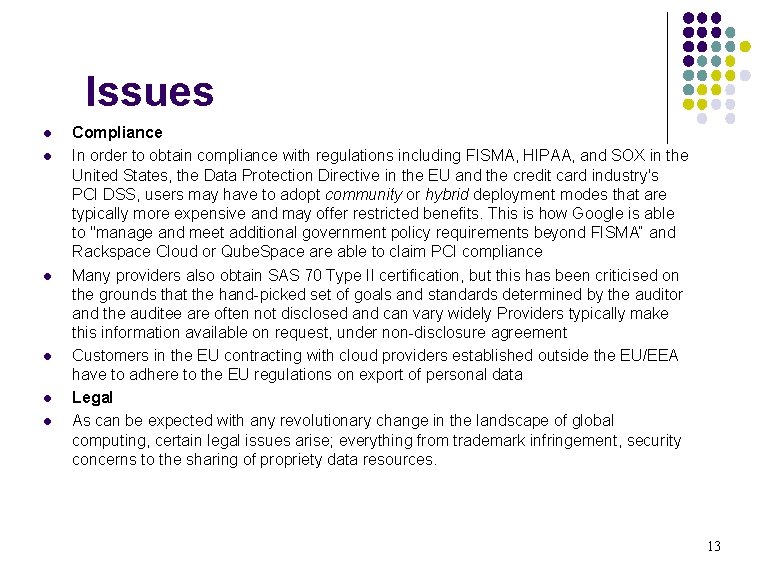

Issues l l l Compliance In order to obtain compliance with regulations including FISMA, HIPAA, and SOX in the United States, the Data Protection Directive in the EU and the credit card industry's PCI DSS, users may have to adopt community or hybrid deployment modes that are typically more expensive and may offer restricted benefits. This is how Google is able to "manage and meet additional government policy requirements beyond FISMA“ and Rackspace Cloud or Qube. Space are able to claim PCI compliance Many providers also obtain SAS 70 Type II certification, but this has been criticised on the grounds that the hand-picked set of goals and standards determined by the auditor and the auditee are often not disclosed and can vary widely Providers typically make this information available on request, under non-disclosure agreement Customers in the EU contracting with cloud providers established outside the EU/EEA have to adhere to the EU regulations on export of personal data Legal As can be expected with any revolutionary change in the landscape of global computing, certain legal issues arise; everything from trademark infringement, security concerns to the sharing of propriety data resources. 13

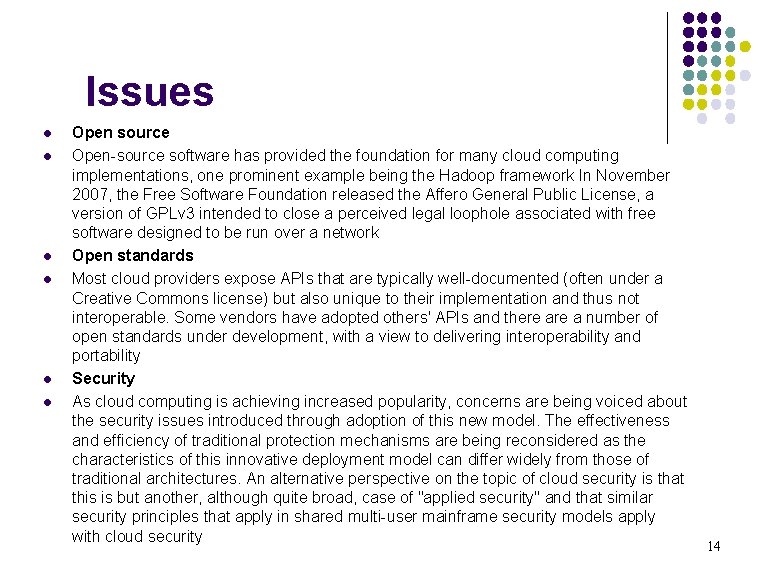

Issues l l l Open source Open-source software has provided the foundation for many cloud computing implementations, one prominent example being the Hadoop framework In November 2007, the Free Software Foundation released the Affero General Public License, a version of GPLv 3 intended to close a perceived legal loophole associated with free software designed to be run over a network Open standards Most cloud providers expose APIs that are typically well-documented (often under a Creative Commons license) but also unique to their implementation and thus not interoperable. Some vendors have adopted others' APIs and there a number of open standards under development, with a view to delivering interoperability and portability Security As cloud computing is achieving increased popularity, concerns are being voiced about the security issues introduced through adoption of this new model. The effectiveness and efficiency of traditional protection mechanisms are being reconsidered as the characteristics of this innovative deployment model can differ widely from those of traditional architectures. An alternative perspective on the topic of cloud security is that this is but another, although quite broad, case of "applied security" and that similar security principles that apply in shared multi-user mainframe security models apply with cloud security 14

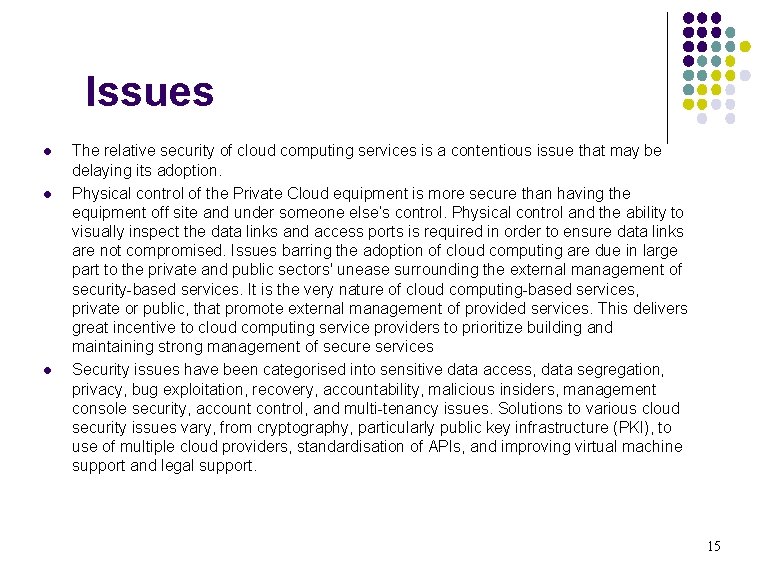

Issues l l l The relative security of cloud computing services is a contentious issue that may be delaying its adoption. Physical control of the Private Cloud equipment is more secure than having the equipment off site and under someone else’s control. Physical control and the ability to visually inspect the data links and access ports is required in order to ensure data links are not compromised. Issues barring the adoption of cloud computing are due in large part to the private and public sectors' unease surrounding the external management of security-based services. It is the very nature of cloud computing-based services, private or public, that promote external management of provided services. This delivers great incentive to cloud computing service providers to prioritize building and maintaining strong management of secure services Security issues have been categorised into sensitive data access, data segregation, privacy, bug exploitation, recovery, accountability, malicious insiders, management console security, account control, and multi-tenancy issues. Solutions to various cloud security issues vary, from cryptography, particularly public key infrastructure (PKI), to use of multiple cloud providers, standardisation of APIs, and improving virtual machine support and legal support. 15

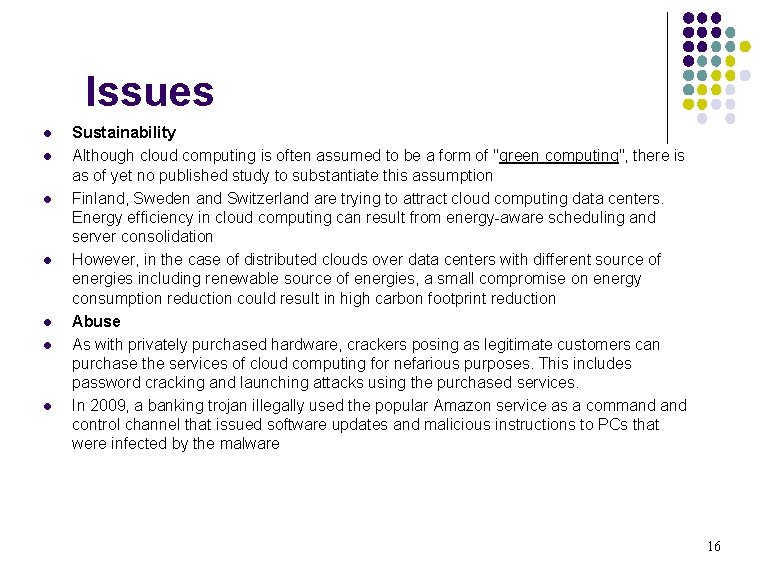

Issues l l l l Sustainability Although cloud computing is often assumed to be a form of "green computing", there is as of yet no published study to substantiate this assumption Finland, Sweden and Switzerland are trying to attract cloud computing data centers. Energy efficiency in cloud computing can result from energy-aware scheduling and server consolidation However, in the case of distributed clouds over data centers with different source of energies including renewable source of energies, a small compromise on energy consumption reduction could result in high carbon footprint reduction Abuse As with privately purchased hardware, crackers posing as legitimate customers can purchase the services of cloud computing for nefarious purposes. This includes password cracking and launching attacks using the purchased services. In 2009, a banking trojan illegally used the popular Amazon service as a command control channel that issued software updates and malicious instructions to PCs that were infected by the malware 16

Introduction to Secure Cloud Computing Bhavani Thuraisingham The University of Texas at Dallas February 2014

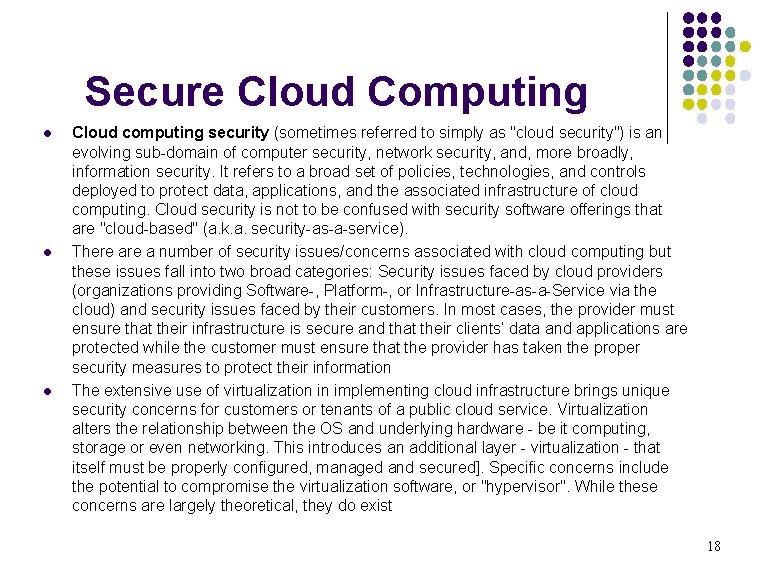

Secure Cloud Computing l l l Cloud computing security (sometimes referred to simply as "cloud security") is an evolving sub-domain of computer security, network security, and, more broadly, information security. It refers to a broad set of policies, technologies, and controls deployed to protect data, applications, and the associated infrastructure of cloud computing. Cloud security is not to be confused with security software offerings that are "cloud-based" (a. k. a. security-as-a-service). There a number of security issues/concerns associated with cloud computing but these issues fall into two broad categories: Security issues faced by cloud providers (organizations providing Software-, Platform-, or Infrastructure-as-a-Service via the cloud) and security issues faced by their customers. In most cases, the provider must ensure that their infrastructure is secure and that their clients’ data and applications are protected while the customer must ensure that the provider has taken the proper security measures to protect their information The extensive use of virtualization in implementing cloud infrastructure brings unique security concerns for customers or tenants of a public cloud service. Virtualization alters the relationship between the OS and underlying hardware - be it computing, storage or even networking. This introduces an additional layer - virtualization - that itself must be properly configured, managed and secured]. Specific concerns include the potential to compromise the virtualization software, or "hypervisor". While these concerns are largely theoretical, they do exist 18

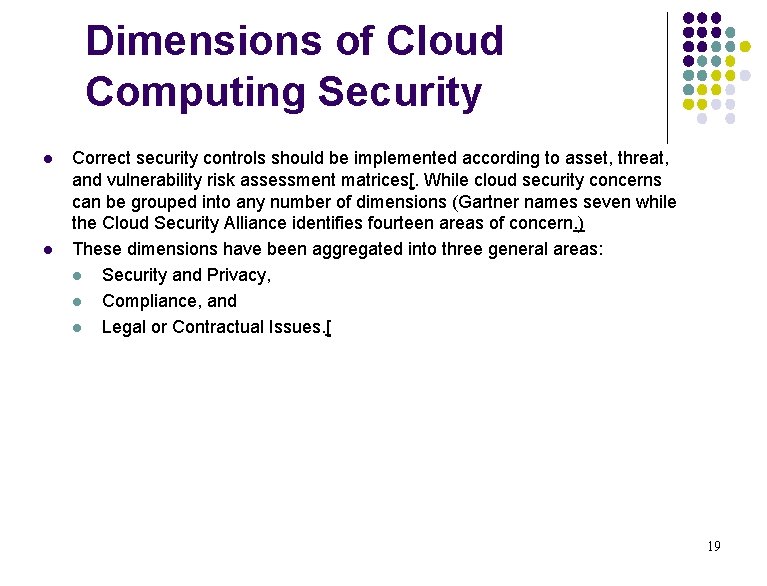

Dimensions of Cloud Computing Security l l Correct security controls should be implemented according to asset, threat, and vulnerability risk assessment matrices[. While cloud security concerns can be grouped into any number of dimensions (Gartner names seven while the Cloud Security Alliance identifies fourteen areas of concern. ) These dimensions have been aggregated into three general areas: l Security and Privacy, l Compliance, and l Legal or Contractual Issues. [ 19

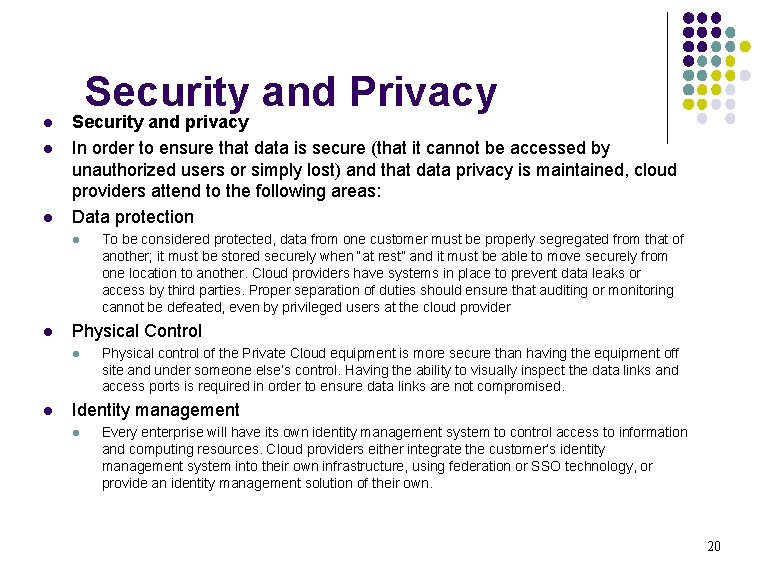

Security and Privacy l l l Security and privacy In order to ensure that data is secure (that it cannot be accessed by unauthorized users or simply lost) and that data privacy is maintained, cloud providers attend to the following areas: Data protection l l Physical Control l l To be considered protected, data from one customer must be properly segregated from that of another; it must be stored securely when “at rest” and it must be able to move securely from one location to another. Cloud providers have systems in place to prevent data leaks or access by third parties. Proper separation of duties should ensure that auditing or monitoring cannot be defeated, even by privileged users at the cloud provider Physical control of the Private Cloud equipment is more secure than having the equipment off site and under someone else’s control. Having the ability to visually inspect the data links and access ports is required in order to ensure data links are not compromised. Identity management l Every enterprise will have its own identity management system to control access to information and computing resources. Cloud providers either integrate the customer’s identity management system into their own infrastructure, using federation or SSO technology, or provide an identity management solution of their own. 20

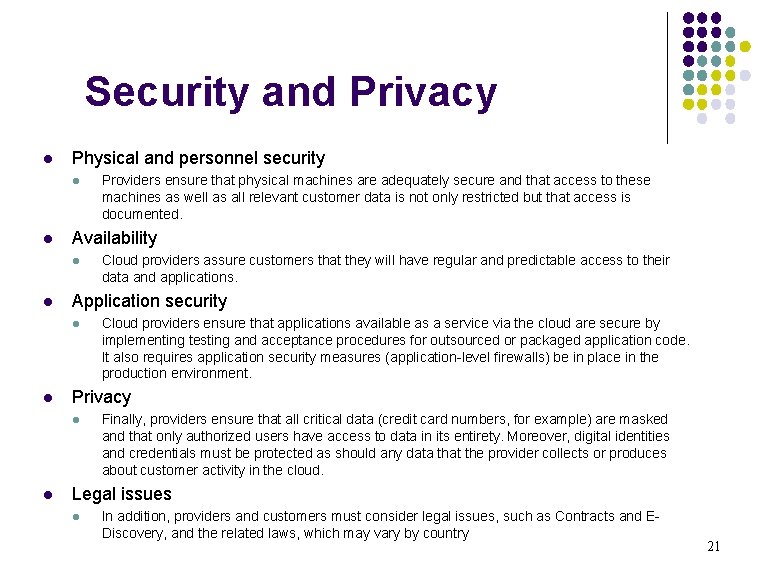

Security and Privacy l Physical and personnel security l l Availability l l Cloud providers ensure that applications available as a service via the cloud are secure by implementing testing and acceptance procedures for outsourced or packaged application code. It also requires application security measures (application-level firewalls) be in place in the production environment. Privacy l l Cloud providers assure customers that they will have regular and predictable access to their data and applications. Application security l l Providers ensure that physical machines are adequately secure and that access to these machines as well as all relevant customer data is not only restricted but that access is documented. Finally, providers ensure that all critical data (credit card numbers, for example) are masked and that only authorized users have access to data in its entirety. Moreover, digital identities and credentials must be protected as should any data that the provider collects or produces about customer activity in the cloud. Legal issues l In addition, providers and customers must consider legal issues, such as Contracts and EDiscovery, and the related laws, which may vary by country 21

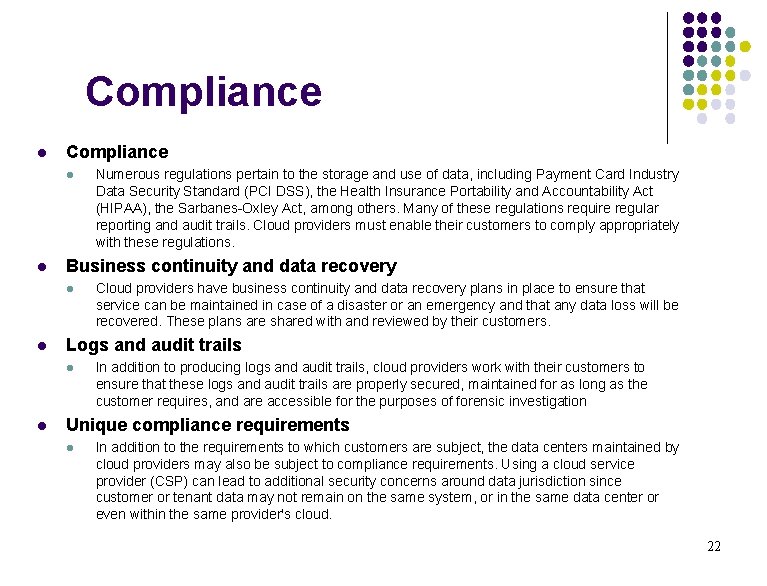

Compliance l l Business continuity and data recovery l l Cloud providers have business continuity and data recovery plans in place to ensure that service can be maintained in case of a disaster or an emergency and that any data loss will be recovered. These plans are shared with and reviewed by their customers. Logs and audit trails l l Numerous regulations pertain to the storage and use of data, including Payment Card Industry Data Security Standard (PCI DSS), the Health Insurance Portability and Accountability Act (HIPAA), the Sarbanes-Oxley Act, among others. Many of these regulations require regular reporting and audit trails. Cloud providers must enable their customers to comply appropriately with these regulations. In addition to producing logs and audit trails, cloud providers work with their customers to ensure that these logs and audit trails are properly secured, maintained for as long as the customer requires, and are accessible for the purposes of forensic investigation Unique compliance requirements l In addition to the requirements to which customers are subject, the data centers maintained by cloud providers may also be subject to compliance requirements. Using a cloud service provider (CSP) can lead to additional security concerns around data jurisdiction since customer or tenant data may not remain on the same system, or in the same data center or even within the same provider's cloud. 22

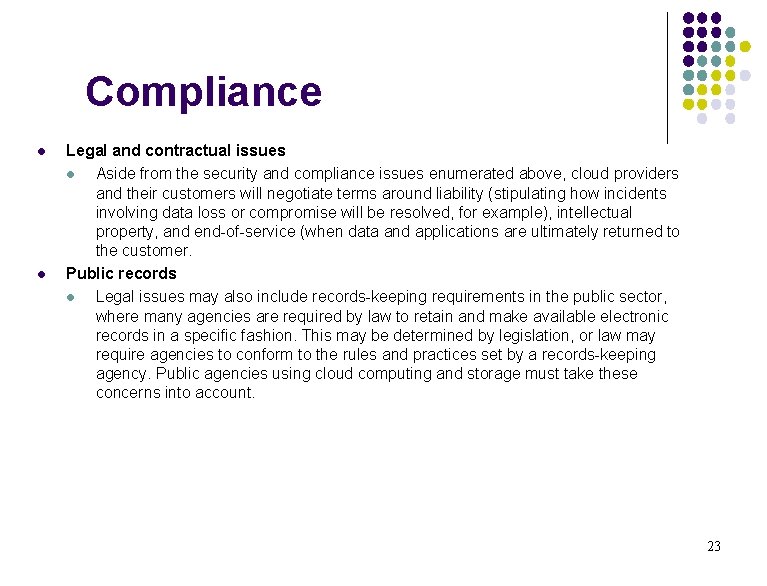

Compliance l l Legal and contractual issues l Aside from the security and compliance issues enumerated above, cloud providers and their customers will negotiate terms around liability (stipulating how incidents involving data loss or compromise will be resolved, for example), intellectual property, and end-of-service (when data and applications are ultimately returned to the customer. Public records l Legal issues may also include records-keeping requirements in the public sector, where many agencies are required by law to retain and make available electronic records in a specific fashion. This may be determined by legislation, or law may require agencies to conform to the rules and practices set by a records-keeping agency. Public agencies using cloud computing and storage must take these concerns into account. 23
