Introduction to Cladistics, the Vertebrata (Cuvier 1812)

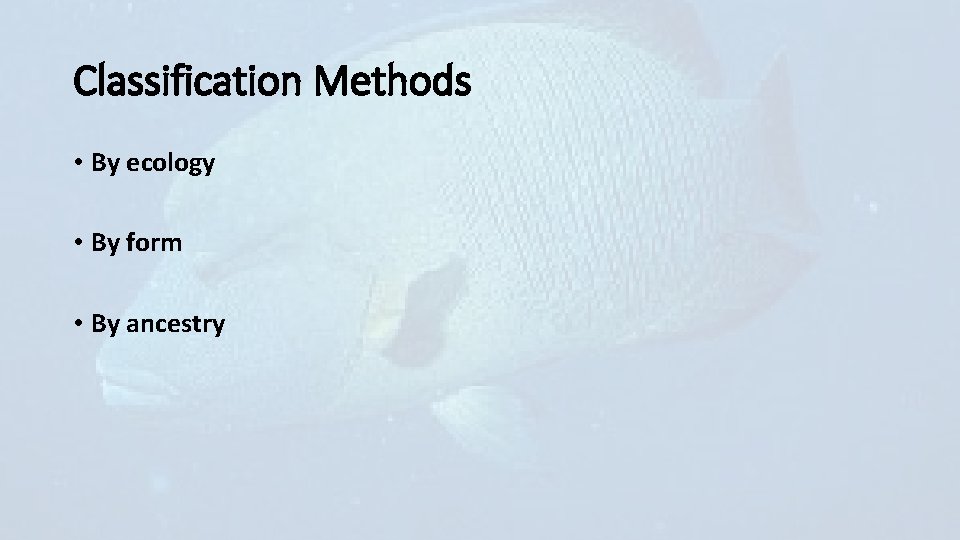

Classification Methods • By ecology • By form • By ancestry

Karl von Linné Carolus Linnaeus (1707 -1778) • In the dress of a native Sami of northern Scandinavia • Linne is reference to a large lime tree near his ancestral home • Latinized his name to Carolus Linnaeus

Linnaean System • Created hierarchical system of classification • Species defined as a binomial • Systema Naturae (1735) first edition, began to use the binomial to delineate a species • Species Plantarum (1753) is the starting point for all plant taxonomy

Hierarchical Taxonomy of Linnaeus THE RANKS OF OUR SPECIES KINGDOM: ANIMALIA (all living things that develop from a blastula) PHYLUM: VERTEBRATA (all animals that have articulated vertebrae) CLASS: MAMMALIA: (all vertebrates that have hair and feed their young with milk, have a single dentary and three bones in the middle ear) ORDER: PRIMATES (all mammals that have opposable thumbs, forward-facing eyes) FAMILY: HOMINIDAE (all primates that are large, >30 -40 kg, tailless, and omnivorous, the Great Apes) GENUS: Homo (hominids that are bipedal with very fine body hair) SPECIES: Homo sapiens (a species of Homo that has a chin and small face)

Animal Kingdom

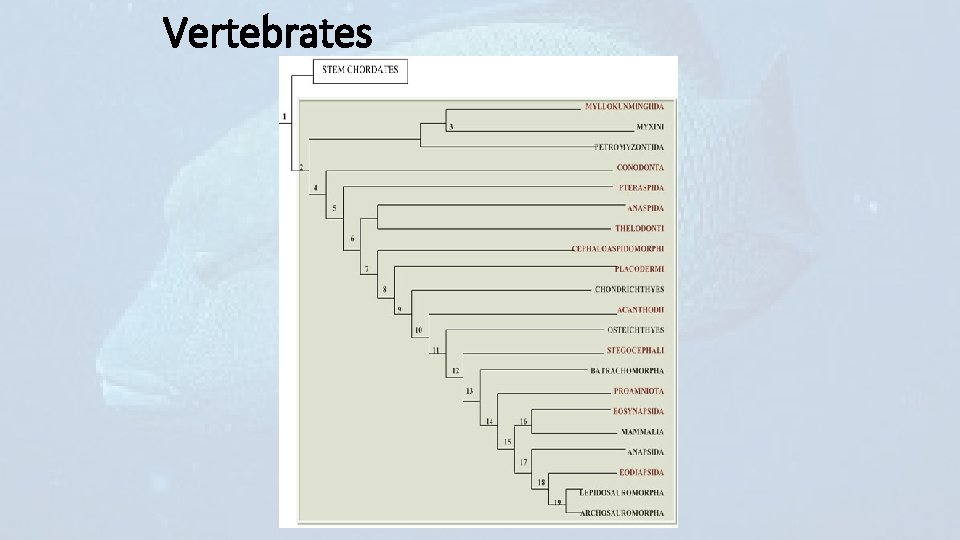

Vertebrates

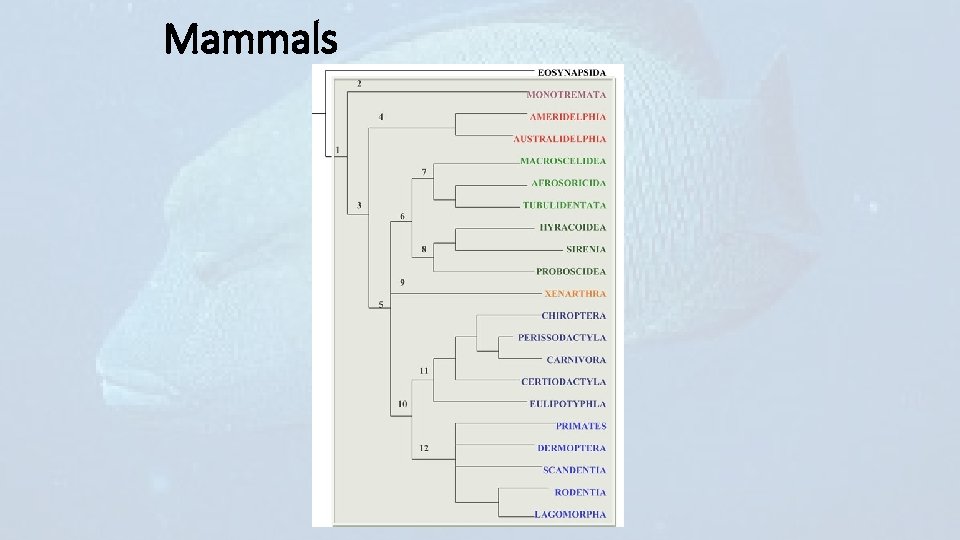

Mammals

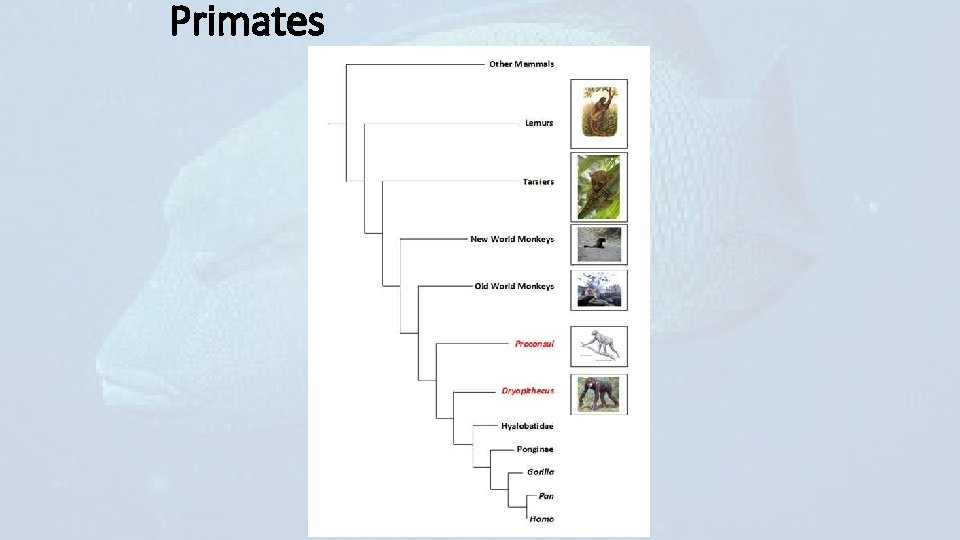

Primates

Hominidae Tree

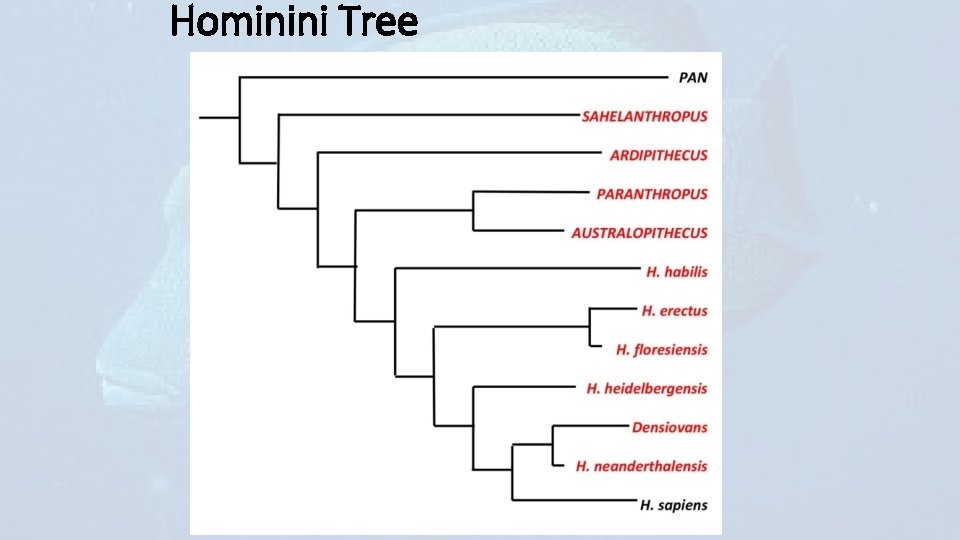

Hominini Tree

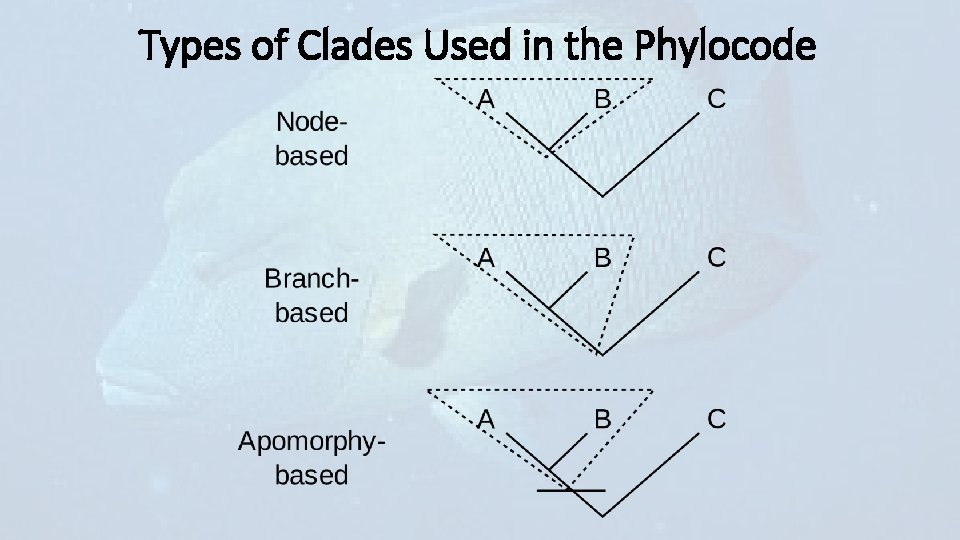

Types of Clades Used in the Phylocode

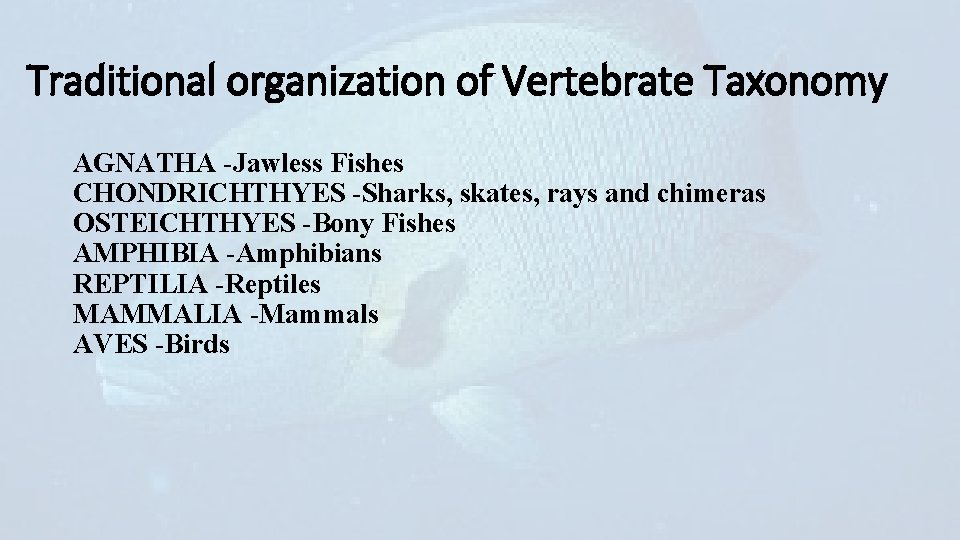

Traditional organization of Vertebrate Taxonomy AGNATHA -Jawless Fishes CHONDRICHTHYES -Sharks, skates, rays and chimeras OSTEICHTHYES -Bony Fishes AMPHIBIA -Amphibians REPTILIA -Reptiles MAMMALIA -Mammals AVES -Birds

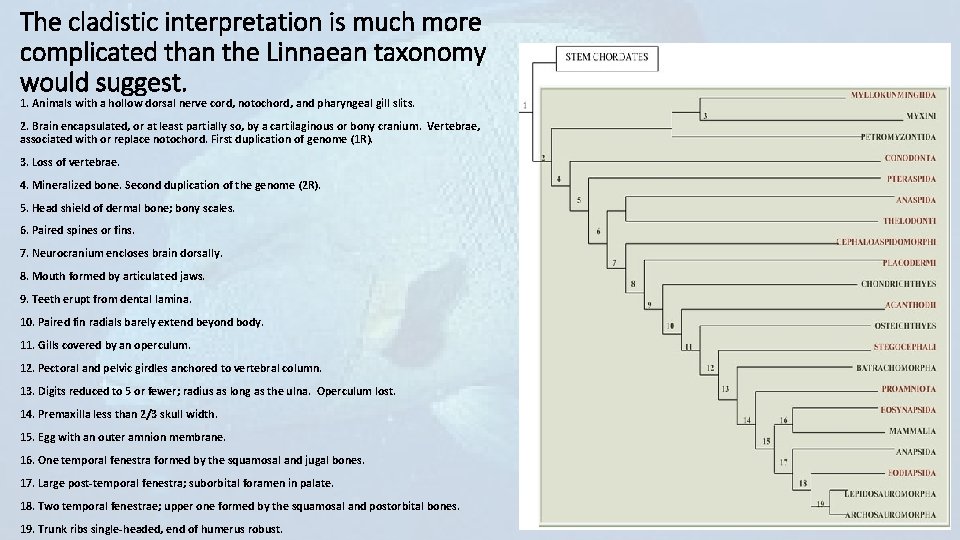

The cladistic interpretation is much more complicated than the Linnaean taxonomy would suggest. 1. Animals with a hollow dorsal nerve cord, notochord, and pharyngeal gill slits. 2. Brain encapsulated, or at least partially so, by a cartilaginous or bony cranium. Vertebrae, associated with or replace notochord. First duplication of genome (1 R). 3. Loss of vertebrae. 4. Mineralized bone. Second duplication of the genome (2 R). 5. Head shield of dermal bone; bony scales. 6. Paired spines or fins. 7. Neurocranium encloses brain dorsally. 8. Mouth formed by articulated jaws. 9. Teeth erupt from dental lamina. 10. Paired fin radials barely extend beyond body. 11. Gills covered by an operculum. 12. Pectoral and pelvic girdles anchored to vertebral column. 13. Digits reduced to 5 or fewer; radius as long as the ulna. Operculum lost. 14. Premaxilla less than 2/3 skull width. 15. Egg with an outer amnion membrane. 16. One temporal fenestra formed by the squamosal and jugal bones. 17. Large post-temporal fenestra; suborbital foramen in palate. 18. Two temporal fenestrae; upper one formed by the squamosal and postorbital bones. 19. Trunk ribs single-headed, end of humerus robust.

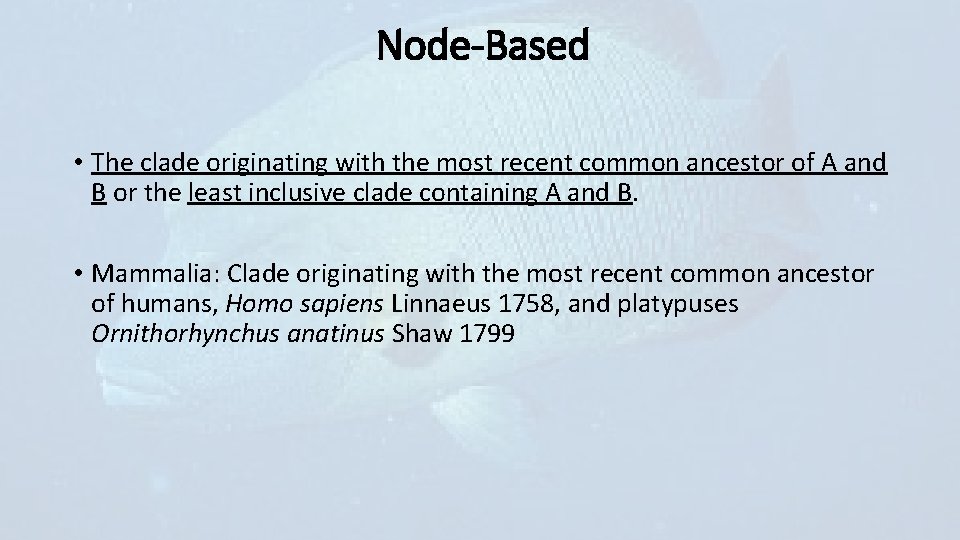

Node-Based • The clade originating with the most recent common ancestor of A and B or the least inclusive clade containing A and B. • Mammalia: Clade originating with the most recent common ancestor of humans, Homo sapiens Linnaeus 1758, and platypuses Ornithorhynchus anatinus Shaw 1799

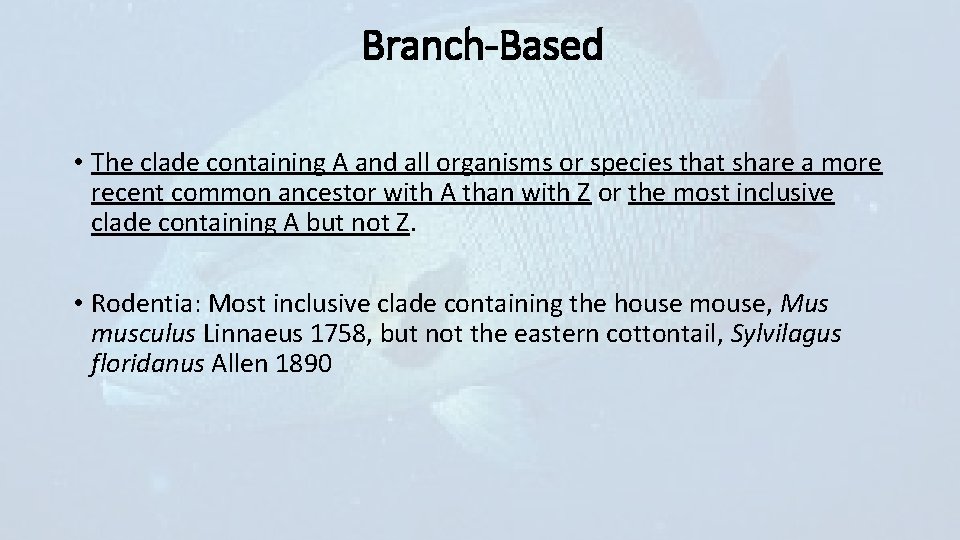

Branch-Based • The clade containing A and all organisms or species that share a more recent common ancestor with A than with Z or the most inclusive clade containing A but not Z. • Rodentia: Most inclusive clade containing the house mouse, Mus musculus Linnaeus 1758, but not the eastern cottontail, Sylvilagus floridanus Allen 1890

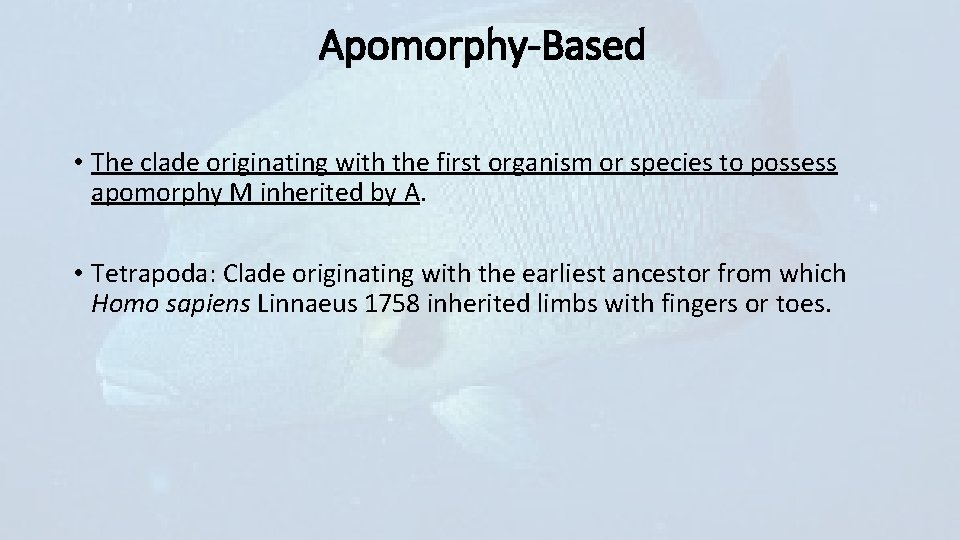

Apomorphy-Based • The clade originating with the first organism or species to possess apomorphy M inherited by A. • Tetrapoda: Clade originating with the earliest ancestor from which Homo sapiens Linnaeus 1758 inherited limbs with fingers or toes.

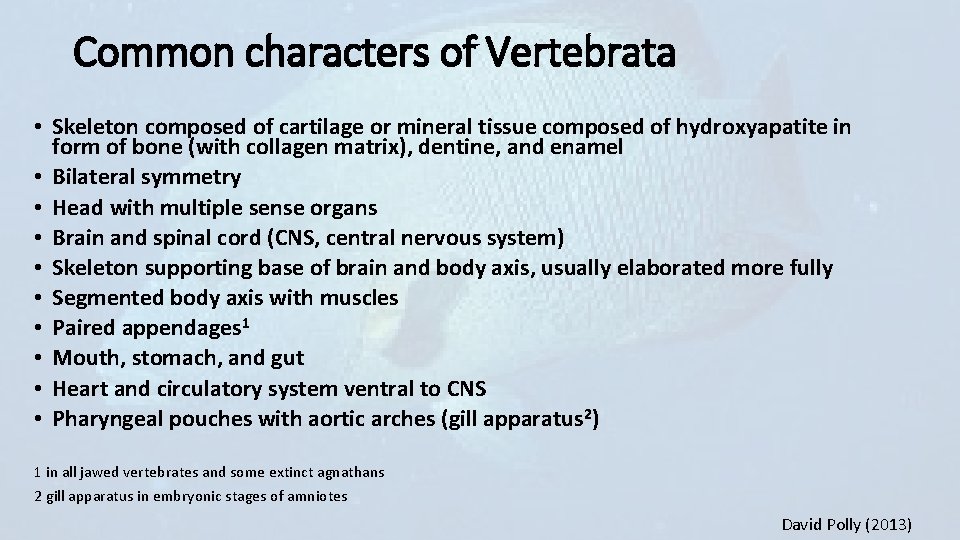

Common characters of Vertebrata • Skeleton composed of cartilage or mineral tissue composed of hydroxyapatite in form of bone (with collagen matrix), dentine, and enamel • Bilateral symmetry • Head with multiple sense organs • Brain and spinal cord (CNS, central nervous system) • Skeleton supporting base of brain and body axis, usually elaborated more fully • Segmented body axis with muscles • Paired appendages 1 • Mouth, stomach, and gut • Heart and circulatory system ventral to CNS • Pharyngeal pouches with aortic arches (gill apparatus 2) 1 in all jawed vertebrates and some extinct agnathans 2 gill apparatus in embryonic stages of amniotes David Polly (2013)

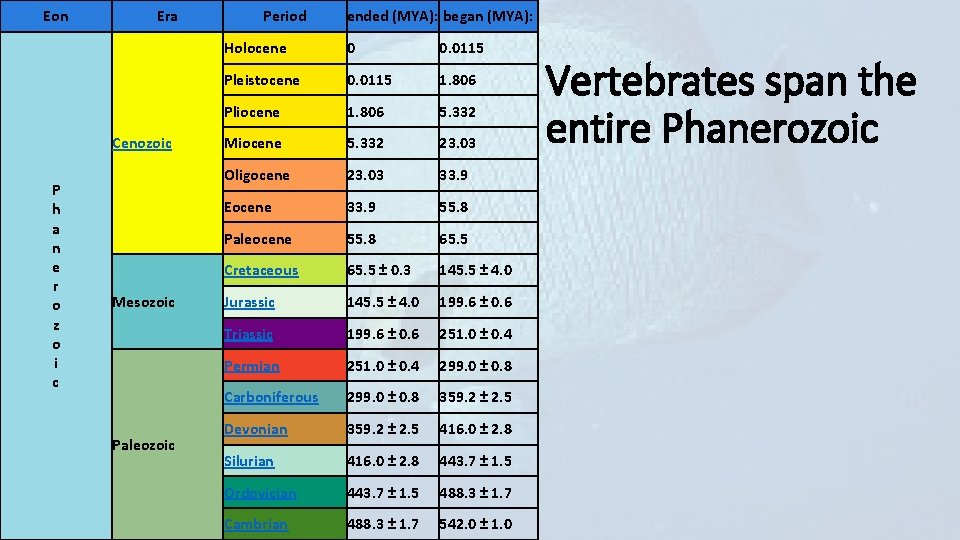

Eon Era Cenozoic P h a n e r o z o i c Mesozoic Paleozoic Period ended (MYA): began (MYA): Holocene 0 0. 0115 Pleistocene 0. 0115 1. 806 Pliocene 1. 806 5. 332 Miocene 5. 332 23. 03 Oligocene 23. 03 33. 9 Eocene 33. 9 55. 8 Paleocene 55. 8 65. 5 Cretaceous 65. 5 ± 0. 3 145. 5 ± 4. 0 Jurassic 145. 5 ± 4. 0 199. 6 ± 0. 6 Triassic 199. 6 ± 0. 6 251. 0 ± 0. 4 Permian 251. 0 ± 0. 4 299. 0 ± 0. 8 Carboniferous 299. 0 ± 0. 8 359. 2 ± 2. 5 Devonian 359. 2 ± 2. 5 416. 0 ± 2. 8 Silurian 416. 0 ± 2. 8 443. 7 ± 1. 5 Ordovician 443. 7 ± 1. 5 488. 3 ± 1. 7 Cambrian 488. 3 ± 1. 7 542. 0 ± 1. 0 Vertebrates span the entire Phanerozoic

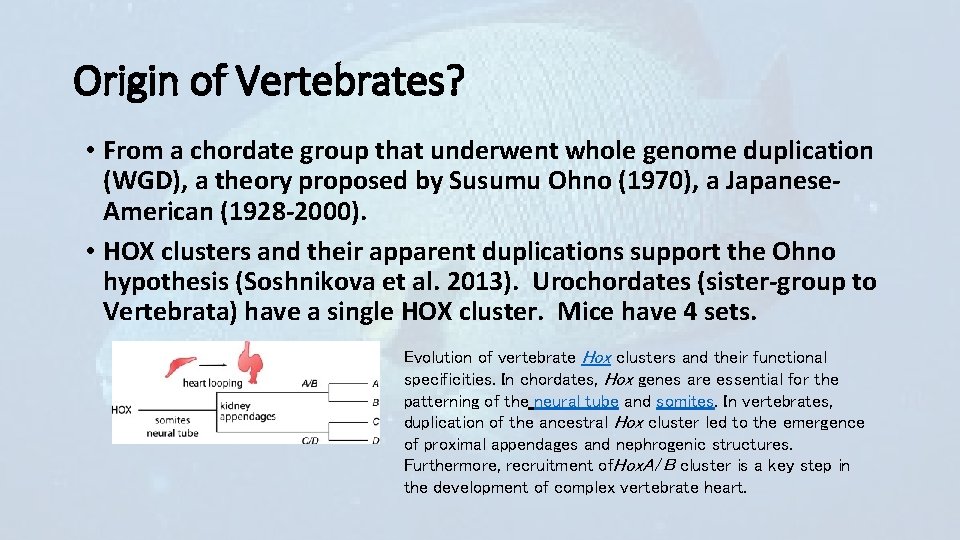

Origin of Vertebrates? • From a chordate group that underwent whole genome duplication (WGD), a theory proposed by Susumu Ohno (1970), a Japanese. American (1928 -2000). • HOX clusters and their apparent duplications support the Ohno hypothesis (Soshnikova et al. 2013). Urochordates (sister-group to Vertebrata) have a single HOX cluster. Mice have 4 sets. Evolution of vertebrate Hox clusters and their functional specificities. In chordates, Hox genes are essential for the patterning of the neural tube and somites. In vertebrates, duplication of the ancestral Hox cluster led to the emergence of proximal appendages and nephrogenic structures. Furthermore, recruitment of. Hox. A/B cluster is a key step in the development of complex vertebrate heart.

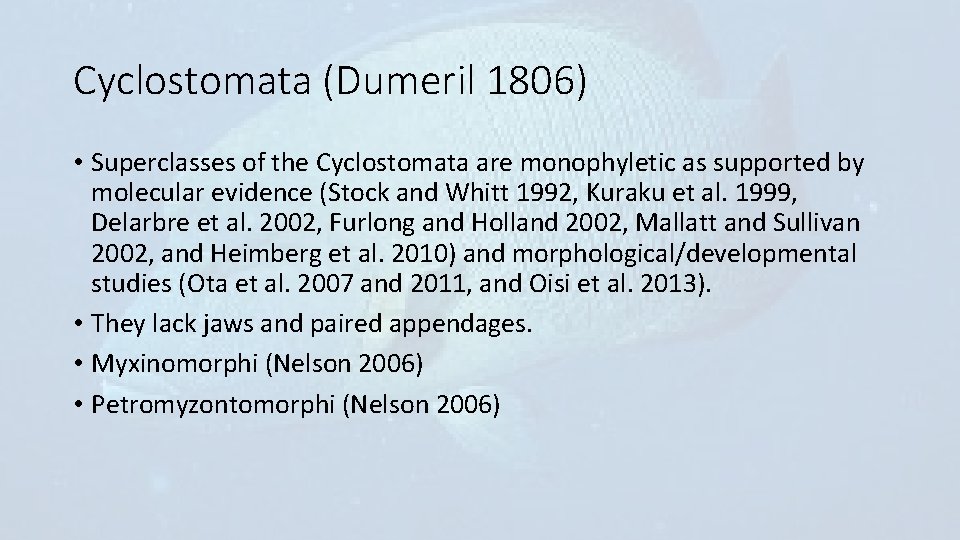

Cyclostomata (Dumeril 1806) • Superclasses of the Cyclostomata are monophyletic as supported by molecular evidence (Stock and Whitt 1992, Kuraku et al. 1999, Delarbre et al. 2002, Furlong and Holland 2002, Mallatt and Sullivan 2002, and Heimberg et al. 2010) and morphological/developmental studies (Ota et al. 2007 and 2011, and Oisi et al. 2013). • They lack jaws and paired appendages. • Myxinomorphi (Nelson 2006) • Petromyzontomorphi (Nelson 2006)

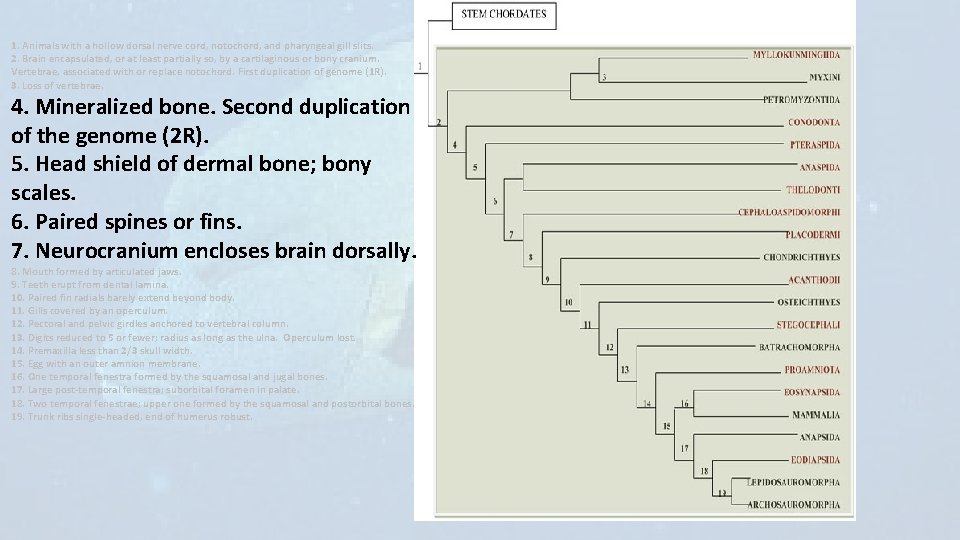

1. Animals with a hollow dorsal nerve cord, notochord, and pharyngeal gill slits. 2. Brain encapsulated, or at least partially so, by a cartilaginous or bony cranium. Vertebrae, associated with or replace notochord. First duplication of genome (1 R). 3. Loss of vertebrae. 4. Mineralized bone. Second duplication of the genome (2 R). 5. Head shield of dermal bone; bony scales. 6. Paired spines or fins. 7. Neurocranium encloses brain dorsally. 8. Mouth formed by articulated jaws. 9. Teeth erupt from dental lamina. 10. Paired fin radials barely extend beyond body. 11. Gills covered by an operculum. 12. Pectoral and pelvic girdles anchored to vertebral column. 13. Digits reduced to 5 or fewer; radius as long as the ulna. Operculum lost. 14. Premaxilla less than 2/3 skull width. 15. Egg with an outer amnion membrane. 16. One temporal fenestra formed by the squamosal and jugal bones. 17. Large post-temporal fenestra; suborbital foramen in palate. 18. Two temporal fenestrae; upper one formed by the squamosal and postorbital bones. 19. Trunk ribs single-headed, end of humerus robust.

Stem gnathostomes, ‘Ostracoderms’ • Paraphyletic group of 5 superclasses, all extinct • Late Cambrian to Triassic, very diverse during the Devonian • Nested taxa, mainly bottomdwelling forms • Most heavily armored with dermal bone • Likely sifted the bottom mud for small animals • Evolution of paired appendages • Tails heterocercal, hypocercal, epicercal, diphycercal

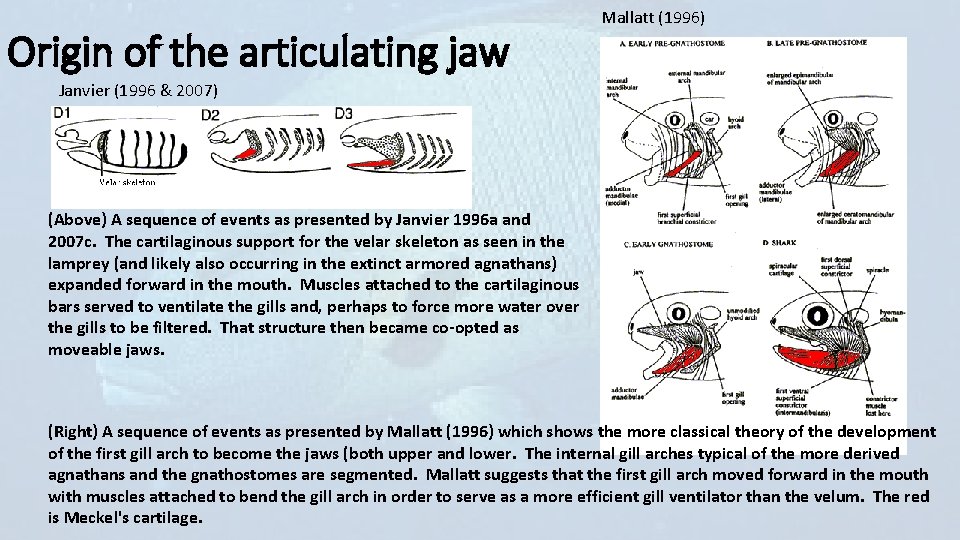

Origin of the articulating jaw Mallatt (1996) Janvier (1996 & 2007) (Above) A sequence of events as presented by Janvier 1996 a and 2007 c. The cartilaginous support for the velar skeleton as seen in the lamprey (and likely also occurring in the extinct armored agnathans) expanded forward in the mouth. Muscles attached to the cartilaginous bars served to ventilate the gills and, perhaps to force more water over the gills to be filtered. That structure then became co-opted as moveable jaws. (Right) A sequence of events as presented by Mallatt (1996) which shows the more classical theory of the development of the first gill arch to become the jaws (both upper and lower. The internal gill arches typical of the more derived agnathans and the gnathostomes are segmented. Mallatt suggests that the first gill arch moved forward in the mouth with muscles attached to bend the gill arch in order to serve as a more efficient gill ventilator than the velum. The red is Meckel's cartilage.

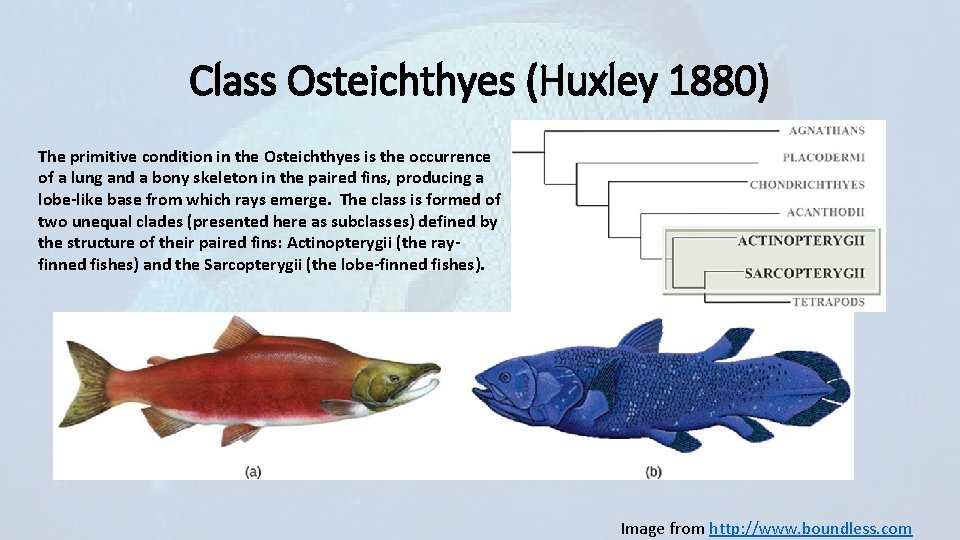

Class Osteichthyes (Huxley 1880) The primitive condition in the Osteichthyes is the occurrence of a lung and a bony skeleton in the paired fins, producing a lobe-like base from which rays emerge. The class is formed of two unequal clades (presented here as subclasses) defined by the structure of their paired fins: Actinopterygii (the rayfinned fishes) and the Sarcopterygii (the lobe-finned fishes). Image from http: //www. boundless. com

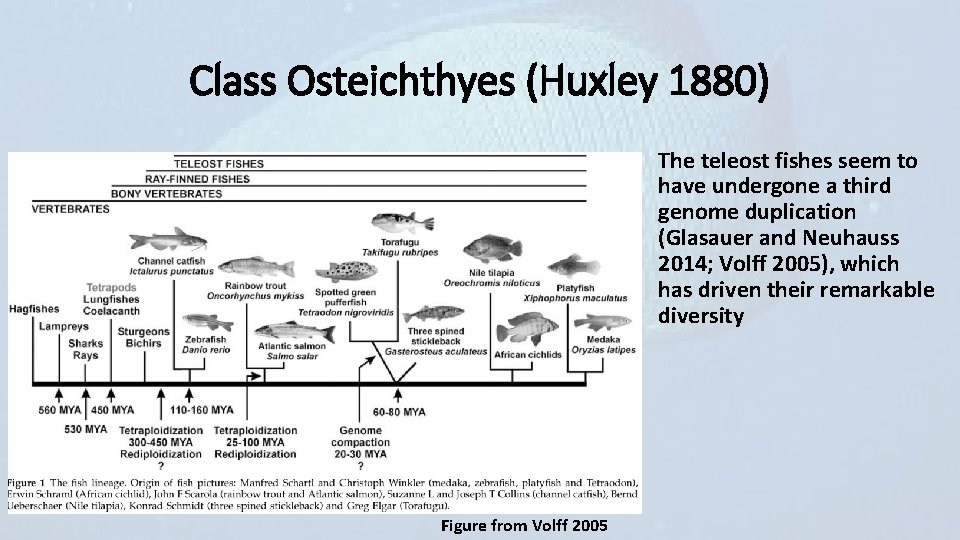

Class Osteichthyes (Huxley 1880) The teleost fishes seem to have undergone a third genome duplication (Glasauer and Neuhauss 2014; Volff 2005), which has driven their remarkable diversity Figure from Volff 2005

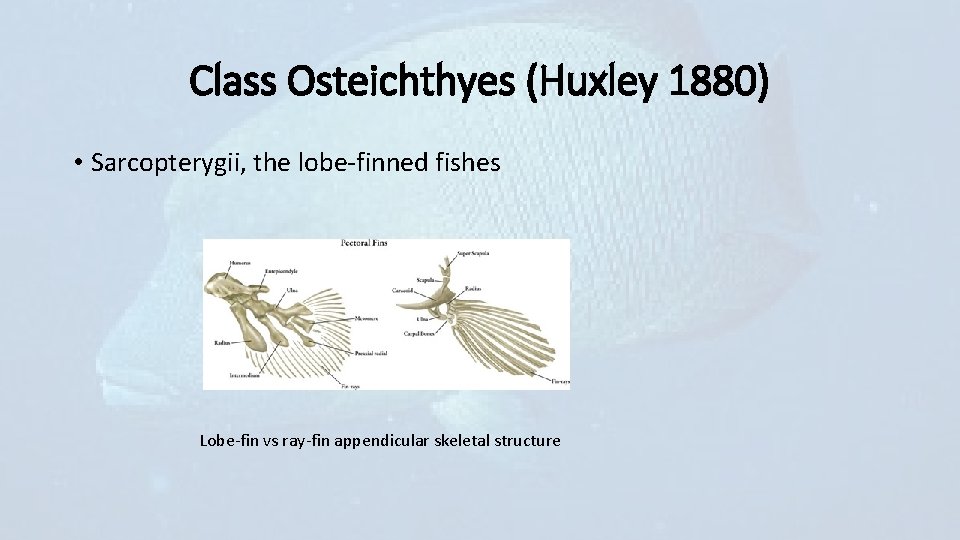

Class Osteichthyes (Huxley 1880) • Sarcopterygii, the lobe-finned fishes Lobe-fin vs ray-fin appendicular skeletal structure

Class Osteichthyes (Huxley 1880) • Lineage of late Devonian Sarcopterygii and transition to tetrapods A cladogram taken from Clack (2009). The analysis was based on characters of the skull, axial and appendicular skeletons. The structure of the tree is consistent with other analyses (e. g. Ruta et al. 2003 and Laurin 2002). The presence of digits on the manus (hand) and pes (foot) marks the boundary between the sarcopterygian fishes and tetrapods. That boundary was crossed between Tiktaalik and Ventastega.

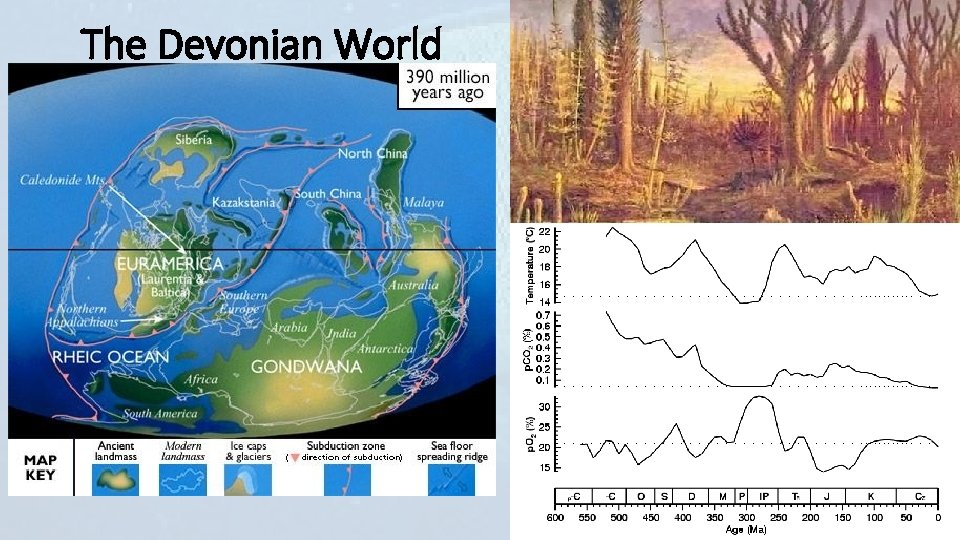

The Devonian World

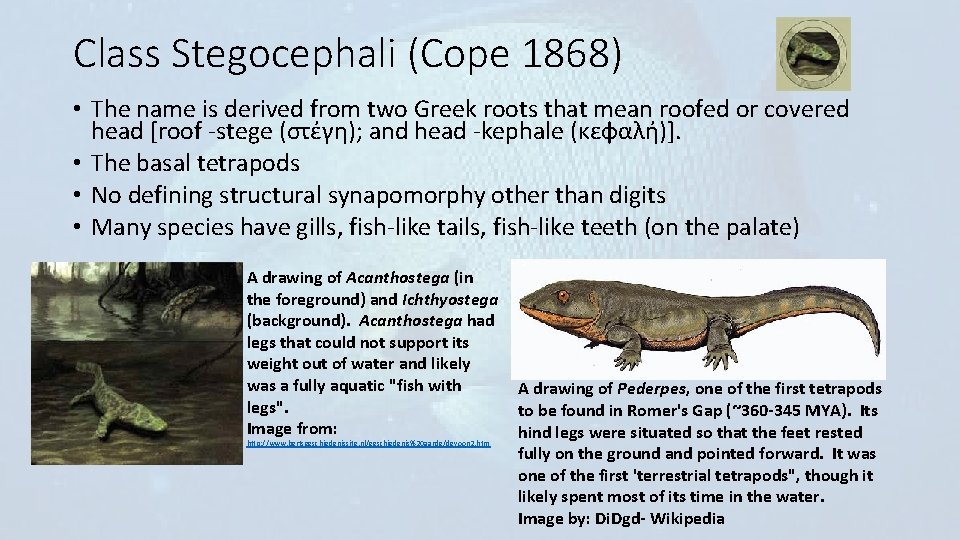

Class Stegocephali (Cope 1868) • The name is derived from two Greek roots that mean roofed or covered head [roof -stege (στέγη); and head -kephale (κεφαλή)]. • The basal tetrapods • No defining structural synapomorphy other than digits • Many species have gills, fish-like tails, fish-like teeth (on the palate) A drawing of Acanthostega (in the foreground) and Ichthyostega (background). Acanthostega had legs that could not support its weight out of water and likely was a fully aquatic "fish with legs". Image from: http: //www. bertsgeschiedenissite. nl/geschiedenis%20 aarde/devoon 2. htm A drawing of Pederpes, one of the first tetrapods to be found in Romer's Gap (~360 -345 MYA). Its hind legs were situated so that the feet rested fully on the ground and pointed forward. It was one of the first 'terrestrial tetrapods", though it likely spent most of its time in the water. Image by: Di. Dgd- Wikipedia
