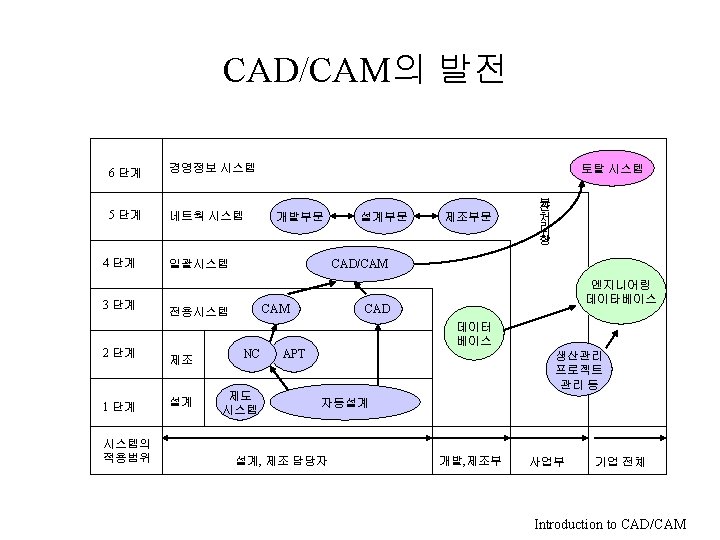

Introduction to CAD/CAM • • CAD/CAM의 정의 CAD/CAM의 발전 CAD/CAM의 분류 구성 CAD/CAM을 이용한 작업 내용 CAD/CAM의 도입 효과 CAD/CAM의 활용 방안 전자제품의 CAD/CAM활용 사례 Introduction to CAD/CAM
CAD/CAM의 분류 • 기능에 의한 분류 – – – 제도(drafting) 자동설계(Automatic design) CAD CAM CAE • 모델링 방법에 의한 분류 – – 2차원 제도 Wireframe Surface Modeling Solid Modeling • Hardware에 의한 분류 – – Main Frame Mini Computer Engineering Work Station PC Introduction to CAD/CAM
Stand-alone CAD/CAM의 구성 Secondary storage CPU Design workstation Graphics terminal Input devices Output plotters, etc Introduction to CAD/CAM
Host-satellite CAD/CAM의 구성 Host Computer Peripherals CPU for CAD system Output plotters, etc Design workstation Introduction to CAD/CAM
Application of Computer for Design Process CAD 사용자의 요구사항 문제 기술 종합 Geometric Modeling 해석 및 최적화 Engineering Analysis 평가 Design Review & Evaluation 발표 Automated Drafting Introduction to CAD/CAM
Drafting Introduction to CAD/CAM
Geometric Modeling Introduction to CAD/CAM

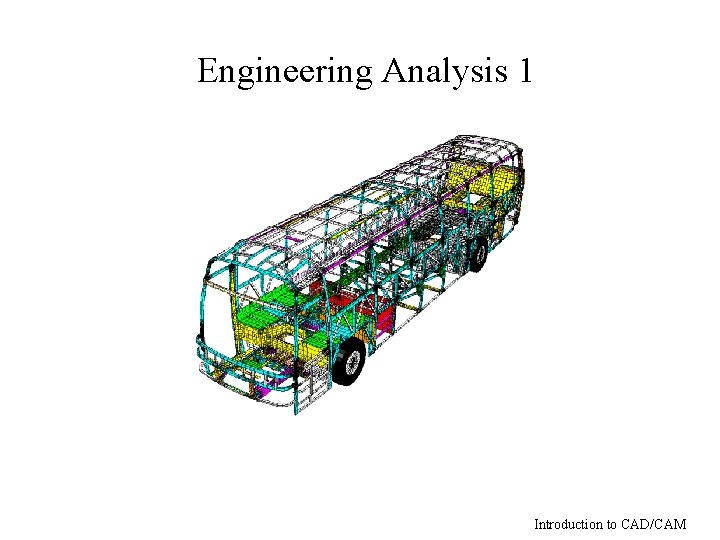

Engineering Analysis 1 Introduction to CAD/CAM

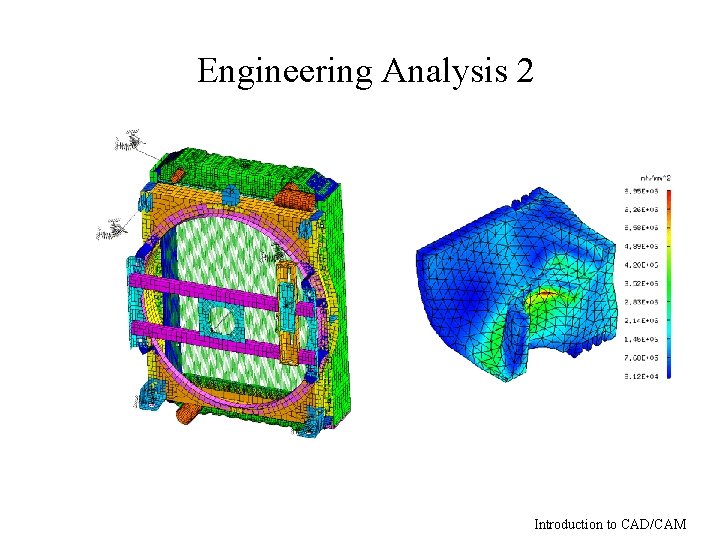

Engineering Analysis 2 Introduction to CAD/CAM
Design Review and Evaluation Introduction to CAD/CAM
Design Review and Evaluation 2 Introduction to CAD/CAM
Application of Computer for Manufacturing Interactive Graphics CAD CAM Geometric Modeling Tool and Fixture Design Engineering Analysis Numerical Control Programming Data Base Design Review & Evaluation Computer-aided Process Planning Automated Drafting Production Planning and Scheduling Interactive Graphics Introduction to CAD/CAM
NC Programming Introduction to CAD/CAM
NC Machining Introduction to CAD/CAM

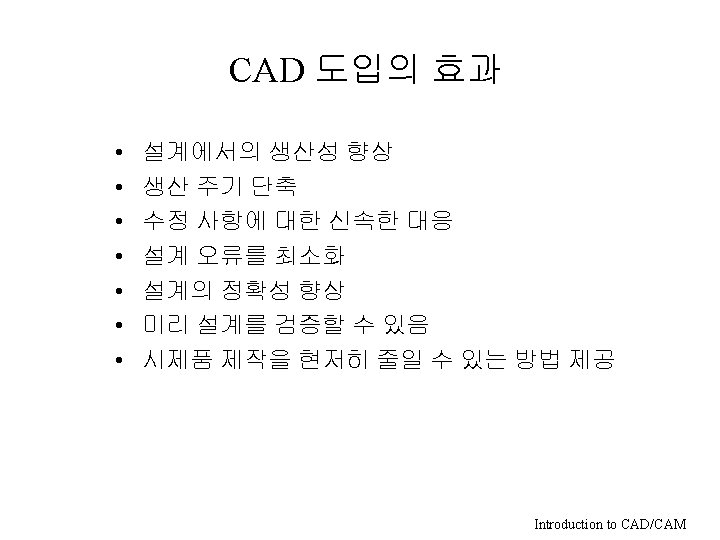

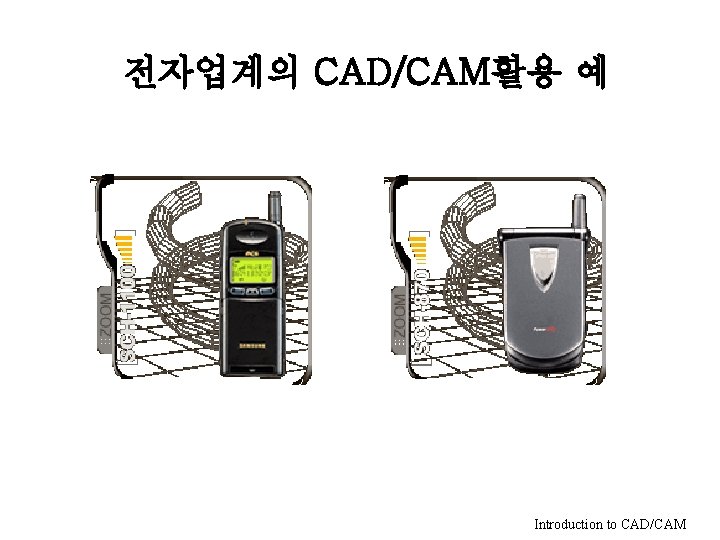

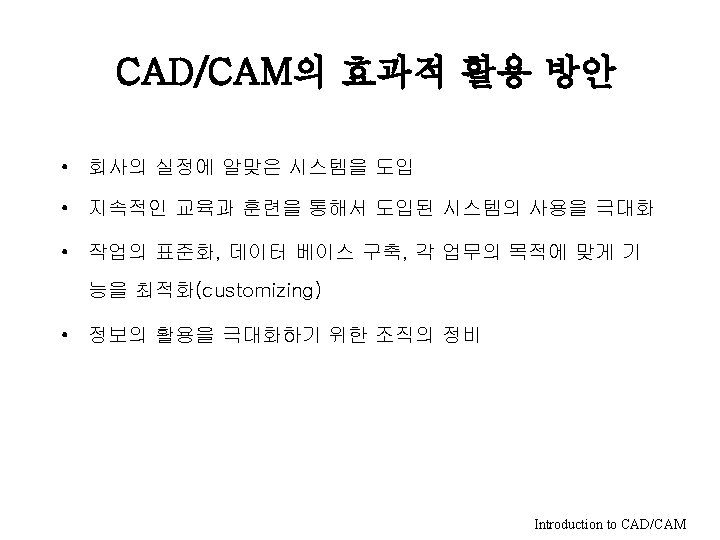

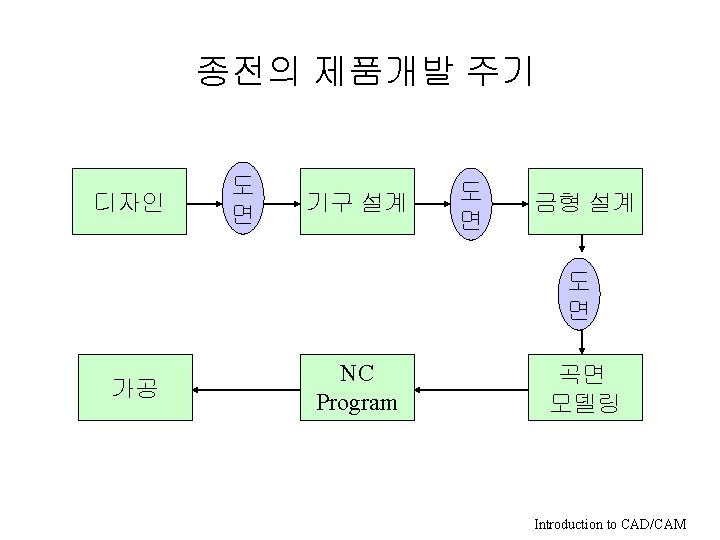

전자업계의 CAD/CAM활용 예 Introduction to CAD/CAM

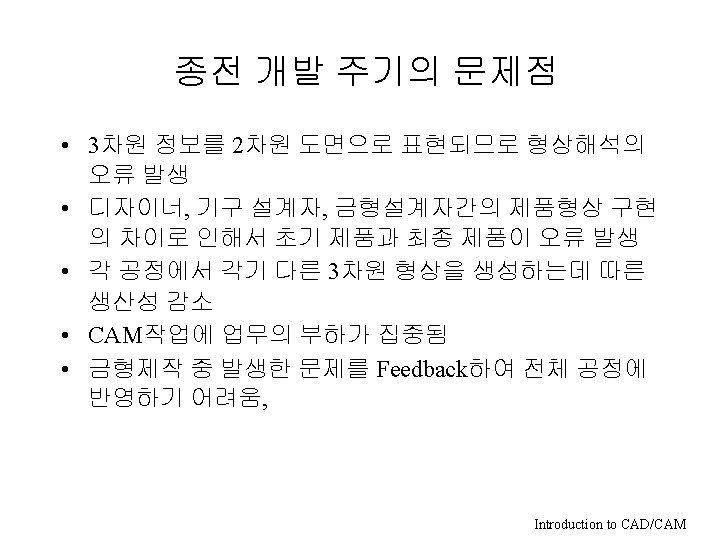

전자업계의 CAD/CAM활용 예 Introduction to CAD/CAM

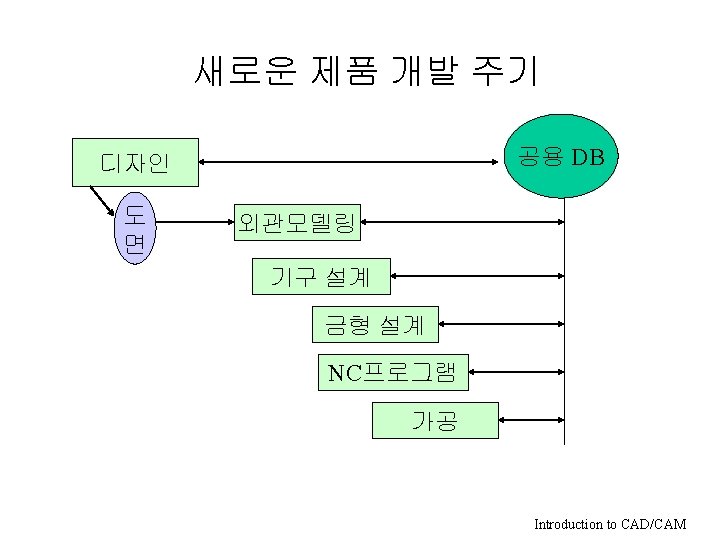

시스템의 구성 • • 개념 설계 : styling software, rendering software 형상 설계 : surface modeler, solid modeler 도면 작업 : 2 D drafting system 가공기계 : Milling, Wire-EDM, Grinding Machine Introduction to CAD/CAM
