What is BUFR? • Binary Universal Form for the Representation of Meteorological Data • Used for data that are not on a regular grid, such as observations • Conceptually equivalent to CREX, but format is binary rather than alphanumeric WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007

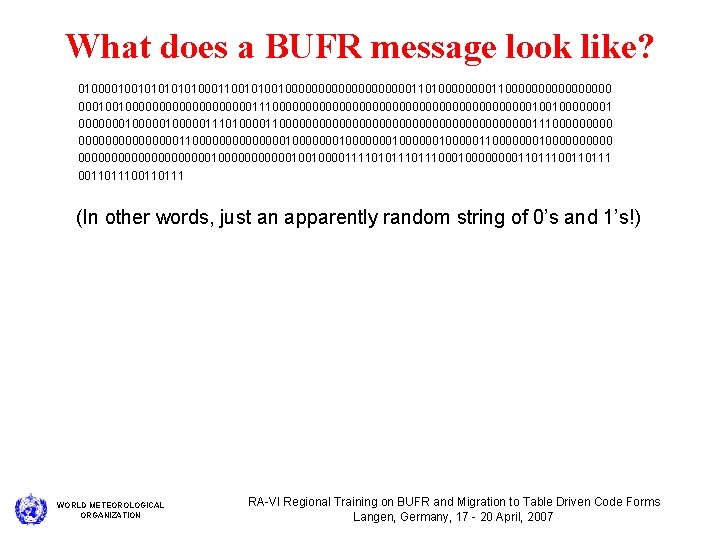

What does a BUFR message look like? 01000010010101000110010000000000110100001100000000 0001001000000000011100000000000000000000100100000001 000000010000011101000011000000000000000000011100000 00000000110000000100000001000000110000000000 0000000000100000010010000111101011100000000110111 (In other words, just an apparently random string of 0’s and 1’s!) WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Sections of a BUFR message • • • 0 Indicator section 1 Identification section 2 Optional local use section 3 Data description section 4 Data section 5 End of message WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 0 – Indicator section This section contains: • The character string “BUFR” indicating the start of the message • The total length of the message • The BUFR edition number WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 0 - Details • Length always 8 • Octets 1 -4 “BUFR” (in CCITT IA 5) • Octets 5 -7 Total length of message (including Section 0) • Octet 8 Edition number (currently 4, but 3 is still used) WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Now, let’s go back and look at that BUFR message again… ‘B’ ‘U’ ‘F’ ‘R’ end of section 0 + octet number 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | binary string 01000010010101000110010000000000110100001100000000 0001001000000000011100000000000000000000100100000001 000000010000011101000011000000000000000000011100000 00000000110000000100000001000000110000000000 0000000000100000010010000111101011100000000110111 00110111 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 1 – Identification section This section contains: • The table versions referred to by this message • An overall description of the message contents, including: – The originating centre and sub-centre – The data category and sub-category – A representative date and time • Whether or not the optional section is included WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 1 – Details (example based upon BUFR edition 3) • • • Length at least 18 Octets 1 -3 Octet 4 Octet 5 -6 Octet 7 Octet 8 Octets 9 -10 Octets 11 -12 Octets 13 -17 Octets 18 -? ? WORLD METEOROLOGICAL ORGANIZATION Length of section Master table (0 for WMO, 10 for IOC, etc. ) Originating sub-centre and centre Update sequence number Flag (Optional section? ) Data category and sub-category Master and local table version numbers Date and time typical of message contents Reserved for local use RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007

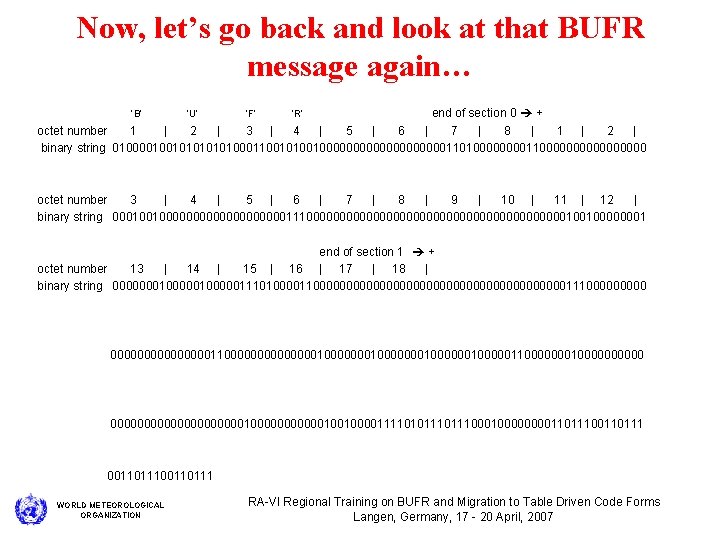

Now, let’s go back and look at that BUFR message again… ‘B’ ‘U’ ‘F’ ‘R’ end of section 0 + octet number 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 1 | 2 | binary string 01000010010101000110010000000000110100001100000000 octet number 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | binary string 0001001000000000011100000000000000000000100100000001 end of section 1 + octet number 13 | 14 | 15 | 16 | 17 | 18 | binary string 000000010000011101000011000000000000000000011100000 00000000110000000100000001000000110000000000 0000000000100000010010000111101011100000000110111 00110111 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 2 – Optional section This section is defined by the ADP (Automated Data Processing) centre generating or using the message • It typically contains additional information of use to the ADP centre, such as – Database keys to aid searching for specific data without decoding the message – Anything else a processing centre may find useful WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 3 – Data description section This section contains: • A count of the number of data subsets (typically individual observations) • Flags indicating whether or not the data are compressed or uncompressed and observed or forecast • A list of the data elements (fields) that are contained in each data subset WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 3 - Details • • Length at least 10 Octets 1 -3 Length of section Octet 4 Set to zero Octets 5 -6 Number of subsets Octet 7 Flag (Obs? , Compressed? ) Octets 8 -? ? List of descriptors Each descriptor 2 bits F, 6 bits X, 8 bits Y WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Now, let’s go back and look at that BUFR message again… ‘B’ ‘U’ ‘F’ ‘R’ end of section 0 + octet number 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 1 | 2 | binary string 01000010010101000110010000000000110100001100000000 octet number 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | binary string 0001001000000000011100000000000000000000100100000001 end of section 1 + octet number 13 | 14 | 15 | 16 | 17 | 18 | 1 | 2 | 3 | 4 | binary string 000000010000011101000011000000000000000000011100000 end of section 3 + octet number 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | binary string 00000000110000000100000001000000110000000000 0000000000100000010010000111101011100000000110111 00110111 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 4 – Data section This section contains: • The actual data as specified by Section 3 • One of two formats is used – Compressed – Uncompressed • Such data are still packed, but not as efficiently as compressed data usually are WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 4 - Details • Octets 1 -3 • Octet 4 • Octets 5 -? ? WORLD METEOROLOGICAL ORGANIZATION Length of section Set to zero Binary data as specified by Section 3 RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Now, let’s go back and look at that BUFR message again… ‘B’ ‘U’ ‘F’ ‘R’ end of section 0 + octet number 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 1 | 2 | binary string 01000010010101000110010000000000110100001100000000 octet number 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | binary string 0001001000000000011100000000000000000000100100000001 end of section 1 + octet number 13 | 14 | 15 | 16 | 17 | 18 | 1 | 2 | 3 | 4 | binary string 000000010000011101000011000000000000000000011100000 end of section 3 + octet number 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | binary string 00000000110000000100000001000000110000000000 end of section 4 + octet number 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | binary string 0000000000100000010010000111101011100000000110111 00110111 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 5 – End section This section contains: • The character string “ 7777” indicating the end of the message • Checking for this indicator can be useful to detect some types of data corruption (especially missing bytes in the rest of the message) since the total length of the message is known from Section 0 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Now, let’s go back and look at that BUFR message one last time! ‘B’ ‘U’ ‘F’ ‘R’ end of section 0 + octet number 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 1 | 2 | binary string 01000010010101000110010000000000110100001100000000 octet number 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | binary string 0001001000000000011100000000000000000000100100000001 end of section 1 + octet number 13 | 14 | 15 | 16 | 17 | 18 | 1 | 2 | 3 | 4 | binary string 000000010000011101000011000000000000000000011100000 end of section 3 + octet number 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | binary string 00000000110000000100000001000000110000000000 end of section 4 + ‘ 7’ octet number 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 1 | 2 | binary string 0000000000100000010010000111101011100000000110111 ‘ 7’ + end of section 5 octet number 3 | 4 | binary string 00110111 RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms WORLD METEOROLOGICAL ORGANIZATION Langen, Germany, 17 - 20 April, 2007
BUFR Descriptors • Section 3 contains a list of BUFR descriptors • These describe the data elements that are contained in Section 4 • Most descriptors are references to BUFR Tables B, C and D • Using the list of descriptors in Section 3, together with the tables, it is possible to unpack the data in Section 4 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Types of BUFR descriptors • • • Element descriptors (Table B) Replication descriptors Operator descriptors (Table C) Sequence descriptors (Table D) Specified by 3 numbers in 16 bits (2 octets) – F: 2 bits 0 -3 – X: 6 bits 0 -63 – Y: 8 bits 0 -255 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Element descriptors • Defined by entries in Table B • F is 0 • Each element descriptor describes an encoded value, such as: – The value of a meteorological parameter (e. g. mean sea level pressure, temperature, wind speed) – Instrument details – Location or date and time information – Quality control information WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Replication Descriptors • Describe the repetition of one or more element, operator, sequence or other replication descriptors • Used for repetitive data such as the individual levels in vertical soundings or temperature profiles • Can be: – Fixed - the number of repetitions is pre-determined and the same for all data subsets – Variable - the number of repetitions can differ from one subset to the next (ie. delayed replication) WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Replication descriptors - continued • Replication descriptors are defined by three numbers F X Y • F is 1 • X is an integer between 1 and 63 – Defines the number of descriptors to be repeated • Y is an integer between 0 and 255 – Defines how many times the X descriptors are to be repeated – A count of zero indicates delayed replication, where the repeat count is stored in the data section and can change from one data subset to another. WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Operator descriptors • • Defined by entries in Table C F is 2 Describe changes to be made to other descriptors Operators exist for applications such as: – Changing the scaling and packing of data – Adding quality control or other associated fields – Describing the descriptors to which quality control information applies – Substituting a better value for an element, while retaining the original value WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Sequence descriptors • Defined by entries in Table D • F is 3 • Shorthand notations for pre-defined lists of other element, replication, sequence and operator descriptors • Not really necessary, but useful in reducing the overhead involved in transmitting data in BUFR: – Replace a commonly-used sequence of descriptors with a single descriptor, and thereby reduce the overall length of Section 3 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
BUFR tables There are many different tables involved in BUFR: • Table A – Data Categories, used in Section 1 • Table B – Element descriptors, used in Section 3 • Table C – Operator descriptors, used in Section 3 • Table D – Sequence descriptors, used in Section 3 • Code and Flag tables – Numerical values to be encoded where the element values are qualitative, used in Section 4 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table A • Defines the general category of the data contained in the BUFR message • Encoded in Section 1 • Examples of typical entries: Code figure 0 1 2 3 … 6 … 10 12 … 31 WORLD METEOROLOGICAL ORGANIZATION Meaning Surface data – land Surface data – sea Vertical soundings (non-satellite) Vertical soundings (satellite) … Radar data … Radiological data Surface data (satellite) … Oceanographic data RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table B • Describes the individual values that are encoded • Element descriptors are grouped according to classes (i. e. X value) Class Number Class Name 01 Identification 12 Temperature 02 Instrumentation 13 Hydrological … … 14 Radiation and radiance 04 Location (time) … … 05 Location (horizontal-1) 19 Synoptic features 06 Location (horizontal-2) 20 Observed phenomena 07 Location (vertical) 21 Radar data … … 11 Wind and turbulence 33 Quality information WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Class 01 – Identification (excerpt) TABLE REFERENCE F X Y TABLE ELEMENT NAME UNIT SCALE REFERENCE VALUE DATA WIDTH (BITS) 0 01 001 WMO block number Numeric 0 0 7 0 01 002 WMO station number Numeric 0 0 10 0 01 003 WMO region number Code table 0 0 3 0 01 005 Buoy/platform identifier Numeric 0 0 17 0 01 006 Aircraft flight number CCITT IA 5 0 0 64 0 01 007 Satellite identifier Code table 0 0 10 0 01 011 Ship or mobile land station identifier CCITT IA 5 0 0 72 0 01 015 Station or site name CCITT IA 5 0 0 160 0 01 063 ICAO location indicator CCITT IA 5 0 0 64 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Class 11 – Wind and turbulence (excerpt) TABLE REFERENCE F X Y TABLE ELEMENT NAME DATA WIDTH (BITS) UNIT SCALE REFERENCE VALUE Degree true 0 0 9 0 11 001 Wind direction 0 11 002 Wind speed m s-1 1 0 12 0 11 003 U-component m s-1 1 -4096 13 0 11 004 V-component m s-1 1 -4096 13 0 11 021 Relative vorticity s-1 9 -65536 17 0 11 031 Degree of turbulence Code table 0 0 4 0 11 032 Height of base of turbulence m -1 -40 16 0 11 033 Height of top of turbulence m -1 -40 16 0 11 034 Vertical gust velocity m s-1 1 -1024 11 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table B • Columns are: – – – Table reference Element name Unit Scale Reference value Data width (in bits) • Scale, reference value, and bit width are chosen so that the desired range of possible data values can be stored in BUFR as positive integers – Preserves the machine-independence of BUFR WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table B reference • • Expressed as 3 small numbers F X Y Used to refer to this descriptor F is always 0 for an element descriptor X is in the range 0 to 63 and refers to a broad class of elements – Classes 48 to 63 are reserved for local use • Y is in the range 0 to 255 and refers to the individual descriptor in the class – Within all classes, descriptors 192 to 255 are reserved for local use WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table B element name • Natural language description of the meaning of the value • Usually English but could be translated to other languages • For example: – Brightness temperature – Total precipitation past 3 hours – Wind speed at 10 m WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table B unit • The units used for the value – Normally SI units are used – “CCITT IA 5” (the international version of ASCII) is used for character data such as identifiers – “Code Table” is used for qualitative data where only one of a set of possible values can be applicable in a given data subset – “Flag Table” is used for qualitative data where more than one of a set of possible values may be applicable in a given data subset – For qualitative data, the coded values are references to the Code and Flag tables WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table B scale • Scale – Power of 10 by which to multiply the data value before packing – Determines the precision with which the data are encoded – A scale of 2 means 2 decimal places of precision (eg. 273. 16) – A scale of – 1 means that the data values are rounded to the nearest multiple of 10 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table B reference value • Used to subtract an offset where negative data have to be encoded • Table B contains the value (multiplied by the scale) of the offset to be subtracted • For example, scale=2, reference value -9000 means that -90. 00 is to be subtracted before scaling (ie. -9000 after scaling), allowing values as negative as -90. 00 to be represented WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table B data width • The number of bits to be used to encode the value • If all bits are set to ones when encoding (ie. a value of (2 n-1) when n is the data width), then this denotes a “missing” value. • If the scale is s, the reference value is r, and the data width is n, then the representable range of values is: – Minimum (10 -s r) – Maximum (10 -s (2 n-2+r)) and (10 -s (2 n-1+r)) denotes the “missing” value. WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007

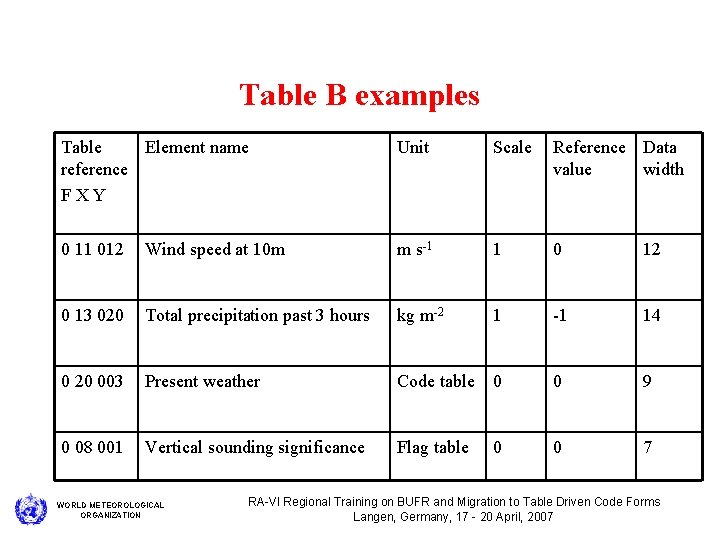

Table B examples Table Element name reference FXY Unit Scale Reference Data value width 0 11 012 Wind speed at 10 m m s-1 1 0 12 0 13 020 Total precipitation past 3 hours kg m-2 1 -1 14 0 20 003 Present weather Code table 0 0 9 0 08 001 Vertical sounding significance Flag table 0 0 7 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table B examples - continued • • 0 11 012 - Wind speed at 10 m Scale=1, Reference value=0, Data width=12 Precision is one decimal place (ie. 0. 1 m s-1) Minimum representable value is: (10 -1× 0) = 0. 0 m s-1 • Maximum representable value is: (10 -1×(212 -2+0)) = 409. 4 m s-1 • “Missing” value is: (10 -1×(212 -1+0)) = 409. 5 m s-1 WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table B examples - continued • • 0 13 020 - Total precipitation past 3 hours Scale=1, Reference value=-1, Data width=14 Precision is one decimal place (ie. 0. 1 kg m-2) For this descriptor, -0. 1 kg m-2 is a special value for trace, according to a specific note in Table B • Minimum representable value is: (10 -1×-1) = -0. 1 kg m-2 (= trace) • Maximum representable value is: (10 -1×(214 -2 -1)) = 1638. 1 kg m-2 • “Missing” value is: (10 -1×(214 RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms -1 -1)) = 1638. 2 kg m-2 WORLD METEOROLOGICAL ORGANIZATION Langen, Germany, 17 - 20 April, 2007
Table B examples - continued • • 0 20 003 - Present weather Scale=0, Reference value=0, Data width=9 Coded values are integers since Scale=0 Minimum representable value is: (100× 0) = 0 • Maximum representable value is: (100×(29 -2+0)) = 510 • “Missing” value is: (100×(29 -1+0)) = 511 • One must refer to Code Table 0 20 003 in order to discover the actual meaning of each coded value WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007

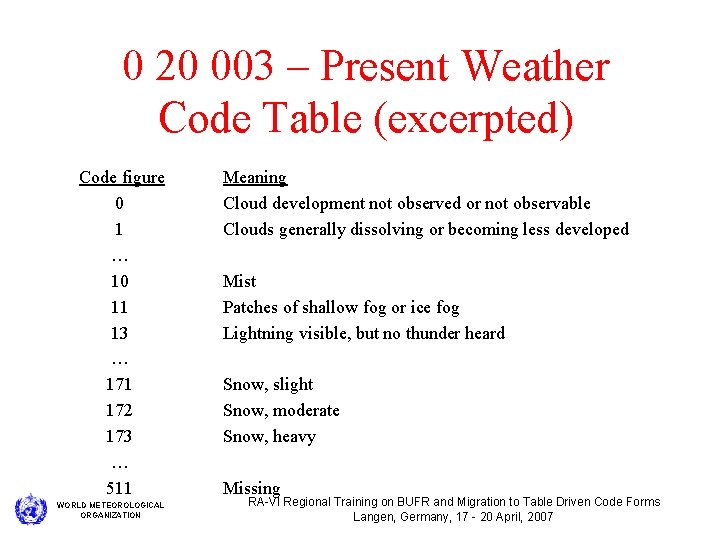

0 20 003 – Present Weather Code Table (excerpted) Code figure 0 1 … 10 11 13 … 171 172 173 … 511 WORLD METEOROLOGICAL ORGANIZATION Meaning Cloud development not observed or not observable Clouds generally dissolving or becoming less developed Mist Patches of shallow fog or ice fog Lightning visible, but no thunder heard Snow, slight Snow, moderate Snow, heavy Missing RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Code tables vs. Flag tables (choice of one vs. choice of more than one) 0 -01 -003 WMO region number Code figure 0 1 2 3 4 5 6 7 0 -08 -001 Vertical sounding significance Meaning Antarctica Region III Region IV Region VI Missing value Bit number 1 2 3 4 5 6 All 7 Meaning Surface Standard level Tropopause level Maximum wind level Significant temperature level Significant wind level Missing value For a Code table, the value stored in Section 4 is the code figure corresponding to the applicable meaning. For a Flag table of N bits, the value stored in Section 4 is (2(N-bit#) + …) for the bit(s) corresponding to each applicable meaning. An extra bit is always present in order to be able to distinguish “all meanings applicable” from “missing”. WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Some other important regulations pertaining to Table B • Elements in classes 01 – 09 are “coordinate” descriptors which remain in effect until redefined or until the end of the subset Exception: when two identical descriptors from classes 04 – 07 are listed consecutively, they define the boundaries of a range • Similar descriptors exist in “coordinate” vs. “non-coordinate” classes Example: 0 07 004 and 0 10 004 are both “Pressure” with identical scale, reference value and bit width; however, the former is a “coordinate” for use when pressure is the main defining coordinate measured in the vertical direction (e. g. in radiosondes) vs. the latter which is a “non-coordinate” for use when pressure is a derived value (e. g. an aircraft calculating pressure as a function of an observed or measured height) • Class 08 contains significance qualifiers which can be used to report qualitative information and which can be explicitly “cancelled” Example: 0 08 011 with value 12 can indicate that we are talking about a “cloud” WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table C • Describes the various operators • Columns are: – Table reference F X • F is 2 • X is an integer between 0 and 63 • There is no sub-range of X values reserved for local use – Operand • A number between 0 and 255 – Operator name • A short name describing the operation – Operator definition • A detailed description of the operation and its effects WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007

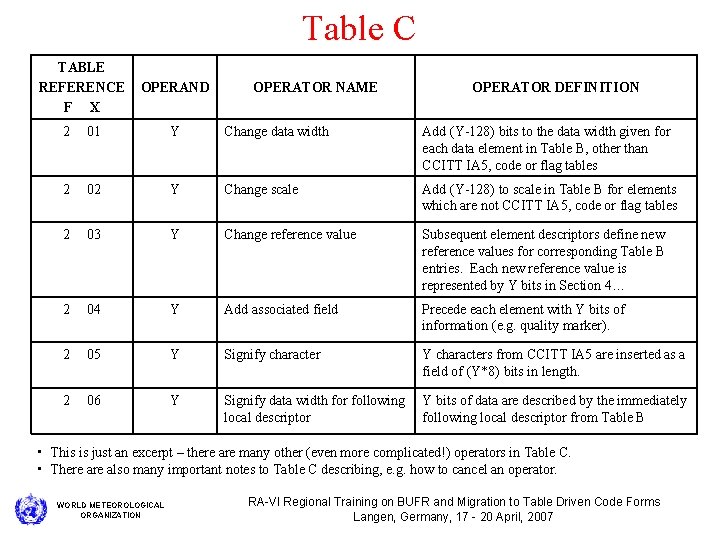

Table C TABLE REFERENCE F X OPERAND OPERATOR NAME OPERATOR DEFINITION 2 01 Y Change data width Add (Y-128) bits to the data width given for each data element in Table B, other than CCITT IA 5, code or flag tables 2 02 Y Change scale Add (Y-128) to scale in Table B for elements which are not CCITT IA 5, code or flag tables 2 03 Y Change reference value Subsequent element descriptors define new reference values for corresponding Table B entries. Each new reference value is represented by Y bits in Section 4… 2 04 Y Add associated field Precede each element with Y bits of information (e. g. quality marker). 2 05 Y Signify character Y characters from CCITT IA 5 are inserted as a field of (Y*8) bits in length. 2 06 Y Signify data width for following local descriptor Y bits of data are described by the immediately following local descriptor from Table B • This is just an excerpt – there are many other (even more complicated!) operators in Table C. • There also many important notes to Table C describing, e. g. how to cancel an operator. WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table C example • • Table reference F=2 X=01 Operand, in this case represented as Y Operator name “Change data width” Operator description: “Add Y-128 bits to the data width given for each data element in Table B, other than CCITT IA 5 (character) data, code or flag tables” • According to a note under Table C, this operator is cancelled (ie. effect is turned off) by repeating the operator with Y=0, or at the end of each data subset WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table C example - continued The “Change data width” operator causes the data width to be changed for subsequent elements, in effect giving them a larger (or smaller) range than is otherwise prescribed within Table B. Thus, it can be used to: • encode values that exceed the usual representable range for a descriptor, instead of having to introduce a new Table B descriptor (note: in such cases, Y > 128) • reduce the size of the data (and thus the overall encoded message as well!) if the required data range can be encoded using a smaller data width than provided within Table B (note: in such cases, Y < 128) WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table C example -continued As an example, one of the standard descriptors for the height coordinate of an observation is 0 07 007 with unit=m, scale=0, reference=-1000, data width=17, giving a representable range of – 1000 m to 130070 m. If one needed to encode a value larger than this, then the 2 01 operator could be used to increase the data width. For example, use of the operator 2 01 130 before the 0 07 007 descriptor would increase its data width to 19 bits and therefore allow values up to 523286 m. WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table D • Describes sequences of descriptors • Columns are: – Table reference F X Y • F is 3 • X is in the range of 0 to 63 and refers to a broad category of sequences – Categories 48 to 63 are reserved for local use • Y is in the range of 0 to 255 and refers to the individual sequence in the category – Within all categories, entries 192 to 255 are reserved for local use – Table references • List of other descriptors, including element descriptors (Table B), replication descriptors, operator descriptors (Table C) and other sequence descriptors (Table D) – Element name • Not really necessary, but makes reading the tables easier WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table D categories • Categories correspond to the X value of the underlying sequence descriptor. Category number 01 02 03 04 05 06 07 08 … 18 21 WORLD METEOROLOGICAL ORGANIZATION Category name Location and identification sequences Sequences common to surface data Sequences common to vertical soundings data Sequences common to satellite observations Sequences common to hydrological observations Sequences common to oceanographic observations Surface report sequences (land) Surface report sequences (sea) … Radiological report sequences Radar report sequences RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007

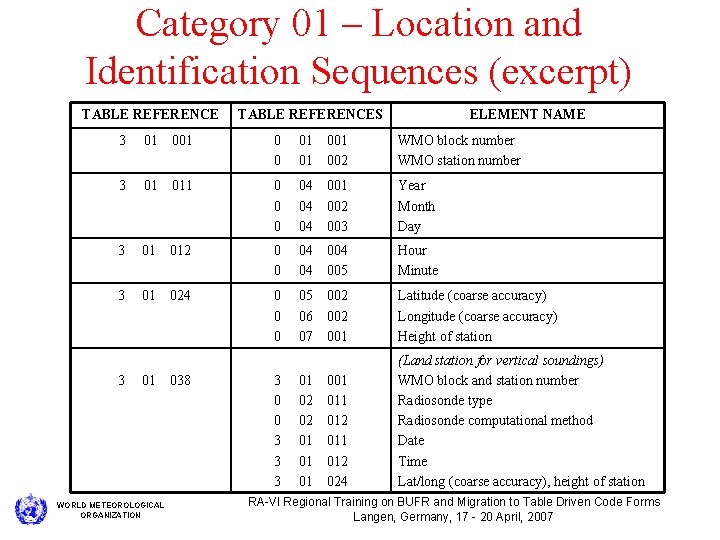

Category 01 – Location and Identification Sequences (excerpt) TABLE REFERENCES ELEMENT NAME 3 01 0 0 01 01 002 WMO block number WMO station number 3 01 011 0 04 04 04 001 002 003 Year Month Day 3 01 012 0 0 04 04 005 Hour Minute 3 01 024 0 05 06 07 002 001 Latitude (coarse accuracy) Longitude (coarse accuracy) Height of station 001 012 011 012 024 (Land station for vertical soundings) WMO block and station number Radiosonde type Radiosonde computational method Date Time Lat/long (coarse accuracy), height of station 3 01 WORLD METEOROLOGICAL ORGANIZATION 038 3 0 0 3 3 3 01 02 02 01 01 01 RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007

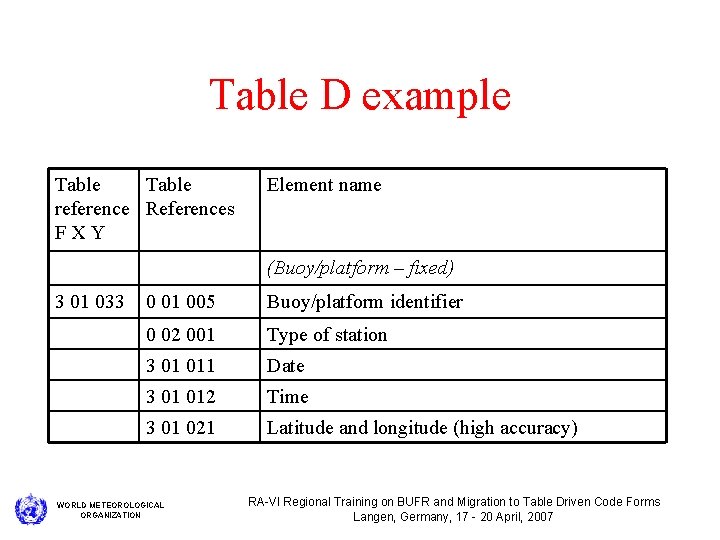

Table D example Table reference References FXY Element name (Buoy/platform – fixed) 3 01 033 0 01 005 Buoy/platform identifier 0 02 001 Type of station 3 01 011 Date 3 01 012 Time 3 01 021 Latitude and longitude (high accuracy) WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Table D example - continued • In this example, the sequence consists of five descriptors • Two of these are Table B element descriptors • The other three are Table D sequence descriptors, which in turn represent other sequences of descriptors • Obviously the repeated replacement of Table D descriptors with lists of descriptors must not continue forever, and a Table D descriptor cannot include itself, directly or indirectly WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Replication descriptors - example • The 4 descriptors: – – 1 03 002 Repeat three descriptors twice 0 22 003 Direction of swell waves 0 22 013 Period of swell waves 0 22 023 Height of swell waves • Are equivalent to the 6 descriptors: – – – 0 22 003 Direction of swell waves 0 22 013 Period of swell waves 0 22 023 Height of swell waves WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Delayed replication descriptor example • The 3 descriptors: – 1 01 000 Delayed replication of one descriptor – 0 31 001 Replication factor (8 bit) – 3 03 012 Winds at pressure levels • Are equivalent to: – 3 03 012 Winds at pressure levels – … for as many times as specified by the 0 31 001 replication factor • The number of repeats for each data subset is stored in the data. Each data subset has its own repetition count. • In addition to 8 -bit delayed replication, there is also 1 -bit and 16 -bit delayed replication WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
A caveat… The previous example is worth a closer look. Specifically, when replicating a sequence, the replication takes place before the sequence expansion! For example, note that: 1 01 004 3 03 012 ( = 0 07 004, 0 08 001, 0 11 002 ) is equivalent to: 3 03 012 WORLD METEOROLOGICAL ORGANIZATION and not to: 0 07 004 0 08 001 0 11 002 RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007

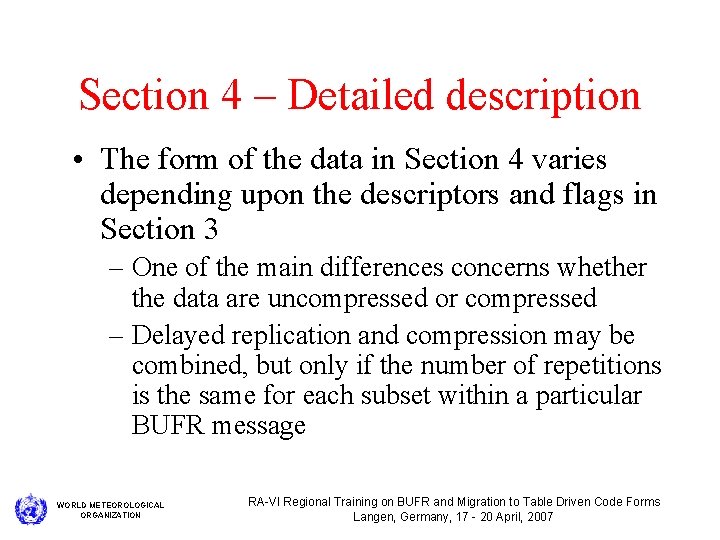

Section 4 – Detailed description • The form of the data in Section 4 varies depending upon the descriptors and flags in Section 3 – One of the main differences concerns whether the data are uncompressed or compressed – Delayed replication and compression may be combined, but only if the number of repetitions is the same for each subset within a particular BUFR message WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 4 – Uncompressed data • Each data item takes up the number of bits specified by the data width in Table B, as adjusted by operators or as otherwise specified. • The order for N data subsets, each with M data values is: Set 1 Value 1, Set 1 Value 2, Set 1 Value 3, … Set 1 Value M Set 2 Value 1, Set 2 Value 2, Set 2 Value 3, … Set 2 Value M … Set N Value 1, Set N Value 2, Set N Value 3, … Set N Value M WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Section 4 – Compressed data • Each data item is encoded by its minimum over all the data subsets (using the data width specified in Table B or otherwise), the number of bits used to encode the increments (using 6 bits), and a list of increments to be added to the minimum. • The order for N data subsets, each with M data values is: Min 1, Nbits 1, Set 1 Inc 1, Set 2 Inc 1, … Set N Inc 1 Min 2, Nbits 2, Set 1 Inc 2, Set 2 Inc 2, … Set N Inc 2 …. Min M, Nbits M, Set 1 Inc M, Set 2 Inc M, … Set N Inc M WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007

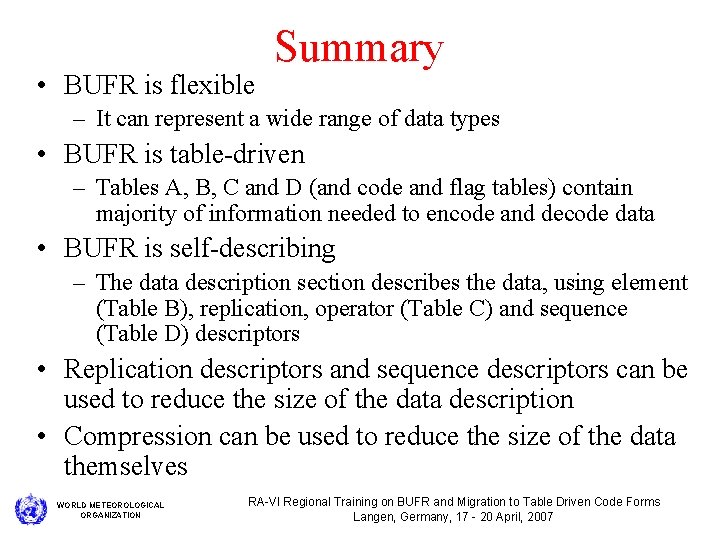

• BUFR is flexible Summary – It can represent a wide range of data types • BUFR is table-driven – Tables A, B, C and D (and code and flag tables) contain majority of information needed to encode and decode data • BUFR is self-describing – The data description section describes the data, using element (Table B), replication, operator (Table C) and sequence (Table D) descriptors • Replication descriptors and sequence descriptors can be used to reduce the size of the data description • Compression can be used to reduce the size of the data themselves WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
Acknowledgements Based on: • WMO No. 306 Manual on Codes, Volume I. 2 (http: //www. wmo. int/web/www/WMOCodes/Manual. Codes/WMO 306 vol-I-2 Part. B. pdf) • Guide to WMO Table-Driven Code Forms FM 94 BUFR and FM 95 CREX (http: //www. wmo. int/web/www/WMOCodes/Guides/BUFRCREXPreface_en. html) Special thanks to: • Jeff Ator NOAA, United States of America • Charles Sanders BOM, Australia (retd. ) • Joël Martellet WMO WORLD METEOROLOGICAL ORGANIZATION RA-VI Regional Training on BUFR and Migration to Table Driven Code Forms Langen, Germany, 17 - 20 April, 2007
