Introduction to Basic Chemistry Protons, Neutrons, Electrons, and the Periodic Table
![Chemistry • The study of the composition of matter and the changes it undergoes Chemistry • The study of the composition of matter and the changes it undergoes](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-2.jpg)
Chemistry • The study of the composition of matter and the changes it undergoes • Matter can be defined as anything that has mass and takes up space • Matter can have both physical and chemical characteristics called properties
![Physical Properties and Physical Changes • Physical Properties are characteristics about matter than you Physical Properties and Physical Changes • Physical Properties are characteristics about matter than you](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-3.jpg)
Physical Properties and Physical Changes • Physical Properties are characteristics about matter than you can directly observe with your own senses • Examples: color, brightness, texture, smell, boiling point, melting point, pitch, whether it’s a solid, liquid, or gas and many others • A physical change is any change that doesn’t alter the matter’s chemical make up. It could be a change in size, shape, or state change like from a solid to a liquid
![Chemical Properties and Chemical Changes • A chemical property can only be seen when Chemical Properties and Chemical Changes • A chemical property can only be seen when](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-4.jpg)

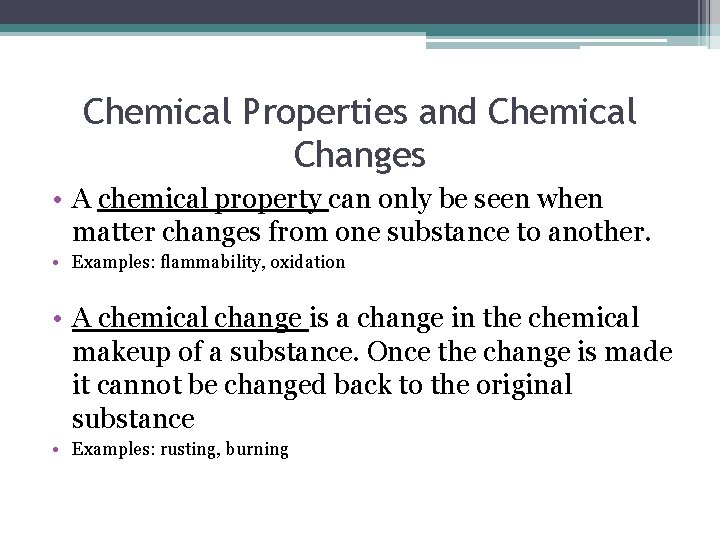

Chemical Properties and Chemical Changes • A chemical property can only be seen when matter changes from one substance to another. • Examples: flammability, oxidation • A chemical change is a change in the chemical makeup of a substance. Once the change is made it cannot be changed back to the original substance • Examples: rusting, burning
![Matter and atoms • All matter is made of atoms Atoms are the smallest Matter and atoms • All matter is made of atoms Atoms are the smallest](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-5.jpg)
Matter and atoms • All matter is made of atoms Atoms are the smallest unit of an element that maintains the properties of that element
![So what is an Element? • A substance that cannot be separated or broken So what is an Element? • A substance that cannot be separated or broken](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-6.jpg)
So what is an Element? • A substance that cannot be separated or broken down into a simpler substance • On the periodic table of elements (gold, carbon, oxygen, etc) • No matter what you do to it, elements will keep their properties
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-7.jpg)
![What are atoms made of? • Atoms are made of two parts: 1. Nucleus What are atoms made of? • Atoms are made of two parts: 1. Nucleus](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-8.jpg)
What are atoms made of? • Atoms are made of two parts: 1. Nucleus – center of the atom (most of its mass is located here) - protons – positively charged particles (+) -neutrons- non-charged particles (O) 2. Electron Cloud – surrounds the nucleus where the electrons are located - electrons- negatively charged (-)
![Draw a picture of an atoms and label its parts Draw a picture of an atoms and label its parts](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-9.jpg)
Draw a picture of an atoms and label its parts
![Atoms • Usually have the same number of electrons and protons Ex. Hydrogen 1 Atoms • Usually have the same number of electrons and protons Ex. Hydrogen 1](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-10.jpg)
Atoms • Usually have the same number of electrons and protons Ex. Hydrogen 1 proton 1 electron 0 neutrons Helium Carbon 2 protons 6 protons 2 electrons 6 electrons 2 neutrons 6 neutrons
![What’s in a square? • Different periodic tables can include various bits of information, What’s in a square? • Different periodic tables can include various bits of information,](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-11.jpg)
What’s in a square? • Different periodic tables can include various bits of information, but usually: ▫ ▫ atomic number symbol atomic mass number of valence electrons ▫ state of matter at room temperature.
![Atomic Number • This refers to how many protons an atom of that element Atomic Number • This refers to how many protons an atom of that element](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-12.jpg)
Atomic Number • This refers to how many protons an atom of that element has. • No two elements, have the same number of protons. Bohr Model of Hydrogen Atom Wave Model
![Atomic Mass • Atomic Mass refers to the “weight” of the atom. • It Atomic Mass • Atomic Mass refers to the “weight” of the atom. • It](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-13.jpg)
Atomic Mass • Atomic Mass refers to the “weight” of the atom. • It is found by adding the number of protons with the number of neutrons. This is a helium atom. Its atomic mass is 4 H(protons plus neutrons). What is its atomic number?
![How do we find the number of protons, neutrons, and electrons are in an How do we find the number of protons, neutrons, and electrons are in an](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-14.jpg)
How do we find the number of protons, neutrons, and electrons are in an element by using the periodic table? Atomic Number (how many protons are in an atom) Protons = Electrons Element Symbol Atomic Mass (Number of protons and neutrons)
![How do we find the number of protons, neutrons, and electrons are in an How do we find the number of protons, neutrons, and electrons are in an](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-15.jpg)
How do we find the number of protons, neutrons, and electrons are in an element by using the periodic table? • • Protons = atomic number (6) Electrons = atomic number (6) Neutrons = atomic mass – atomic number (12 – 6) = 6
![What is the number of protons, neutrons, and electrons in these elements? What is the number of protons, neutrons, and electrons in these elements?](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-16.jpg)
What is the number of protons, neutrons, and electrons in these elements?
![Common Elements and Symbols Common Elements and Symbols](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-17.jpg)
Common Elements and Symbols
![Valence Electrons • The number of valence electrons an atom has may also appear Valence Electrons • The number of valence electrons an atom has may also appear](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-18.jpg)
Valence Electrons • The number of valence electrons an atom has may also appear in a square. • Valence electrons are the electrons in the outer energy level of an atom. • These are the electrons that are transferred or shared when atoms bond together.
![Mendeleev and the Periodic Table • In 1869, Dmitri Ivanovitch Mendeléev created the first Mendeleev and the Periodic Table • In 1869, Dmitri Ivanovitch Mendeléev created the first](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-19.jpg)

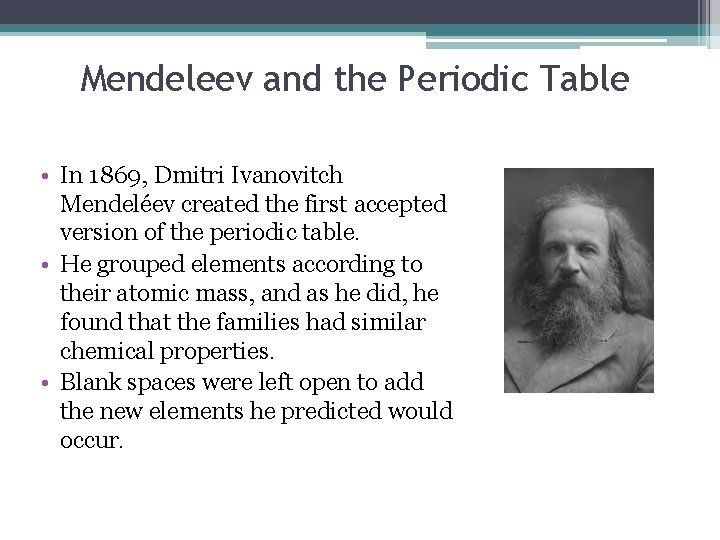

Mendeleev and the Periodic Table • In 1869, Dmitri Ivanovitch Mendeléev created the first accepted version of the periodic table. • He grouped elements according to their atomic mass, and as he did, he found that the families had similar chemical properties. • Blank spaces were left open to add the new elements he predicted would occur.
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-20.jpg)
![Properties of Metals • Metals are good conductors of heat and electricity. • Metals Properties of Metals • Metals are good conductors of heat and electricity. • Metals](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-21.jpg)
Properties of Metals • Metals are good conductors of heat and electricity. • Metals are shiny. • Metals are ductile (can be stretched into thin wires). • Metals are malleable (can be pounded into thin sheets). • A chemical property of metal is its reaction with water which results in corrosion.
![Properties of Non-Metals • Non-metals are poor conductors of heat and electricity. • Non-metals Properties of Non-Metals • Non-metals are poor conductors of heat and electricity. • Non-metals](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-22.jpg)
Properties of Non-Metals • Non-metals are poor conductors of heat and electricity. • Non-metals are not ductile or malleable. • Solid non-metals are brittle and break easily. • They are dull. • Many non-metals are gases. Sulfur
![Properties of Metalloids • Metalloids (metal-like) have properties of both metals and non-metals. • Properties of Metalloids • Metalloids (metal-like) have properties of both metals and non-metals. •](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-23.jpg)

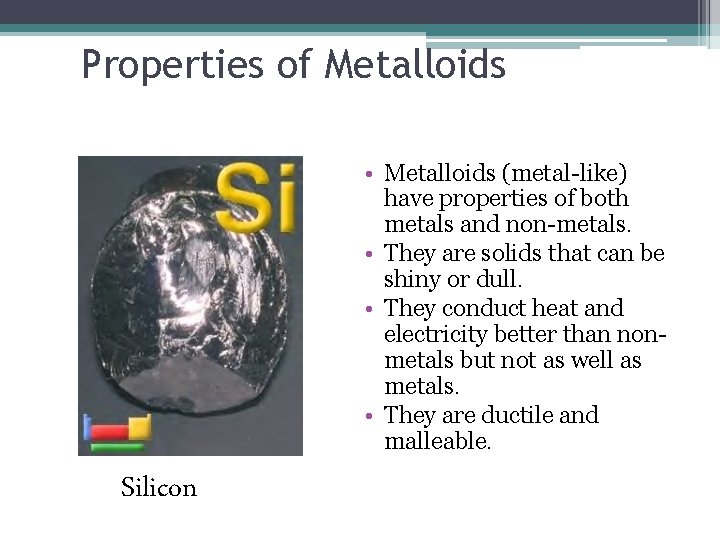

Properties of Metalloids • Metalloids (metal-like) have properties of both metals and non-metals. • They are solids that can be shiny or dull. • They conduct heat and electricity better than nonmetals but not as well as metals. • They are ductile and malleable. Silicon
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-24.jpg)
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-25.jpg)
![Families • Columns of elements are called groups or families. • Elements in each Families • Columns of elements are called groups or families. • Elements in each](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-26.jpg)

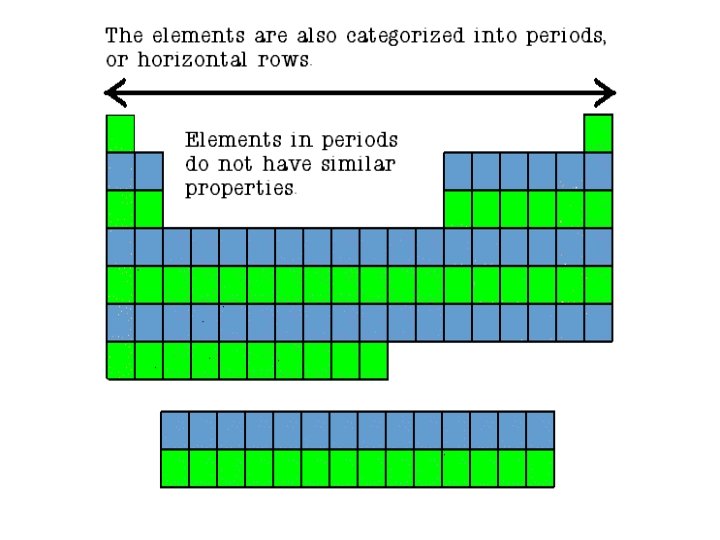

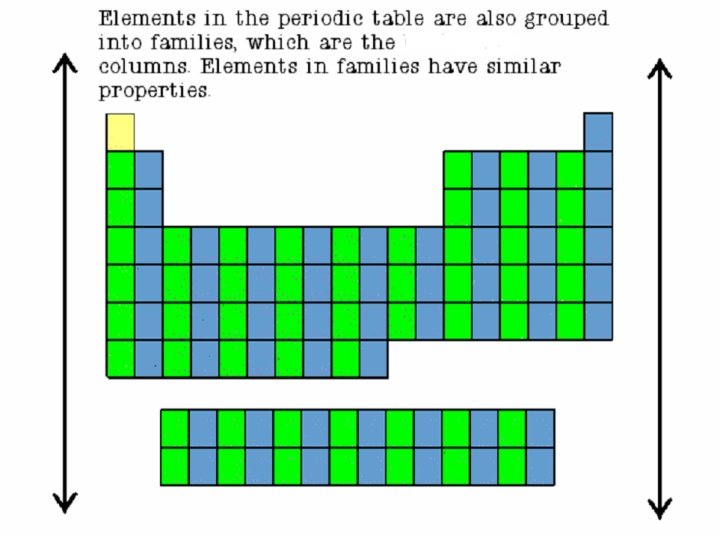

Families • Columns of elements are called groups or families. • Elements in each family have similar but not identical properties. • For example, lithium (Li), sodium (Na), potassium (K), and other members of family IA are all soft, white, shiny metals. • All elements in a family have the same number of valence electrons. Periods • Each horizontal row of elements is called a period. • The elements in a period are not alike in properties. • In fact, the properties change greatly across even given row. • The first element in a period is always an extremely active solid. The last element in a period, is always an inactive gas.
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-27.jpg)
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-28.jpg)

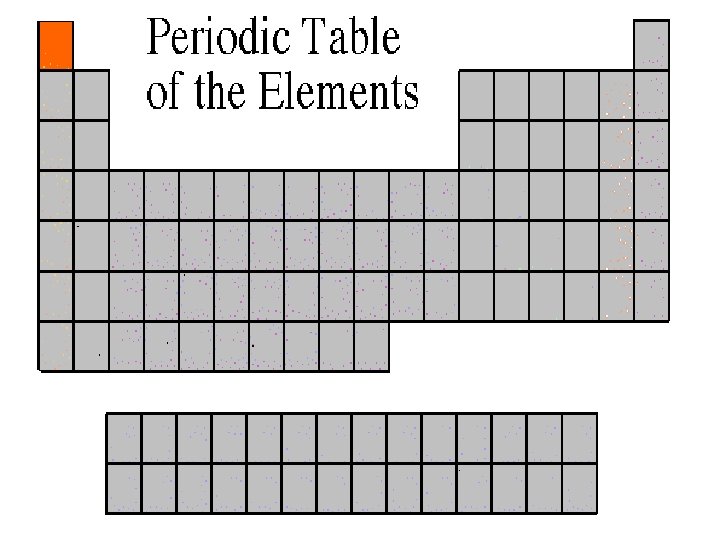

![Hydrogen • The hydrogen square sits atop Family AI, but it is not a Hydrogen • The hydrogen square sits atop Family AI, but it is not a](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-29.jpg)
Hydrogen • The hydrogen square sits atop Family AI, but it is not a member of that family. Hydrogen is in a class of its own. • It’s a gas at room temperature. • It has one proton and one electron in its one and only energy level. • Hydrogen only needs 2 electrons to fill up its valence shell.
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-30.jpg)

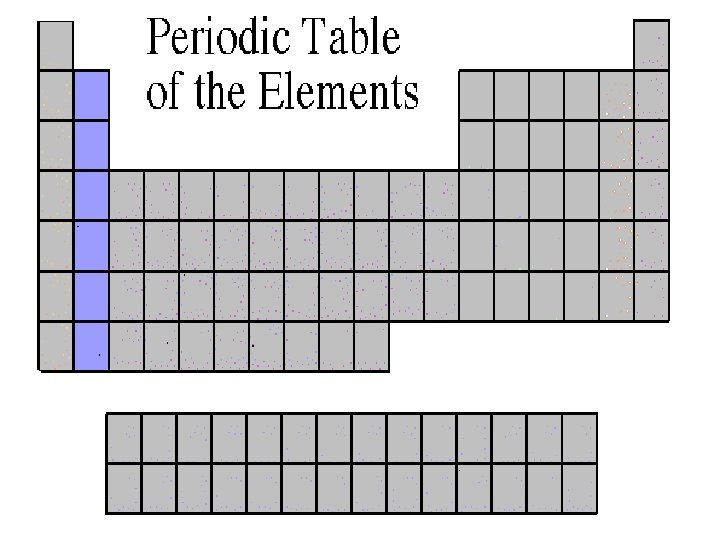

![Alkali Metals • The alkali family is found in the first column of the Alkali Metals • The alkali family is found in the first column of the](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-31.jpg)
Alkali Metals • The alkali family is found in the first column of the periodic table. • Atoms of the alkali metals have a single electron in their outermost level, in other words, 1 valence electron. • They are shiny, have the consistency of clay, and are easily cut with a knife.
![Alkali Metals • They are the most reactive metals. • They react violently with Alkali Metals • They are the most reactive metals. • They react violently with](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-32.jpg)
Alkali Metals • They are the most reactive metals. • They react violently with water. • Alkali metals are never found as free elements in nature. They are always bonded with another element.

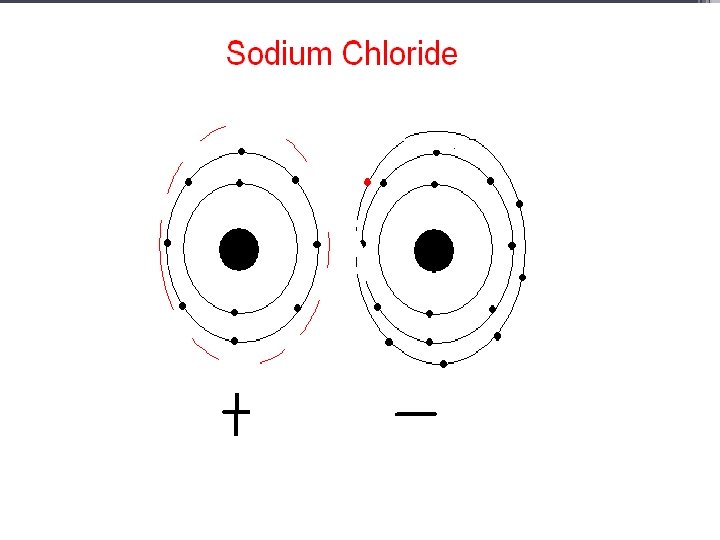

![What does it mean to be reactive? • We will be describing elements according What does it mean to be reactive? • We will be describing elements according](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-33.jpg)

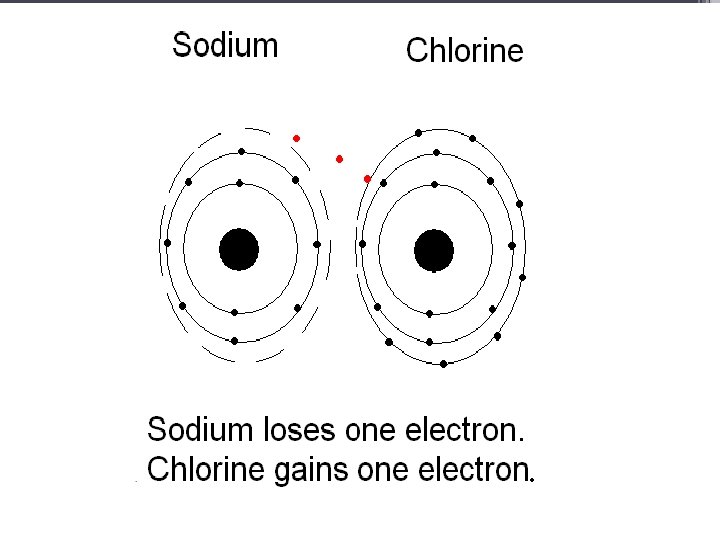

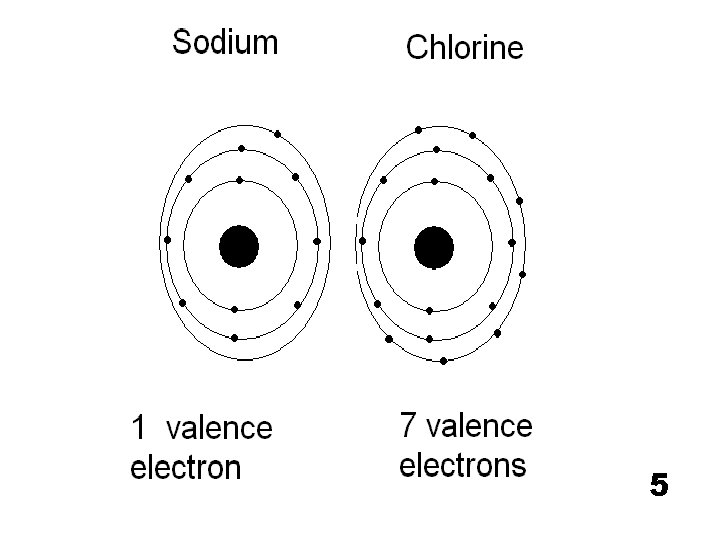

What does it mean to be reactive? • We will be describing elements according to their reactivity. • Elements that are reactive bond easily with other elements to make compounds. • Some elements are only found in nature bonded with other elements. • What makes an element reactive? ▫ An incomplete valence electron level. ▫ All atoms (except hydrogen) want to have 8 electrons in their very outermost energy level (This is called the rule of octet. ) ▫ Atoms bond until this level is complete. Atoms with few valence electrons lose them during bonding. Atoms with 6, 7, or 8 valence electrons gain electrons during bonding.
![5 5](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-34.jpg)
5
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-35.jpg)
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-36.jpg)
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-37.jpg)
![Alkaline Earth Metals • They are never found uncombined in nature. • They have Alkaline Earth Metals • They are never found uncombined in nature. • They have](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-38.jpg)
Alkaline Earth Metals • They are never found uncombined in nature. • They have two valence electrons. • Alkaline earth metals include magnesium and calcium, among others.
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-39.jpg)
![Transition Metals • Transition Elements include those elements in the B families. • These Transition Metals • Transition Elements include those elements in the B families. • These](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-40.jpg)

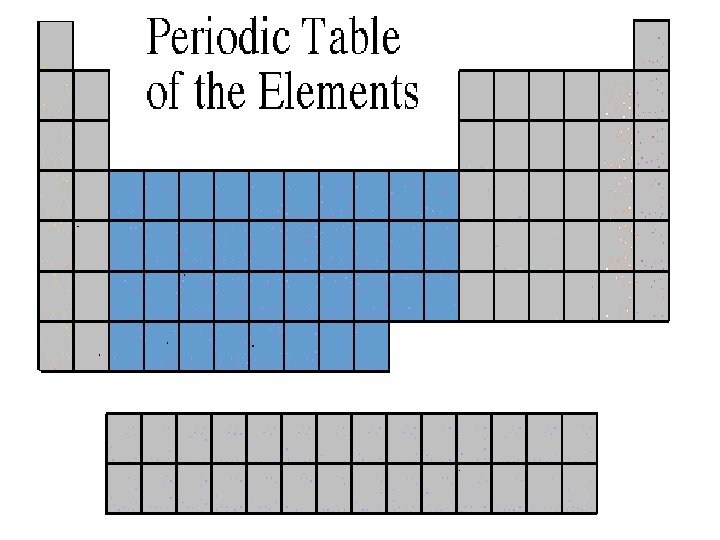

Transition Metals • Transition Elements include those elements in the B families. • These are the metals you are probably most familiar: copper, tin, zinc, iron, nickel, gold, and silver. • They are good conductors of heat and electricity.

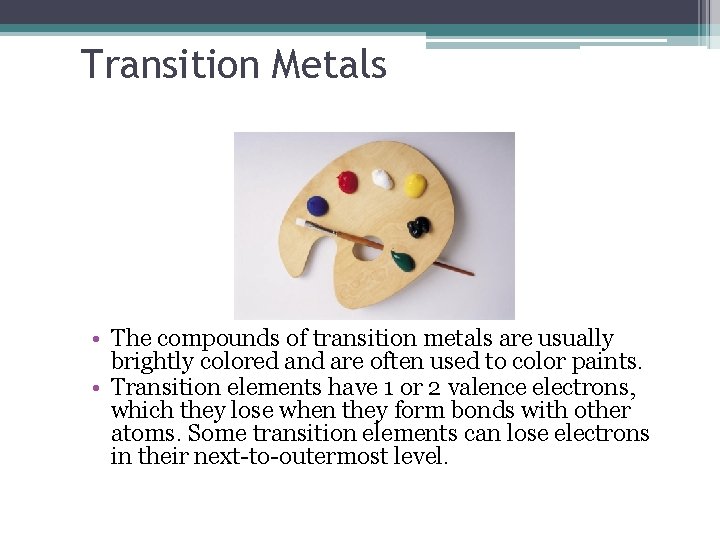

![Transition Metals • The compounds of transition metals are usually brightly colored and are Transition Metals • The compounds of transition metals are usually brightly colored and are](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-41.jpg)
Transition Metals • The compounds of transition metals are usually brightly colored and are often used to color paints. • Transition elements have 1 or 2 valence electrons, which they lose when they form bonds with other atoms. Some transition elements can lose electrons in their next-to-outermost level.
![Transition Elements • Transition elements have properties similar to one another and to other Transition Elements • Transition elements have properties similar to one another and to other](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-42.jpg)
Transition Elements • Transition elements have properties similar to one another and to other metals, but their properties do not fit in with those of any other family. • Many transition metals combine chemically with oxygen to form compounds called oxides.
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-43.jpg)
![Boron Family • The Boron Family is named after the first element in the Boron Family • The Boron Family is named after the first element in the](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-44.jpg)

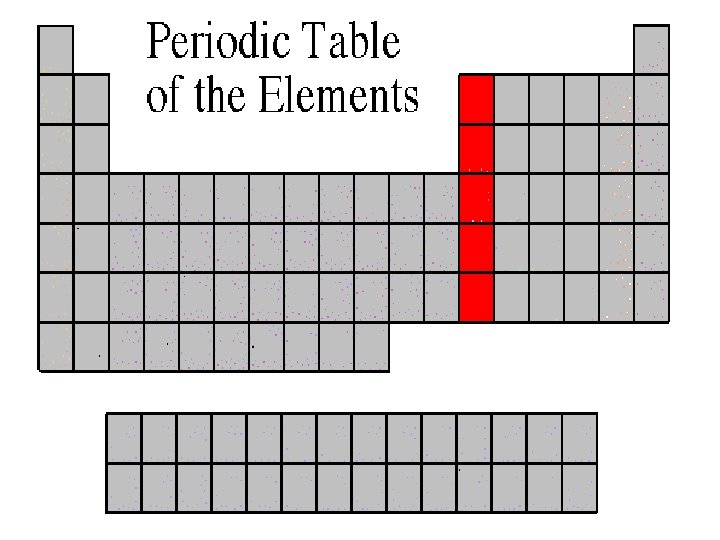

Boron Family • The Boron Family is named after the first element in the family. • Atoms in this family have 3 valence electrons. • This family includes a metalloid (boron), and the rest are metals. • This family includes the most abundant metal in the earth’s crust (aluminum).
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-45.jpg)

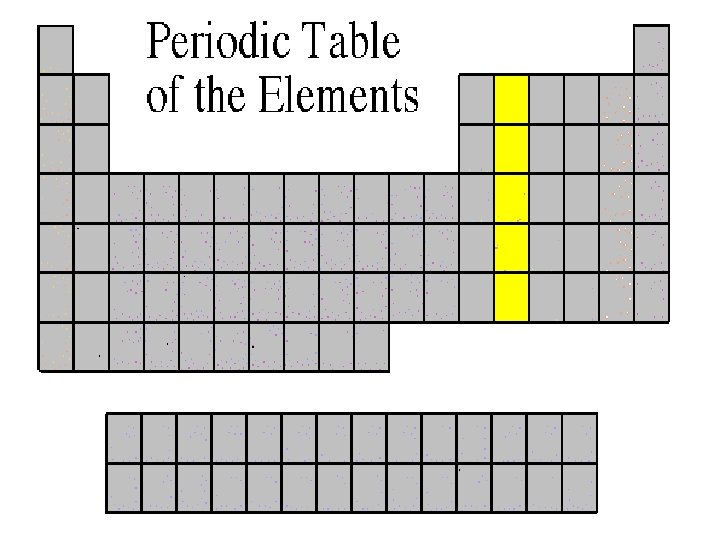

![Carbon Family • Atoms of this family have 4 valence electrons. • This family Carbon Family • Atoms of this family have 4 valence electrons. • This family](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-46.jpg)
Carbon Family • Atoms of this family have 4 valence electrons. • This family includes a nonmetal (carbon), metalloids, and metals. • The element carbon is called the “basis of life. ” There is an entire branch of chemistry devoted to carbon compounds called organic chemistry.
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-47.jpg)

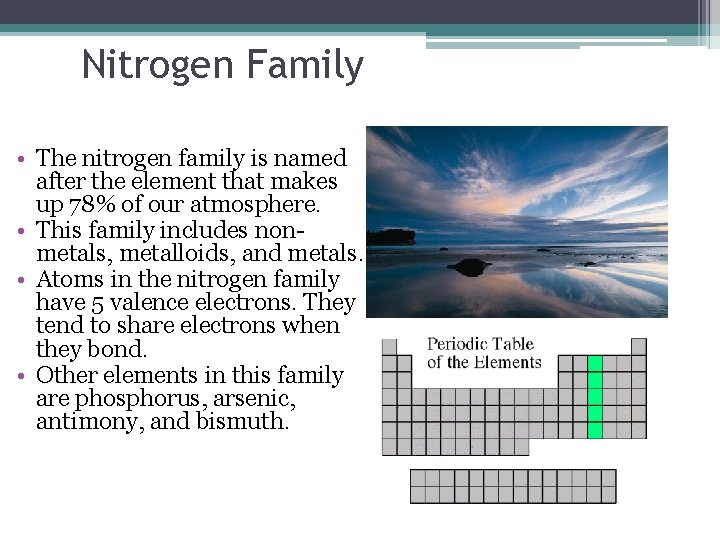

![Nitrogen Family • The nitrogen family is named after the element that makes up Nitrogen Family • The nitrogen family is named after the element that makes up](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-48.jpg)
Nitrogen Family • The nitrogen family is named after the element that makes up 78% of our atmosphere. • This family includes nonmetals, metalloids, and metals. • Atoms in the nitrogen family have 5 valence electrons. They tend to share electrons when they bond. • Other elements in this family are phosphorus, arsenic, antimony, and bismuth.
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-49.jpg)
![Oxygen Family • Atoms of this family have 6 valence electrons. • Most elements Oxygen Family • Atoms of this family have 6 valence electrons. • Most elements](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-50.jpg)

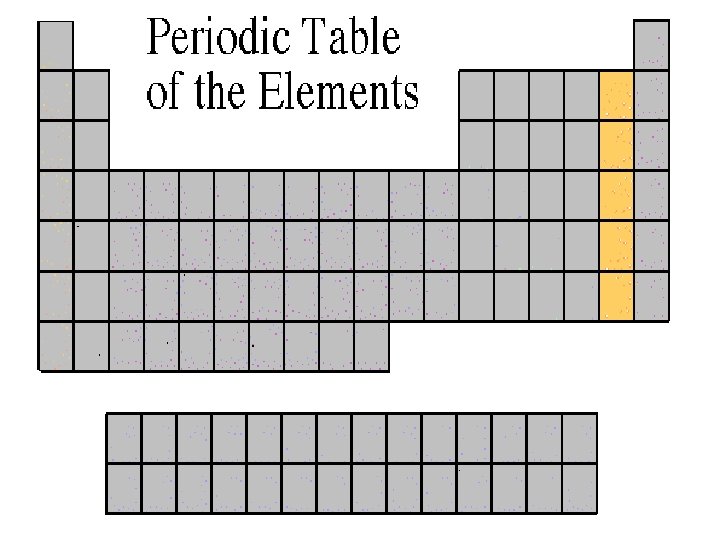

Oxygen Family • Atoms of this family have 6 valence electrons. • Most elements in this family share electrons when forming compounds. • Oxygen is the most abundant element in the earth’s crust. It is extremely active and combines with almost all elements.
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-51.jpg)

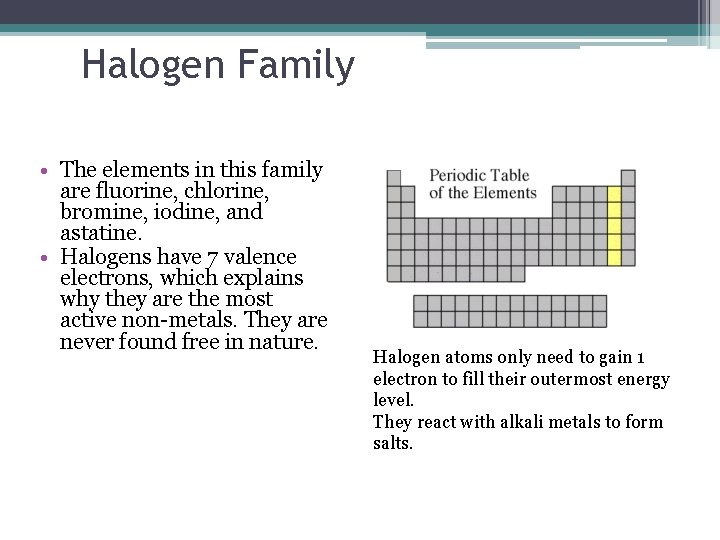

![Halogen Family • The elements in this family are fluorine, chlorine, bromine, iodine, and Halogen Family • The elements in this family are fluorine, chlorine, bromine, iodine, and](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-52.jpg)
Halogen Family • The elements in this family are fluorine, chlorine, bromine, iodine, and astatine. • Halogens have 7 valence electrons, which explains why they are the most active non-metals. They are never found free in nature. Halogen atoms only need to gain 1 electron to fill their outermost energy level. They react with alkali metals to form salts.
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-53.jpg)
![Noble Gases • Noble Gases are colorless gases that are extremely un-reactive. • One Noble Gases • Noble Gases are colorless gases that are extremely un-reactive. • One](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-54.jpg)

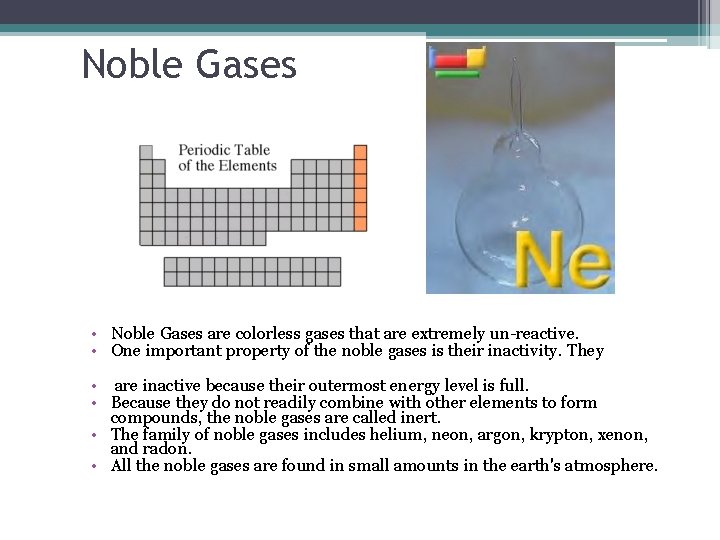

Noble Gases • Noble Gases are colorless gases that are extremely un-reactive. • One important property of the noble gases is their inactivity. They • are inactive because their outermost energy level is full. • Because they do not readily combine with other elements to form compounds, the noble gases are called inert. • The family of noble gases includes helium, neon, argon, krypton, xenon, and radon. • All the noble gases are found in small amounts in the earth's atmosphere.
![](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-55.jpg)
![Rare Earth Elements • The thirty rare earth elements are composed of the lanthanide Rare Earth Elements • The thirty rare earth elements are composed of the lanthanide](http://slidetodoc.com/presentation_image/54bc97098b887316c5ead05b592cc973/image-56.jpg)
Rare Earth Elements • The thirty rare earth elements are composed of the lanthanide and actinide series. • One element of the lanthanide series and most of the elements in the actinide series are called trans-uranium, which means synthetic or man-made.
