Introduction Products Guide Introduction Products Guide Sharing with

Introduction & Products Guide

Introduction & Products Guide Sharing with you… Sooyangchemtec Co. , Ltd

Introduction & Business Area www. sooyangchem. com ● Introduction Sooyangchemtec Co. , Ltd. has been growing into the total maker in fine chemical area by concentrating on surfactant materials and various industrial chemicals since its establishment in 1999. We are outstanding researchers and equipments in analysis and synthesis to develop special chemical materials and new materials. We have also participated in national projects to take leadership in fine chemical area. ● Business Area IT & Electronic Materials Industrial Additives Techniques of Fine Chemistry (Analysis/Synthesis/Formulation /Valuation/Applications) Household Chemistry International Business Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Surfactants www. sooyangchem. com ● Anionic surfactants Active (%) p. H (Range) Dark brown liquid 96 min 　 Pale Yellow liquid 35 min 11. 5 ~ 13. 5 94 min (powder) 　 Transparent pale yellow liquid 28 min 7. 0 ~ 9. 0 Pale yellow paste 70 min 7. 0 ~ 9. 0 Ammonium lauryl ether sulfate Transparent pale yellow liquid 25 min 　 Shampoo, detergents for home and additives for cosmetics Sodium diisooctyl sulfosuccinate Transparent liquid 80 min 5. 7 ~ 7. 0 Wetting and penetrating agent Transparent pale yellow liquid or viscous liquid 30 min 7. 0 ~ 9. 0 Industrial application (Textile, Emulsification) White or light yellow powder 94 min 　 Ammonium lauryl sulfate Transparent pale yellow liquid 25 min 5. 0~7. 0 Sodium xylene sulfonate Light brown liquid 40 min 7. 0 ~ 10. 0 Solubilizer, cleansing agent for industrial use and alkali stabilizer Sodium octyl sulfate Yellow liquid 40 min 7. 0 ~ 9. 0 Detergent for dish washer, textile industry and solubilizer Chemical Name Linear alkylbenzene sulfonic acid Appearance Application Detergents for home, industry etc. Foaming agent and penetrating agent for industry α-Olefin sulfonate Pale yellow powder or granule Detergents for home and degreasing agent for industry Shampoo, bath detergents, foaming agent Sodium lauryl ether sulfate Sodium lauryl sulfate Laundry detergent, additives for cosmetics and degreasing agent Foaming agent and industrial application (textile, emulsification) ● Cationic surfactants Chemical Name Appearance Distearyl dimethyl ammonium chloride Pale yellow paste/solid Cetyl trimethyl ammonium chloride Active (%) p. H (Range) Application 　 　 Fabric softener Pale yellow liquid 28 ~ 30 4~6 Fabric/ Hair softener Stearyl trimethyl ammonium chloride Pale yellow liquid 29 ~ 31 4~6 Fabric/ Hair softener Benzalkonium chloride Light yellow liquid 49 ~ 51 5. 5 ~ 7. 5 Surfactants for sterilizing Bis(alkyloxyethyl)hydroxyethyl methyl ammonium methosulfate Light yellow Paste 84 ~ 86 2. 8 ~ 3. 5 Softener Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Surfactants www. sooyangchem. com ● Nonionic surfactants (Lauryl Alcohol series) Chemical Name C. P. (℃) Appearance HLB Lauryl alcohol ethylene oxide 3 mole Transparent liquid 8. 3 5 mole Transparent liquid 12. 5 53 ~ 58 Emulsifier and cleansing agent 9 mole Paste 13. 3 78 ~ 82 Emulsifier and cleansing agent 15 mole Solid 15. 7 over 100 Textile manufacturing 25 mole Solid 17 　 Emulsion stabilizer 50 mole Solid 18. 3 　 Solidifying agent 　 Application Emulsifier and cleansing agent ● Nonionic surfactants (Nonyl Phenol series) Chemical Name C. P. (℃) Appearance HLB Nonyl Phenol ethylene oxide 3 mole Transparent liquid 7. 5 5 mole Transparent liquid 10 under 25 Emulsifier 7 mole Transparent liquid 11. 7 26 ~ 30 Emulsifier and cleaning agent 10 mole Transparent liquid 13. 3 58 ~ 61 Textile manufacturing 20 mole Solid 16 over 100 Emulsifier 40 mole Solid 17. 8 　 Emulsifier for emulsion polymerization 100 mole Solid 19 　 Thickening emulsifier 　 Application Emulsifier and wetting agent ● Nonionic surfactants (Oleyl alcohol series) Appearance HLB C. P. (℃) Oleyl alcohol ethylene oxide 2 mole Transparent liquid 4. 5 　 Emulsifier 5 mole Transparent liquid 9. 4 　 Antistatic agent 7 mole Transparent liquid 11. 3 　 Dyeing agent 10 mole Transparent liquid 12. 4 60 ~ 65 20 mole Solid 15. 3 　 Dyeing agent 30 mole Solid 16. 7 　 Emulsion stabilizer 50 mole Solid 18. 4 　 Emulsifier for emulsion polymerization Chemical Name Application Wetting agent and cleaning agent Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Surfactants www. sooyangchem. com ● Nonionic surfactants (Synthetic Alcohol series) Chemical Name Appearance HLB C. P. (℃) Tridecyl alcohol ethylene oxide 2 mole Transparent liquid 7. 9 　 5 mole Transparent liquid 10. 4 64 ~ 67 Penetrating agent 10 mole Transparent liquid 13. 7 70 ~ 73 Wetting agent Dodecyl alcohol ethylene oxide 3 mole Transparent liquid 8. 1 　 　 10. 7 　 Emulsifier Octyl alcohol ethylene oxide 5 mole Transparent liquid 12. 6 　 Emulsifier 8 mole Transparent liquid 14. 6 76 ~ 81 5 mole Application Dyeing agent Emulsifier Wetting agent and penetrating agent ● Nonionic surfactants (Fatty acid series) Chemical Name Appearance HLB C. P. (℃) Coco fatty acid ethylene oxide 5 mole Transparent liquid 10. 5 　 Dispersion agent 9 mole Transparent liquid 13. 3 　 Lubricant Oleic acid ethylene oxide 3 mole Transparent liquid 6. 4 　 Emulsion dispersing gent 9 mole Transparent liquid 11. 7 　 Emulsion dispersing agent Hydrogenated caster wax ethylene oxide 10 mole Transparent liquid 6. 4 　 Emulsifier agent and dispersing agent 30 mole Transparent liquid 11. 7 　 Emulsifier Appearance HLB C. P. (℃) Solbitol Laurate Paste 8. 6 　 Dispersing agent Palmitate Solid 6. 7 　 Dispersing agent Stearate Solid 4. 7 　 Emulsifier Transparent liquid 4. 3 　 Dispersing agent Solbitol Laurate (EO) 5 mole Paste 16. 7 　 O/W typed emulsifier Solbitol Palmitate (EO) 5 mole Paste 15. 6 　 Dispersing stabilizer Solbitol Stearate (EO) 5 mole Paste 14. 9 　 Oil dispersing agent Transparent liquid 15 　 O/W typed emulsifier Application ● Nonionic surfactants (Sorbitol series) Chemical Name Oleate Solbitol Oleate (EO) 5 mole Application Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Surfactants www. sooyangchem. com ● Nonionic surfactants (Alkyl amine series) Appearance HLB C. P. (℃) Transparent liquid 12. 4 　 Rust protector 5 mole Paste 13. 7 　 Dyeing agent 7 mole Solid 15. 3 　 Agrochemical manufacture Tallow amine ethylene oxide 15 mole Solid 14. 0 　 Dispersing agent for pigment 20 mole Solid 15. 4 　 Emulsifier Stearyl amine ethylene oxide 5 mole Paste 9. 0 　 Dispersing agent and dyeing agent 10 mole Solid 12. 4 57~65 Antistatic agent 15 mole Solid 14. 2 77~85 Dyeing agent 30 mole Solid 16. 6 84~92 Emulsifier Appearance HLB M. P. (℃) OH Value Poly(Ethylene glycol) 4. 5 mole Transparent liquid 　 　 534~590 9 mole Transparent liquid 　 　 268~294 13. 6 mole Transparent liquid 　 18~22 178~196 22. 7 mole Paste 　 35~39 108~117 34 mole Paste 　 43~46 70~80 45. 5 mole Solid 　 49~53 51~60 91 mole Solid 　 53~57 22. 5~29. 5 136 mole Solid 　 56~61 17. 5~20 Appearance HLB C. P. (℃) Application PE-61(EO/PO = 1/6) Liquid 　 22 ~ 26 Organic defoamer PE-62(EO/PO = 2/6) Liquid 　 28 ~ 32 Low foaming emulsifier PE-63(EO/PO = 3/6) Liquid 　 41 ~ 45 Low foaming emulsifier PE-64(EO/PO = 4/6) Liquid 　 57 ~ 61 Degreasing agent and emulsifier Chemical Name Lauryl amine ethylene oxide 5 mole Application ● Nonionic surfactants (PEG series) Chemical Name ● Nonionic surfactants (EO/PO copolymer) Chemical Name Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Surfactants www. sooyangchem. com ● Polypropylene Glycol (PPG) Chemical Name Appearance HLB M. P. (℃) Poly(propylen glycol) 4. 5 mole Transparent liquid 　 　 9 mole Transparent liquid 　 　 13. 6 mole Transparent liquid 　 22. 7 mole Transparent liquid 　 96 ~ 112 45. 5 mole Transparent liquid 　 51 ~ 60 Application Diol using Polyurethane ● Amphoteric surfactants Chemical Name Coco amidopropylbetaine Disodium cocoamphodiacetate Appearance Pale yellow liquid Active (%) 35 min 49 min p. H (Range) 6~7 8 ~ 8. 4 Application Wetting agent and foam stabilizer in shampoos Bubble bath and dishwashing compounds Mild detergent excellent foaming agent and foam stabilizers in shampoos, baby baths and industrial cleaners. Excellent high-foaming surfactant for low-irritation shampoos, bubble baths and body cleaners, low-irritation detergent for shampoos and skin cle Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Special Surfactants www. sooyangchem. com ● Glucose type surfactants (Alkyl Polyglucoside) Grade Appearance Alkyl chain Activity (%) Application Arlcon-210 Transparent liquid C 4 48 ~ 52 Low foaming cleaner Arlcon-220 Light yellow paste C 8 -10 48 ~ 52 Householder/ Metal cleaner Arlcon-230 Light yellow paste C 8 48 ~ 52 Alkali coupling agent/cleaner Arlcon-240 Light yellow paste C 8 -14 48 ~ 52 Emulsifier, cleaner Arlcon-250 Light yellow paste C 12 -14 48 ~ 52 Emulsifier Arlcon-260 Light yellow paste C 10 48 ~ 52 Householder cleaner ● Citric acid type surfactants Grade Appearance Alkyl chain Activity (%) Application LCT-5 Transparent liquid LA-5 28 ~ 33 Hair care cleaner /Emulsifier LCT-7 Transparent liquid LA-7 28 ~ 33 Hair care cleaner LCT-9 Transparent liquid LA-9 28 ~ 33 Hair care cleaner ● Amino acid type surfactants (Aminomool series) Grade Appearance Alkyl chain Activity (%) Application L Transparent liquid Lauryl 25 ~ 30 Cosmetic cleaner C Transparent liquid Cocoyl 27 ~ 30 Cosmetic emulsifier S Transparent liquid Natural extract 25 ~ 35 1. Applications - Cosmetic emulsifier, Oil emulsifier, Cleaning agent, etc. 2. Characteristics - Environmentally benign surfactant - Use the natural raw materials - Minimization of stimulating degree compare with existing surfactant - Easily miscible with different type additives - Easier emulsification compare with existing non-ionic surfactant - Good bio-degradation Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Special Surfactants www. sooyangchem. com ● Gemini type surfactants (Anion/cation series) 1. Applications - Cleaning agents for semiconductor, CMP slurry adsorption additives, corpuscular dispersing agents Lubricant additive, Fabric softener, Household cleaning agent etc 2. Characteristics - Next generation surfactants - Lower CMC than general surfactants - Lower surface tention than general surfactants - Excellent water solubility - Adsorption power is higher than general surfactants 3. Products Grade Ion type Alkyl chain p. H (crude liquid) Activity (%) GTP-400 Anion(Phos. ) Buthanol 7. 0 ~ 8. 0 27 ~ 33 GTP-410 Anion(Phos. ) Bu-EO 1 7. 0 ~ 8. 0 28 ~ 32 GTP-420 Anion(Phos. ) Bu-EO 2 7. 0 ~ 8. 0 28 ~ 32 GTS-200 Anion(Sulfate) C 2 7. 0 ~ 8. 0 27 ~ 33 GTS-400 Anion(Sulfate) C 4 7. 0 ~ 8. 0 28 ~ 32 GTS-600 Anion(Sulfate) C 6 7. 0 ~ 8. 0 28 ~ 32 GTC-114 Cation C 4 4. 5 ~ 6. 5 25 ~ 30 GTC-1112 Cation C 12 4. 5 ~ 6. 5 27 - 33 GTC-1418 Cation C 14~18 4. 5 ~ 6. 5 27 - 33 GTC-1818 Cation C 14~18 4. 5 ~ 6. 5 27 - 33 GTE-222 Cation C 14~18 4. 5 ~ 6. 5 27 - 33 GTE-1418 Cation C 14~18 4. 5 ~ 6. 5 27 - 33 GTE-1880 A Cation C 14~18 4. 5 ~ 6. 5 27 - 33 Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476 Note

IT & Electronic Materials www. sooyangchem. com ● CMP Slurry Additives 1. Structure - Special anion/cation compound 2. Application - Excellent Chemi-adsorption - Selectively etch to the δ- or δ+ position during the CMP process - Increasing uniformity during the CMP process ● LCD / PDP Cleaning Agent 1. Structure - Alkyl ethylene glycol alkoxide - Alkyl polyglucoside 2. Application - Low foaming surfactant with mid-property between solvent and surfactant - No inorganic salts in the surfactants - Suitable for ultra pure cleansing process ● Ionic liquid Product name Appearance Solvent Solubility Transparent Liquid - Organic Solvent / Water Transparent Liquid - Organic Solvent M 261 C Orange Liquid MEK / IPA Organic Solvent / Water T 291 A Transparent Liquid - Organic Solvent PU M 263 C Light Yellow Liquid IPA Water / Alcohol Surface Coating P 211 A P 212 B P 215 B P 221 A P 222 B P 225 B 1. Characteristics - Good antistatic - Excellent for water/solvent coating solution Application UV coating, Binder, Adhesive, PSA Surface Resistance (10 X Ω/sq) 9~11 8~11 Remarks 1~20 phr Mixing: 1~20 phr Mixing: 9~11 Dilution: 50~150 Spread: 8~10 times 2. Applications - Additives for Pressure Sensitive Adhesive and UV hard coating comp’d, Binder - Additives for PU - For film and sheet etc. Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

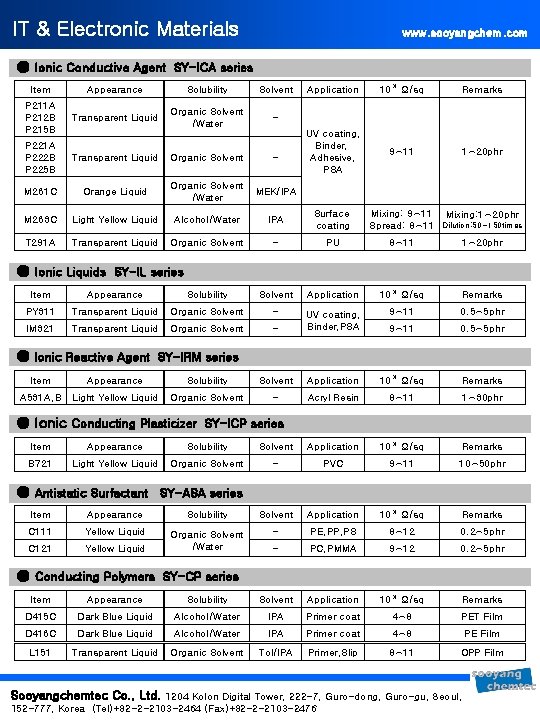

IT & Electronic Materials www. sooyangchem. com ● Ionic Conductive Agent SY-ICA series Application 10 x Ω/sq Remarks UV coating, Binder, Adhesive, PSA 9~11 1~20 phr IPA Surface coating Mixing: 9~11 Spread: 8~11 Dilution: 50~150 times - PU 8~11 1~20 phr Item Appearance Solubility Solvent P 211 A P 212 B P 215 B Transparent Liquid Organic Solvent /Water - P 221 A P 222 B P 225 B Transparent Liquid Organic Solvent - M 261 C Orange Liquid Organic Solvent /Water MEK/IPA M 263 C Light Yellow Liquid Alcohol/Water T 291 A Transparent Liquid Organic Solvent Mixing: 1~20 phr ● Ionic Liquids SY-IL series Item Appearance Solubility Solvent Application 10 x Ω/sq Remarks PY 311 Transparent Liquid Organic Solvent - 9~11 0. 5~5 phr IM 321 Transparent Liquid Organic Solvent - UV coating, Binder, PSA 9~11 0. 5~5 phr ● Ionic Reactive Agent SY-IRM series Item Appearance Solubility Solvent Application 10 x Ω/sq Remarks A 531 A, B Light Yellow Liquid Organic Solvent - Acryl Resin 8~11 1~30 phr ● Ionic Conducting Plasticizer SY-ICP series Item Appearance Solubility Solvent Application 10 x Ω/sq Remarks B 721 Light Yellow Liquid Organic Solvent - PVC 9~11 10~50 phr ● Antistatic Surfactant SY-ASA series Item Appearance Solubility Solvent Application 10 x Ω/sq Remarks C 111 Yellow Liquid - PE, PP, PS 8~12 0. 2~5 phr C 121 Yellow Liquid Organic Solvent /Water - PC, PMMA 9~12 0. 2~5 phr ● Conducting Polymers SY-CP series Item Appearance Solubility Solvent Application 10 x Ω/sq Remarks D 415 C Dark Blue Liquid Alcohol/Water IPA Primer coat 4~8 PET Film D 416 C Dark Blue Liquid Alcohol/Water IPA Primer coat 4~8 PE Film L 151 Transparent Liquid Organic Solvent Tol/IPA Primer, Slip 8~11 OPP Film Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Industrial Materials www. sooyangchem. com ● Dispersing Agent (Acro series) 1. Characteristics - Water soluble polymer anionic surfactants - Helix structures are formed as soon as add the hydrophobic groups. - Excellent dispersing effect on dye and pigment, perfume - Stability at alkali condition(Anion type) Grade Type p. H(10% solution) Active content SY-Acro-70 Anionic acryl polymer 7. 5 ~ 10. 0 30% min SY-Acro-120 S Anionic acryl polymer 9. 0 ~ 10. 5 30% min SY-Acro-314 Nonionic acryl polymer 4. 0 ~ 6. 0 40% min SY-Acro-32 Nonionic acryl polymer 4. 0 ~ 6. 0 30% min Application Dye & pigment, Perfume, Emulsifiers ● Special Acryl Monomer(Surfactnat type) 1. Applications - Reactive surfactants for acryl emulsion polymerization - Polymer surfactants for surface modifier - Semi-permanent electrostatic materials 2. Characteristics - Powerful emulsion effect compare with existing one - Maintenance of acrylic characteristics - Simple reaction method and process - Stable emulsification - Easy to control of soluble condition - Effectively apply to surface modifier as reactive suractants - High yield - Excellent sterilization, deodorization, smoothness and osmosis 3. Type - Anionic reactive surfactants (SY-A-10, SY-A-102 S) - Non-ionic reactive surfactant (SY-N-20, 50) - Cationic reactive surfactants (SY-C-DMS, SY-C-DMB) Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

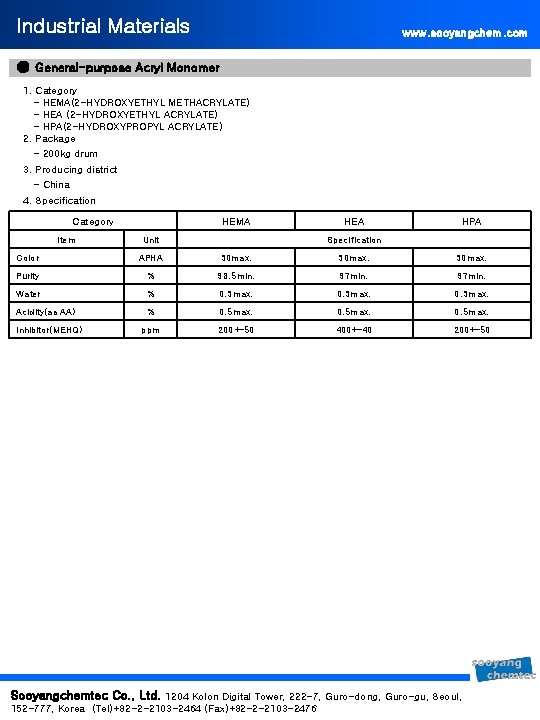

Industrial Materials www. sooyangchem. com ● General-purpose Acryl Monomer 1. Category - HEMA(2 -HYDROXYETHYL METHACRYLATE) - HEA (2 -HYDROXYETHYL ACRYLATE) - HPA(2 -HYDROXYPROPYL ACRYLATE) 2. Package - 200 kg drum 3. Producing district - China 4. Specification Category Item HEMA Unit HEA HPA Specification Color APHA 30 max. Purity % 98. 5 min. 97 min. Water % 0. 3 max. Acidity(as AA) % 0. 5 max. ppm 200+-50 400+-40 200+-50 Inhibitor(MEHQ) Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Industrial Materials www. sooyangchem. com ● Photo Stabilizer (HALS: Hinder amin) Name CAS No. Application Equivalent Flysorb-123 129757 -67 -1 Automotive/Industrial/Wood Coating Ciba-Tinuvin 123 Flysorb-944 70624 -18 -9 PP, PE, Polyacetals, PA, PU, PVC Ciba-Tinuvin 944, Chimassorb-944 Flysorb-770 52829 -07 -9 PP thick sections Ciba-Tinuvin 770, SANOL LS -770 Flysorb-791 71878 -19 -8 PP, PP/EPDM blends Ciba-Tinuvin 944, ciba-Tinuvin 770 Flysorb-292 41556 -26 -7 Automotive refinish coating, Wood stains coil coating Ciba-Tinuvin 765 Flysorb-765 41556 -26 -7 Polyurethanes, Sealants, Adhesives Ciba-Tinuvin 765 Flysorb-3853 167078 -06 -0 PE tape, injection, PP film, Injection molding HA-18 ●Industrial UV-absorbers Name Materials CAS No. Application Equivalent Flysorb-P 2440 -22 -4 EPLA, PVC Ciba-Tinuvin P Flysorb-81 1843 -05 -6 Agricutural films Ciba-CHIMASSORB, CSFC 321 Flysorb-234 70321 -86 -7 PC, Polymer process supplement at high temp. Ciba-Tinuvin 234, UV 234, CSFC 234 Flysorb-327 3864 -99 -1 PC, PS, PE, PVC, ABS, Epoxy Ciba-Tinuvin 327 Flysorb-328 25973 -55 -1 Unsaturated polyesters, PVC, PU, POM. Ciba-Tinuvin 328 Flysorb-329 3147 -75 -9 Film, sheets, fiber. Ciba-Tinuvin 329 Flysorb-360 103597 -45 -1 Acryl resin, PC Fairmount-Mixxim BB/100, Lowilite 36 Flysorb-1084 14516 -71 -3 Agricultural PE Cytec-UV 1084 Flysorb-1130 104810 -48 -2 Solvent and water base coating Ciba-Tinuvin 213 Flysorb-1164 2725 -22 -6 PC, Poly esters Cytec-Cyasorb UV-1164 Flysorb-1577 147315 -50 -2 PC, Poly esters Ciba-Tinuvin 1577 Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Industrial Materials www. sooyangchem. com ● Antioxidants Name CAS No. Application Equivalent Flynox-323 　 Rosin esters, adhesive, petroleum oil and wax 　 Flynox-445 10081 -67 -1 ACM Rubber Quchishinko-Nocrac CD Flynox-565 991 -84 -4 Synthetic rubber 　 Flynox-1024 32687 -78 -8 Wire and Cable applications Ciba-Irganox 1024, CSFC 1024 Flynox-1098 23128 -74 -7 Polyamid, PA, PP, PE Ciba-Irganox 1098, Lowinox Flynox-1425 65140 -91 -2 PP Fiber, Tackifier, Rosin ester Ciba-Irganox 1425 Flynox-1520 110553 -27 -0 BR, SBS Ciba-Irganox 1520 L, Irgastab Cable KV 10 Flynox-1790 40601 -76 -1 Polyurethane fibers Cytec-Cyanox 1790, Lowinox. Flynox-CA 1843 -03 -4 Flexible PVC, Hot melt adhesive AO-1, Lowinox CA 22, TOPANOL CA-RT Flynox-TBM 6 96 -69 -5 HDPE/LDPE basied Pipe and Cables Antitoxidant 358 -SWC, Lowinox TBM-6 Flynox-PS 802 693 -36 -7 PE Cable, HDPE pipe Cytec-Cyanox STDP, Lowinox DSTDP Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

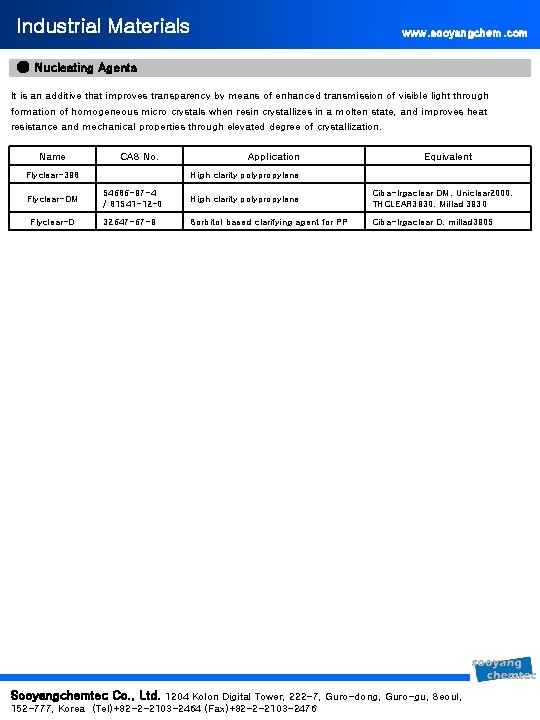

Industrial Materials www. sooyangchem. com ● Nucleating Agents It is an additive that improves transparency by means of enhanced transmission of visible light through formation of homogeneous micro crystals when resin crystallizes in a molten state, and improves heat resistance and mechanical properties through elevated degree of crystallization. Name CAS No. Application Equivalent Flyclear-398 　 High clarity polypropylene 　 Flyclear-DM 54686 -97 -4 / 81541 -12 -0 High clarity polypropylene Ciba-Irgaclear DM, Uniclear 2000, THCLEAR 3930, Millad 3930 32647 -67 -9 Sorbitol based clarifying agent for PP Ciba-Irgaclear D, millad 3905 Flyclear-D Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Industrial Materials www. sooyangchem. com ● Flame Retardants Name CAS No. Application Equivalent Flydant 2148 29761 -21 -5 PVC AKZO-Phosflex 390, Ferro-Santicizer 148 Flydant BC 52 94334 -64 -2 PBT, PET, PC, ABS, PC/ABS, SAN Great Lakes Chemical-BC 52 Flydant BC 58 71342 -77 -3 PBT, PET, PC, ABS, PC/ABS, SAN Great Lakes Chemical-BC 58 Flydant DP-45 26040 -51 -7 PVC cable, EPDM, SBR Great Lakes Chemical-DP 45 Flydant BT-93 W 32588 -76 -4 HIPS, PO, PA, PS, PC Albemarle-Saytex BT 93. Chitex FR 930 Flydant BPS 88497 -56 -7 PC, ABS, PA. Albemarle-Saytex HP 7010/7775, Chitec-FR 960, Nanjing Rising Chemicalbrominated polystyrene Flydant FC-98 29420 -49 -3 　 Wuhan star -Potassiumnonafluorobutanesulfonate Flydant DBDPE 84852 -53 -9 　 Weifang Yucheng-DBDPE, SHANDONG HAIWANG-HWPR 02 Flydant DBDPO 1163 -19 -5 PBT Albermarle-Saytex 102 E Flydant OBE 21850 -44 -2 PP Albemarle-Saytex HP 800 A, Chitex FR 900, Great Lakes-PE 68, Liuyang Chemical-OBE Flydant HBCD 3194 -55 -6 EPS Albemarle-Saytex 9006 L/HP 900, Great Lakes-CD 75 Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Industrial Materials www. sooyangchem. com ● Flame Retardants Name Chemical name TDCP Tris(1, 3 -dichloropropyl) phosphate Application Polyester, Polyether foam, Polyurethane foam , Epoxy resin, PVC TCP Tricresyl Phosphate PVC, Polyethylene, Artificial Leather APP Ammonium Polyphosphate Polyurethane, UP resin and Epoxy resin, Fiber MCA Melamine Cyanurate Polyamide 6 and 6, 6. MPP Melamine Polyphosphate THPCUREA FR-CP DPOP CDP TCP IPPP TBP TCEP Tetrakis[hydroxymethyl] Polyamide and PBT, PA 66, Glass fiber-reinforced PA 6, PA 66. Nylon containing FR-NP Wool, Polyester, Plastic, Paper and Furniture etc. phosphonium chloride Tetrakis[hydroxymethyl] Wool and Polyester etc. phosphonium chloride-Urea 3 -Methyol amino-3 -oxygen propyl Wool, Cellulose fiber etc. dimethyl phosphate Diphenyl-2 -ethylhexyl phosphate Plasticizer Cresyl diphenyl phosphate Flame retardant and plasticizer for PVC, chloroethylene polymer, PVB, CN, EC, natural rubber and synthetic rubber etc. Tricresyl phosphate Plasticizer and flame retardant for PVC, PE, artificial leather, thin film, plastics and rubber Isopropyl phenyl diphenyl Plasticizer and flame retardant for PVC, PE, artificial leather, thin phosphate film, plastics and rubber Tributyl phosphate Defoamer, deodorant and plasticizer etc. for nitrocellulose, cellulose acetate and solvent of ink Tri(2 -chloroethyl)phosphate Plasticizer etc. Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

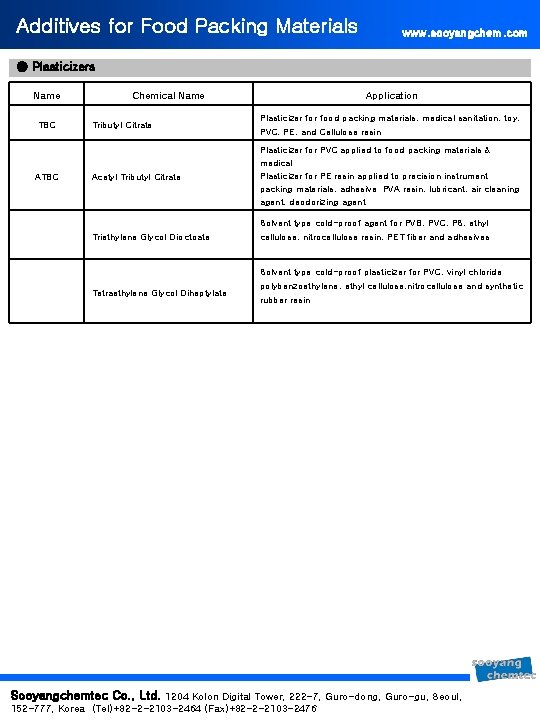

Additives for Food Packing Materials www. sooyangchem. com ● Plasticizers Name TBC ATBC Chemical Name Tributyl Citrate Acetyl Tributyl Citrate Application Plasticizer food packing materials, medical sanitation, toy, PVC, PE, and Cellulose resin Plasticizer for PVC applied to food packing materials & medical Plasticizer for PE resin applied to precision instrument packing materials, adhesive PVA resin, lubricant, air cleaning agent, deodorizing agent Solvent type cold-proof agent for PVB, PVC, PS, ethyl Triethylene Glycol Dioctoate cellulose, nitrocellulose resin, PET fiber and adhesives Solvent type cold-proof plasticizer for PVC, vinyl chloride Tetraethylene Glycol Diheptylate polybenzoethylene, ethyl cellulose, nitrocellulose and synthetic rubber resin Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Additives for Food Packing Materials www. sooyangchem. com ● Epoxidized Soybean Oil ○ DPOP (Diphenyl-2 -ethylhexyl phosphate) Chroma (Pt-Co) ≤ 250 Epoxy Value ≥ 6. 0% Flash Point ≥ 260℃ Iodine Value ≤ 6. 0% Acid Value(KOHmg/g) ≤ 0. 5 refractive index 1. 472 Density 0. 990 Heat stability （170℃/3 h） ≥ 95 1. Application - PVC Stabilizer food & medicinal granular material, transparent flake, board, cable material, artificial leather, wall paper, transparent soft pipe, water pipe, membrane, plastic window & door, medicinal glove and compound stabilizer 2. Advantage - Effectively resist to chemical and severe condition - Stable to light and heat as a electrostatic material 3. Package - 180 kg/galvanized metal Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

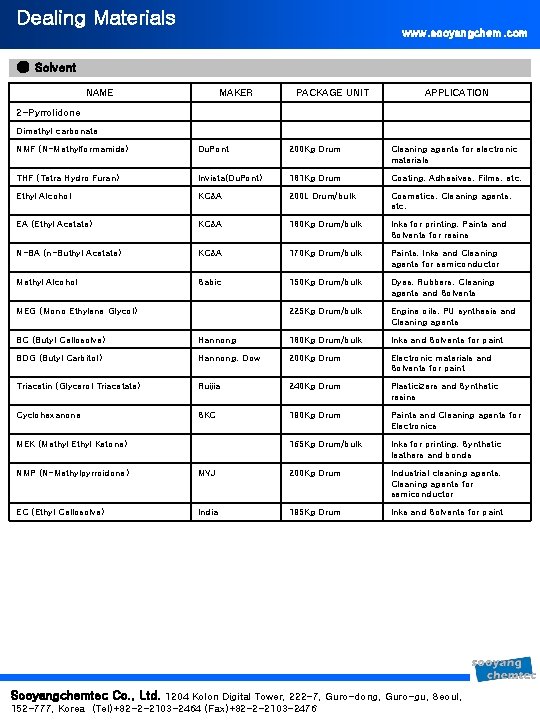

Dealing Materials www. sooyangchem. com ● Solvent NAME MAKER PACKAGE UNIT APPLICATION 2 -Pyrrolidone Dimethyl carbonate NMF (N-Methylformamide) Du. Pont 200 Kg Drum Cleaning agents for electronic materials THF (Tetra Hydro Furan) Invista(Du. Pont) 181 Kg Drum Coating, Adhesives, Films, etc. Ethyl Alcohol KC&A 200 L Drum/bulk Cosmetics, Cleaning agents, etc. EA (Ethyl Acetate) KC&A 180 Kg Drum/bulk Inks for printing, Paints and Solvents for resins N-BA (n-Buthyl Acetate) KC&A 170 Kg Drum/bulk Paints, Inks and Cleaning agents for semiconductor Methyl Alcohol Sabic 150 Kg Drum/bulk Dyes, Rubbers, Cleaning agents and Solvents 225 Kg Drum/bulk Engine oils, PU synthesis and Cleaning agents MEG (Mono Ethylene Glycol) BC (Butyl Cellosolve) Hannong 180 Kg Drum/bulk Inks and Solvents for paint BDG (Butyl Carbitol) Hannong, Dow 200 Kg Drum Electronic materials and Solvents for paint Triacetin (Glycerol Triacetate) Ruijia 240 Kg Drum Plasticizers and Synthetic resins Cyclohexanone SKC 190 Kg Drum Paints and Cleaning agents for Electronics 165 Kg Drum/bulk Inks for printing, Synthetic leathers and bonds MEK (Methyl Ethyl Ketone) NMP (N-Methylpyrroidone) MYJ 200 Kg Drum Industrial cleaning agents, Cleaning agents for semiconductor EC (Ethyl Cellosolve) India 195 Kg Drum Inks and Solvents for paint Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Dealing Materials www. sooyangchem. com ● Others NAME PHYSICAL FORM APPLICATION Sodium carbonate White powder or Granules Inorganic Builder Sodium sulfate anhydrous White powder Inorganic Builder Sodium tripoly phosphate White powder Metal Ion Chelating Agent, Water Treatment Agent, Detergent Sodium percarbonate White granular powder Oxygen Bleach Sodium perborate White crystalline powder - Sodium-benzoate White granules or Crystalline powder Antiseptic EDTA-4 Na (Ethylene Dinitrilo Tetra Aceticacid) White powder Metal Ion Chelating Agent SDIC (Sodium dichloloisocyanurate) White crystalline granular or Powder or Tablets Chloride Bleach Triclosan White crystalline powder Antibiotic Agent Bentonite (Pink, Blue, Green) Granule - TAED (Tetra acetylethylene diamine) Granule Bleach Activator Zeolite White fine powder Metal Ion Chelating Agent Sodium meta silicate penta hydrate White crystalline powder Inorganic Builder Sodium meta silicate nona hydrate White crystalline powder Inorganic Builder Citric acid Granule / Powder p. H Correction Enzyme Green & White powder type / Brown liquid type - MEA/DEA/TEA Liquid - Antiseptic Liquid Antiseptic Fatty acid - - Pigment (Food colors) - - CDEG Liquid Thickener CDES Liquid Thickener PG/MEG/DEG Liquid - BDG Liquid - Dequest-2066, 2010 Liquid Chelating Agent Defoamer (Silicon type / Non Silicon type) - Foam-restrainer Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

Dealing Materials www. sooyangchem. com ● Others NAME PHYSICAL FORM APPLICATION Titanium dioxide White powder White pigment for plastic, dye and construction materials Aluminium hydroxide White powder Inorganic additives for plastic flame retardant Magnesium hydroxide White powder Antimony trioxide White powder Inorganic additives for plastic flame retardant Silica powder (Granule) White powder Epoxy molding compound and construction materials Calcium carbonate White powder Plastic, pigment and construction material filler PC-101 Gum Rosin all grades Adhesives, Paint&Ink, Coating PC-102 Pentaerythritol Rosin Ester Adhesives, Paint&Ink, Coating PC-103 Glycerol Rosin Ester PC-104 Hydrogenated Rosin PC-105 Hydrogenated Glycerol Rosin Ester PC-106 Hydrogenated Penta Rosin Ester Adhesives, Paint&Ink, Coating PC-107 Disproportionated Rosin Rubber PC-108 Non-Crystallization Rosin Adhesives PC-109 Alcohol Soluble Rosin Resin Inks, Glazing oil, Coating PC-110 Phenolic Modified Rosin Paint & Ink PC-111 Water White Hydrogenated Rosin Adhesives, Liquid Solder Flux PC-112 Terpene Resin Adhesives, Wax Investment Casting PC-197 Road-Marking Resin Road Marking Paint Inorganic additives for plastic flame retardant Adhesives, Paint&Ink, Coating, Chewing Gum Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

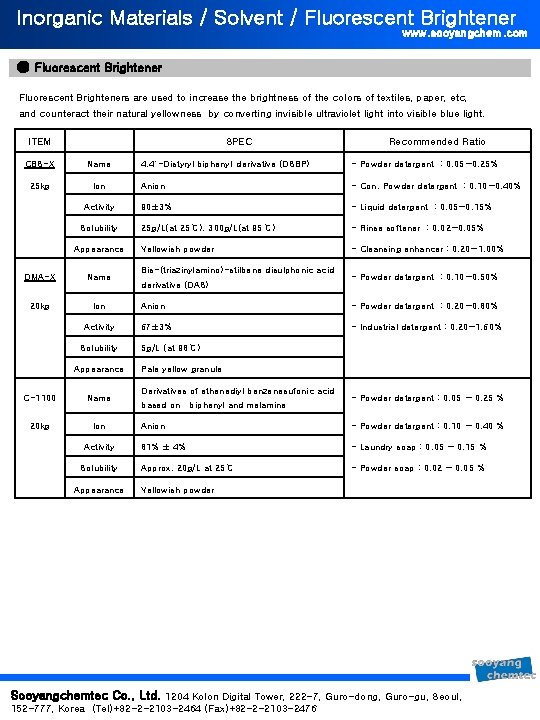

Inorganic Materials / Solvent / Fluorescent Brightener www. sooyangchem. com ● Fluorescent Brighteners are used to increase the brightness of the colors of textiles, paper, etc, and counteract their natural yellowness by converting invisible ultraviolet light into visible blue light. ITEM 　 CBS-X Name 25 kg Ion 　 Activity 　 Solubility 　 Appearance DMA-X Name 20 kg Ion 　 Activity 　 Solubility 　 Appearance C-1100 Name 20 kg Ion 　 Activity 　 Solubility 　 Appearance SPEC Recommended Ratio 4, 4′-Distyryl biphenyl derivative (DSBP) - Powder detergent : 0. 05~0. 25% Anion - Con. Powder detergent : 0. 10~0. 40% 90± 3% - Liquid detergent : 0. 05~0. 15% 25 g/L(at 25℃), 300 g/L(at 95℃) - Rinse softener : 0. 02~0. 05% Yellowish powder - Cleansing enhancer : 0. 20~1. 00% Bis-(triazinylamino)-stilbene disulphonic acid derivative (DAS) - Powder detergent : 0. 10~0. 50% Anion - Powder detergent : 0. 20~0. 80% 67± 3% - Industrial detergent : 0. 20~1. 60% 5 g/L (at 98℃) 　 Pale yellow granule 　 Derivatives of ethenediyl benzenesufonic acid based on biphenyl and melamine - Powder detergent : 0. 05 ~ 0. 25 % Anion - Powder detergent : 0. 10 ~ 0. 40 % 81% ± 4% - Laundry soap : 0. 05 ~ 0. 15 % Approx. 20 g/L at 25℃ - Powder soap : 0. 02 ~ 0. 05 % Yellowish powder 　 Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

International Sales www. sooyangchem. com Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

International Sales www. sooyangchem. com ● Photo stabilizer (HALS: Hinder amin) Name CAS No. Application Equivalent Flysorb-123 129757 -67 -1 Automotive/Industrial/Wood Coating Ciba-Tinuvin 123 Flysorb-622 70198 -29 -7 Polyolefines(PP, PE), Olefin copolymers 　 Flysorb-944 70624 -18 -9 PP, PE, Polyacetals, PA, PU, PVC Ciba-Tinuvin 944, Chimassorb-944 Flysorb-783 　 Agriculture films 　 Flysorb-770 52829 -07 -9 PP thick sections Ciba-Tinuvin 770, SANOL LS -770, Lowilite 77 Flysorb-791 71878 -19 -8 / 52829 -07 -9 PP, PP/EPDM blends Ciba-Tinuvin 944, ciba-Tinuvin 770 Flysorb-292 41556 -26 -7 / 82919 -37 -7 Automotive refinish coating, Wood stains coil coating Ciba-Tinuvin 765 Flysorb-765 41556 -26 -7 / 82919 -37 -7 Polyurethanes, Sealants, Adhesives Ciba-Tinuvin 765 Flysorb-3853 167078 -06 -0 PE tape, injection, PP film, Injection molding HA-18 Flysorb-2020 　 PP fibers, PP tapes, PE films, Thick articles of PP/PE 　 Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

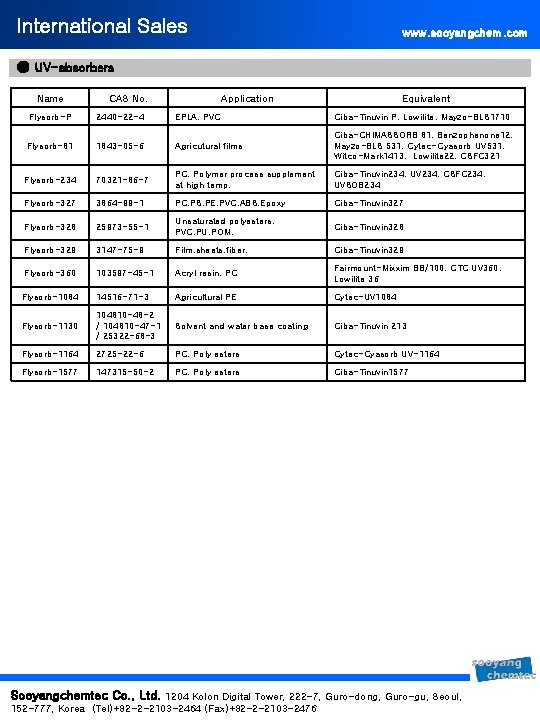

International Sales www. sooyangchem. com ● UV-absorbers Name CAS No. Application Equivalent Flysorb-P 2440 -22 -4 EPLA, PVC Ciba-Tinuvin P, Lowilite, Mayzo-BLS 1710 Flysorb-81 1843 -05 -6 Agricutural films Ciba-CHIMASSORB 81, Benzophenone 12, Mayzo-BLS 531, Cytec-Cyasorb UV 531, Witco-Mark 1413, Lowilite 22, CSFC 321 Flysorb-234 70321 -86 -7 PC, Polymer process supplement at high temp. Ciba-Tinuvin 234, UV 234, CSFC 234, UVSOB 234 Flysorb-327 3864 -99 -1 PC, PS, PE, PVC, ABS, Epoxy Ciba-Tinuvin 327 Flysorb-328 25973 -55 -1 Unsaturated polyesters, PVC, PU, POM. Ciba-Tinuvin 328 Flysorb-329 3147 -75 -9 Film, sheets, fiber. Ciba-Tinuvin 329 Flysorb-360 103597 -45 -1 Acryl resin, PC Fairmount-Mixxim BB/100, CTC UV 360, Lowilite 36 Flysorb-1084 14516 -71 -3 Agricultural PE Cytec-UV 1084 Flysorb-1130 104810 -48 -2 / 104810 -47 -1 / 25322 -68 -3 Solvent and water base coating Ciba-Tinuvin 213 Flysorb-1164 2725 -22 -6 PC, Poly esters Cytec-Cyasorb UV-1164 Flysorb-1577 147315 -50 -2 PC, Poly esters Ciba-Tinuvin 1577 Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

International Sales www. sooyangchem. com ● Antioxidants It is an additive that keeps original properties of polymer through inhibition of molecule chain decomposition and prevention of turning yellow, due to oxidation. Name CAS No. Application Equivalent Flynox-323 　 Rosin esters, adhesive, petroleum oil and wax 　 Flynox-445 10081 -67 -1 ACM Rubber Quchishinko-Nocrac CD, Uniroyal Chemical-Naugard 445 Flynox-565 991 -84 -4 Synthetic rubber 　 Flynox-1024 32687 -78 -8 Wire and Cable applications Ciba-Irganox 1024, CSFC 1024, CTC Antioxidant 1024, BNX MD 1024 Flynox-1098 23128 -74 -7 Polyamid, PA, PP, PE Ciba-Irganox 1098, Lowinox Flynox-1330 　 　 　 Flynox-1425 65140 -91 -2 PP Fiber, Tackifier, Rosin ester Ciba-Irganox 1425 Flynox-1520 110553 -27 -0 BR, SBS Ciba-Irganox 1520 L, Irgastab Cable KV 10 Flynox-1726 110675 -26 -8 Hot melt, SIS/SBS based 　 Flynox-1790 40601 -76 -1 Polyurethane fibers Cytec-Cyanox 1790, Lowinox. Flynox-CA 1843 -03 -4 Flexible PVC, Hot melt adhesive AO-1, Lowinox CA 22, TOPANOL CA-RT Flynox-TBM 6 96 -69 -5 HDPE/LDPE basied Pipe and Cables 2 -bromo-4 fluorophenol, Quchishinko-Nocrac 300, Antitoxidant 358 -SWC, Lowinox TBM-6, Santonox TBMC Flynox-PS 802 693 -36 -7 PE Cable, HDPE pipe Cytec-Cyanox STDP, Lowinox DSTDP Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

International Sales www. sooyangchem. com ● Nucleating agents It is an additive that improves transparency by means of enhanced transmission of visible light through formation of homogeneous micro crystals when resin crystallizes in a molten state, and improves heat resistance and mechanical properties through elevated degree of crystallization. Name CAS No. Application Equivalent Flyclear-398 　 High clarity polypropylene 　 Flyclear-DM 54686 -97 -4 / 81541 -12 -0 High clarity polypropylene Ciba-Irgaclear DM, Uniclear 2000, THCLEAR 3930, Millad 3930 32647 -67 -9 Sorbitol based clarifying agent for PP Ciba-Irgaclear D, millad 3905 Flyclear-D Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

International Sales www. sooyangchem. com ● Flame retardants Name CAS No. Application Equivalent Flydant 2148 29761 -21 -5 PVC AKZO-Phosflex 390, Ferro-Santicizer 148 Flydant BC 52 94334 -64 -2 PBT, PET, PC, ABS, PC/ABS, SAN Great Lakes Chemical-BC 52 Flydant BC 58 71342 -77 -3 PBT, PET, PC, ABS, PC/ABS, SAN Great Lakes Chemical-BC 58 Flydant DP-45 26040 -51 -7 PVC cable, EPDM, SBR Great Lakes Chemical-DP 45 Flydant BT-93 W 32588 -76 -4 HIPS, PO, PA, PS, PC Albemarle-Saytex BT 93. Chitex FR 930 Flydant BPS 88497 -56 -7 PC, ABS, PA. Albemarle-Saytex HP 7010/7775, Chitec-FR 960, Nanjing Rising Chemicalbrominated polystyrene Flydant FC-98 29420 -49 -3 　 Wuhan star -Potassiumnonafluorobutanesulfonate Flydant DBDPE 84852 -53 -9 　 Weifang Yucheng-DBDPE, SHANDONG HAIWANG-HWPR 02 Flydant DBDPO 1163 -19 -5 PBT Albermarle-Saytex 102 E Flydant OBE 21850 -44 -2 PP Albemarle-Saytex HP 800 A, Chitex FR 900, Great Lakes-PE 68, Liuyang Chemical-OBE Flydant HBCD 3194 -55 -6 EPS Albemarle-Saytex 9006 L/HP 900, Great Lakes-CD 75 Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476

International Sales www. sooyangchem. com ● m-XDI Item Unit Spec Appearance - Colorless transparent liquid Purity % 99. 0 min NCO % 44. 76 Color AHPA under A# 50 Density - 1. 15 ~ 1. 25 Boiling point ℃ 120 ~ 130 Hydrolyzed CI % 0. 1 max Sooyangchemtec Co. , Ltd. 1204 Kolon Digital Tower, 222 -7, Guro-dong, Guro-gu, Seoul, 152 -777, Korea (Tel)+82 -2 -2103 -2464 (Fax)+82 -2 -2103 -2476
