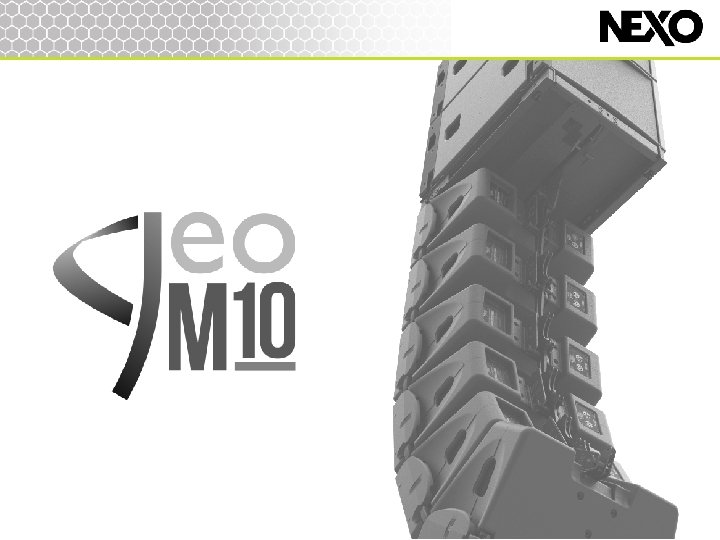

Introduction GEO M 10 extends the GEO M
- Slides: 19

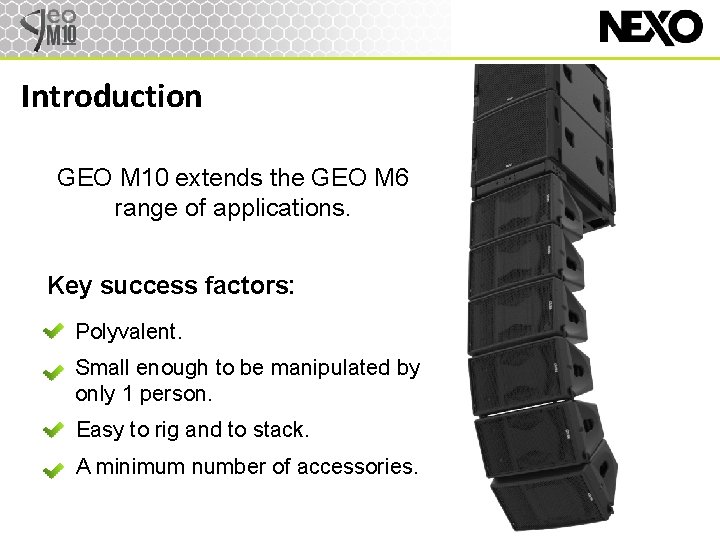

Introduction GEO M 10 extends the GEO M 6 range of applications. Key success factors: Polyvalent. Small enough to be manipulated by only 1 person. Easy to rig and to stack. A minimum number of accessories.
Main specifications : • • 131 d. B Vertical Dispersion 12° or 25° Horizontal Dispersion 80° or 120° 10” cone / 1. 4” driver 21 kg 288 mm x 531 mm x 355 mm 750 Watts / 8Ω per box Installation / Touring versions Black, White or RAL colours
Product features What’s inside ? Patented Hyperbolic Reflective Wavesource 1. 4” titanium diaphragm HF driver. Patented Port Tube Profiling A single Neodymiummagnet 10” driver.
Patented Directivity Phase Device • DPD on cone driver. • LF : Neodymium 10” diameter 2. 5” voice coil driver. • HF: 1 x 1. 4” throat driver.
Magnetic Waveguide flanges Magnetic 80° or 120° flanges.
Front rigging system • No ball lock pins. • Automatically locks when boxes enter in contact.
Back rigging system • 2 x point for Bumper rigging (top/bottom). • TÜV-compliant integral rigging system with no loose parts. • A total of 9 rigging angles are available.
Main specifications : • 136 d. B • 40 kg • 437 mm x 531 mm x 704 mm • 900 Watts / 8Ω per box • Stacked or flown • Front and rear connectivity for cardioid implementation Installation / Touring versions Black, White or RAL colours
Theatres and Conferences Can be used in both mobile and fixed installations. A compact system that leaves sight lines unaffected from every seat in the house.
Live Events Quick and easy to deploy, GEO M 10 groundstacks are the perfect sound reinforcement solution for live events.
Public Spaces Compact, light in weight and with extended LF response down to 59 Hz, GEO M 10 makes for a potent yet visually unobtrusive sound reinforcement system in public spaces such as airports and theme parks.
Live Music Larger GEO M 10 arrays are ideal for live music. This system flies both main boxes and subs: • 12 x GEO M 1012 per side using the Light Bumper, • 8 x MSUB 15 s with the fourth and eighth sub from the top reversed.
Recommended : NXAMP 4 x 4 • For smaller systems : DTD/DTDAMP Up to x 4 GEO M 10 Up to x 3 MSUB 15 • For larger systems : NUAR Rack
Touring Bumper (VNT-BUMPM 10) Flown • GEO M 10 Bumper (up to 12 boxes). • MSUB 15 Bumper (up to 8 boxes ). • MSUB 15 can be flown in Omni or Cardio mode. • Mixed lines of Geo. M 10 / MSUB 15 (including Cardio). • Extension bar for extreme angles. • No loose part / all ball-locks on cable tie. • Supports for 2 x industry standards inclinometer format. Groundstacked • Stabilizer accessories. • Geo. M 10 on MSub 15 (including Cardio). • With up to +/- 12° angle tilt between Geo. M 10 and bumper.
Light Weight Bumper (GMT-LBUMPM 10) • GEO M 10 only (up to 12 boxes). • No angle between bumper and first box. • Bumper depth is same than Geo. M 10 depth. • Can be used as stack (up to 3 boxes) as well.
Designed to roll. 3 types of flightcases : • GMT-3 CASEM 10 : X 3 GEO M 10 cabinets • GMT-6 CASEM 10 : X 6 GEO M 10 cabinets • MST-2 CASEMSUB 15: X 2 MSUB 15
Softwares Remote Monitoring App Available for i. Pad and i. Phone, NEXO Ne. Mo provides remote control over an NXAMP network from anywhere in the venue, thanks to an intuitive and graphically attractive user interface. Acoustic simulation software A powerful and intuitive system configuration and simulation tool ensuring uniform SPL coverage.
