Introduction Available in 4 x 1300 Watts and

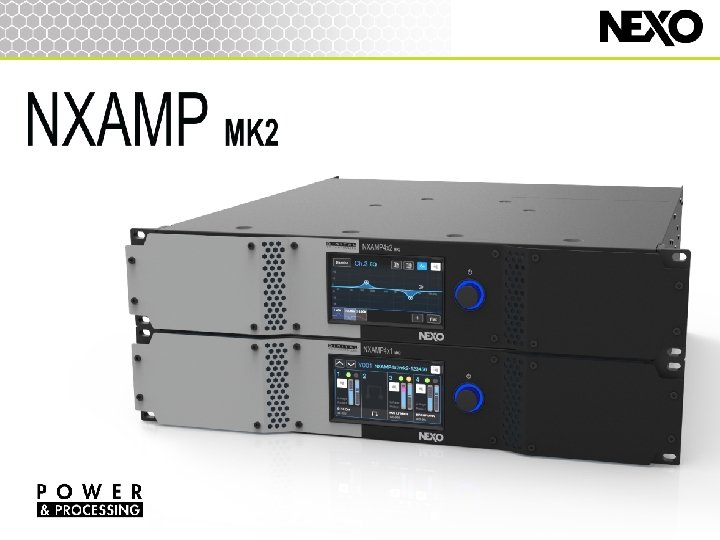

Introduction Available in 4 x 1300 Watts and 2 x 2500 Watts NXAMP 4 X 1 MK 2 NXAMP 4 X 2 MK 2 State-of-the-art four channel Class D amplifiers Large colour LCD touch-screen New level of sound quality
Features Four channel amplifiers Proprietary LSI Chip for excellent sound quality x 4 high-end analog inputs Universal Power Supply (100 -240 Volts) >PFC Technology x 4 optional digital inputs (expansion slot) AES/EBU, Ethersound, Dante or AES 67 Rear panel connectivity includes : RS 232 serial and GPIO ports

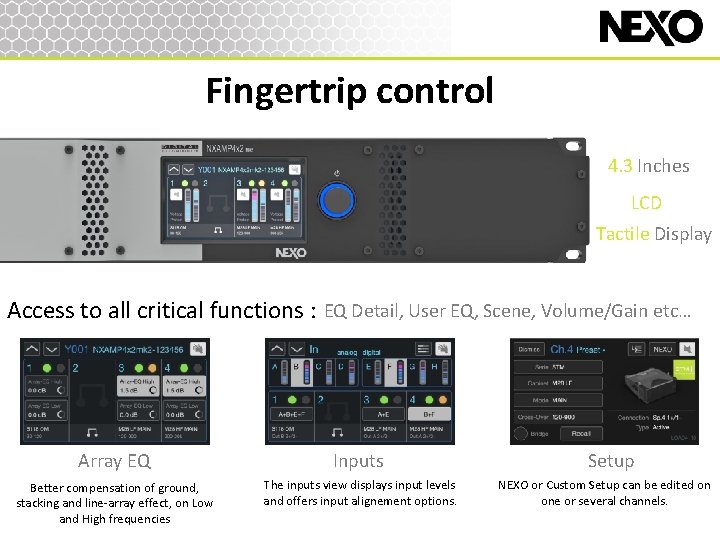

Fingertrip control 4. 3 Inches LCD Tactile Display Access to all critical functions : EQ Detail, User EQ, Scene, Volume/Gain etc… Array EQ Inputs Better compensation of ground, stacking and line-array effect, on Low and High frequencies The inputs view displays input levels and offers input alignement options. Setup NEXO or Custom Setup can be edited on one or several channels.
Recommended Systems NXAMP 4 X 1 MK 2 powering 1 x ID 24 and 1 x IDS 110 sub per side NXAMP 4 X 1 MK 2 powering 1 x PS 8 and 1 x LS 400 sub per side

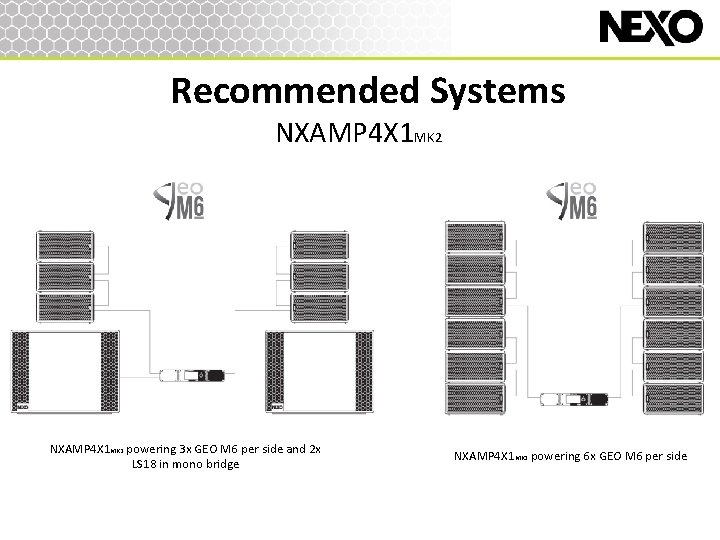

Recommended Systems NXAMP 4 X 1 MK 2 powering 3 x GEO M 6 per side and 2 x LS 18 in mono bridge NXAMP 4 X 1 MK 2 powering 6 x GEO M 6 per side
Recommended Systems NXAMPX 2 MK 2 NXAMP 4 X 2 MK 2 powering 1 x PS 10 R 2 and 1 x LS 600 sub per side NXAMP 4 X 2 MK 2 powering 3 x GEO M 10 and 2 x MSUB 15 per side
Recommended Systems NXAMP 4 X 2 MK 2 powering 3 x MSUB 15 (one in cardio mode) and 6 x GEO M 10 NXAMP 4 X 2 MK 2 powering 6 x GEO M 10 per side
Network Cards Remote Control Ø Optional* Ø Extracts 4 audio streams from the 2 x 64 channels of an ES 100 Ø In Out ports (easy daisy-changing) Ø Optional* Ø Receives 4 audio streams (Dante or AES 67) + Remote control (via LAN using TCP/IP commands) Ø Unique 3 -port design can be used as : -3 port gigabit switch -2 Dante redundant ports + optional 3 rd port Ø Supplied as standard Ø 2 x RJ 45 ports for remote control Ø Optional* Ø Receives 4 audio channels Ø 2 x AES/EBU stereo XLR inputs Ø 2 x switched RJ 45 ports for remote control
Total system management control SYSTEM MANAGEMENT SOFTWARE For mac. OStm and i. OStm devices A large number of NXAMPMK 2 s can be conveniently controlled via a wired or Wi. Fi network from a Mac or i. OS device using NEXO’s system management software Ne. Mo.

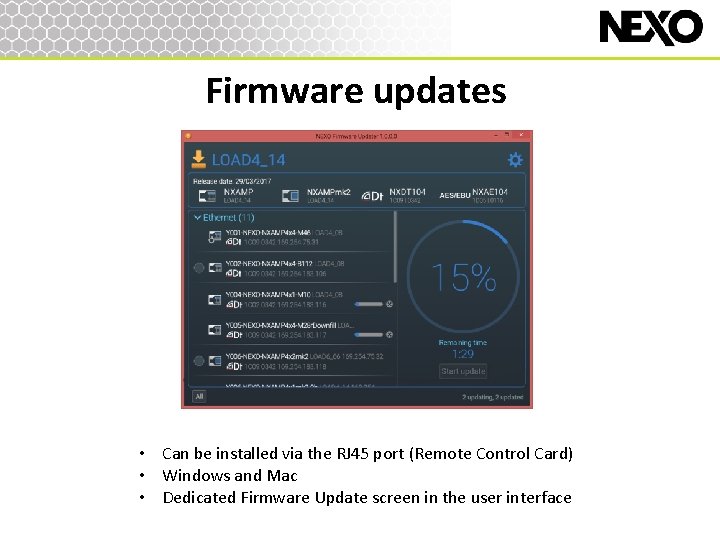

Firmware updates • Can be installed via the RJ 45 port (Remote Control Card) • Windows and Mac • Dedicated Firmware Update screen in the user interface
Flightcase Accessories • 4 U Touring Rack • Configurations: - x 1 NXAMP 4 X 1 MK 2 or x 1 NXAMP 4 X 2 MK 2 + DPU + DMU - x 2 NXAMP 4 X 1 MK 2 or x 2 NXAMP 4 X 2 MK 2 DMU DPU
