Introducing TRUE TECHNOLOGIES Loudspeaker Component Measurement System Loudspeaker
- Slides: 14
Introducing…. . TRUE TECHNOLOGIES Loudspeaker Component Measurement System

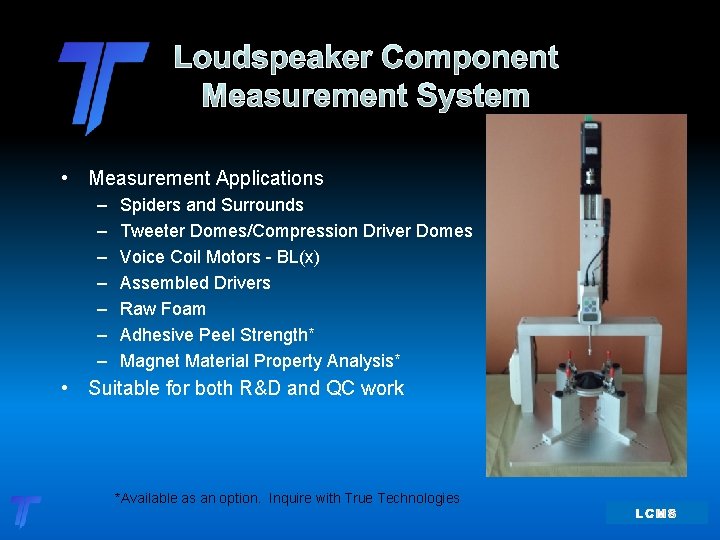

Loudspeaker Component Measurement System • Measurement Applications – – – – Spiders and Surrounds Tweeter Domes/Compression Driver Domes Voice Coil Motors - BL(x) Assembled Drivers Raw Foam Adhesive Peel Strength* Magnet Material Property Analysis* • Suitable for both R&D and QC work *Available as an option. Inquire with True Technologies
• LCMS Construction and Features – – – Precision micro-stepping stepper Motor High Resolution Force Gage High/Low Capacity Force Gage Options Frame large enough to accommodate > 12” Woofers Built in statistical analysis tools for evaluating component consistency within or between lots – Built in tools to create pass/fail limits based on manually entered values or previously measured components – Database Driven. Easily search for and retrieve information on previously measured parts or pass/fail standards

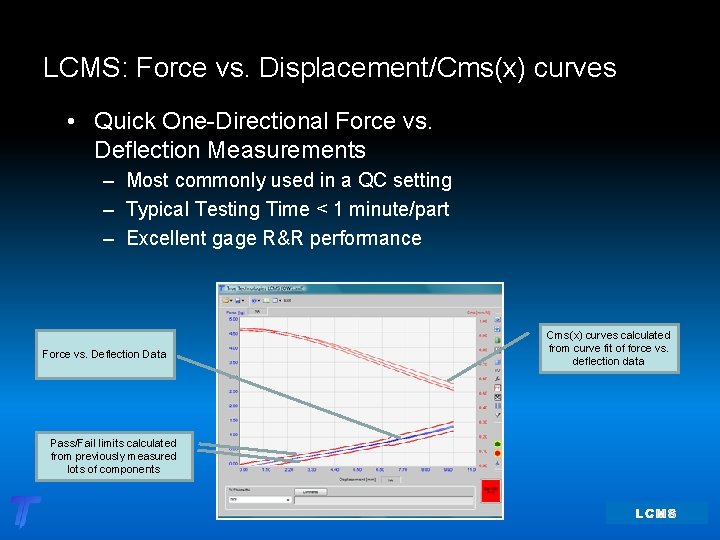

LCMS: Force vs. Displacement/Cms(x) curves • Quick One-Directional Force vs. Deflection Measurements – Most commonly used in a QC setting – Typical Testing Time < 1 minute/part – Excellent gage R&R performance Force vs. Deflection Data Pass/Fail limits calculated from previously measured lots of components Cms(x) curves calculated from curve fit of force vs. deflection data
LCMS: Force vs. Displacement/Cms(x) curves • Quick Clamp Setup for One-Directional Force vs. Deflection Measurements. • Testing a Loudspeaker Cone in QC
LCMS: Force vs. Displacement/Cms(x) curves • Full Hysteresis Measurements – DUT measured in both directions – Most commonly used in an R&D setting – Excellent tool to evaluate range of linearity and symmetry DUT measured in upward direction Kms(x) curve calculated from curve fit of upper and lower hysteresis legs DUT measured in downward direction Mirrored Kms(x) curve is displayed for evaluation of symmetry
LCMS: Force vs. Displacement/Cms(x) curves • Full Hysteresis Measurements • Testing a Spider with ID fully clamped for bi -direction testing
LCMS: Force vs. Displacement/Cms(x) curves • Tools for comparing measurements to hanging mass legacy standards DUT out of spec at 500 gram reference mass DUT in spec at 200 gram reference mass Enter pass/fail upper lower displacement limits for one or multiple reference masses
LCMS: Force vs. Displacement/Cms(x) curves • Tools for evaluating lots of components and creating pass/fail limits Control how limits are displayed and enforced Measurement fliers can be removed from the analysis Choose the type of statistical analysis and set preliminary offsets Manually edit data for individual cells or for ranges Transfer statistical limit lines to pass/fail grid Limits can be edited as absolute values or as offsets from the group average Data can be copied to/pasted from the Windows clipboard for external data manipulation
LCMS: Force vs. Displacement/Cms(x) curves • Tools for evaluating lots of components and creating pass/fail limits Viewing filters allow hiding and coloring of curves Set how to display new measurements Assign groups #s to different lots of DUTs for easy comparison/analysis Limit curves expanded manually above 5 mm
LCMS: Force vs. Displacement/Cms(x) curves • Tools for evaluating lots of components and creating pass/fail limits Change horizontal axis to view vs. measurement # Set deflection to view cross section of measurement group This view shows the force at 10 mm for 13 different parts. Multiple files can be opened to compare different lots of parts.
LCMS: Voice Coil Motors • BL(x) curves measured using a constant current source User provides dimensional data
LCMS: Component Database • • • Easy-to-Use and highly flexible built in database Database fields are setup by the user with built in tools Database setup service included if desired Click on a row to open the measurement or pass/fail standard Drop down selection during file save forces consistent data entry for easy searching later Set search terms to narrow list of past measurements or pass/fail standards Export/Import of pass/fail standards provides easy sharing between suppliers/customer Pictures, BOMS, part history, comments, etc. can be stored with the component measurement
Loudspeaker Component Measurement System ØContact: True Technologies 8309 West Ridge Drive Pleasant Prairie, WI 53158 USA +1 -262 -694 -2573 rtrue@true-technologies. com ØThe user’s manual can be found online for more detailed information: www. true-technologies. com
