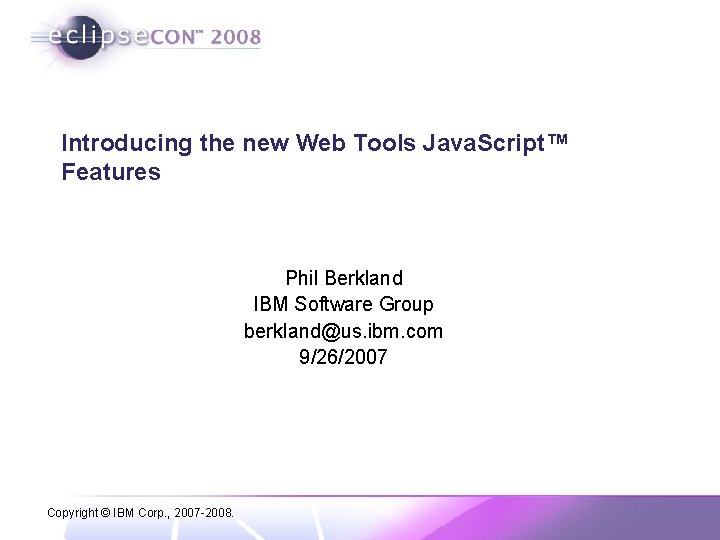

Introducing the new Web Tools Java Script Features

Agenda • Overview • Brief History • Functions • Design • Demonstrations • Where to get JSDT Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.

Overview • Java. Script Development Tools (JSDT) is the Java. Script component of Web. Tools § Replaces old Java. Script editor • JSDT provides rich Java. Script editing capability § Based on the Best of Breed Java™ editing functions provided by Eclipse™ • JSDT can be packaged in several different configurations § By itself Only javascript editing for. js files no HTML editing § As part of Web Tools Both Java. Script files and Java. Script regions within HTML/JSP Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.

Brief History • Eclipse ATF project started to provide AJAX tooling • ATF realized Java. Script is the main component of AJAX, and current Eclipse Java. Script support was very lacking. • Effort launched to create Java. Script editing on the par with Java Editing • Since Web. Tools project owns Java. Script function, a new component (JSDT) was created under Web. Tools (WST) project • JSDT will become the Java. Script Editor for Web. Tools 3. 0 Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.

Why Use JSDT? • In a Word – Productivity • Detect errors as you Type § Syntax errors, common programming error warnings displayed interactively § Don’t have to wait until Script is run to find errors • Less Typing § Code completion § Templates § Refactoring • Code comprehension § § Tools to help understand script which is being developed Search Call analysis Hover Help Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.

Functions w Most functions are available in both HTML and Java. Script editors § Some are not available in HTML because popup menu not there w Syntax highlighting (configurable) § Vars, functions, keywords, etc display has configurable color and font w Code folding § Can easily hide functions and block comments w Configurable formatting § Configurable indentation, whitespace, blank lines, new lines for all program elements § Configuration can be shared by multiple users w Code completion § Completion proposals are anything valid at cursor location § Templates (pre-defined or user defined) w Syntax checking/error display (severity level configurable for each error) w Quick fix § For common errors, a list of possible fixes is displayed, and the chosen fix is applied w Hover help/tips (uses JSDoc if available) Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.

Functions w Occurrences marking § All occurrences of selected function/var in file are highlighted w open selected item § The definition of the selected item is displayed w highlight matching parenthesis/brace/bracket w add/remove/generate comment w Typing helpers: § Automatically close strings, parentheses, brackets, etc as you type § Automatically insert semicolons, braces § automatic formatting Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.

Functions (continued) • Refactoring w function- rename, move, delete, change signature, extract selected block to function w var - rename, move, delete • Jsdoc support § Used in hover help § Code completion provided or JSDoc tags • Class hierarchy view § Java. Script is analyzed, and class structure is inferred § Shows tree view of class structure, with functions/vars for each class • Call hierarchy view § Displays list of callers of functions § Caller list can in turn be expanded to see who calls them, recursive Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.

Functions (continued) • Script explorer view • Search references/declarations § Search for references/declarations/read access/write access § Language level search (no matches in text or comments) • Preferences: w Appearance w Templates w Formatting w Validation options w Error/Warning levels w Editor options • APIs for reading/writing Java. Script (language model) § Many Extension points § See Brad Childs talk following this one Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.

Design Ø Very similar to design of JDT Ø Typical flow Ø Java. Script is parsed into Abstract Syntax Tree (AST) Ø AST is analyzed to infer class structure Ø Default inference based on common coding patterns (. i. e. “. prototype) Ø JSDoc information used if present Ø Extension points to add custom inference Ø All references are resolved (vars, function calls, etc) Ø Code flow is analyzed to determine unreferenced vars, dead code, etc Ø Libraries provided for definition of language and browser DOM functions/classes Ø API libraries for IE, Firefox, and Ecma spec Ø Libraries also provide hover help Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.

Post 3. 0 possibilities • These are only ideas, not commitments • ECMAScript 4. 0 support w Most of the internal model exists, main work is parser • Interpreter Engine w Internal model is there, just need execution engine/context w Given Rhino, benefits of doing it are questionable Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.

Where to get JSDT • www. eclipse. org/wtp § from downloads page • Report bugs using the “Web Tools” product, “wst. jsdt” component • Discussion groups: w news: //eclipse. webtools/ w wtp-dev@eclipse. org mailing list Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.

Where to get JDST Source • CVS Repository Locations w /cvsroot/webtools • As Standalone Java. Script Editor w w sourceediting/plugins/org. eclipse. wst. jsdt. core org. eclipse. wst. jsdt. manipulation org. eclipse. wst. jsdt. ui • Integrated with Web Tools w w w sourceediting/plugins/org. eclipse. wst. jsdt. core org. eclipse. wst. jsdt. web. ui • See Wiki page for more information w http: //wiki. eclipse. org/JSDT Copyright © IBM Corp. , 2008. All rights reserved. Source code in this presentation is made available under the EPL, v 1. 0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2. 5 license.
