Introducing the new generation MASTERColour CDMRm Elite Mini

Introducing the new generation MASTERColour CDM-Rm Elite Mini 35 W/930 new generation Concise technical datasheet.

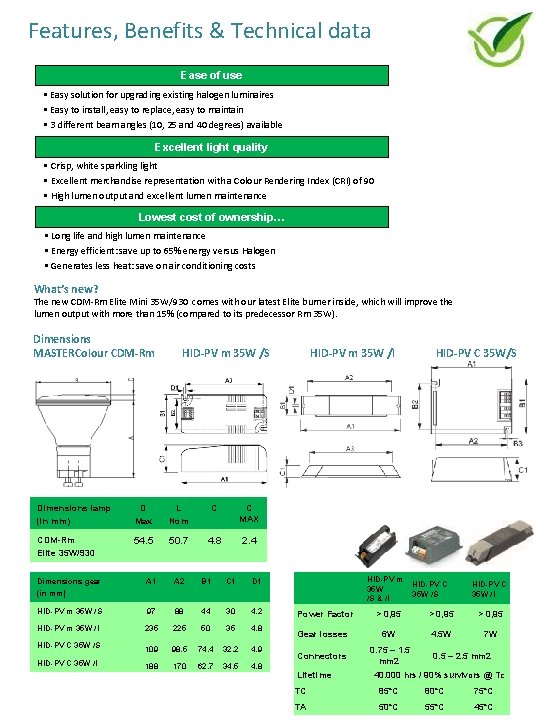

Features, Benefits & Technical data Ease of use • Easy solution for upgrading existing halogen luminaires • Easy to install, easy to replace, easy to maintain • 3 different beam angles (10, 25 and 40 degrees) available Excellent light quality • Crisp, white sparkling light • Excellent merchandise representation with a Colour Rendering Index (CRI) of 90 • High lumen output and excellent lumen maintenance Lowest cost of ownership… • Long life and high lumen maintenance • Energy efficient: save up to 65% energy versus Halogen • Generates less heat: save on air conditioning costs What’s new? The new CDM-Rm Elite Mini 35 W/930 comes with our latest Elite burner inside, which will improve the lumen output with more than 15% (compared to its predecessor Rm 35 W). Dimensions MASTERColour CDM-Rm HID-PV m 35 W /S Dimensions lamp (in mm) D Max L Nom C C MAX CDM-Rm Elite 35 W/930 54. 5 50. 7 4. 8 2. 4 Dimensions gear (in mm) A 1 A 2 B 1 C 1 D 1 HID-PV m 35 W /S 97 88 44 30 4. 2 HID-PV m 35 W /I 235 225 50 35 4. 8 HID-PV C 35 W /S 109 98. 5 74. 4 32. 2 4. 9 188 170 62. 7 34. 5 4. 8 HID-PV C 35 W /I HID-PV m 35 W /S & /I Power Factor HID-PV C 35 W/S HID-PV C 35 W /I > 0, 95 Gear losses 6 W 4. 5 W 7 W Connectors 0. 75 – 1. 5 mm 2 Lifetime 0. 5 – 2. 5 mm 2 40. 000 hrs / 90% survivors @ Tc TC 85 C 80 C 75 C TA 50 C 55 C 45 C

Technical & Logistics data Commercial specs CDM-Rm Elite Mini 35 W/930 (2010 version) CDM-Rm Elite Mini 35 W/930 (after Sept ‘ 11) lumen intensity 10 D 18. 000 20. 000 lumen intensity 25 D 8. 000 8. 500 lumen intensity 40 D 3. 900 4. 400 Forward Lumen 2. 150 2. 400 90 90 maintenance 4 k h 85% 93% maintenance 12 k h 75% 87% life survival 50% (h) 12 k 15 k GX 10 CRI foot Ordering data lamp and gear Naming 12 NC = GPC EOC MASTERColour CDM-Rm Elite 35 W/930 GX 10 MR 16 10 D 9281 946 05330 871829116296400 MASTERColour CDM-Rm Elite 35 W/930 GX 10 MR 16 25 D 9281 947 05330 871829116300800 MASTERColour CDM-Rm Elite 35 W/930 GX 10 MR 16 40 D 9281 948 05330 871829116306000 HID-PV m 35 /S CDM 220 -240 V 50/60 Hz 9137 0065 3666 8727900 88341100 HID-PV m 35 /I CDM 220 -240 V 50/60 Hz 9137 0065 3566 8727900 89164500 HID-PV C 35 /S CDM 220 -240 V 50/60 Hz 9137 0065 2766 8727900 85962100 HID-PV C 35 /I CDM 220 -240 V 50/60 Hz 9137 0065 3166 8727900 85973700 Note: the initial CDM-Rm Elite Mini 35 W (928191305330, 928191405330, 928191505330) will be phased out end 2011 We recommend using ceramic lamp holders.

For more information, visit: www. philips. com/mastercolour © 2011 Koninklijke Philips Electronics N. V. All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights. Date of release: Sept 2011 Printed in the Netherlands
