Introducing MASTERColour CDMTTC Elite 942 cool sparkling white

Introducing… MASTERColour CDM-T/TC Elite 942 cool sparkling white like you have never seen before… Elite September 26, 2011

MASTERColour CDM-T/TC Elite 35 W/70 W / 942 Introduction of Elite in 4200 K… Since the introduction of the premium product MASTERColour CDM Elite at the end of 2007, Elite has become a new standard in fashion, food and furniture retail lighting bringing excellent quality of light in combination with lowest total cost of ownership. The combinaton of CRI = 90, efficacy > 100 lm/W, lumen maintenance 80% and long life 15. 000 hrs are addressing the need for better quality of light and more sustainable lighting solutions in retail lighting. Philips is proud to announce that the unique properties of Elite lamps are becoming available in cool light (4200 K), addressing the same needs for excellent quality of light with lowest total cost of ownership to specific cool light application areas. This latest innovation is another step in our ambitious innovation roadmap. We will continue to develop the CDM Elite portfolio and will announce new breakthroughs in efficacy and lifetime in 2012! storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 2

MASTERColour CDM-T/TC Elite 35 W/70 W / 942 cool light with Elite performance… Elite What is Elite 942? - Just like Elite 930, Elite 942 combines excellent quality of light and lowest total cost of ownership - Elite 942 provides very crisp and incredible white sparkling light with CRI = 90 - Elite 942 brings almost perfect red: R 9 = 90 (!) - Elite 942 is the most efficient cool light lamp for retail lighting > 100 lm / W (70 W lamp) - Elite 942 has high lumen maintenance and has a reliable lifetime performance - Elite 942 has long life (15. 000 hrs) storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 3

MASTERColour CDM-T/TC Elite 35 W/70 W / 942 applications… Cool light with 4200 K is a growing trend in retail lighting. Cool light can give an energetic feeling. It is perfect for cosmetic stores because it enhances the clean impression of the shop. 4200 K light makes metallic products look extra shiny, such as silver jewelry stores, car and bike showrooms. In cold food displays 4200 K can make ice look really cool and sparkling. storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 4

MASTERColour CDM-T/TC Elite 35 W/70 W / 942 Value proposition… Get best quality of light… • crisp super white sparkling light with CRI = 90! • almost perfect on red (R 9 = 90) • High lumen output …with lamp performance that will last and… • high lumen maintenance (80% @ 15. 000 hrs) keeps your lighting stable for years • Elite 942 lamps have long life (15. 000 hrs) … with lowest cost of ownership. • High efficiency means: more light with same power or same light with less power • Long life saves cost in relamping • Elite 942 can be relamped into existing CDM luminaires storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 5

MASTERColour CDM-T/TC Elite 35 W/70 W / 942 the difference between Elite 942 vs CDM 942 … Better light quality, lower cost of ownership Improvement CDM -> Elite difference Lumen output initial Lumen output @ 4. 000 rs R 9 (red rendering) +14% +19%. . . +34% +50. . +60 pt Lumen maintenance 12. 000 hrs lifetime Elite +20% +3. 000 hrs 6 storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722

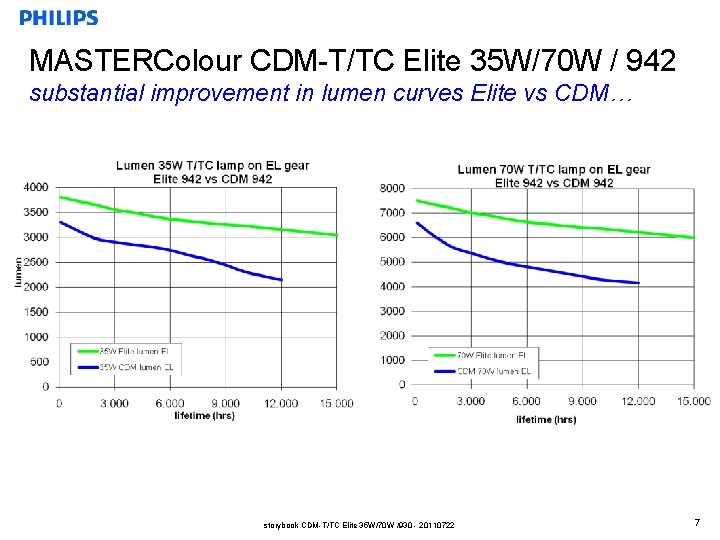

MASTERColour CDM-T/TC Elite 35 W/70 W / 942 substantial improvement in lumen curves Elite vs CDM… storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 7

MASTERColour CDM-T/TC Elite 35 W/70 W / 942 features and benefits… Standard dimensions Highly efficient > 100 Lumen per Watt MASTERColour CDM Elite burner High tech material compsition greatly improves color stability between lamps and during life standard G 12 or G 8. 5 (TC) lamp cap Unique eliptical burner shapes for optimal lumen output (+14%) and longer lifetime (+25%) Retrofit into existing luminaires. Crisp white sparkling light with excellent colour rendering, , superb red rendering and high lumen output. High lumen maintenance: 80% @ 15. 000 hrs (!). Extended lifetime: 15. 000 hrs. Low total cost of ownership T lamps can also be operated on EM gear. storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 8

MASTERColour CDM-T/TC Elite 35 W/942 benchmark on published specs… 35 W CDM Elite Osram GE 35 W/942 Powerball 35 W/942 NDL CMH 35 W/842 3. 300 3. 800 3. 500 3. 200 efficacy (lm/W) 84 98 90 86 CRI 90 90 90 85+ R 9 45 90 31 29 maintenance 90% 2 kh 3 kh 1 kh 2 kh maintenance 12. 000 h 70% 83% 82% ? 12. 000 15. 000 12. 000 18. 000 T / TC lumen output life survival 50% (h) best performance storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 9

MASTERColour CDM-T/TC Elite 70 W/942 benchmark on published specs… 70 W CDM Elite Osram GE 70 W/942 Power. Ball 70 W/942 NDL CMH 70 W/942 6. 600 7. 500 6. 800 6. 300 efficacy (lm/W) 90 102 93 CRI 92 90 94 90+ R 9 45 90 86 59 1. 8 kh 3 kh 1. 5 kh < 1 kh 65% 83% 80% 65% 12. 000 15. 000 T / TC lumen output maintenance 90% maintenance 12. 000 h life survival 50% (h) best performance Measured, not specified storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 10

MASTERColour CDM-T/TC Elite 35 W/70 W / 942 positioning, pricing, sampling and timing… pricing Same as Elite 930. datasheets Draft datasheet now available. Systems (PRISMA and SAP) will be filled in September. sampling Samples will be available per 2011. 07. 01. introduction timing Elite 942 lamps will be commercially available from October 1 st 2011. naming 12 nc = GPC EOC 9281 936 05131 16364000 MASTERColour CDM-TC Elite 35 W/942 G 8. 5 1 CT 9281 938 05131 16366400 MASTERColour CDM-T Elite 70 W/942 G 12 1 CT 9281 937 05131 16362600 MASTERColour CDM-TC Elite 70 W/942 G 8. 5 1 CT 9281 939 05131 16368800 MASTERColour CDM-T Elite 35 W/942 G 12 1 CT storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 11

MASTERColour CDM-T/TC Elite 35 W/70 W / 942 FAQ’s (1)… Will the existing CDM 942 lamps be kept in the portfolio? Yes, the existing CDM 942 lamps will be kept. Do I need a new reflector when I change current Elite to the new generation Elite? The lamps have been designed with the same LCL and are retrofit in existing luminaires. In most cases a new reflector design is not needed. Some remarks: just like with any ceramic metal halide lamps, we advice to use facetted reflectors for optimal light distribution. In some applications, optical behaviour could be different compared to CDM lamps with cylindrical burners. This depends amongst others on reflector design and beam angle in combination with burning orientation. We provide optical files to support reflector optimisation. Can the CDM Elite 942 lamps be used in outdoor application? Yes, the long life and high lumen output with high lumen maintenance make these lamps very suitable for outdoor applications. storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 12

MASTERColour CDM-T/TC Elite 35 W/70 W / 942 FAQ’s (2)… Which Elite 942 lamps can be operated on EM gear? All lamps can be operated on EL gear. The following table shows which 942 lamps can also be operated on EM gear: Gear compatibility 35 W 70 W EL+EM CDM-TC Elite 942 EL EL CDM-T 942 EL EL+EM CDM-TC 942 EL EL CDM-T Elite 942 Why does Philips recommend to use EL gear? EL gear benefits: more light output, less power consumption, better lumen maintenance, no flicker, better end of life protection. However, for existing installations it is not always economical to change EM gear to EL gear. In such cases Elite brings for the existing socket a substantial better performance. Will performance be different on EM gear for the 70 W T lamp? The spec table on the next page lists target performance on EM gear and shows differences in lumen output and lumen maintenance. storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 13

MASTERColour CDM-T Elite 70 W / 942 benefits of uplamping from CDM 942 to Elite 942 on EM gear … 4200 K 70 W T on EM gear Performance on EM gear CDM 942 Elite 942 lumen output 6. 600 7. 500 Lamp efficacy (lm/W) 90 103 CRI 90 90 R 9 45 90 55% 50% n. a. 83% 80% 74% 12. 000(*) Maintenance 10. 000 hrs 12. 000 hrs 15. 000 hrs Life (50%, hrs) (*) Designed for 15. 000 hrs. Once evidence is available we will update this spec. Changing CDM to Elite gives more light (+14%) with superior maintenance (+20%. . +30%), and makes red look visibly better. storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 14

More questions? Please contact: Bob vd Linden Product Marketing CDM Philips Lighting GBU HID Steenweg op Gierle 417 B-2300 Turnhout, Belgium office: +32 (0)14 40 7692 cell: +32 (0)471 97 76 76 email: bob. vd. linden@philips. com storybook CDM-T/TC Elite 35 W/70 W /930 - 20110722 15
