Introducing MASTERColour CDMTm Elite Mini GU 6 5

Introducing … MASTERColour CDM-Tm Elite Mini GU 6. 5 50 W/930 the brightest mini lamp in the world… Elite August 2011

MASTERColour CDM-Tm Elite Mini GU 6. 5 50 W/930 what is it? 5000 sparkling lumens (CRI = 90!) from a 5 cm light source… Confidential 2

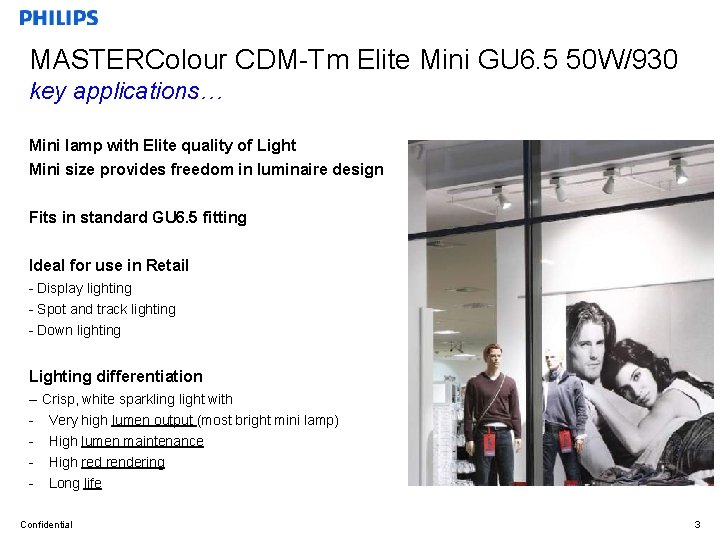

MASTERColour CDM-Tm Elite Mini GU 6. 5 50 W/930 key applications… Mini lamp with Elite quality of Light Mini size provides freedom in luminaire design Fits in standard GU 6. 5 fitting Ideal for use in Retail - Display lighting - Spot and track lighting - Down lighting Lighting differentiation -- Crisp, white sparkling light with - Very high lumen output (most bright mini lamp) - High lumen maintenance - High red rendering - Long life Confidential 3

MASTERColour CDM-Tm Elite Mini GU 6. 5 50 W/930 value proposition at a glance… Miniaturised design, fitting into existing GU 6. 5 luminaires… • Mini lamp and gear makes miniaturaised luminaire design possible • Fits into existing GU 6. 5 luminaires with best-in-class performance …with MASTERColour CDM Elite light quality… • Fantastic merchandise representation CRI = 90 • crisp white sparkling light • high lumen output with the best lumen maintenance • Superior color point control and stability over life … and lowest cost of ownership. • very high lumen output: 5. 000 lumens from a mini size! • Excellent lumen maintenance: 75% @ 15 k hours • longer lifetime with proven lifetime reliability • energy efficient: save up to 75% energy versus halogen Confidential 4

MASTERColour CDM-Tm Elite Mini GU 6. 5 50 W/930 technical specifications … spec CDM-Tm Elite Mini GU 6. 5 50 W/930 lumen output 5. 200 efficacy (lm/W) 104 CRI 90 R 9 50 maintenance @ 12. 000 hr 80% maintenance @ 15. 000 hr 75% survival 95% (hr) 9. 000 survival 90% (hr) 10. 000 survival 80% (hr) 12. 000 survival 50% (hr) 15. 000 Elite Remarks: EL gear with EOL protection only. All Philips HID-PV and AV gear types have EOL protection. Confidential 50 W mini lamps are not supplied by competition. 50 W mini lamps work with 50 W mini gear and with 50 W compact gear 5

MASTERColour CDM-Tm Elite Mini GU 6. 5 50 W/930 features and benefits… Fits into 35 W luminaires(*). Unique flat top Highly efficient and longlife MASTERColour CDM Elite burner Elite Unique flat base technology standard GU 6. 5 lamp foot Confidential Flat top avoides white spot in beam pattern Crisp white sparkling light with excellent colour rendering and high lumen output Lowest total cost of ownership Long life: 15. 000 hrs High lumen maintenance: 75% @ 15. 000 hrs. Flat base provides large inside volume and enables higher operating temperatures. Philips Green Flagship product -> (*) a check on temperature is needed to make sure maximum temperatures are not exceeded. A 50 W lamp needs 50 W gear. 6

MASTERColour CDM-Tm Elite Mini GU 6. 5 50 W/930 dimensions… Dimensions lamp mm D max L max C nom CDM-Tm Elite Mini GU 6. 5 50 W/930 13. 3 30 52 CDM-Tm Elite Mini GU 6. 5 50 W/930 has same dimensions as the 20 W and 35 W lamps; dimensions comply with IEC 61167. Dimensions gear Mm A 1 B 1 C 2 D 1 HID-PV m 50 /S 97 43, 3 30 26, 2 4, 2 Power Factor HID-PV m 50 > 0, 95 Gear losses < 6 W Connectors Lifetime 0, 75 – 1, 5 mm 2 40. 000 hrs / 90% survivors @ Tc Tc HID-PV m 50 /S 90 C Ta 50 C This mini lamp can also be operated on normal (non-mini) HID-PV gear Confidential 7

MASTERColour CDM-Tm Elite Mini GU 6. 5 50 W/930 logistic information… New product MASTERColour CDM-Tm Elite Mini GU 6. 5 50 W/930 12 nc = GPC EOC 9281 965 05130 15386300 Elite Gear compatibility matrix The new mini lamps can be operated with: Naming 12 nc = GPC EOC HID-PV m 50 /S CDM 220 -240 V 50/60 Hz 913700665966 87182911 1573100 HID-PV C 50 /S CDM 220 -240 V 50/60 Hz 913700664966 87279009 3363500 HID-PV C 50 /I CDM 220 -240 V 50/60 Hz 913700665166 87279009 3365900 Availibility Products will commercially be available from October 1 st 2011. Samples are available per June 2011. Confidential 8

MASTERColour CDM-Tm Elite Mini GU 6. 5 50 W/930 FAQ’s… When will this new mini lamp be available? The new lamp will be commercially available from October 1 st, 2011. How is it possible to create 5000 lumens in such a small volume? The unique flat top and flat base design provide a maximum space inside the lamp, which is needed to get a 50 W burner inside. Will Philips also provide PGJ 5 mini lamps in 50 W? It will not be possible to fit a 50 W burner in the PGJ 5 lamp, because the PGJ 5 lamps are even smaller than GU 6. 5 lamps. Will the new lamp operate in existing 35 W luminaires? That depends on temperature. We provide a separate design-in guide with a guideline to measure temperatures on the lamp. We can provide assistance for these measurements. We advice a ceramic lamp holder mounted with metal for temperature reasons (avoid plastics). Will the new lamp only operate with the new 50 W mini gear? The 50 W mini lamp will operate with all 50 W HID Philips gear, both in mini and normal size, and with other brand EL gear with End of Life protection. Confidential 9

MASTERColour CDM (Elite) mini lamps Overview of the mini family … spec Elite CDM-Tm Elite CDM-Tm Elite Mini PGJ 5 20 W/830 Mini PGJ 5 35 W/930 Mini GU 6. 5 20 W/830 Mini GU 6. 5 35 W/930 June 2011 Mini GU 6. 5 50 W/930 Oct. 2011 1. 650 3. 000 1. 800 3. 800 5. 200 Lamp power (W) 22 39 20 39 50 efficacy (lm/W) 80 76 90 97 104 CRI 85 90 90 maintenance @ 12. 000 hr < 60% < 70% 83% 80% maintenance @ 15. 000 hr n. a. 73% 75% survival 95% (hr) 9. 000 survival 50% (hr) 12. 000 15. 000 22 W PGJ 5 (only) 35 W mini (only) 20 W 35 W 50 W lumen output Gear Confidential 10

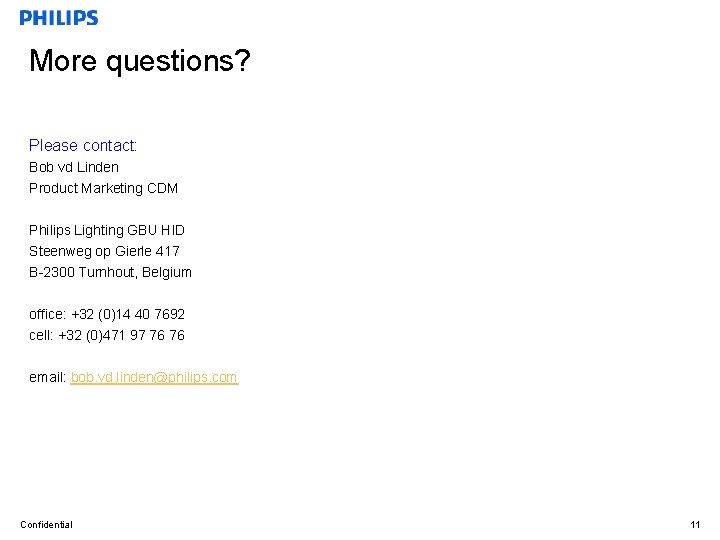

More questions? Please contact: Bob vd Linden Product Marketing CDM Philips Lighting GBU HID Steenweg op Gierle 417 B-2300 Turnhout, Belgium office: +32 (0)14 40 7692 cell: +32 (0)471 97 76 76 email: bob. vd. linden@philips. com Confidential 11
