Introducing MASTERColour CDM Elite Light Boost Arthur van
Introducing… MASTERColour CDM Elite Light Boost Arthur van der Wateren Sept 2011

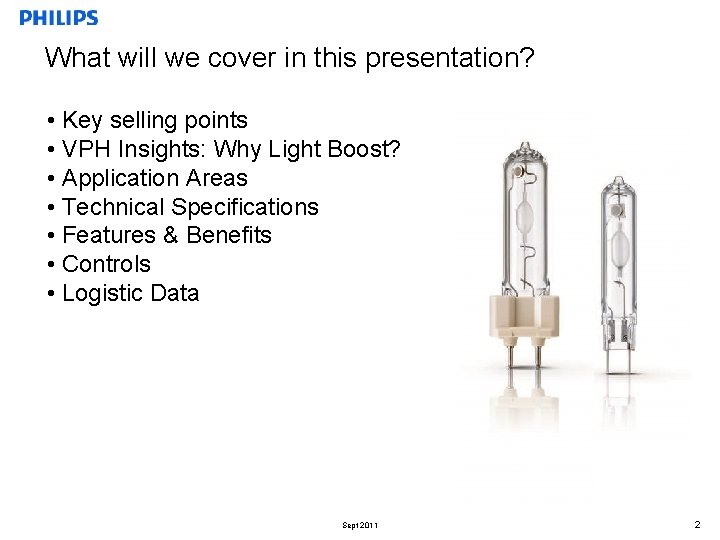

What will we cover in this presentation? • Key selling points • VPH Insights: Why Light Boost? • Application Areas • Technical Specifications • Features & Benefits • Controls • Logistic Data Sept 2011 2
MASTERColour CDM-T/TC Elite Light Boost 70 W Key Selling Points User Experience Easy to design in into 70 W CDM luminaires: Light “Boost” Variable light levels anywhere between 100% and 50% Fast reaction time (<1 sec up) Elite performance Crisp white sparkling light Excellent light quality (CRI 95) Energy efficient Spotless Beam Up to 45% energy saving when dimmed at 50% Sept 2011 3
Fashion – VPH insights on Light Boosting Shopper: Retailer: “Shopping for me is so much more than just buying goods. I’d like to shop in a place that catches me, surprises me, inspires me, reflects me … and my friends” “My store has to stand out. In the key shopping streets it is difficult to stand out, retailers are just getting brighter and brighter. I wish there were more solutions available in the market that can help me to call consumers’ attention. ” Sept 2011 4
Fashion – VPH insights on Light Boosting Light designer: Retailer: “On a cloudy day and in the evening I have to retain high light levels because I cannot adjust the light continuously. This means excessive electricity consumption. I wish I could maintain an optimal level of contrast automatically and thus save energy. ” “I want to create an environment that always feels new to the shopper, while remaining familiar and comfortable. Creating these scenes is difficult & involves a lot of effort. I wish there was a solution that helped me to design many different store atmospheres. ” Sept 2011
MASTERColour CDM-T/TC Elite Light Boost 70 W Application Areas Application Light Level Area Attention Attraction • Main light level at 50% • Direct customer’s attention • Instant light boosting to • Merchandize enhancement 100% when customers are • Improve shopper experience noticed • Main light level at 100% Daylight adjustments • Light down to 50% when (e. g in shop the ambient light is fading window) Scene Setting BENEFITS • Lower lighting energy consumption • Less light pollution, decrease carbon footprint Main light level adjustments Improve shopper experience to any required level to set scenes within the store Sept 2011 6
MASTERColour CDM-T/TC Elite Light Boost 70 W Family Specifications Elite name CDM-T, TC Elite Light Boost 930 CDM-T, TC Elite Light Boost 942 Power (W) 70 W Lamp cap G 12, G 8. 5 CRI at 100% 95 95 Light output (lm) at 100% 7. 650 6. 500 Light output (lm) at 50% 3. 300 2. 900 Life (hrs) 15. 000 Maint. 12 khrs 82% Dim speed 100% -> 65% at 1 sec 65% -> 50% at 60 sec Boost speed 50% -> 100% at 1 sec Gear HID-AV 70 W DALI Sept 2011

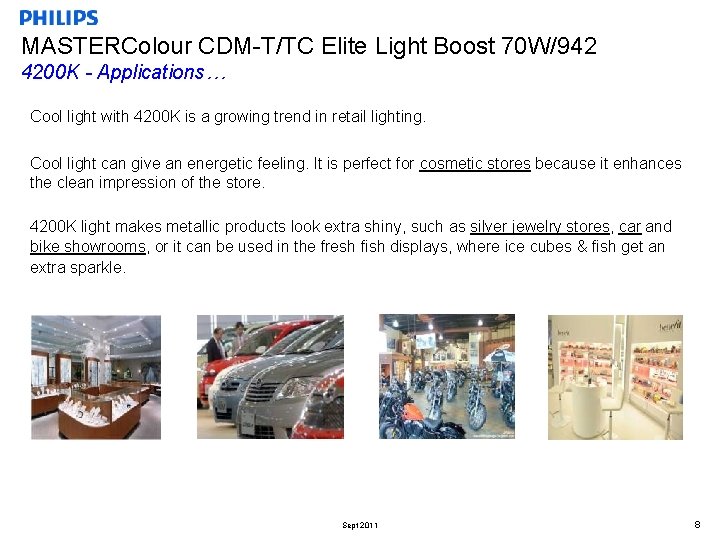

MASTERColour CDM-T/TC Elite Light Boost 70 W/942 4200 K - Applications… Cool light with 4200 K is a growing trend in retail lighting. Cool light can give an energetic feeling. It is perfect for cosmetic stores because it enhances the clean impression of the store. 4200 K light makes metallic products look extra shiny, such as silver jewelry stores, car and bike showrooms, or it can be used in the fresh fish displays, where ice cubes & fish get an extra sparkle. Sept 2011 8

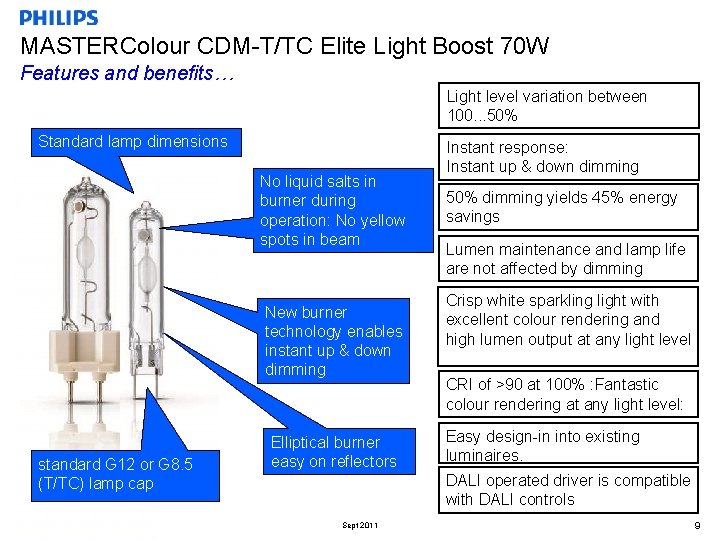

MASTERColour CDM-T/TC Elite Light Boost 70 W Features and benefits… Light level variation between 100. . . 50% Standard lamp dimensions No liquid salts in burner during operation: No yellow spots in beam New burner technology enables instant up & down dimming standard G 12 or G 8. 5 (T/TC) lamp cap Elliptical burner easy on reflectors Instant response: Instant up & down dimming 50% dimming yields 45% energy savings Lumen maintenance and lamp life are not affected by dimming Crisp white sparkling light with excellent colour rendering and high lumen output at any light level CRI of >90 at 100% : Fantastic colour rendering at any light level: Easy design-in into existing luminaires. DALI operated driver is compatible with DALI controls Sept 2011 9
MASTERColour CDM-T/TC Elite Light Boost 70 W Excellent Color Stability Perfect color matching lamp-to-lamp & very limited color shift over life! Test hours Example of Elite Light Boost 70 W/942 Sept 2011 10
MASTERColour CDM-T/TC Elite Light Boost 70 W Additionally : Get rid of yellow spot in light beams - Get clean beams! In standard ceramic metal halide lamps, you will find salts in the lamp to create the light. In combination with a suboptimal reflector (not able to diffuse this yellow spot) this will cause a yellow colored spot in the light beam. With the special Elite Light Boost lamps, the salt will turn into gas phase once the lamps ignite, through which no spots are visible with any reflector (even suboptimal ones). To clarify see pictures on right side: A Case 1 – Elite Light Boost lamp in any reflector, showing a homogenous perfect beam (‘clean beam’). Case 2 – Any ceramic metal halide lamp in a suboptimal reflector, showing yellow spot (see A) in beam. Sept 2011 1. 2. 11
MASTERColour CDM-T/TC Elite Light Boost 70 W DALI Controls The CDM Elite Light Boost is compatible with DALI and can be operated with any DALI control. Philips offerings are: Occu. Switch DALI • Occupancy management • Light Boosting • Daylight Harvesting To. Be. Touched DIM DALI • Manual light level adjustment • Scene setting • Plug-and-play operation Sept 2011
MASTERColour CDM-T/TC Elite Light Boost 70 W Logistics & Pricing Data LAMP Description MC CDM-T Elite Light Boost 70 W/942 MC CDM-TC Elite Light Boost 70 W/942 MC CDM-T Elite Light Boost 70 W/930 MC CDM-TC Elite Light Boost 70 W/930 12 NC 928192005131 928192205131 928191905131 928192105131 EOC 872790093890600 872790093894400 872790093888300 872790093892000 Lamp Pricing CDM Elite Light Boost 70 W is 30% more expensive than the CDM Elite 70 W fixed GEAR Description HID-AV DALI C 70 /S CDM 220 -240 V 50/60 Hz HID-AV DALI C 70 /I CDM 220 -240 V 50/60 Hz HID-AV DALI C 70 /P CDM 220 -240 V 50/60 Hz 12 NC 913700647066 913700647166 913700647266 Sept 2011 EOC 872790088430200 872790094400600 871829115805900 13
MASTERColour CDM-T/TC Elite Light Boost 70 W FAQ’s Which gears can be used with the Elite Light Boost lamps? The Elite Light Boost lamps can run on 100% power on any 70 W Electronic gear. To enable the functionality of light level variation (100% - 50%) you should connect the lamps with Philips Aspira. Vision Dali gear in combination with a Dali control to adjust light levels. What happens to the lamp life time if lamps are dimmed (50% power)? We have proven that dimming Elite Light Boost lamps will have a positive effect to the lamp lifetime. This is not limitless as other factors may cause lamp failures. Can I use the same reflector as any other Elite lamp? The lamps have been designed with the same Light Center Length and are retrofit in existing luminaries. In most cases a new reflector design is not needed. When will other Wattages be introduced for Elite Light Boost? New introductions into higher Wattages are likely to be introduced end 2012, begin 2013. Sept 2011 14
