Introducing Atlas 2014 PCB insertion loss test system July 2014 V 14: 07 Copyright © Polar Instruments 2014
New Features Atlas 2014 – featuring support for SPP, SET 2 SEIL & SET 2 DIL 2 Copyright © Polar Instruments 2014
New Features Atlas 2014 introduces: • Support for SPP testing • Integrated environment for SPP / SET 2 DIL / Impedance Shortens training time. • Built in multiple waveform view • Support for 20 GHz, 30 GHz and 50 GHz sampling modules • New ergonomic ESD safe probe housings for SET 2 DIL test • Snapshot – for archiving and recreation of test results • Compliant with IPC-TM-650 2. 5. 5. 12 3 Copyright © Polar Instruments 2014
New Features Atlas 2014 v 14: 07 introduces key 2 nd gen enhancements: • Support for SPP testing with emulated IFNs • Save time – money – and increase signal / noise ratio • Effective Er and phase added to SET 2 DIL • Many SPP enhancements. • CSV Excel format result export for SPP • Compliant with IPC-TM-650 2. 5. 5. 12 4 Copyright © Polar Instruments 2014
New Features Support for SPP insertion loss measurement technique Integrated waveform view display – allows user to drill down for more detailed waveform analysis. 5 Copyright © Polar Instruments 2014
New Features New cursor function dynamic readout New cursor function provides linked readout of all active displayed results. 6 Copyright © Polar Instruments 2014

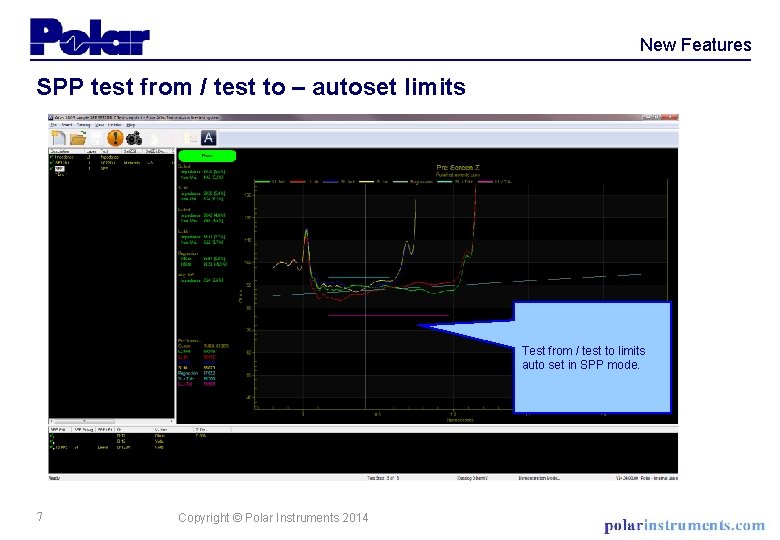

New Features SPP test from / test to – autoset limits Test from / test to limits auto set in SPP mode. 7 Copyright © Polar Instruments 2014

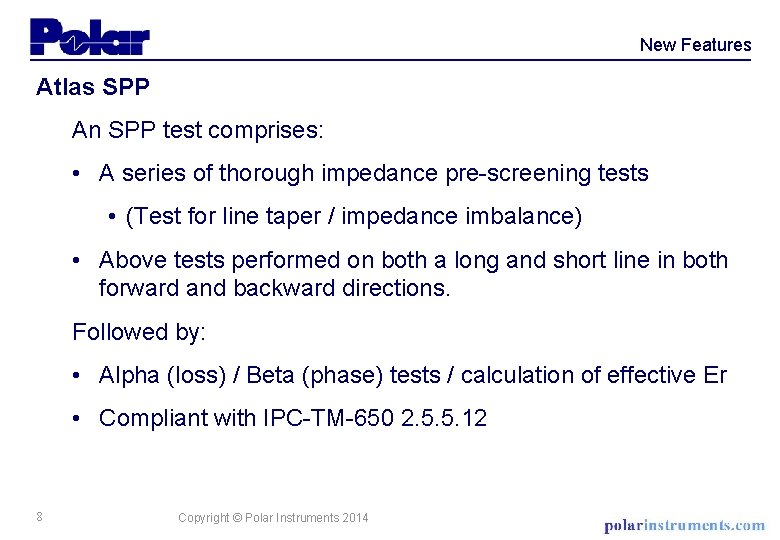

New Features Atlas SPP An SPP test comprises: • A series of thorough impedance pre-screening tests • (Test for line taper / impedance imbalance) • Above tests performed on both a long and short line in both forward and backward directions. Followed by: • Alpha (loss) / Beta (phase) tests / calculation of effective Er • Compliant with IPC-TM-650 2. 5. 5. 12 8 Copyright © Polar Instruments 2014

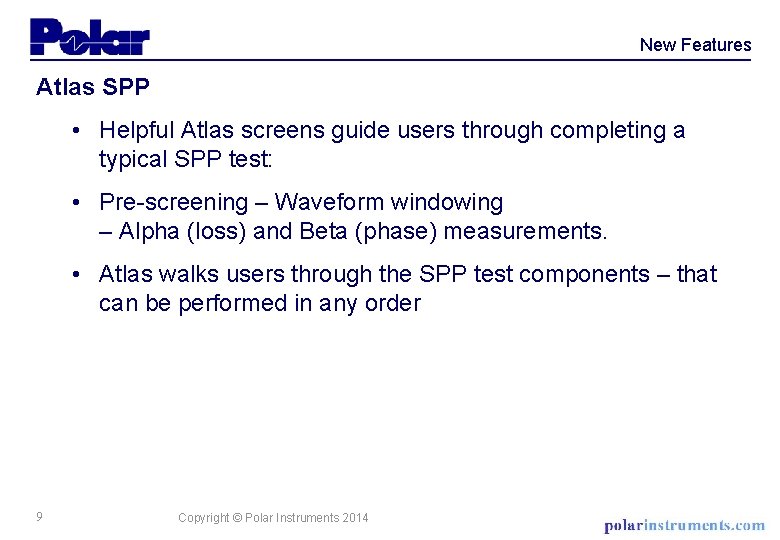

New Features Atlas SPP • Helpful Atlas screens guide users through completing a typical SPP test: • Pre-screening – Waveform windowing – Alpha (loss) and Beta (phase) measurements. • Atlas walks users through the SPP test components – that can be performed in any order 9 Copyright © Polar Instruments 2014
New Features Atlas’ helpful graphical guides lead users through SPP testing Clear on-screen instructions, tailored for both hardware and software IFNs, guide users through SPP tests, which can be completed in any order 10 Copyright © Polar Instruments 2014

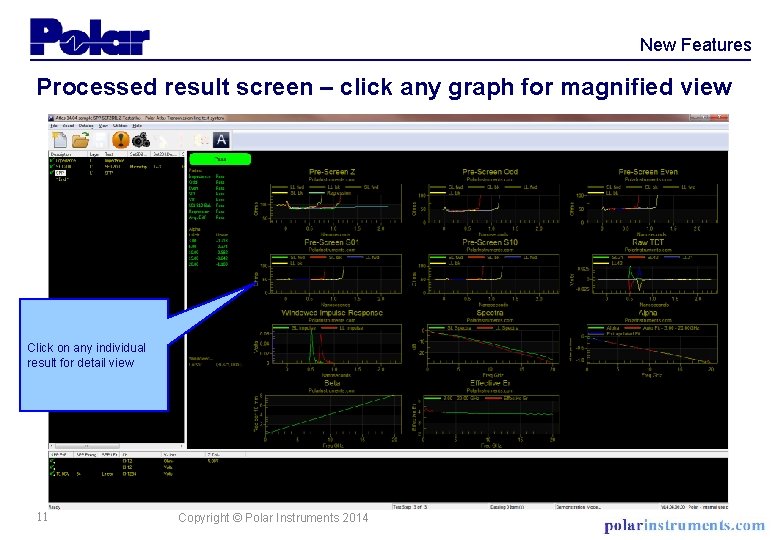

New Features Processed result screen – click any graph for magnified view Click on any individual result for detail view 11 Copyright © Polar Instruments 2014
New Features Effective Er – from v 14: 07 also on SET 2 DIL The ability to extract the phase along with an accurate knowledge of the line length allows you to calculate the effective dielectric constant at any given frequency. This result shows the typical characteristic of PCB laminates with a higher Er at low frequencies – gently sloping to a much smaller reduction in effective Er as the frequency rises. 12 Copyright © Polar Instruments 2014

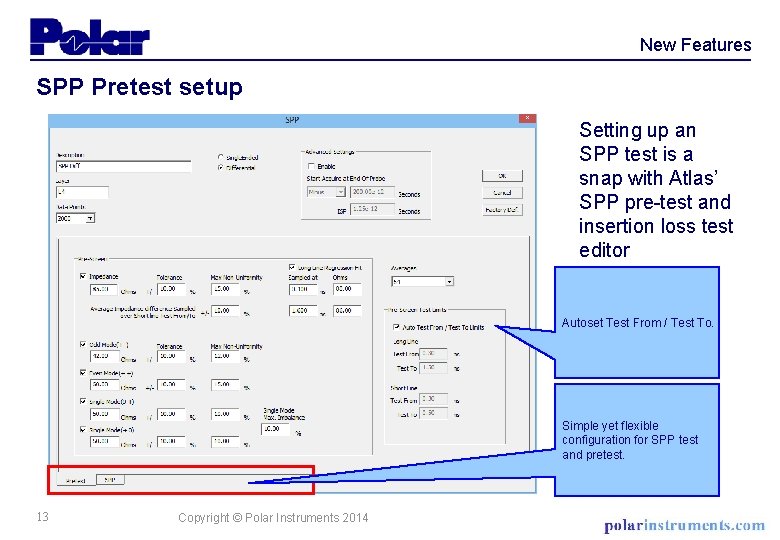

New Features SPP Pretest setup Setting up an SPP test is a snap with Atlas’ SPP pre-test and insertion loss test editor Autoset Test From / Test To. Simple yet flexible configuration for SPP test and pretest. 13 Copyright © Polar Instruments 2014
New Features SPP insertion loss setup Choose between hardware and software IFNs 14 Copyright © Polar Instruments 2014

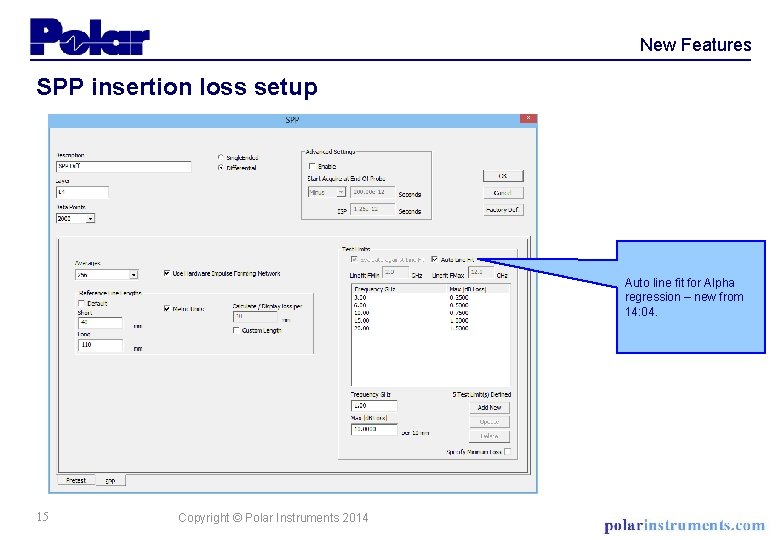

New Features SPP insertion loss setup Auto line fit for Alpha regression – new from 14: 04. 15 Copyright © Polar Instruments 2014
New Features Atlas 2014 Featuring support for SPP SET 2 SEIL & SET 2 DIL Impulse forming networks for SPP test. . 16 Copyright © Polar Instruments 2014
New Features Atlas 2014 featuring support for SPP test with emulated IFNs Software emulated IFNs. . . Improved ease of use Reduced costs Better signal / noise ratio Emulated IFNs are a unique Polar Atlas feature. 17 Copyright © Polar Instruments 2014

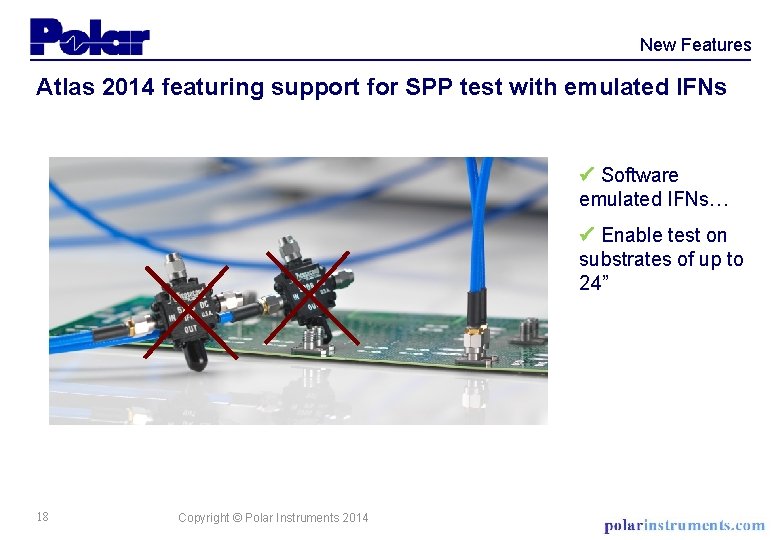

New Features Atlas 2014 featuring support for SPP test with emulated IFNs Software emulated IFNs… Enable test on substrates of up to 24” 18 Copyright © Polar Instruments 2014

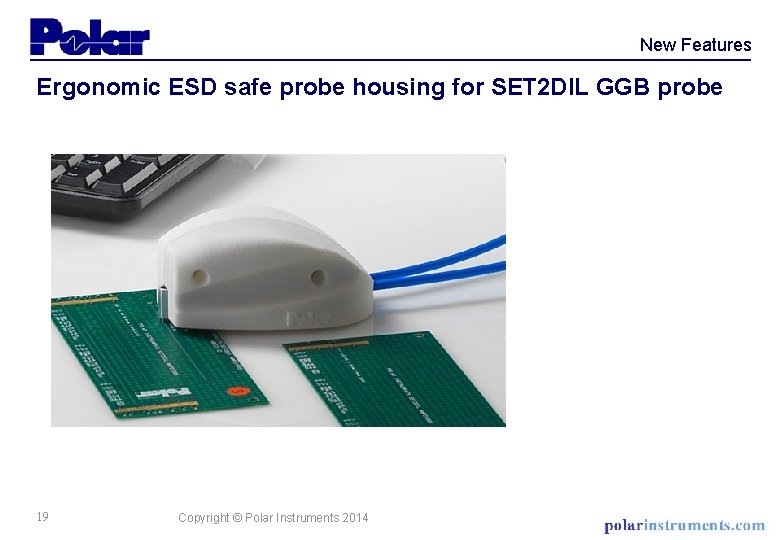

New Features Ergonomic ESD safe probe housing for SET 2 DIL GGB probe 19 Copyright © Polar Instruments 2014
New Features Atlas test snapshot facility Tests may be saved and archived as “Snapshot files” complete with full waveform data. Snapshots may be recovered at any time for future reference. 20 Copyright © Polar Instruments 2014

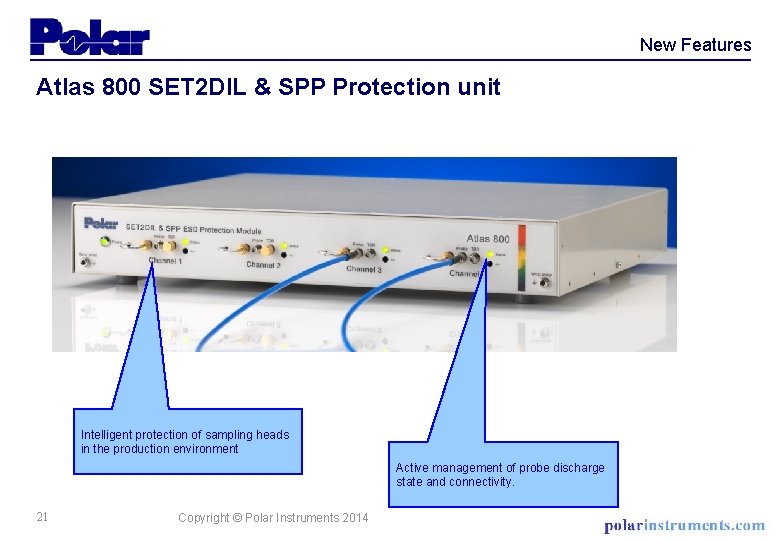

New Features Atlas 800 SET 2 DIL & SPP Protection unit Intelligent protection of sampling heads in the production environment Active management of probe discharge state and connectivity. 21 Copyright © Polar Instruments 2014
New Features Sample SPP & SET 2 DIL deskew package Sample SPP coupon. Set of 5 “known good” SET 2 DIL coupons for initial SET 2 DIL deskew 22 Copyright © Polar Instruments 2014

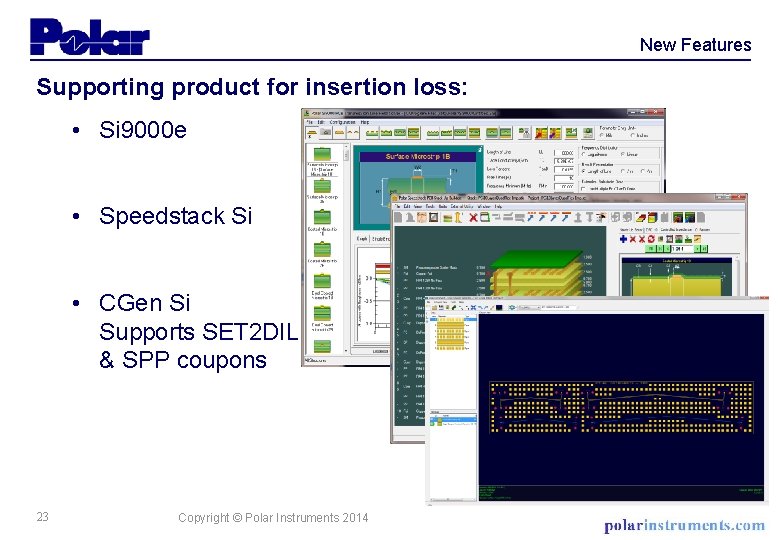

New Features Supporting product for insertion loss: • Si 9000 e • Speedstack Si • CGen Si Supports SET 2 DIL & SPP coupons 23 Copyright © Polar Instruments 2014
New Features Atlas 2014 Supporting: • SPP • SET 2 SEIL • Bidirectional SET 2 DIL • Impedance • Compatible with Tektronix DSA 8300 / DSA 8200 / TDS 8000 and 20 GHz, 30 GHz or 50 GHz TDR sampling heads. • Operates under XP / Windows 7 / Windows 8 24 Copyright © Polar Instruments 2014

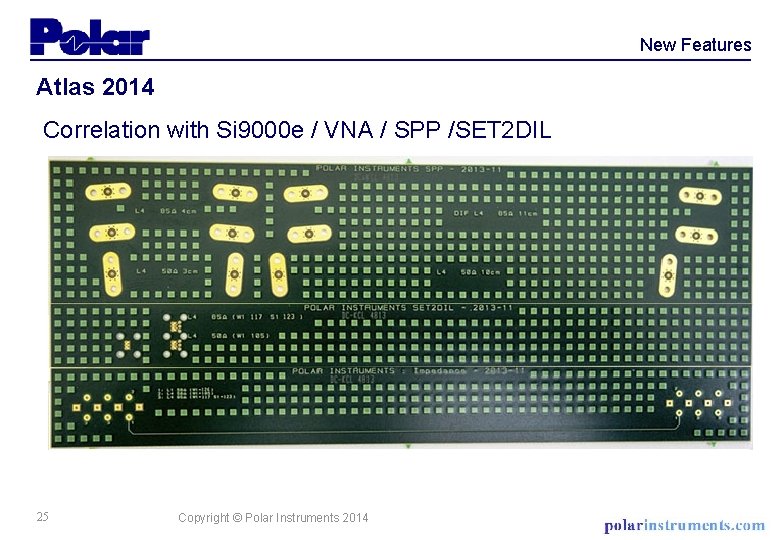

New Features Atlas 2014 Correlation with Si 9000 e / VNA / SPP /SET 2 DIL • SPP • SET 2 SEIL • Bidirectional SET 2 DIL • Impedance • Compatible with Tektronix DSA 8300 / DSA 8200 / TDS 8000 and 20 GHz, 30 GHz or 50 GHz TDR sampling heads. • Operates under XP / Windows 7 / Windows 8 25 Copyright © Polar Instruments 2014
New Features Atlas 2014 correlation with Si 9000 e / VNA / SPP /SET 2 DIL The requirement of the ATLAS insertion loss correlation study was to assess the correlation between the following single ended and differential test methods and modelling techniques: Vector Network Analyser – 4 Port Differential and 2 Port Single Ended SPP (Short Pulse Propagation) test method as specified in IPC TM-650 Test Methods Manual using Polar Instruments ATLAS Insertion Loss Test System (v 14. 04) SET 2 DIL (Single Ended TDR to Differential Insertion Loss) / SET 2 SEIL (Single Ended TDR to Single Ended Insertion Loss) as specified in IPC TM-650 Test Methods Manual using Polar Instruments ATLAS Insertion Loss Test System (v 14. 04) Polar Instruments Si 9000 e Insertion loss GHz PCB transmission line field solver – from design data and sectioning data measured with Scanning Electron Microscope (SEM) 26 Copyright © Polar Instruments 2014

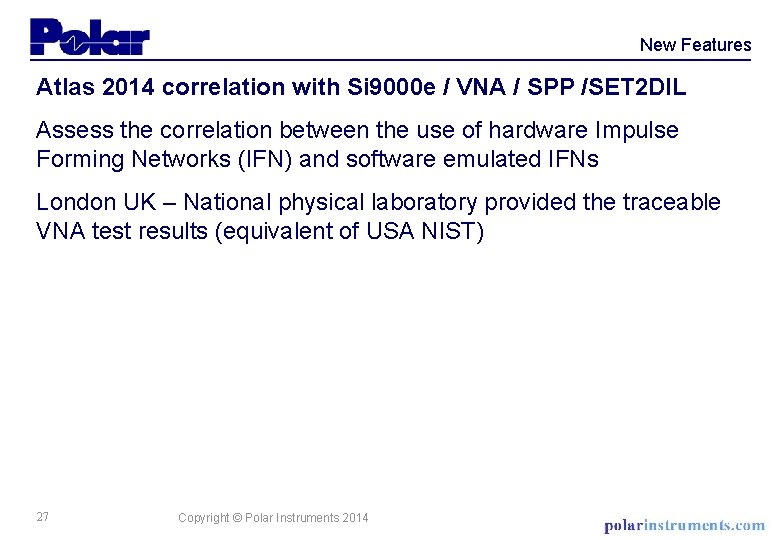

New Features Atlas 2014 correlation with Si 9000 e / VNA / SPP /SET 2 DIL Assess the correlation between the use of hardware Impulse Forming Networks (IFN) and software emulated IFNs London UK – National physical laboratory provided the traceable VNA test results (equivalent of USA NIST) 27 Copyright © Polar Instruments 2014

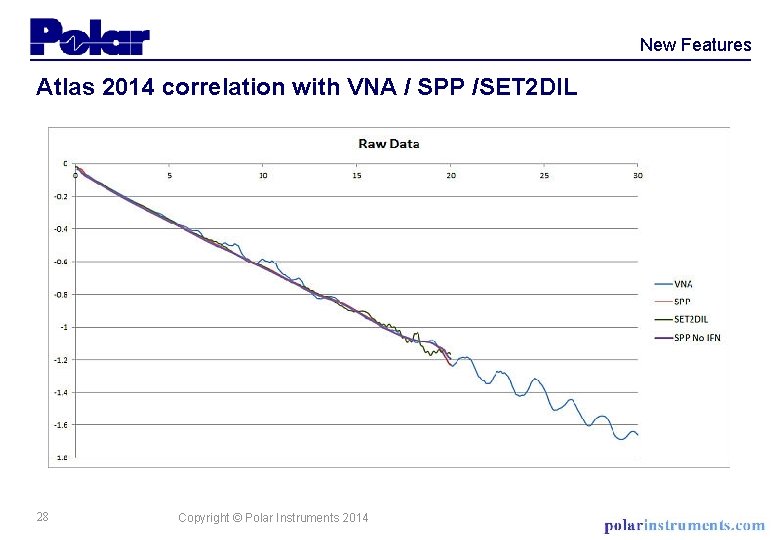

New Features Atlas 2014 correlation with VNA / SPP /SET 2 DIL • SPP • SET 2 SEIL • Bidirectional SET 2 DIL • Impedance • Compatible with Tektronix DSA 8300 / DSA 8200 / TDS 8000 and 20 GHz, 30 GHz or 50 GHz TDR sampling heads. • Operates under XP / Windows 7 / Windows 8 28 Copyright © Polar Instruments 2014

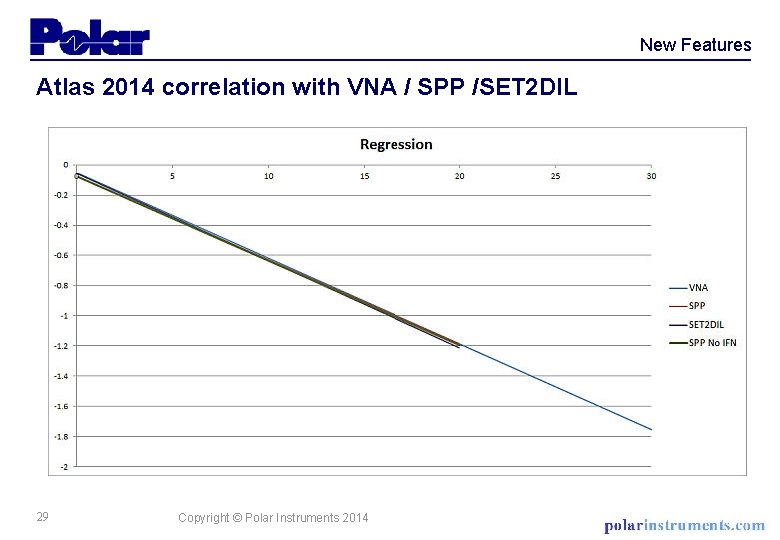

New Features Atlas 2014 correlation with VNA / SPP /SET 2 DIL • SPP • SET 2 SEIL • Bidirectional SET 2 DIL • Impedance • Compatible with Tektronix DSA 8300 / DSA 8200 / TDS 8000 and 20 GHz, 30 GHz or 50 GHz TDR sampling heads. • Operates under XP / Windows 7 / Windows 8 29 Copyright © Polar Instruments 2014
New Features Atlas 2014 correlation with Si 9000 e / VNA / SPP /SET 2 DIL Conclusion: The charts of combined data show that up to the measured bandwidth of 20 GHz the correlation between VNA, SPP and SET 2 DIL is excellent. Application note AP 8186 gives more information www. polarinstruments. com/support/si/AP 8186. html 30 Copyright © Polar Instruments 2014
Thank you Copyright © Polar Instruments 2014

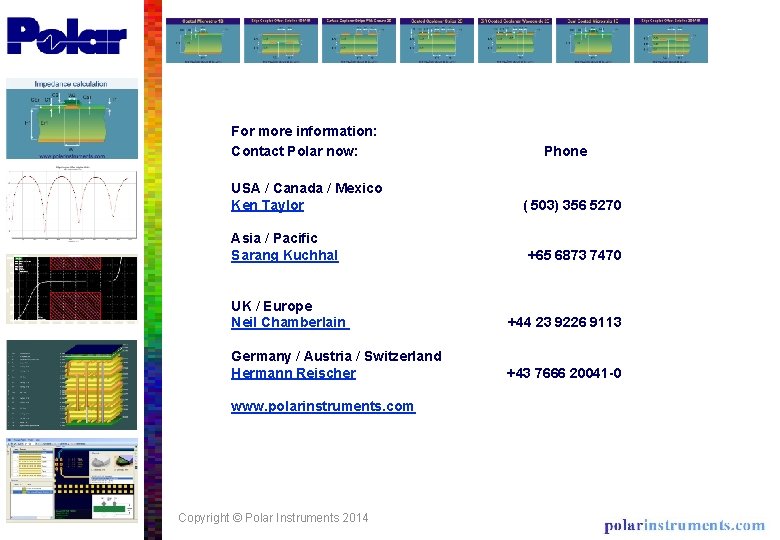

For more information: Contact Polar now: USA / Canada / Mexico Ken Taylor Asia / Pacific Sarang Kuchhal Phone ( 503) 356 5270 +65 6873 7470 UK / Europe Neil Chamberlain +44 23 9226 9113 Germany / Austria / Switzerland Hermann Reischer +43 7666 20041 -0 www. polarinstruments. com Copyright © Polar Instruments 2014
