Introducing an Integrated Marine Observing System for Australia
![Introducing an Integrated Marine Observing System for Australia (IMOS) Gary Meyers (IMOS Director) and Introducing an Integrated Marine Observing System for Australia (IMOS) Gary Meyers (IMOS Director) and](https://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-1.jpg)
Introducing an Integrated Marine Observing System for Australia (IMOS) Gary Meyers (IMOS Director) and John Middleton (SAIMOS).
![IMOS Strategic Goal Assemble and provide free, open and timely access to streams of IMOS Strategic Goal Assemble and provide free, open and timely access to streams of](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-2.jpg)
IMOS Strategic Goal Assemble and provide free, open and timely access to streams of data that support research on • The role of the oceans in the climate system • The interaction between major boundary currents and shelf environments and ecosystems And in the longer term • Supports policy development, management of marine and terrestrial climate impacts and adaptation by industries
![IMOS Funding: • $50 M cash from Commonwealth • Additional $40 M cash and IMOS Funding: • $50 M cash from Commonwealth • Additional $40 M cash and](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-3.jpg)
IMOS Funding: • $50 M cash from Commonwealth • Additional $40 M cash and in-kind support from marine agencies around Australia IMOS Development: • National Science Plan priorities workshopped in 2006 • Local science plans (with equipment needs) developed • Envelopes for equipment allocations developed • Agreement of who runs what facilities and what “nodes” are allocated facilities. • Plan strongly supported and funded by Aust. Govt. National Collaborative Research Infrastructure Strategy
![IMOS— 5 Nodes and 11 Facilities Goals: onshore-offshore interaction, climate impacts GBROOS WAIMOS SAIMOS IMOS— 5 Nodes and 11 Facilities Goals: onshore-offshore interaction, climate impacts GBROOS WAIMOS SAIMOS](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-4.jpg)
IMOS— 5 Nodes and 11 Facilities Goals: onshore-offshore interaction, climate impacts GBROOS WAIMOS SAIMOS NSWIMOS
![Water depth 110 m Met Station National Reference Stations Communications via acoustic modem ADCP Water depth 110 m Met Station National Reference Stations Communications via acoustic modem ADCP](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-5.jpg)
Water depth 110 m Met Station National Reference Stations Communications via acoustic modem ADCP Key components: Real Time Data sent via satellite 2 x CTDs 1 x ADCP (SAIMOS, NSWIMOS only) 1 x Surface Meteorological Station
![Reference Stations RS RS Reference Stations RS RS](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-6.jpg)
Reference Stations RS RS
![National Reference Station - Monthly Biogeochemical Sampling 1. 2. Carbon Parameters: Dissolved Inorganic Carbon, National Reference Station - Monthly Biogeochemical Sampling 1. 2. Carbon Parameters: Dissolved Inorganic Carbon,](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-7.jpg)
National Reference Station - Monthly Biogeochemical Sampling 1. 2. Carbon Parameters: Dissolved Inorganic Carbon, Alkalinity Hydrochemical parameters: Nitrate/nitrite, silicate, phosphate, salinity 3. Biological parameters: Phytoplankton: pigment composition, microscopy, genetic composition, total suspended solids Flow cytometry (population size, physical and chemical composition) Zooplankton: dry Weights, community composition, genetic composition Physical/profiling instrument measurements: CTD with capabilities for: Temperature, Pressure (depths), Conductivity, Fluorescence, Light (PAR), Turbidity, Dissolved Oxygen 4.
![Aust. Coastal Ocean RADAR Network – six systems (WERA&CODAR) WERA Installation Radar is back Aust. Coastal Ocean RADAR Network – six systems (WERA&CODAR) WERA Installation Radar is back](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-8.jpg)
Aust. Coastal Ocean RADAR Network – six systems (WERA&CODAR) WERA Installation Radar is back reflected by ocean waves. The Doppler shift in Radar frequencies enables surface currents and other variables to be measured.
![HF Ocean RADAR Example From South Carolina Live current measurements every 30 minutes from HF Ocean RADAR Example From South Carolina Live current measurements every 30 minutes from](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-9.jpg)
HF Ocean RADAR Example From South Carolina Live current measurements every 30 minutes from the WERA system off South Carolina (US). Strong North. East Velocities associated with the Gulf Stream are clearly visible Note: range is better during day
![Aust. National Facility for Ocean Gliders 8 gliders (Slocum and deep) Aust. National Facility for Ocean Gliders 8 gliders (Slocum and deep)](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-10.jpg)
Aust. National Facility for Ocean Gliders 8 gliders (Slocum and deep)
![Glider Cross-Section: Temperature Off Perth Play Movie Glider Cross-Section: Temperature Off Perth Play Movie](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-11.jpg)
Glider Cross-Section: Temperature Off Perth Play Movie
![Other IMOS observing systems Passive acoustic listening for sea-floor slumps, Antarctic Ice collapse and Other IMOS observing systems Passive acoustic listening for sea-floor slumps, Antarctic Ice collapse and](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-12.jpg)

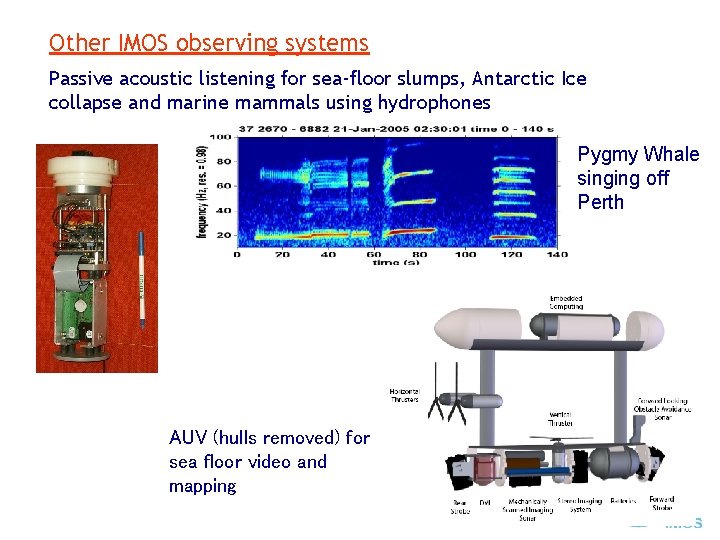

Other IMOS observing systems Passive acoustic listening for sea-floor slumps, Antarctic Ice collapse and marine mammals using hydrophones Pygmy Whale singing off Perth AUV (hulls removed) for sea floor video and mapping
![Moorings detect tagged fish < 1 km 6 month service to obtain data Tagged Moorings detect tagged fish < 1 km 6 month service to obtain data Tagged](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-13.jpg)
Moorings detect tagged fish < 1 km 6 month service to obtain data Tagged Fish: AATAMS and community receivers SAIMOS Glenelg 10 moorings Portland 31 moorings
![Bluewater Node: Major research questions: • What is the role of the ocean in Bluewater Node: Major research questions: • What is the role of the ocean in](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-14.jpg)
Bluewater Node: Major research questions: • What is the role of the ocean in weather, climate variability and change? • What role does the ocean play in setting atmospheric carbon levels? • Where and how does ocean and climate variability impact on pelagic ecosystems, their productivity and fisheries? • How do large-scale offshore changes affect our coastal environment and ecosystems? • Is there predictability in the system and where? On what timescales? Tools • ARGO Floats • Ships of Opportunity • Satellites • S. O. Mooring
![IMOS Argo • 50 T/S Argo floats per year (assuming a continuation of existing IMOS Argo • 50 T/S Argo floats per year (assuming a continuation of existing](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-15.jpg)
IMOS Argo • 50 T/S Argo floats per year (assuming a continuation of existing contributions from AGO, CSIRO and Bo. M)
![Implementation Implementation](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-16.jpg)
Implementation
![West Australian IMOS • • • Leeuwin Current eddies and their interaction with the West Australian IMOS • • • Leeuwin Current eddies and their interaction with the](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-17.jpg)
West Australian IMOS • • • Leeuwin Current eddies and their interaction with the shelf waters. Western Rock lobster recruitment The Perth Canyon – highest biodiversity with whale and fish aggregations, high primary and secondary production which are controlled by the physical Leeuwin Current oceanographic processes 0 200 km Jurien Bay Perth Canyon Leeuwin UC Rottnest Island
![Southern Australian IMOS - cross shelf exchange/ecosystems • Summer: • Upwelling - Deep cold, Southern Australian IMOS - cross shelf exchange/ecosystems • Summer: • Upwelling - Deep cold,](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-18.jpg)
Southern Australian IMOS - cross shelf exchange/ecosystems • Summer: • Upwelling - Deep cold, water is brought to surface • Mechanisms: winds • canyons • Flinders Current • Winter: • Density current outflows from gulfs and coast Sea Surface Temperature from satellite measurements
![Planned SAIMOS Infrastructure: w HF Radar l Shelf/Slope Moorings l Reference Station • CTD Planned SAIMOS Infrastructure: w HF Radar l Shelf/Slope Moorings l Reference Station • CTD](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-19.jpg)

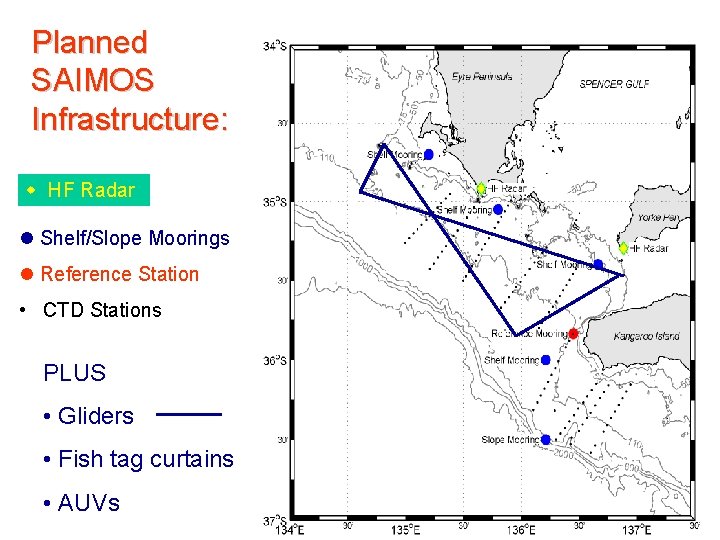

Planned SAIMOS Infrastructure: w HF Radar l Shelf/Slope Moorings l Reference Station • CTD Stations PLUS • Gliders • Fish tag curtains • AUVs
![NSW IMOS – The EAC and upwelling: Oke & Middleton 02 NSW IMOS – The EAC and upwelling: Oke & Middleton 02](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-20.jpg)
NSW IMOS – The EAC and upwelling: Oke & Middleton 02
![Mean sea surface temperature (deg C) Climate change (East Coast, Tasmania) … Mean surface Mean sea surface temperature (deg C) Climate change (East Coast, Tasmania) … Mean surface](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-21.jpg)
Mean sea surface temperature (deg C) Climate change (East Coast, Tasmania) … Mean surface salinity (ppt) After Hill et al. 2007
![Great Barrier Reef Ocean Observing System GBROOS Issues for GBR function and health ØConnectivity Great Barrier Reef Ocean Observing System GBROOS Issues for GBR function and health ØConnectivity](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-22.jpg)
Great Barrier Reef Ocean Observing System GBROOS Issues for GBR function and health ØConnectivity (currents) ØProductivity (upwelling) ØCoral bleaching (temperature) ØCoral calcification (carbonate chemistry)
![SEC = South Equatorial Current EAC = East Australian Current SEC Coral Sea mooring SEC = South Equatorial Current EAC = East Australian Current SEC Coral Sea mooring](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-23.jpg)
SEC = South Equatorial Current EAC = East Australian Current SEC Coral Sea mooring (1) Slope moorings (4) Shelf mooring (1) Oceanographic buoys (3) Temp/Salinity Flow Light & heat fluxes Island Research Stations (4) Reef towers (3) HF Radar Chlorophyll Turbidity Particulate carbon Local variables (sensor networks) EAC
![Planned IMOS Coastal Deployments G R A A Planned IMOS Coastal Deployments G R A A](http://slidetodoc.com/presentation_image/1767acdca39892c07ad703d6f60feb94/image-24.jpg)
Planned IMOS Coastal Deployments G R A A
