Introducing 32 -bit MSP 432™ microcontrollers: Low-power at its best; performance at its core Webinar Mione Plant, MSP Marketing Dung Dang, MSP Applications TI Confidential – Maximum Restrictions

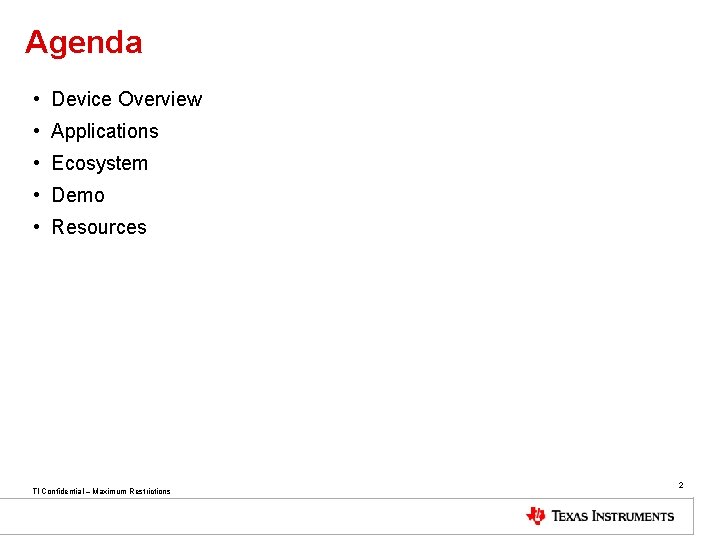

Agenda • Device Overview • Applications • Ecosystem • Demo • Resources TI Confidential – Maximum Restrictions 2

Device Overview TI Confidential – Maximum Restrictions 3

INDUSTRY DILEMMA: DESIGNING PRODUCTS WITH MORE FEATURES AND LESS POWER Developers are challenged to pack more performance into devices TI Confidential – Maximum Restrictions 4

INTRODUCING MSP 432™ MCUs: LOW-POWER AT ITS BEST; PERFORMANCE AT ITS CORE MORE PERFORMANCE FOR MSP 430™ DEVELOPERS Advance to higher levels of computing and analog performance, while maximizing your ultra-low-power MSP 430 MCU investment and expertise LOWER POWER FOR ARM ® DEVELOPERS Slash power consumption and boost performance with the world’s lowest power Cortex®-M 4 F microcontroller NO COMPROMISES Get low-power and performance with a scalable portfolio of 16 -bit and 32 -bit MSP microcontrollers in a variety of applications TI Confidential – Maximum Restrictions 5

MSP 432™ MCUs: PERFORMANCE AT ITS CORE MSP 432 MCU Selecting the highperformance ARM® Cortex®-M 4 F core Highest Coremark score: 3. 41/MHz 48 MHz ARM® Cortex®-M 4 F • Full ARM instruction set • DSP extensions • FPU engine Wide voltage range: 1. 62 -3. 7 V Integrated LDO & DC/DC Selectable RAM retention Independent flash banks Driver. Lib in-ROM Industry-leading ultra-low-power • Active power: 95 μA per MHz 128 -bit Flash buffer & pre-fetch 14 -bit ADC 8 -channel DMA • Sleep mode: 850 n. A (with RTC) NVIC with tail-chaining • ULPBench score: 167. 4 Peripheral & SRAM memory bit-band Incorporating high-performance peripherals and features • Simultaneously read and erase from flash • Execute up to 200% faster with Driver. Lib in ROM vs. Flash • 14 -bit 1 MSPS ADC with 13. 2 ENOB, differential mode & 2 window comparators TI Confidential – Maximum Restrictions 6

MSP 432™ MCUs: LOW-POWER AT ITS BEST MSP 432 MCU 48 MHz ARM® Cortex®-M 4 F • Full ARM instruction set • DSP extensions • FPU engine Wide voltage range: 1. 62 -3. 7 V Integrated LDO & DC/DC Selectable RAM retention Independent flash banks Driver Lib in-ROM Optimizing the architecture for ultra-low power Industry-leading ultra-low-power Industry’s lowest power ARM Cortex-M 4 F MCU • Sleep mode: 850 n. A (with RTC) NVIC with tail-chaining • ULPBench score: 167. 4 Peripheral & SRAM memory bit-band TI Confidential – Maximum Restrictions • Active power: 95 μA per MHz 128 -bit Flash buffer & pre-fetch 14 -bit ADC 8 channel DMA Optimizing peripherals for ultra-low power • Save 40% more power with the integrated DC/DC vs. LDO • Save 30 n. A per RAM bank with selectable RAM retention • Consume minimal power (375 u. A) when sampling sensors at 1 MSPS with 14 -bit ADC • Driver. Lib in ROM consumes up to 35% less power than Flash 7

MSP 432™ MCUs: INDUSTRY’S LOWEST POWER ARM® CORTEX®-M 4 F EEMBC’s ULPBench provides a true comparison of microcontroller current consumption and efficiency. MSP 432 MCUs: 35% better ULPBench Scores 160 167. 4 143. 6 123. 5 119 120 80 MSP MCUs: 80 72 68. 7 Industry’s lowest power 40 I) (T 43 2 SP M C C 26 40 P M 16 -bit MCUs and 32 -bit Cortex-M 4 F MCUs. M SP 43 C O 59 0 F R (T I) A I) (T B P M O C O M P D C 0 C score than closest Cortex-M 4 F competitor. TI Confidential – Maximum Restrictions See for yourself: www. eembc. org/ulpbench 8

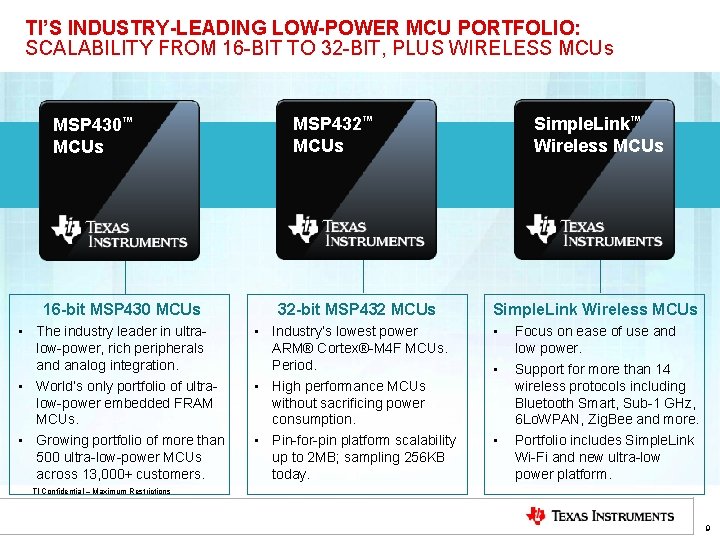

TI’S INDUSTRY-LEADING LOW-POWER MCU PORTFOLIO: SCALABILITY FROM 16 -BIT TO 32 -BIT, PLUS WIRELESS MCUs MSP 430™ MCUs Simple. Link™ Wireless MCUs MSP 432™ MCUs 16 -bit MSP 430 MCUs 32 -bit MSP 432 MCUs • The industry leader in ultralow-power, rich peripherals and analog integration. • World’s only portfolio of ultralow-power embedded FRAM MCUs. • Growing portfolio of more than 500 ultra-low-power MCUs across 13, 000+ customers. • Industry’s lowest power ARM® Cortex®-M 4 F MCUs. Period. • High performance MCUs without sacrificing power consumption. • Pin-for-pin platform scalability up to 2 MB; sampling 256 KB today. Simple. Link Wireless MCUs • • • Focus on ease of use and low power. Support for more than 14 wireless protocols including Bluetooth Smart, Sub-1 GHz, 6 Lo. WPAN, Zig. Bee and more. Portfolio includes Simple. Link Wi-Fi and new ultra-low power platform. TI Confidential – Maximum Restrictions 9

MAKE NO COMPROMISES WITH MSP 432™ MCUs You thought a Cortex®-M 0+ solution was the only option to stay within your power budget But you need more performance than an M 0+ or need to future-proof your product MSP 432™ MCUs – Get Cortex-M 4 F performance with similar power as an M 0+ MSP 432 MCUs • No longer low-power OR performance; developers can now have ultra-low-power AND performance • Less power per function means longer battery life • Developers can pack in more functionality without sacrificing the existing user experience TI Confidential – Maximum Restrictions 10

Applications TI Confidential – Maximum Restrictions 11

MSP 432™ MCUs: OPTIMIZED FOR INDUSTRIAL SECURITY PANEL Customers want to increase product capability with more sensors, and display data in real time, without sacrificing the portability enabled by ultra-low-power operation WHY MSP 432 MCUs? Intelligent, fast sensing • Motion sensing, proximity, fingerprint scan • Signature analysis • Fast processing from multiple serial interfaces Touch capability Ultra-low power • Keeps system power low while collecting / processing sensor data • High-performance, low-power analog enables touch capability Large amount of flash IP (code) Protection • Preserves and secures customer’s unique code and algorithms • Runs a large variety of wireless connectivity stacks INDUSTRIAL TI Confidential – Maximum Restrictions | PERSONAL ELECTRONICS | INTERNET OF THINGS 12

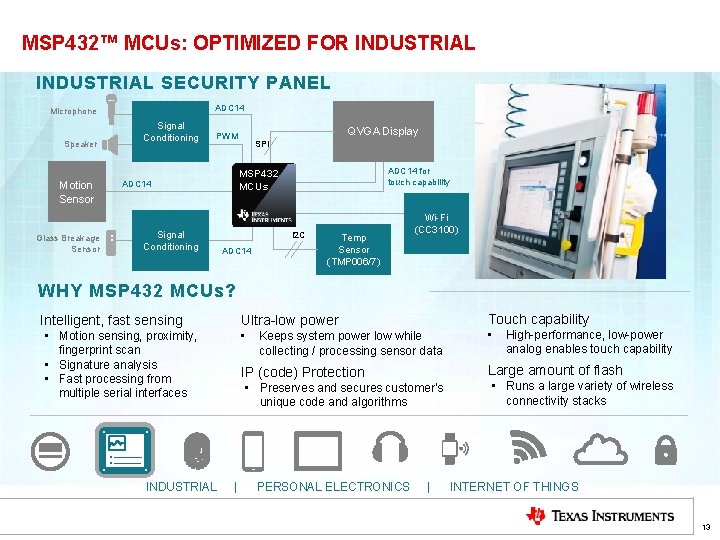

MSP 432™ MCUs: OPTIMIZED FOR INDUSTRIAL SECURITY PANEL ADC 14 Microphone Signal Conditioning Speaker . . Glass Breakage Sensor Signal Conditioning SPI ADC 14 for touch capability MSP 432 MCUs ADC 14 Motion Sensor QVGA Display PWM I 2 C ADC 14 Temp Sensor (TMP 006/7) Wi-Fi (CC 3100) WHY MSP 432 MCUs? Intelligent, fast sensing • Motion sensing, proximity, fingerprint scan • Signature analysis • Fast processing from multiple serial interfaces Touch capability Ultra-low power • Keeps system power low while collecting / processing sensor data • High-performance, low-power analog enables touch capability Large amount of flash IP (code) Protection • Preserves and secures customer’s unique code and algorithms • Runs a large variety of wireless connectivity stacks INDUSTRIAL TI Confidential – Maximum Restrictions | PERSONAL ELECTRONICS | INTERNET OF THINGS 13

MSP 432™ MCUs: OPTIMIZED FOR PERSONAL ELECTRONICS WHY MSP 432 MCUs? SMART WATCH High performance (48 MHz) • Quickly process changes in distance, heart rate, calories • 48 MHz single-cycle RAM access • Leverage extensive ARM ecosystem Typical requirements include high performance, High RAM size (64 KB) • Update LCD or dot matrix array displays in real time fast display refresh, Ultra-low power sensor data acquisition, • Ultra-low-power ADC and peripherals provide days/weeks of power and days/weeks use Flexible flash before recharging • Independent banks allow simultaneous program read & erase 3. 7 V 1. 62 V Wide voltage range 1. 62 -3. 7 V • Enables 1. 8 V± 10% operation for application processors and sensors • Extends support for higher voltage batteries (e. g. 3. 7 V Li-ion) INDUSTRIAL TI Confidential – Maximum Restrictions | PERSONAL ELECTRONICS | INTERNET OF THINGS 14

MSP 432™ MCUs: OPTIMIZED FOR PERSONAL ELECTRONICS WHY MSP 432 MCUs? SMART WATCH High performance (48 MHz) OLED / LCD display 144 x 144 resolution Touchscreen Controller • Quickly process changes in distance, heart rate, calories • 48 MHz single-cycle RAM access • Leverage extensive ARM ecosystem SPI / MIPI SPI Rechargeable Battery 150– 400 m. A/hr MSP 432 MCUs PMIC DC/DC High RAM size (64 KB) SPI • Update LCD or dot matrix array displays in real time Wi-Fi or BLE Ultra-low power • Ultra-low-power ADC and peripherals provide days/weeks of power Charge Control SPI Gas Gauge Flexible flash GPS • Independent banks allow simultaneous program read & erase I 2 C 3. 7 V 1. 62 V USB / Inductive charging OHRM AFE 9 -Axis MEM’s Wide voltage range 1. 62 -3. 7 V • Enables 1. 8 V± 10% operation for application processors and sensors • Extends support for higher voltage batteries (e. g. 3. 7 V Li-ion) Sounder INDUSTRIAL TI Confidential – Maximum Restrictions | PERSONAL ELECTRONICS | INTERNET OF THINGS 15

MSP MCUs: INDUSTRY'S LOWEST POWER MICROCONTROLLERS MSP 432™ MCUs: LOW-POWER AT ITS BEST; PERFORMANCE AT ITS CORE MCU MCU GROWING 16 - AND 32 -BIT PORTFOLIOS, INCLUDING ULTRA-LOW POWER FRAM MCUs GET STARTED WITH MSP 432 MCU DEVELOPMENT TODAY TI Confidential – Maximum Restrictions 16

Ecosystem TI Confidential – Maximum Restrictions 17

MSP Platform Portability Hardware Software Development Tools Development Kits MSP 16 -bit core MSPWare CCS IDE Launch. Pad IAR IDE Booster. Packs MSP 430 Modules ARM M 4 F 32 -bit core MSP 432 www. ti. com/lit/pdf/slaa 656 Register. Level Driver Library 430 GCC Libraries ULP Tools: ULP Advisor & Energy. Trace Intrinsics & Interrupts MSP Debugger RTOSs BSL Target Board MSPWare Register. Level Driver Library New MSP 432 Modules 430 ARM Modules 432 ARM Libraries Intrinsics & Interrupts TI Confidential – Maximum Restrictions Energia CMSIS Keil ULP Tools: ULP Advisor & Energy. Trace+ Same as MSP 430 New for MSP 432 Slight modifications from MSP 430

Get started with the MSP 432 Launch. Pad Develop high performance applications that benefit from low power operation Features • • • Low-power, high performance MSP 432 P 401 R MCU 40 pin Booster. Pack Connector, and support for 20 pin Booster. Packs Onboard XDS-110 ET emulator featuring Energy. Trace+ Technology 2 buttons and 2 LEDs for User Interaction Back-channel UART via USB to PC Kit Includes • Development board with demo application • USB cable • Quick start guide Software • MSPWare featuring example code, User’s Guides, Application notes, training, and more • Out-of-box Launch. Pad GUI TI Confidential – Maximum Restrictions MSP-EXP 432 P 401 R $12. 99 https: //store. ti. com/msp-exp 432 p 401 r. aspx

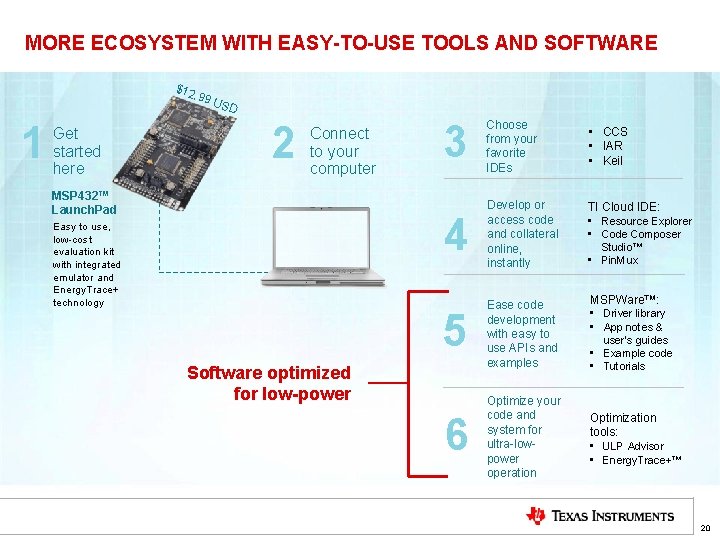

MORE ECOSYSTEM WITH EASY-TO-USE TOOLS AND SOFTWARE $12 . 99 1 Get started here USD 2 Connect to your computer MSP 432™ Launch. Pad Easy to use, low-cost evaluation kit with integrated emulator and Energy. Trace+ technology 3 Choose from your favorite IDEs 4 Develop or access code and collateral online, instantly TI Cloud IDE: • Resource Explorer • Code Composer 5 Ease code development with easy to use APIs and examples MSPWare™: • Driver library • App notes & 6 Optimize your code and system for ultra-lowpower operation Software optimized for low-power • CCS • IAR • Keil Studio™ • Pin. Mux user’s guides • Example code • Tutorials Optimization tools: • ULP Advisor • Energy. Trace+™ TI Confidential – Maximum Restrictions 20

MORE ECOSYSTEM WITH EASY-TO-USE TOOLS AND SOFTWARE 3 5 Choose from your favorite IDEs Ease code development with easy to use APIs and examples • CCS • IAR • Keil Notable Feature Free 32 KB version Advanced debugging tools C-SPY® and C-STAT CMSIS-pack Debuggers • • • XDS 110 XDS 200 Segger J-Link IAR I-jet XDS 110 Segger J-Link Keil u. Link MSPWare™ • Driver library • App notes & user’s guides • Example code • Tutorials TI Confidential – Maximum Restrictions 21

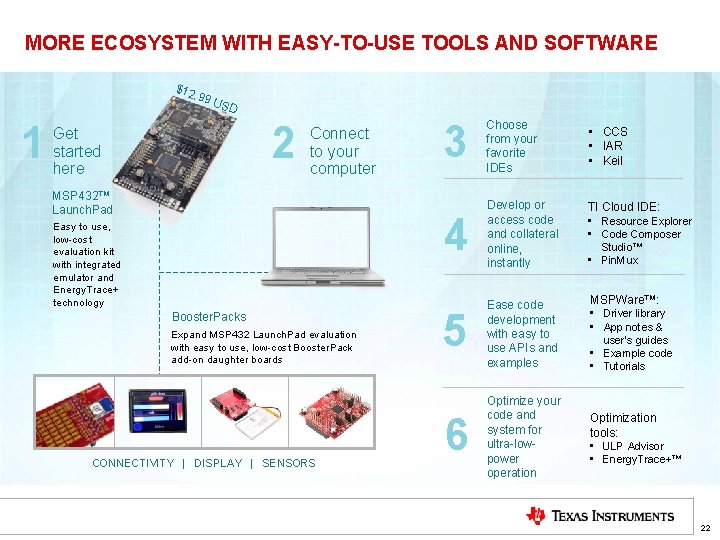

MORE ECOSYSTEM WITH EASY-TO-USE TOOLS AND SOFTWARE $12 . 99 1 USD 2 Get started here Connect to your computer MSP 432™ Launch. Pad Easy to use, low-cost evaluation kit with integrated emulator and Energy. Trace+ technology Booster. Packs Expand MSP 432 Launch. Pad evaluation with easy to use, low-cost Booster. Pack add-on daughter boards CONNECTIVITY | DISPLAY | SENSORS 3 Choose from your favorite IDEs 4 Develop or access code and collateral online, instantly TI Cloud IDE: • Resource Explorer • Code Composer 5 Ease code development with easy to use APIs and examples MSPWare™: • Driver library • App notes & 6 Optimize your code and system for ultra-lowpower operation • CCS • IAR • Keil Studio™ • Pin. Mux user’s guides • Example code • Tutorials Optimization tools: • ULP Advisor • Energy. Trace+™ TI Confidential – Maximum Restrictions 22

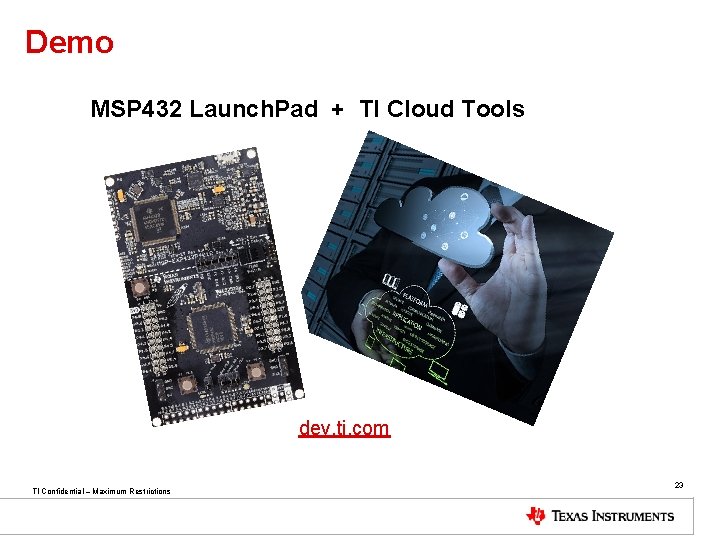

Demo MSP 432 Launch. Pad + TI Cloud Tools dev. ti. com TI Confidential – Maximum Restrictions 23

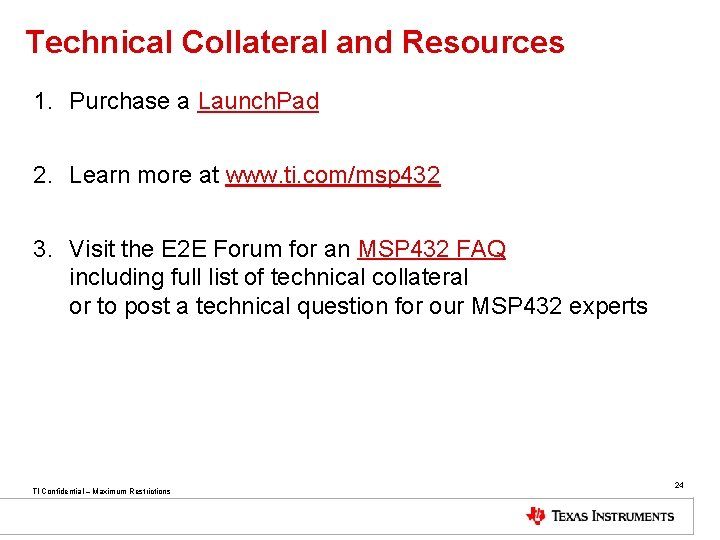

Technical Collateral and Resources 1. Purchase a Launch. Pad 2. Learn more at www. ti. com/msp 432 3. Visit the E 2 E Forum for an MSP 432 FAQ including full list of technical collateral or to post a technical question for our MSP 432 experts TI Confidential – Maximum Restrictions 24
