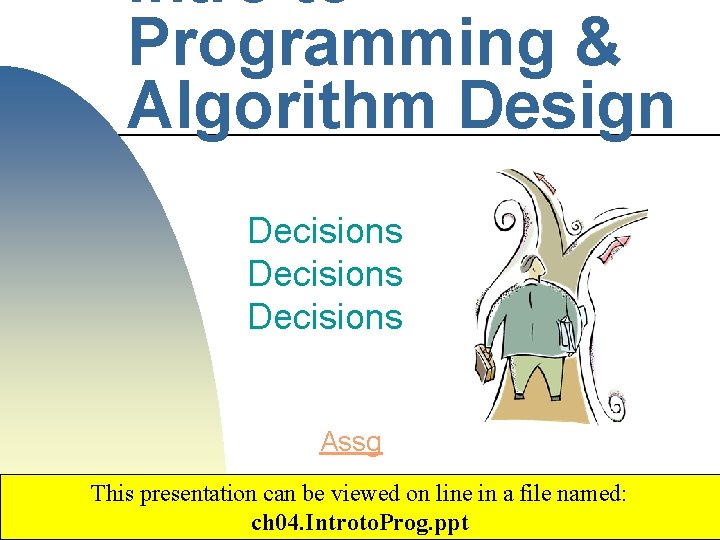

Intro to Programming Algorithm Design Decisions Assg This

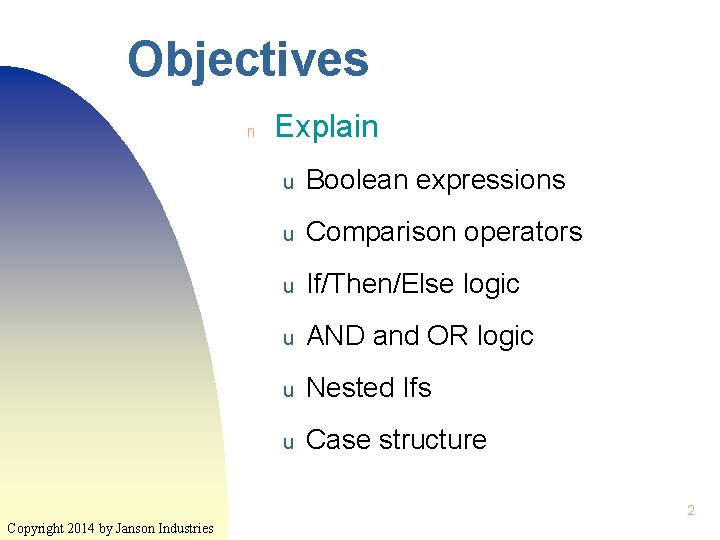

Objectives n Explain u Boolean expressions u Comparison operators u If/Then/Else logic u AND

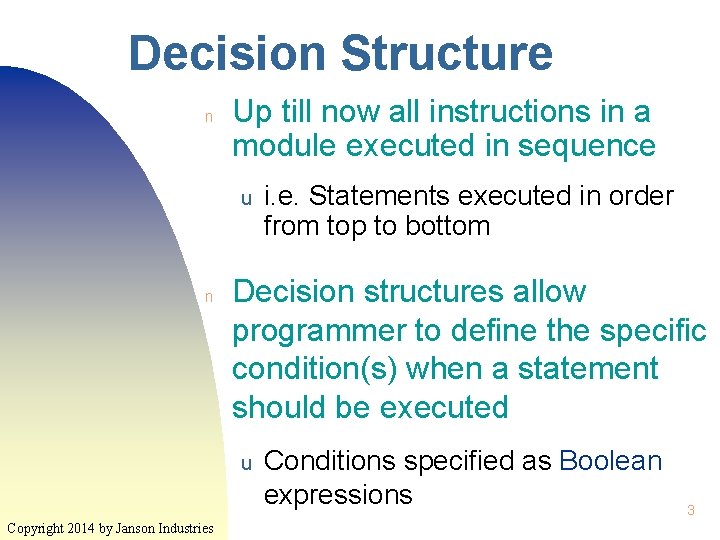

Decision Structure n Up till now all instructions in a module executed in sequence

Boolean Expression n Results in a value of true or false n Most basic

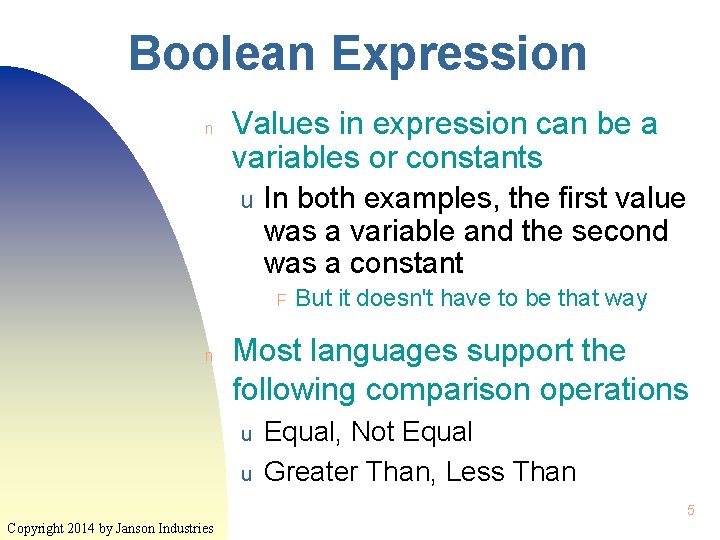

Boolean Expression n Values in expression can be a variables or constants u In

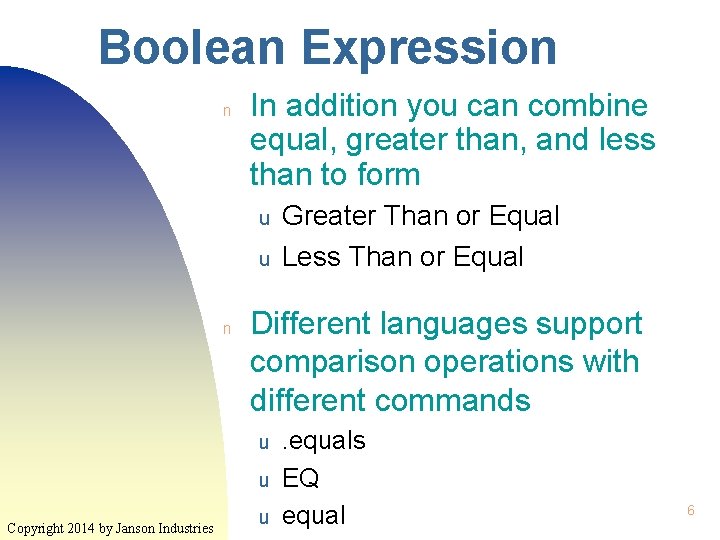

Boolean Expression n In addition you can combine equal, greater than, and less than

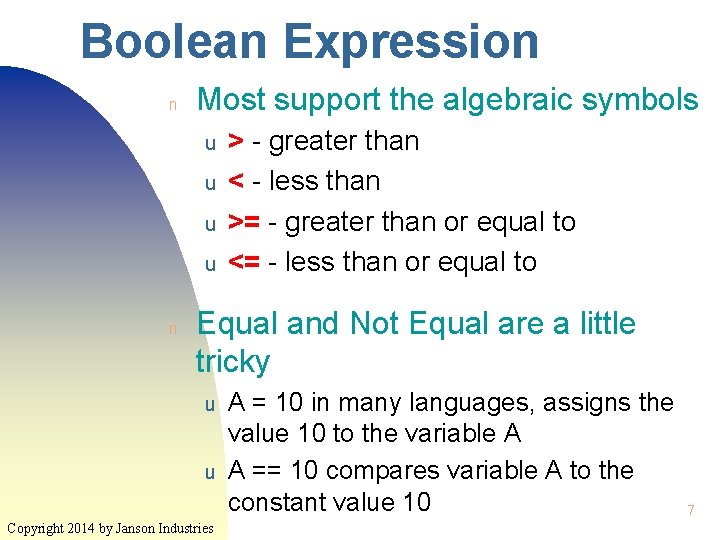

Boolean Expression n Most support the algebraic symbols u u n > - greater

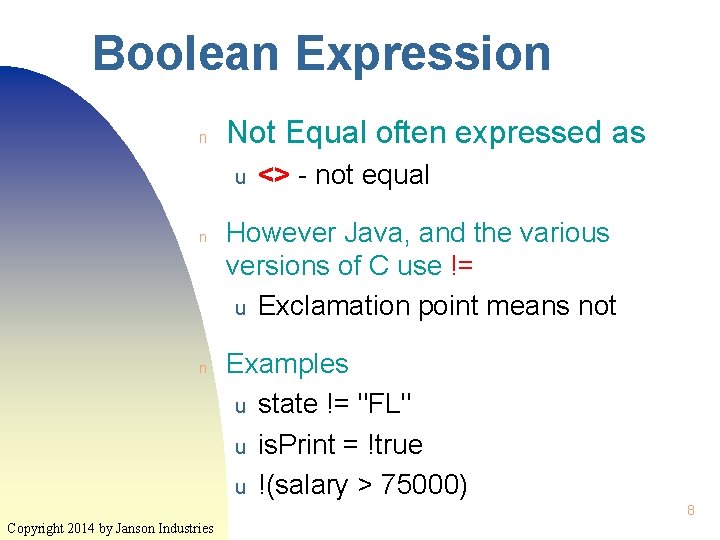

Boolean Expression n Not Equal often expressed as u n n <> - not

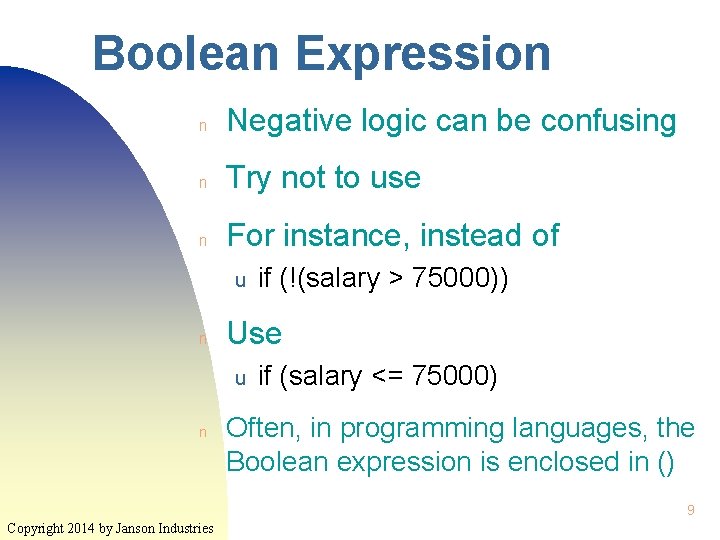

Boolean Expression n Negative logic can be confusing n Try not to use n

Boolean Expression n n However sometimes the nonnegative logic is not viable For instance,

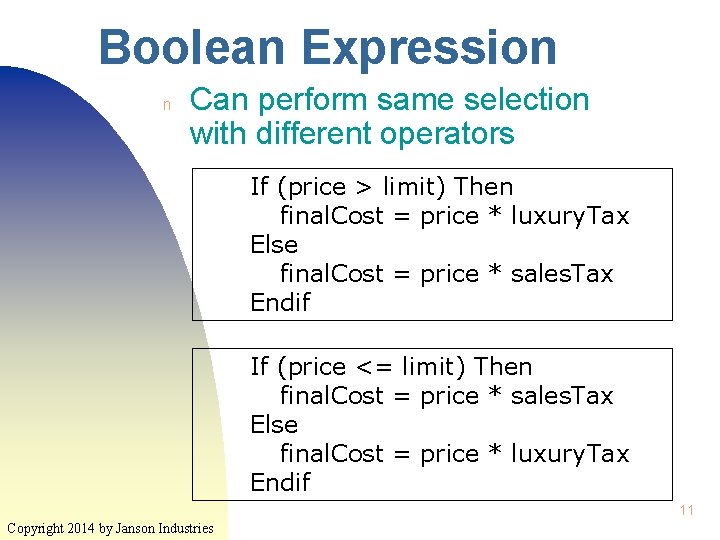

Boolean Expression n Can perform same selection with different operators If (price > limit)

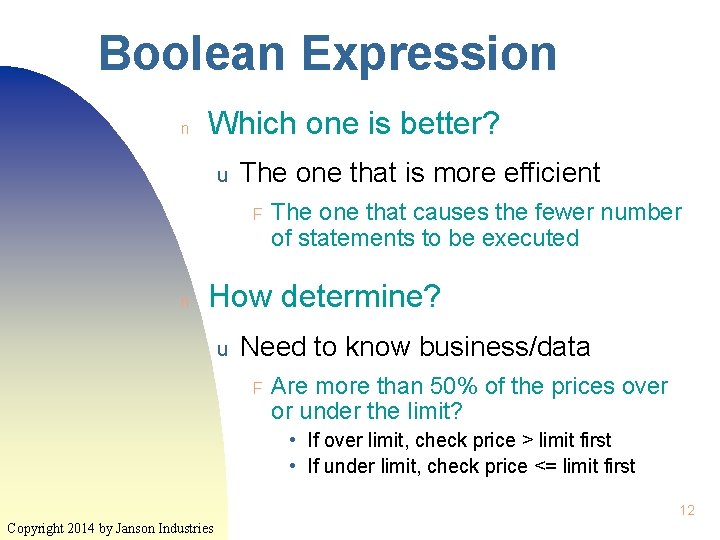

Boolean Expression n Which one is better? u The one that is more efficient

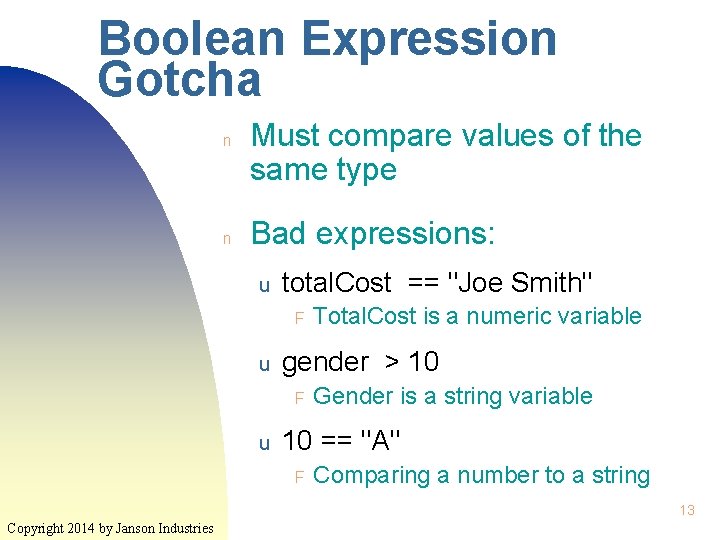

Boolean Expression Gotcha n n Must compare values of the same type Bad expressions:

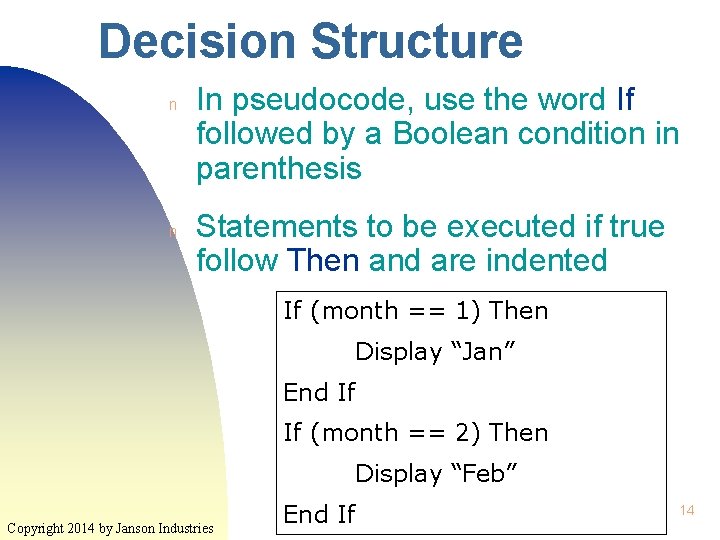

Decision Structure n n In pseudocode, use the word If followed by a Boolean

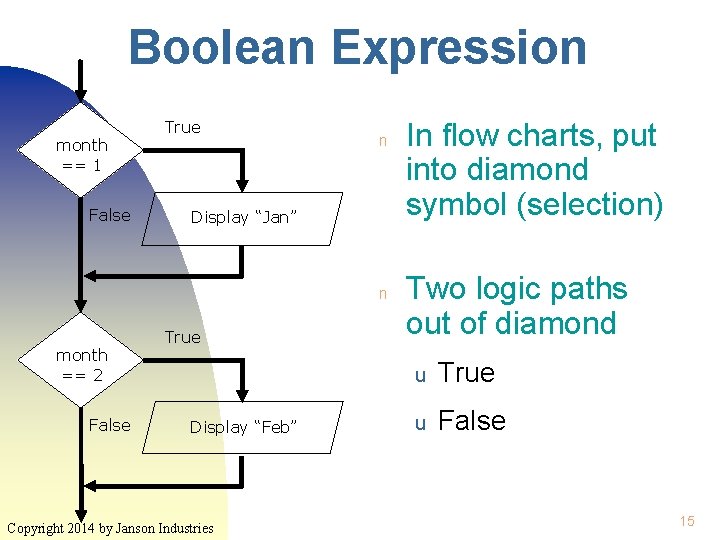

Boolean Expression month == 1 False True n Display “Jan” n month == 2

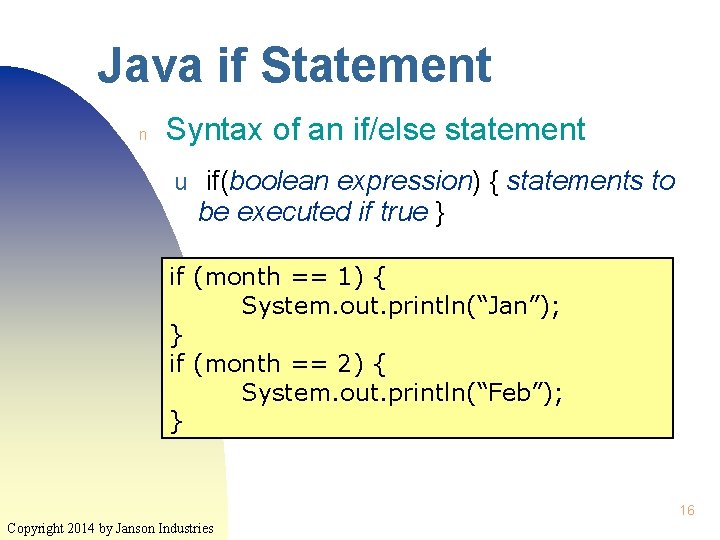

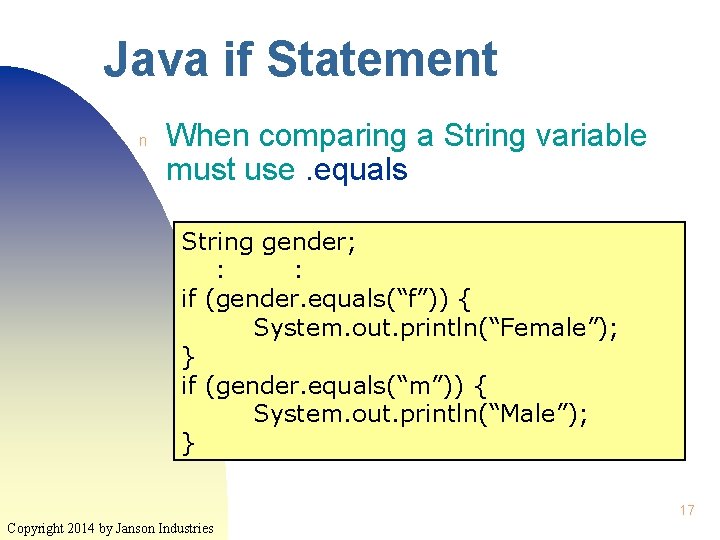

Java if Statement n Syntax of an if/else statement u if(boolean expression) { statements

Java if Statement n When comparing a String variable must use. equals String gender;

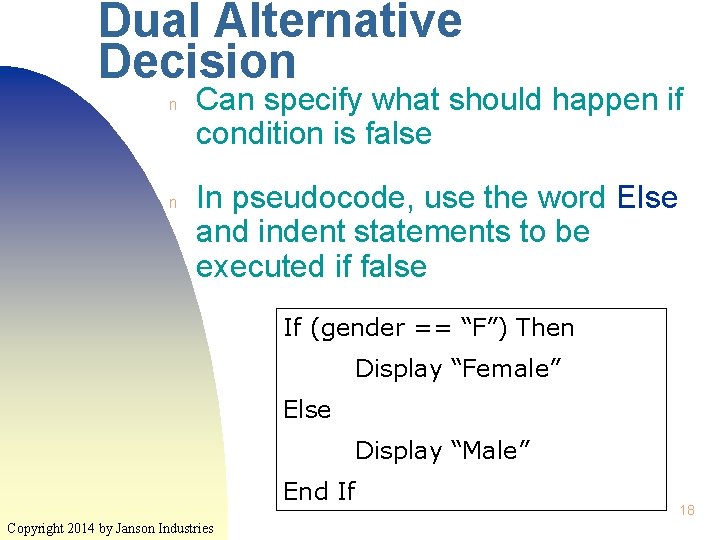

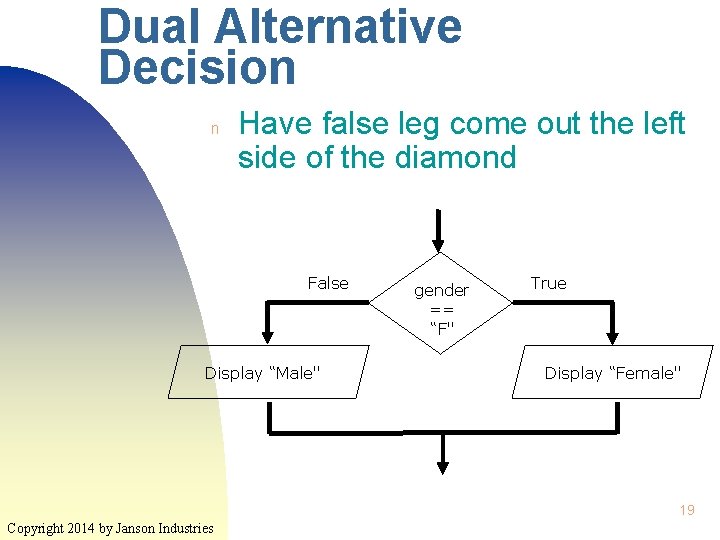

Dual Alternative Decision n n Can specify what should happen if condition is false

Dual Alternative Decision n Have false leg come out the left side of the

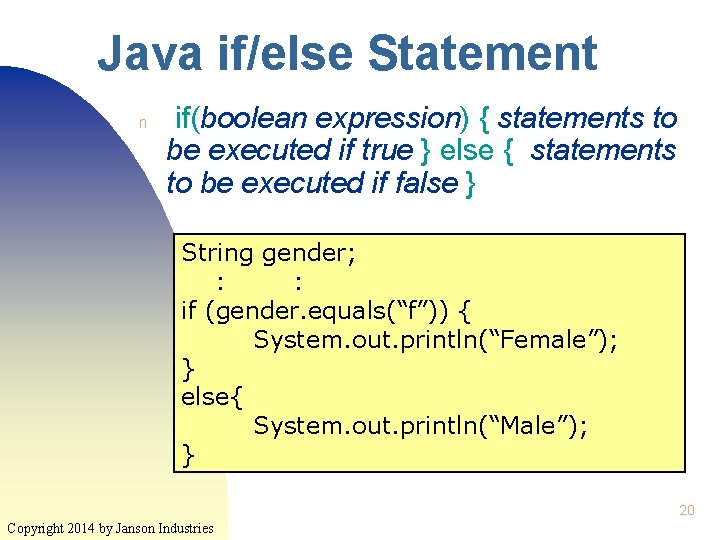

Java if/else Statement n if(boolean expression) { statements to be executed if true }

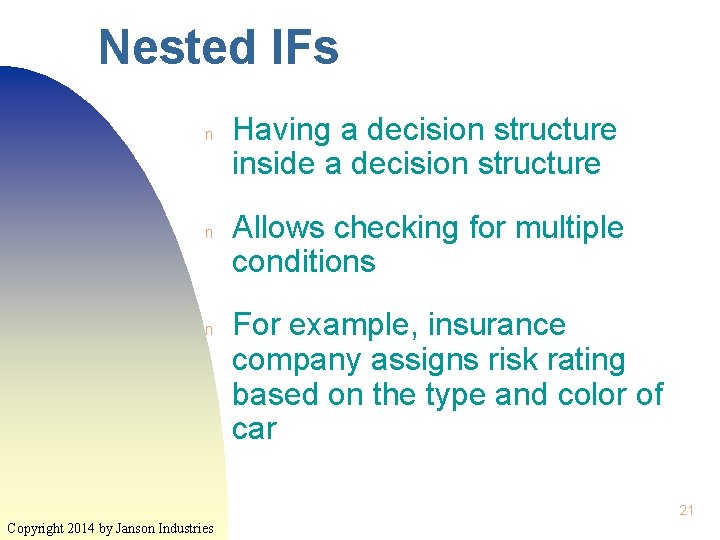

Nested IFs n n n Having a decision structure inside a decision structure Allows

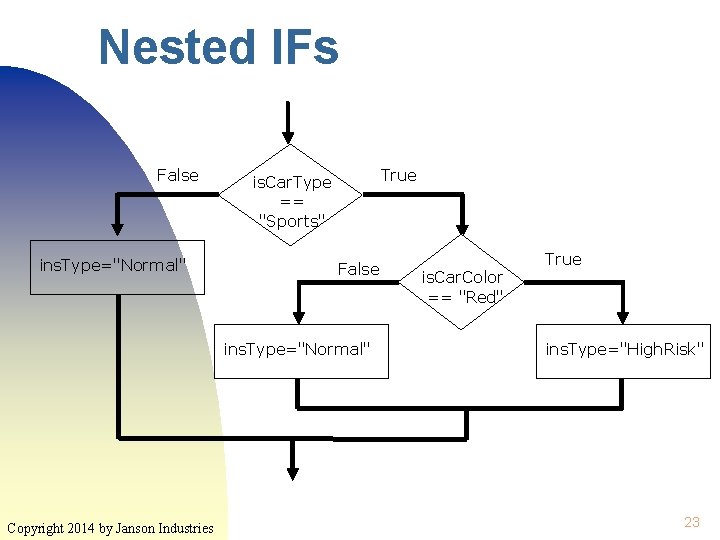

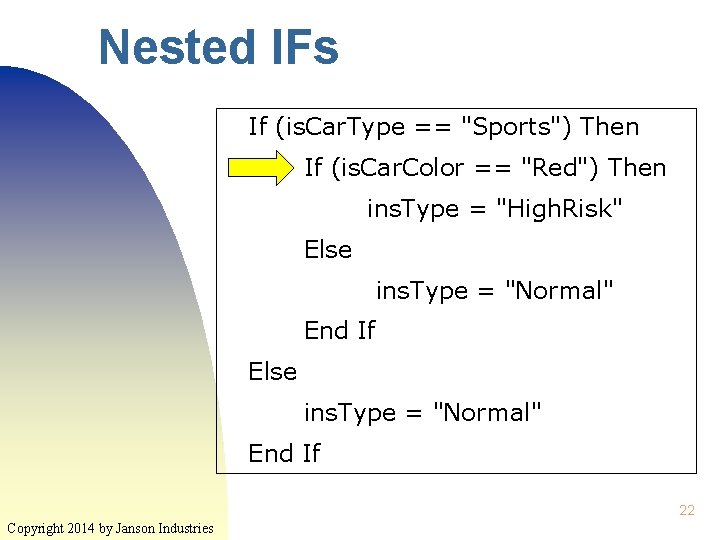

Nested IFs If (is. Car. Type == "Sports") Then If (is. Car. Color ==

Nested IFs False ins. Type="Normal" True is. Car. Type == "Sports" False ins. Type="Normal"

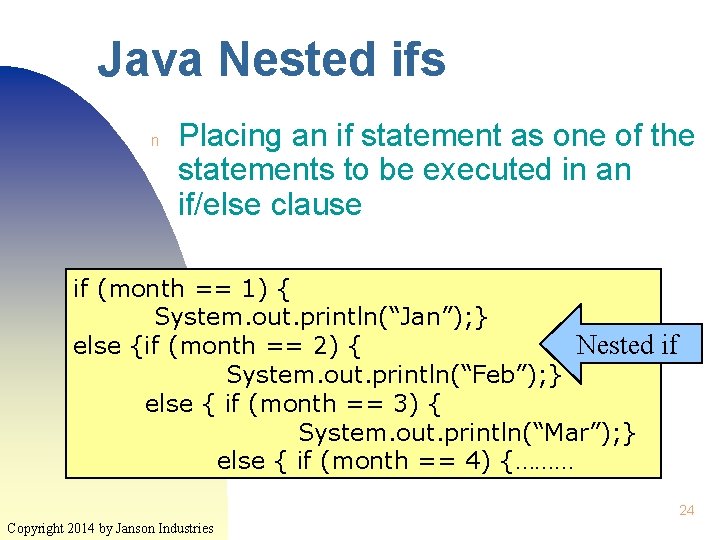

Java Nested ifs n Placing an if statement as one of the statements to

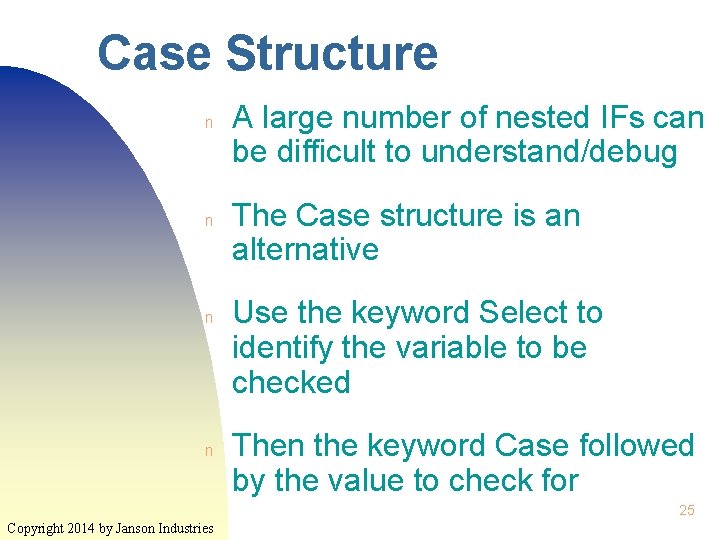

Case Structure n n A large number of nested IFs can be difficult to

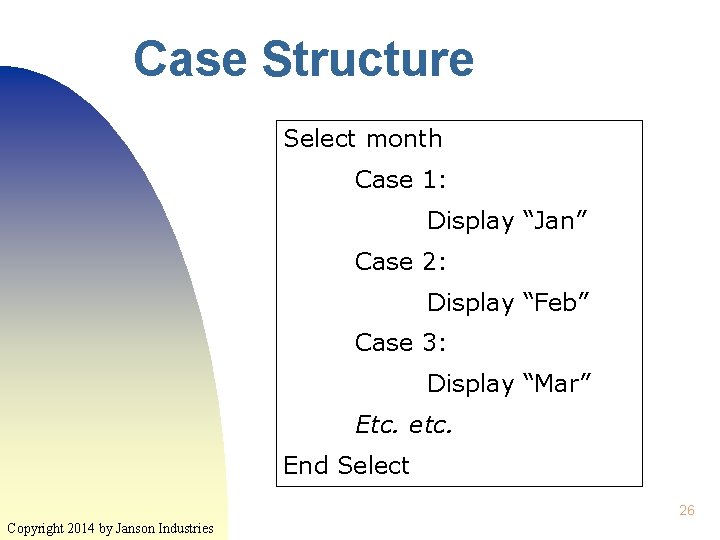

Case Structure Select month Case 1: Display “Jan” Case 2: Display “Feb” Case 3:

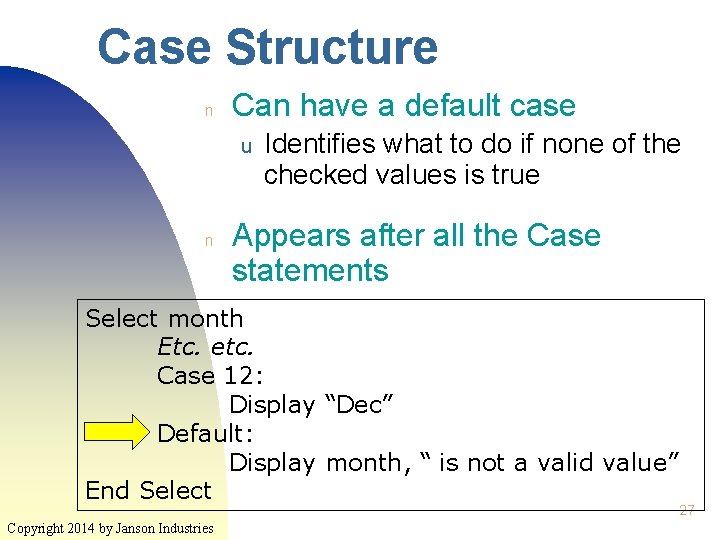

Case Structure n Can have a default case u n Identifies what to do

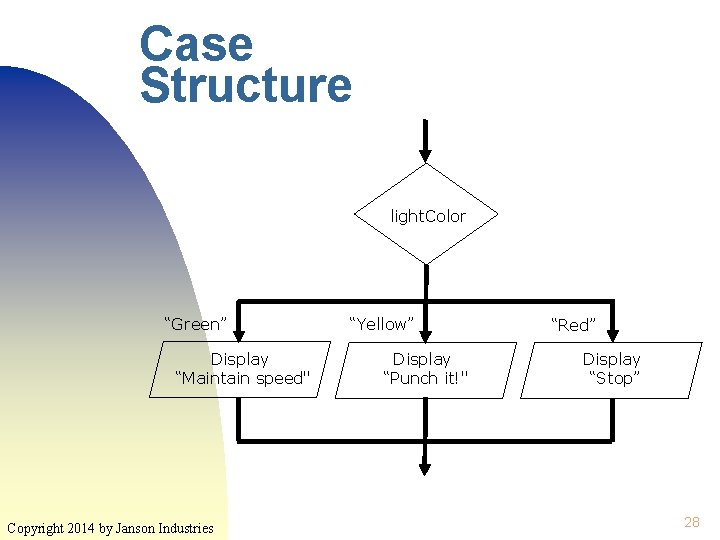

Case Structure light. Color “Green” Display “Maintain speed" Copyright 2014 by Janson Industries “Yellow”

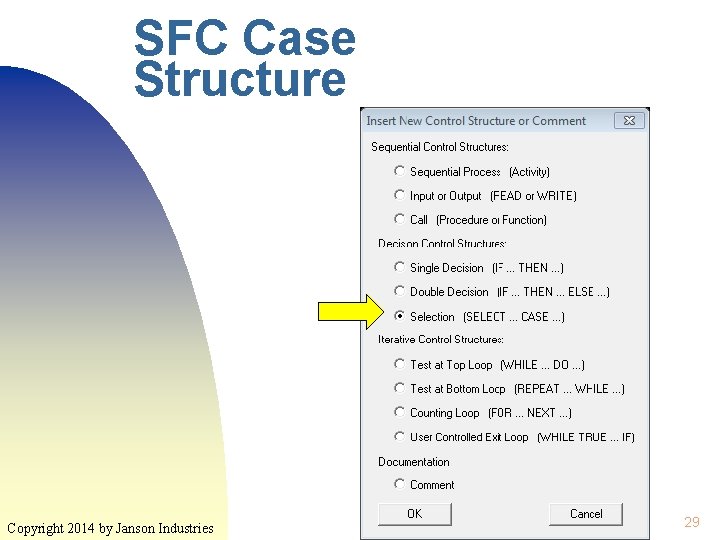

SFC Case Structure Copyright 2014 by Janson Industries 29

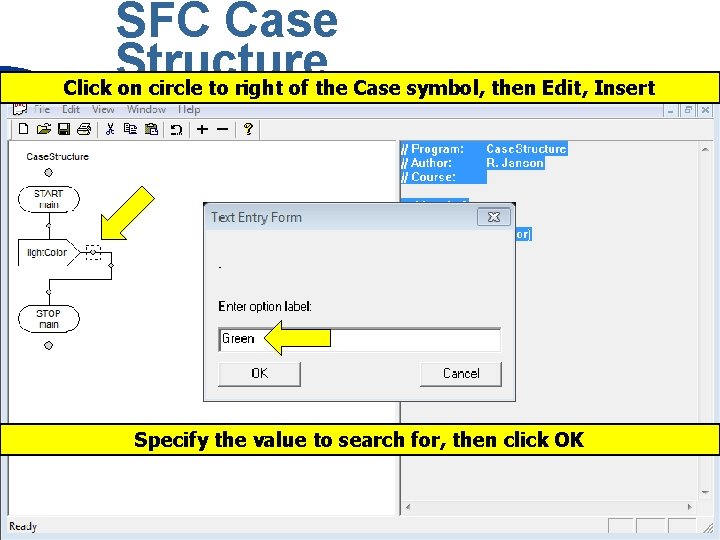

SFC Case Structure Click on circle to right of the Case symbol, then Edit,

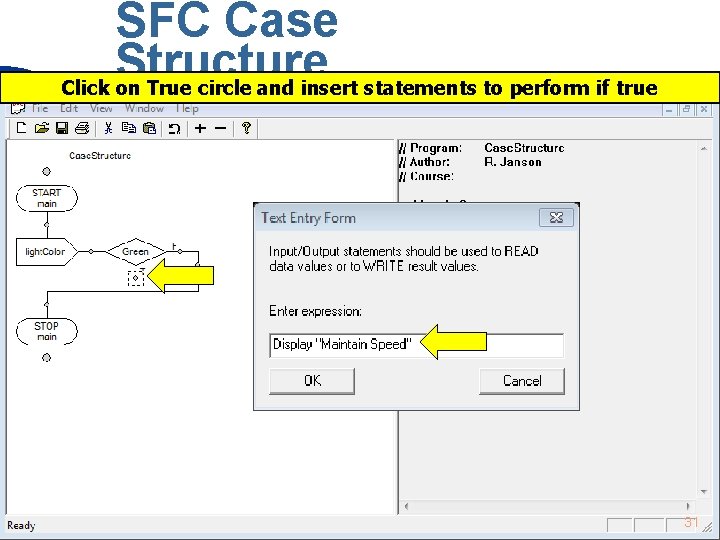

SFC Case Structure Click on True circle and insert statements to perform if true

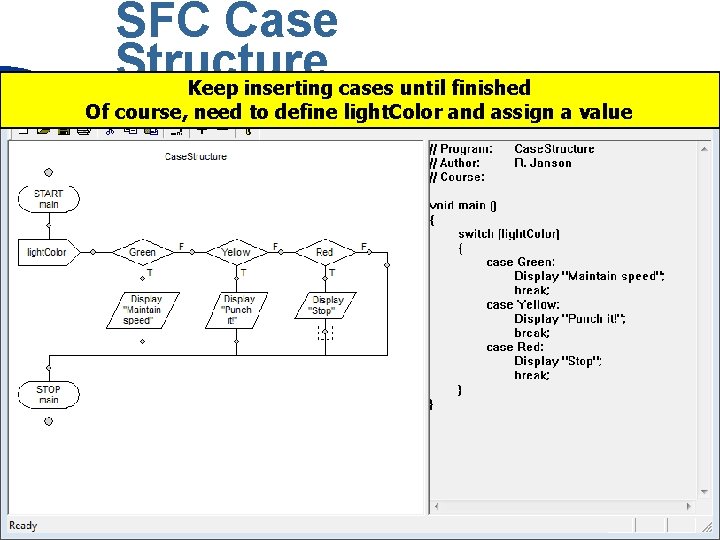

SFC Case Structure Keep inserting cases until finished Of course, need to define light.

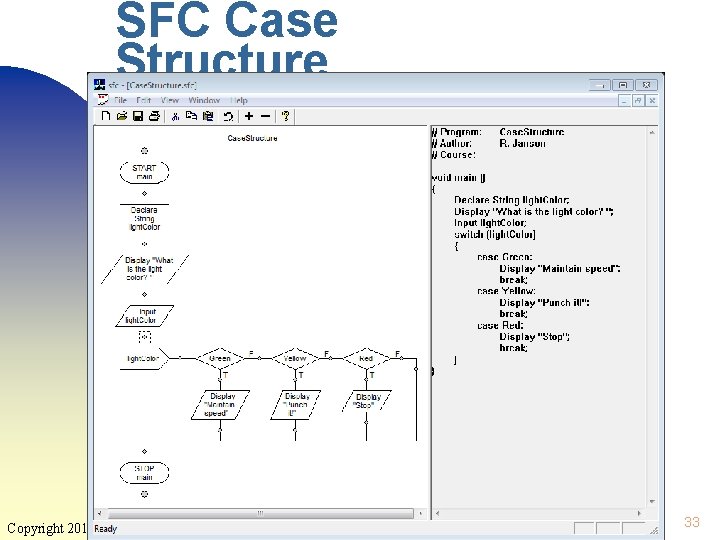

SFC Case Structure Copyright 2014 by Janson Industries 33

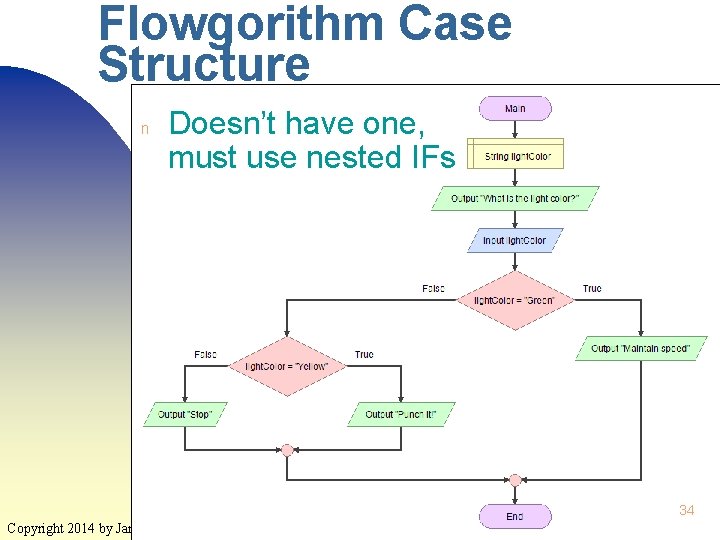

Flowgorithm Case Structure n Doesn’t have one, must use nested IFs 34 Copyright 2014

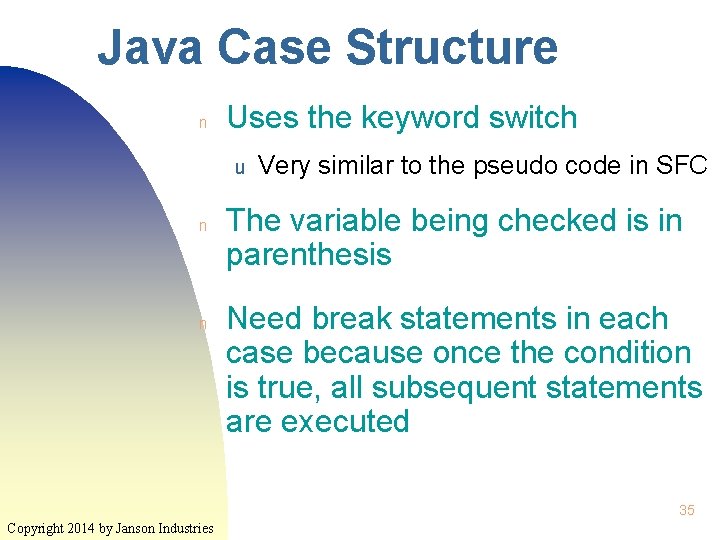

Java Case Structure n Uses the keyword switch u n n Very similar to

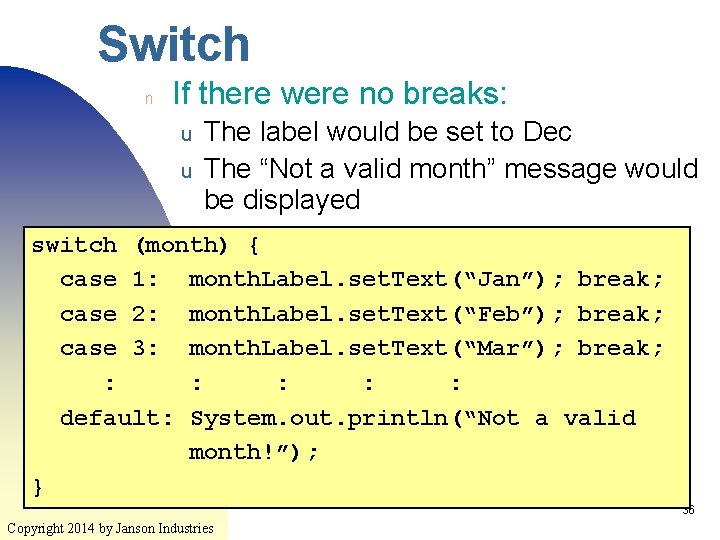

Switch n If there were no breaks: u u The label would be set

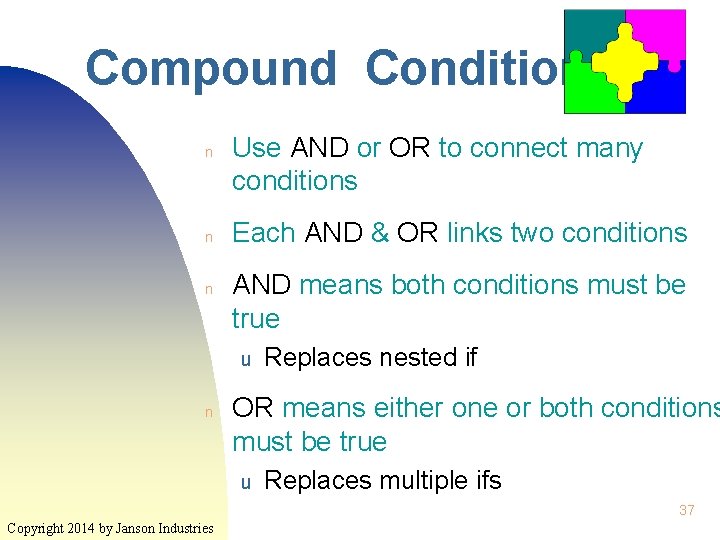

Compound Condition n Use AND or OR to connect many conditions Each AND &

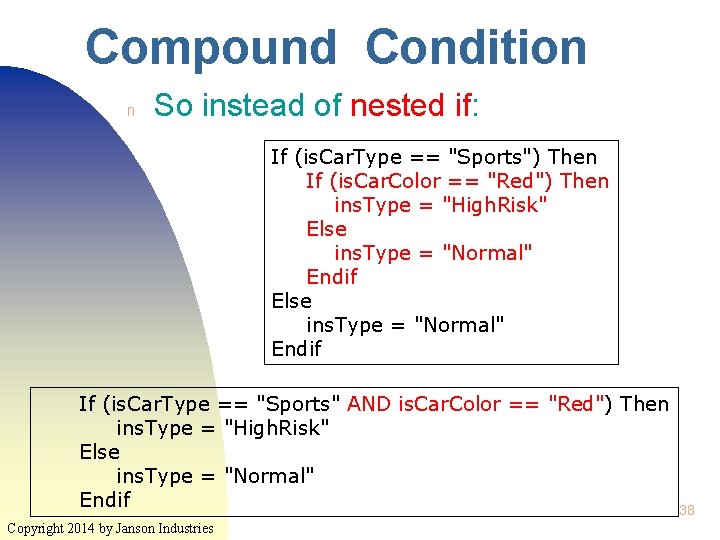

Compound Condition n So instead of nested if: If (is. Car. Type == "Sports")

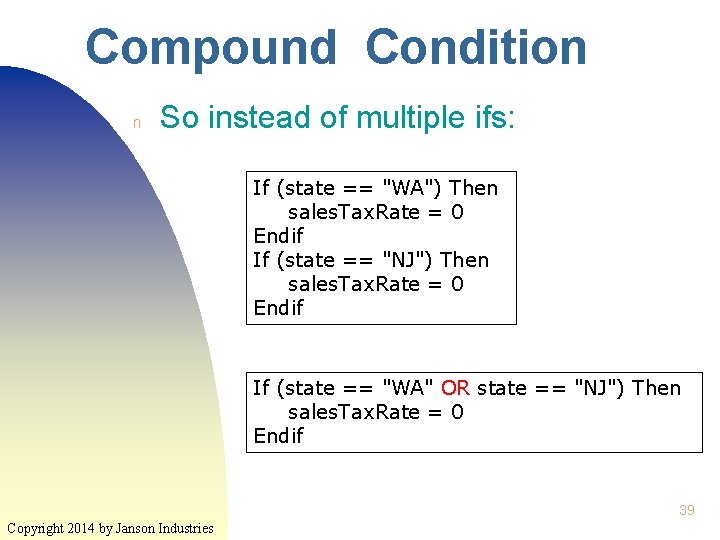

Compound Condition n So instead of multiple ifs: If (state == "WA") Then sales.

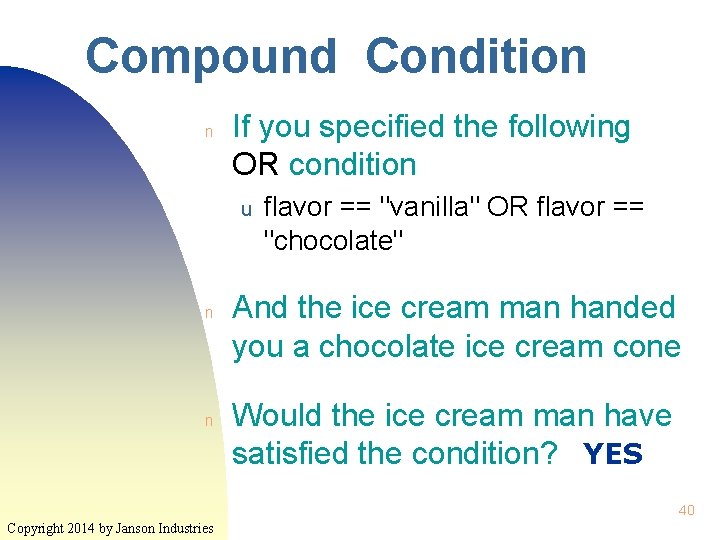

Compound Condition n If you specified the following OR condition u n n flavor

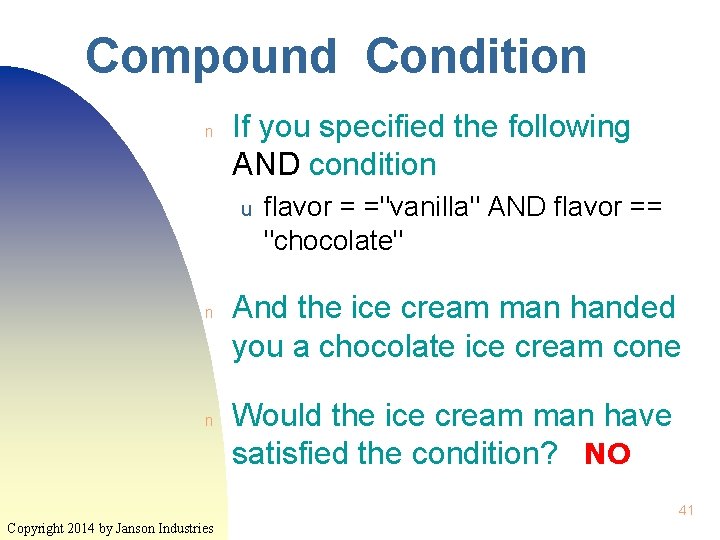

Compound Condition n If you specified the following AND condition u n n flavor

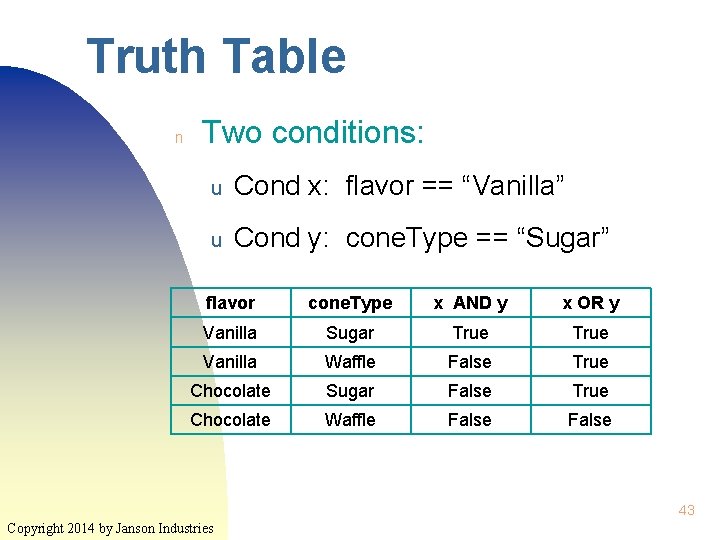

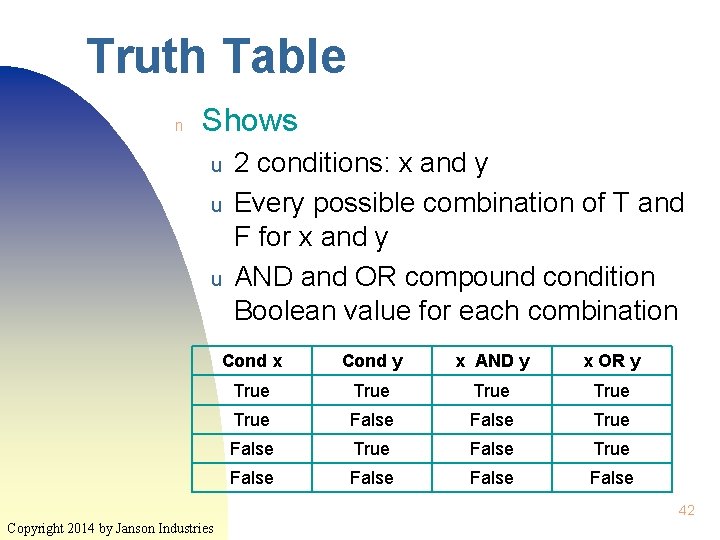

Truth Table n Shows u u u 2 conditions: x and y Every possible

Truth Table n Two conditions: u Cond x: flavor == “Vanilla” u Cond y:

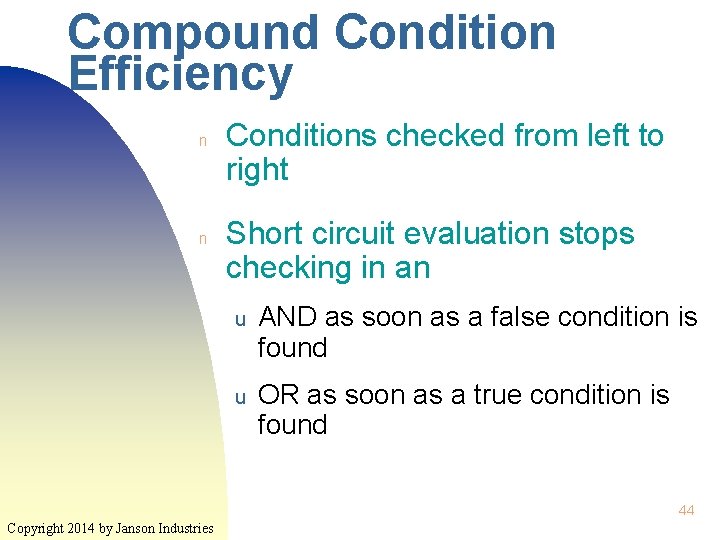

Compound Condition Efficiency n n Conditions checked from left to right Short circuit evaluation

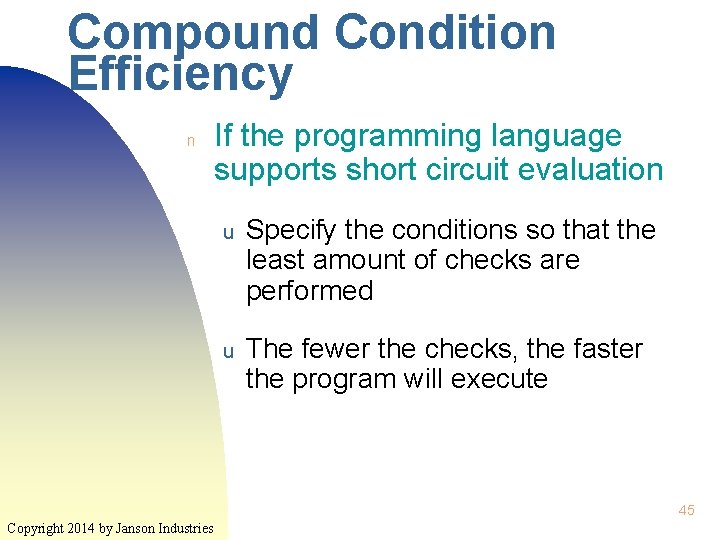

Compound Condition Efficiency n If the programming language supports short circuit evaluation u Specify

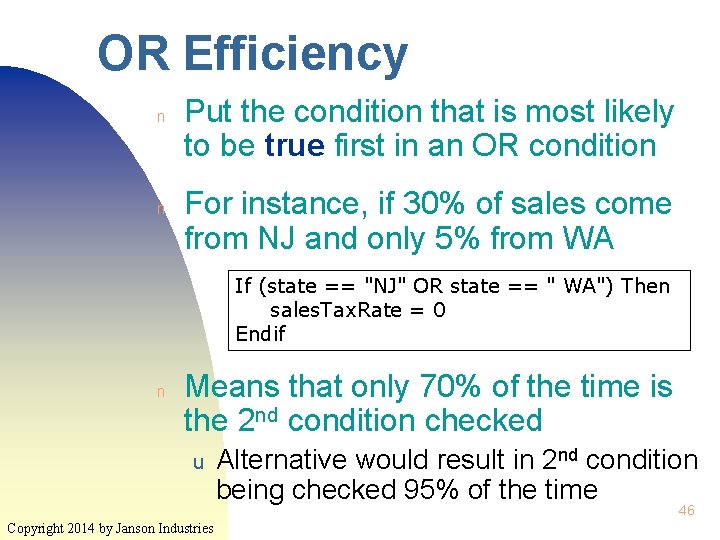

OR Efficiency n n Put the condition that is most likely to be true

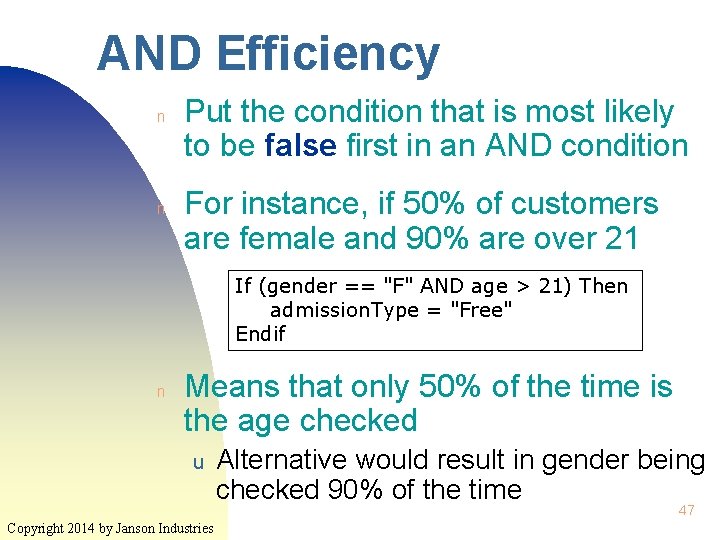

AND Efficiency n n Put the condition that is most likely to be false

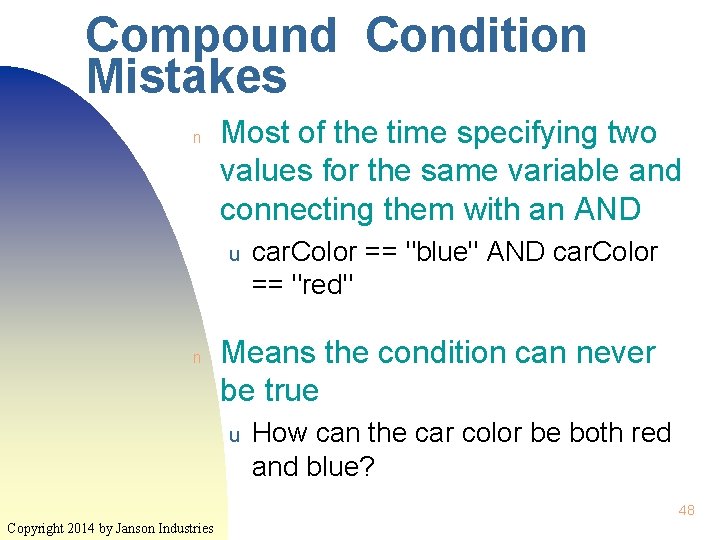

Compound Condition Mistakes n Most of the time specifying two values for the same

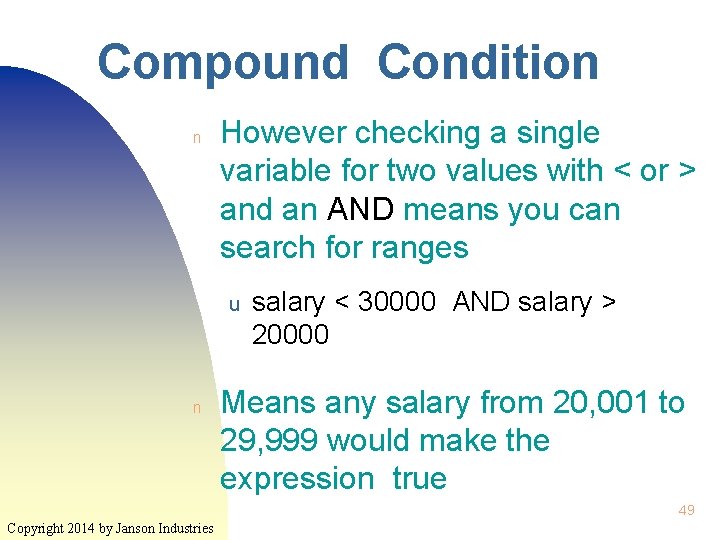

Compound Condition n However checking a single variable for two values with < or

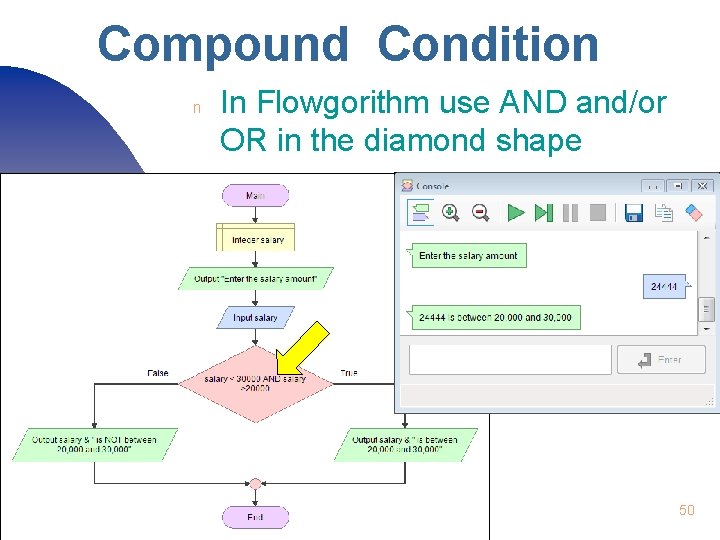

Compound Condition n In Flowgorithm use AND and/or OR in the diamond shape 50

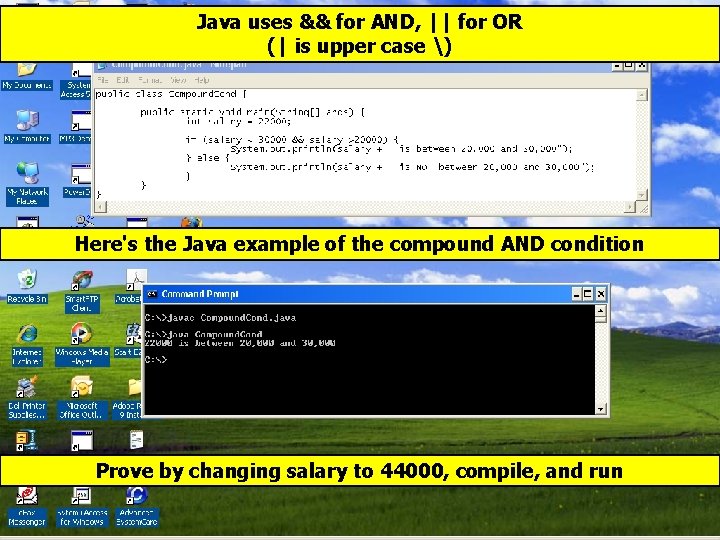

Java uses && for AND, || for OR (| is upper case ) Here's

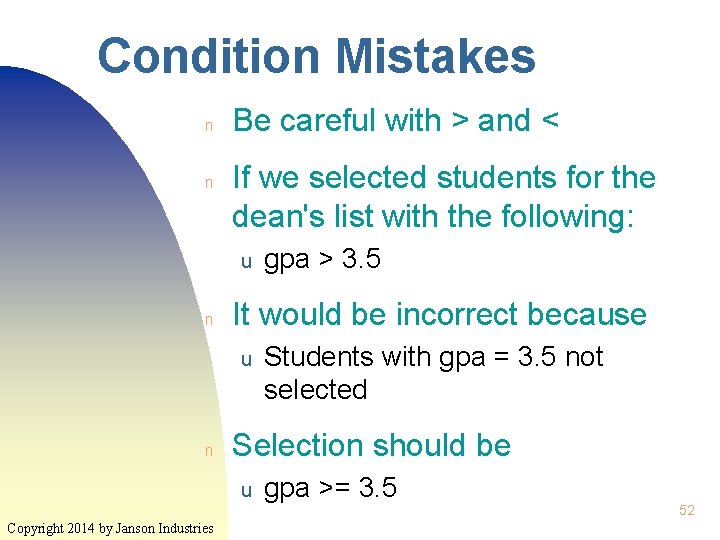

Condition Mistakes n n Be careful with > and < If we selected students

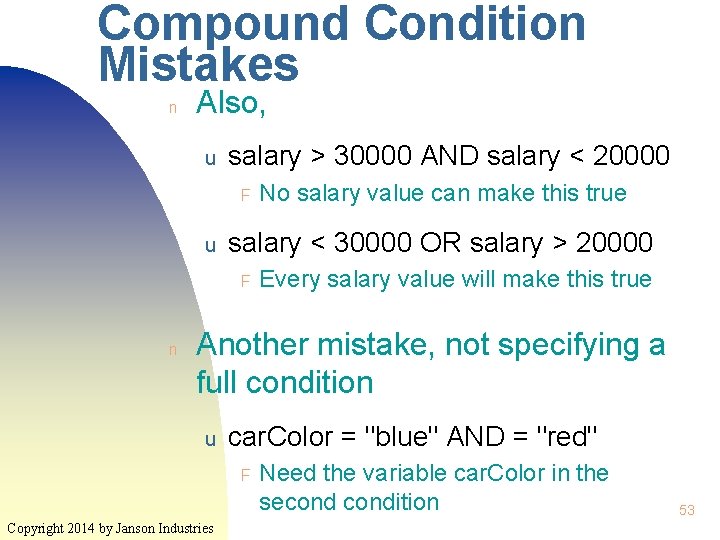

Compound Condition Mistakes n Also, u salary > 30000 AND salary < 20000 F

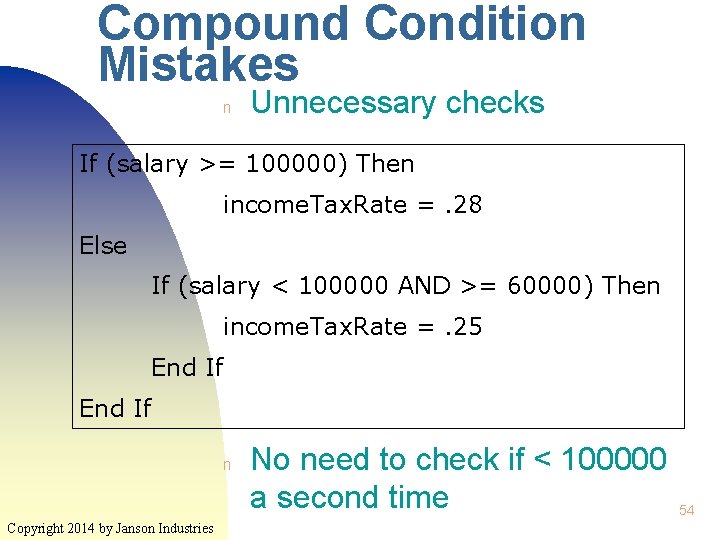

Compound Condition Mistakes n Unnecessary checks If (salary >= 100000) Then income. Tax. Rate

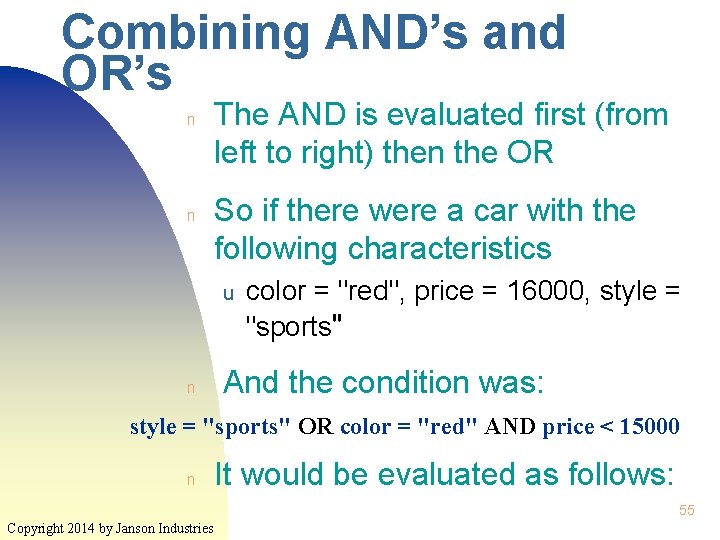

Combining AND’s and OR’s n n The AND is evaluated first (from left to

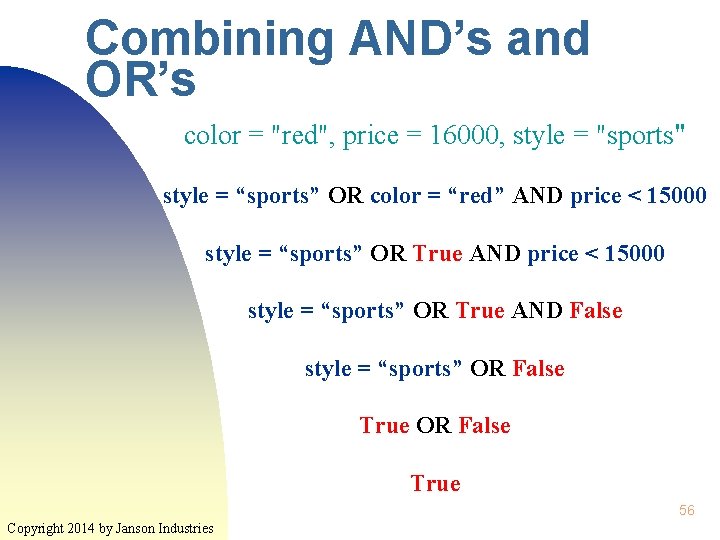

Combining AND’s and OR’s color = "red", price = 16000, style = "sports" style

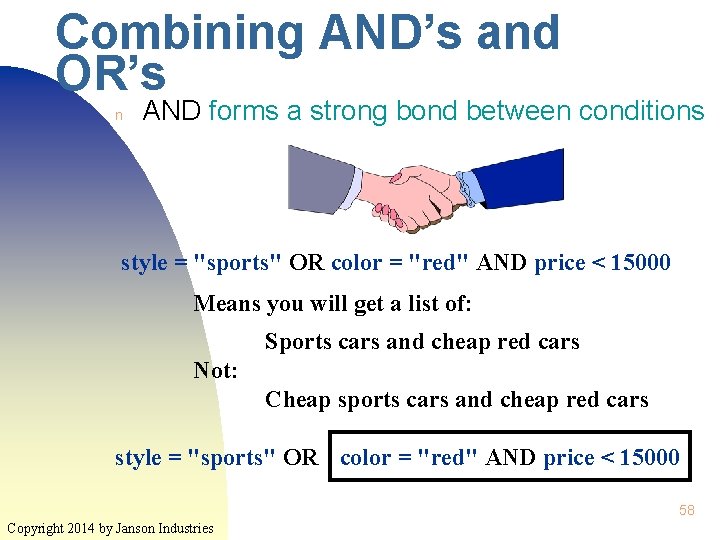

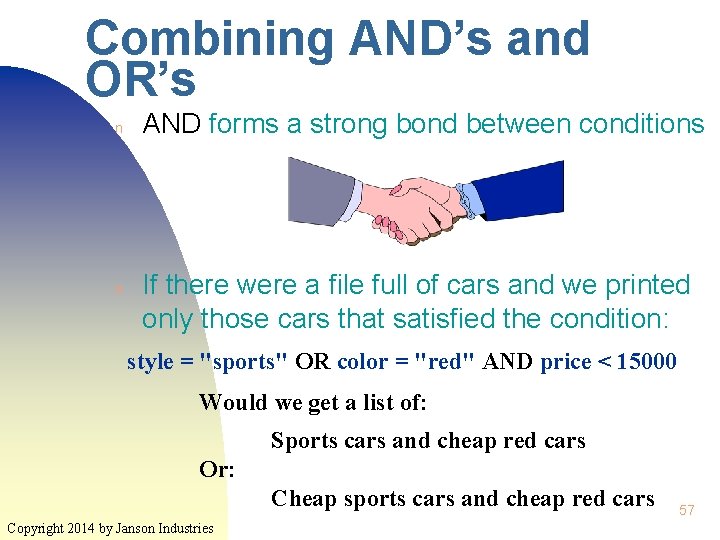

Combining AND’s and OR’s n n AND forms a strong bond between conditions If

Combining AND’s and OR’s n AND forms a strong bond between conditions style =

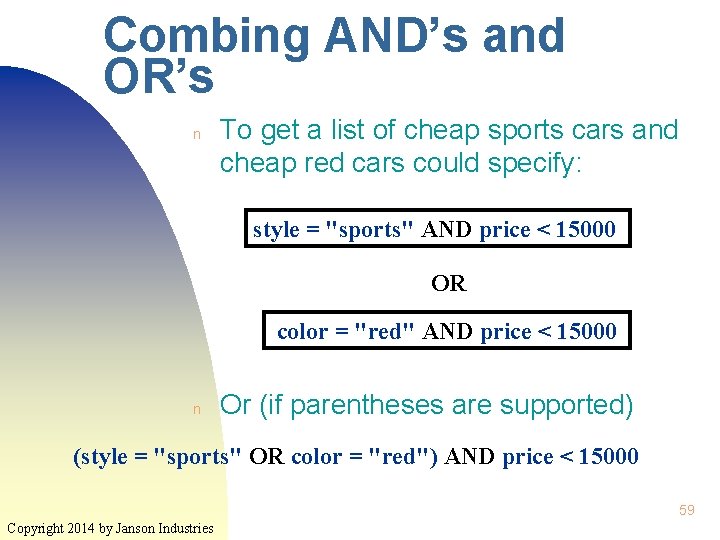

Combing AND’s and OR’s n To get a list of cheap sports cars and

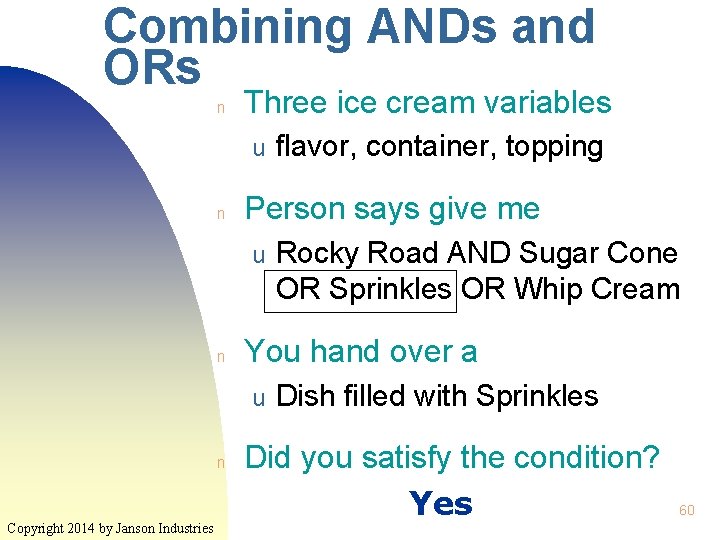

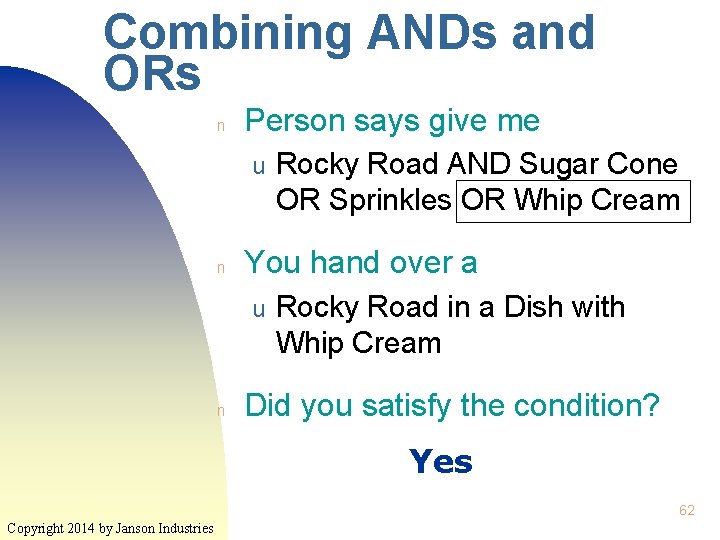

Combining ANDs and ORs n Three ice cream variables u n Person says give

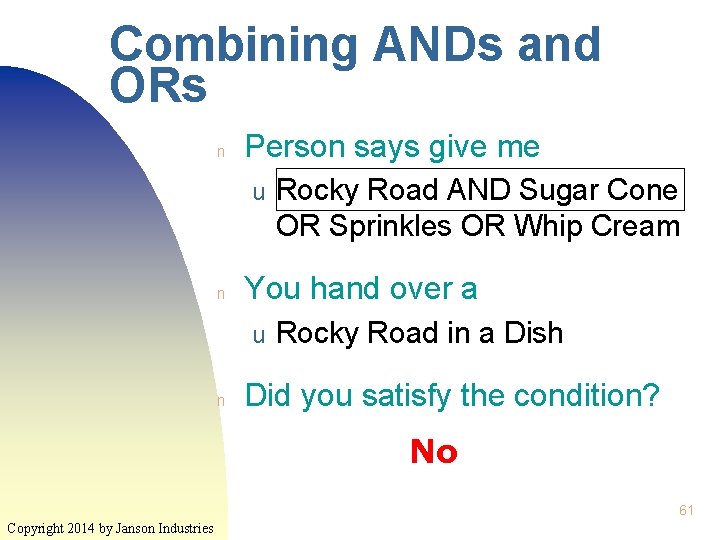

Combining ANDs and ORs n Person says give me u n You hand over

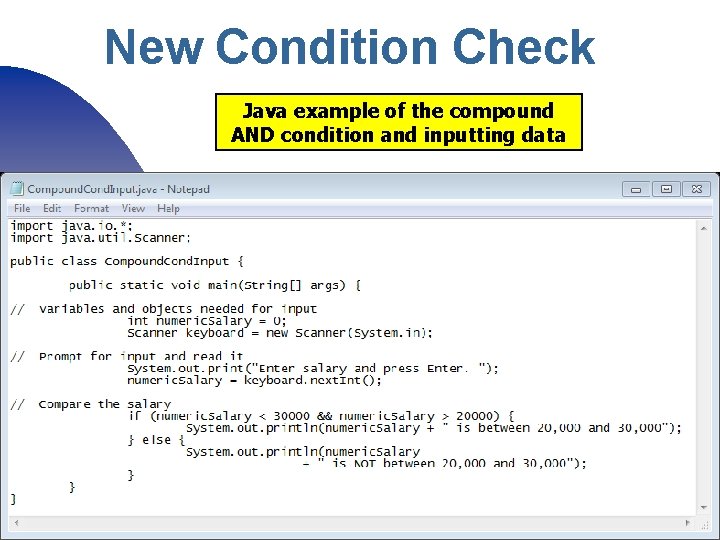

New Condition Check Java example of the compound AND condition and inputting data 63

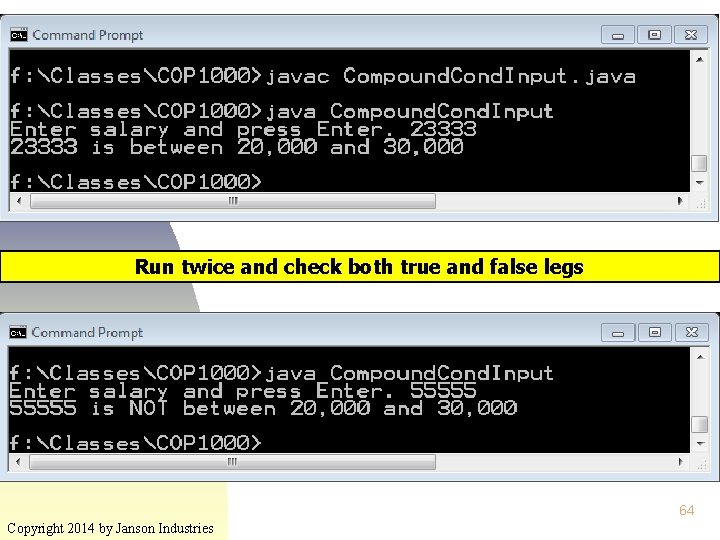

Run twice and check both true and false legs 64 Copyright 2014 by Janson

Conditions n n n With many conditions, what to do can get very complicated

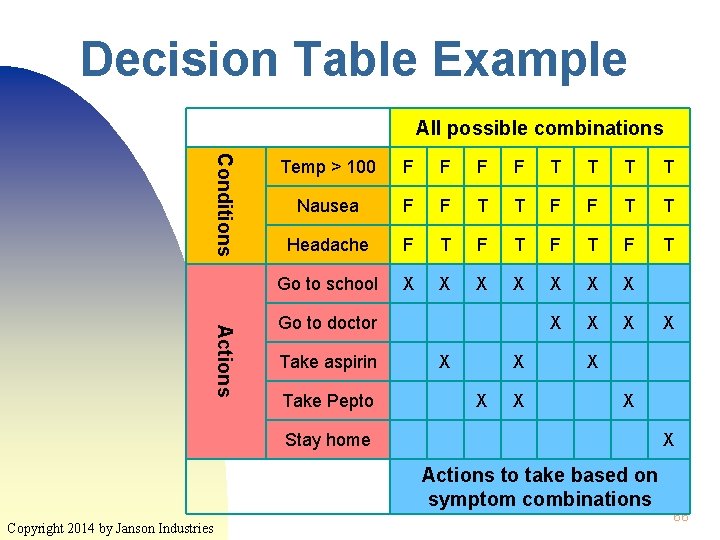

Decision Table Example All possible combinations Conditions Actions Temp > 100 F F T

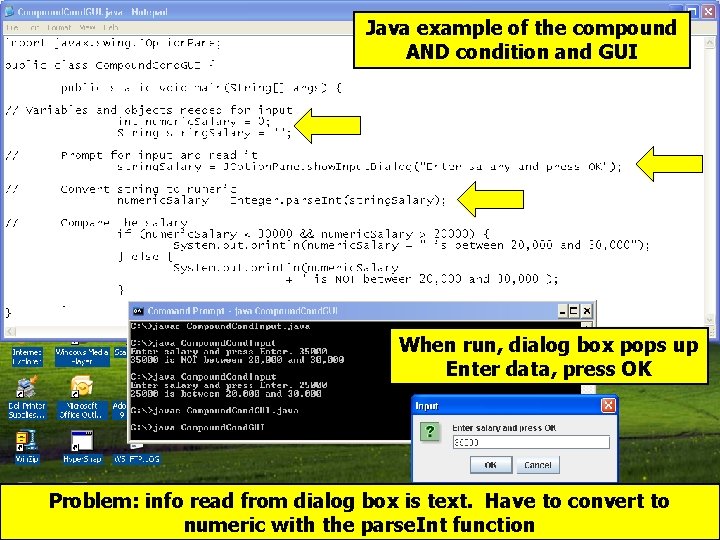

Java example of the compound AND condition and GUI When run, dialog box pops

Dialog box disappears and results shown in command prompt 68 Copyright 2014 by Janson

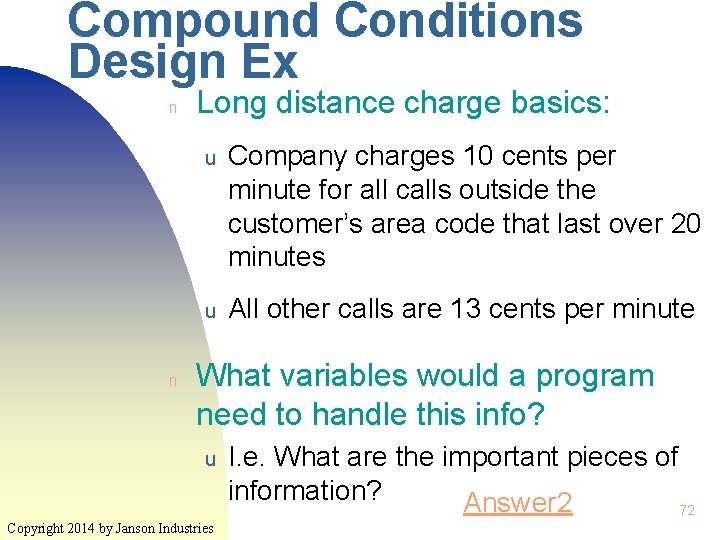

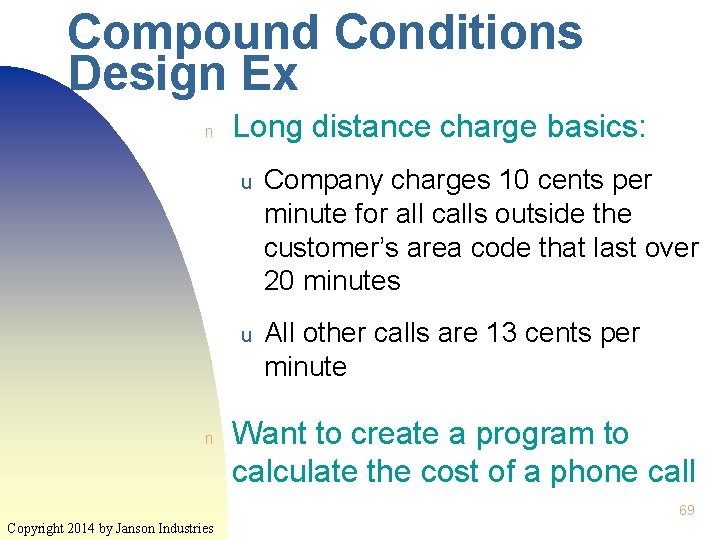

Compound Conditions Design Ex n n Long distance charge basics: u Company charges 10

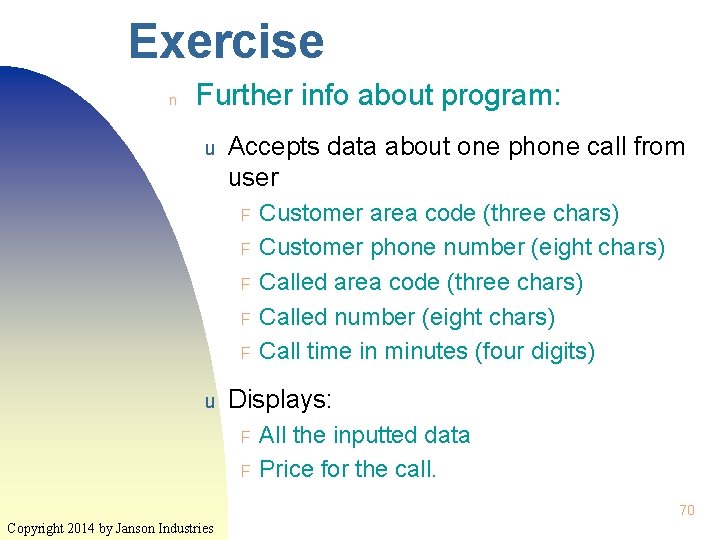

Exercise n Further info about program: u Accepts data about one phone call from

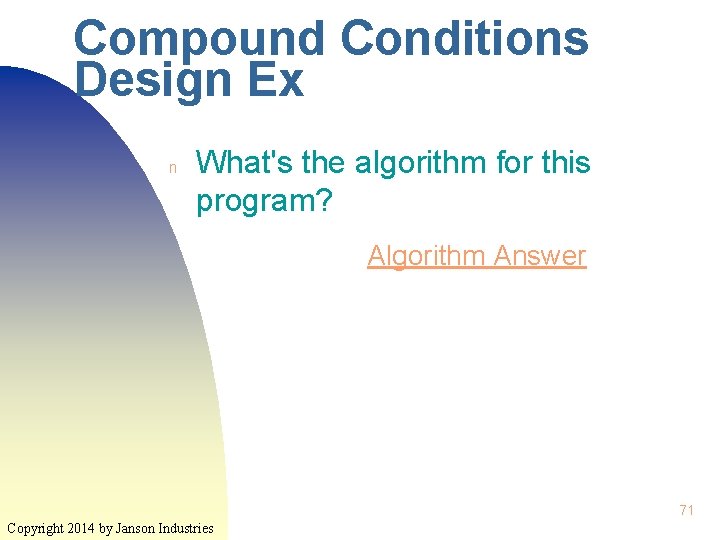

Compound Conditions Design Ex n What's the algorithm for this program? Algorithm Answer 71

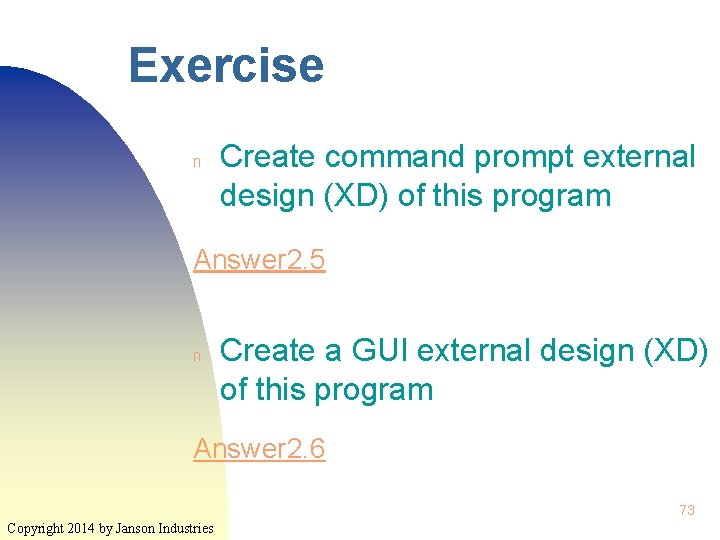

Exercise n Create command prompt external design (XD) of this program Answer 2. 5

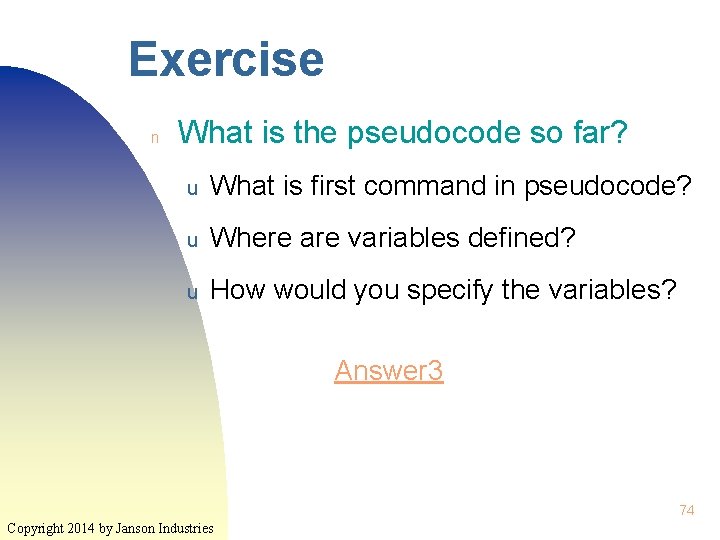

Exercise n What is the pseudocode so far? u What is first command in

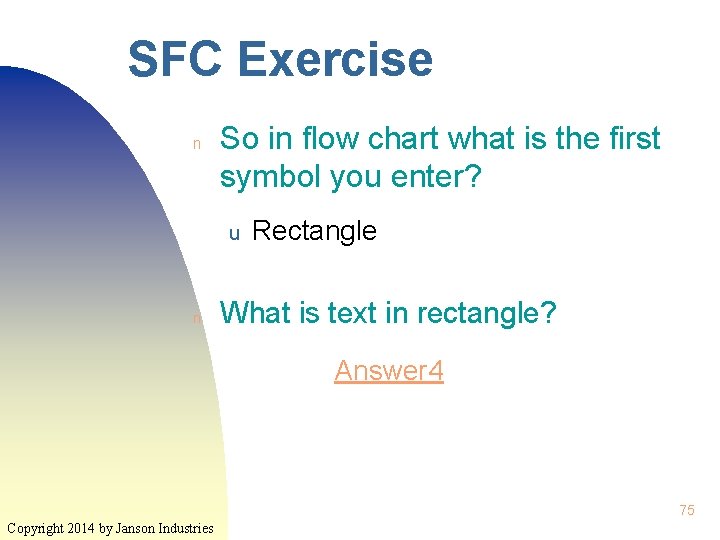

SFC Exercise n So in flow chart what is the first symbol you enter?

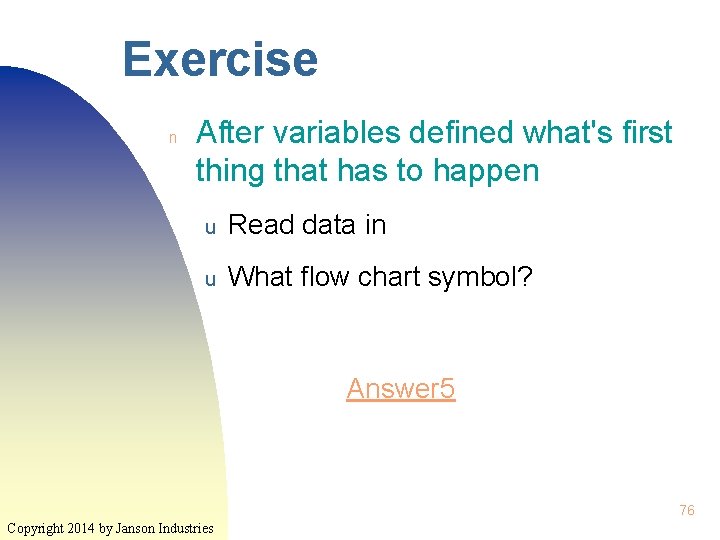

Exercise n After variables defined what's first thing that has to happen u Read

Exercise n n Now what do we do? u Can we calculate price? u

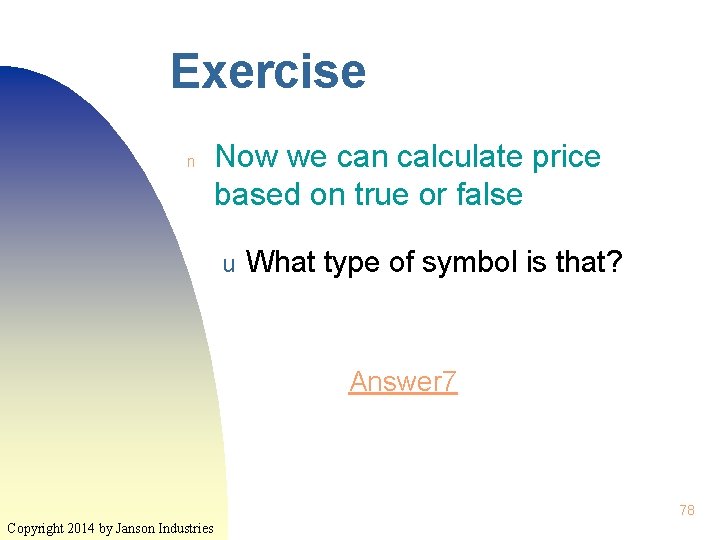

Exercise n Now we can calculate price based on true or false u What

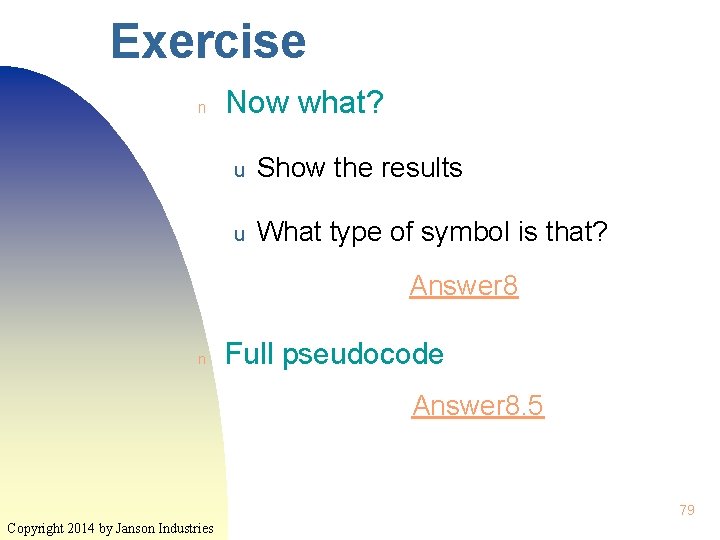

Exercise n Now what? u Show the results u What type of symbol is

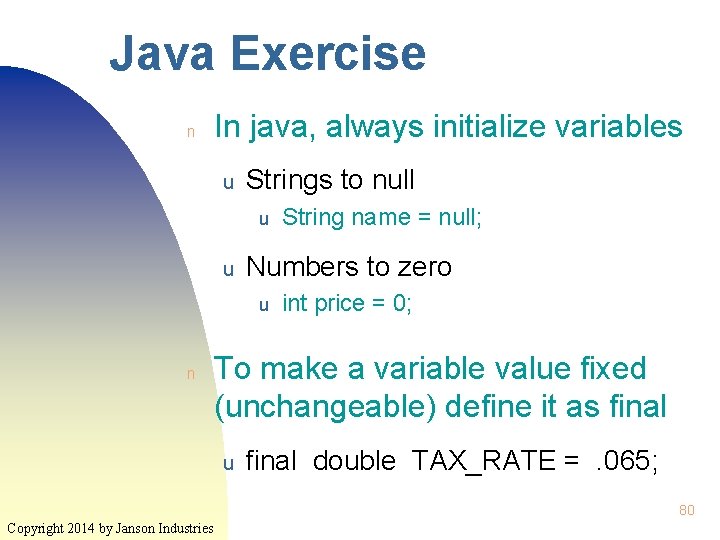

Java Exercise n In java, always initialize variables u Strings to null u u

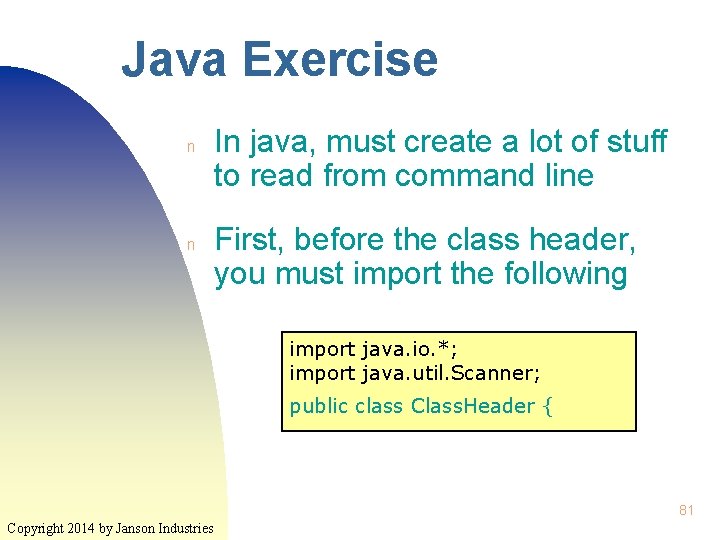

Java Exercise n n In java, must create a lot of stuff to read

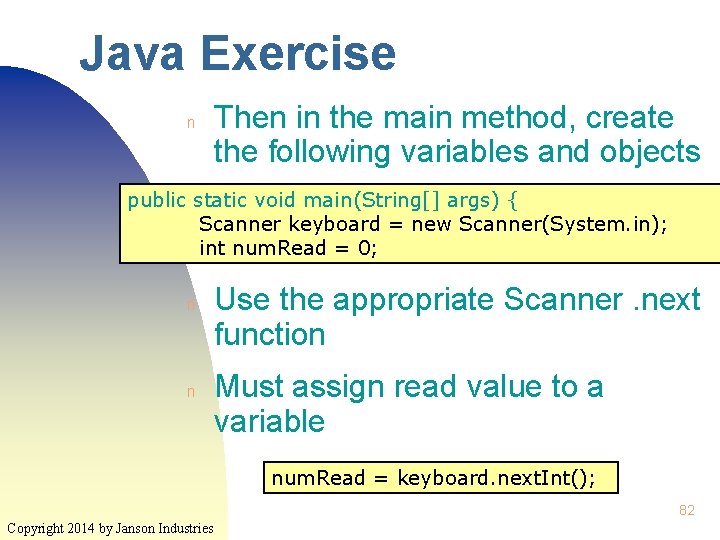

Java Exercise n Then in the main method, create the following variables and objects

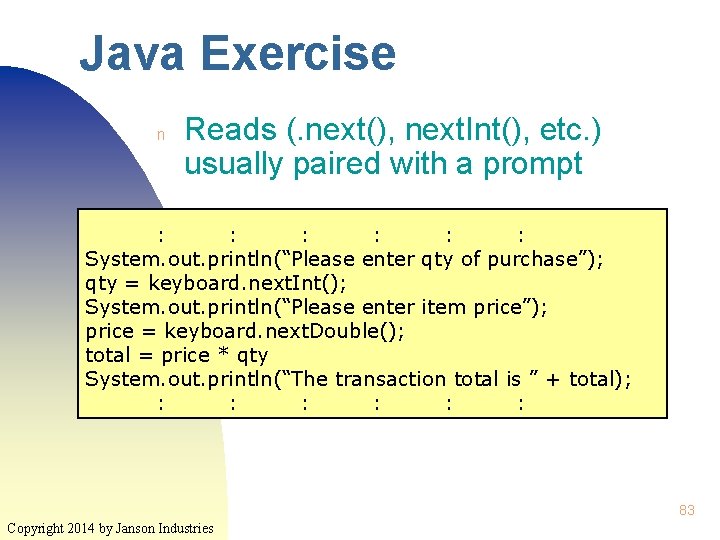

Java Exercise n Reads (. next(), next. Int(), etc. ) usually paired with a

Java Exercise n n Write the java program to calculate the phone call cost

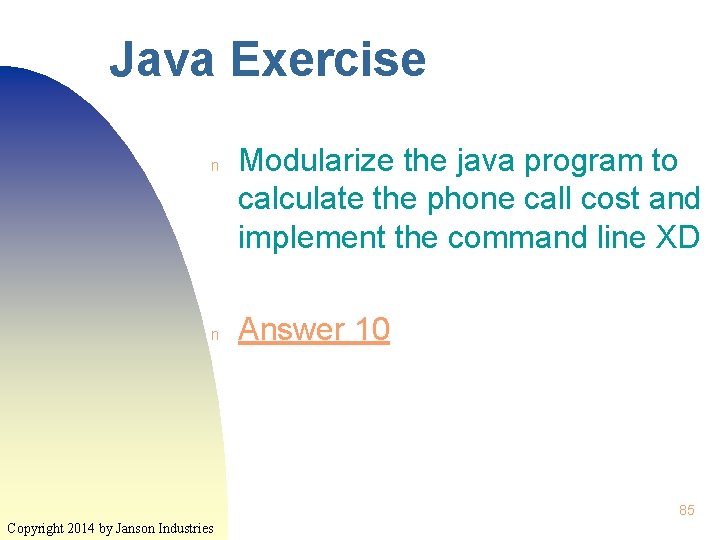

Java Exercise n n Modularize the java program to calculate the phone call cost

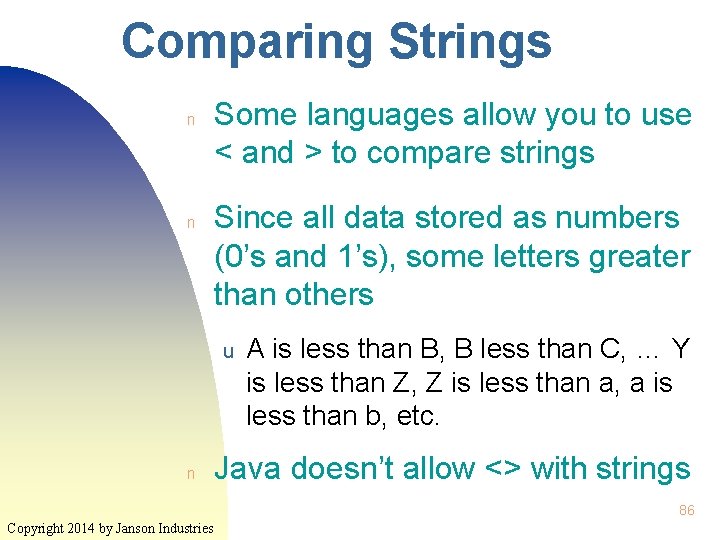

Comparing Strings n n Some languages allow you to use < and > to

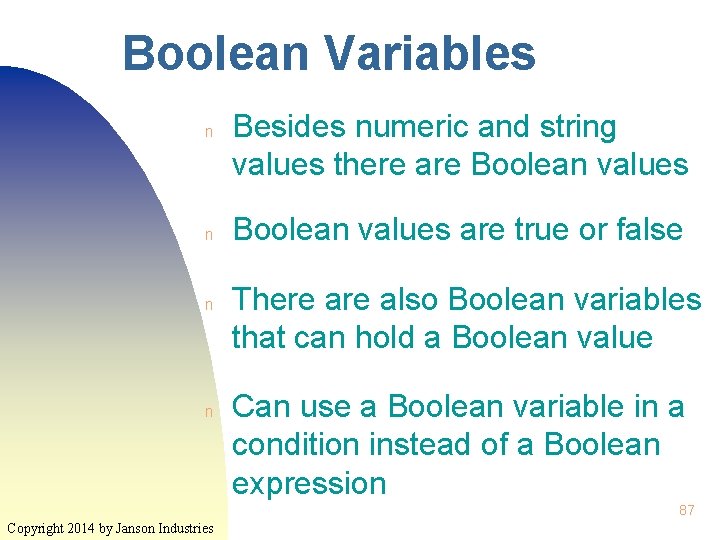

Boolean Variables n n Besides numeric and string values there are Boolean values are

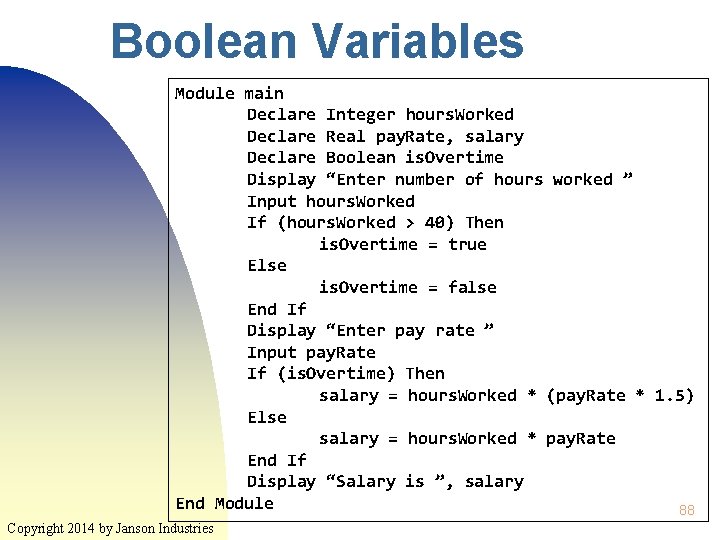

Boolean Variables Module main Declare Integer hours. Worked Declare Real pay. Rate, salary Declare

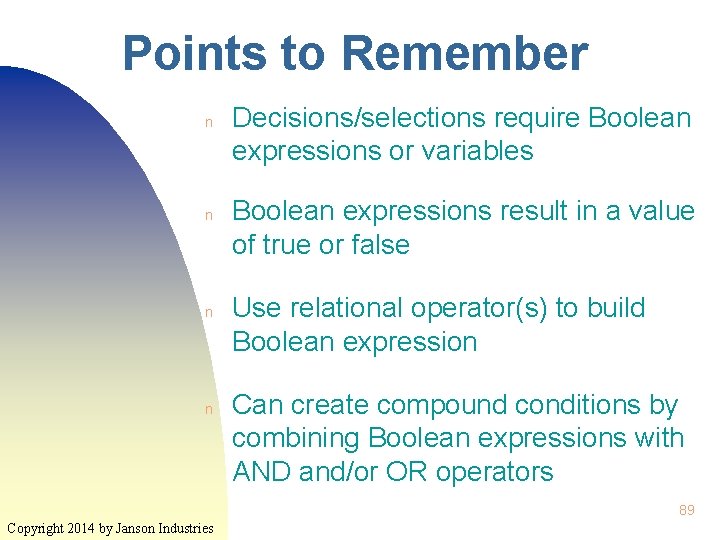

Points to Remember n n Decisions/selections require Boolean expressions or variables Boolean expressions result

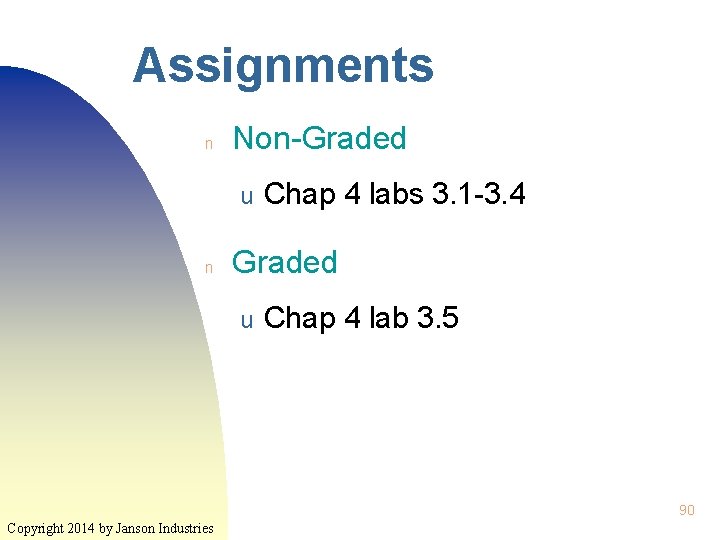

Assignments n Non-Graded u n Chap 4 labs 3. 1 -3. 4 Graded u
