Intro to Linux Systems Administration Systems Administration Administering

Intro to Linux Systems Administration

Systems Administration • • • Administering the system? Keep the system up in a consistent state Monitor performance Babysit users, make changes on their behalf Install, configure, upgrade, maintain Backup, restore, disaster recovery

Sysadmins • System administration handled by various people – Full time dedicated sysadmins on site – Remote services – Generic ‘IT’ personnel – That user that seems to know what they’re doing • Can be a skill set central to a career path, or a means to an end

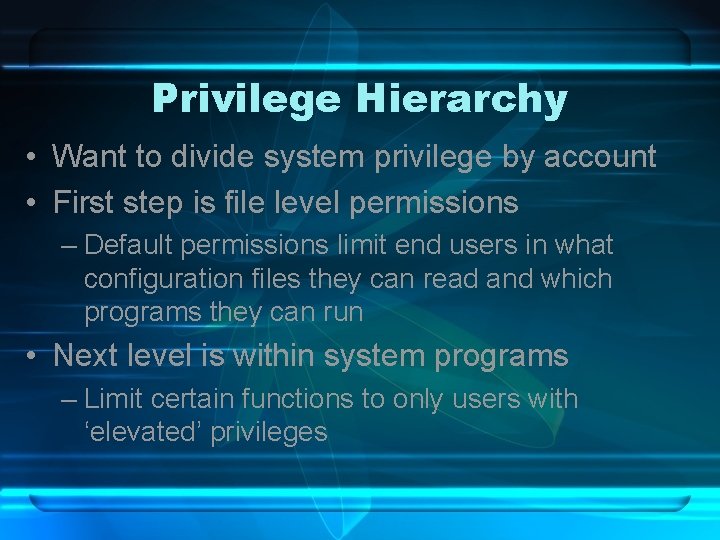

Privilege Hierarchy • Want to divide system privilege by account • First step is file level permissions – Default permissions limit end users in what configuration files they can read and which programs they can run • Next level is within system programs – Limit certain functions to only users with ‘elevated’ privileges

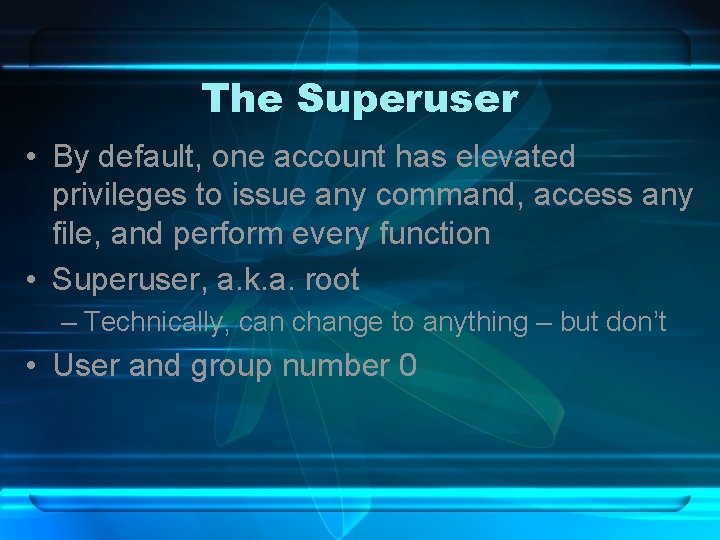

The Superuser • By default, one account has elevated privileges to issue any command, access any file, and perform every function • Superuser, a. k. a. root – Technically, can change to anything – but don’t • User and group number 0

The Superuser, cont • Must limit use of root – Inexperienced users can cause serious harm – Use of root for non-privileged tasks unnecessary and can be open to attack – Security and privacy violations – root can look at anyone’s files • Limit what root can do remotely • Ensure a strong password

Superuser Privileges • What usually works best is short periods of superuser privilege, only when necessary • Obtain privileges, complete task, relenquish privileges • Most common ways are su and sudo • Can also use the setuid/setgid method (Ch. 4), but not recommended

su • Short for substitute or switch user • Syntax: su [options] [username] – If username is omitted, root is assumed • After issuing command, prompted for that user’s password • A new shell opened with the privileges of that user • Once done issuing commands, must type exit

sudo • Allows you to issue a single command as another user • Syntax: sudo [options] [-u user] command • • Again, if no user specified, root assumed New shell opened with user’s privileges Specified command executed Shell exited

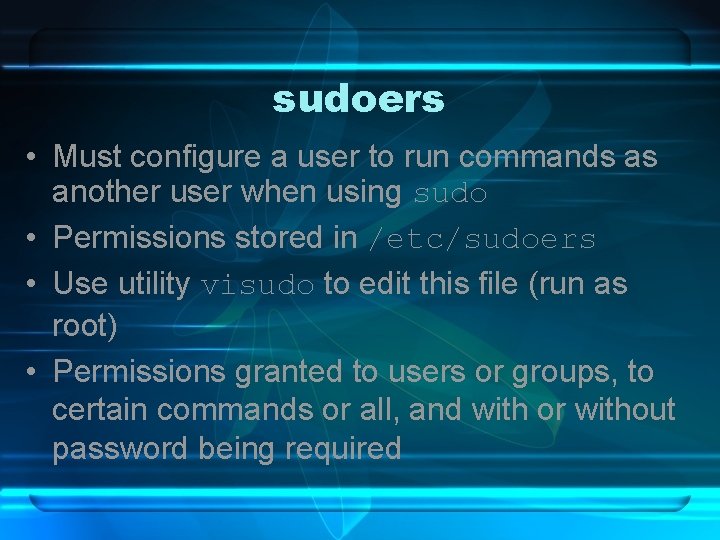

sudoers • Must configure a user to run commands as another user when using sudo • Permissions stored in /etc/sudoers • Use utility visudo to edit this file (run as root) • Permissions granted to users or groups, to certain commands or all, and with or without password being required

Other permissions models • Some Linux distributions such as Ubuntu obscure away the root account altogether • By default the end user doesn’t know the root password – Can’t login as root – Can’t su • Must rely on sudo (and the graphical gksudo) to obtain privilege, along with ‘Unlock’ functions in GUI

System Operation • • Booting the system Runlevels Modes Shutting down the system

Booting the System • Power on, POST, hardware initialization • Boot device selected by BIOS/user interaction • Master boot record of boot device read • Initializes the bootloader – lilo (LInux LOader) – grub (GRand Unified Bootloader)

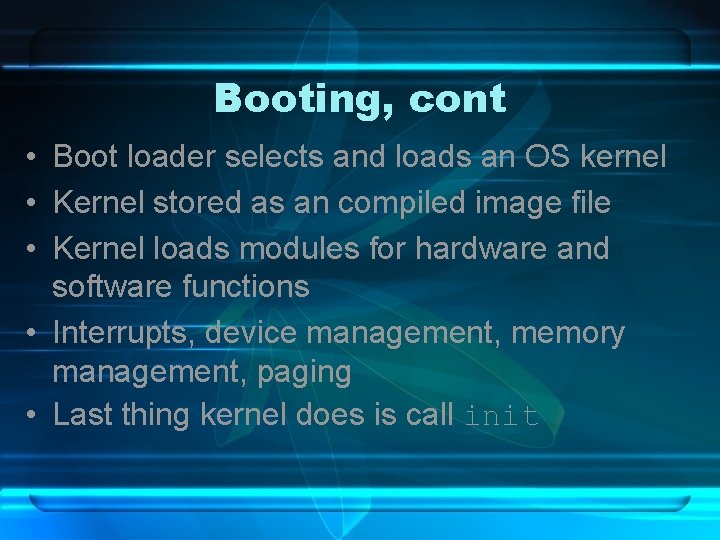

Booting, cont • Boot loader selects and loads an OS kernel • Kernel stored as an compiled image file • Kernel loads modules for hardware and software functions • Interrupts, device management, memory management, paging • Last thing kernel does is call init

init • First non-kernel code loaded • Process number 1 • Acts as parent to all other processes on system • Handles starting services and programs • Based on runlevel, runs the appropriate scripts

Runlevels • A set of defined system states that init can bring the system into (varies on distro) • 0: Halt/shutdown • 1: Single user mode • 2: Multiuser mode • 3: Multiuser mode with networking • 4: Not used • 5: Multiuser mode with networking and GUI • 6: Reboot

Runlevels, cont • On boot, init checks /etc/inittab to see what runlevel to bring system to • To change runlevel after boot – telinit runlevel – shutdown/halt/reboot • Any time the runlevel changes, init consults a set of scripts to determine what to stop/start

Scripts • Init works with run command (rc) scripts • Found in /etc/rc. d • All scripts housed in /etc/rc. d/init. d • Each script takes a parameter for changing operation (start/stop/halt/reboot) • Each runlevel has it’s own directory – /etc/rc. d/rc. N. d

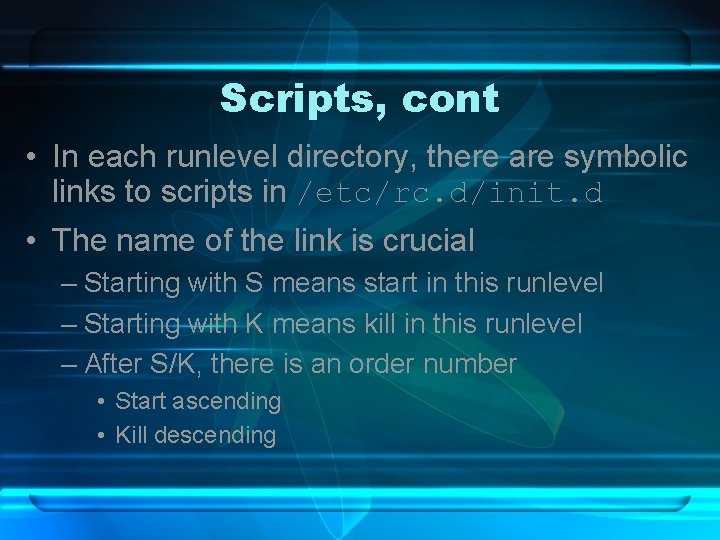

Scripts, cont • In each runlevel directory, there are symbolic links to scripts in /etc/rc. d/init. d • The name of the link is crucial – Starting with S means start in this runlevel – Starting with K means kill in this runlevel – After S/K, there is an order number • Start ascending • Kill descending

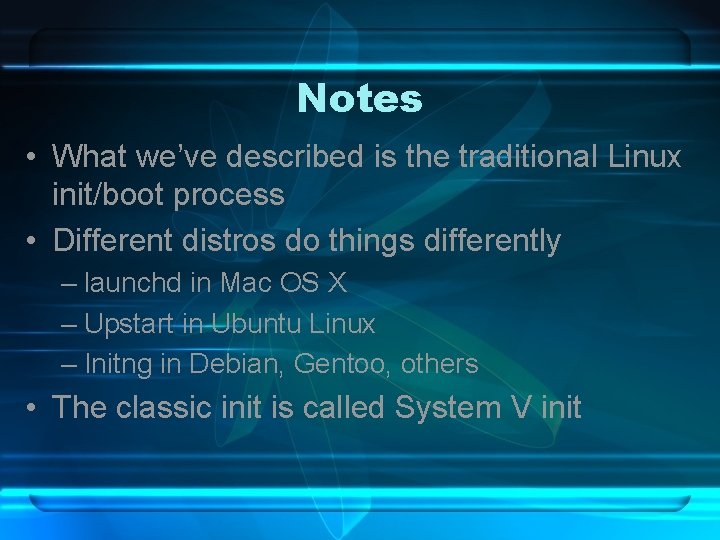

Notes • What we’ve described is the traditional Linux init/boot process • Different distros do things differently – launchd in Mac OS X – Upstart in Ubuntu Linux – Initng in Debian, Gentoo, others • The classic init is called System V init

Single User Mode • • Runlevel 1 Console only – no terminals Very minimal environment Some filesystems might not be mounted Maintenance of filesystems Fixing configuration errors Disaster recovery

Multiuser Mode • • Runlevels 2 -5 Runlevel 2 allows terminal logins Runlevel 3 allows remote terminal logins Runlevel 5 enable X 11 graphical environment • Runlevels 3 and 5 are the most common levels for day-to-day operations

Shutting Down the System • Syntax: shutdown [options] time [message] – Time: XX or +X or NOW – -k: don’t really shutdown, just send message – -r: reboot – -h: halt – -c: cancel a shutdown • halt: calls shutdown –h • reboot: calls shutdown -r

Scheduling • Linux systems uses the Cron system for timebased job scheduling • Allows users to schedule jobs to run • Allows sysadmins to run jobs and batch processes • Different distros implement the structures differently • Most use /etc/crontab as primary set of instructions • Sometimes other files are used, like /var/spool/cron/*

crontab • Each line schedules a job • Syntax: * * * command • First field is minutes (0 -59) • Second field is hours (0 -23) • Third is day of the month (1 -31) • Fourth is month of year (1 -12) • Fifth is day of week (0 -6, starting with Sun)

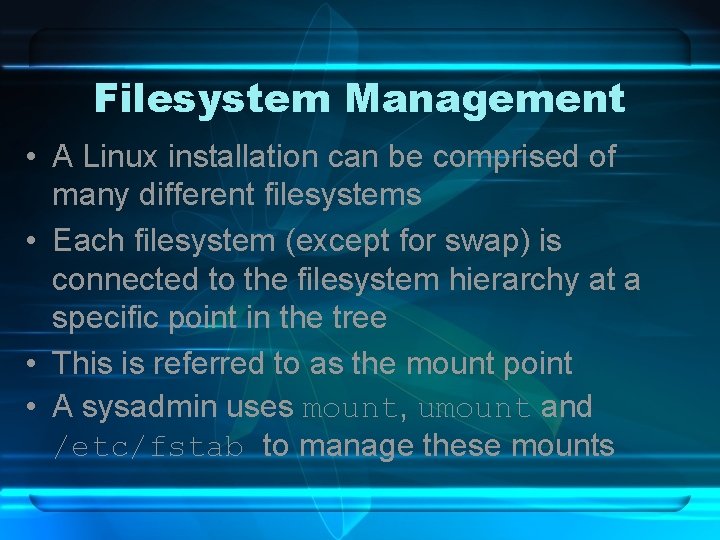

Filesystem Management • A Linux installation can be comprised of many different filesystems • Each filesystem (except for swap) is connected to the filesystem hierarchy at a specific point in the tree • This is referred to as the mount point • A sysadmin uses mount, umount and /etc/fstab to manage these mounts

mount • Syntax (most commonly): mount –t type device directory • Associates a device (partition, CD-ROM, etc) formatted with a particular type of filesystem with a specified directory in the hierarchy • Requires root privileges to mount in most cases • mount with no arguments displays list of mounted filesystems

umount • Syntax: umount directory | device • Removes that association • Cannot umount if device is still being accessed (i. e. open files) • Again, most likely requires root privileges

fstab • For filesystems that should be mounted on boot every time, put them in /etc/fstab • Basically a tab delimited file that contains the command line parameters you’d give to mount – Device – Mount point (directory) – FS type – Options (Readonly, attributes, etc)

Creating New Filesystems • First use fdisk device to create a partition – Similar in function to old fdisk from DOS – Use ? to display commands, p to display partition info • Once partition created, must be formatted – mkfs –t type filesystem • Once formatted, you can mount it

Filesystem Integrity • Filesystem problems? Corrupt files? Forced into single user mode to fix errors? • fsck • Syntax: fsck [options] –t type filesystem • Again, usually need root permissions • Also, filesystem should NOT be mounted while running fsck – can cause damage

Monitoring Disk Usage • • du – disk usage on files and directories df – reports filesystem utilization lsof – list open file handles quota – configure and display user quotas – quotactl – quotacheck – quotaon – edquota

Installing Software • The open source movement has provided an enormous volume of freely available programs • Two primary methods of installing programs – By source – By package manager

Installing by Source • Download source code • Usually comes in a compressed tar archive (. tar. gz or similar) • Extract source code • Configure the installation (usually. /configure) • Then compile (make) • Then copy into filesystem (make install)

Package Managers • There a wide variety of package managers available for different Linux distributions • In turn, there are several different types of packages available for each of these managers • Packages are an archived version of the source code • Often tailored to a specific architecture or distribution

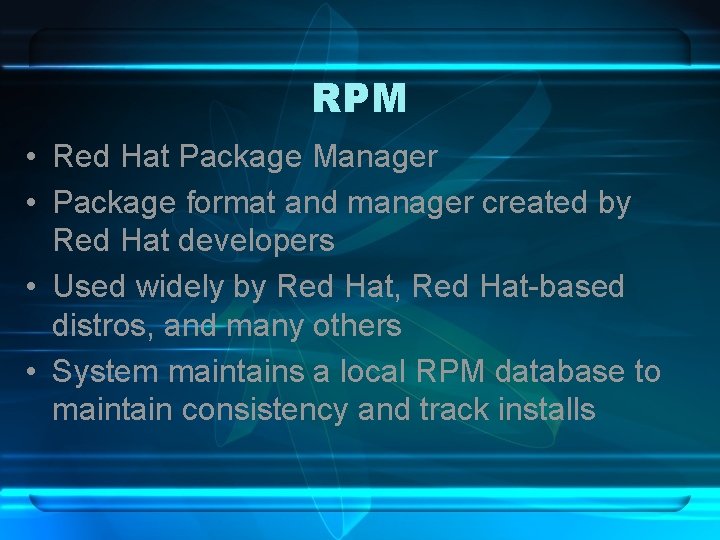

RPM • Red Hat Package Manager • Package format and manager created by Red Hat developers • Used widely by Red Hat, Red Hat-based distros, and many others • System maintains a local RPM database to maintain consistency and track installs

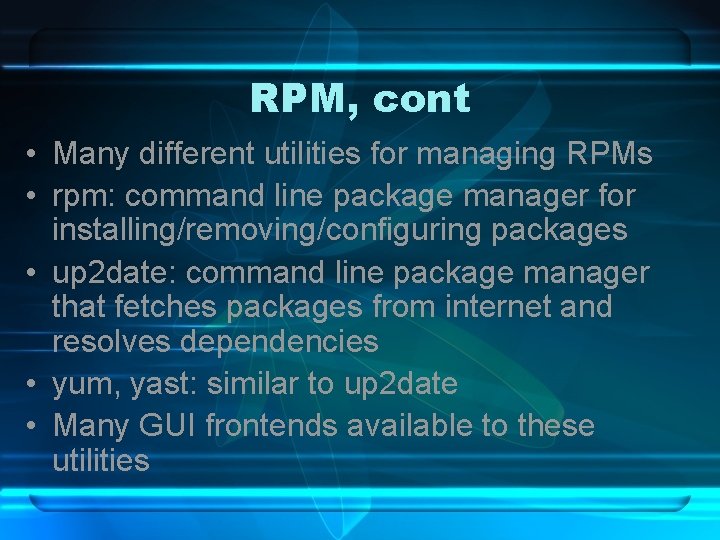

RPM, cont • Many different utilities for managing RPMs • rpm: command line package manager for installing/removing/configuring packages • up 2 date: command line package manager that fetches packages from internet and resolves dependencies • yum, yast: similar to up 2 date • Many GUI frontends available to these utilities

deb • Debian package format • Used in Debian Linux and it’s derivatives such as Ubuntu and Knoppix • Contains compressed binary data and metadata • Again, usually specific to a distro and an architecture

deb cont • dpkg: Debian package manager, for installing/removing/configuring packages • apt: Advanced Package Tool, for installing and configuring packages from online sources. Also does dependency resolution • Again, graphical front ends available for each of these

User Administration • User configuration stored in /etc/passwd • File got it’s name because it originally contained passwords as well – Security problem – too many processes need to read passwd – A shadow file used now instead (more in a sec) • Each line contains info for one user

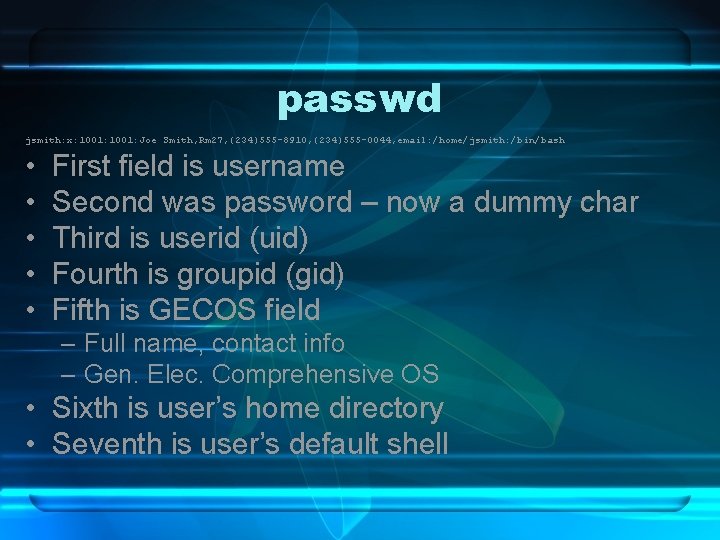

passwd jsmith: x: 1001: Joe Smith, Rm 27, (234)555 -8910, (234)555 -0044, email: /home/jsmith: /bin/bash • • • First field is username Second was password – now a dummy char Third is userid (uid) Fourth is groupid (gid) Fifth is GECOS field – Full name, contact info – Gen. Elec. Comprehensive OS • Sixth is user’s home directory • Seventh is user’s default shell

passwd, cont • Originally passwd contained a user’s password information • How it works – User picks a password – A random number is generated (called the salt) – The salt and the password is passed into a hash function (a one-way cryptographic algorithm) – The salt and result are stored in ASCII

passwd, cont • Problem – user-level programs need to read passwd – Get user name, location – Home directory, shell • So passwd was world readable • So anyone on system could see a user’s salted hash • It’s encrypted – what’s the big deal? ? ?

passwd, cont • Original salt was 12 -bit. . . 4096 possibilities • Many early users used bad passwords – Dictionary words • Even with 1970’s computing, it wouldn’t take very long to try all combinations of salts and passwords through the hash function • Just wait for a match • Brute force crack

shadow • Wasn’t acceptable to have passwd world readable if it contained hashes • So salted hashes moved to a new file • /etc/shadow • Format similar to passwd, one user per line • Readable only by root

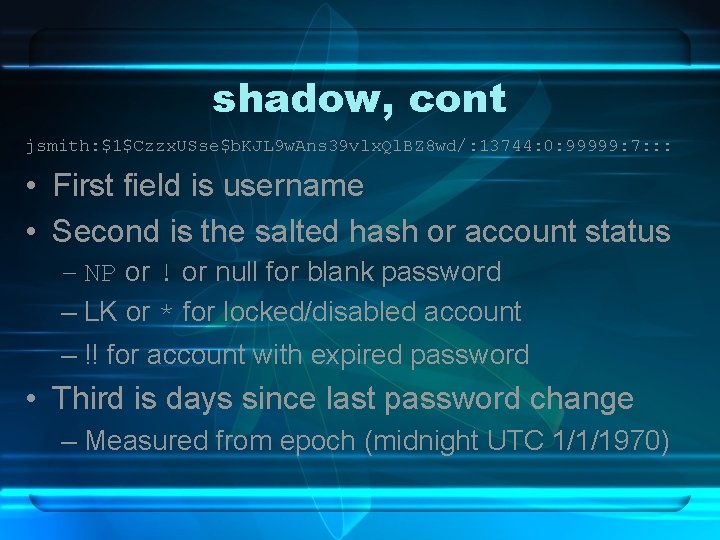

shadow, cont jsmith: $1$Czzx. USse$b. KJL 9 w. Ans 39 vlx. Ql. BZ 8 wd/: 13744: 0: 99999: 7: : : • First field is username • Second is the salted hash or account status – NP or ! or null for blank password – LK or * for locked/disabled account – !! for account with expired password • Third is days since last password change – Measured from epoch (midnight UTC 1/1/1970)

shadow, cont • Fourth is days until password is eligible to be changed • Fifth is days before change is required • Sixth is days before expiration to warn • Seventh is days before account expires • Eighth is days since epoch when account expires • Ninth is unused/reserved

Adding Users • If you really wanted to, edit /etc/passwd by hand • Some distributions have graphical or simplified ways to add users • Most widely available however is command line utility useradd

Adding Users, cont • Syntax: useradd [options] [-g group] [-d home] [-s shell] username • • -g to define user’s initial group -d to define user’s home directory -s to define user’s default shell Other options for expiration, using defaults, etc

Deleting Users • Again, could just hack /etc/passwd • More elegant: • Syntax: userdel [-r] username • -r to delete home directory and it’s contents

Modifying Users • Syntax: usermod [options] username • Options are pretty much identical to those of useradd • Also, -l to change the user’s login name • And –G to list additional groups to add user to

Group Management • Group info housed in /etc/group • • Similar to user management groupadd groupdel groupmod

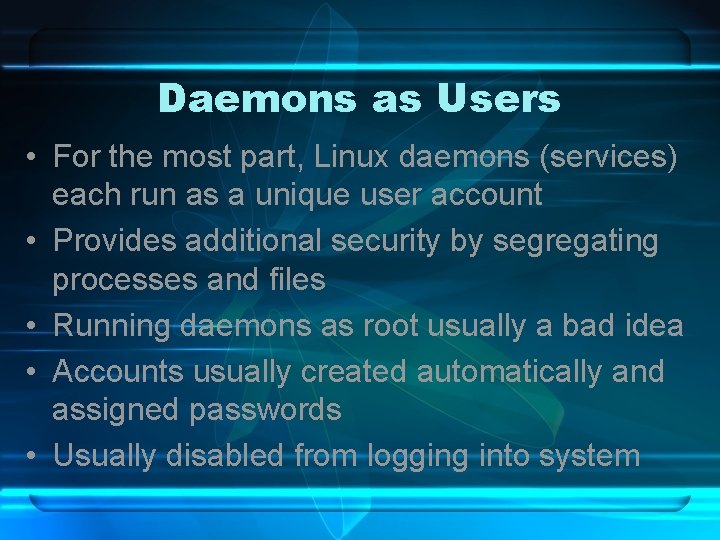

Daemons as Users • For the most part, Linux daemons (services) each run as a unique user account • Provides additional security by segregating processes and files • Running daemons as root usually a bad idea • Accounts usually created automatically and assigned passwords • Usually disabled from logging into system

Networking • Linux is a powerful networking operating system • Much of it developed in tandem with the Internet • Ability to work as a client, server, or network device – Proxies, firewalls, routers, bridges, etc

Networking, cont • Overall networking usually governed by /etc/rc. d/init. d/network • Invoked in runlevels 3 and 5 usually • Network device/interface configurations in either /etc/sysconfig/networking or in /etc/sysconfig/network-scripts • Can either edit manually, or use utilities to manage

ifconfig • Displays or alters network device configs • Syntax: ifconfig interface [options] • With no options, shows interface’s config • If interface omitted as well, show all configs • Options include flags, IP address, subnet mask, etc

route • Display or change routing • In simple configurations, mostly used to set default gateway • Syntax: route [options] [add/delete] [target] • With no arguments, show route table

hostname • Used to set/display the computer’s network name • Depending on what protocols your network uses, may also need to look at – domainname – dnsdomainname • Especially important for Internet-accessible systems • Can be defined in /etc/sysconfig/network

Interfaces • By default, wired ethernet interfaces are found as eth. X, with X starting at 0 • These are aliases to the actual physical adapter and driver • To enable an interface: – ifup interface • To disable an interface: – ifdown interface

Interfaces, cont • Other types of interfaces exist – ppp, slip, atm, etc • Management of them work similarly • Wireless interfaces a bit different – Use iwconfig to manage these and display info – Has the additional options for frequency, encryption, channel, passphrases, etc

Networking • As with most things, GUI tools available • Similar to TCP/IP configuration in Windows • More advanced operations (bridging, NAT/IP Masquerading, advanced routing) take a little more configuration • Default firewall software is iptables or ipchains

Network Shares • Samba SMB/CIFS • CUPS • NFS

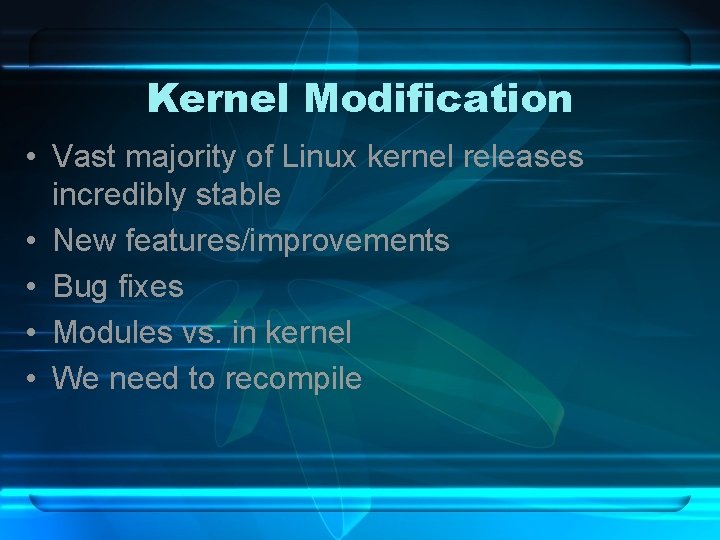

Kernel Modification • Vast majority of Linux kernel releases incredibly stable • New features/improvements • Bug fixes • Modules vs. in kernel • We need to recompile

Kernel Mods, cont • If we just want to upgrade to a newer kernel release, there a couple of options • Can download and install new kernel packages (RPM, deb, etc) • Pre-compiled, and most package managers do all the work • Or the manual way … – Necessary to do any real customization

Kernel Compilation • • • First, need to get kernel source code www. kernel. org Current mainline branch is 2. 6 For legacy systems/apps, 2. 4 is still available Usually a tar. gz or tar. bz 2 Copy to either a temp location, or maybe /usr/src/kernel/

Kernel Compilation, cont • Once you have the compressed archive, uncompress and extract contents • Should make a directory named after the kernel release – i. e. linux-2. 6. 31. 6/ • Now go into that directory • Should see lots of directories for different aspects of the system, and a Makefile

Kernel Compilation, cont • Now we need to configure kernel – Select options – Choose which items should be modules vs. in kernel itself • To import in the previous system config – make oldconfig • The config is stored in the. config file

Kernel Compilation, cont • Want to configure from scratch? Or further customize? • A few different methods – make menuconfig (ncurses) – make xconfig (X 11 Qt) – make gconfig (X 11 Gtk) • All basically do the same thing – make selections

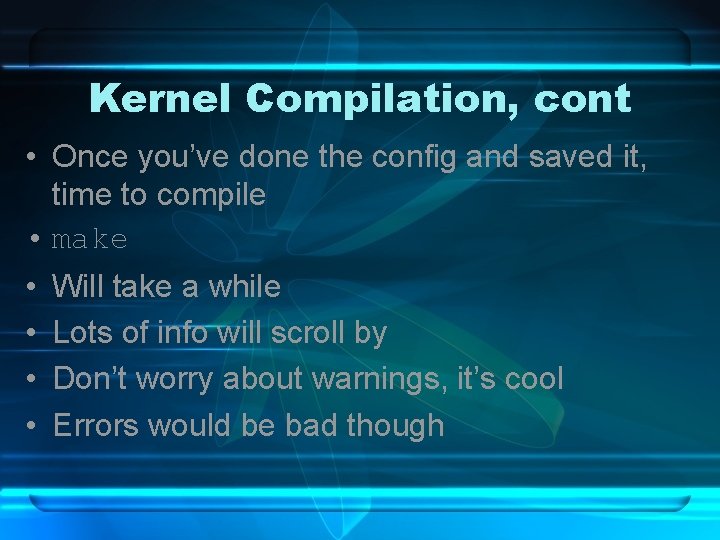

Kernel Compilation, cont • Once you’ve done the config and saved it, time to compile • make • • Will take a while Lots of info will scroll by Don’t worry about warnings, it’s cool Errors would be bad though

Kernel Compilation, cont • Once kernel itself is compiled, must compile the kernel modules • make modules • Once that’s done, we need to install the modules into the correct location in the filesystem • make modules_install

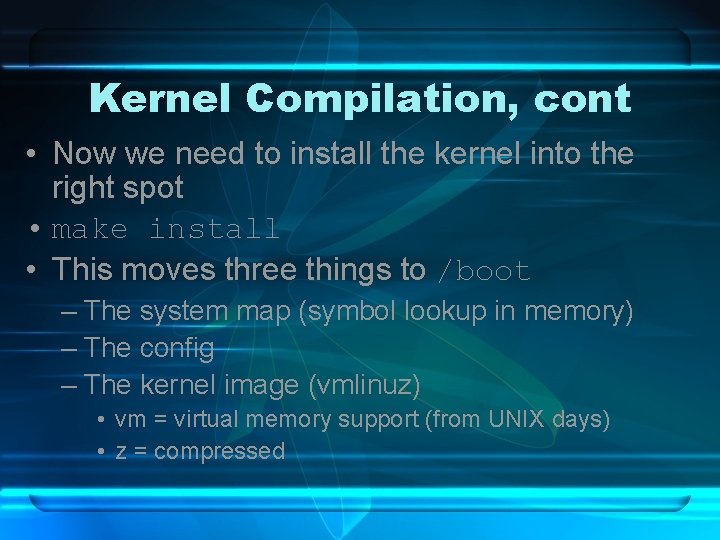

Kernel Compilation, cont • Now we need to install the kernel into the right spot • make install • This moves three things to /boot – The system map (symbol lookup in memory) – The config – The kernel image (vmlinuz) • vm = virtual memory support (from UNIX days) • z = compressed

Kernel Compilation • Now we have the kernel in place • But we need the info necessary to launch init • We need an initial filesystem loaded so that init has what is necessary to load devices and other filesystems (including /) • So we use a temporary, memory contained filesystem – a RAM disk

Kernel Compilation, cont • So we need to create an initrd – a RAM Disk for init to work with before the real filesystems is mounted • So go to /boot • mkinitrd –o initrd. img-<kern-ver> • Makes an image of the necessary filesystem components for that version of the kernel

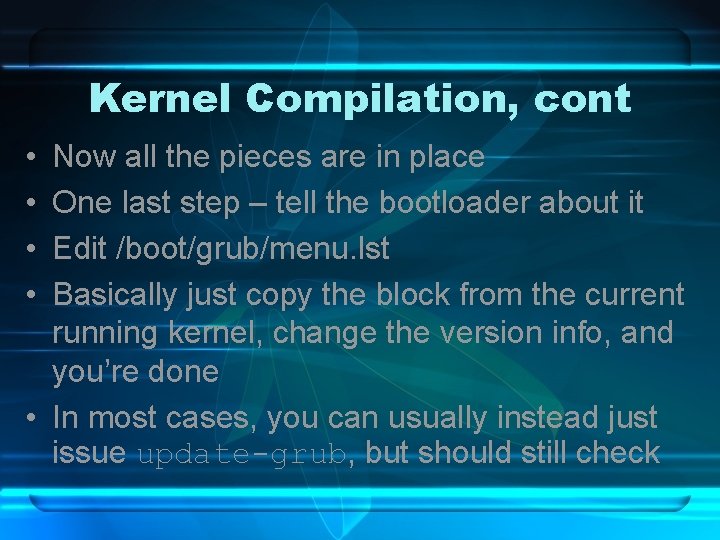

Kernel Compilation, cont • • Now all the pieces are in place One last step – tell the bootloader about it Edit /boot/grub/menu. lst Basically just copy the block from the current running kernel, change the version info, and you’re done • In most cases, you can usually instead just issue update-grub, but should still check

Kernel Compilation, cont • Example grub block title Red Hat Enterprise Linux ES (2. 6. 9 -5. ELsmp) root (hd 0, 0) kernel /boot/vmlinuz root=/dev/hdb 1 ro initrd /boot/initrd. img-2. 6. 25 savedefault boot

Kernel Compilation, cont • Now you can reboot and try it out • Check the grub menu for the new kernel you installed and select it • System should boot fine and everything should work • Panic? Reboot, select old kernel, boot into it • Retrace your steps, debug kernel, etc
