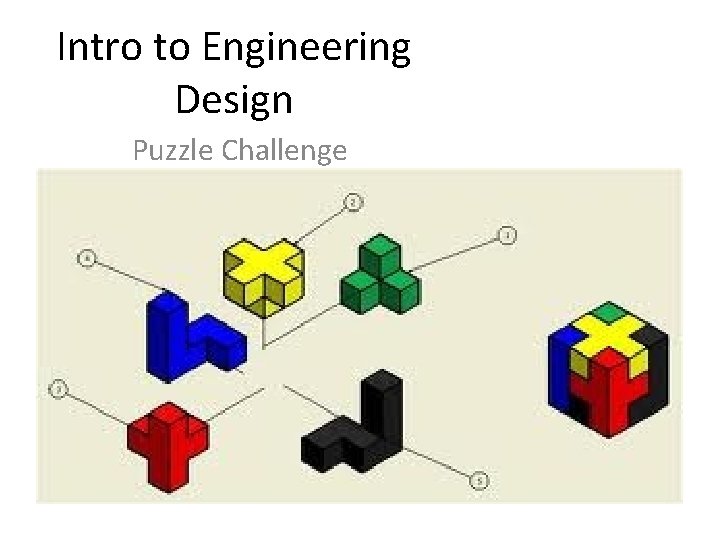

Intro to Engineering Design Puzzle Challenge

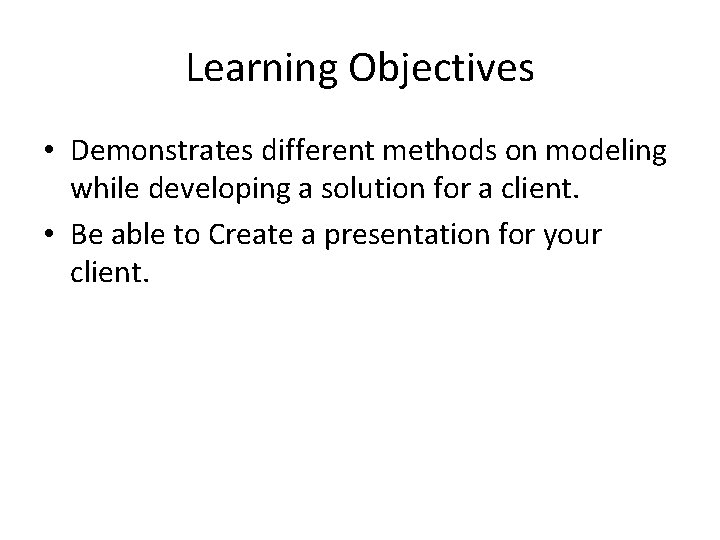

Learning Objectives • Demonstrates different methods on modeling while developing a solution for a client. • Be able to Create a presentation for your client.

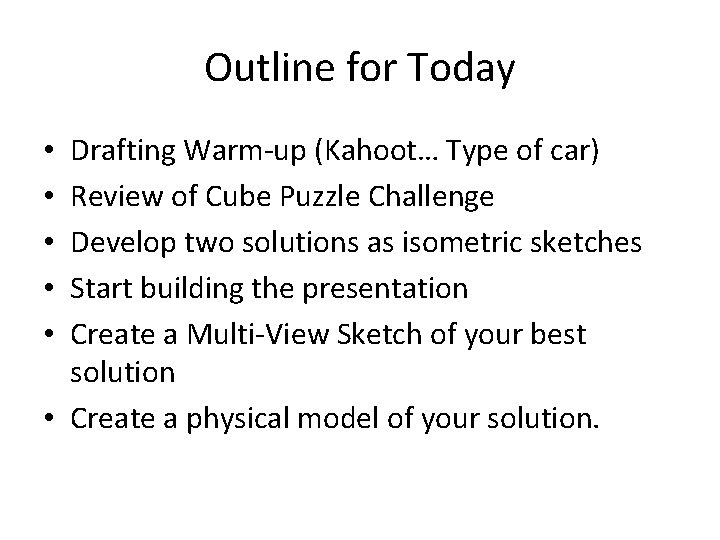

Outline for Today Drafting Warm-up (Kahoot… Type of car) Review of Cube Puzzle Challenge Develop two solutions as isometric sketches Start building the presentation Create a Multi-View Sketch of your best solution • Create a physical model of your solution. • • •

Design Brief • Problem Statement: • A local office furniture manufacturing company throws away tens of thousands of scrap ¾” hardwood cubes that result from its furniture construction processes. The material is expensive, and the scrap represents a sizeable loss of profit. • • Design Statement: • Fine Office Furniture, Inc. would like to return value to its waste product by using it as the raw material for desktop novelty items that will be sold on the showroom floor. Design, build, test, document, and present a three-dimensional puzzle system that is made from the scrap hardwood cubes. The puzzle system must provide an appropriate degree of challenge to a person who is three years of age or older.

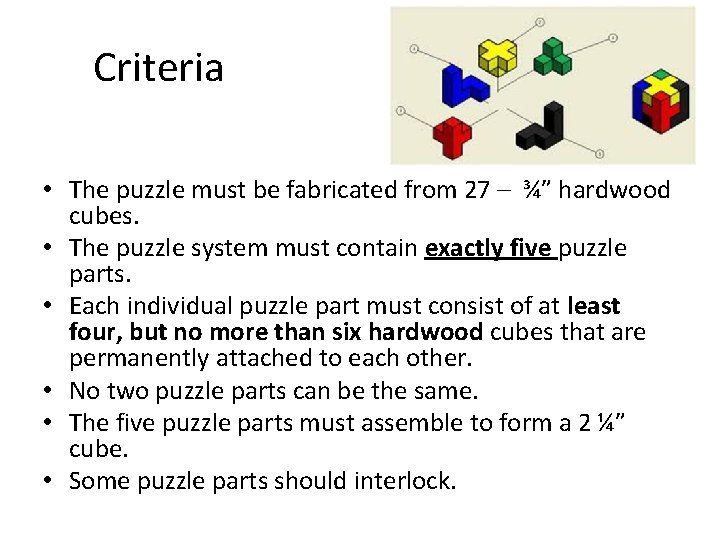

Criteria • The puzzle must be fabricated from 27 – ¾” hardwood cubes. • The puzzle system must contain exactly five puzzle parts. • Each individual puzzle part must consist of at least four, but no more than six hardwood cubes that are permanently attached to each other. • No two puzzle parts can be the same. • The five puzzle parts must assemble to form a 2 ¼” cube. • Some puzzle parts should interlock.

Gather information for Cube project Power. Point 1. Title page 1. Include the title of this project, your name and the date 2. Brief autobiography (About you, your education/experience level in 10 years) and your picture 1. One paragraph 3. Puzzle Design Challenge Brief 1. 2. 3. 4. 5. 6. 4. Brainstorming Possible Part Combinations (Activity 4. 1 a Puzzle Part Combinations) 1. 5. Take pictures and paste into your document Isometric sketches of two possible complete Puzzle Cube designs (Isometric Worksheets) 1. 6. Client End user Designer Problem Statement: What was the problem that the design was trying to solve. Design Statement: What degree was the solution intended to be realized? Modeling types (graphicalphysical), prototype, production, … Criteria and Constraints: Parts, dimensions, … Take pictures and paste into your document Justification of your chosen Puzzle Cube design solution

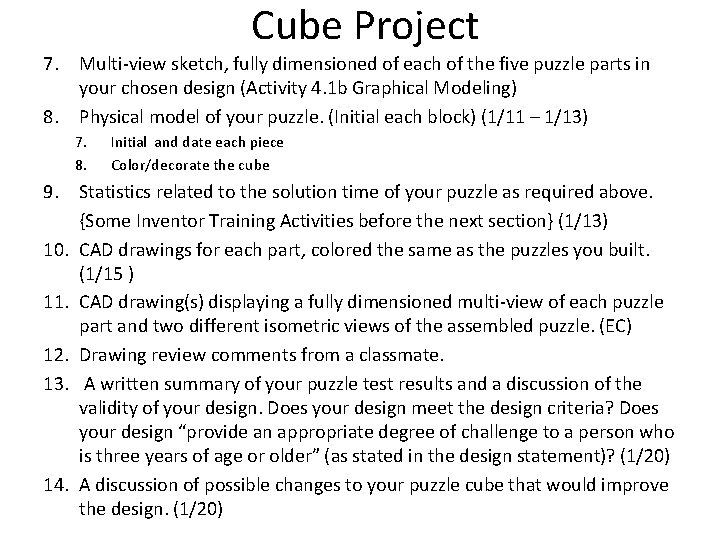

Cube Project 7. Multi-view sketch, fully dimensioned of each of the five puzzle parts in your chosen design (Activity 4. 1 b Graphical Modeling) 8. Physical model of your puzzle. (Initial each block) (1/11 – 1/13) 7. 8. Initial and date each piece Color/decorate the cube 9. Statistics related to the solution time of your puzzle as required above. {Some Inventor Training Activities before the next section} (1/13) 10. CAD drawings for each part, colored the same as the puzzles you built. (1/15 ) 11. CAD drawing(s) displaying a fully dimensioned multi-view of each puzzle part and two different isometric views of the assembled puzzle. (EC) 12. Drawing review comments from a classmate. 13. A written summary of your puzzle test results and a discussion of the validity of your design. Does your design meet the design criteria? Does your design “provide an appropriate degree of challenge to a person who is three years of age or older” (as stated in the design statement)? (1/20) 14. A discussion of possible changes to your puzzle cube that would improve the design. (1/20)

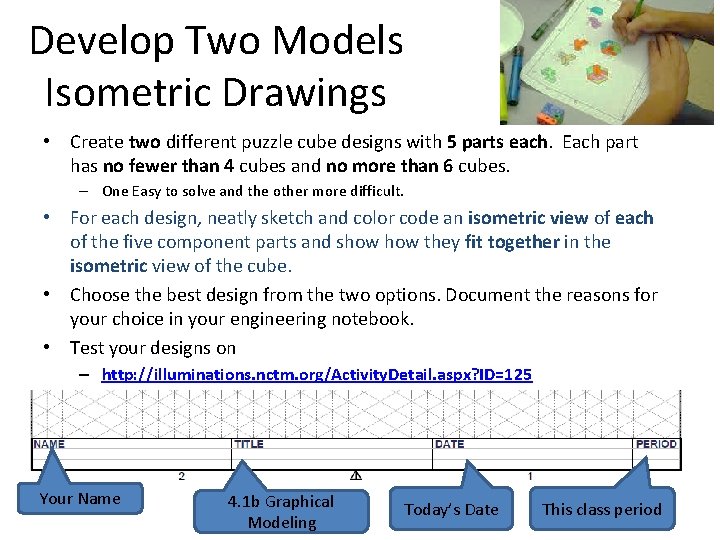

Develop Two Models Isometric Drawings • Create two different puzzle cube designs with 5 parts each. Each part has no fewer than 4 cubes and no more than 6 cubes. – One Easy to solve and the other more difficult. • For each design, neatly sketch and color code an isometric view of each of the five component parts and show they fit together in the isometric view of the cube. • Choose the best design from the two options. Document the reasons for your choice in your engineering notebook. • Test your designs on – http: //illuminations. nctm. org/Activity. Detail. aspx? ID=125 Your Name 4. 1 b Graphical Modeling Today’s Date This class period

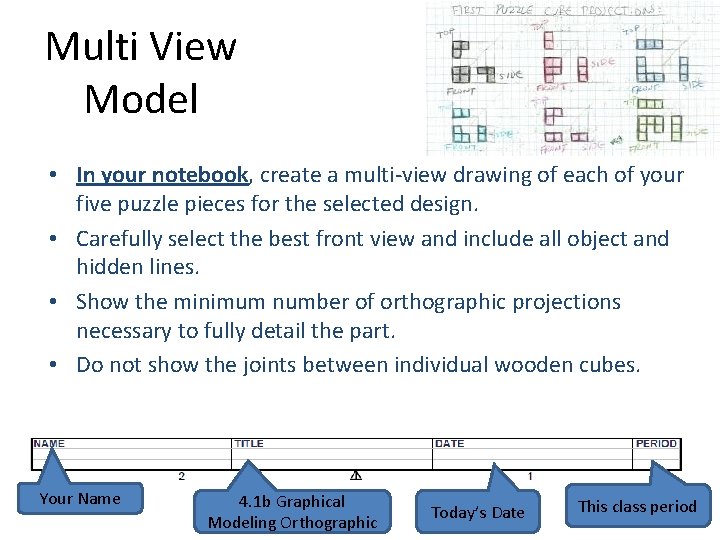

Multi View Model • In your notebook, create a multi-view drawing of each of your five puzzle pieces for the selected design. • Carefully select the best front view and include all object and hidden lines. • Show the minimum number of orthographic projections necessary to fully detail the part. • Do not show the joints between individual wooden cubes. Your Name 4. 1 b Graphical Modeling Orthographic Today’s Date This class period
