INTRATUMORAL METABOLIC HETEROGENEITY OF CERVICAL CANCER Perry Grigsby
INTRA-TUMORAL METABOLIC HETEROGENEITY OF CERVICAL CANCER Perry Grigsby

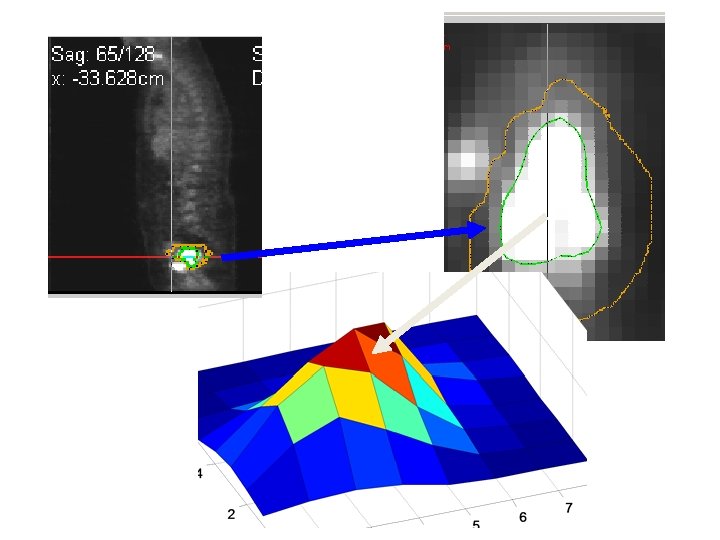

Tumor Heterogeneity Definition
Pre-Treatment
Heterogeniety = d(V)/d(T)

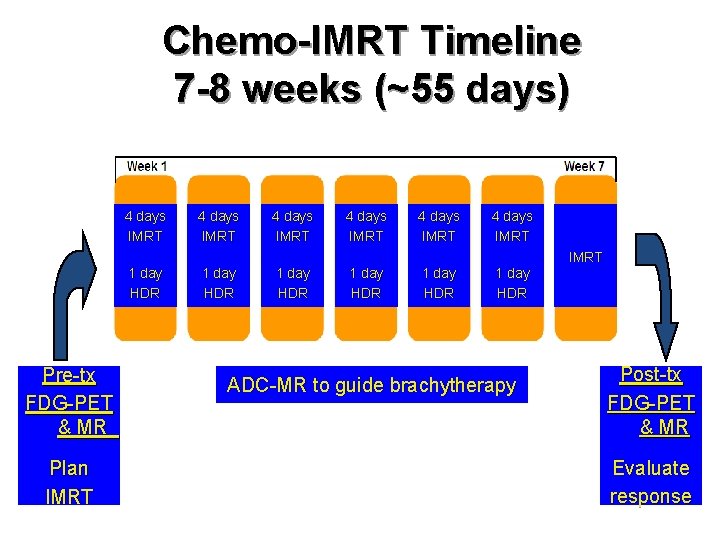

Chemo-IMRT Timeline 7 -8 weeks (~55 days) 4 days IMRT 4 days IMRT 1 day HDR Pre-tx FDG-PET & MR Plan IMRT 1 day HDR 1 day HDR ADC-MR to guide brachytherapy Post-tx FDG-PET & MR Evaluate response
Change in Heterogeneity During Treatment
Cu-ATSM Hypoxia

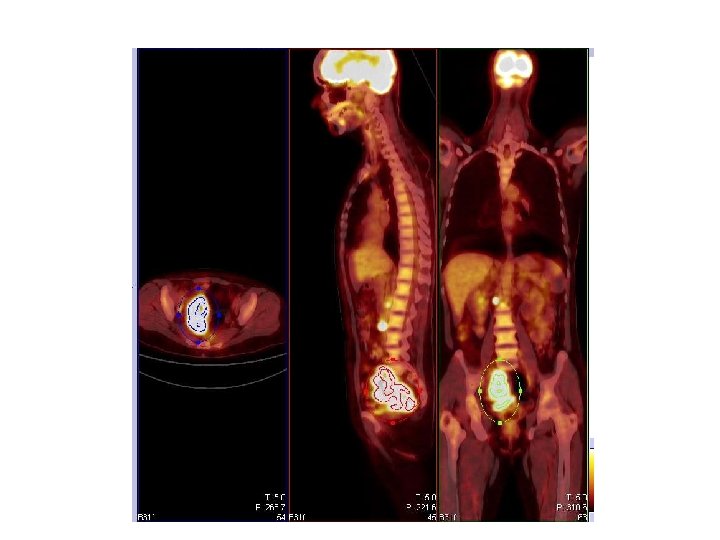

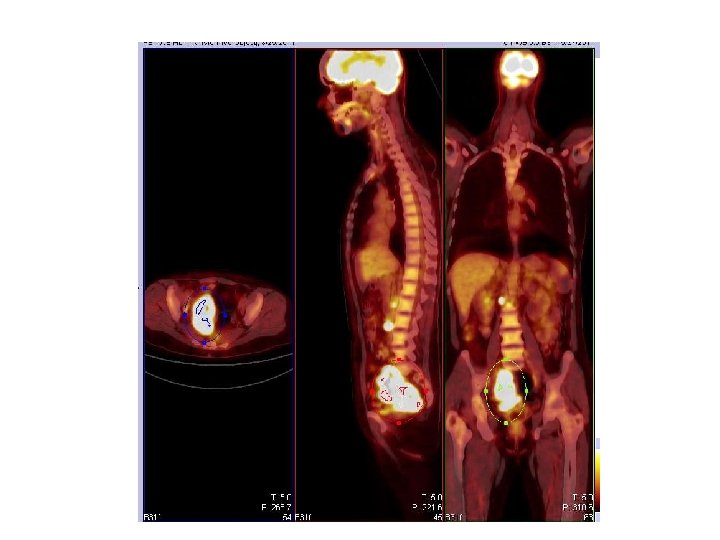

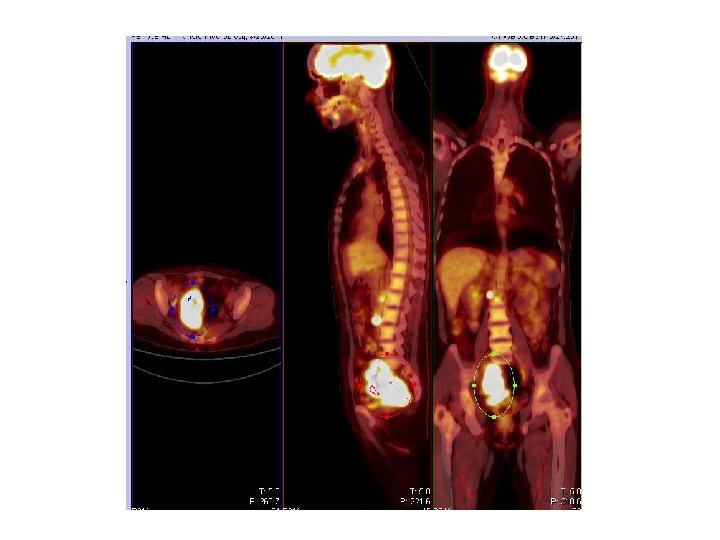

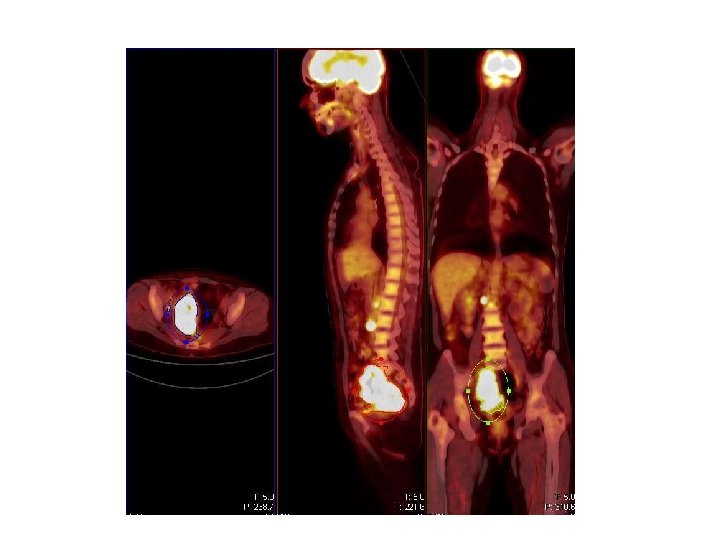

Axial A B C Coronal Sagittal
Fraction of 64 Cu-ATSM Threshold Volume Within the FDG Defined Tumor Volume Threshold Mean ± SEM 40% 0. 773 ± 0. 013 50% 0. 536 ± 0. 023 60% 0. 357 ± 0. 024 70% 0. 202 ± 0. 018 80% 0. 087 ± 0. 010

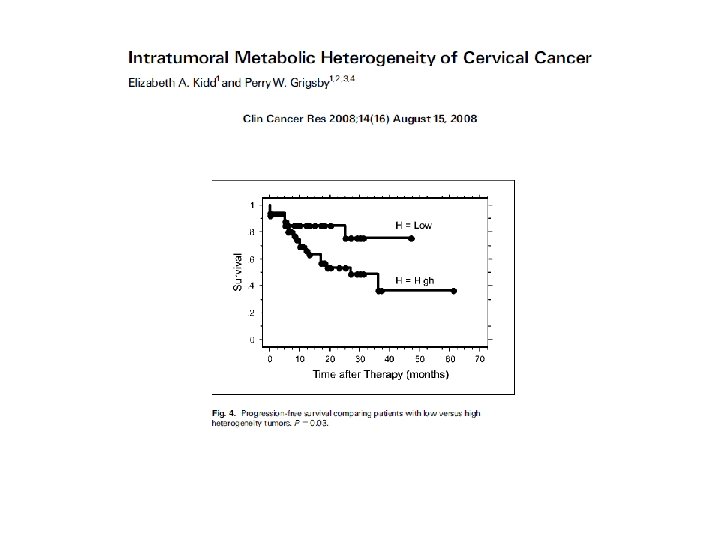

Progression Free Survival 64 Cu-ATSM Heterogeneity 1 0. 8 p=0. 04 0. 6 Hetero > -1. 7 Hetero ≤ -1. 7 0. 4 0. 2 0 0 5 10 15 20 25 30 Time (Months) 35 40 45
Non-Spatial

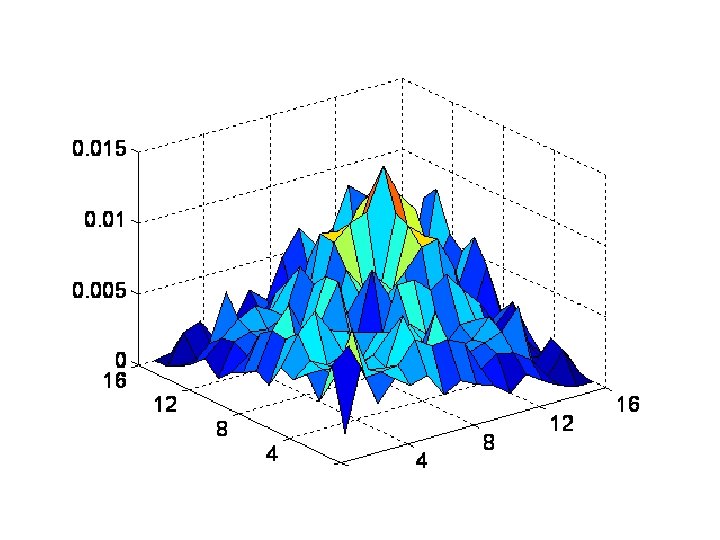

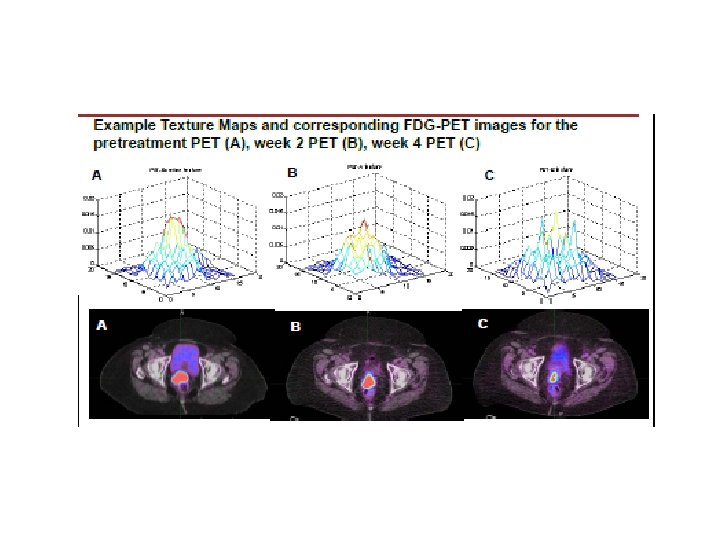

Other Measures of Heterogeneity Texture & Shape of Metabolism

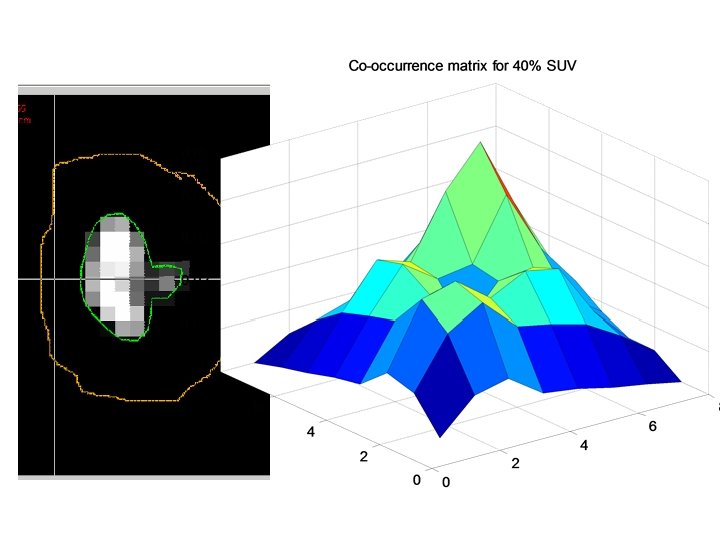

A toy example for demonstration of constructing the co-occurrence matrix. (a) Test image of size 4 x 4 and 4 intensity levels (M=4). The corresponding co-occurrence matrix assuming single pixel distance in: (b) East direction and (c) all directions. The matrix is converted into a probability mass function by normalization so that the sum is equal to unity.

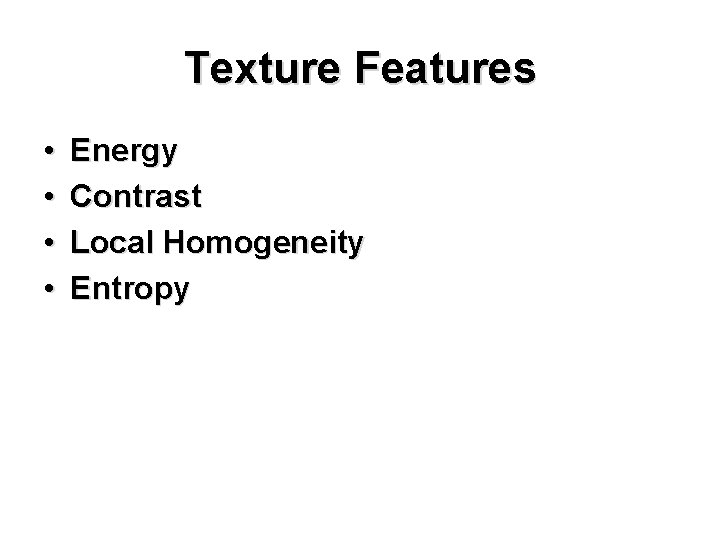

Texture Features • • Energy Contrast Local Homogeneity Entropy

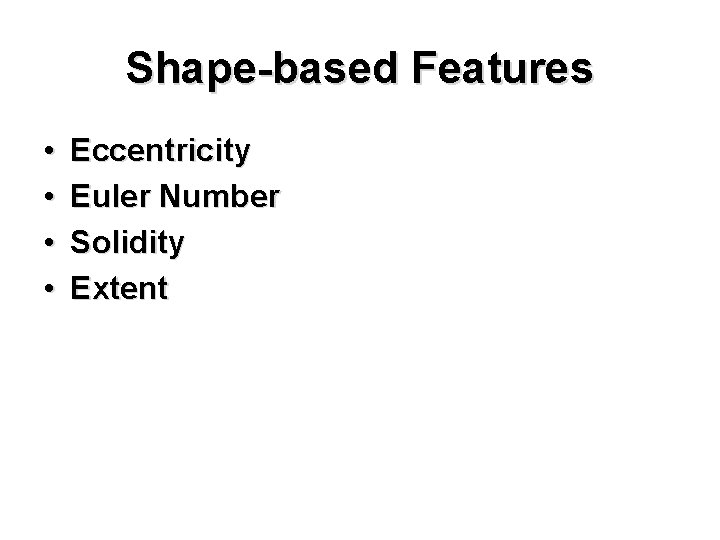

Shape-based Features • • Eccentricity Euler Number Solidity Extent
Volumetric run length type texture Feature Definition Description Short Run Emphasis Measures the distribution of short runs. The SRE is highly dependent on the occurrence of short runs and is expected large for fine textures. Long Run Emphasis Measures distribution of long runs. The LRE is highly dependent on the occurrence of long runs and is expected large for coarse structural textures. Low Gray-Level Run Emphasis Measures the distribution of low gray level values. The LGRE is expected large for the image with low gray level values. High Gray-Level Run Emphasis Measures the distribution of high gray level values. The HGRE is expected large for the image with high gray level values. Short Run Low Gray-Level Emphasis Measures the joint distribution of short runs and low gray level values. The SRLGE is expected large for the image with many short runs and lower gray level values. Short Run High Gray-Level Emphasis Measures the joint distribution of short runs and high gray level values. The SRHGE is expected large for the image with many short runs and high gray level values. Long Run Low Gray-Level Emphasis Measures the joint distribution of long runs and low gray level values. The LRLGE is expected large for the image with many long runs and low gray level values. Long Run High Gray-Level Emphasis Measures the joint distribution of long runs and high gray level values. The LRHGE is expected large for images with many long runs and high gray level values. Gray-Level Non-uniformity Measures the similarity of gray level values through out the image. The GLNU is expected small if the gray level values are alike through out the image. Run Length Non-uniformity Measures the similarity of the length of runs through out the image. The RLNU is expected small if the run lengths are alike through out the image. Run Percentage Measures the homogeneity and the distribution of runs of an image in a specific direction. The RP is the largest when the length of runs is 1 for all gray levels in specific direction. 30
Volumetric run length type texture 31
Volumetric zone length type texture Feature Definition Short Zones Emphasis (SZE) Long Zones Emphasis (LZE) Low Grey-Level Zone Emphasis (LGZE) High Grey-Level Zone Emphasis (HGZE) Short Zone Low Gray-Level Emphasis (SZLGE) Short Zone High Gray-Level Emphasis (SZHGE) Long Zone Low Gray-Level Emphasis (LZLGE) Long Zone High Gray-Level Emphasis (LZHGE) Gray Level Non-Uniformity (GLNU) Zone Length Non-Uniformity (ZLNU) Zone Percentage (ZP) 32
Volumetric zone length type texture 33
Chemo-IMRT Timeline 7 -8 weeks (~55 days) 4 days IMRT 4 days IMRT 1 day HDR Pre-tx FDG-PET & MR Plan IMRT 1 day HDR 1 day HDR ADC-MR to guide brachytherapy Post-tx FDG-PET & MR Evaluate response

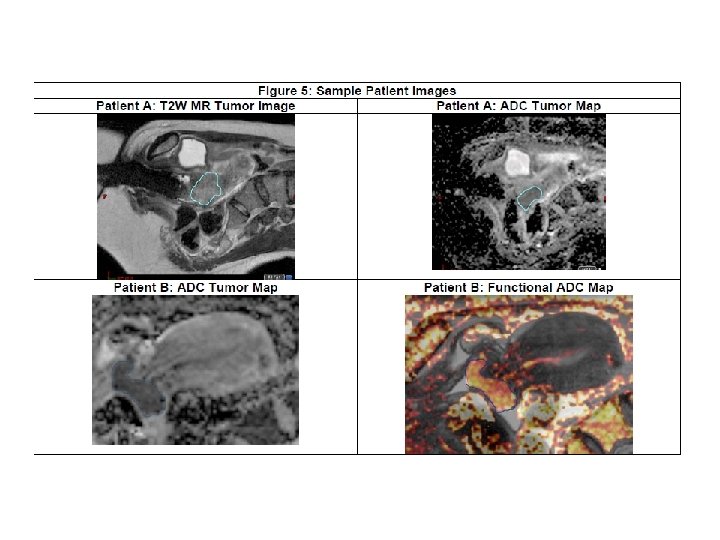

Diffusion Weighted Imaging T 2 W ADC

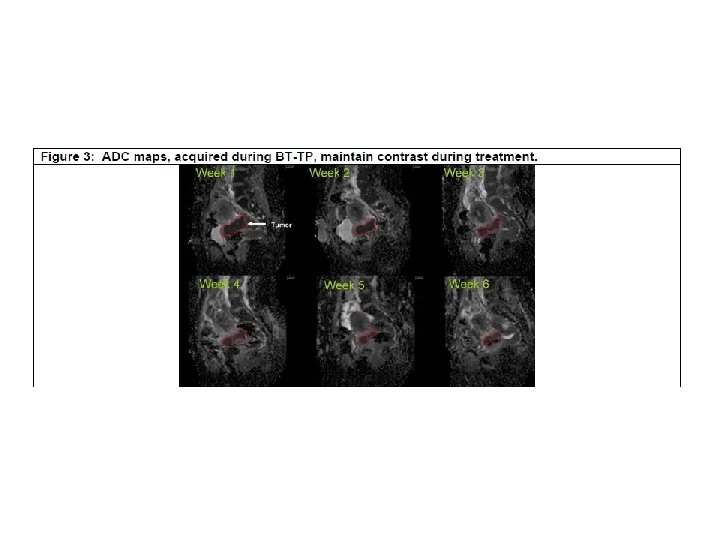

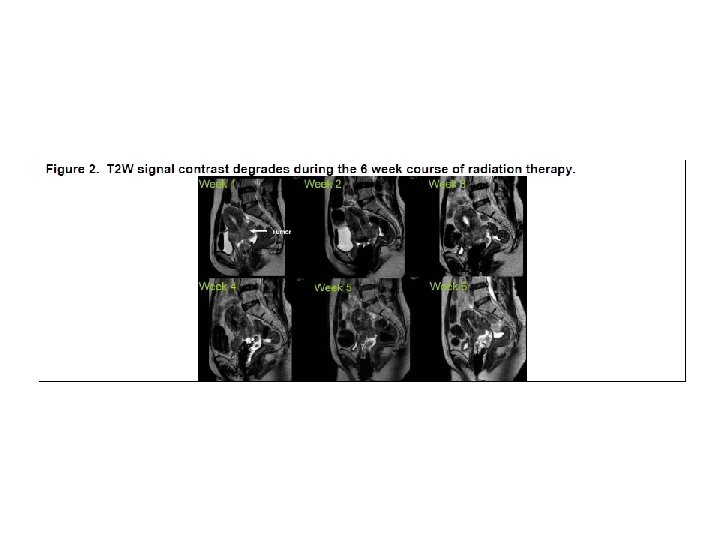

Patient 2 Patient 1 Week 1 Olsen JR, et al. ASTRO 2011. Week 3 Week 5
Tumor Volume Comparison
Tumor Sub-Volume Comparison
Tumor Sub-Volume Comparison
Diffusion Weighted Imaging ADC
Segmentation
DTI
DTI
Goals • Identify Biologic Targets • Improve Image Guided Therapy
Improve Survival with IMRT/IGRT External RT & Brachytherapy
Decrease Complications with IMRT/IGRT External RT & Brachytherapy
Future Directions Spatial Heterogeneity Pre-Treatment Intra-Treatment Post-Treatment
Future Directions
Whole-Body PET/MR Hybrid Imaging
