![Intramolecular and Intermolecular Forces Intramolecular Forces The forces between atoms or ions inside Intramolecular and Intermolecular Forces Intramolecular Forces - The forces between atoms or ions inside](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-1.jpg)
Intramolecular and Intermolecular Forces Intramolecular Forces - The forces between atoms or ions inside a compound such as covalent and ionic bonding (determines the stability of a comound) H-O-H 2 H + O E = 920 k. J/mol Intermolecular Forces - The forces between individual particles. (determines the phase a compound is in at room temperature) H 2 O(l ) H 2 O(g) E=40. 7 k. J/mol note: Ionic bonding falls under both categories.
![IonIon Intermolecular Forces E qqd ionic compounds have strong Intermolecular forces solids at room Ion-Ion Intermolecular Forces E q+q-)/d ionic compounds have strong Intermolecular forces solids at room](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-2.jpg)
Ion-Ion Intermolecular Forces E q+q-)/d ionic compounds have strong Intermolecular forces solids at room temperature and they have high m. p. ionic compounds with mulitiply charged ions generally have higher m. p. than those with singly charged ions Na. Cl mp 801 o. C Ca. F 2 mp 1180 o. C Ca. O mp 2580 o. C
![IonDipole DipoleDipole intermolecular forces Polar covalent molecules undergo DipoleDipole intermolecular interactions which are Ion-Dipole & Dipole-Dipole intermolecular forces Polar covalent molecules undergo Dipole-Dipole intermolecular interactions which are](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-3.jpg)
Ion-Dipole & Dipole-Dipole intermolecular forces Polar covalent molecules undergo Dipole-Dipole intermolecular interactions which are much weaker than ion-ion intermolecular interactions (E q+q-)/d 2). Therefore, polar covalent molecules are generally liquids at room temperature. Ion-Dipole-Dipole
![Hydrogen Bonding Hydrogen bonding occurs among polar covalent molecules containing a hydrogen bonded to Hydrogen Bonding Hydrogen bonding occurs among polar covalent molecules containing a hydrogen bonded to](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-4.jpg)
Hydrogen Bonding Hydrogen bonding occurs among polar covalent molecules containing a hydrogen bonded to F, O or N.
![Dispersion Forces Dispersion forces weak attractive forces that all molecules have dispersion forces Dispersion Forces Dispersion forces - weak attractive forces that all molecules have. dispersion forces](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-5.jpg)
Dispersion Forces Dispersion forces - weak attractive forces that all molecules have. dispersion forces are the only intermolecular interaction that small, non-polar molecules undergo. (generally gases at room temp. ) The more electrons a molecule/atom has, the stronger the dispersion force
![Intermolecular Force Strongest intermediate weakest IonIon state room temp Solid IonDipole hydrogen bonding Intermolecular Force Strongest intermediate weakest Ion-Ion state (room temp. ) Solid Ion-Dipole hydrogen bonding](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-6.jpg)
Intermolecular Force Strongest intermediate weakest Ion-Ion state (room temp. ) Solid Ion-Dipole hydrogen bonding Dipole-Dipole liquid dispersion gas
![Liquid State Viscosity the resistance to flow of a liquid Viscosity depends Liquid State - Viscosity - the resistance to flow of a liquid. Viscosity depends](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-7.jpg)

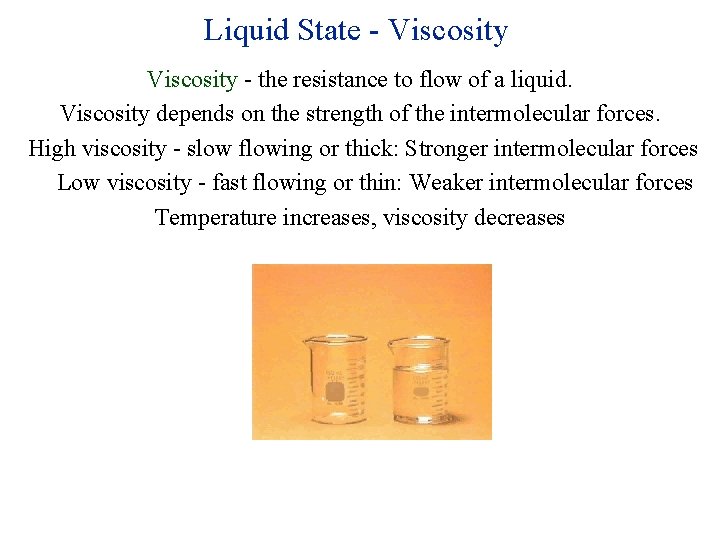

Liquid State - Viscosity - the resistance to flow of a liquid. Viscosity depends on the strength of the intermolecular forces. High viscosity - slow flowing or thick: Stronger intermolecular forces Low viscosity - fast flowing or thin: Weaker intermolecular forces Temperature increases, viscosity decreases
![Liquid State Surface Tension a measure of the inward forces that must Liquid State - Surface Tension - a measure of the inward forces that must](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-8.jpg)
Liquid State - Surface Tension - a measure of the inward forces that must be overcome to expand the surface area of a liquid. The molecules on the surface of a liquid only have intermolecular interactions with the molecules toward the interior of the liquid.
![Liquid State capillary action Cohesive Forces all forces that hold a liquid Liquid State - capillary action Cohesive Forces - all forces that hold a liquid](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-9.jpg)
Liquid State - capillary action Cohesive Forces - all forces that hold a liquid together. Adhesive Forces - the force of attraction between a liquid another surface. Glass Capillary Tube - a glass tube with a small bore (inner diameter) Water has a strong attraction to glass (Si. O 2) therefore water adheres to the glass. There is a strong adhesive force between water and glass. Waters meniscus will be concave in a glass capillary tube. Mercury does not have a strong attraction to glass and does not adhere to it. Therefore, the cohesive forces in mercury are stronger than the adhesive force between mercury and the glass. Mercury’s meniscus will be convex in a glass capillary tube. (Fig. 13 -9) Capillary action - The movement of a liquid in a capillary tube when the end of the tube is placed in the liquid.
![Liquid State Evaporation vaporization the endothermic process by which molecules on the Liquid State - Evaporation (vaporization) - the endothermic process by which molecules on the](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-10.jpg)
Liquid State - Evaporation (vaporization) - the endothermic process by which molecules on the surface of a liquid break away and go into the gas phase. A molecule must have sufficient kinetic energy to break the intermolecular forces holding it in the liquid phase. (Figure 13 -11) At higher temperatures, more molecules have sufficient kinetic energy to escape and the liquid will evaporate at a faster rate. Liquid vapour : evaporation : endothermic vapour liquid : condensation : exothermic
![Liquid vapour pressure Vapour Pressure The partial pressure of vapour molecules above Liquid - vapour pressure Vapour Pressure - The partial pressure of vapour molecules above](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-11.jpg)
Liquid - vapour pressure Vapour Pressure - The partial pressure of vapour molecules above the surface of a liquid at equilibrium at a given temperature is the vapour pressure (vp) of the liquid at that temperature. vapour pressure increases with increasing temperature (Figure 13 -13) volatile liquids have high vapour pressures (weak intermolecular forces) liquids with low pressures have vapour stronger intermolecular forces
![Liquid State Boiling Points Boiling point the temperature at which a liquids Liquid State - Boiling Points Boiling point - the temperature at which a liquids](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-12.jpg)

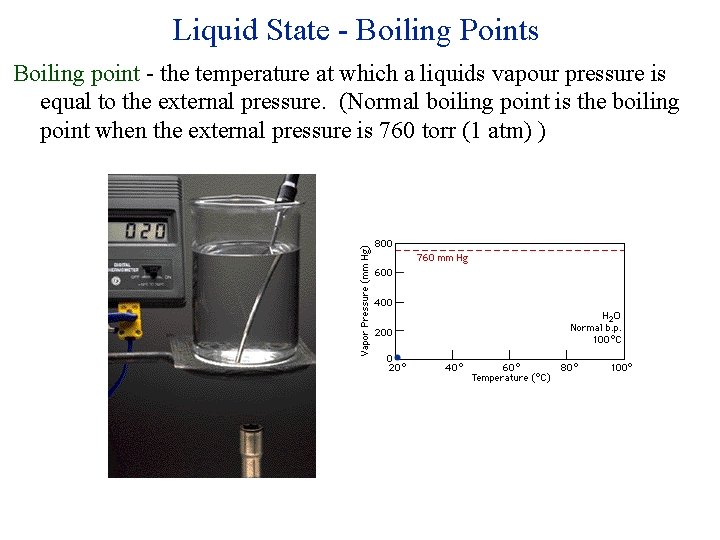

Liquid State - Boiling Points Boiling point - the temperature at which a liquids vapour pressure is equal to the external pressure. (Normal boiling point is the boiling point when the external pressure is 760 torr (1 atm) )
![Liquid State Distillation If a mixture of liquids have sufficiently different boiling points Liquid State - Distillation If a mixture of liquids have sufficiently different boiling points](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-13.jpg)
Liquid State - Distillation If a mixture of liquids have sufficiently different boiling points than they can be separated by the process of distillation (Figure 13 -14 pg 498)
![Liquid State Heat Transfer When you add energy heat to a system 1 Liquid State - Heat Transfer When you add energy (heat) to a system: 1)](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-14.jpg)
Liquid State - Heat Transfer When you add energy (heat) to a system: 1) You can change the Kinetic Energy (Temp) or 2) You can change the Potential Energy (Phase) You can NOT do both. . . Specific heat (Csp (J g-1 o. C-1)) or molar heat capacity (J mol-1 o. C) of a liquid - the amount of heat (J) necessary to raise the specified mass one degree celsius/kelvin. (Involves a change in K. E. /Temp. ) Enthalpy (heat) of vaporization - Hvap - The amount of energy (k. J) necessary to convert one mole of liquid to vapour. Liquid + heat vapour Hvap vapour liquid + heat - Hvap
![Solid State melting point and sublimation Melting point the temperature at which Solid State - melting point and sublimation Melting point - the temperature at which](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-15.jpg)
Solid State - melting point and sublimation Melting point - the temperature at which a substances solid and liquid phase coexist in equilibrium. (Normal melting point - melting point @ 760 torr/ 1 atm) Solid liquid melting endothermic Hfus liquid solid freezing exothermic - Hfus= 6. 02 k. J/mol for water 6. 02 k. J of heat are required to melt one mole of water at 0 o. C and 1 atm. 6. 02 k. J of heat would be released if one mole of water was frozen at 0 o. C and 1 atm. Enthalpy of sublimation (deposition) - Hsub - the energy necessary to vaporize one mole of a solid at 1 atm.
![the three states of matter page 505 in the book Phase diagrams go the three states of matter page 505 in the book Phase diagrams - go](https://slidetodoc.com/presentation_image_h/03a87cfff912684c58a585adab8e1f73/image-16.jpg)
the three states of matter page 505 in the book Phase diagrams - go to saunders 13 -17. Picture is in your book also figure 13 -18
