Intrabeam Scattering Study for Low Emittance of BAPS

Intra-beam Scattering Study for Low Emittance of BAPS S. K. Tian(IHEP)

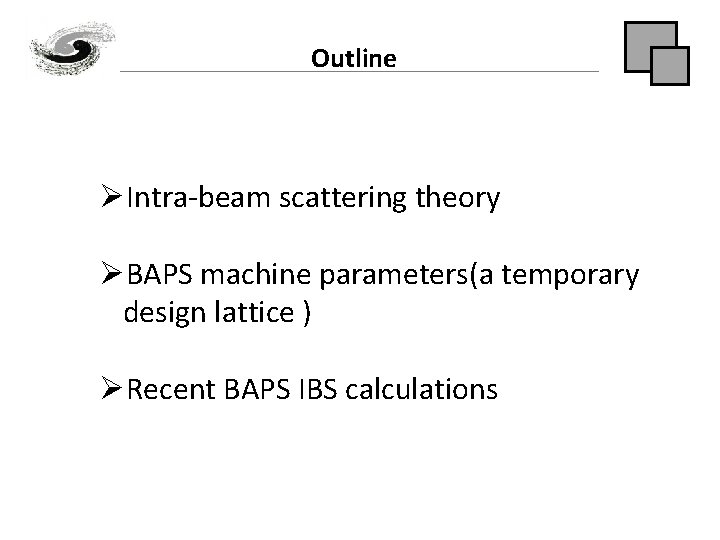

Outline ØIntra-beam scattering theory ØBAPS machine parameters(a temporary design lattice ) ØRecent BAPS IBS calculations

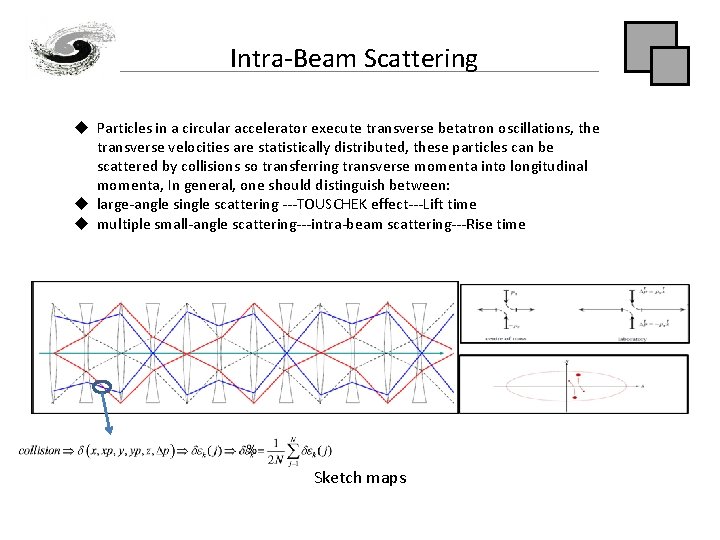

Intra-Beam Scattering u Particles in a circular accelerator execute transverse betatron oscillations, the transverse velocities are statistically distributed, these particles can be scattered by collisions so transferring transverse momenta into longitudinal momenta, In general, one should distinguish between: u large-angle single scattering ---TOUSCHEK effect---Lift time u multiple small-angle scattering---intra-beam scattering---Rise time Sketch maps

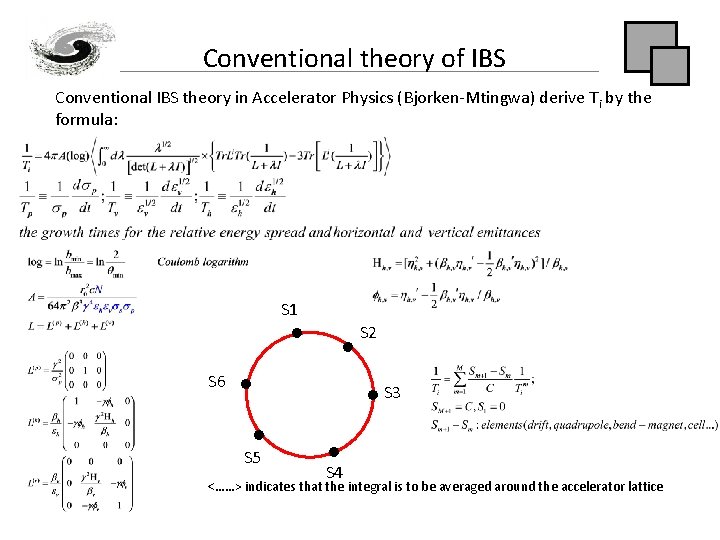

Conventional theory of IBS Conventional IBS theory in Accelerator Physics (Bjorken-Mtingwa) derive T i by the formula: S 1 • S 6 • • S 5 • S 2 • S 3 • S 4 <……> indicates that the integral is to be averaged around the accelerator lattice

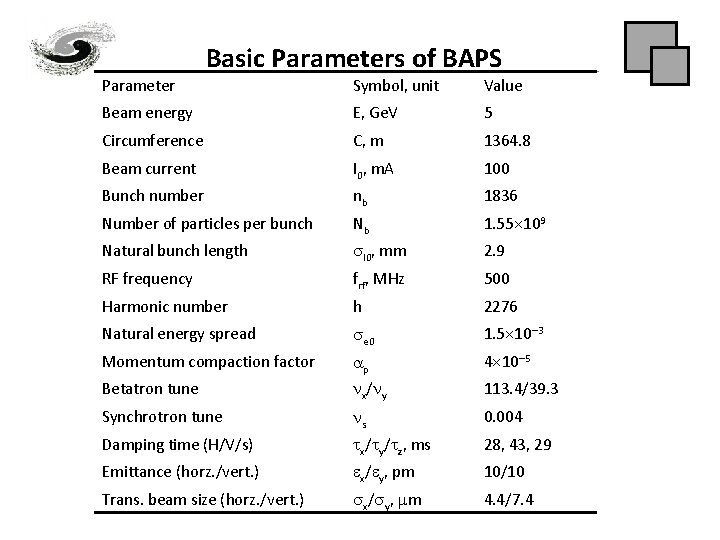

Parameter Basic Parameters of BAPS Symbol, unit Value Beam energy E, Ge. V 5 Circumference C, m 1364. 8 Beam current I 0, m. A 100 Bunch number nb 1836 Number of particles per bunch Nb 1. 55 109 Natural bunch length l 0, mm 2. 9 RF frequency frf, MHz 500 Harmonic number h 2276 Natural energy spread e 0 1. 5 10 3 Momentum compaction factor p 4 10 5 Betatron tune x/ y 113. 4/39. 3 Synchrotron tune s 0. 004 Damping time (H/V/s) x/ y/ z, ms 28, 43, 29 Emittance (horz. /vert. ) x/ y, pm 10/10 Trans. beam size (horz. /vert. ) x/ y, m 4. 4/7. 4

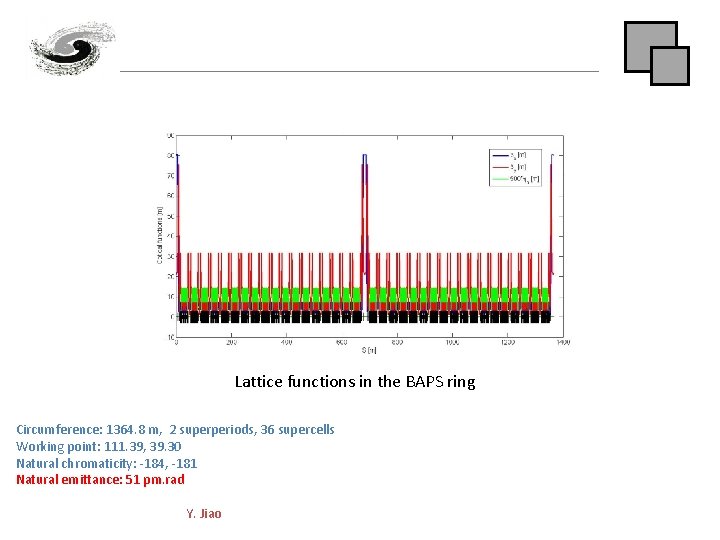

Lattice functions in the BAPS ring Circumference: 1364. 8 m, 2 superperiods, 36 supercells Working point: 111. 39, 39. 30 Natural chromaticity: -184, -181 Natural emittance: 51 pm. rad Y. Jiao

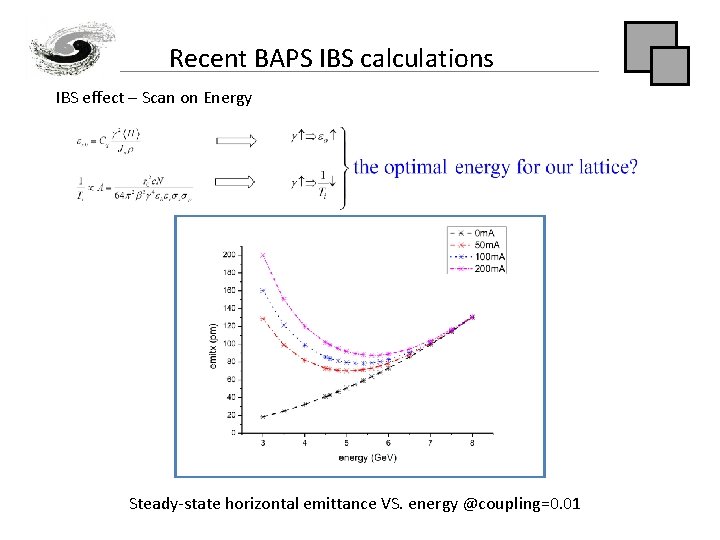

Recent BAPS IBS calculations IBS effect – Scan on Energy Steady-state horizontal emittance VS. energy @coupling=0. 01

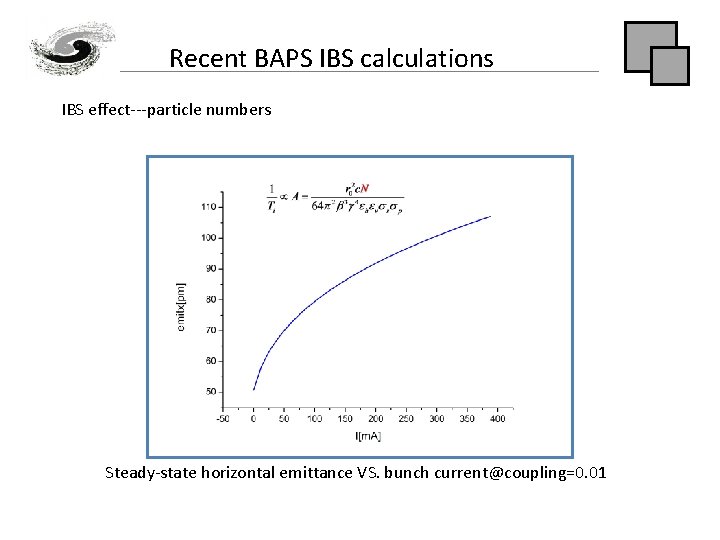

Recent BAPS IBS calculations IBS effect---particle numbers Steady-state horizontal emittance VS. bunch current@coupling=0. 01

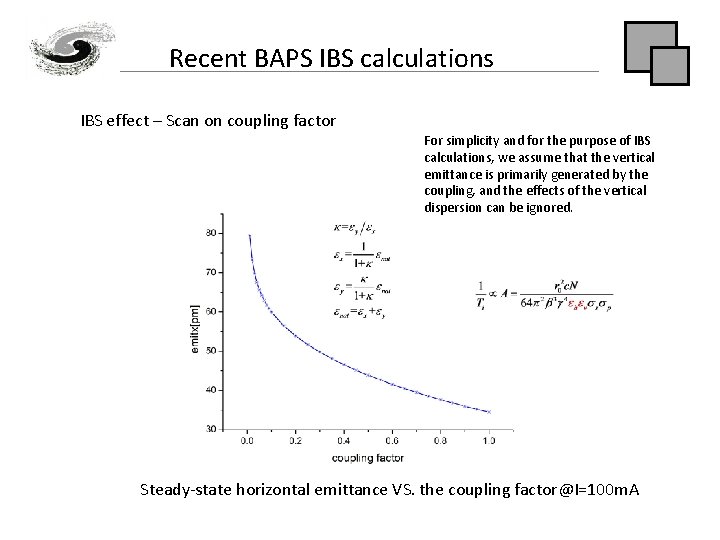

Recent BAPS IBS calculations IBS effect – Scan on coupling factor For simplicity and for the purpose of IBS calculations, we assume that the vertical emittance is primarily generated by the coupling, and the effects of the vertical dispersion can be ignored. Steady-state horizontal emittance VS. the coupling factor@I=100 m. A

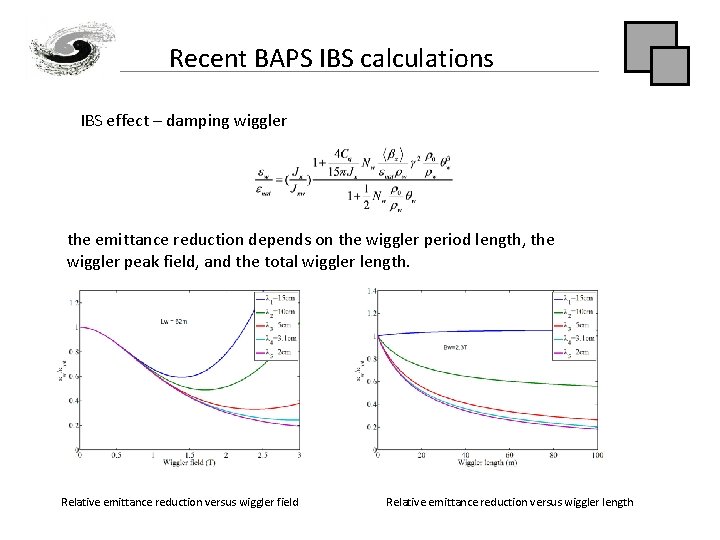

Recent BAPS IBS calculations IBS effect – damping wiggler the emittance reduction depends on the wiggler period length, the wiggler peak field, and the total wiggler length. Relative emittance reduction versus wiggler field Relative emittance reduction versus wiggler length

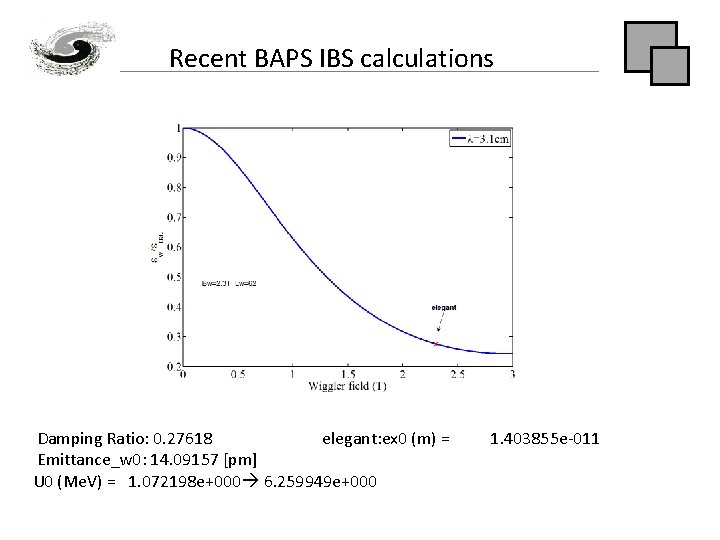

Recent BAPS IBS calculations Damping Ratio: 0. 27618 elegant: ex 0 (m) = Emittance_w 0: 14. 09157 [pm] U 0 (Me. V) = 1. 072198 e+000 6. 259949 e+000 1. 403855 e-011

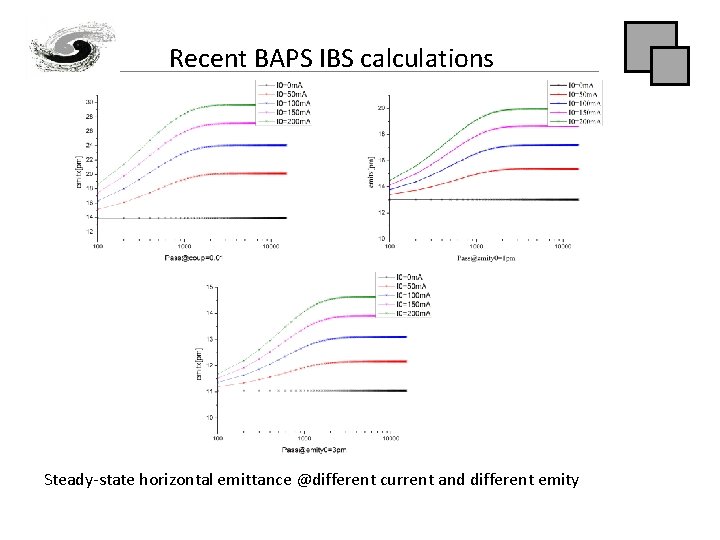

Recent BAPS IBS calculations Steady-state horizontal emittance @different current and different emity

Recent BAPS IBS calculations Accumulated growth rates in x VS. Hx along the ring

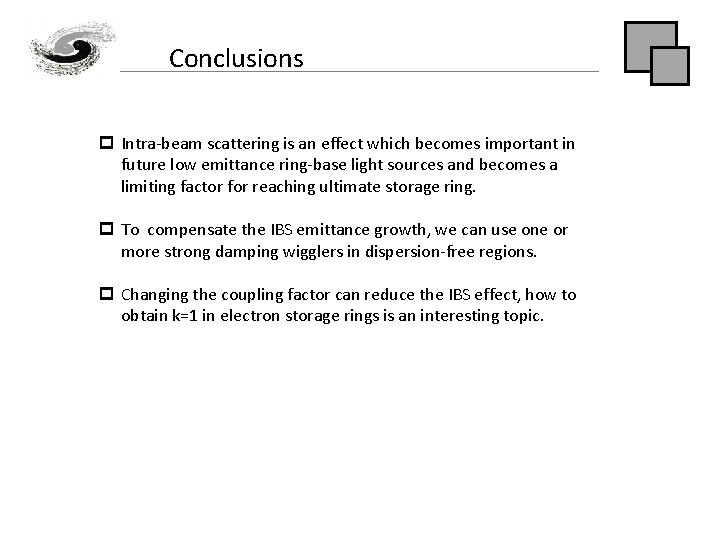

Conclusions p Intra-beam scattering is an effect which becomes important in future low emittance ring-base light sources and becomes a limiting factor for reaching ultimate storage ring. p To compensate the IBS emittance growth, we can use one or more strong damping wigglers in dispersion-free regions. p Changing the coupling factor can reduce the IBS effect, how to obtain k=1 in electron storage rings is an interesting topic.

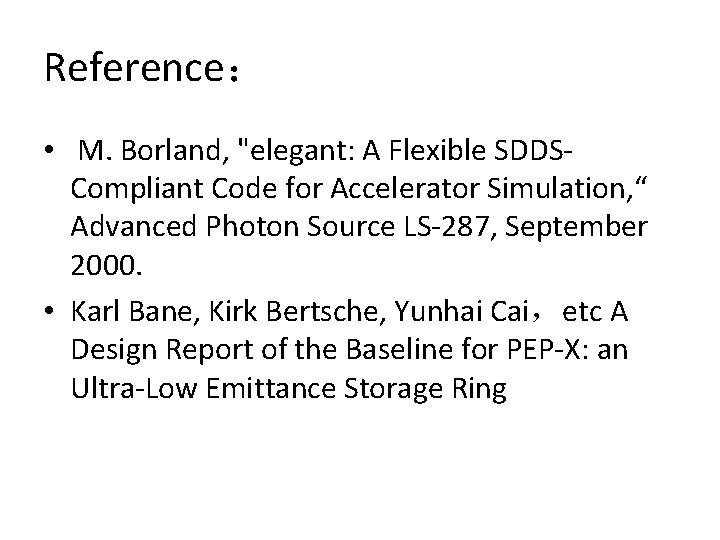

Reference： • M. Borland, "elegant: A Flexible SDDSCompliant Code for Accelerator Simulation, “ Advanced Photon Source LS-287, September 2000. • Karl Bane, Kirk Bertsche, Yunhai Cai，etc A Design Report of the Baseline for PEP-X: an Ultra-Low Emittance Storage Ring
