Outline • Ed’s Demos: hydrolysis of water, oxidation states of V, potato clock, Zn/Cu electrochemical cell • Electrochemistry – Balancing redox equations – Electrochemical cells and Standard Hydrogen Electrodes – Nernst – Quantifying current

Ed’s Demos

Oxidation States of Vanadium: Reduction of V 5+ to V+2 • Reaction 1 – Zn (s) + 2 VO 3 - (aq) + 8 H 3 O+ (aq) ↔ 2 VO 2+ (aq) + Zn+2 (aq) + 12 H 2 O (l) • Reaction 2 – Zn (s) + 2 VO 2+ (aq) + 8 H 3 O+ (aq) ↔ 2 V 3+ (aq) + Zn+2 (aq) + 6 H 2 O (l) • Reaction 3 – Zn (s) + 2 V 3+ (aq) ↔ 2 V 2+ + Zn+2 (aq) V+5 (aq) → V+4 (aq) yellow to green V+4 (aq) → V+3 (aq) green to blue V+3 (aq) → V+2 (aq) blue to violet

Oxidation States of Manganese: Mn+7, Mn+6, Mn+4, and Mn+2 • +7 (purple) to +2 (colorless) – 2 Mn. O 4 - (aq) + H+ (aq) + 5 HSO 3 - (aq) ↔ 2 Mn+2 (aq) + 5 SO 4 -2 (aq) + 3 H 2 O(l) • + 7 (purple) to +4 (brown) – OH- + 2 Mn. O 4 - (aq) + 3 HSO 3 - (aq) ↔ 2 Mn. O 2 (s) + 3 SO 4 -2 (aq) + 2 H 2 O(l) • + 7 (purple) to + 6 (green) – 2 Mn. O 4 - (aq) + 3 OH- + HSO 3 - (aq) ↔ 2 Mn. O 4 -2(aq) + SO 4 -2 (aq) + 2 H 2 O(l)

Electrolysis The process of using electrical current to drive a redox reaction that is not spontaneous. Balance the reaction in acid. At the anode (where oxidation occurs): H 2 O (l) → O 2 (g) At the cathode (where reduction occurs): H 3 O+ (aq) → 2 H 2 (g) Overall reaction:

Overall reaction: 2 H 2 O (l) → 2 H 2(g) + O 2 (g) p. 951

Standard Reduction Potentials What is the standard potential for the electrolysis of water?

Electrolysis Reactions How many coulombs of charge are required to electrolyze 1 mol of water? Note that 6 water are consumed at the anode, but 4 are produced at the cathode. At the anode (where oxidation occurs): 6 H 2 O (l) → O 2 (g) + 4 H 3 O+ (aq) + 4 e. At the cathode (where reduction occurs): 4 H 3 O+ (aq) + 4 e- → 2 H 2 (g) + 4 H 2 O (l) The net amount of water consumed per every 4 electrons is 2 molecules. 1. 0 mol H 2 O 4 mol e- 96, 487 coulombs = 190000 C 2 mol H 2 O 1 mol e-

Electrolysis Reactions A power supply puts out a maximum current of 10 amps. How long will it take to electrolyze 18 g (1 mole) water? 190, 000 coulombs sec hour = 5. 4 hours 10 coulombs 3600 secs

Electrolysis What similarities do you find between voltaic cells and electrolysis? What differences? Overvoltage: However, the potential that must be applied to electrolysis cell is always greater than that calculated from standard reduction potentials. This excess potential is called an overvoltage. This additional voltage is needed to overcome limitations in electron transfer rate at the interface between electrode and solution.

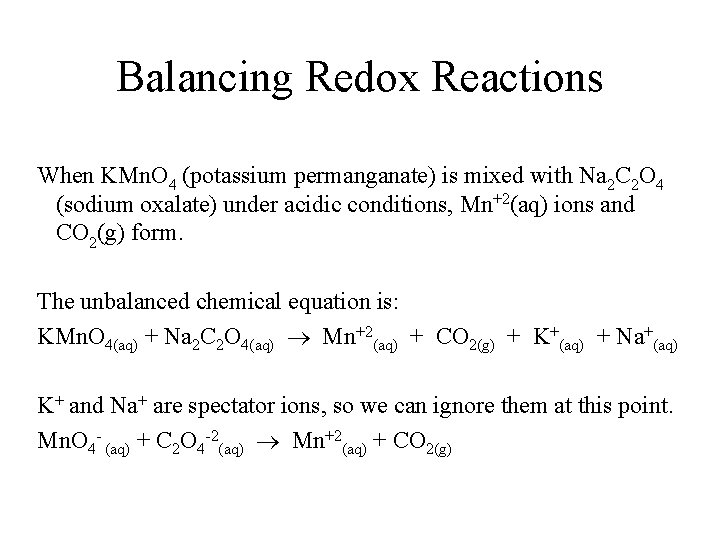

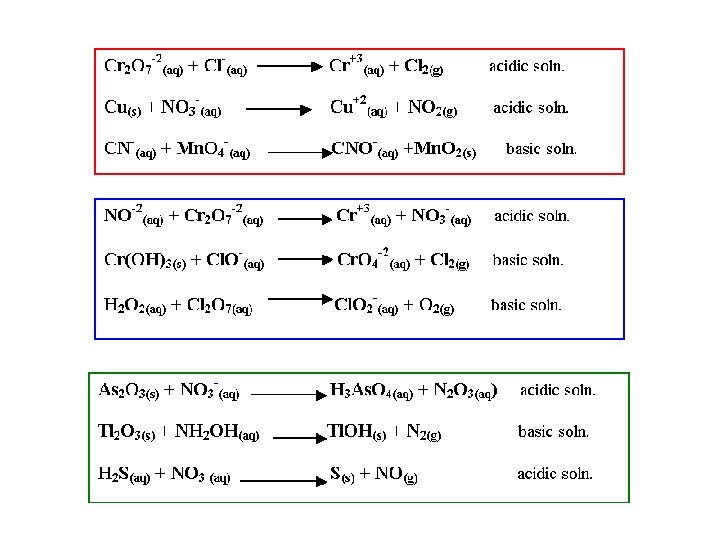

Balancing Redox Reactions When KMn. O 4 (potassium permanganate) is mixed with Na 2 C 2 O 4 (sodium oxalate) under acidic conditions, Mn+2(aq) ions and CO 2(g) form. The unbalanced chemical equation is: KMn. O 4(aq) + Na 2 C 2 O 4(aq) Mn+2(aq) + CO 2(g) + K+(aq) + Na+(aq) K+ and Na+ are spectator ions, so we can ignore them at this point. Mn. O 4 - (aq) + C 2 O 4 -2(aq) Mn+2(aq) + CO 2(g)

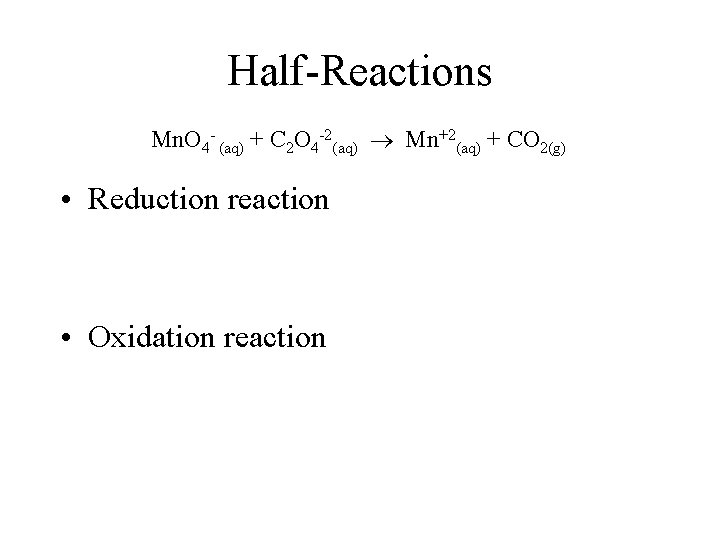

Half-Reactions Mn. O 4 - (aq) + C 2 O 4 -2(aq) Mn+2(aq) + CO 2(g) • Reduction reaction • Oxidation reaction

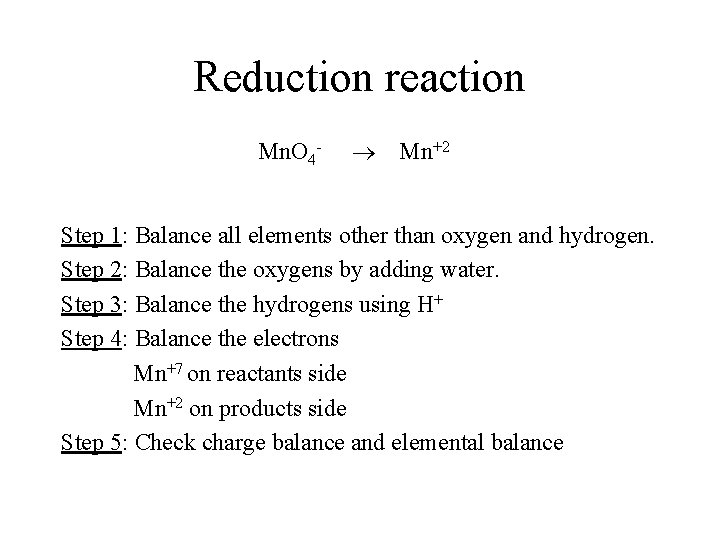

Reduction reaction Mn. O 4 - Mn+2 Step 1: Balance all elements other than oxygen and hydrogen. Step 2: Balance the oxygens by adding water. Step 3: Balance the hydrogens using H+ Step 4: Balance the electrons Mn+7 on reactants side Mn+2 on products side Step 5: Check charge balance and elemental balance

Oxidation reaction C 2 O 4 -2 CO 2

Combine Half Reactions 5 e- + 8 H+ + Mn. O 4 - Mn+2 + 4 H 2 O C 2 O 4 -2 2 CO 2 + 2 e. Under acidic conditions!

Balancing in Base 5 e- + 8 H+ + Mn. O 4 - Mn+2 + 4 H 2 O C 2 O 4 -2 2 CO 2 + 2 e. Change H+ to water by adding OH- to each side

Definitions • Voltaic cell (battery): An electrochemical cell or group of cells in which a product-favored redox reaction is used to produce an electric current. • Electrochemical cell: A combination of anode, cathode, and other materials arranged so that a product-favored redox reaction cause a current to flow or an electric current can cause a reactantfavored redox reaction to occur • Galvanic cell: A cell in which an irreversible chemical reaction produces electrical current • Electrolytic cell: electrochemical reactions are produced by applying electrical energy

A Copper-Zinc battery – What Matters? Consider reduction potentials: Cu+2 + 2 e- → Cu(s) Zn+2 + 2 e- → Zn(s) 0. 3419 V -0. 7618 V Place Zn electrode in copper sulfate solution – What happens? Copper is plated on Zn electrode Cu+2 + 2 e- → Cu(s) Zn(s) → Zn+2 + 2 e- 0. 3419 V 0. 7618 V Cu+2 + Zn(s) → Zn+2 + Cu(s) 1. 1 V E > 0, spontaneous Note, no need for electron to flow external to cell for reaction to occur!!

A Copper-Zinc battery – What Matters? Consider reduction potentials: Cu+2 + 2 e- → Cu(s) Zn+2 + 2 e- → Zn(s) 0. 3419 V -0. 7618 V Place Cu electrode in zinc sulfate solution – What happens? Zn doesn’t plate on copper electrode? ! Cu(s) → Cu+2 + 2 e- -0. 3419 V Zn+2 + 2 e- → Zn(s) -0. 7618 V Zn+2 + Cu(s) → Cu+2 + Zn(s) -1. 1 V E < 0, not spontaneous No reaction occurs !!

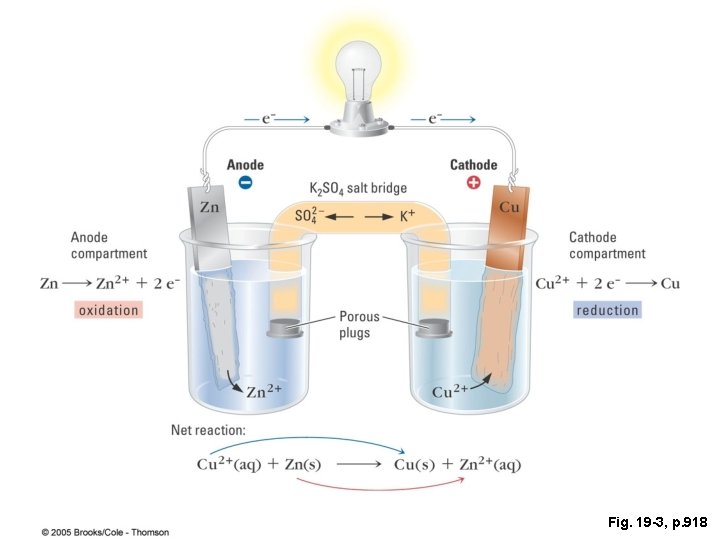

Fig. 19 -3, p. 918

What are the ½ reactions? What is the overall reaction? Identify the oxidation, reduction, anode, and cathode

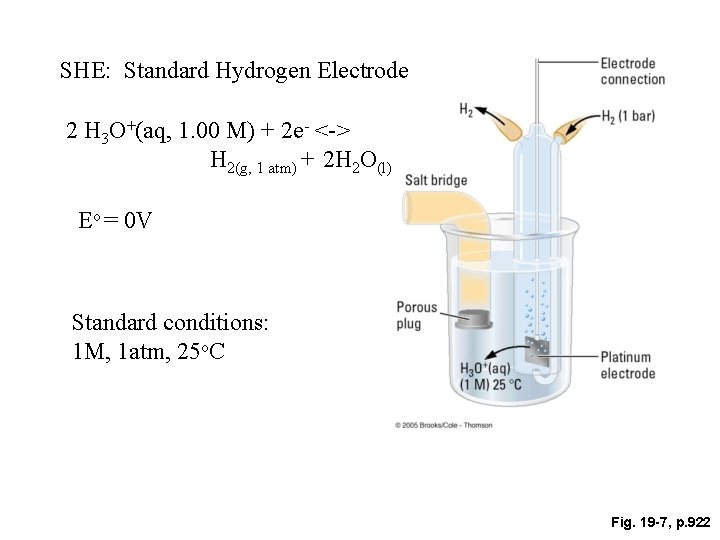

SHE: Standard Hydrogen Electrode 2 H 3 O+(aq, 1. 00 M) + 2 e- <-> H 2(g, 1 atm) + 2 H 2 O(l) Eo = 0 V Standard conditions: 1 M, 1 atm, 25 o. C Fig. 19 -7, p. 922

Measuring Relative Potentials Table of Standard Reduction Potentials

Standard Reduction Potentials What is the standard potential of a Au+3/Au/Mg+2/Mg cell?

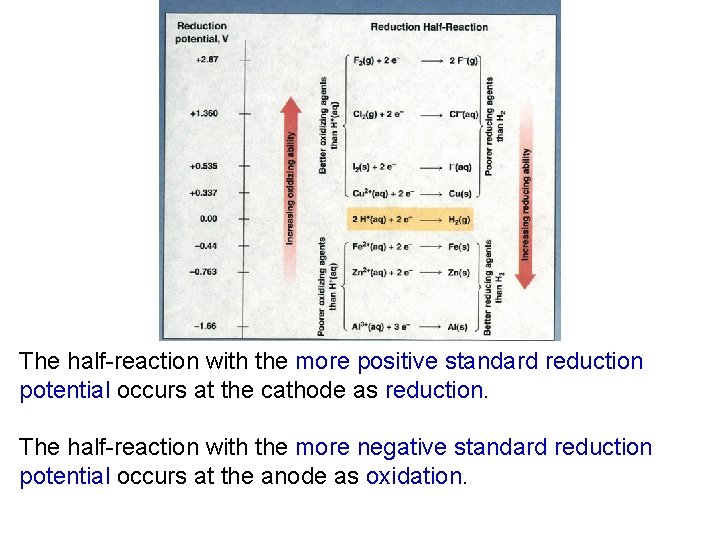

The half-reaction with the more positive standard reduction potential occurs at the cathode as reduction. The half-reaction with the more negative standard reduction potential occurs at the anode as oxidation.

Nernst Picture from: www. corrosion-doctors. org/ Biographies/images/

Is potential always the same? Standard conditions: 1 atm, 25 o. C, 1 M What will influence the potential of a cell?

Mathematical Relationships: Nernst The Nernst Equation: E = Eo - RT ln Q n. F Eo = standard potential of the cell R = Universal gas constant = 8. 3145 J/mol*K T = temperature in Kelvin n = number of electrons transferred F = Faraday’s constant = 96, 483. 4 C/mol Q = reaction quotient (concentration of anode divided by the concentration of the cathode) Cu+2 + Zn(s) → Zn+2 + Cu(s) Q =

Applying the Nernst Equation Cu+2 + Zn(s) → Zn+2 + Cu(s) This cell is operating at 25 o. C with 1. 00 x 10 -5 M Zn 2+ and 0. 100 M Cu 2+? Predict if the voltage will be higher or lower than the standard potential E = Eo - RT ln Q n. F

Cu+2 + Zn(s) → Zn+2 + Cu(s) E = Eo - RT ln Q n. F Eo = standard potential of the cell Zn+2 + 2 e- -> Zn -0. 76 V Cu+2 + 2 e- -> Cu 0. 34 V R = Universal gas constant = 8. 3145 J/mol*K T = temperature in Kelvin n = number of electrons transferred 25 o. C + 273 = K n = F = Faraday’s constant = 96, 483. 4 C/mol Q = reaction quotient (concentration of anode divided by the concentration of the cathode) Q = [Zn+2]/[Cu+2] 1. 00 x 10 -5 M Zn 2+ and 0. 100 M Cu 2

Were your predictions correct?

Ampere Picture from: musee-ampere. univ-lyon 1. fr/

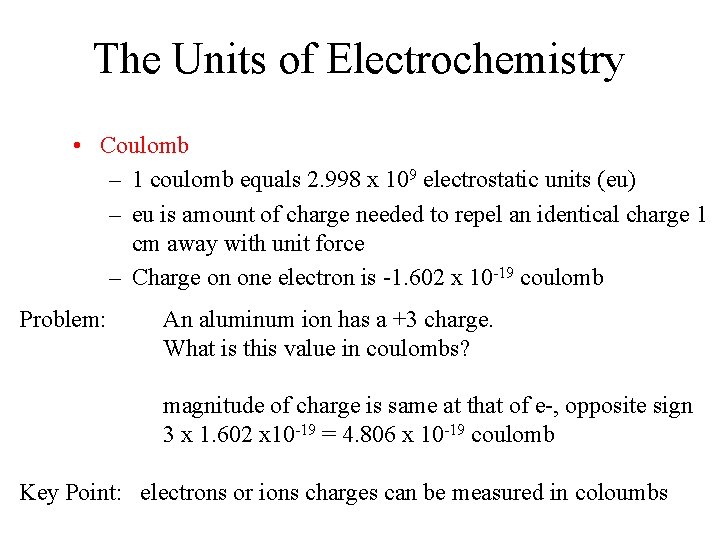

The Units of Electrochemistry • Coulomb – 1 coulomb equals 2. 998 x 109 electrostatic units (eu) – eu is amount of charge needed to repel an identical charge 1 cm away with unit force – Charge on one electron is -1. 602 x 10 -19 coulomb Problem: An aluminum ion has a +3 charge. What is this value in coulombs? magnitude of charge is same at that of e-, opposite sign 3 x 1. 602 x 10 -19 = 4. 806 x 10 -19 coulomb Key Point: electrons or ions charges can be measured in coloumbs

The Units of Electrochemistry • Ampere – Amount of current flowing when 1 coulomb passes a given point in 1 second – Units of Amperes are Coulombs per second – Current (I) x time (C/s x s) gives an amount of charge. Problem: How much current is flowing in a wire in which 5. 0 x 1016 electrons are flowing per second? The charge transferred each second = (5. 0 x 1016 electrons/sec) x (1. 602 x 10 -19 coulomb/electron) = 8. 0 x 10 -3 coulombs/sec = amps

The Units of Electrochemistry • Ampere – Amount of current flowing when 1 coulomb passes a given point in 1 second – Units of Amperes are Coulombs per second – Current (I) x time (C/s x s) gives an amount of charge. – We can express electron or ION flow in amps! Problem: If 1 mol Al+3 ions passes a given point in one hour, what is the current flow? 1 hour = 3600 seconds; Al+3 charge is 4. 806 x 10 -19 coulomb 1 mol Al +3 ions 6. 022 x 1023 Al +3 ions 4. 806 x 10 -19 coulomb 1 hour Hour 1 mol Al +3 ions 1 Al+3 ion 3600 sec = 80 C/s = 80 A
