Interrupt Interrupt to break the flow of speech

Interrupt • Interrupt – to break the flow of speech or action of (someone) by saying or doing something (Longman dictionary)

Examples • When your phone rings during a lecture, what will happen? • When you are studying then your cell phone rings – what will you do? – When you finish talking on the phone then you will continue with your study • Now your phone rings again and someone also knocking at your door then what will you do? • When being interrupted, you will perform some predefined action • Interrupt has priority – some interrupt is more important than the others. For example, answering your phone is more important than opening the door

Interrupts Interrrupt is a procedure that interrupts whatever program is currently executing by the CPU. Interrupts are particularly useful when interfacing I/O devices that provide or require data at relatively low data-transfer rates , eg a keyboard. During an interrupt, the CPU will perform pre-defined operations according to the interrupt nature so the microprocessor can execute other software before the interrupt occurs

Interrupt • Once the CPU is interrupted then it will perform the pre-defined operation according to the interrupt nature

Use of interrupt How to get key typed in the keyboard or a keypad? Polling The CPU executes a program that check for the available of data If a key is pressed then read the data, otherwise keep waiting or looping!!! Just like the mechanism used in LAB for sensing the keypad Interrupt The CPU executes other program, as soon as a key is pressed, the Keyboard generates an interrupt. The CPU will response to the interrupt – read the data. After that returns to the original program. So by proper use of interrupt, the CPU can serve many devices at the “same time” from the user’s point of view

Polling Vs Interrupt Polling interrupt Doing Something else No key pressed Do key pressed action Return Response To original To interrupt program

Example of interrupt • How to control a robot that has sensors to detect obstacles and makes a turn to avoid the obstacle • Polling – – Move forward in a pre-defined unit Check sensor reading Do nothing if no obstacle or turn if obstacle detected Loop back and move forward again

Interrupt • Controlling a robot by interrupt – Keeping moving until interrupted by the sensor – Interrupt received then do pre-defined operation – After finishing the interrupt service return to normal operation ie keep moving forward again

Polling Vs Interrupt Control of a robot Move forward Check sensor Y interrupt Stop or turn

Interrupt Vs Polling • Which mechanism is better to controlling the robot if your objective is to move from point A to point B in the shortest time – Why? ? ?

Introduction • Interrupt can be caused by an external device or an internal event • When interrupt occurs, program control is transferred from the original program to the Interrupt Service Routine (ISR) • The mechanism is similar to a subroutine call. The CPU remembers the location where it left off in the original program and then executes the interrupt service routine. After this routine has run to completion, program control is returned to the point where the CPU originally was executing.

Program flow with interrupt Original Program Interrupt occurs Interrupt service routine Return to the original program

Introduction to interrupt • 8086 can implement 256 different types of interrupts • The interrupts are divided into 5 groups • Five groups: external hardware interrupt, software interrupts, internal interrupts, nonmaskable interrupt, and reset • The interrupt routines for external hardware, software, and nonmaskable interrupts can be defined by user (you can write your own ISR)

Introduction to interrupt • When more than one interrupt occur then priorities of the interrupts are compared in order to determine which interrupt to serve first (open the door or answer the phone? )

Interrupt Priority • Hardware, software, and internal interrupts are serviced on a priority basis • Priority hierarchy groups: internal interrupt, nonmaskable interrupt, software interrupt, and external hardware interrupt • Internal interrupt group has the highest priority • External hardware interrupt group has the lowest priority • Within a group, different interrupts have different priority levels represented by the type number (or interrupt number)

Interrupt priority Interrupt type Priority level Internal Highest Non-maskable Very high software High External (32 – 255) low

Interrupt priority • Type 0 – highest priority • Type 255 – lowest priority • Example – an internal interrupt, divide error, is a type 0 interrupt • Divide error : divide by zero • Overflow is type 4 • When a CPU is performing an interrupt service routine, it can be interrupted by a higher priority interrupt. If a lower priority occurs, the newly occurred interrupt must wait

Multiple interrupt Interrupt by Higher priority Interrupt

Interrupt address pointer table • When an interrupt occurs, CPU will perform some routine (function) • How to locate the appropriate function or where is the function stored in memory? ? • In 8086, the interrupt address pointer table is serving as a link between the interrupt numbers to the locations of their service routines in memory

Function of interrupt pointer table Interrupt Number Interrupt Address Pointer Table Address (CS+IP) of Interrupt Service Routine

Interrupt Pointer Table • For 8086 the table is stored in memory location (address) 00 H – 3 FFH (1 K) • Address pointers identify the starting locations (address) of their service routines in program memory. For the 8086, each pointer requires two words (4 bytes: segment + offset) • The higher address word is the base address and will be loaded into the CS register • The lower address word is the offset address and loaded into the IP register

Function of the pointer table Interrupt Number/vector Address of Service routine CS + IP Pointer table

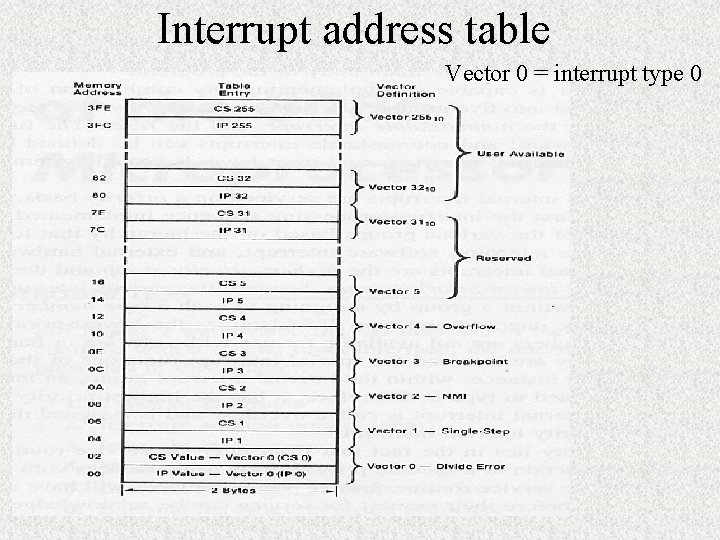

Interrupt address table Vector 0 = interrupt type 0

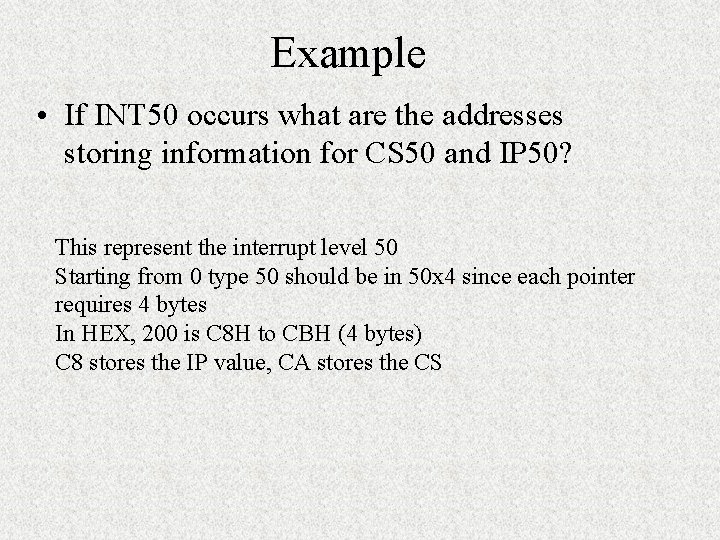

Example • If INT 50 occurs what are the addresses storing information for CS 50 and IP 50? This represent the interrupt level 50 Starting from 0 type 50 should be in 50 x 4 since each pointer requires 4 bytes In HEX, 200 is C 8 H to CBH (4 bytes) C 8 stores the IP value, CA stores the CS

Interrupt pointer table FFFFFH AABBCH 00 -3 FFH Interrupt No. 200 ISR for INT 200 Interrupt pointer table Memory CS AABBH IP 000 CH

Interrupt in ADu. C 832 In ADu. C 832 The location for the ISR is fixed For example: The ISR for External Interrupt 0 (IE 0) must be stored in memory location 0003 H So the directive ORG is used to put the ISR to the proper address Example ORG 0003 H ISR_IE 0: … … IRET

Interrupt instructions Mnemonic Meaning Format Operation CLI Clear interrupt flag CLI IF = 0 Flags affected IF STI Set interrupt STI flag Type n INT n software interrupt IF =1 IF INT n IRET Interrupt return IRET TF, IF ALL

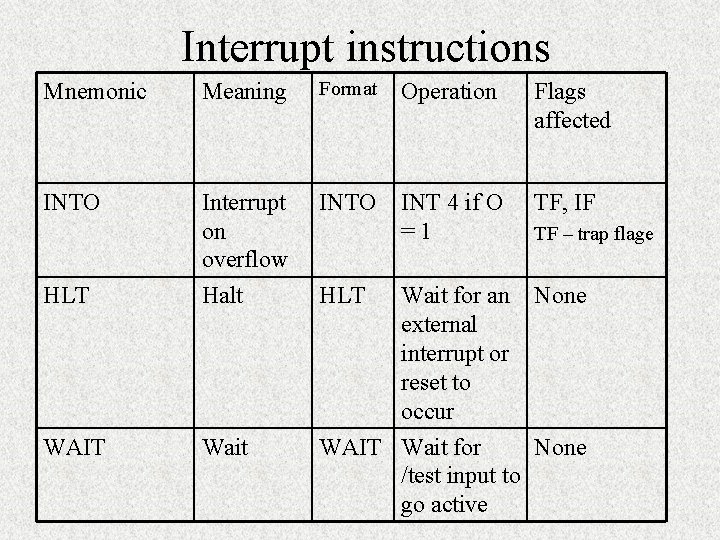

Interrupt instructions Mnemonic Meaning Format Operation Flags affected INTO Interrupt on overflow INTO INT 4 if O =1 TF, IF HLT Halt HLT WAIT Wait TF – trap flage Wait for an None external interrupt or reset to occur WAIT Wait for None /test input to go active

Interrupt instruction • Int 80 – allows you to execute the Interrupt service routine for interrupt 80 in your program • Similar to a subroutine call but calling an ISR

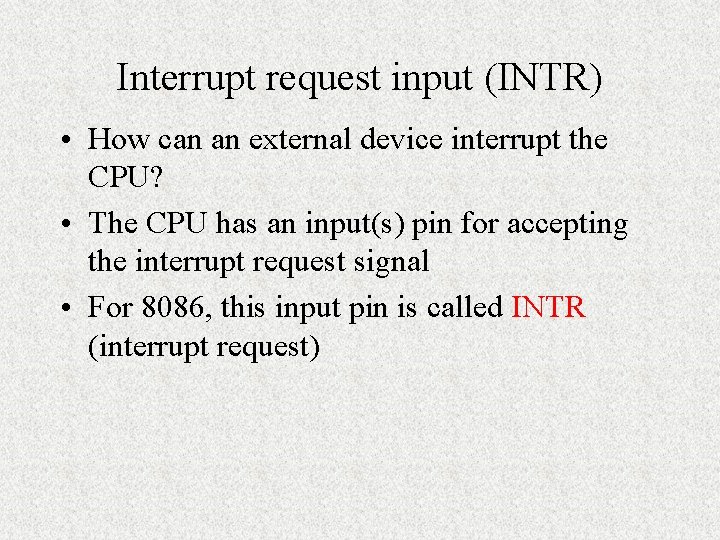

Interrupt request input (INTR) • How can an external device interrupt the CPU? • The CPU has an input(s) pin for accepting the interrupt request signal • For 8086, this input pin is called INTR (interrupt request)

The Interrupt Flag • If the interrupt flag (IF) is set (=1) then external hardware can initiate an interrupt via the INTR input of the microprocessor • If IF flag is clear (=0) then the external device cannot initiate an interrupt • During the initiation sequence of an interrupt service routine, the 8086 automatically clears IF. This masks out (disable) the occurrence of any additional external hardware interrupt. • The IF flag should be re-enable at the end of the service routine

External hardware interrupt interface • An interrupt interface circuit is required to drive the INTR (Interrupt Request) input of the 8086 (WHY? ? ) • There is only 1 interrupt input in the 8086 • The circuit will support external interrupt 32 to 255 • The circuit must identify which of the pending active interrupt has the highest priority and then pass its type number to the 8086 • The 8086 samples the INTR input during the last clock period of each instruction execution cycle

Interrupt interface circuit AD 0 -AD 7 8086 CPU INTR INTA Interface circuit External Hardware interrupt

External hardware interrupt • INTR =1 implies an active interrupt request • INTR is level-sensitive must be held at ‘ 1’ until it is recognized • INTR signal must be clear before the service routine runs to completion; otherwise, the same interrupt may be acknowledged again

Interrupt interface • INTA – interrupt acknowledge is used to inform the recognition of an interrupt • Two pulses are produced at INTA during the interrupt acknowledge bus cycle • The first pulse signals external circuit that the interrupt request has been acknowledged and to prepare to send the interrupt type number (or just the interrupt number) • The second pulse tells the external circuit to put the type number on the data bus • The type number is put on the bit 0 to 7 of the address/data bus

External Interrupt sequence • The interrupt sequence begins when an external device requests service by activating one of the interrupt inputs (32 to 255) • External circuit evaluates the priority of the input • If there is no interrupt already in progress and this interrupt is of higher priority than any other interrupt that is simultaneously active, the external circuit must issue a request for service to the 8086 • INTR switches to 1

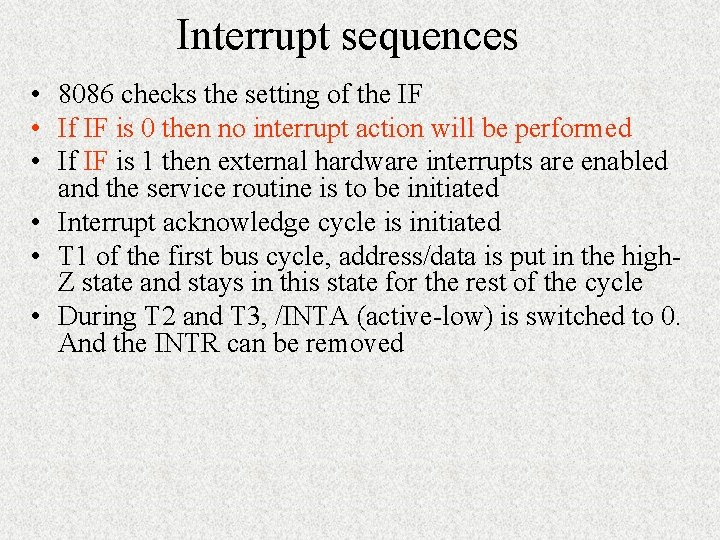

Interrupt sequences • 8086 checks the setting of the IF • If IF is 0 then no interrupt action will be performed • If IF is 1 then external hardware interrupts are enabled and the service routine is to be initiated • Interrupt acknowledge cycle is initiated • T 1 of the first bus cycle, address/data is put in the high. Z state and stays in this state for the rest of the cycle • During T 2 and T 3, /INTA (active-low) is switched to 0. And the INTR can be removed

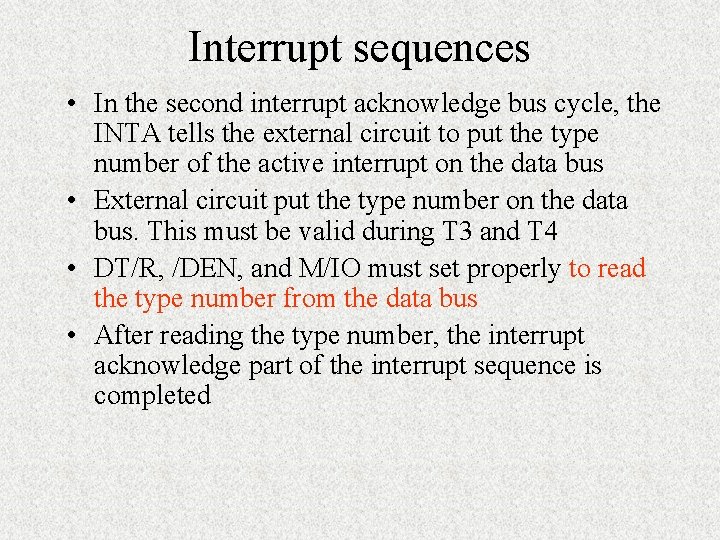

Interrupt sequences • In the second interrupt acknowledge bus cycle, the INTA tells the external circuit to put the type number of the active interrupt on the data bus • External circuit put the type number on the data bus. This must be valid during T 3 and T 4 • DT/R, /DEN, and M/IO must set properly to read the type number from the data bus • After reading the type number, the interrupt acknowledge part of the interrupt sequence is completed

Interrupt acknowledge bus cycles Note: /INTA is issued twice

Interrupt sequences • After reading the type number, the corresponding interrupt service routine (ISR) is executed • Flag register is saved in the stack • IF is clear to disable other hardware interrupt • TF is clear to disable single-step mode if it is active • Current values of CS and IP are saved in the stack

Interrupt sequence • The type number is internally multiplied by 4, and the result is used as the address of the first word of the interrupt vector in the pointer table • Service routine is initiated • IRET at the end of the service routine causes the old contents CS and IP to be restored

Pay attention to the INTR

Ack Interrupt Read Interrupt type Call ISR Return to interrupted program Before Acknowledge The IF flag must be 1 Type number is input at the 2 nd INTA cycle Address of ISR is obtained by x 4 the Interrupt type number and address the Interrupt pointer Table IRET is reached

Interrupt service routine template To save registers and parameters on the stack PUSH XX PUSH YY PUSH ZZ Main body of the service routine To restore registers and parameters from the stack Return to main program POP ZZ POP YY POP XX IRET

Expanding interrupt input Can accept 7 inputs the /IRX input is used for supplying the Type No Priority is Resolve by storing The ISR at the Proper location A buffer/latch

Interrupt interface requirements • Support a many-to-one configuration • Able to issue the INTR signal • Able to supply the interrupt number to the CPU • Able to resolve priority issue

Interrupt interface using the NAND gate • The diagram in the previous page shows how to implement an interrupt interface using a simple NAND gate and a latch • The number of interrupt that can be supported is 7 !!!! (D 7 is always a ‘ 1’) • The interrupt type number is derived from the active interrupt input • For example, if IR 0 is active then the interrupt type number is 11111110 • For example, if IR 1 is active then the interrupt type number is 11111101 • Using the previous circuit, can you handle two interrupts activated at the same time ? ? ?

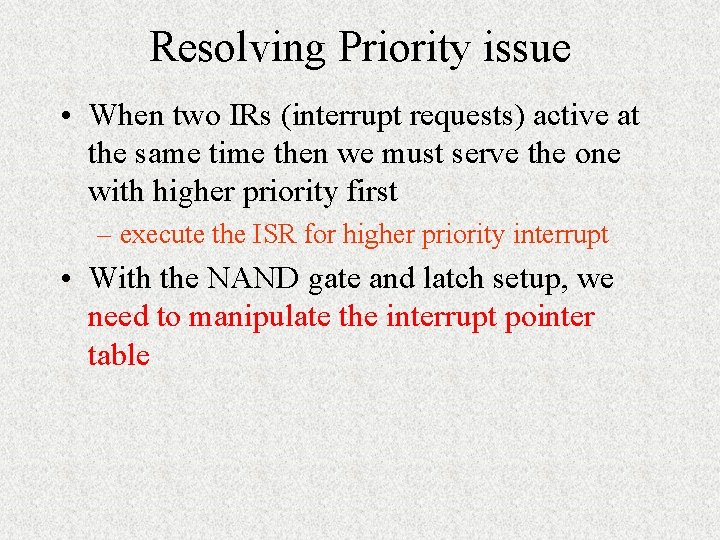

Resolving Priority issue • When two IRs (interrupt requests) active at the same time then we must serve the one with higher priority first – execute the ISR for higher priority interrupt • With the NAND gate and latch setup, we need to manipulate the interrupt pointer table

Resolving priority issue • If IR 0 has a higher priority and if IR 0 and IR 1 active at the same time then the Interrupt type number received by the CPU is 11111100 (FCH) • CPU will go to location = FCH x 4 of the interrupt pointer table to look for the ISR • If we put the address of ISR for IR 0 in that location then ISR of IR 0 will be executed and implying that IR 0 has a higher priority!

Interrupt pointer table Only IR 0 active IR 5 and IR 0 active Interrupt Number Address Content in HEX FEH 3 F 9 CDH 1111 1110 3 F 8 ABH DEH 379 378 CDH ABH 1101 1110 Determine another address with the content CDABH

Self test • What are needed in order to accomplish an interrupt mechanism? • Can the circuit in the previous page support all the features? – Can it activate the INTR? – Can it produce the interrupt type number? – Can it resolve priority issue?

Software interrupt • 256 software interrupts (0 to 255) • Usage INT n , n is the interrupt type number • During software interrupt, no external interrupt acknowledge bus cycles are initiated • Control is passed to the start of the service routine immediately upon completion of execution of the interrupt instruction • Software interrupts have a higher priority than external interrupts and cannot be masked out by IF

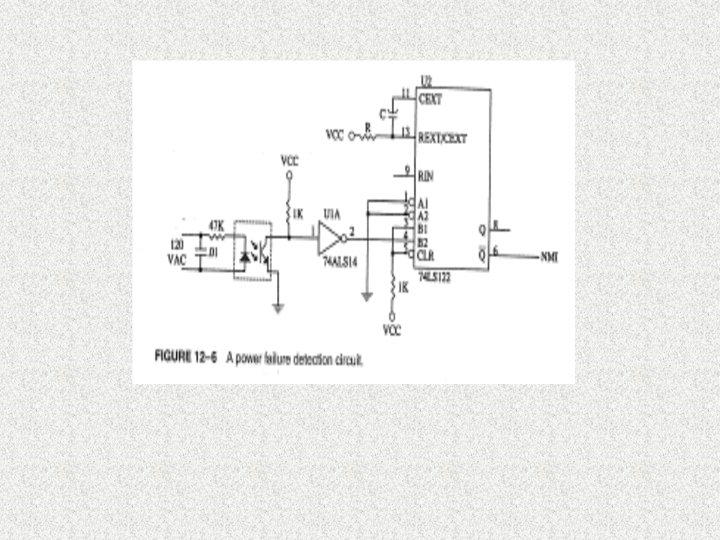

Nonmaskable interrupt (NMI) • NMI is another input pin in the 8086 to support nonmaskable interrupt. The other interrupt input is INTR • NMI is also initiated from external hardware • It cannot be masked out with the IF flag • NMI interrupt will send a 1 to the NMI input of the 8086 • NMI is positive edge triggered (low to high) • NMI signal must be active for 2 consecutive clock cycles. Or must remain a ‘ 1’ until it is recognized by the microprocessor.

NMI • NMI causes the current flags, current CS, and current IP to be pushed onto the stack • Interrupt enable flag (IF) is cleared to disable all external hardware interrupts • Single-step mode of operation is disable • NMI is type 2 interrupt with a very high priority • NMI is for hardware events that must be responded to immediately (major system faults), eg detection of power failure and detection of a memory read error

8259 A Interrupt controller • Instead of using a NAND gate and a latch, the interrupt mechanism is usually implemented with a more advanced digital device – Interrupt controller • 8259 A is a typical example • 8259 A is a hardware device to support the interrupt mechanism • It can support up to 8 vectored priority encoded interrupts to the microprocessor • Can be expanded (using more 8259) to accept up to 64 interrupt requests using master/slaves configuration

8259 A programmable interrupt controller • 8259 A is programmed via the microprocessor through the host processor interface • The host interface consists of: data bus, read, write, interrupt request (INT), interrupt acknowledge (INTR) and chip select • The data can be command words, status information, or interrupt type numbers. • The INT and INTR are connected to the microprocessor. They are used for handshaking

Pins assignment for 8259 A Comm. with CPU Control signals Interrupt input from external devices Cascade for multiple 8259 A setup

Interrupt controller • INT generated by 8259 is connected to INTR of 8086 • INT =1 when 8259 receives a valid interrupt request • INTA produced by the microprocessor consists of two pulse and it signals the 8259 to put the interrupt type number on the data bus

Interfacing the 8259 A to 8086 Cascading Using master Slave connection This is a PAL From the CPU’s point of View, the 8259 is also a I/O device!!!! How the 8259 is enabled?

Block Diagram of 8259 A

Interrupt mask register • Interrupt mask register (IMR) can be used to enable or mask out individually the interrupt request inputs • There are 8 bits and each bit represents one interrupt input • 0 - enable; 1 - mask out (disable) • The register can be read from or written into under software control (programmed via the microprocessor

Interrupt request register (IRR) • IRR stores the current status of the interrupt request inputs • Has one bit for each IR input • The values in the bit positions reflect whether the interrupt inputs are active or inactive

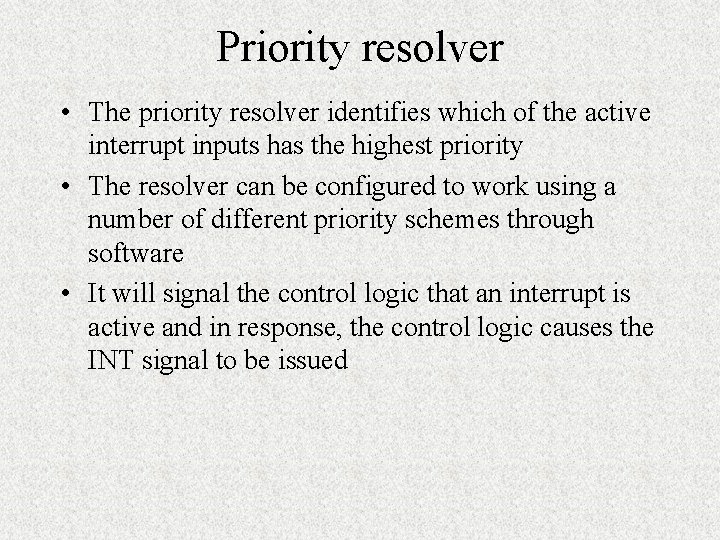

Priority resolver • The priority resolver identifies which of the active interrupt inputs has the highest priority • The resolver can be configured to work using a number of different priority schemes through software • It will signal the control logic that an interrupt is active and in response, the control logic causes the INT signal to be issued

8259 interrupt controller • The in-service register (ISR) stores the interrupt level that is presently being serviced. • During the first INTA pulse in an interrupt acknowledge bus cycle, the level of the highest active interrupt is strobed into ISR. • The ISR cannot be written into by the microprocessor but its contents may be read as status • The cascade buffer/comparator section provides the interface between master and slave 8259 As. This permits easy expansion of the interrupt interface using a master/slave configuration

Connecting two 8259 A

Master/slave SP/EN – 1 (master); 0 (slave)

Summary • Using interrupt allows CPU to serve many devices at the same time • Different types – software, hardware • Interrupt – has priority. Always serve the high priority first • ISR – interrupt service routine tells the CPU what to do during an interrupt • A table stores the locations (represented by the corresponding CS and IP values) of the ISRs

Summary • INTR, NMI are inputs for external interrupt • INTA – output to acknowledge the interrupt and ask for the interrupt vector • Interrupt controller is to expand the interrupt interface, resolve priority etc
