Interpreting position vs time graphs Still pretty basic

Interpreting position vs time graphs Still pretty basic stuff

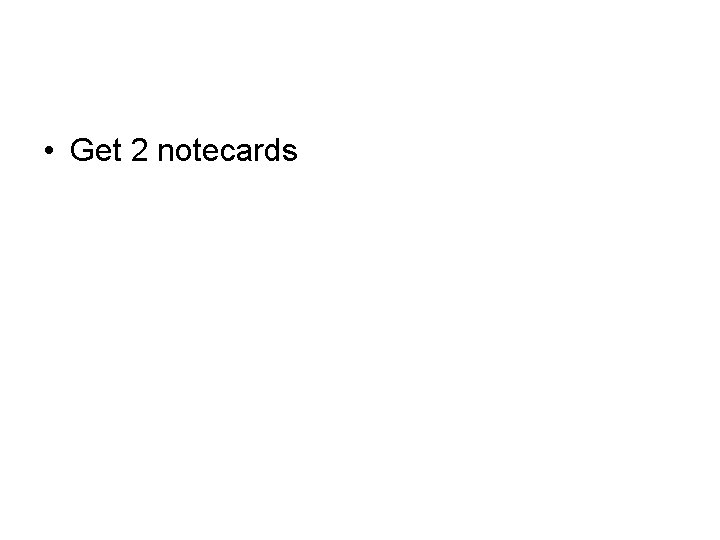

• Get 2 notecards

• One one index card draw a solid line • On another, draw a dashed line SOLID DASHED

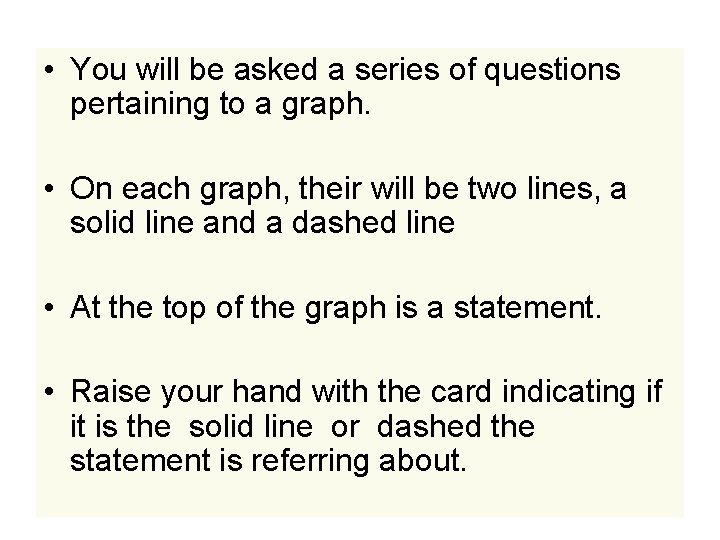

• You will be asked a series of questions pertaining to a graph. • On each graph, their will be two lines, a solid line and a dashed line • At the top of the graph is a statement. • Raise your hand with the card indicating if it is the solid line or dashed the statement is referring about.

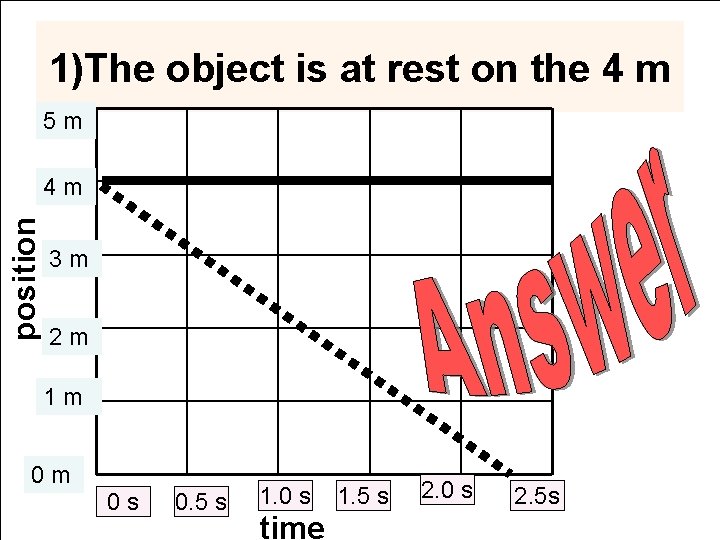

1)The object is at rest on the 4 m 5 m position 4 m 3 m 2 m 1 m 0 m 0 s 0. 5 s 1. 0 s time 1. 5 s 2. 0 s 2. 5 s

1)The object is at rest on the 4 m 5 m position 4 m 3 m SOLID 2 m 1 m 0 m 0 s 0. 5 s 1. 0 s time 1. 5 s 2. 0 s 2. 5 s

2)The object is 30 meters away from the reference point at 2 seconds 50 m position 40 m 30 m 20 m 10 m 0 m 0 s 2 s 4 s time 6 s 8 s 10 s

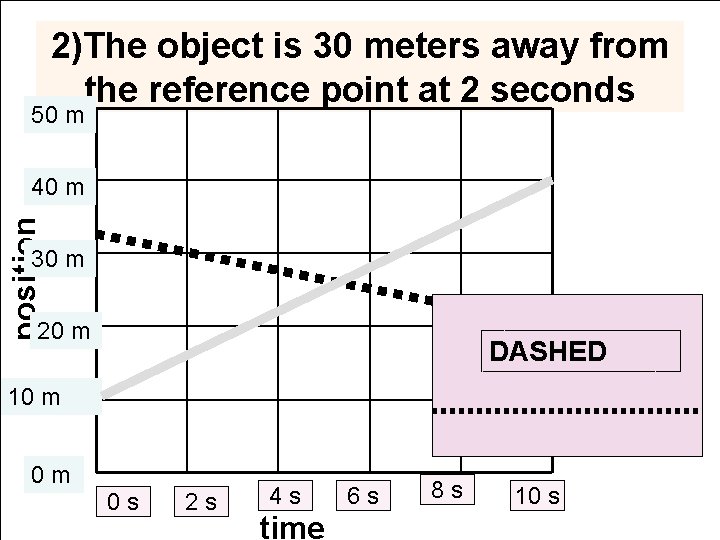

2)The object is 30 meters away from the reference point at 2 seconds 50 m position 40 m 30 m 20 m DASHED 10 m 0 m 0 s 2 s 4 s time 6 s 8 s 10 s

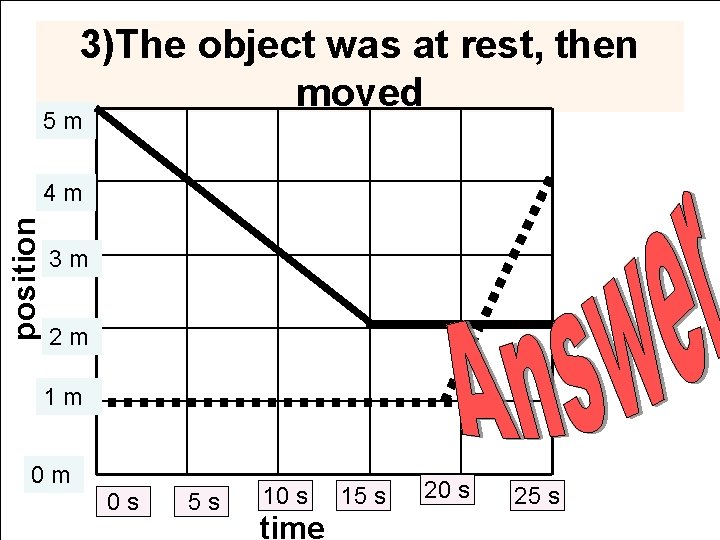

3)The object was at rest, then moved 5 m position 4 m 3 m 2 m 1 m 0 m 0 s 5 s 10 s time 15 s 20 s 25 s

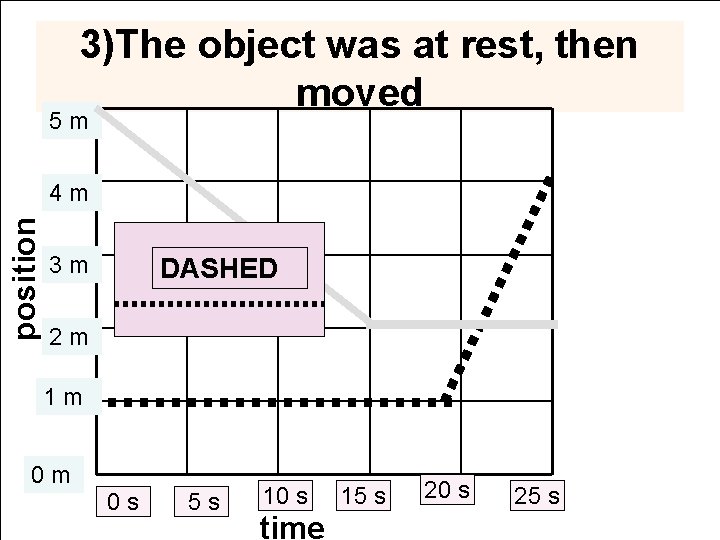

3)The object was at rest, then moved 5 m position 4 m 3 m DASHED 2 m 1 m 0 m 0 s 5 s 10 s time 15 s 20 s 25 s

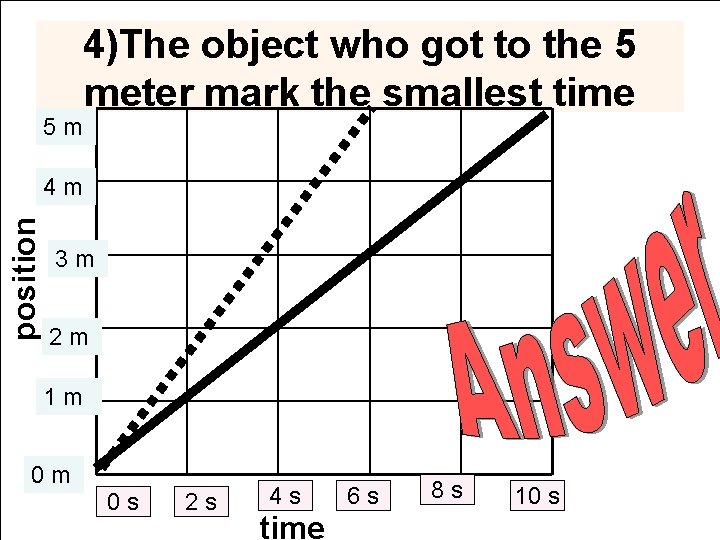

5 m 4)The object who got to the 5 meter mark the smallest time position 4 m 3 m 2 m 1 m 0 m 0 s 2 s 4 s time 6 s 8 s 10 s

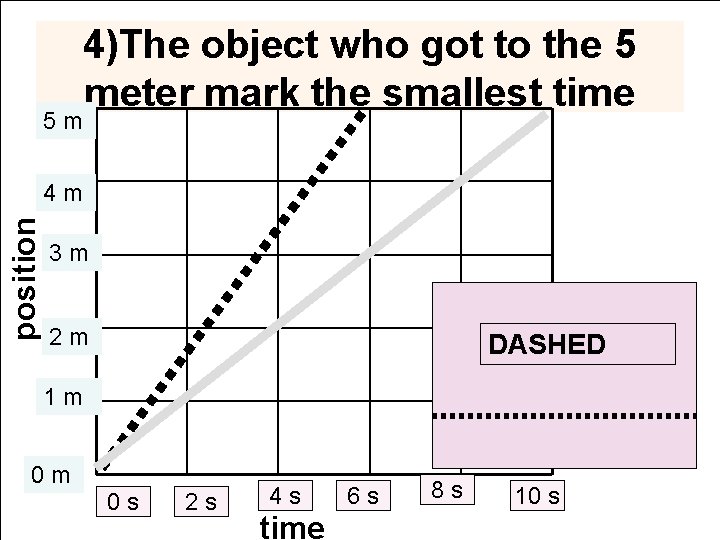

5 m 4)The object who got to the 5 meter mark the smallest time position 4 m 3 m 2 m DASHED 1 m 0 m 0 s 2 s 4 s time 6 s 8 s 10 s

5 m 5)The object started on the 1 meter mark position 4 m 3 m 2 m 1 m 0 m 0 s 0. 5 s 1. 0 s time 1. 5 s 2. 0 s 2. 5 s

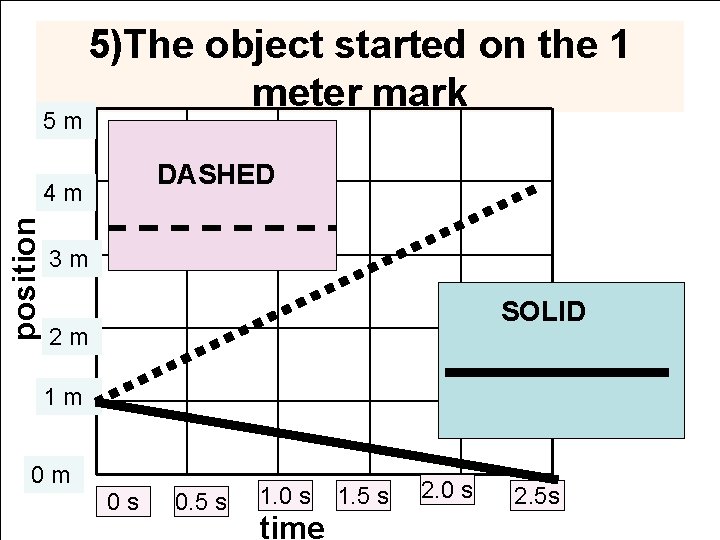

5 m 5)The object started on the 1 meter mark DASHED position 4 m 3 m SOLID 2 m 1 m 0 m 0 s 0. 5 s 1. 0 s time 1. 5 s 2. 0 s 2. 5 s

6)The object is moving away from the reference point 5 m position 4 m 3 m 2 m 1 m 0 m 0 s 5 s 10 s time 15 s 20 s 25 s

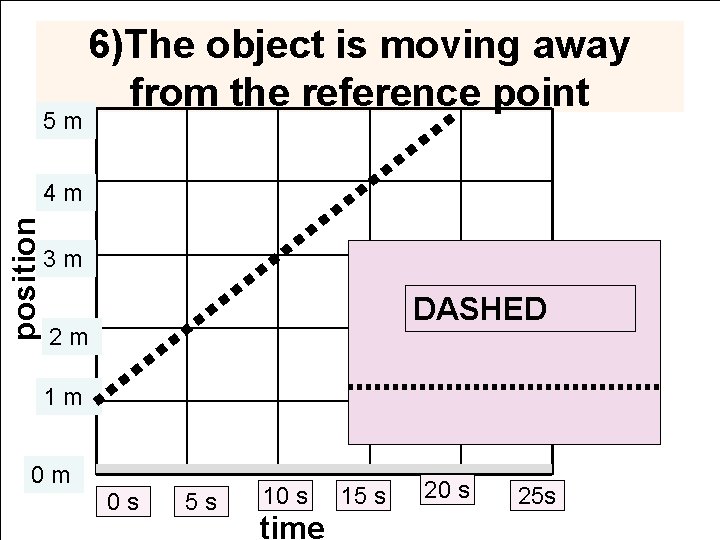

5 m 6)The object is moving away from the reference point position 4 m 3 m DASHED 2 m 1 m 0 m 0 s 5 s 10 s time 15 s 20 s 25 s

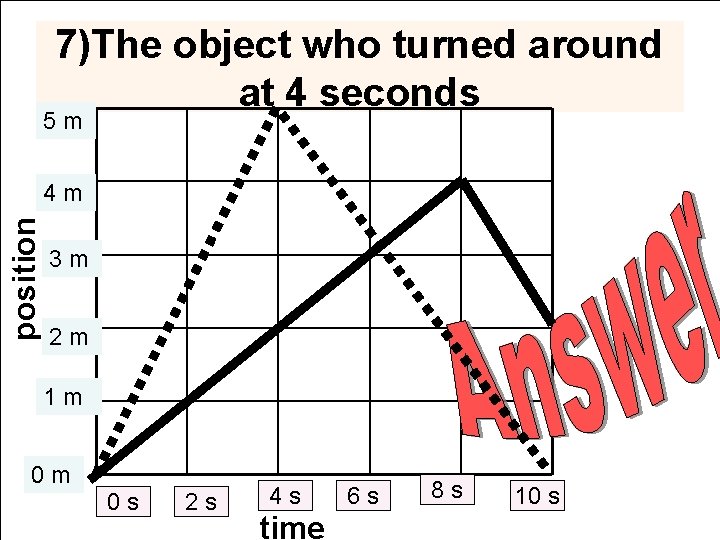

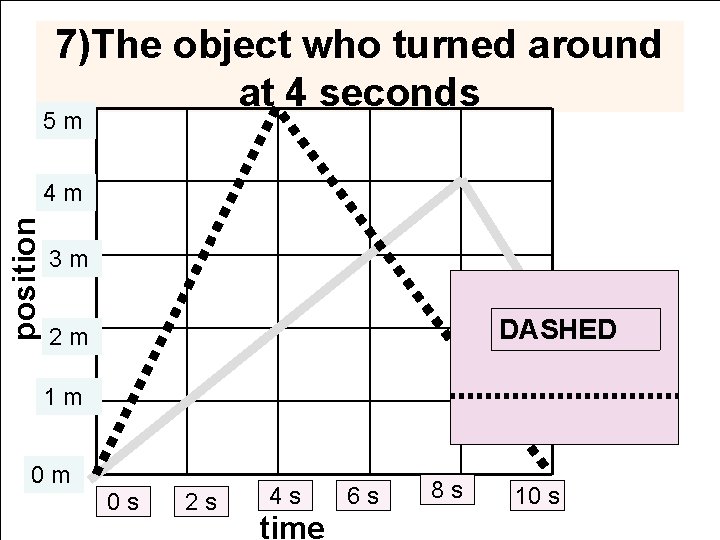

7)The object who turned around at 4 seconds 5 m position 4 m 3 m 2 m 1 m 0 m 0 s 2 s 4 s time 6 s 8 s 10 s

7)The object who turned around at 4 seconds 5 m position 4 m 3 m DASHED 2 m 1 m 0 m 0 s 2 s 4 s time 6 s 8 s 10 s

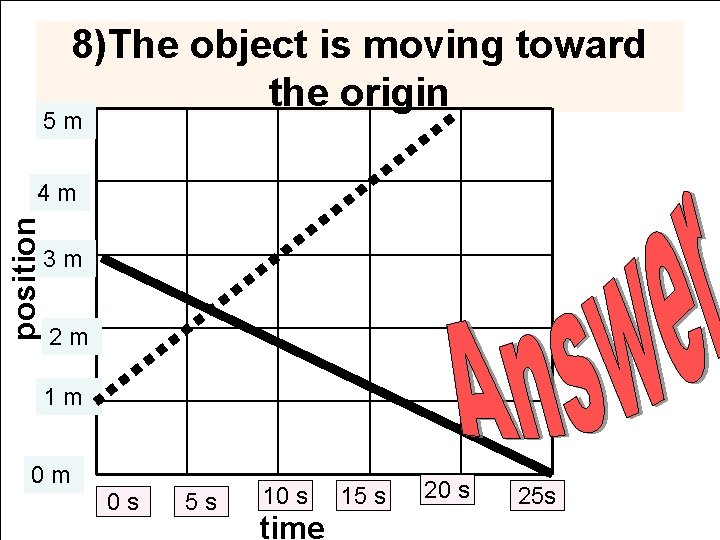

8)The object is moving toward the origin 5 m position 4 m 3 m 2 m 1 m 0 m 0 s 5 s 10 s time 15 s 20 s 25 s

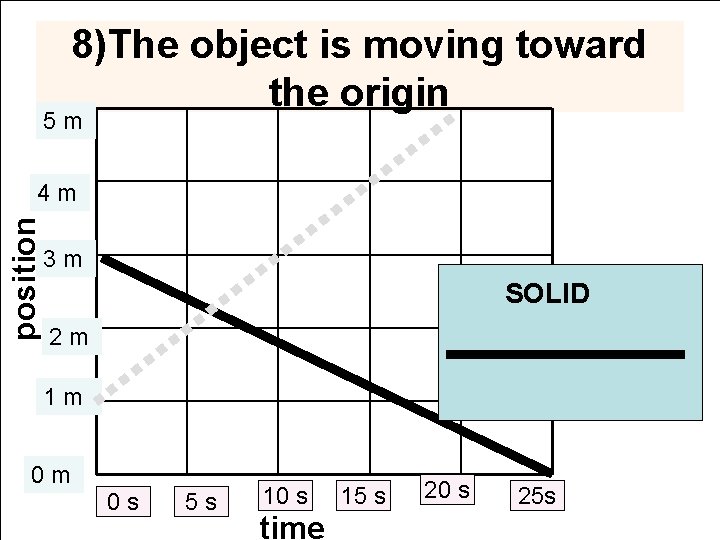

8)The object is moving toward the origin 5 m position 4 m 3 m SOLID 2 m 1 m 0 m 0 s 5 s 10 s time 15 s 20 s 25 s

9) The object ended at the same location it started 50 m position 40 m 30 m 20 m 10 m 0 m 0 s 1 s 2 s time 3 s 4 s 5 s

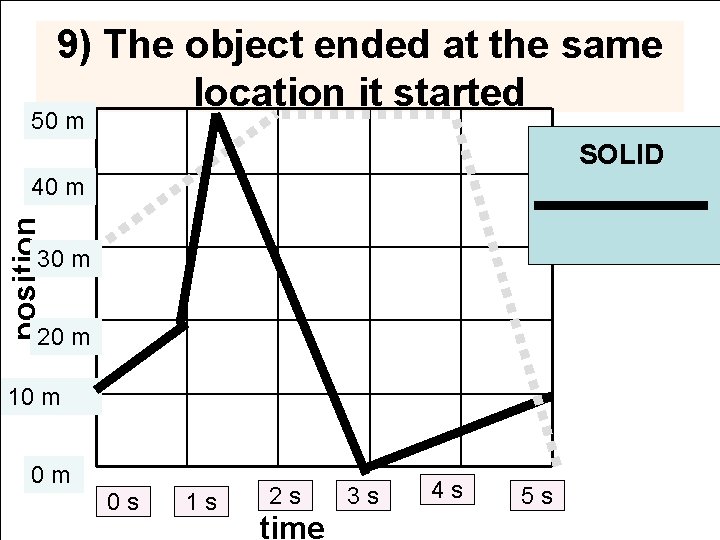

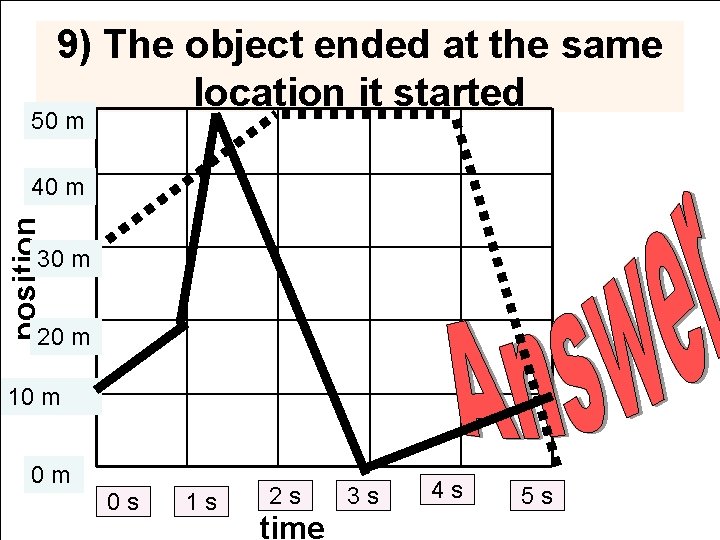

9) The object ended at the same location it started 50 m SOLID position 40 m 30 m 20 m 10 m 0 m 0 s 1 s 2 s time 3 s 4 s 5 s

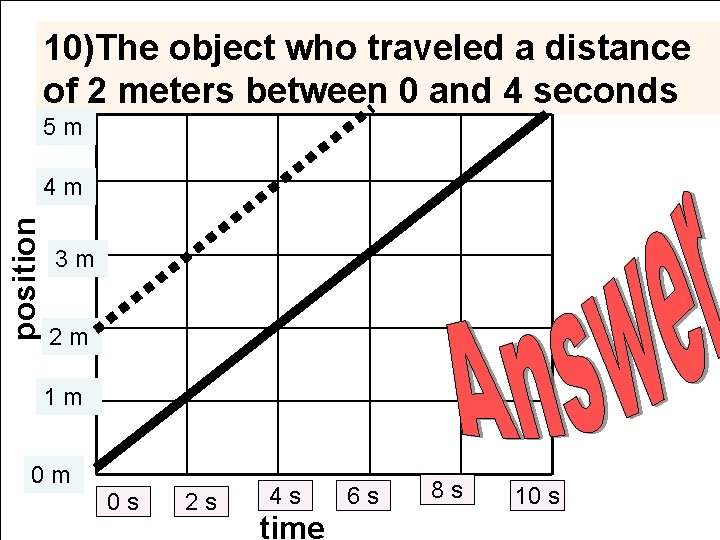

10)The object who traveled a distance of 2 meters between 0 and 4 seconds 5 m position 4 m 3 m 2 m 1 m 0 m 0 s 2 s 4 s time 6 s 8 s 10 s

10)The object who traveled a distance of 2 meters between 0 and 4 seconds 5 m DASHED position 4 m 3 m 2 m SOLID 1 m 0 m 0 s 2 s 4 s time 6 s 8 s 10 s
