Why Interpolation? • For discrete models of continuous systems, we need the ability to interpolate values in between discrete points. • Half of the SPH technique involves interpolation of values known at particles (or nodes).

Interpolation • To find the value of a function between known values. Consider the two pairs of values (x, y): (0. 0, 1. 0), (1. 0, 2. 0) What is y at x = 0. 5? That is, what’s (0. 5, y)?

Linear Interpolation Given two points, (x 1, y 1), (x 2, y 2): Fit a straight line between the points. y(x) = a x +b a=(y 2 -y 1)/(x 2 -x 1), b= (y 1 x 2 -y 2 x 1)/(x 2 -x 1), Use this equation to find y values for any x 1 < x 2

Polynomial Interpolants Given N (=4) data points, Find the interpolating function that goes through the points: If there were N+1 data points, the function would be with N+1 unknown values, ai, of the Nth order polynomial

Polynomial Interpolant Force the interpolant through the four points to get four equations: Rewriting: The solution is found by inverting p

Example Data are: (0, 2), (1, 0. 3975), (2, -0. 1126), (3, -0. 0986). Fitting a cubic polynomial through the four points gives:

Matlab code for polynomial fitting % the data to be interpolated (in 1 D) x=[-0. 2. 44 1. 0 1. 34 1. 98 2. 50 2. 95 3. 62 4. 13 4. 64 4. 94]; y=[2. 75 1. 80 -1. 52 -2. 83 -1. 62 1. 49 2. 98 0. 81 -2. 14 -2. 93 -1. 81]; plot(x, y, 'bo') n=size(x, 2) % CUBIC FIT p=[ones(1, n) x x. *(x. *x)]' a=py' %same as a=inv(p)*y' yp=p*a hold on; plot(x, yp, 'k*') Note: linear and quadratic fit: redefine p

Polynomial Fit to Example Exact: red Polynomial fit: blue

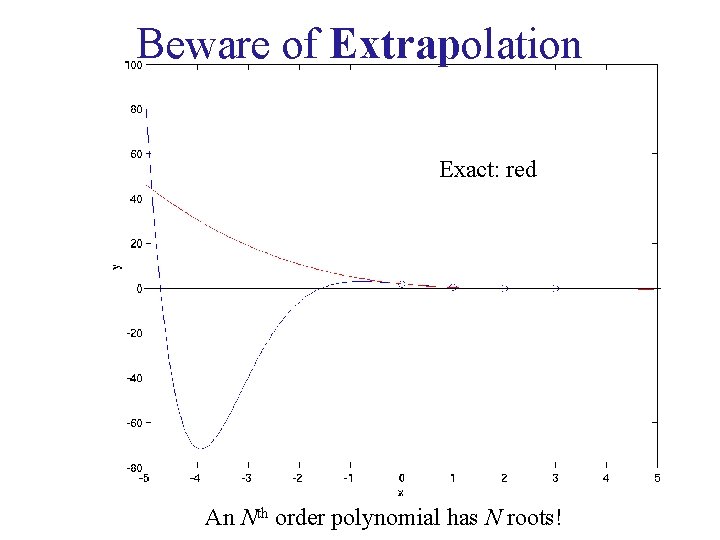

Beware of Extrapolation Exact: red An Nth order polynomial has N roots!

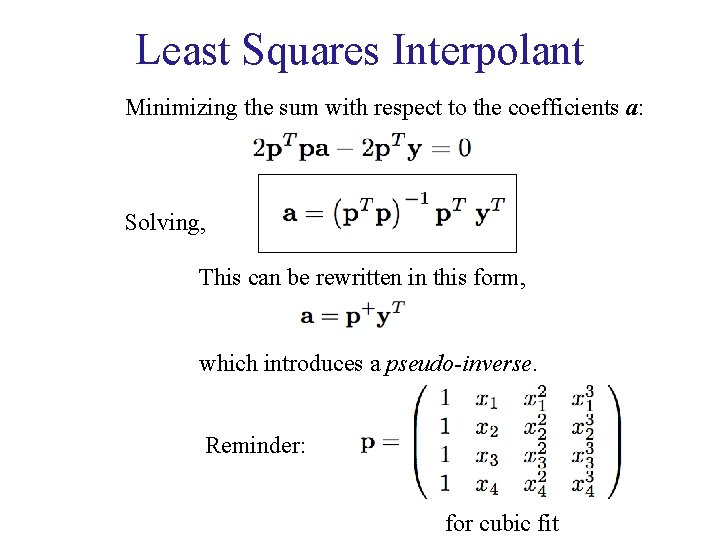

Least Squares Interpolant For N points, we will have a fitting polynomial of order m < (N-1). The least squares fitting polynomial be similar to the exact fit form: Now p is N x m matrix. Since we have fewer unknown coefficient as data points, the interpolant cannot go through each point. Define the error as the amount of “miss” Sum of the (errors)2:

Least Squares Interpolant Minimizing the sum with respect to the coefficients a: Solving, This can be rewritten in this form, which introduces a pseudo-inverse. Reminder: for cubic fit

Question Show that the equation above leads to the following expression for the best fit straight line:

Matlab: Least-Squares Fit %the data to be interpolated (1 d) x=[-0. 2. 44 1. 0 1. 34 1. 98 2. 50 2. 95 3. 62 4. 13 4. 64 4. 94]; y=[2. 75 1. 80 -1. 52 -2. 83 -1. 62 1. 49 2. 98 0. 81 -2. 14 -2. 93 -1. 81]; plot(x, y, 'bo') n=size(x, 2) % CUBIC FIT p=[ones(1, n) x x. *(x. *x)]' pinverse=inv(p'*p)*p' a=pinverse*y' yp=p*a plot(x, yp, 'k*')

Cubic Least Squares Example x: -0. 2. 44 1. 0 1. 34 1. 98 2. 50 2. 95 3. 62 4. 13 4. 64 4. 94 y: 2. 75 1. 80 -1. 52 -2. 83 -1. 62 1. 49 2. 98 0. 81 -2. 14 -2. 93 -1. 81 Data irregularly spaced

Least Squares Interpolant Cubic Least Squares Fit: * is the fitting polynomial o is the given data Exact

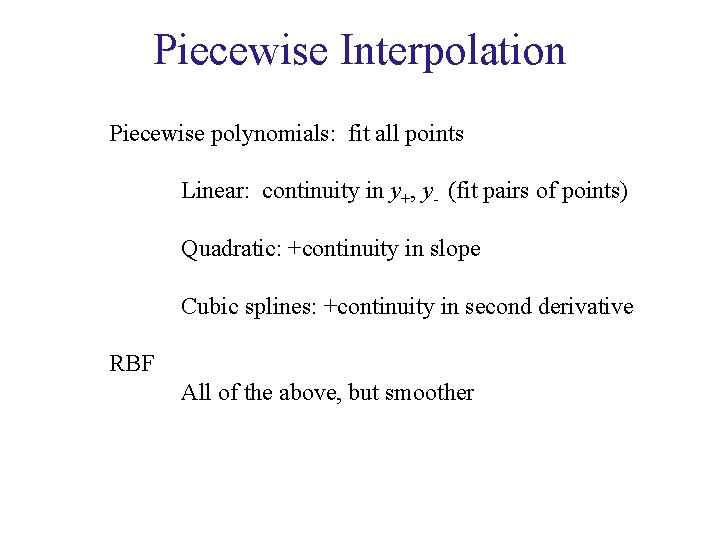

Piecewise Interpolation Piecewise polynomials: fit all points Linear: continuity in y+, y- (fit pairs of points) Quadratic: +continuity in slope Cubic splines: +continuity in second derivative RBF All of the above, but smoother

Radial Basis Functions Developed to interpolate 2 -D data: think bathymetry. Given depths: , interpolate to a rectangular grid.

Radial Basis Functions 2 -D data: For each position, there is an associated value: Radial basis function (located at each point): where is the distance from xj The radial basis function interpolant is:

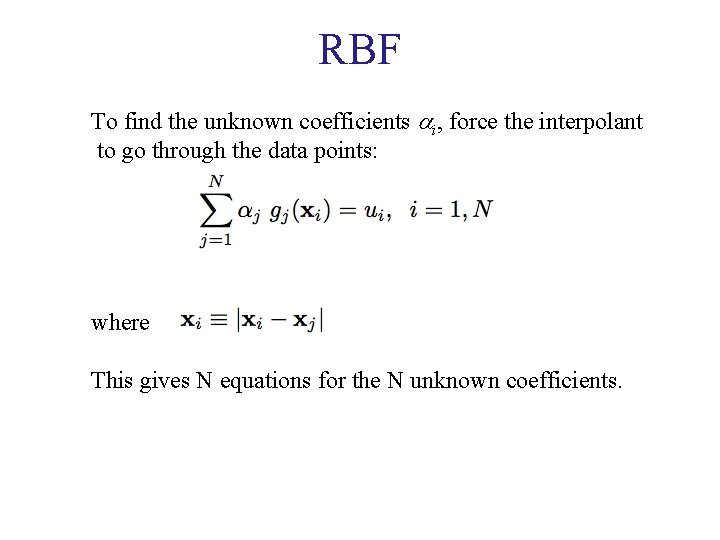

RBF To find the unknown coefficients i, force the interpolant to go through the data points: where This gives N equations for the N unknown coefficients.

RBF Morse et al. , 2001

Multiquadric RBF MQ: RMQ: Hardy, 1971; Kansa, 1990

RBF Example 11 (x, y) pairs: (0. 2, 3. 00), (0. 38, 2. 10), (1. 07, -1. 86), (1. 29, -2. 71), (1. 84, -2. 29), (2. 31, 0. 39), (3. 12, 2. 91), (3. 46, 1. 73), (4. 12, -2. 11), (4. 32, -2. 79), (4. 84, -2. 25) SAME AS BEFORE

RBF Errors Log 10 [sqrt (mean squared errors)] versus c: Multiquadric

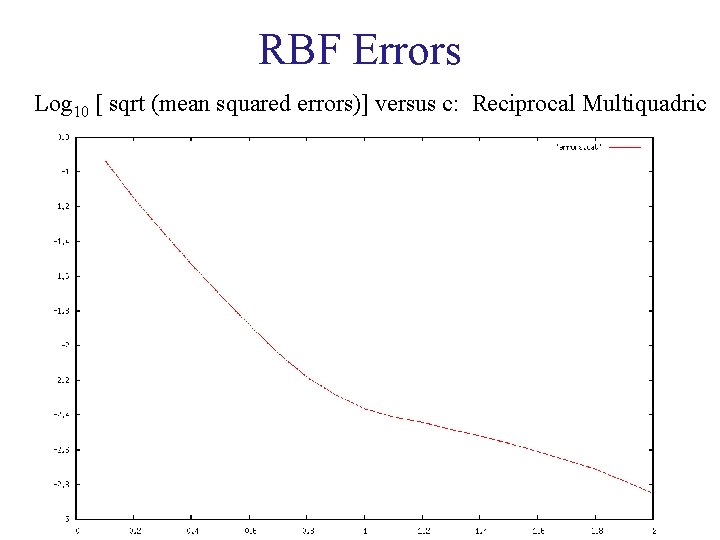

RBF Errors Log 10 [ sqrt (mean squared errors)] versus c: Reciprocal Multiquadric

Consistency is the ability of an interpolating polynomial to reproduce a polynomial of a given order. The simplest consistency is constant consistency: reproduce unity. where, again, If gj(0) = 1, then a constraint results: Note: Not all RBFs have gj(0) = 1

RBFs and PDEs Solve a boundary value problem: The RBF interpolant is: N is the number of arbitrarily spaced points; the j are unknown coefficients to be found.

RBFs and PDEs Introduce the interpolant into the governing equation and boundary conditions: These are N equations for the N unknown constants, j

RBFs and PDEs (3) Problem with many RBF is that the N x N matrix that has to be inverted is fully populated. RBFs with small ‘footprints’ (Wendland, 2005) 1 D: 3 D: His notation: Advantages: matrix is sparse, but still N x N

Wendland 1 -D RBF with Compact Support h=1 Max=1

Moving Least Squares Interpolant are monomials in x for 1 D (1, x, x 2, x 3) x, y in 2 D, e. g. (1, x, y, x 2, xy, y 2 …. ) Note aj are functions of x

Moving Least Squares Interpolant Define a weighted mean-squared error: where W(x-xi) is a weighting function that decays with increasing x-xi. Same as previous least squares approach, except for W(x-xi)

Weighting Function q=x/h

Moving Least Squares Interpolant Minimizing the weighted squared errors for the coefficients: , , ,

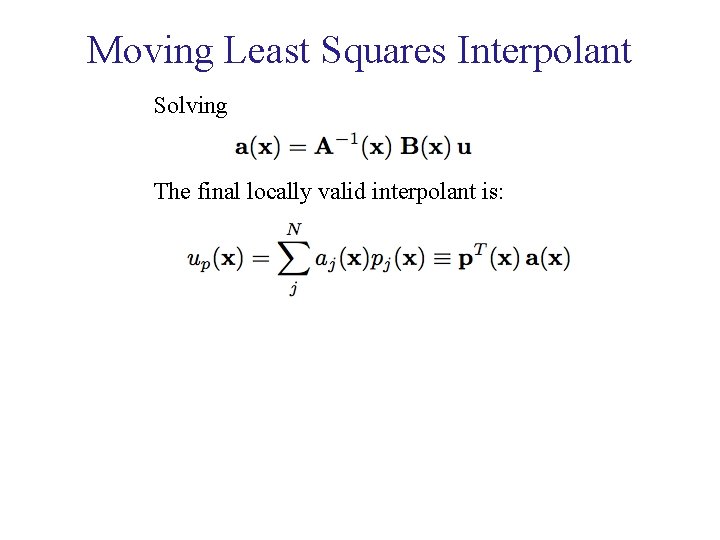

Moving Least Squares Interpolant Solving The final locally valid interpolant is:

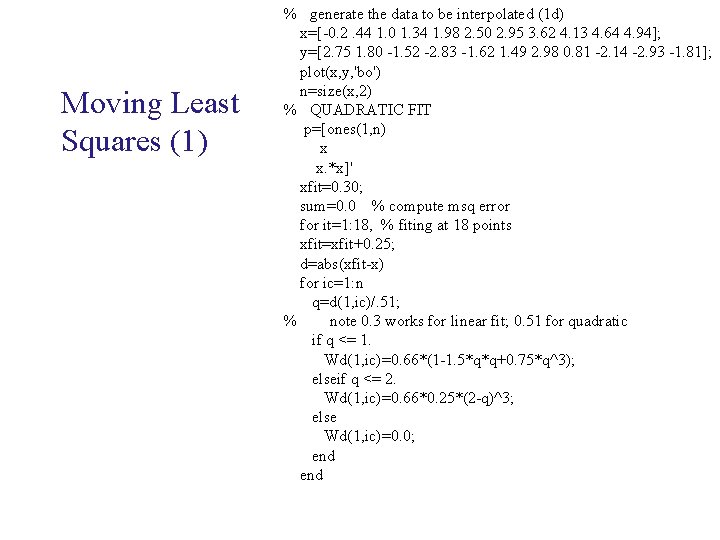

Moving Least Squares (1) % generate the data to be interpolated (1 d) x=[-0. 2. 44 1. 0 1. 34 1. 98 2. 50 2. 95 3. 62 4. 13 4. 64 4. 94]; y=[2. 75 1. 80 -1. 52 -2. 83 -1. 62 1. 49 2. 98 0. 81 -2. 14 -2. 93 -1. 81]; plot(x, y, 'bo') n=size(x, 2) % QUADRATIC FIT p=[ones(1, n) x x. *x]' xfit=0. 30; sum=0. 0 % compute msq error for it=1: 18, % fiting at 18 points xfit=xfit+0. 25; d=abs(xfit-x) for ic=1: n q=d(1, ic)/. 51; % note 0. 3 works for linear fit; 0. 51 for quadratic if q <= 1. Wd(1, ic)=0. 66*(1 -1. 5*q*q+0. 75*q^3); elseif q <= 2. Wd(1, ic)=0. 66*0. 25*(2 -q)^3; else Wd(1, ic)=0. 0; end

MLS (2) Warray=diag(Wd); A=p'*(Warray*p) B=p'*Warray acoef=(inv(A)*B)*y' % QUADRATIC FIT yfit=acoef'*[1 xfit*xfit]' hold on; plot(xfit, yfit, 'k*') sum=sum+(3. *cos(2. *pi*xfit/3. 0)-yfit)^2; end

MLS Fit to (Same) Irregular Data h=0. 51 Given data: circles; MLS: *; exact: line

1. 0. 3 Varying h Values. 5 1. 5

Conclusions There a variety of interpolation techniques for irregularly spaced data: Polynomial Fits Best Fit Polynomials Piecewise Polynomials Radial Basis Functions Moving Least Squares
