Internet Telephony PBX System IPX-2000/1800 Series PBX with VIP-450 Configuration www. planet. com. tw Copyright © PLANET Technology Corporation. All rights reserved.
l. This chapter introduces more than PSTN lines in the IP PBX and install the SIP voice gateways with FXO interface as extensions of the PBX system, and the amount of the PSTN interface will be increased to meet the demands. l. The ID of the SIP trunk is 555 and to set the route destination number 91. Accordingly, Users could dials 91 switch to gateway FXO port. l. When remote call PSTN number to gateway , FXO start the Hot line dialing to IP PBX and into IVR system. www. planet. com. tw
Case 32: IP PBX-Trunk-Gateway Configuration Company A, want to expanded PSTN Line decided to create a private SIP trunk to connect Gateway. IP PBX FXO Gateway www. planet. com. tw 3
Case 32: IP PBX-Trunk-Gateway Configuration 1 Select the [Route->Route] of IP PBX to create the Routes for the [ gateway. 2 Create a Route ID : PBX_TO_GW : Destination number pattern : 91 Number of stripped digits: 2 Prefix: 555 This Route is for user to dial 91 then striped 91 of dialed 555 call be transferred to the gateway. www. planet. com. tw 4
Case 32: IP PBX-Trunk-Gateway Configuration 3 Select the [Route->Routegroup] of IP PBX to add the [ previous Routes to a Routegroup Create a Routegroup RG_GW_TO_PBX, then add the Route TO_GW_1 and Route TO_GW_2 to the Routegroup. 4 www. planet. com. tw 5
Case 32: IP PBX-Trunk-Gateway Configuration 5 Select the [Trunk->SIP trunk] of IP PBX to create a [ SIP trunk which connect with Gateway 6 Trunk identifier: 555 (this number is for Gateway to hot line to auto attendant) Check Dynamic peer Auth. Name: 555 Auth. password: 555 www. planet. com. tw 6

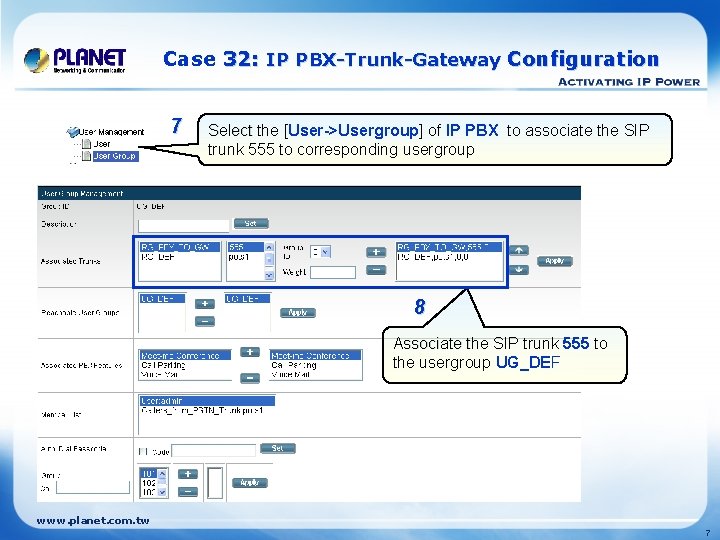

Case 32: IP PBX-Trunk-Gateway Configuration 7 Select the [User->Usergroup] of IP PBX to associate the SIP trunk 555 to corresponding usergroup 8 Associate the SIP trunk 555 to the usergroup UG_DEF www. planet. com. tw 7
Case 32: IP PBX-Trunk-Gateway Configuration Select the [Service->IP PBX service] of IP PBX to [ reload the IP PBX configuration. 9 Click the [Reload ] button to reload the IP PBX [ configuration. After completed the setting of IP PBX then connect to Gateway to finish rest procedures. 10 www. planet. com. tw 8
Case 32: IP PBX-Trunk-Gateway Configuration Ø VIP-480 Configuration 1. Reset to factory setting ITG> config erase (Press “y” to erase it) ITG> atpm erase (Press “y” to erase it) ITG> net set fac_default (Press “y” to reboot machine) 2. Network parameters ITG> net set ip 192. 168. 1. 10 (Press “n” don’t reboot machine) ITG> net set mask 255. 0 ITG> net set gateway 192. 168. 1. 254 (Press “n” don’t reboot machine) 3. Port Settings 4. ITG> set coding 0 dtmf_relay on oob 5. 6. 7. 8. ITG> set set port 0 1 2 3 dial_in plar 0555 www. planet. com. tw 9

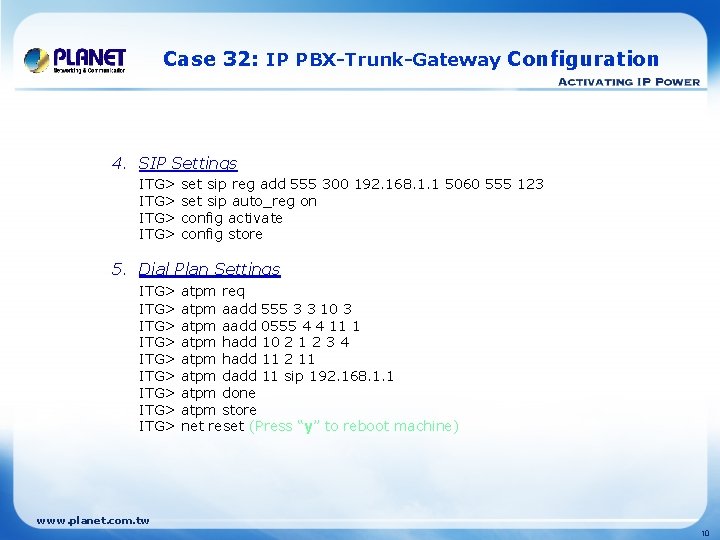

Case 32: IP PBX-Trunk-Gateway Configuration 4. SIP Settings ITG> set sip reg add 555 300 192. 168. 1. 1 5060 555 123 set sip auto_reg on config activate config store 5. Dial Plan Settings ITG> ITG> ITG> atpm req atpm aadd 555 3 3 10 3 atpm aadd 0555 4 4 11 1 atpm hadd 10 2 1 2 3 4 atpm hadd 11 2 11 atpm dadd 11 sip 192. 168. 1. 1 atpm done atpm store net reset (Press “y” to reboot machine) www. planet. com. tw 10
For example: 1. From IP Phone make a call to FXO. Step 1. Pickup the handset and hearing a dial-tone, then input a number 91#. Step 2. You will be hear a ring-back tone afterward, and then get a dial-tone form PSTN line. Step 3. To input a local phone number, such as 22199518 2. From local phone (PSTN) make a call into IP PBX through FXO. Step 1. Pickup the handset of local phone and hearing a dial-tone, input number 858075 Step 2. You will be hear a ring-back tone afterward, and then entered the IVR of IP PBX Step 3. To input a extension number of SIP client, then the SIP client should be ring up. NOTE: The mentioned parameters and network settings in this sample be carefully modified to meet the real-world applications. www. planet. com. tw 11
