Internet Mapping Overview What you need to know

Internet Mapping Overview What you need to know to get started

Course Overview and Objectives n Get an overview of Internet Mapping n Discuss the basic principles for Internet Mapping n Discuss how to make effective Internet Maps n Discuss the pitfalls to avoid

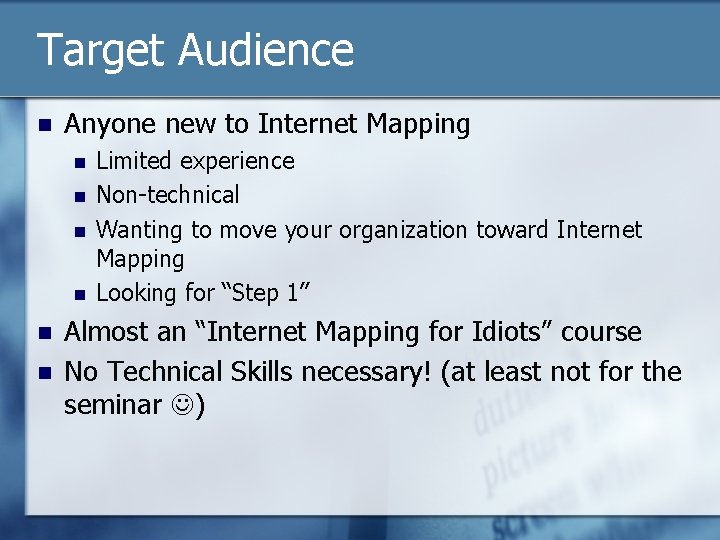

Target Audience n Anyone new to Internet Mapping n n n Limited experience Non-technical Wanting to move your organization toward Internet Mapping Looking for “Step 1” Almost an “Internet Mapping for Idiots” course No Technical Skills necessary! (at least not for the seminar )

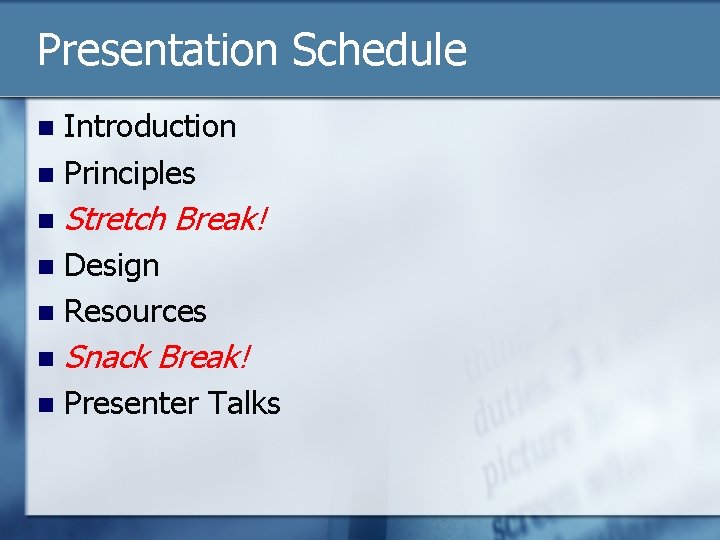

Presentation Schedule Introduction n Principles n n Stretch Break! Design n Resources n n Snack Break! n Presenter Talks

About You

About Me n Education: n n Political Science Computer Science Geography Background n n Techno-centric upbringing Gadget junkie n n Experience n n n If it has a blinking light, I want it! 15 years in Software Development 11 years at the WV GIS Technical Center 8 years (ish) doing Internet Mapping 6 years covering the geospatial industry Very. Spatial – Blog and Podcast (http: //veryspatial. com/) Still don’t know what I’m doing at least half the time!

Principles Roman structures atop massive pre-Roman stones of Baalbek

How We Got Here Geospatial Revolution Project Episode 1, Chapter 3 (4: 19)

What is a Map?

What Do We Think About When We Think of Maps? n n n n Lines, shapes, polygons Places Getting from here to there Folding it wrong Where’d it go? Where am I at on the map? Nice for decoration! Pays the rent

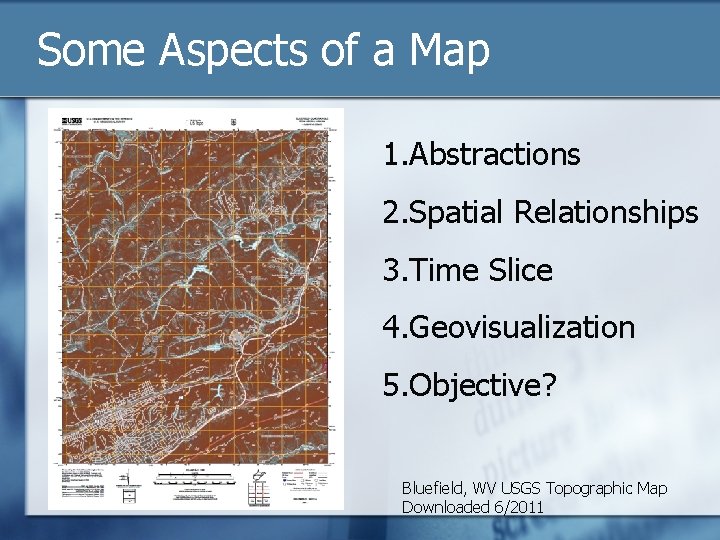

Some Aspects of a Map 1. Abstractions 2. Spatial Relationships 3. Time Slice 4. Geovisualization 5. Objective? Bluefield, WV USGS Topographic Map Downloaded 6/2011

Abstractions

Space and Place

Time Slice National Geographic “Afghan Girl” 1984 and 2002, Copyright National Geographic, 2002

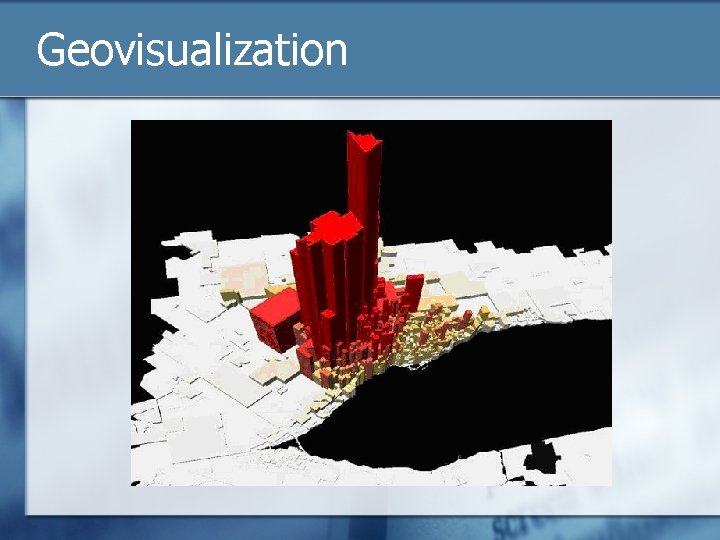

Geovisualization

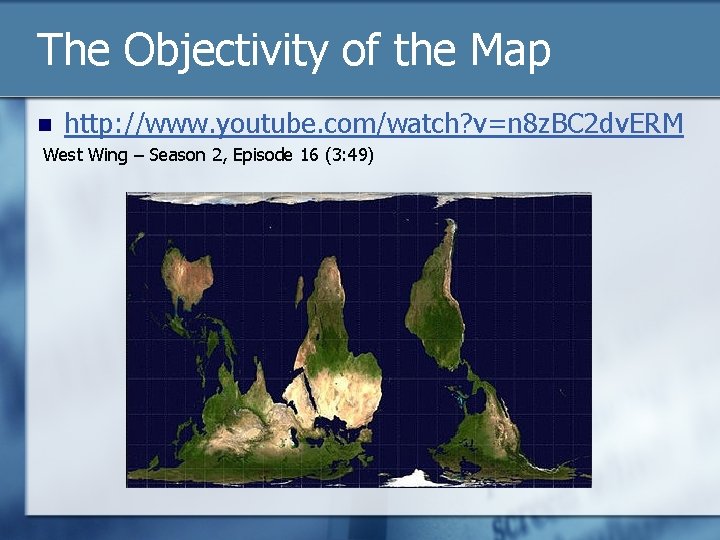

The Objectivity of the Map n http: //www. youtube. com/watch? v=n 8 z. BC 2 dv. ERM West Wing – Season 2, Episode 16 (3: 49)

Maps are Socially Constructed Participatory GIS in action, Trevor Harris and Dan Weiner

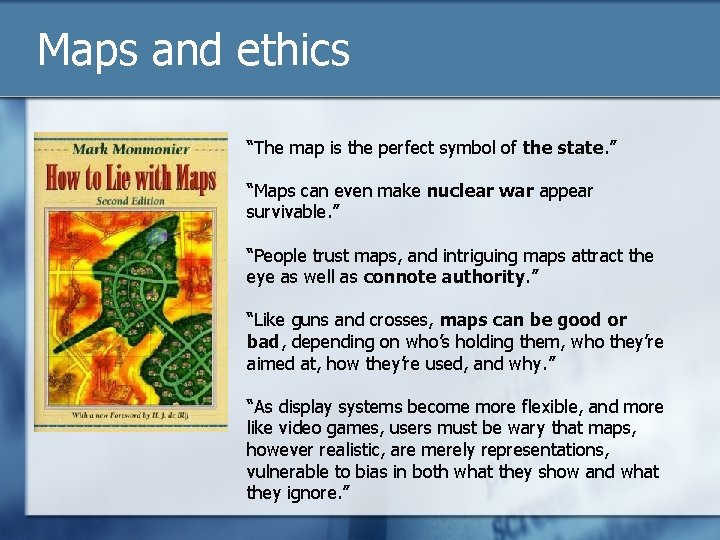

Maps and ethics “The map is the perfect symbol of the state. ” “Maps can even make nuclear war appear survivable. ” “People trust maps, and intriguing maps attract the eye as well as connote authority. ” “Like guns and crosses, maps can be good or bad, depending on who’s holding them, who they’re aimed at, how they’re used, and why. ” “As display systems become more flexible, and more like video games, users must be wary that maps, however realistic, are merely representations, vulnerable to bias in both what they show and what they ignore. ”

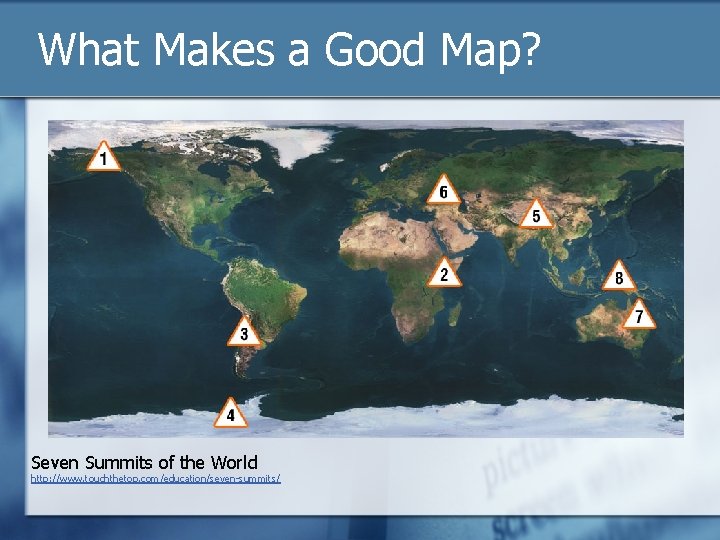

What Makes a Good Map? Seven Summits of the World http: //www. touchthetop. com/education/seven-summits/

Why Interactive Maps? Geospatial Revolution Project Episode 2, Chapter 1 (6: 03)

Getting Our Terminology Straight n Internet Mapping? n Interactive Mapping? n Internet GIS? n Location Based Services?

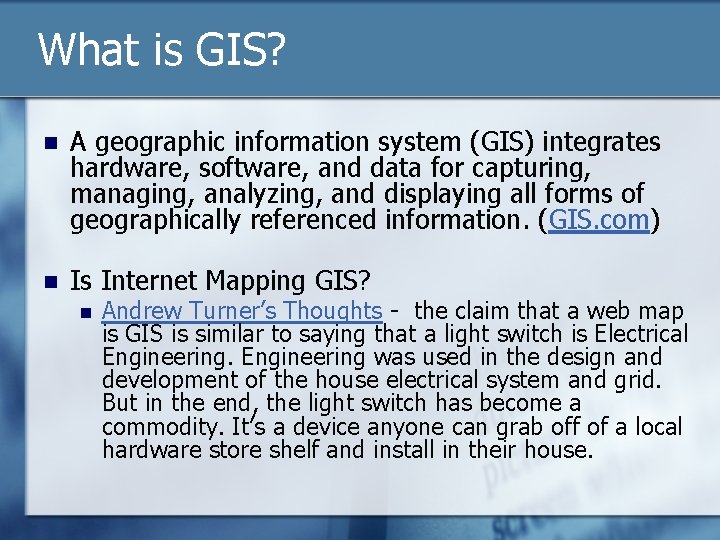

What is GIS? n A geographic information system (GIS) integrates hardware, software, and data for capturing, managing, analyzing, and displaying all forms of geographically referenced information. (GIS. com) n Is Internet Mapping GIS? n Andrew Turner’s Thoughts - the claim that a web map is GIS is similar to saying that a light switch is Electrical Engineering was used in the design and development of the house electrical system and grid. But in the end, the light switch has become a commodity. It’s a device anyone can grab off of a local hardware store shelf and install in their house.

Related Terms/Concepts Interactive mapping n Internet GIS n Location Based Services n

Why it Matters Geospatial Revolution Project Episode 1, Chapter 4 (5: 19)

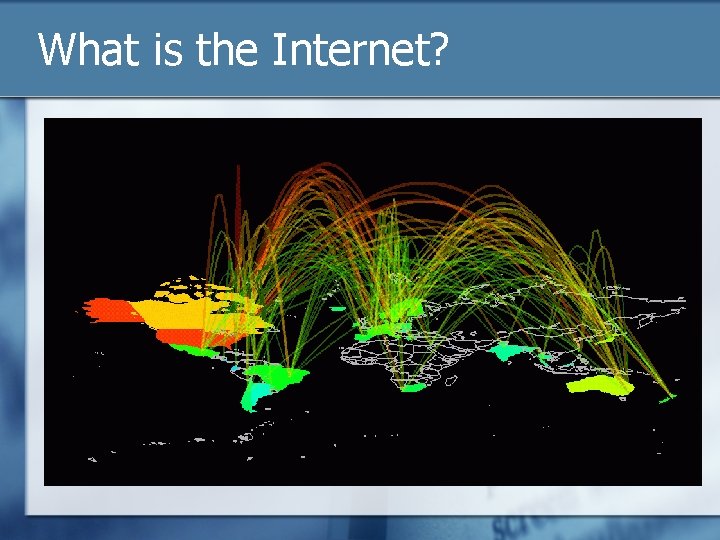

What is the Internet?

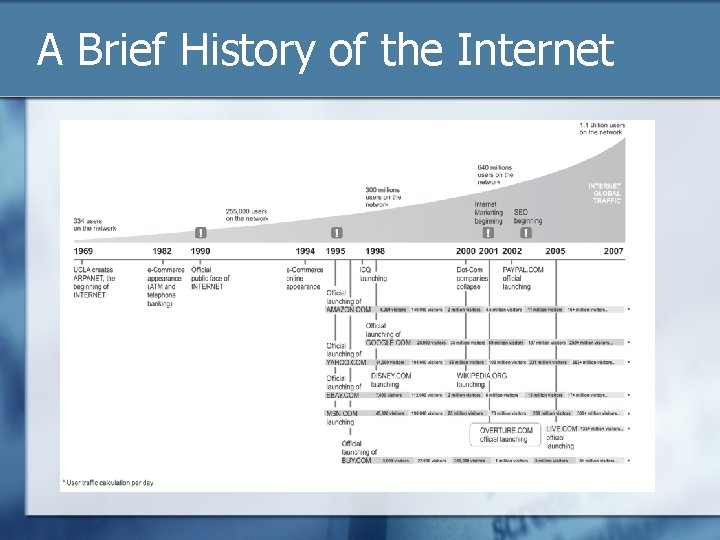

A Brief History of the Internet

Increasing Demand/Increasing Expectations

Break Time!

Design

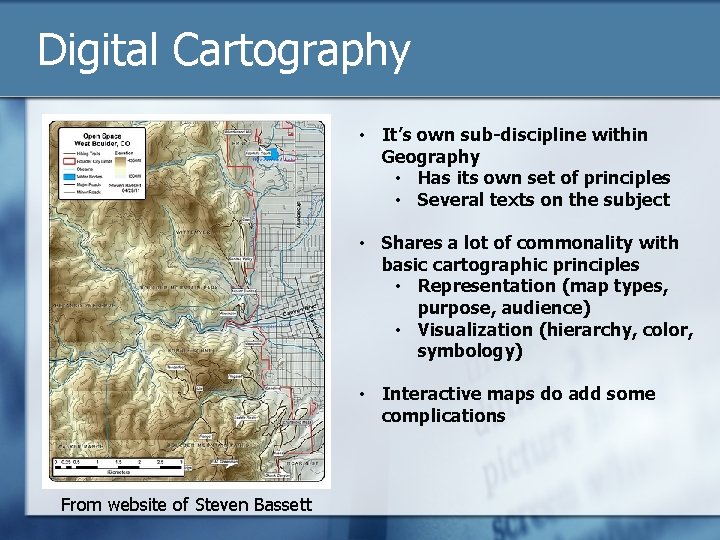

Digital Cartography • It’s own sub-discipline within Geography • Has its own set of principles • Several texts on the subject • Shares a lot of commonality with basic cartographic principles • Representation (map types, purpose, audience) • Visualization (hierarchy, color, symbology) • Interactive maps do add some complications From website of Steven Bassett

Captcha kbpsh 3 m 573 vzpk 2 z

Cartographic Design Principles

A Funny Thing About Scale Big Trains Little Trains(2: 40)

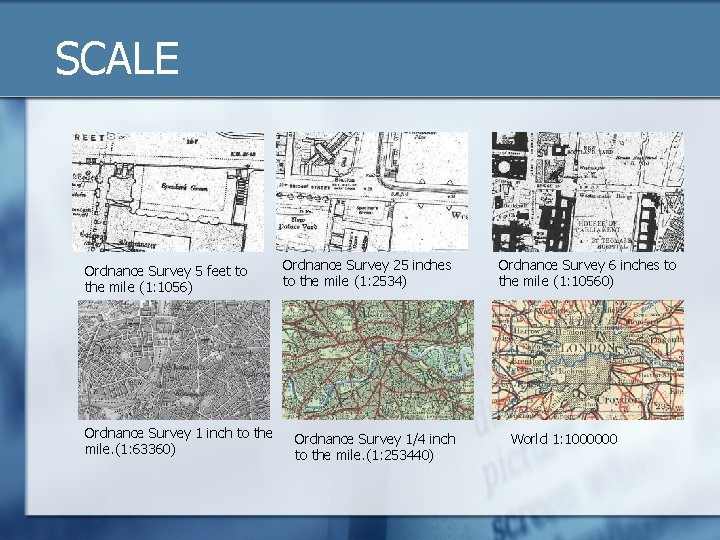

SCALE Ordnance Survey 5 feet to the mile (1: 1056) Ordnance Survey 1 inch to the mile. (1: 63360) Ordnance Survey 25 inches to the mile (1: 2534) Ordnance Survey 1/4 inch to the mile. (1: 253440) Ordnance Survey 6 inches to the mile (1: 10560) World 1: 1000000

SELECTION What to include n What to leave out n Conscious decisions n Unconscious decisions n Commission n Omission n

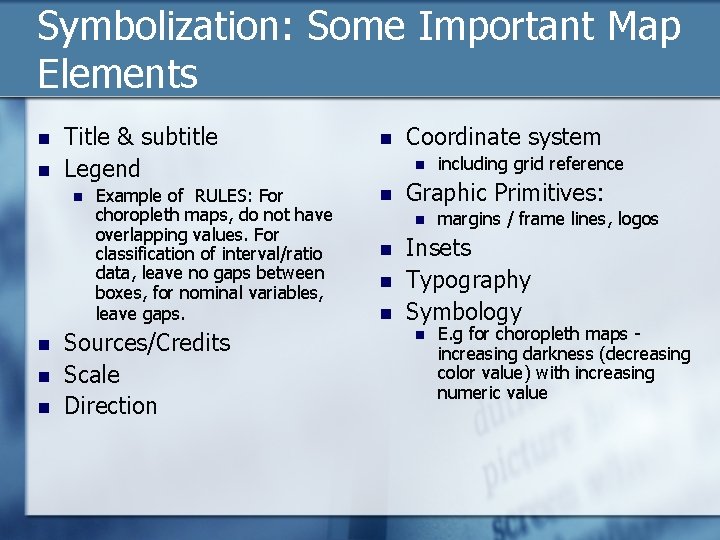

Symbolization: Some Important Map Elements n n Title & subtitle Legend n n Example of RULES: For choropleth maps, do not have overlapping values. For classification of interval/ratio data, leave no gaps between boxes, for nominal variables, leave gaps. Sources/Credits Scale Direction n Coordinate system n n Graphic Primitives: n n including grid reference margins / frame lines, logos Insets Typography Symbology n E. g for choropleth maps increasing darkness (decreasing color value) with increasing numeric value

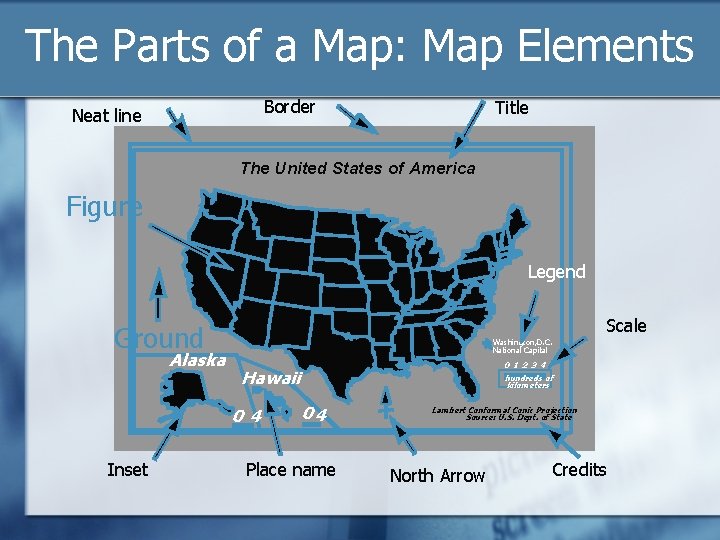

The Parts of a Map: Map Elements Border Neat line Title The United States of America Figure Legend Scale Ground Alaska Washington, D. C. National Capital Hawaii 04 Inset 0 1 2 3 4 hundreds of kilometers 04 Place name Lambert Conformal Conic Projection Source: U. S. Dept. of State North Arrow Credits

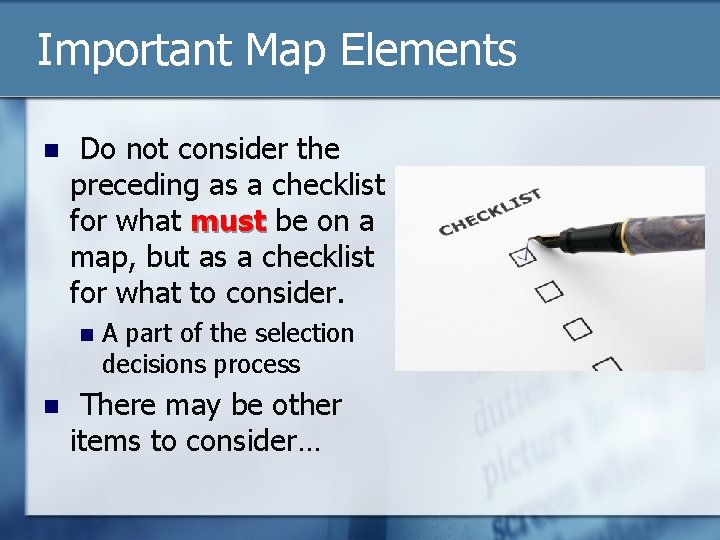

Important Map Elements n Do not consider the preceding as a checklist for what must be on a map, but as a checklist for what to consider. n n A part of the selection decisions process There may be other items to consider…

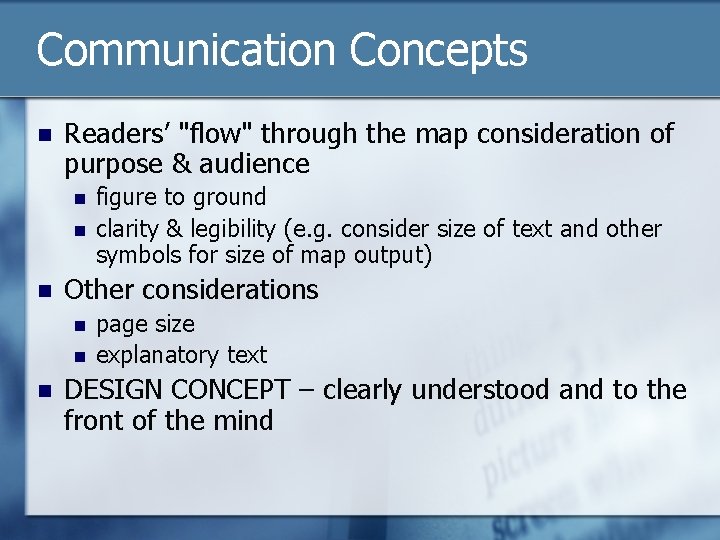

Communication Concepts n Readers’ "flow" through the map consideration of purpose & audience n n n Other considerations n n n figure to ground clarity & legibility (e. g. consider size of text and other symbols for size of map output) page size explanatory text DESIGN CONCEPT – clearly understood and to the front of the mind

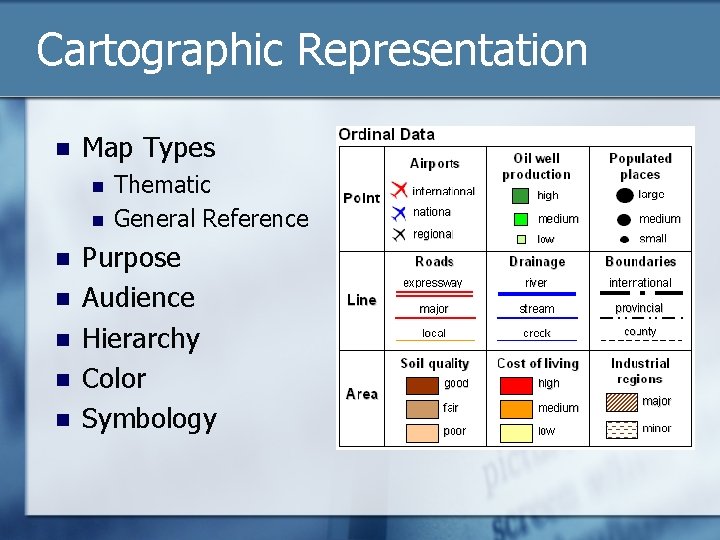

Cartographic Representation n Map Types n n n n Thematic General Reference Purpose Audience Hierarchy Color Symbology

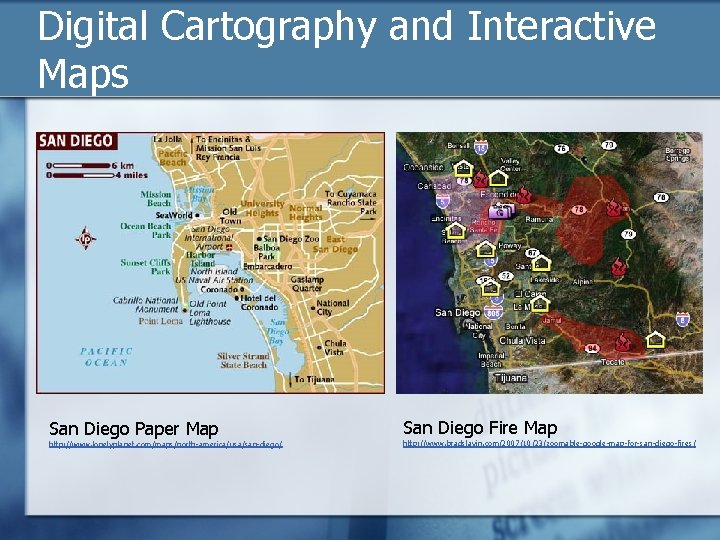

Digital Cartography and Interactive Maps San Diego Paper Map http: //www. lonelyplanet. com/maps/north-america/usa/san-diego/ San Diego Fire Map http: //www. bradslavin. com/2007/10/23/zoomable-google-map-for-san-diego-fires/

Scale Revisited n Variable n Impacts Design Choices n Impacts Data Choices n Standards

Purpose Revisited

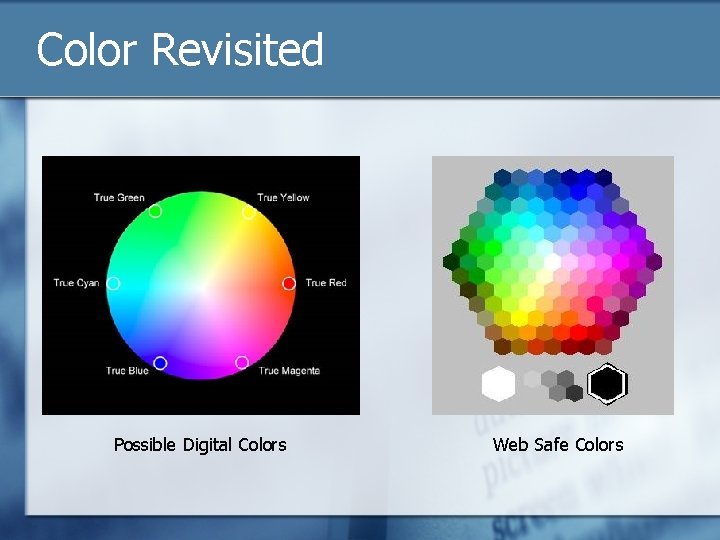

Color Revisited Possible Digital Colors Web Safe Colors

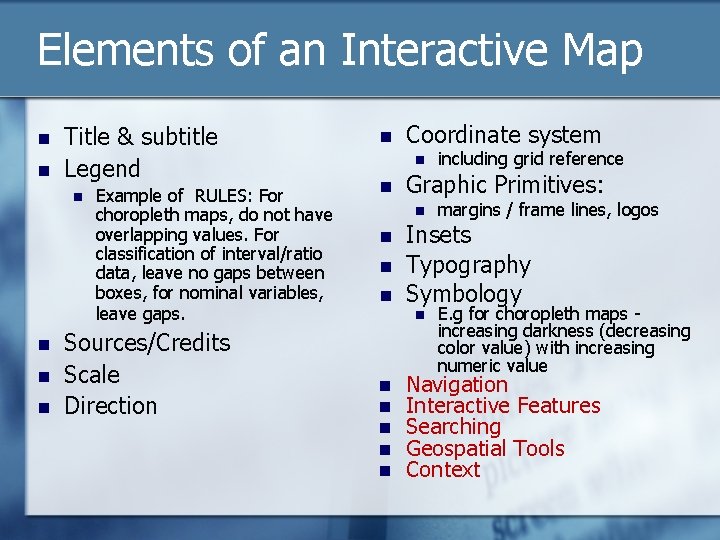

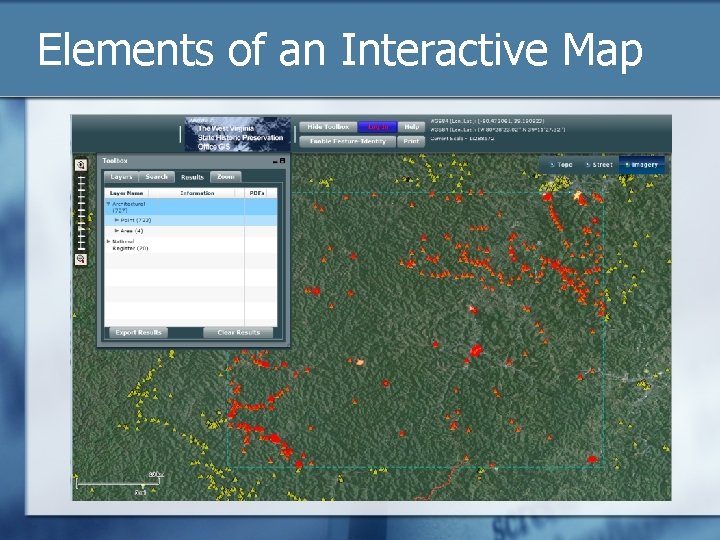

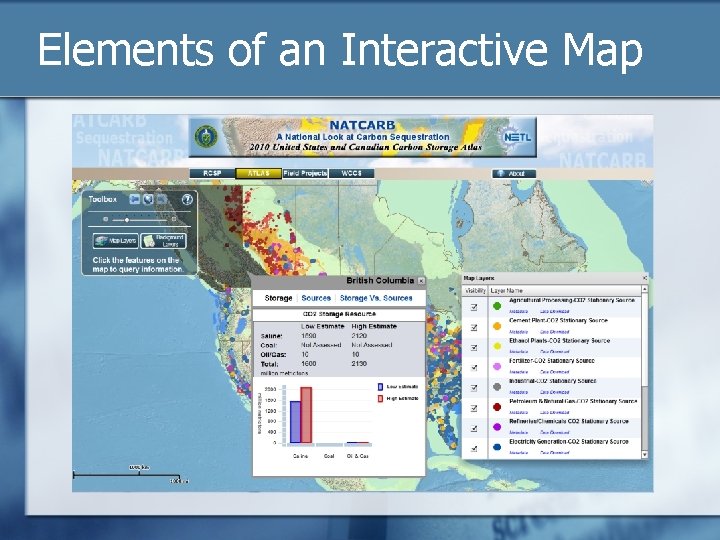

Elements of an Interactive Map n n Title & subtitle Legend n n Example of RULES: For choropleth maps, do not have overlapping values. For classification of interval/ratio data, leave no gaps between boxes, for nominal variables, leave gaps. Sources/Credits Scale Direction n Coordinate system n n Graphic Primitives: n n margins / frame lines, logos Insets Typography Symbology n n n including grid reference E. g for choropleth maps increasing darkness (decreasing color value) with increasing numeric value Navigation Interactive Features Searching Geospatial Tools Context

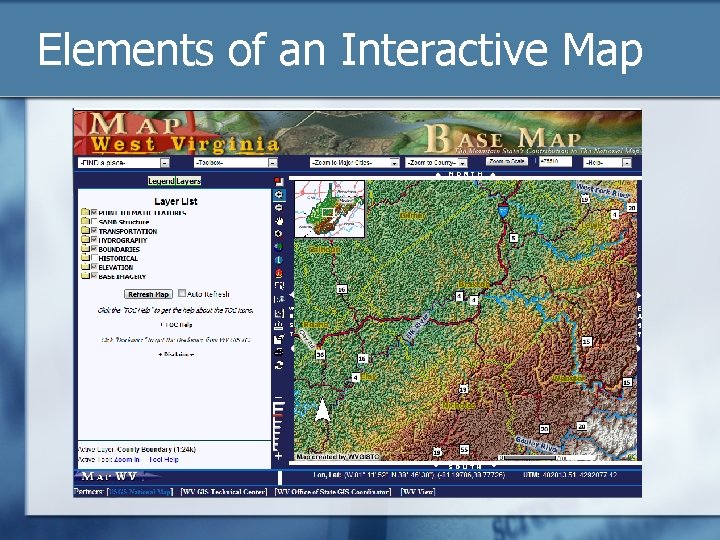

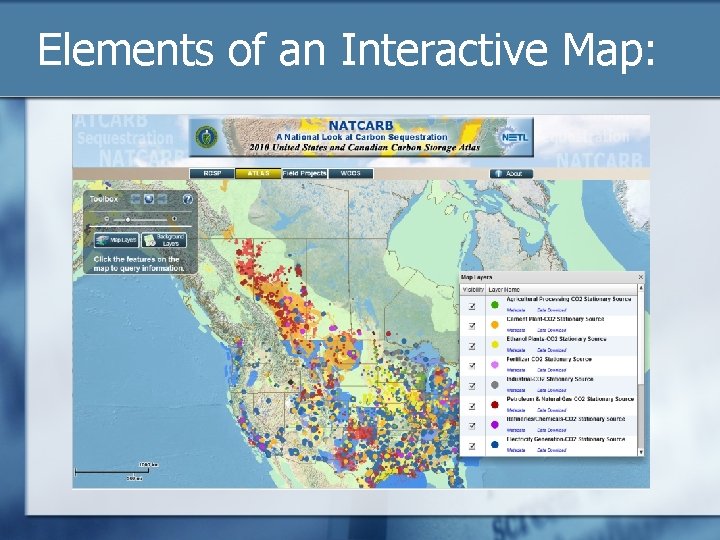

Elements of an Interactive Map:

Elements of an Interactive Map

Elements of an Interactive Map

Elements of an Interactive Map

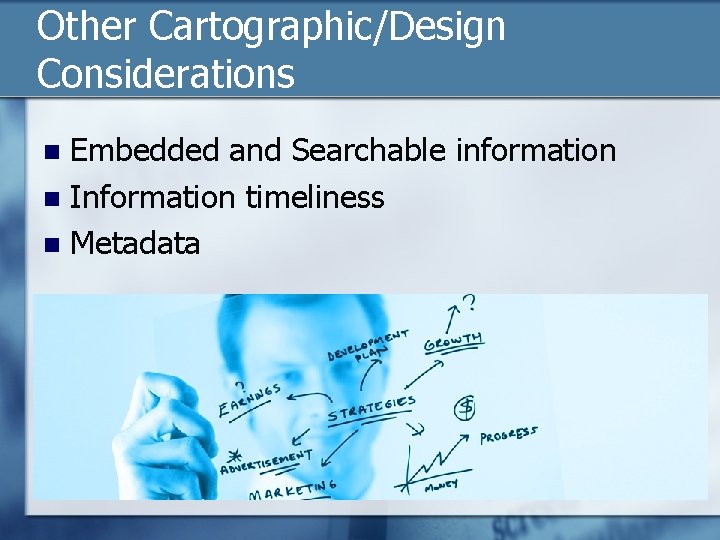

Other Cartographic/Design Considerations Embedded and Searchable information n Information timeliness n Metadata n

Software Design It’s own sub-discipline within Computer Science n Can take some principles for Internet Mapping n About managing complexity n Software lifecycle n Document, Document n Iterative process and refactoring process n

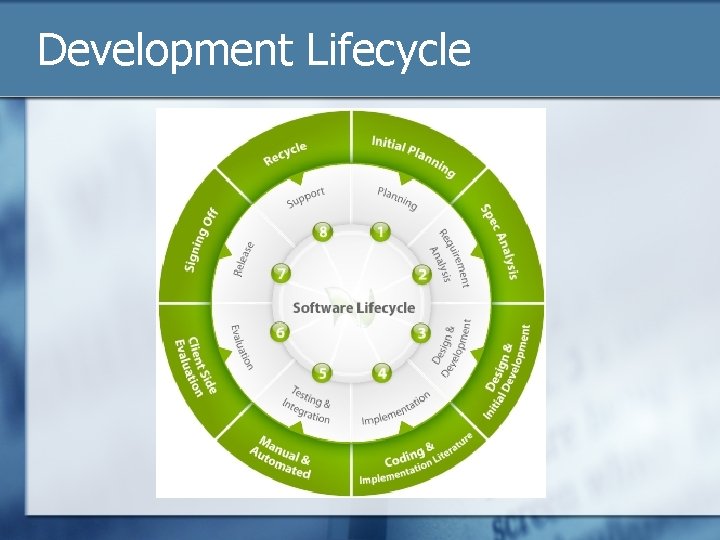

Development Lifecycle

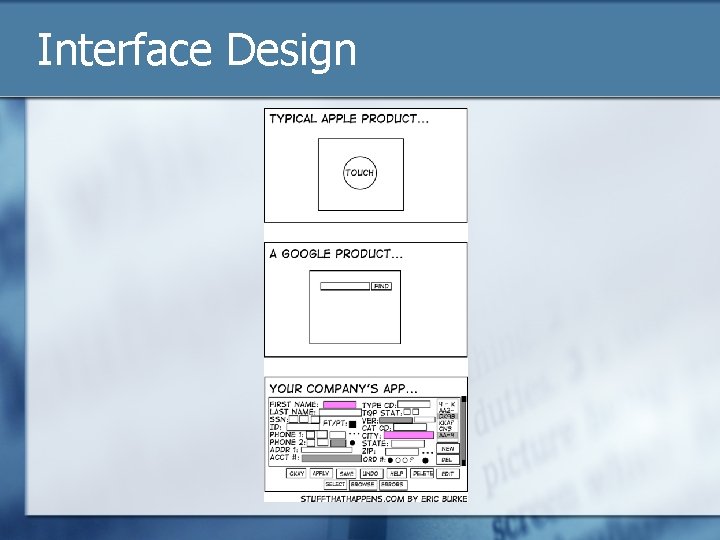

Interface Design

Resources

Hardware

Bandwidth

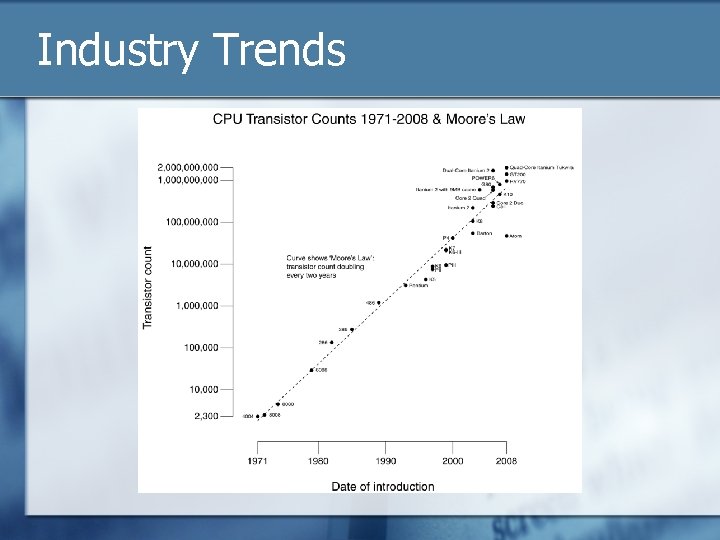

Industry Trends

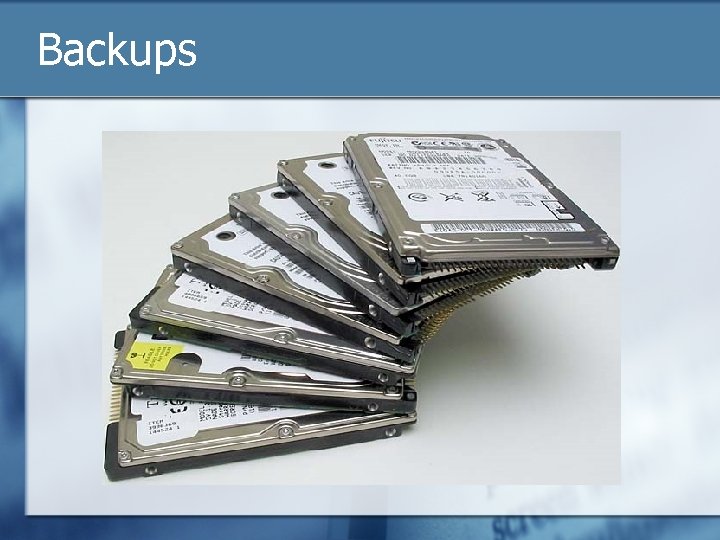

Backups

Software

Stitching Software Together A handmade West Virginia quilt in the lone star pattern. Courtesy Of: State Museum Photographer: Michael Keller

Personnel The Dream

Personnel The Reality

Personnel

Program Management

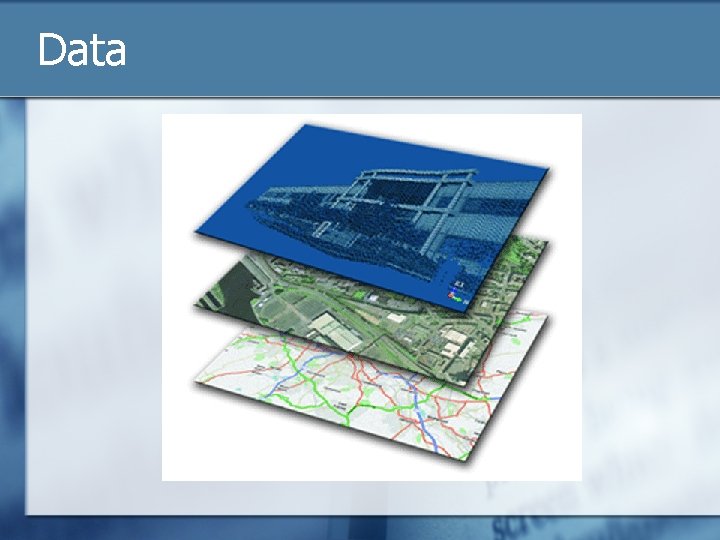

Data

Other Data n n n n ESRI EROS Data Center Data. gov Census Open. Street Map WV GIS Technical Center PASDA

Power of Open Data n TED Talks Tim’s Berners-Lee, 2010 (5: 34) http: //www. ted. com/talks/tim_berners_lee_the_year_open_data_went_worldwide. html

Thinking Outside the Box on Data

The Importance of Marketing

Break Time!

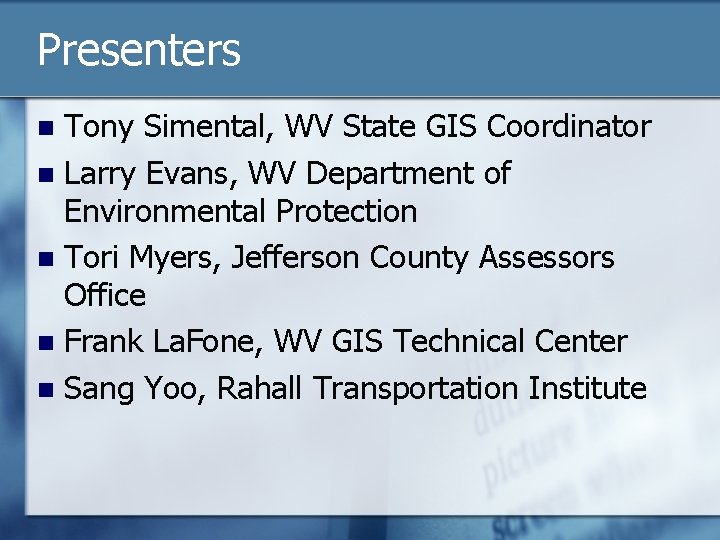

Presenters Tony Simental, WV State GIS Coordinator n Larry Evans, WV Department of Environmental Protection n Tori Myers, Jefferson County Assessors Office n Frank La. Fone, WV GIS Technical Center n Sang Yoo, Rahall Transportation Institute n

Questions? Comments?
