Internet dan Jaringan Komputer Komunikasi Data dan Jaringan
- Slides: 80
Internet dan Jaringan Komputer Komunikasi Data dan Jaringan Komputer (Bagian 1) Dr. Tb. Maulana Kusuma mkusuma@staff. gunadarma. ac. id http: //staffsite. gunadarma. ac. id/mkusuma Magister Manajemen Sistem Informasi 0
Referensi W. Stallings, Data and Computer Communications, 4 ed, Macmillan, 1994. F. Halsall, Data Communications, Computer Networks and Open Systems, Addison Wesley, 1996. Magister Manajemen Sistem Informasi 1
A Communications Model Source n generates data to be transmitted Transmitter n Converts data into transmittable signals Transmission System n Carries data Receiver n Converts received signal into data Destination n Takes incoming data Magister Manajemen Sistem Informasi 2
Simplified Communications Model - Diagram Magister Manajemen Sistem Informasi 3
Simplified Data Communications Model Magister Manajemen Sistem Informasi 4
Key Communications Tasks Transmission System Utilization Interfacing Signal Generation Synchronization Exchange Management Error detection and correction Addressing and routing Recovery Message formatting Security Network Management Magister Manajemen Sistem Informasi 5
Communications Standard Many types of connection media : telephone lines, optical fibers, cables, radios, etc. Many different types of machines and operating systems Many different network applications Magister Manajemen Sistem Informasi 6
What “Standard” means? How many volts pulse is a 0 and 1 ? How to determine the end of a message ? How to handle lost messages ? How many bits for different data types ? Integers/Strings, etc. ; are ASCII chars ? How machines are identified ? How to find the way to reach a machine ? How applications speaks together through the network ? Magister Manajemen Sistem Informasi 7
Standard Bodies International Telecommunications Union – Telecommunications Sector (ITU-T) Institute of Electrical and Electronics Engineers (IEEE) International Organization for Standardization (ISO) Electronic Industries Alliance (EIA) dll Magister Manajemen Sistem Informasi 8
The ISO/OSI Model ISO (the International Standards Organization) has developed a reference model for communications, called the OSI (Open Systems Interconnection) OPEN SYSTEM means that it can communicate with any other system that follows the specified standards, formats and semantics. Magister Manajemen Sistem Informasi 9
OSI Networking Model Program X Data AH Data Application Presentation SH Data unit Transport TH Network Physical Application PH Data unit Session Data link Program Y NH LH Session Data unit Transport Data unit Network Data unit Bits LT Data link Physical transmission medium Magister Manajemen Sistem Informasi 10
OSI Layers (1) Physical n Physical interface between devices Mechanical Electrical Functional Procedural Data Link n Means of activating, maintaining and deactivating a reliable link n Error detection and control n Higher layers may assume error free transmission Magister Manajemen Sistem Informasi 11
OSI Layers (2) Network n Transport of information n Higher layers do not need to know about underlying technology n Not needed on direct links Transport n Exchange of data between end systems n Error free n In sequence n No losses n No duplicates n Quality of service Magister Manajemen Sistem Informasi 12
OSI Layers (3) Session n Control of dialogues between applications n Dialogue discipline n Grouping n Recovery Presentation n Data formats and coding n Data compression n Encryption Application n Means for applications to access OSI environment Magister Manajemen Sistem Informasi 13
Transmission Medium Guided - wire Unguided - wireless Characteristics and quality determined by medium and signal For guided, the medium is more important For unguided, the bandwidth produced by the antenna is more important Key concerns are data rate and distance Magister Manajemen Sistem Informasi 14
Guided Transmission Media Twisted Pair Coaxial cable Optical fiber Magister Manajemen Sistem Informasi 15
Twisted Pair Twisted pair - INEXPENSIVE n Two wires twisted together. Makes them less susceptible to acting like an antenna and picking up radio frequency information or appliance noise. n Telephone company uses twisted-pair copper wires to link telephones. Magister Manajemen Sistem Informasi 16
Twisted Pair Magister Manajemen Sistem Informasi 17
Twisted Pair - Applications Most common medium Telephone network n Between house and local exchange (subscriber loop) Within buildings n To private branch exchange (PBX) For local area networks (LAN) n 10 Mbps or 100 Mbps Magister Manajemen Sistem Informasi 18
Twisted Pair - Pros and Cons Cheap Easy to work with Low data rate Short range Magister Manajemen Sistem Informasi 19
Twisted Pair - Transmission Characteristics Analog n Amplifiers every 5 km to 6 km Digital n Use either analog or digital signals n repeater every 2 km or 3 km Limited distance Limited bandwidth (1 MHz) Limited data rate (100 MHz) Susceptible to interference and noise Magister Manajemen Sistem Informasi 20
Unshielded and Shielded TP Unshielded Twisted Pair (UTP) n Ordinary telephone wire n Cheapest n Easiest to install n Suffers from external EM interference Shielded Twisted Pair (STP) n Metal braid or sheathing that reduces interference n More expensive n Harder to handle (thick, heavy) Magister Manajemen Sistem Informasi 21
UTP Categories Cat 3 n up to 16 MHz n Voice grade found in most offices n Twist length of 7. 5 cm to 10 cm Cat 4 n up to 20 MHz Cat 5 or Cat 6 n up to 100 MHz n Commonly pre-installed in new office buildings n Twist length 0. 6 cm to 0. 85 cm Magister Manajemen Sistem Informasi 22
Coaxial Cable (1) Coaxial cable n Also two wires: Use this when 1. Long distances 2. Lots of interference One of the wires is woven of fine strands of copper forming a tube. The wire mesh surrounds a solid copper wire that runs down the center. Space between has a non-conducting material. Makes them more impervious to outside noise. Magister Manajemen Sistem Informasi 23
Coaxial Cable (2) Magister Manajemen Sistem Informasi 24
Coaxial Cable (3) Magister Manajemen Sistem Informasi 25
Coaxial Cable Applications Most versatile medium Television distribution n n Aerial to TV Cable TV Long distance telephone transmission n n Can carry 10, 000 voice calls simultaneously Being replaced by fiber optic Short distance computer systems links Local area networks Magister Manajemen Sistem Informasi 26
Coaxial Cable - Transmission Characteristics Analog n n n Amplifiers every few km Closer if higher frequency Up to 500 MHz Digital n n Repeater every 1 km Closer for higher data rates Magister Manajemen Sistem Informasi 27
Optical Fiber (1) Magister Manajemen Sistem Informasi 28
Optical Fiber (2) Magister Manajemen Sistem Informasi 29
Optical Fiber (3) Fiber-optic cable (BIG JOBS + EXPENSIVE) n Light is electromagnetic. n Can transmit more information down a single strand. It can send a wider set of frequencies. n Each cable can send several thousand phone conversations or computer communications. Magister Manajemen Sistem Informasi 30
Optical Fiber - Spectrum Magister Manajemen Sistem Informasi 31
Optical Fiber - Benefits Greater capacity n Data rates of hundreds of Gbps Smaller size & weight Lower attenuation Electromagnetic isolation Greater repeater spacing n 10 s of km at least Magister Manajemen Sistem Informasi 32
Optical Fiber - Applications Long-haul trunks Metropolitan trunks Rural exchange trunks Subscriber loops LANs Magister Manajemen Sistem Informasi 33
Optical Fiber - Transmission Characteristics Act as wave guide for 1014 to 1015 Hz n Portions of infrared and visible spectrum Light Emitting Diode (LED) n Cheaper n Wider operating temp range n Last longer Injection Laser Diode (ILD) n More efficient n Greater data rate Wavelength Division Multiplexing (WDM) Magister Manajemen Sistem Informasi 34
Optical Fiber Transmission Modes Magister Manajemen Sistem Informasi 35
Wireless Transmission Unguided media Transmission and reception via antenna Directional n n Focused beam Careful alignment required Omni-directional n n Signal spreads in all directions Can be received by many antenna Magister Manajemen Sistem Informasi 36
Frequencies 2 GHz to 40 GHz n Microwave n Highly directional n Point to point n Satellite 30 MHz to 1 GHz n Omnidirectional n Broadcast radio 3 x 1011 to 2 x 1014 n Infrared n Local Magister Manajemen Sistem Informasi 37
Terrestrial Microwave Parabolic dish Focused beam Line of sight Long haul telecommunications Higher frequencies give higher data rates Magister Manajemen Sistem Informasi 38
Satellite Microwave Satellite is relay station Satellite receives on one frequency, amplifies or repeats signal and transmits on another frequency Requires geo-stationary orbit n Height of ± 35, 784 km Television Long distance telephone Private business networks Magister Manajemen Sistem Informasi 39
Broadcast Radio Omni-directional FM radio UHF and VHF television Line of sight Suffers from multi-path interference Magister Manajemen Sistem Informasi 40
Infrared Modulate non-coherent infrared light Line of sight (or reflection) Blocked by walls e. g. TV remote control, IRD port Magister Manajemen Sistem Informasi 41
Terminology (1) Transmitter Receiver Medium n Guided medium e. g. twisted pair, optical fiber n Unguided medium e. g. air, water, vacuum Magister Manajemen Sistem Informasi 42
Terminology (2) Direct link n No intermediate devices Point-to-point n n Direct link Only 2 devices share link Multi-point n More than two devices share the link Magister Manajemen Sistem Informasi 43
Terminology (3) Simplex n One direction e. g. Television Half duplex n Either direction, but only one way at a time e. g. police radio Full duplex n Both directions at the same time e. g. telephone Magister Manajemen Sistem Informasi 44
Terminology (4) Bits per second (bps). n The number of bits (0’s and 1’s) that travel down the channel per second. Baud rate n n The number of bits that travel down the channel in a given interval. The number is given in signal changes per second, not necessarily bits per second. Magister Manajemen Sistem Informasi 45
Terminology (5) Asynchronous transmission n n Information is sent byte by byte. Cheaper and more commonly used. Synchronous transmission n Data is sent in large blocks rather than in small pieces. Preceded by special information, concerning error detection and block size. These modems are expensive but very fast. Magister Manajemen Sistem Informasi 46
Analog and Digital Data Transmission Data n Entities that convey meaning Signals n Electric or electromagnetic representations of data Transmission n Communication of data by propagation and processing of signals Magister Manajemen Sistem Informasi 47
Data Analog n n Continuous values within some interval e. g. sound, video Digital n n Discrete values e. g. text, integers Magister Manajemen Sistem Informasi 48
Data and Signals Usually use digital signals for digital data and analog signals for analog data Can use analog signal to carry digital data n Modem Can use digital signal to carry analog data n Compact Disc audio Magister Manajemen Sistem Informasi 49
Signals Type of signal communicated (analog or digital). n Analog: Those signals that vary with smooth continuous changes. A continuously changing signal similar to that found on the speaker wires of a high-fidelity stereo system. n Digital: Those signals that vary in steps or jumps from value to value. They are usually in the form of pulses of electrical energy (represent 0 s or 1 s). Magister Manajemen Sistem Informasi 50
Analog Signals Carrying Analog and Digital Data Magister Manajemen Sistem Informasi 51
Digital Signals Carrying Analog and Digital Data Magister Manajemen Sistem Informasi 52
Analog Transmission Analog signal transmitted without regard to content May be analog or digital data Attenuated over distance Use amplifiers to boost signal Also amplifies noise Magister Manajemen Sistem Informasi 53
Digital Transmission Concerned with content Integrity endangered by noise, attenuation etc. Repeaters used Repeater receives signal Extracts bit pattern Retransmits Attenuation is overcome Noise is not amplified Magister Manajemen Sistem Informasi 54
Advantages of Digital Transmission Digital technology n Low cost LSI/VLSI technology Data integrity n Longer distances over lower quality lines Capacity utilization n High bandwidth links economical n High degree of multiplexing easier with digital techniques Security & Privacy n Encryption Integration n Can treat analog and digital data similarly Magister Manajemen Sistem Informasi 55
Transmission Impairments Signal received may differ from signal transmitted Analog - degradation of signal quality Digital - bit errors Caused by n n Attenuation and attenuation distortion Propagation delay Noise Interference Magister Manajemen Sistem Informasi 56
Attenuation Signal strength falls off with distance Depends on medium Received signal strength: n n must be enough to be detected must be sufficiently higher than noise to be received without error Attenuation is an increasing function of frequency Magister Manajemen Sistem Informasi 57
Propagation Delay The time required for a signal to travel from one point to another. Propagation velocity varies with frequency. Magister Manajemen Sistem Informasi 58
Noise (1) Additional signals inserted between transmitter and receiver Thermal n n Due to thermal agitation of electrons White noise Inter-modulation n Signals that are the sum and difference of original frequencies sharing a medium Magister Manajemen Sistem Informasi 59
Noise (2) Crosstalk n A signal from one line is picked up by another Impulse n n Irregular pulses or spikes e. g. External electromagnetic interference Short duration High amplitude Magister Manajemen Sistem Informasi 60
Channel Capacity Data rate n n In bits per second Rate at which data can be communicated Bandwidth n n In cycles per second of Hertz Constrained by transmitter and medium Magister Manajemen Sistem Informasi 61
Modulation Techniques Magister Manajemen Sistem Informasi 62
Adaptive Modulation Magister Manajemen Sistem Informasi 63
Data Rate and Bandwidth Any transmission system has a limited band of frequencies This limits the data rate that can be carried Magister Manajemen Sistem Informasi 64
Multiplexing Magister Manajemen Sistem Informasi 65
Time Division Multiplexing Data rate of medium exceeds data rate of digital signal to be transmitted Multiple digital signals interleaved in time May be at bit level of blocks Time slots pre-assigned to sources and fixed Time slots allocated even if no data Time slots do not have to be evenly distributed amongst sources Magister Manajemen Sistem Informasi 66

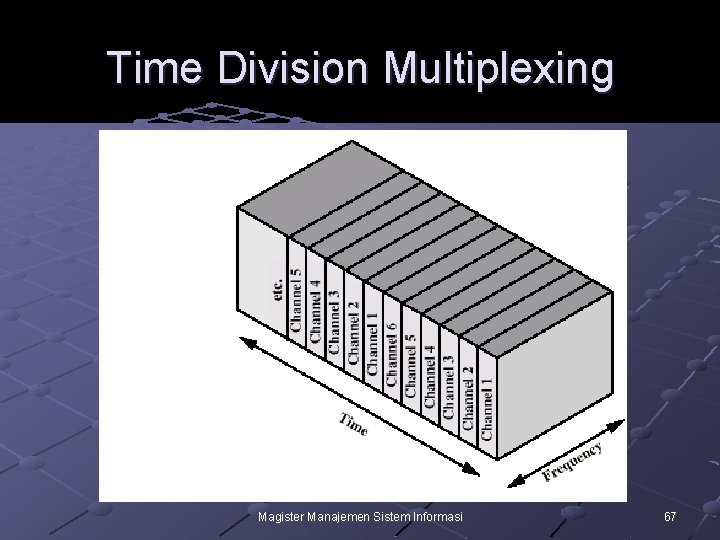

Time Division Multiplexing Magister Manajemen Sistem Informasi 67
TDM System Magister Manajemen Sistem Informasi 68
Frequency Division Multiplexing FDM Useful bandwidth of medium exceeds required bandwidth of channel Each signal is modulated to a different carrier frequency Carrier frequencies separated so signals do not overlap (guard bands) e. g. broadcast radio Channel allocated even if no data Magister Manajemen Sistem Informasi 69
Frequency Division Multiplexing Diagram Magister Manajemen Sistem Informasi 70
FDM System Magister Manajemen Sistem Informasi 71
Increasing Network Capacity Options More Fibers (SDM) Same bit rate, more fibers Slow Time to Market Expensive Engineering Limited Rights of Way Duct Exhaust W D M Faster Electronics (TDM) Same fiber & bit rate, more ls Fiber Compatibility Fiber Capacity Release Fast Time to Market Lower Cost of Ownership Utilizes existing TDM Equipment Higher bit rate, same fiber Electronics more expensive Magister Manajemen Sistem Informasi 72
Fiber Networks Time division multiplexing Single wavelength per fiber n. Multiple channels per fiber n 4 OC-3 channels in OC-12 n 4 OC-12 channels in OC-48 n 16 OC-3 channels in OC-48 n Channel 1 Single Fiber (One Wavelength) Channel n Wave division multiplexing Multiple wavelengths per fiber n 4, 16, 32, 64 channels per system n. Multiple channels per fiber n l 1 l 2 Single Fiber (Multiple Wavelengths) ln Magister Manajemen Sistem Informasi 73
Types of WDM Coarse WDM (CWDM) n n n Uses 3000 GHz (20 nm) spacing. Up to 18 channels. Distance of 50 km on a single mode fiber. Dense WDM (DWDM) n n n Uses 200, 100, 50, or 25 GHz spacing. Up to 128 or more channels. Distance of several thousand kilometres with amplification and regeneration. Magister Manajemen Sistem Informasi 74
TDM and DWDM Comparison TDM (SONET/SDH) Takes sync and async signals and multiplexes them to a single higher optical bit rate n. E/O or O/E/O conversion n DS-1 DS-3 OC-1 OC-3 OC-12 OC-48 SONET ADM Fiber (D)WDM OC-12 c Takes multiple optical DWDM OC-48 c signals and multiplexes OADM Fiber OC-192 c onto a single fiber n. No signal format conversion Magister Manajemen Sistem Informasi n 75
Why DWDM—The Business Case Conventional TDM Transmission— 10 Gbps 40 km 40 km 40 km 1310 1310 TERM 1310 1310 1310 1310 RPTR RPTR RPTR RPTR TERM 1310 1310 RPTR RPTR TERM RPTR RPTR OC-48 DWDM Transmission— 10 Gbps OA 120 km OA 4 Fibers Pairs 32 Regenerators OA 120 km OA OC-48 1 Fiber Pair 4 Optical Amplifiers Magister Manajemen Sistem Informasi 76
Optical Transmission Bands Band “New Band” S-Band C-Band L-Band U-Band Wavelength (nm) 820 - 900 1260 – 1360 – 1460 – 1530 – 1565 – 1625 – 1675 Magister Manajemen Sistem Informasi 77
Characteristics of a WDM Network Sub-wavelength Multiplexing or Mux. Ponding Ability to put multiple services onto a single wavelength Magister Manajemen Sistem Informasi 78
Transmission Effects Attenuation: n Reduces power level with distance Dispersion and nonlinear effects: n Erodes clarity with distance and speed • Noise and Jitter: Leading. Magister to a. Manajemen blurred image Sistem Informasi 79
