International Telecommunication Union Network Management Standardization ITU-T Study Group 4: Telecommunication management, including TMN - Selected Topics Greg Jones ITU Telecommunication Standardization Bureau greg. jones@itu. int ITU Seminar on the Standardization and ICT development for the Information Society Uzbekistan, 6 -8 October 2003 Page -

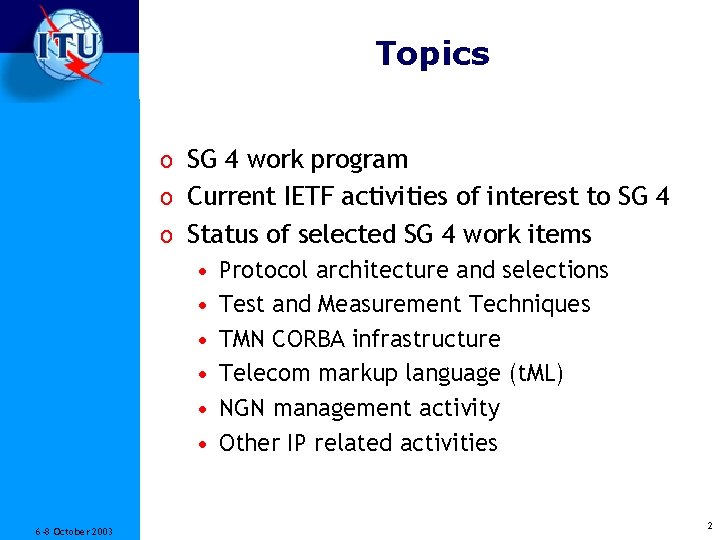

Topics o SG 4 work program o Current IETF activities of interest to SG 4 o Status of selected SG 4 work items • Protocol architecture and selections • Test and Measurement Techniques • TMN CORBA infrastructure • Telecom markup language (t. ML) • NGN management activity • Other IP related activities 6 -8 October 2003 2

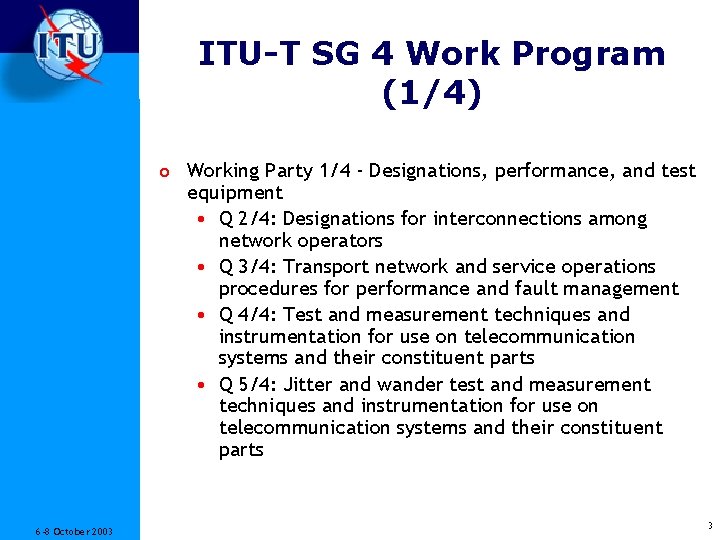

ITU-T SG 4 Work Program (1/4) o Working Party 1/4 - Designations, performance, and test equipment • Q 2/4: Designations for interconnections among network operators • Q 3/4: Transport network and service operations procedures for performance and fault management • Q 4/4: Test and measurement techniques and instrumentation for use on telecommunication systems and their constituent parts • Q 5/4: Jitter and wander test and measurement techniques and instrumentation for use on telecommunication systems and their constituent parts 6 -8 October 2003 3
ITU-T SG 4 Work Program (2/4) o Working Party 2/4: Common telecommunication management capabilities • Q 7/4: TMN principles and architecture • Q 8/4: Requirements for the TMN user interfaces • Q 9/4: Requirements for the TMN X interface • Q 10/4: Framework for unified management of integrated circuit-switched and packet-based networks (with an initial emphasis on IP-based networks) • Q 11/4: Principles of the customer network management and network-network management 6 -8 October 2003 4
ITU-T SG 4 Work Program (3/4) o Working Party 3/4: Telecommunication management information modelling • Q 12/4: Methodology and generic information models for TMN interfaces • Q 13/4: Generic network level management of transmission systems • Q 14/4: Management models for ANT and ATM network elements, including the support of access signaling and IP • Q 16/4: TMN management support for IMT-2000 and IN 6 -8 October 2003 5
ITU-T SG 4 Work Program (4/4) o Working Party 4/4: Telecommunication management infrastructure capabilities • Q 17/4: Open distributed management infrastructure • Q. 18/4: Protocols to support operations, administration, and maintenance at the F, Q, and X interfaces • Q. 19/4: Information models for management applications related to switching and generic support services 6 -8 October 2003 6
Current IETF WGs of interest to SG 4 o Q 3/4: ippm, bmwg o Q 4/4: ippm o Q 9/4: ippm o Q 10/4: all WGs on this chart o Q 12/4: atommib, snmpconf o Q 13/4: snmpconf o Q 14/4: snmpconf, adslmib o Q 18/4: snmpv 3, sming, ldapv 3, pkix o Q 19/4: policy, AAA, disman, rap, gsmp 6 -8 October 2003 7
TMN Protocol Architecture and Selections o Recommendation M. 3017 (Framework for the integrated management of hybrid circuit/packet-IP networks) classifies TMN management paradigms as • general purpose: OSI systems management (CMIP/GDMO); CORBA 2. 3 or more recent • special purpose: EDI (for X interface only); SNMP (not X); CORBA 2. 1? o Q. 811 (Lower layer protocols) and Q. 812 (upper layer protocols) to be revised to support selected IETF protocols • current SG 4 position regarding SNMP — two candidate stacks: SNMP v 3 or v 2 c with TLS over TCP (no access control); SNMP v 3 with user security model over UDP (as a forward looking stack) — any stack should support authentication — the special purpose of each stack should be described 6 -8 October 2003 8
TMN CORBA Infrastructure o fine-grained IDL modelling: • X. 780: TMN guidelines for defining CORBA managed objects • Q. 816: CORBA-based TMN services • M. 3120: CORBA generic network and NE level information models o coarse-grained IDL modelling and basic application models: • X. 780. 1: TMN guidelines for defining coarse-grained CORBA managed object interfaces • Q. 816. 1: CORBA-based TMN service extensions to support coarse-grained interfaces • Q. 816 amendment to profile OMG services • M. 3120: addition of coarse-grained managed objects • Q. 821. 1: CORBA alarm management model • Q. 822. 2: CORBA-based TMN performance management service • X. 781: Guidelines for CORBA ICS proformas 6 -8 October 2003 9
Telecom. Markup Language (t. ML) Ø t. ML is a specialization of the Extended Markup Language (XML) for the telecom industry • An activity being worked in collaboration with T 1 M 1 • Initial deliverable is a t. ML framework 6 -8 October 2003 10
IETF and Other Org. Related Activities o Exchange of work overview between SG 4 and IETF • DISMAN group, Alarm MIB, AAA… o Joint. NM: an informal gathering of leaders and participants from SG 4 (Q 10/4), ETSI TIPHON, T 1 M 1, TMForum, and IETF • Information exchange via liaison statement with ETSI TIPHON, TMForum, T 1 M 1, and IETF • TMForum Submit e. TOM document to SG 4 for ITU-T approval Nov. 2003 SG 4 meeting o Draft Recommendation M. 1401 on Formalization of interconnection designations is scheduled for Consent in Nov. 2003 SG 4 meeting o Draft new Recommendation M. 3350 Emergency Telecommunication Service candidate for a Consent in Nov. 2003 SG 4 meeting 6 -8 October 2003 11
Additional Information 6 -8 October 2003 12
General Purpose TMN Paradigm Criteria o o o o 6 -8 October 2003 Scalability (106 - 107 objects) Compatibility with existing models Support for multiple managers Support for query capabilites Support for data modification capabilities Support operations on set valued attributes Support multiple object access Selective access of attributes Support operations on multiple objects Support of autonomous notifications Well defined notifications Support for modelling of the containment relationship Support of unique names Support of creation and deletion semantics 13
