Project Background Project Objective To design a database for a website that helps international students with various aspects of “settling in”, by providing a platform for interaction between students, local communities, cultural organizations and employers Client Xi. Yi. Ren, a start up social utility website will be using a small part of our expansive project, focusing on Chinese students. INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

DP I Summary Progress §Project Background: Objective and Client description §Summary of entities involved §Database capabilities §Simplified EER diagram with 10 entities, 3 Weak entities/relationships, and superclass/subclass division INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

DP II Summary Progress §Revised simplified EER diagram Including more entities and 30 relationships §Implementation of queries in relational algebra §Realized need for more complex queries utilizing IEOR methods: forecasting, optimal event locating, etc. INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

DP III Summary Progress §Revised simplified EER diagram §Relational schema §Five queries implemented in SQL and Access §Focused on client-centric queries INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

EER INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Relational Schema 1. Person(Pid, Fname, Lname, MI, Birth_date, Profile 5) 2. Student(Pid 1, Housing 7, University 14, Pickup_Person 3, Flight, Country 11, price_preference, year, sleep, wakeup, study, friends, outgoing) 3. Community_Member(Pid 1, occupation) 4. Alumni(Pid 1, Class, Occupation, Donation_Amount) 5. Profile(Profile_id, Pic, Email, Phone) 6. Location(Street, City, State, Apt_Suite, Zip, x, y) 7. Housing(Hid, offered_by_person 1, Street 6, Apt_Suite 6, Zip 6, offered_by_org 8, org_profile 5, price, availability_date, furnished, number_rooms, number_bathrooms, water, electice, garbage, gas, internet, move-in special) 8. Organization(Org. Name, Profile_id 5, Street 6, Apt_Suite 6, Zip 6, type, description) 9. Department(Dep. Name, University 14) 10. Event(Event. Name, Profile_id 5, Street 6, Apt_Suite 6, Zip 6, description, attendance, date, time) 11. Country(Name, Capital, Population) 12. Language(Name, Countries_spoken_in) 13. Resource(Rid, Owner 1, Price, Quantity) 14. University(Name, student_population, ranking) 15. Donation(Did, Amount, Time, Date, Pid 1) INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Relational Schema (contd) 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. Mentors(Mentor 1, Mentee 2) Student_University(Student 2, University 14) Person_in_Org(Person 1, Org. Name 8, Org. Profile 5) RSVP(Person 1, Event. Name 10, Event. Profile 5, Survey. Score) Student_in_Department(Student 2, Dep. Name 9, Uni. Name 14) Person_speaks_language(Person 1, Language 12) Housing_near_Uni(Housing 7, Uni. Name 14) Organization_University(Org. Name 8, Org. Profile 5, Uni. Name 14) 10, Event. Profile 5) Org_holds_event(Org. Name 8, Org. Profile 5, Event. Name Org_speaks_Language(Org. Name 8, Org. Profile 5, Language 12) Org_Country(Org. Name 8, Org. Profile 5, Country 11) Dep_sponsors_event(Dep. Name 9, Uni. Name 14, Event. Name 10, Event. Profile 5) Event_speaks_language(Event. Name 10, Event. Profile 5, Language 12) Event_country(Event. Name 10, Event. Profile 5, Country 11) Country_Language(Country 11, Language 12) Alumni_Uni(Pid 4, Uni. Name 14, class_of) Alumni_Dept(Pid 4, Dep. Name 9) Person_gives_donation(Pid 1, Did 15) Rommates(Pid 11, Pid 21) INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Relational Design INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Query 1: Roommate Matching Description • Shows all possible roommate combinations ordered by Match. Rating. • A dorm/off-campus housing facility can use it to pair up students interested in their housing Description of Attributes Sleep Early to late sleep time (Scale of 1 -5) Wakeup Early to late (1 -5) Outgoingness Level (1 -5) Study In room(1) - Library(5) Friends INTRODUCTION Having friends in room never(1) – always(5) DP SUMMARIES QUERIES NORMALIZATION FORMS

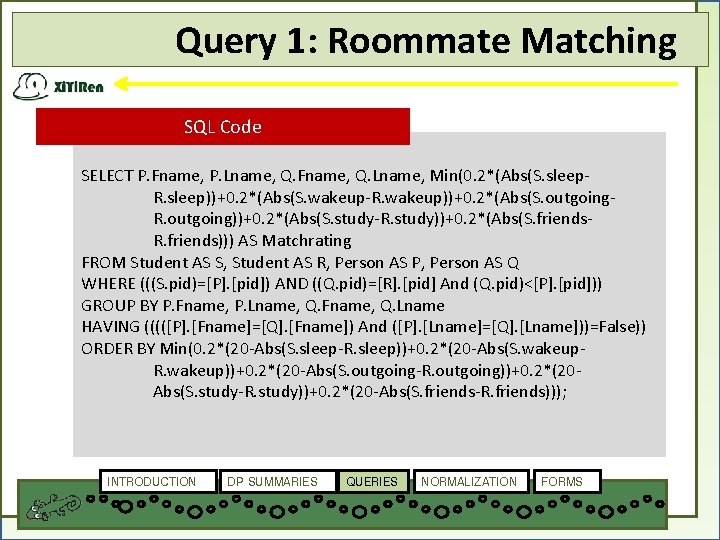

Query 1: Roommate Matching SQL Code SELECT P. Fname, P. Lname, Q. Fname, Q. Lname, Min(0. 2*(Abs(S. sleep. R. sleep))+0. 2*(Abs(S. wakeup-R. wakeup))+0. 2*(Abs(S. outgoing. R. outgoing))+0. 2*(Abs(S. study-R. study))+0. 2*(Abs(S. friends. R. friends))) AS Matchrating FROM Student AS S, Student AS R, Person AS P, Person AS Q WHERE (((S. pid)=[P]. [pid]) AND ((Q. pid)=[R]. [pid] And (Q. pid)<[P]. [pid])) GROUP BY P. Fname, P. Lname, Q. Fname, Q. Lname HAVING (((([P]. [Fname]=[Q]. [Fname]) And ([P]. [Lname]=[Q]. [Lname]))=False)) ORDER BY Min(0. 2*(20 -Abs(S. sleep-R. sleep))+0. 2*(20 -Abs(S. wakeup. R. wakeup))+0. 2*(20 -Abs(S. outgoing-R. outgoing))+0. 2*(20 Abs(S. study-R. study))+0. 2*(20 -Abs(S. friends-R. friends))); INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Query 1: Roommate Matching INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Query 2: New Student Forecasting Description • Extracts the data of how many new students come each year which can then be used to forecast the future number of students • The year table is a one attribute table containing a list of years • Uses regression equation y=ax+b with slope b = (N∑XY - (∑X)(∑Y))/(N∑X 2 - (∑X)2), and intercept a = (∑Y - b(∑X))/N. Where N = number of tuples, X =year, and Y = number of students SQL Code SELECT y. year AS [Year], count(s. pid) AS Number_Of_Students, u. name AS University FROM [year] AS y, student AS s, university AS u WHERE s. year=y. year AND s. university=u. name GROUP BY y. year, u. name ORDER BY y. year; INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Query 3: Event Interest Description • Outputs a list of all events along with their computed attendance rate, the average level of student interest, and a metric combining surveyed interest with actual attendance • Organizations throwing events with low attendance but high survey scores may need to look into changing venues or increasing advertising. SQL Code SELECT e. Event. Name, e. Attendance/(Count(r. person)) AS Attendance_Rate, Avg(r. Survey. Score) AS Surveyed_Interest, Avg(r. Survey. Score)*e. Attendance/(Count(r. person)) AS Interest_Metric FROM Event AS e, RSVP AS r WHERE (((r. Event. Profile)=[e]. [Profile_id])) GROUP BY e. Event. Name, e. Profile_id, e. Attendance ORDER BY Avg(r. Survey. Score)*e. Attendance/(Count(r. person)) DESC; INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Query 3: Event Interest INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Query 4: Optimal Event Location Description • Selects optimal potential event location on UC Berkeley campus in relation to attendee housing locations. • By utilizing P-Median approach for event location that minimizes total demand weighted distances • Assume P = 1 and calculate Dij by utilizing Euclidean distance formula: INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Query 4: Optimal Event Location SQL Code SELECT e. Event. Name, l 2. street AS Potential_Location, sum(((l. x-l 2. x)^2)+((l. yl 2. y)^2)^0. 5) AS distance, AVG(s. Event. Interest) AS Demand FROM Student AS s, RSVP AS p, Housing AS h, location AS l 2, Event AS e WHERE s. PID=p. person And p. Event. Name=e. Event. Name And s. housing=h. hid And h. street=l. street And h. state=l. state And h. city=l. city And h. apt_suite=l. apt_suite And h. zip=l. zip GROUP BY e. Event. Name, l 2. street ORDER BY e. Event. Name, sum(((l. x-l 2. x)^2)+((l. y-l 2. y)^2)^0. 5); INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Query 4: Optimal Event Location INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Query 5: Min Airport Pick-up Cost Description Assumptions: (1)Only take students who arrive at the airport between 8 am to 7: 59 pm into account (2)Buses leave the airport on the hour. (3)The opportunity cost of each student waiting for a bus for an hour is $10. (4) Each type I bus has a total of 5 seats and each type II bus has a total of 10 seats. (5) We only deal with the arrival hour of each student, (student arriving at 1: 01 pm is treated the same as a student arriving at 1: 59 pm in this query implementation. and a ten -seat-vehicle to the airport and back cost $50 and $100, respectively. • For date, airport extract # of students arriving in each time interval Ci • A≤i≤L; Ci is interpreted as the number of students arriving at the airport no earlier than (i-1) o’clock but prior to i o’clock INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Query 5: Min Airport Pick-up Cost Formulation Decision variables: Subject to. tij= 1 if a type j bus is arranged to People_constrain {Z in pick up students at i o’clock. A, B, C, D, E, F, G, H, I, J, K, L}: tij = 0 otherwise; (For A≤i≤L, 1≤j≤ 2) Objective Function (Cost Min. ): SQL Code SELECT s. airport AS Airport, s. arr_date AS Arr_Date, s. flight_arr_hour AS Arr_Time, COUNT(*) AS Number_of_Students FROM student AS s GROUP BY s. flight_arr_hour, s. arr_date, s. airport; INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Query 5: Min Airport Pick-up Cost INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Normalization Analysis: 1 NF R is in 1 NF if the domain of an attribute must include only atomic (simple, indivisible) values and that the value of any attribute in a tuple must be a single value from the domain of that attribute. Profile (Profile_id, Pic, Emails, Phones) Pic (Profile_id, Pic) Email (Profile_id, Email) Phone (Profile_id, Phone) INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Normalization Analysis: 2 NF R is in 2 NF if R is in 1 NF and every nonprime attribute A in R is fully functionally dependent on the primary key of R. Location (Street, City, State, Apt_Suite, Zip, x, y) Assumption: ZIP_CODE determines CITY and STATE. Location 1 (Street, Apt_Suite, Zip, x, y) Zip (Zip, City, State) Organization (Org. Name, Profile_id 5, Street 6, Apt_Suite 6, Zip 6, type, description) Assumption: The name of an organization determines its type. Org. Name (Org. Name, Type) Organization 1 (Org. Name, Profile_id 5, Street 6, Apt_Suite 6, Zip 6, description) INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Normalization Analysis: 3 NF R is in 3 NF if R is in 2 NF and no nonprime attribute of R is transitively dependent on the primary key. Housing (Hid, offered_by_person 1, Street 6, Apt_Suite 6, Zip 6, offered_by_org 8, org_profile 5, price, availability_date, furnished, number_rooms, number_bathrooms, water, electricity, garbage, gas, internet, move_in_special, ready_to_move_in) Assumption: For a housing place to be “ready to move in”, it has to have Internet, water, electricity, gas and garbage. Housing 1 (Hid, offered_by_person 1, Street 6, Apt_Suite 6, Zip 6, offered_by_org 8, org_profile 5, price, availability_date, furnished, number_rooms, number_bathrooms, move_in_special, Water, Electricity, Garbage, Gas, Internet) Ready_to_move_in (ready_to_move_in, Water, Electricity, Garbage, Gas, Internet) INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

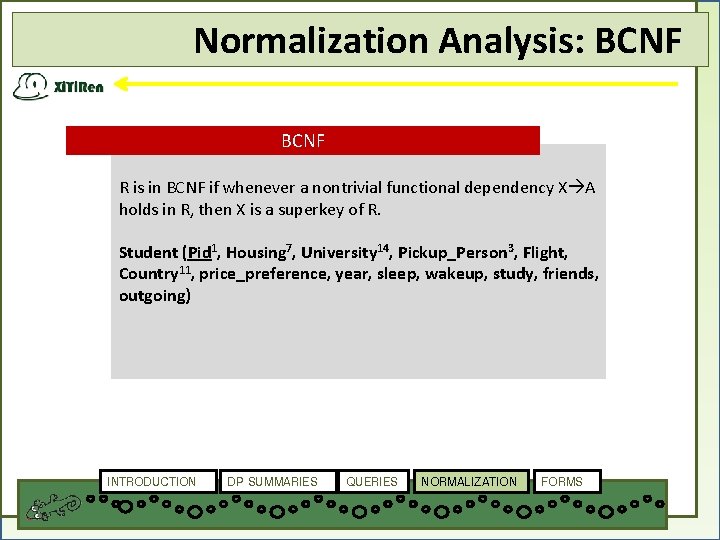

Normalization Analysis: BCNF R is in BCNF if whenever a nontrivial functional dependency X A holds in R, then X is a superkey of R. 14, Pickup_Person 3, Flight, Student (Pid 1, Housing 7, University Country 11, price_preference, year, sleep, wakeup, study, friends, outgoing) INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Organization Form INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS

Person Form

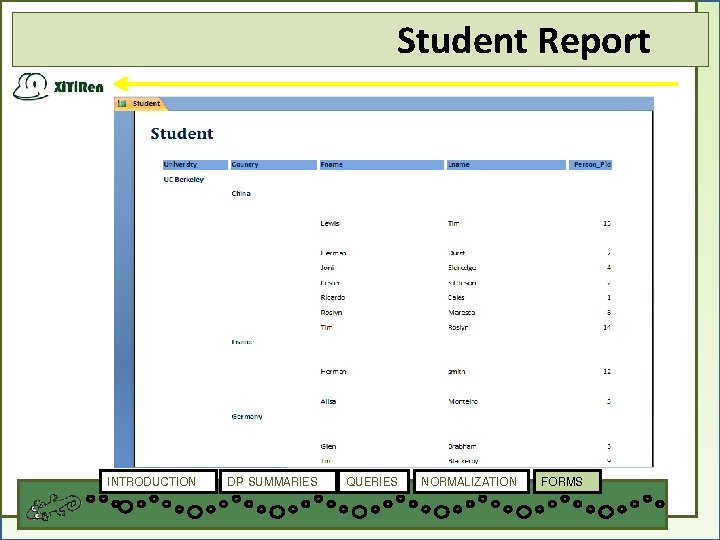

Student Report INTRODUCTION DP SUMMARIES QUERIES NORMALIZATION FORMS
