Introduction

Fuels z. Why are nearly all vehicles and engines powered by gasoline? yextremely high energy density ycheap (relative to other sources) yeasy and safe to move around

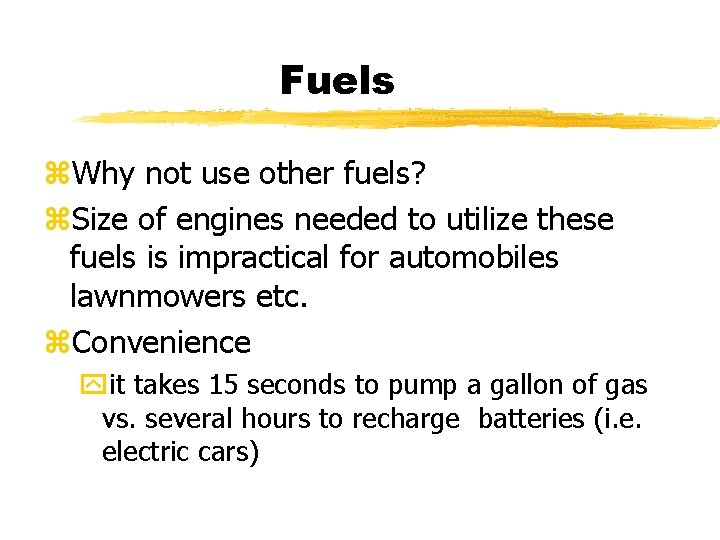

Fuels z. Why not use other fuels? z. Size of engines needed to utilize these fuels is impractical for automobiles lawnmowers etc. z. Convenience yit takes 15 seconds to pump a gallon of gas vs. several hours to recharge batteries (i. e. electric cars)

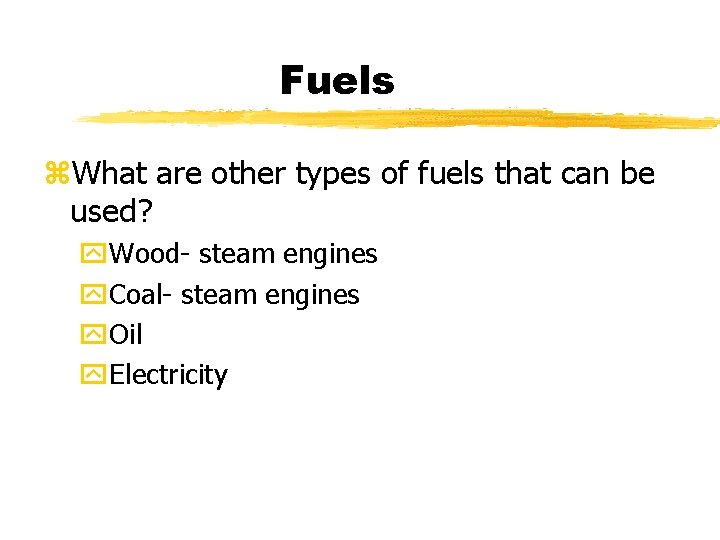

Fuels z. What are other types of fuels that can be used? y. Wood- steam engines y. Coal- steam engines y. Oil y. Electricity

Internal Combustion z. Where do we get internal combustion? y. The idea here is to take a fuel (gasoline for example) and burn it in an engine to create movement of cars and other gas powered machines. This is where we get internal combustion engines.

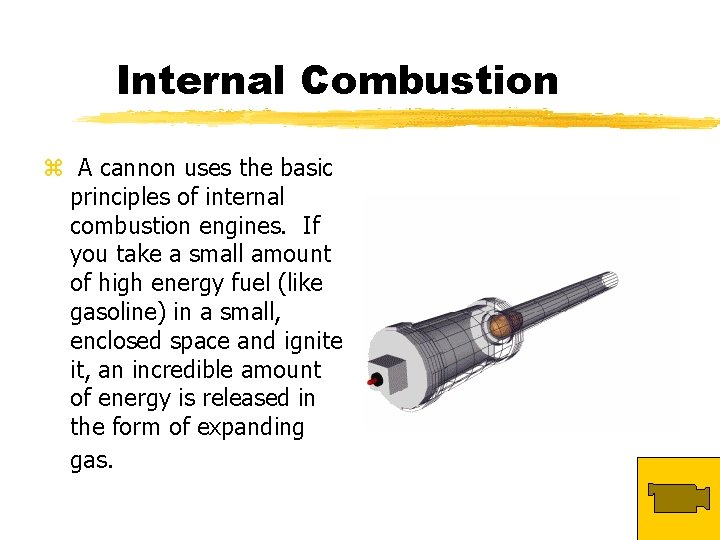

Internal Combustion z A cannon uses the basic principles of internal combustion engines. If you take a small amount of high energy fuel (like gasoline) in a small, enclosed space and ignite it, an incredible amount of energy is released in the form of expanding gas.

The four-stroke cycle z. Almost all engines use a four-stroke combustion cycle to convert gasoline into motion. y. This is also known as the Otto cycle in honor of Nikolaus Otto who invented it in 1867. y. This process takes the basic example of a cannon several steps further.

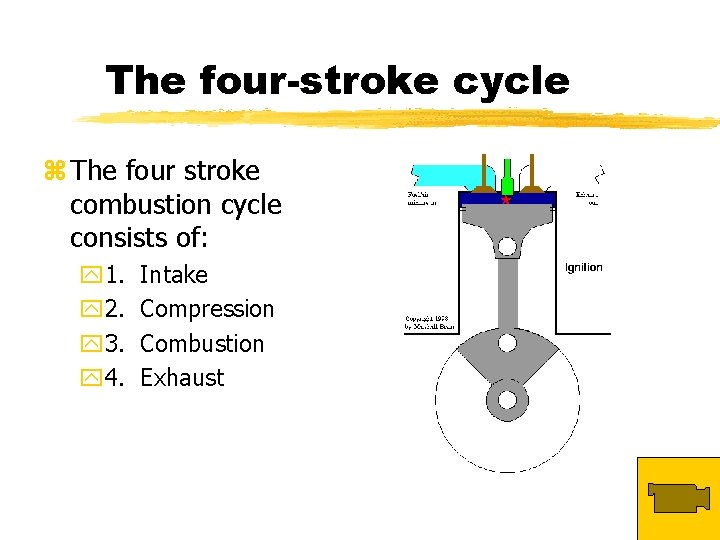

The four-stroke cycle z The four stroke combustion cycle consists of: y 1. y 2. y 3. y 4. Intake Compression Combustion Exhaust

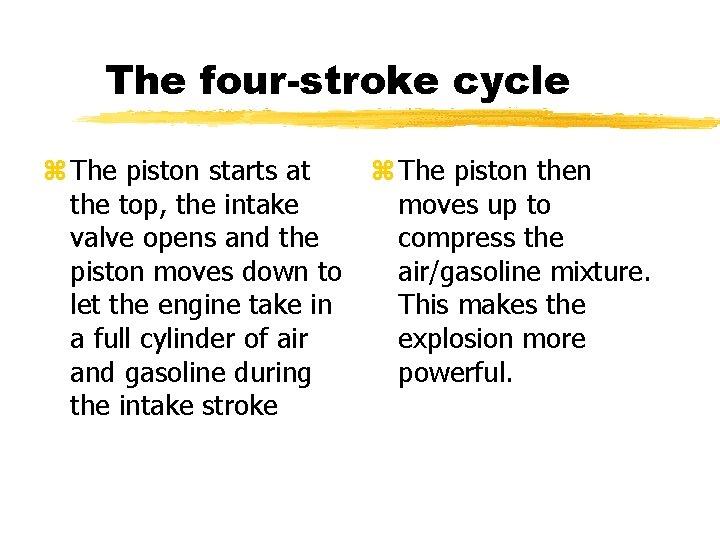

The four-stroke cycle z The piston starts at the top, the intake valve opens and the piston moves down to let the engine take in a full cylinder of air and gasoline during the intake stroke z The piston then moves up to compress the air/gasoline mixture. This makes the explosion more powerful.

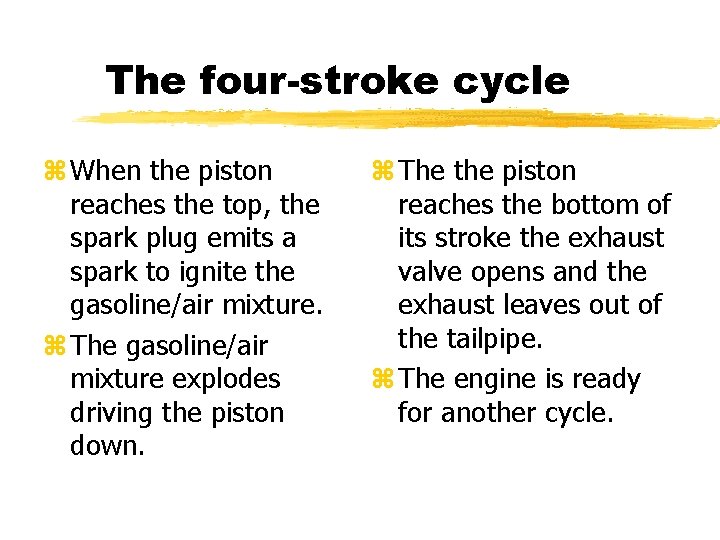

The four-stroke cycle z When the piston reaches the top, the spark plug emits a spark to ignite the gasoline/air mixture. z The gasoline/air mixture explodes driving the piston down. z The the piston reaches the bottom of its stroke the exhaust valve opens and the exhaust leaves out of the tailpipe. z The engine is ready for another cycle.

Parts of an engine z. Cylinder- where the piston moves up and down. Most lawnmowers are 1 cylinder while automobiles are 4, 6, 8, and 10. z. Spark plug- supplies spark for the fuel/air mixture. z. Valves- let air in and exhaust out. Note: both valves are closed during the compression stroke.

Parts of an engine z Piston- cylindrical piece of metal that moves up and down the cylinder. z Piston rings- rings provide a sliding seal between the piston and cylinder. z Rings serve two purposes: yprevent fuel/air from leaking into the sump yprevent oil from entering the combustion chamber

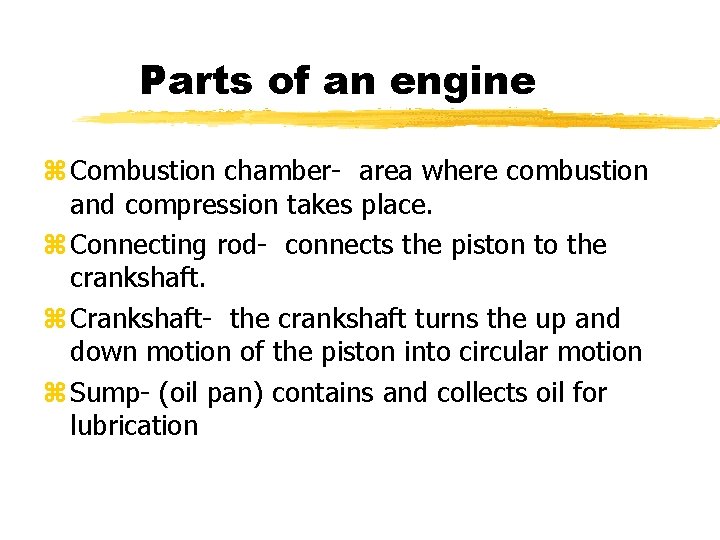

Parts of an engine z Combustion chamber- area where combustion and compression takes place. z Connecting rod- connects the piston to the crankshaft. z Crankshaft- the crankshaft turns the up and down motion of the piston into circular motion z Sump- (oil pan) contains and collects oil for lubrication

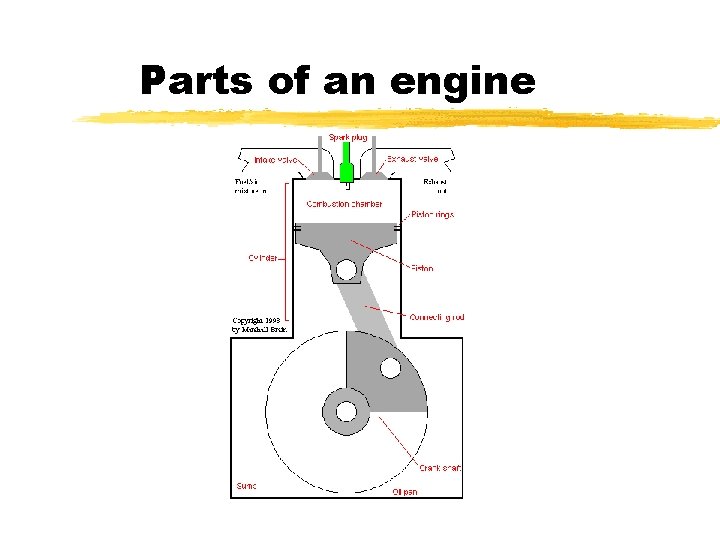

Parts of an engine

Source www. howstuffworks. com
