Interfacing with I/O Devices CEG 320/520 Interfacing with I/O devices

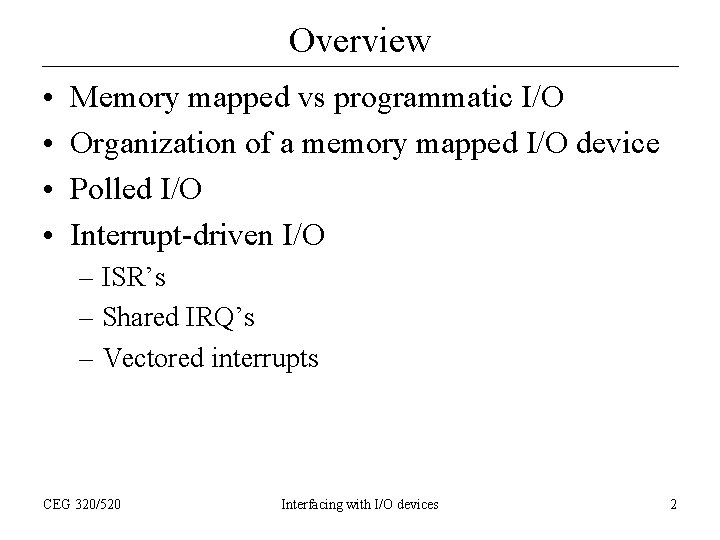

Overview • • Memory mapped vs programmatic I/O Organization of a memory mapped I/O device Polled I/O Interrupt-driven I/O – ISR’s – Shared IRQ’s – Vectored interrupts CEG 320/520 Interfacing with I/O devices 2
I/O Device Models CPU Memory I/O • Programmed I/O – Special instructions to read and write from I/O devices • Memory-mapped I/O – I/O devices live at memory addresses – For example: MOVE. B $8000, D 0 might get a byte from an I/O device and not memory. CEG 320/520 Interfacing with I/O devices 3
I/O Models for Common Processors • MC 68000 – Memory mapped. • Intel CPUs – Programmed I/O – Separate instructions for I/O read/writes – Can also memory-map some devices • Power. PC – Memory mapped, but uses a separate address space – A special control register controls which address space is being accessed. CEG 320/520 Interfacing with I/O devices 4

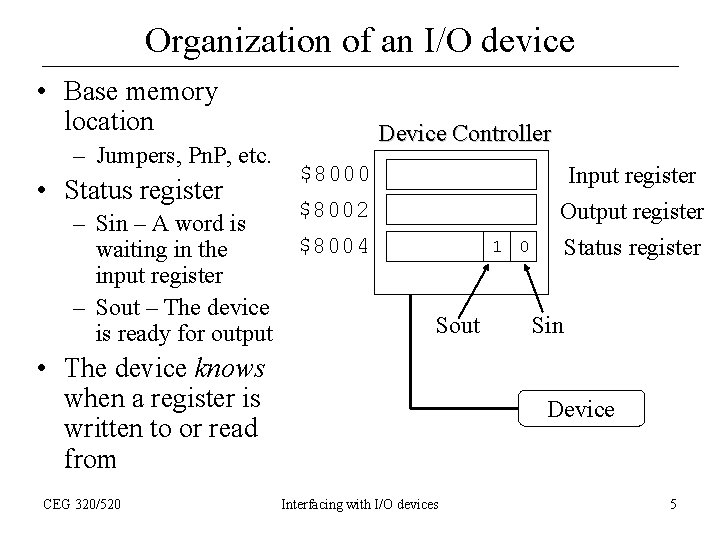

Organization of an I/O device • Base memory location – Jumpers, Pn. P, etc. • Status register – Sin – A word is waiting in the input register – Sout – The device is ready for output Device Controller $8000 $8002 $8004 1 0 Sout • The device knows when a register is written to or read from CEG 320/520 Input register Output register Status register Sin Device Interfacing with I/O devices 5
Polled I/O • New instruction: BTST. L #bit, Dn – Set Z according to bit of register Dn – BEQ will branch if bit = 0, BNE if bit = 1 GETCH LEA BUFFER, A 0 POLLI MOVE. B $8004, D 0 BTST. B #0, D 0 BEQ POLLI MOVE. B $8000, (A 0)+ Device Controller $8000 Input register $8002 Output register $8004 Status reg. Sout PUTCH MOVE. B $8004, D 1 BTST. B #1, D 1 BEQ PUTCH MOVE. B D 0, $8002 CEG 320/520 Interfacing with I/O devices 1 0 Sin Device 6
Drawbacks of Polled I/O • The CPU can’t do anything else while it is polling. • You must explicitly check every device in the system. – How often should you check the modem to see if there is a ring? • No way for devices to get the attention of the CPU until it is their “turn”. – No way to assure fast response to external events. CEG 320/520 Interfacing with I/O devices 7

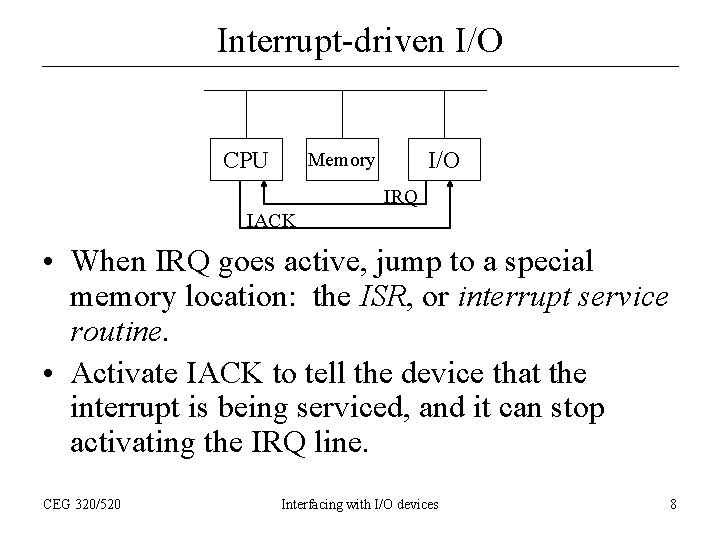

Interrupt-driven I/O CPU I/O Memory IRQ IACK • When IRQ goes active, jump to a special memory location: the ISR, or interrupt service routine. • Activate IACK to tell the device that the interrupt is being serviced, and it can stop activating the IRQ line. CEG 320/520 Interfacing with I/O devices 8

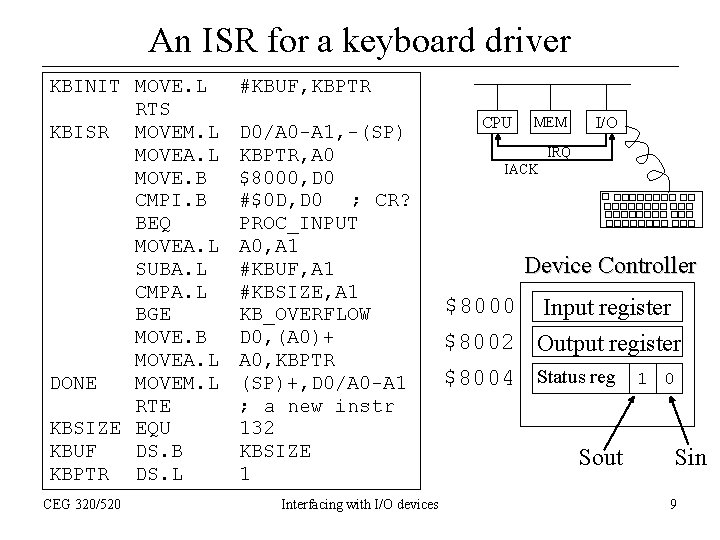

An ISR for a keyboard driver KBINIT MOVE. L RTS KBISR MOVEM. L MOVEA. L MOVE. B CMPI. B BEQ MOVEA. L SUBA. L CMPA. L BGE MOVE. B MOVEA. L DONE MOVEM. L RTE KBSIZE EQU KBUF DS. B KBPTR DS. L CEG 320/520 #KBUF, KBPTR D 0/A 0 -A 1, -(SP) KBPTR, A 0 $8000, D 0 #$0 D, D 0 ; CR? PROC_INPUT A 0, A 1 #KBUF, A 1 #KBSIZE, A 1 KB_OVERFLOW D 0, (A 0)+ A 0, KBPTR (SP)+, D 0/A 0 -A 1 ; a new instr 132 KBSIZE 1 Interfacing with I/O devices CPU MEM I/O IRQ IACK Device Controller $8000 Input register $8002 Output register $8004 Status reg 1 0 Sout Sin 9

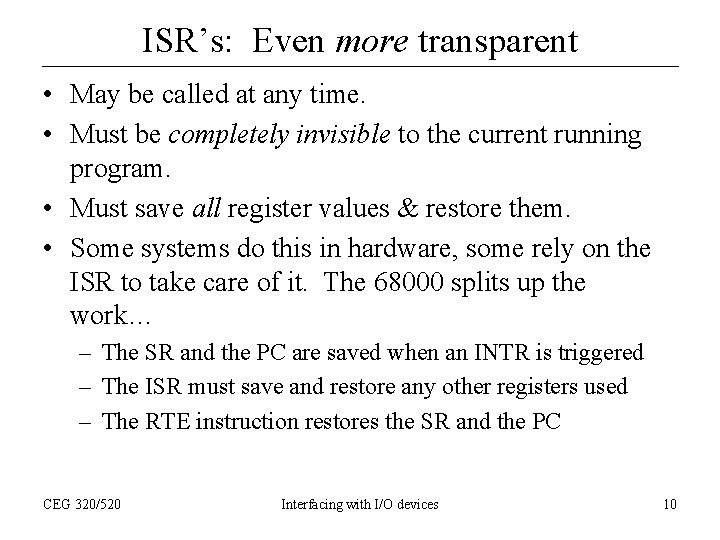

ISR’s: Even more transparent • May be called at any time. • Must be completely invisible to the current running program. • Must save all register values & restore them. • Some systems do this in hardware, some rely on the ISR to take care of it. The 68000 splits up the work… – The SR and the PC are saved when an INTR is triggered – The ISR must save and restore any other registers used – The RTE instruction restores the SR and the PC CEG 320/520 Interfacing with I/O devices 10

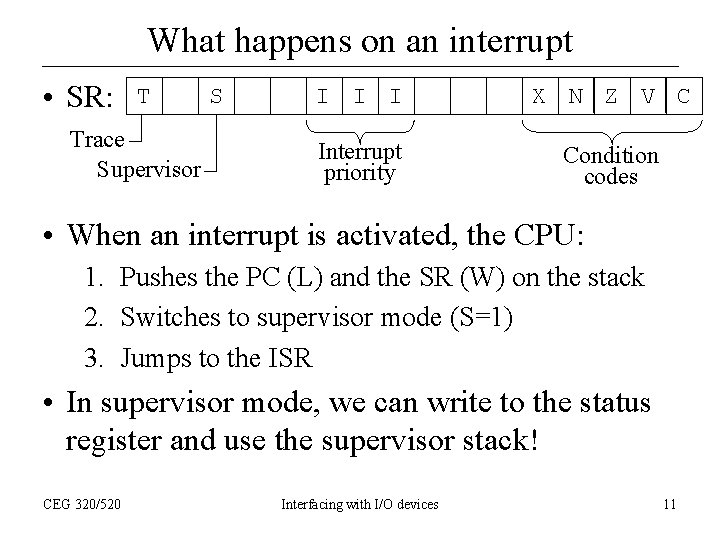

What happens on an interrupt • SR: T Trace Supervisor S I I I X N Z V C Interrupt priority Condition codes • When an interrupt is activated, the CPU: 1. Pushes the PC (L) and the SR (W) on the stack 2. Switches to supervisor mode (S=1) 3. Jumps to the ISR • In supervisor mode, we can write to the status register and use the supervisor stack! CEG 320/520 Interfacing with I/O devices 11

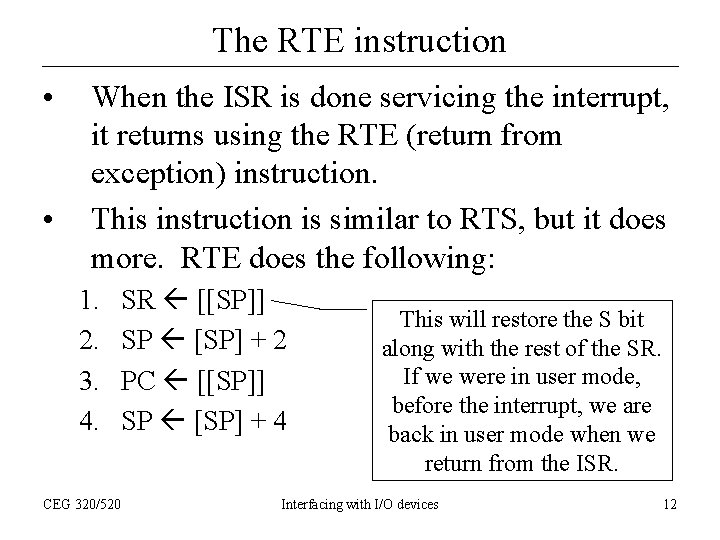

The RTE instruction • • When the ISR is done servicing the interrupt, it returns using the RTE (return from exception) instruction. This instruction is similar to RTS, but it does more. RTE does the following: 1. 2. 3. 4. CEG 320/520 SR [[SP]] SP [SP] + 2 PC [[SP]] SP [SP] + 4 This will restore the S bit along with the rest of the SR. If we were in user mode, before the interrupt, we are back in user mode when we return from the ISR. Interfacing with I/O devices 12
Interrupts from multiple devices Bus CPU Memory I/O 1 I/O 2 I/O 3 I/O 4 IRQ • When IRQ is activated, the CPU checks bit I in the status register of each device to see which one (or more) need an IRQ serviced. – The order is fixed, so the first device polled has higher de facto priority CEG 320/520 Interfacing with I/O devices Device Controller Input register Output register 1 I 1 0 Sout Sin 13
Vectored Interrupts • If we have multiple devices, we need a very large ISR that knows how to deal with all of them! • Using vectored interrupts, we can have a different ISR for each device. • Each I/O device has a special register where it keeps a special number called the interrupt vector. – The vector tells the CPU where to look for the ISR. CEG 320/520 Interfacing with I/O devices 14

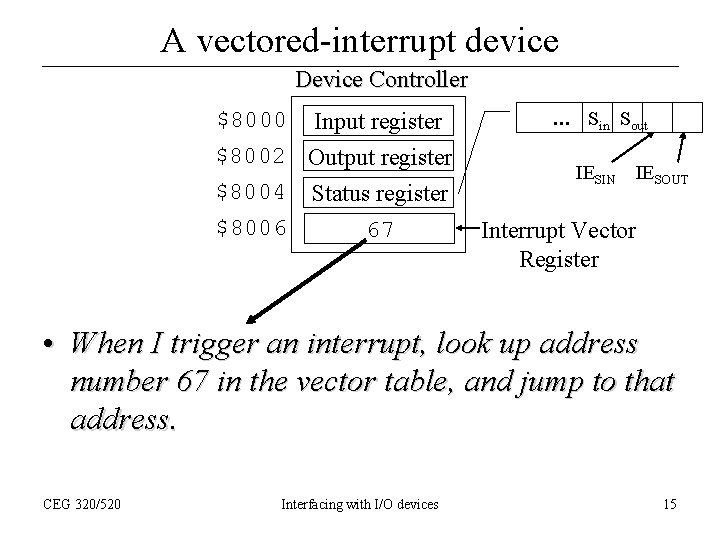

A vectored-interrupt device Device Controller $8000 Input register $8002 Output register $8004 Status register $8006 67 … Sin Sout IESIN IESOUT Interrupt Vector Register • When I trigger an interrupt, look up address number 67 in the vector table, and jump to that address. CEG 320/520 Interfacing with I/O devices 15
Getting the interrupt vector INTA Memory CPU I/O 1 I/O 2 I/O 3 I/O 4 IRQ • INTA tells a device to put the interrupt vector on the bus • INTA is daisy chained so only one device will respond CEG 320/520 Interfacing with I/O devices 16
The Vector Table • The interrupt vector table is stored in memory addresses $0000 through $03 FC. • The contents of the vector table are addresses to jump to when each vectored interrupt occurs. (Absolute long) CEG 320/520 $0004 $0008 $000 C $0010 $0014 … $0100 … 0 – Reset SP 1 – Reset PC 2 – Access Fault 3 – Address Err 4 – Illegal Instr 5 – Div by zero … 64 – 255 user defined… $03 FC Interfacing with I/O devices 17

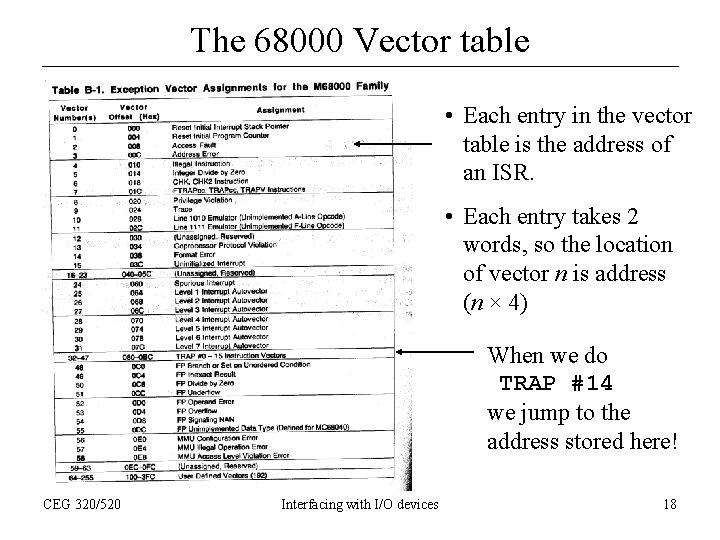

The 68000 Vector table • Each entry in the vector table is the address of an ISR. • Each entry takes 2 words, so the location of vector n is address (n × 4) When we do TRAP #14 we jump to the address stored here! CEG 320/520 Interfacing with I/O devices 18
Installing a vectored interrupt device • Step 1: Write an ISR and store it in memory. KBISR – The ISR must know the addresses of the registers in the device • Step 2: Put the address of the ISR somewhere in the vector table • Step 3: Put the vector number in the Vector Register of the device CEG 320/520 LEA MOVE. B CMPI. B BEQ MOVE. B … RTE BUFFER, A 0 $8000, D 0 #0 D, D 0 ; CR? PROCESS D 0, (A 0)+ MOVE. L #KBISR, $100 ; $100 = 256 = 64 * 4 MOVE. L #64, $8006 ; $8006 = Vect. Reg. Interfacing with I/O devices 19
Memory map for a vectored interrupt device (256) $0100 $0000 1000 $1000 ISR code … RTE … $8000 Input register $8002 Output register $8004 Status register $8006 64 CEG 320/520 Interfacing with I/O devices 20
A simple keyboard driver DATAIN DATAOUT STATUS VECTOR LINE PNTR EQU EQU DS. B DS. L $8000 $8002 $8004 $8006 81 1 MOVE. L #26, VECTOR ; 26 x 4 = 104 = $68 $8000 Input register $8002 Ouptut register $8004 Status register $8006 Ivec = 26 CEG 320/520 Interfacing with I/O devices 21

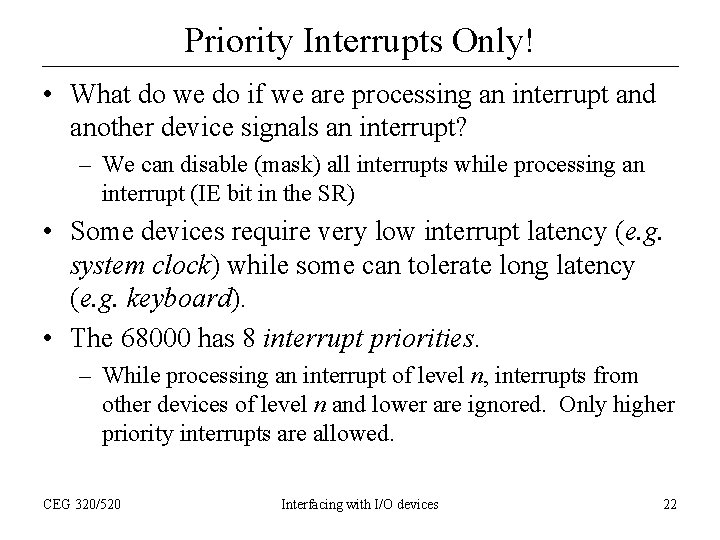

Priority Interrupts Only! • What do we do if we are processing an interrupt and another device signals an interrupt? – We can disable (mask) all interrupts while processing an interrupt (IE bit in the SR) • Some devices require very low interrupt latency (e. g. system clock) while some can tolerate long latency (e. g. keyboard). • The 68000 has 8 interrupt priorities. – While processing an interrupt of level n, interrupts from other devices of level n and lower are ignored. Only higher priority interrupts are allowed. CEG 320/520 Interfacing with I/O devices 22

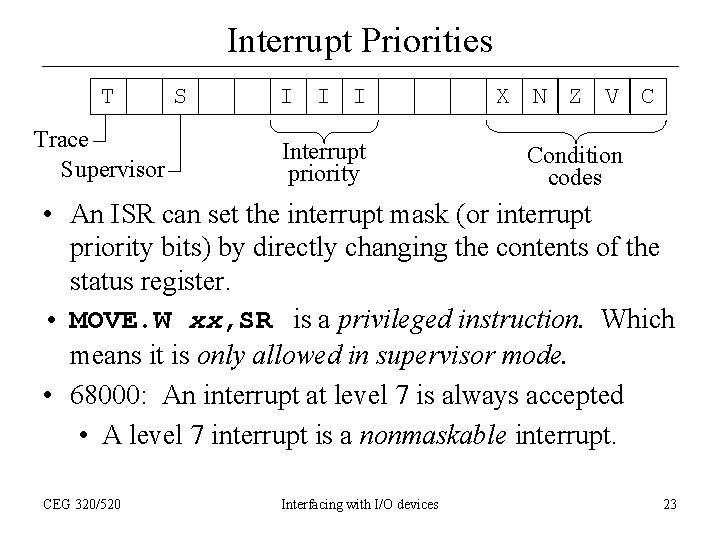

Interrupt Priorities T Trace Supervisor S I I I X N Z V C Interrupt priority Condition codes • An ISR can set the interrupt mask (or interrupt priority bits) by directly changing the contents of the status register. • MOVE. W xx, SR is a privileged instruction. Which means it is only allowed in supervisor mode. • 68000: An interrupt at level 7 is always accepted • A level 7 interrupt is a nonmaskable interrupt. CEG 320/520 Interfacing with I/O devices 23
Software interrupts • Interrupts can be triggered by more than just I/O devices: – Program errors, like division by zero, can trigger interrupts. – The OS uses interrupts for multitasking and other purposes. • 68000: The TRAP instruction triggers a software interrupt – You can assign any ISR you wish to the vector entries for TRAP #0 through TRAP #15 CEG 320/520 Interfacing with I/O devices 24
Direct Memory Access (DMA) • Even with interrupts, a lot of CPU effort is expended just moving bytes around from I/O devices to/from memory – Modem – interrupt every time a byte arrives? • DMA allows devices to access memory directly – A large amount of data can be stored to a memory location, and then an interrupt can be triggered to process all the data at once. CEG 320/520 Interfacing with I/O devices 25
A DMA Controller • A DMA controller can transfer a large amount of data between a device and memory – Example – send a stream of print data to a printer, and notify the CPU when done • The controller needs to know: – Where in memory should the data be found/put? – How many bytes of data should be transferred? CEG 320/520 Starting address Byte count Status and control register: IRQ Printer Disk Interfacing with I/O devices R/W Done IE Bus CPU Memory 26
Bus Arbitration • Both the CPU and the DMA controller can use the bus • There are often multiple DMA controllers • No two devices can use the bus at the same time DMA Controller CPU Disk Printer Bus Memory CEG 320/520 Interfacing with I/O devices 27
Bus Arbitration Details BBSY BR CPU BG 1 DMA Controller BG 2 1 DMA Controller 2 • Signal Bus Request (BR) to request the bus • CPU asserts Bus Granted (BG) – If DMA controller didn’t request the bus, pass it on to BG 2, BG 3, etc. • Controller asserts Busy (BBSY) until done CEG 320/520 Interfacing with I/O devices 28
Bus Arbitration Policies • No one can use the bus (not even the CPU) while BBSY is asserted, except for the DMA controller that is the current “bus master”. • Cycle stealing – When you get the bus, perform a few transfers and then release it – High-speed peripherals, like disks, get bus priority • Block mode – Perform an entire transfer before releasing the bus. CEG 320/520 Interfacing with I/O devices 29
You should know… • General concepts for I/O devices: – Programmatic vs. memory-mapped I/O – Polling vs. Interrupt-driven I/O – Vectored interrupts, interrupt priorities – DMA, Bus Arbitration • Details for the 68000 – Exactly what happens in the CPU on an interrupt • What does the RTE instruction do? – How to write a simple ISR – How to initialize the I/O device and the vector table CEG 320/520 Interfacing with I/O devices 30
68000 Pinouts CEG 320/520 Interfacing with I/O devices 31
