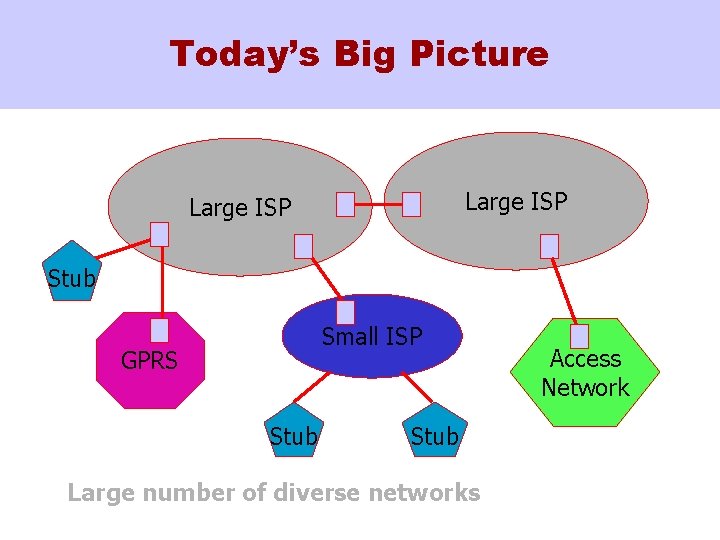

Today’s Big Picture Large ISP Stub Small ISP GPRS Stub Large number of diverse networks Access Network

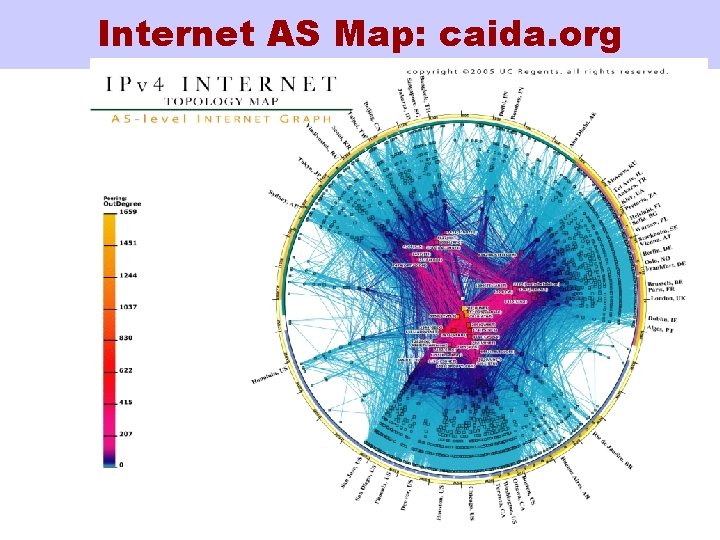

Internet AS Map: caida. org
Autonomous System(AS) • Internet is not a single network – Collection of networks controlled by different administrations • An autonomous system is a network under a single administrative control • IANA – An AS owns unique IP prefixes – Every AS has a unique AS number • ASes need to inter-network themselves to form a single virtual global network – Need a common protocol for communication
Who speaks Inter-AS routing? AS 2 BGP AS 1 R 2 R 3 R 1 R border router internal router § Two types of routers § Border router (Edge) §Internal router (Core) § Two border routers of different ASes will have a BGP session

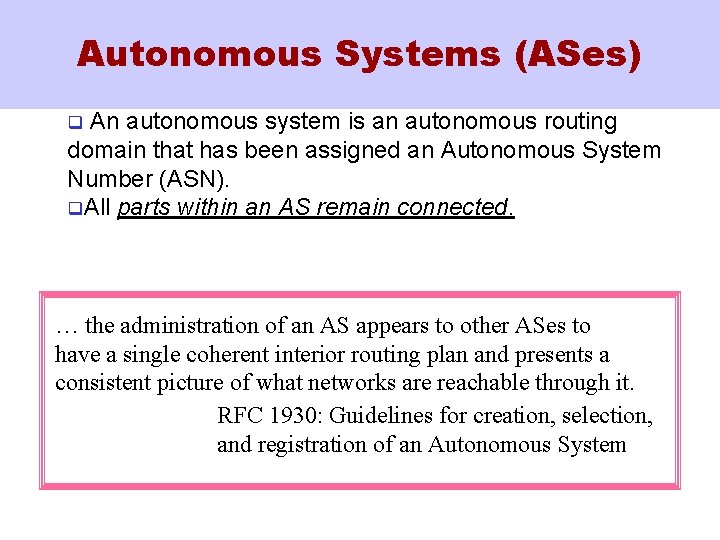

Autonomous Systems (ASes) An autonomous system is an autonomous routing domain that has been assigned an Autonomous System Number (ASN). q. All parts within an AS remain connected. q … the administration of an AS appears to other ASes to have a single coherent interior routing plan and presents a consistent picture of what networks are reachable through it. RFC 1930: Guidelines for creation, selection, and registration of an Autonomous System

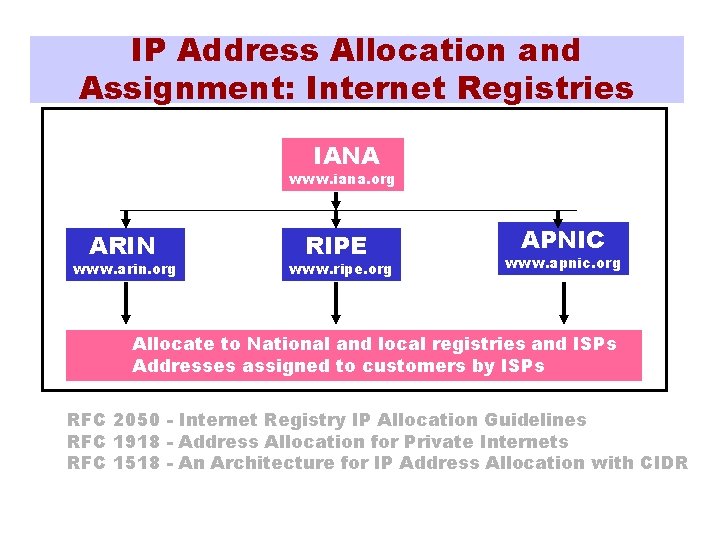

IP Address Allocation and Assignment: Internet Registries IANA www. iana. org ARIN www. arin. org RIPE www. ripe. org APNIC www. apnic. org Allocate to National and local registries and ISPs Addresses assigned to customers by ISPs RFC 2050 - Internet Registry IP Allocation Guidelines RFC 1918 - Address Allocation for Private Internets RFC 1518 - An Architecture for IP Address Allocation with CIDR

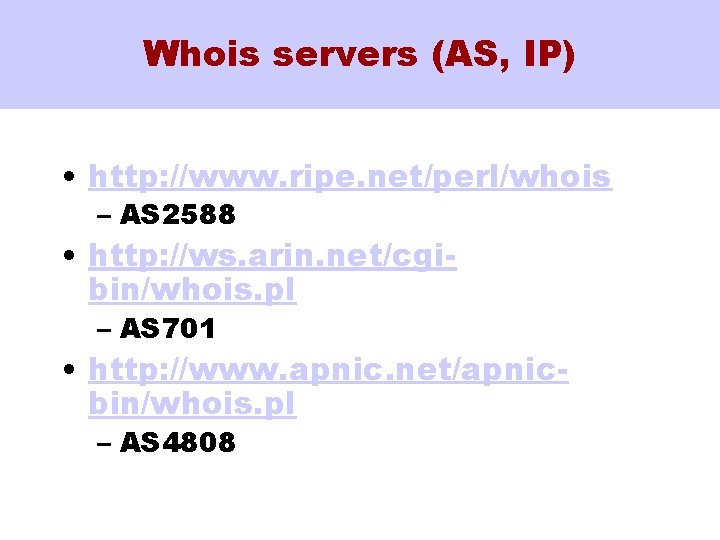

Whois servers (AS, IP) • http: //www. ripe. net/perl/whois – AS 2588 • http: //ws. arin. net/cgibin/whois. pl – AS 701 • http: //www. apnic. net/apnicbin/whois. pl – AS 4808
AS Numbers (ASNs) • • ASNs are 16 bit values. 64512 through 65535 are “private” Currently over 20, 000 in use. Genuity: 1 MIT: 3 JANET: 786 UC San Diego: 7377 AT&T: 7018, 6341, 5074, … UUNET: 701, 702, 284, 12199, … Sprint: 1239, 1240, 6211, 6242, … … ASNs represent units of routing policy

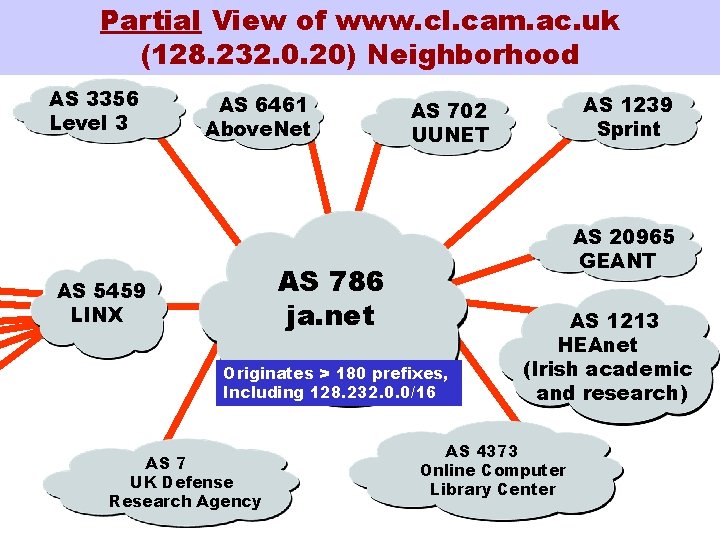

Partial View of www. cl. cam. ac. uk (128. 232. 0. 20) Neighborhood AS 3356 Level 3 AS 6461 Above. Net AS 20965 GEANT AS 786 ja. net AS 5459 LINX Originates > 180 prefixes, Including 128. 232. 0. 0/16 AS 7 UK Defense Research Agency AS 1239 Sprint AS 702 UUNET AS 1213 HEAnet (Irish academic and research) AS 4373 Online Computer Library Center

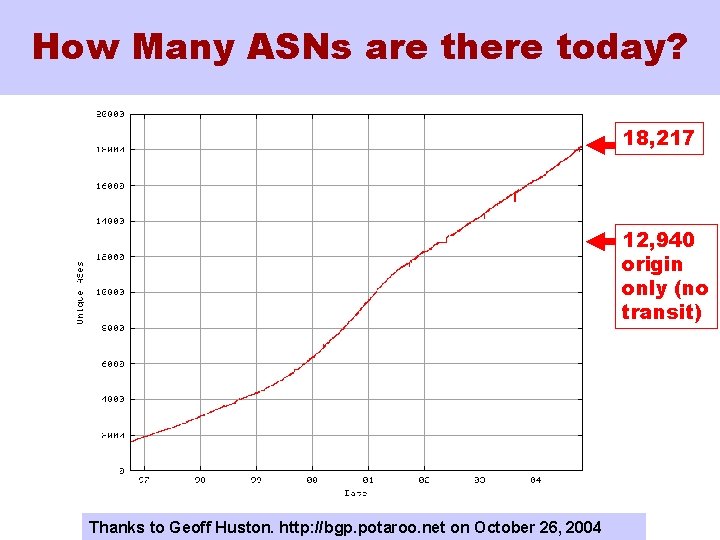

How Many ASNs are there today? 18, 217 12, 940 origin only (no transit) Thanks to Geoff Huston. http: //bgp. potaroo. net on October 26, 2004
IP network assignment process IETF RIR ISP Announcement IANA ISP Allocation Delegation IANA BGP
RIR Allocations - Current Allocated
BGP Routing Table - Current

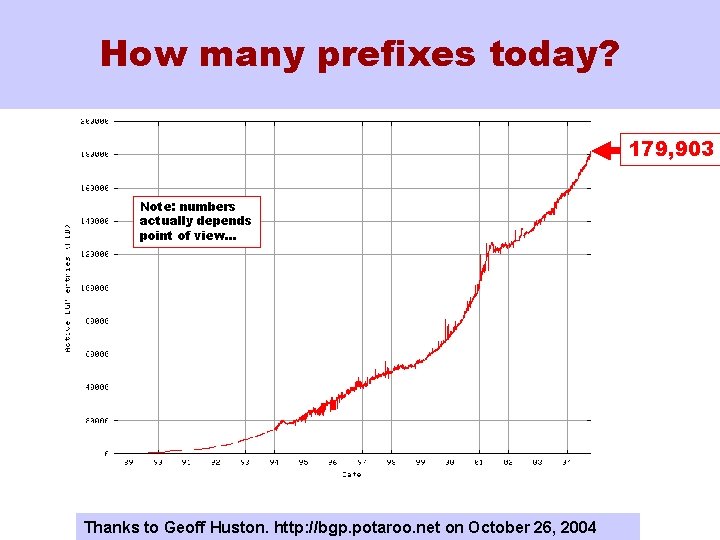

How many prefixes today? 179, 903 Note: numbers actually depends point of view… Thanks to Geoff Huston. http: //bgp. potaroo. net on October 26, 2004

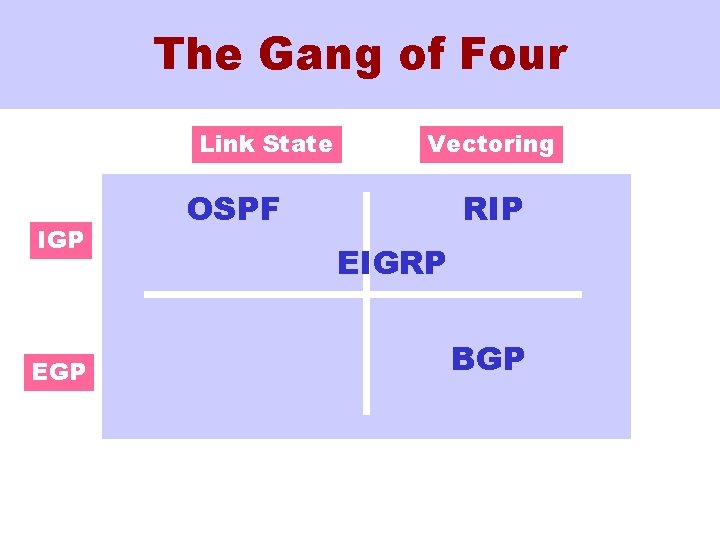

The Gang of Four Link State IGP EGP Vectoring OSPF RIP EIGRP BGP

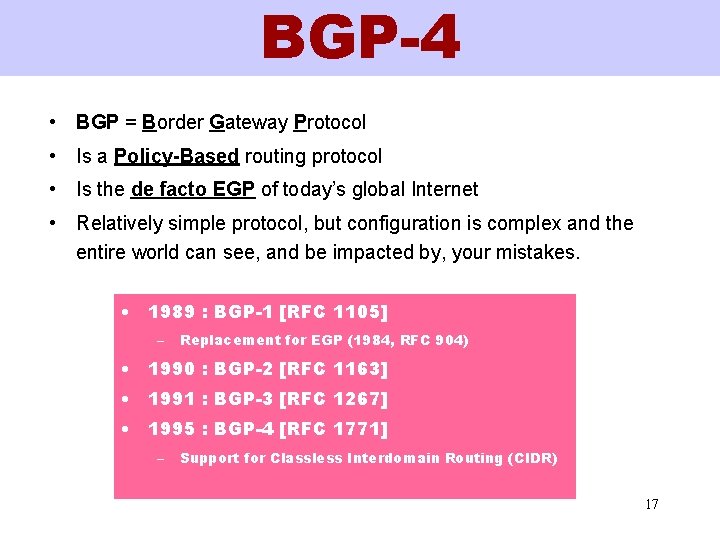

BGP-4 • BGP = Border Gateway Protocol • Is a Policy-Based routing protocol • Is the de facto EGP of today’s global Internet • Relatively simple protocol, but configuration is complex and the entire world can see, and be impacted by, your mistakes. • 1989 : BGP-1 [RFC 1105] – Replacement for EGP (1984, RFC 904) • 1990 : BGP-2 [RFC 1163] • 1991 : BGP-3 [RFC 1267] • 1995 : BGP-4 [RFC 1771] – Support for Classless Interdomain Routing (CIDR) 17

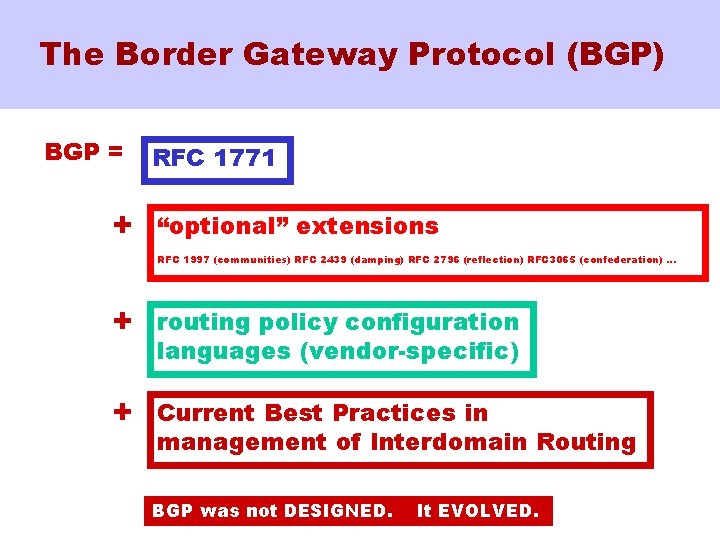

The Border Gateway Protocol (BGP) BGP = + RFC 1771 “optional” extensions RFC 1997 (communities) RFC 2439 (damping) RFC 2796 (reflection) RFC 3065 (confederation) … + routing policy configuration languages (vendor-specific) + Current Best Practices in management of Interdomain Routing BGP was not DESIGNED. It EVOLVED.
BGP Operations (Simplified) Establish session on TCP port 179 AS 1 BGP session Exchange all active routes AS 2 Exchange incremental updates While connection is ALIVE exchange route UPDATE messages 19

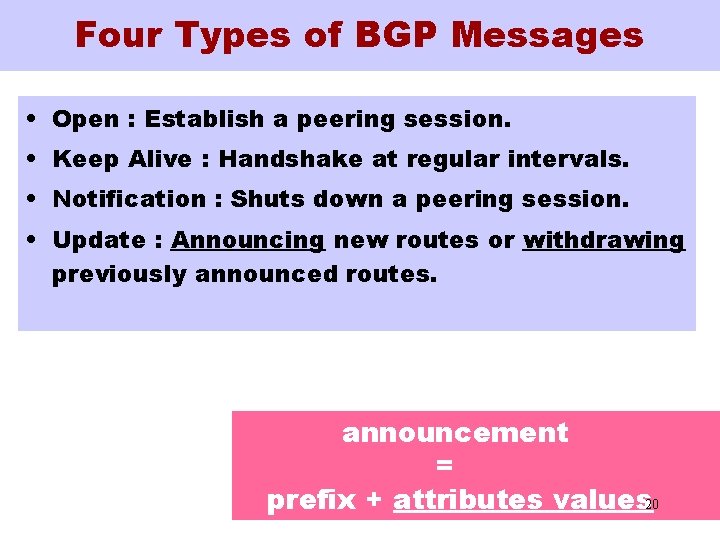

Four Types of BGP Messages • Open : Establish a peering session. • Keep Alive : Handshake at regular intervals. • Notification : Shuts down a peering session. • Update : Announcing new routes or withdrawing previously announced routes. announcement = prefix + attributes values 20
BGP Attributes Value ----1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16. . . 255 Code ----------------ORIGIN AS_PATH NEXT_HOP MULTI_EXIT_DISC LOCAL_PREF ATOMIC_AGGREGATE AGGREGATOR COMMUNITY ORIGINATOR_ID CLUSTER_LIST DPA ADVERTISER RCID_PATH / CLUSTER_ID MP_REACH_NLRI MP_UNREACH_NLRI EXTENDED COMMUNITIES Reference ----[RFC 1771] [RFC 1771] [RFC 1997] [RFC 2796] [Chen] [RFC 1863] [RFC 2283] [Rosen] Most important attributes reserved for development From IANA: http: //www. iana. org/assignments/bgp-parameters Not all attributes need to be present in every announcement
Attributes are Used to Select Best Routes 192. 0/24 pick me! Given multiple routes to the same prefix, a BGP speaker must pick at most one best route (Note: it could reject them all!)

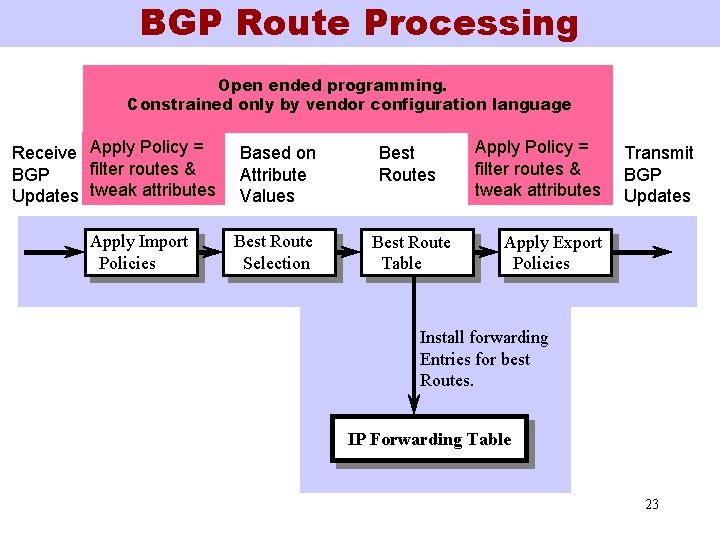

BGP Route Processing Open ended programming. Constrained only by vendor configuration language Receive Apply Policy = filter routes & BGP Updates tweak attributes Apply Import Policies Based on Attribute Values Best Route Selection Best Route Table Apply Policy = filter routes & tweak attributes Transmit BGP Updates Apply Export Policies Install forwarding Entries for best Routes. IP Forwarding Table 23
Route Selection Summary Highest Local Preference Enforce relationships Shortest ASPATH Lowest MED i-BGP < e-BGP traffic engineering Lowest IGP cost to BGP egress Lowest router ID Throw up hands and break ties

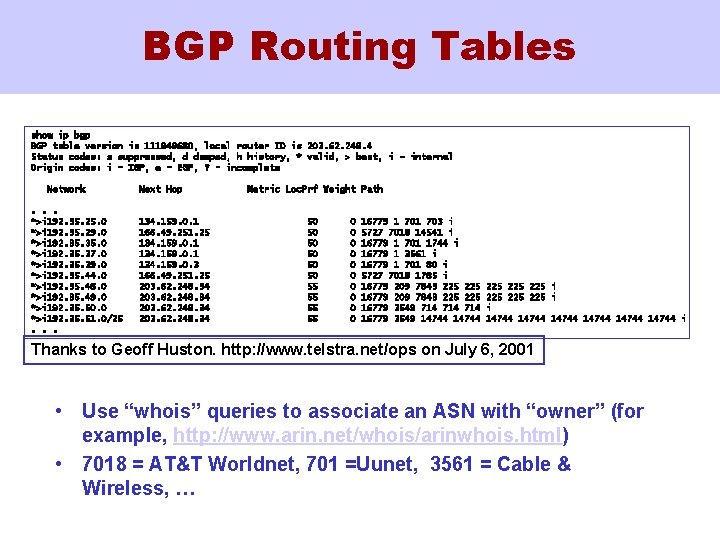

BGP Routing Tables show ip bgp BGP table version is 111849680, local router ID is 203. 62. 248. 4 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal Origin codes: i - IGP, e - EGP, ? - incomplete Network. . . *>i 192. 35. 25. 0 *>i 192. 35. 29. 0 *>i 192. 35. 37. 0 *>i 192. 35. 39. 0 *>i 192. 35. 44. 0 *>i 192. 35. 48. 0 *>i 192. 35. 49. 0 *>i 192. 35. 50. 0 *>i 192. 35. 51. 0/25. . . Next Hop 134. 159. 0. 1 166. 49. 251. 25 134. 159. 0. 1 134. 159. 0. 3 166. 49. 251. 25 203. 62. 248. 34 Metric Loc. Prf Weight Path 50 50 50 55 55 0 0 0 0 0 16779 1 703 i 5727 7018 14541 i 16779 1 701 1744 i 16779 1 3561 i 16779 1 701 80 i 5727 7018 1785 i 16779 209 7843 225 225 16779 3549 714 714 16779 3549 14744 225 225 225 i i 14744 14744 i Thanks to Geoff Huston. http: //www. telstra. net/ops on July 6, 2001 • Use “whois” queries to associate an ASN with “owner” (for example, http: //www. arin. net/whois/arinwhois. html) • 7018 = AT&T Worldnet, 701 =Uunet, 3561 = Cable & Wireless, …

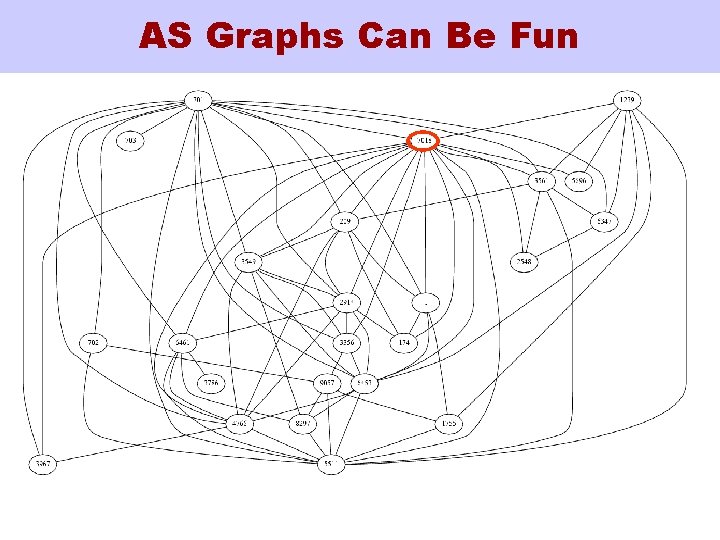

AS Graphs Can Be Fun

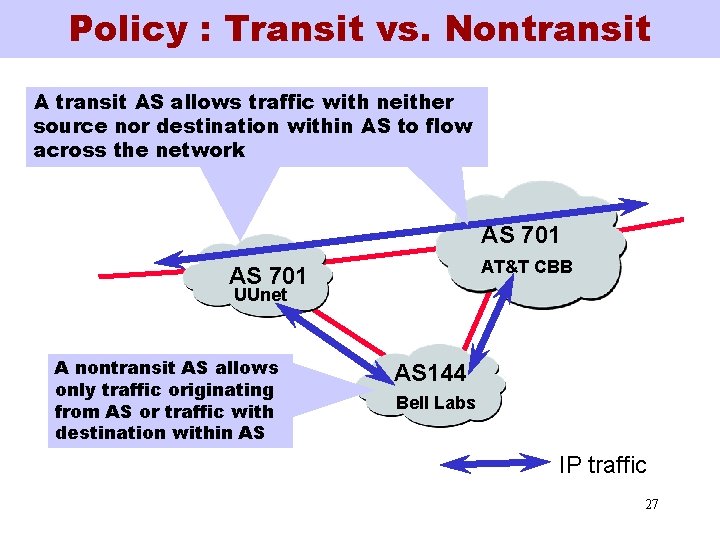

Policy : Transit vs. Nontransit AS allows traffic with neither source nor destination within AS to flow across the network AS 701 AT&T CBB AS 701 UUnet A nontransit AS allows only traffic originating from AS or traffic with destination within AS AS 144 Bell Labs IP traffic 27

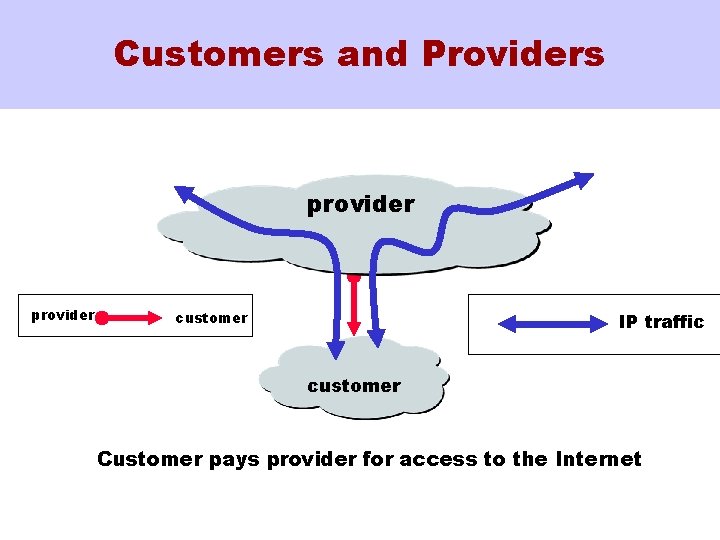

Customers and Providers provider customer IP traffic customer Customer pays provider for access to the Internet
The “Peering” Relationship peer provider peer customer Peers provide transit between their respective customers Peers do not provide transit between peers traffic allowed traffic NOT allowed Peers (often) do not exchange $$$

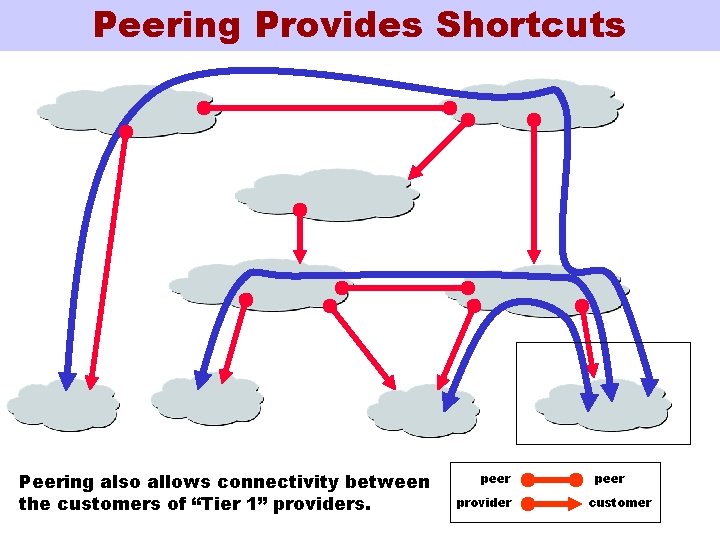

Peering Provides Shortcuts Peering also allows connectivity between the customers of “Tier 1” providers. peer provider peer customer
Peering Wars Peer • Reduces upstream transit costs • Can increase end-toend performance • May be the only way to connect your customers to some part of the Internet (“Tier 1”) Don’t Peer • You would rather have customers • Peers are usually your competition • Peering relationships may require periodic renegotiation Peering struggles are by far the most contentious issues in the ISP world! Peering agreements are often confidential.
Policy-Based vs. Distance-Based Routing? Minimizing “hop count” can violate commercial relationships that constrain interdomain routing. Host 1 Cust 1 YES ISP 1 NO ISP 3 ISP 2 Cust 3 Host 2 Cust 2 32
What is Routing Policy • Policy refers to arbitrary preference among a menu of available routes (based upon routes’ attributes) – Public description of the relationship between external BGP peers – Can also describe internal BGP peer relationship • Eg: Who are my BGP peers • What routes are – Originated by a peer – Imported from each peer

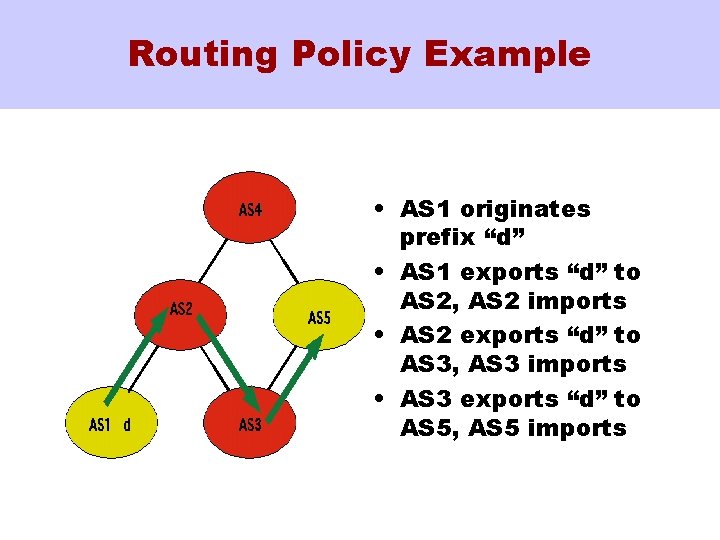

Routing Policy Example • AS 1 originates prefix “d” • AS 1 exports “d” to AS 2, AS 2 imports • AS 2 exports “d” to AS 3, AS 3 imports • AS 3 exports “d” to AS 5, AS 5 imports
Routing Policy Example (cont) • AS 5 also imports “d” from AS 4 • Which route does it prefer? – Does it matter? – Consider case where • AS 3 = Commercial Internet • AS 4 = Internet 2

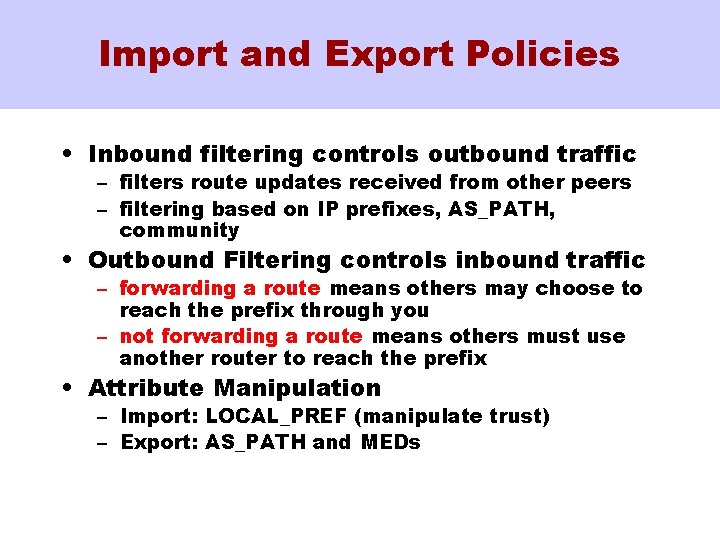

Import and Export Policies • Inbound filtering controls outbound traffic – filters route updates received from other peers – filtering based on IP prefixes, AS_PATH, community • Outbound Filtering controls inbound traffic – forwarding a route means others may choose to reach the prefix through you – not forwarding a route means others must use another router to reach the prefix • Attribute Manipulation – Import: LOCAL_PREF (manipulate trust) – Export: AS_PATH and MEDs

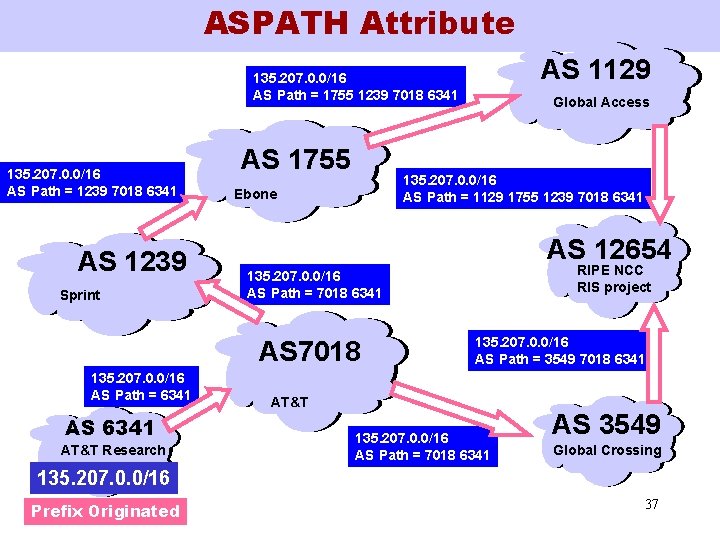

ASPATH Attribute AS 1129 135. 207. 0. 0/16 AS Path = 1755 1239 7018 6341 135. 207. 0. 0/16 AS Path = 1239 7018 6341 AS 1239 Sprint AS 1755 135. 207. 0. 0/16 AS Path = 1129 1755 1239 7018 6341 Ebone AS 12654 AS 6341 AT&T Research RIPE NCC RIS project 135. 207. 0. 0/16 AS Path = 7018 6341 AS 7018 135. 207. 0. 0/16 AS Path = 6341 Global Access 135. 207. 0. 0/16 AS Path = 3549 7018 6341 AT&T 135. 207. 0. 0/16 AS Path = 7018 6341 AS 3549 Global Crossing 135. 207. 0. 0/16 Prefix Originated 37
Shorter Doesn’t Always Mean Shorter In fairness: could you do this “right” and still scale? Exporting internal state would dramatically increase global instability and amount of routing state Mr. BGP says that path 4 1 is better than path 3 2 1 Duh! AS 4 AS 3 AS 2 AS 1

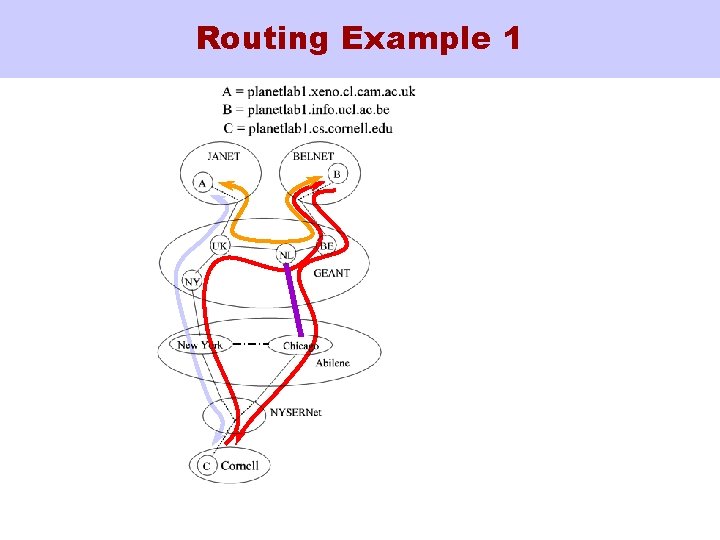

Routing Example 1
Routing Example 2

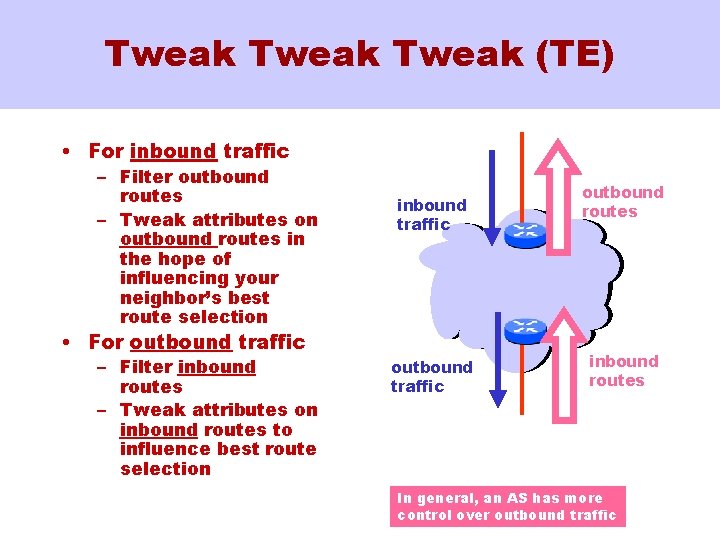

Tweak (TE) • For inbound traffic – Filter outbound routes – Tweak attributes on outbound routes in the hope of influencing your neighbor’s best route selection • For outbound traffic – Filter inbound routes – Tweak attributes on inbound routes to influence best route selection inbound traffic outbound routes inbound routes In general, an AS has more control over outbound traffic

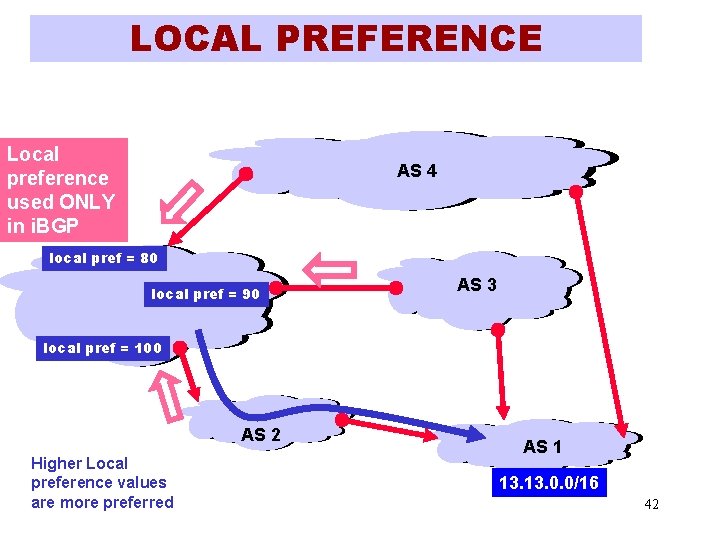

LOCAL PREFERENCE Local preference used ONLY in i. BGP AS 4 local pref = 80 local pref = 90 AS 3 local pref = 100 AS 2 Higher Local preference values are more preferred AS 1 13. 0. 0/16 42
Implementing Backup Links with Local Preference (Outbound Traffic) AS 1 primary link Set Local Pref = 100 for all routes from AS 1 backup link AS 65000 Set Local Pref = 50 for all routes from AS 1 Forces outbound traffic to take primary link, unless link is down. We’ll talk about inbound traffic soon … 43
Multihomed Backups (Outbound Traffic) AS 1 AS 3 provider primary link backup link Set Local Pref = 100 for all routes from AS 1 Set Local Pref = 50 for all routes from AS 3 AS 2 Forces outbound traffic to take primary link, unless link is down. 44
ASpath prepending AS 1 AS 3 provider 192. 0/24 ASPATH = 2 2 2 2 primary backup customer AS 2 192. 0/24 Padding in this way is often used as a form of load balancing 45

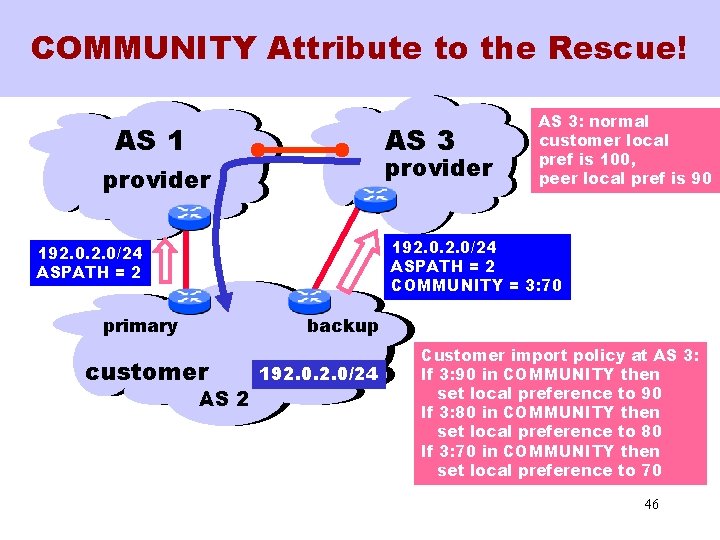

COMMUNITY Attribute to the Rescue! AS 1 AS 3 provider AS 3: normal customer local pref is 100, peer local pref is 90 192. 0/24 ASPATH = 2 COMMUNITY = 3: 70 192. 0/24 ASPATH = 2 primary backup customer AS 2 192. 0/24 Customer import policy at AS 3: If 3: 90 in COMMUNITY then set local preference to 90 If 3: 80 in COMMUNITY then set local preference to 80 If 3: 70 in COMMUNITY then set local preference to 70 46
BGP Summary • BGP 4 is the protocol used on the Internet to exchange routing information between providers, and to propagate external routing information through networks. • Each autonomous network is called an Autonomous System. • ASs which inject routing information on their own behalf have ASNs.

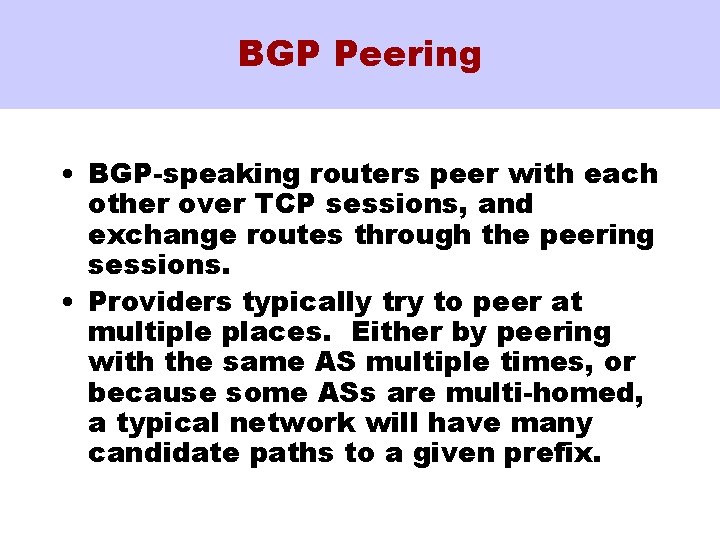

BGP Peering • BGP-speaking routers peer with each other over TCP sessions, and exchange routes through the peering sessions. • Providers typically try to peer at multiple places. Either by peering with the same AS multiple times, or because some ASs are multi-homed, a typical network will have many candidate paths to a given prefix.

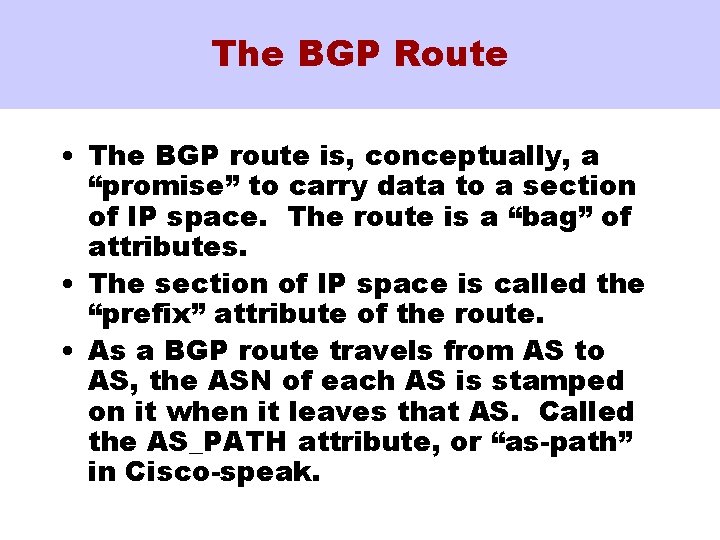

The BGP Route • The BGP route is, conceptually, a “promise” to carry data to a section of IP space. The route is a “bag” of attributes. • The section of IP space is called the “prefix” attribute of the route. • As a BGP route travels from AS to AS, the ASN of each AS is stamped on it when it leaves that AS. Called the AS_PATH attribute, or “as-path” in Cisco-speak.

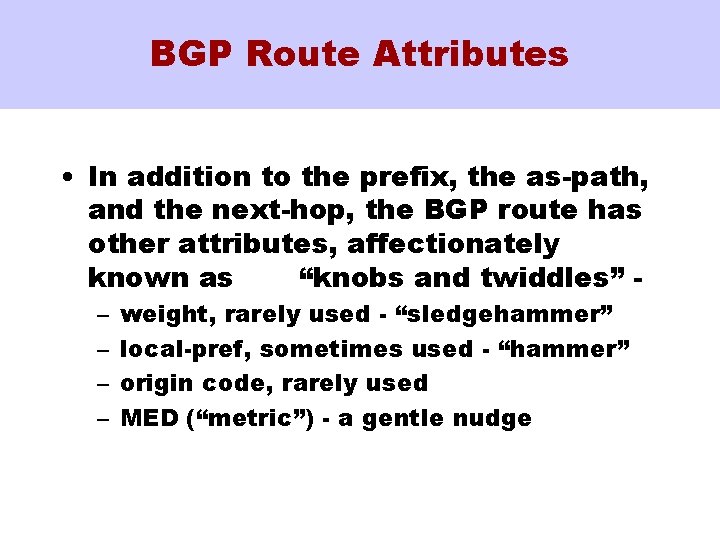

BGP Route Attributes • In addition to the prefix, the as-path, and the next-hop, the BGP route has other attributes, affectionately known as “knobs and twiddles” – – weight, rarely used - “sledgehammer” local-pref, sometimes used - “hammer” origin code, rarely used MED (“metric”) - a gentle nudge
