Interactive Visualization with NUI and Game Engines Yingcai

Interactive Visualization with NUI and Game Engines Yingcai Xiao

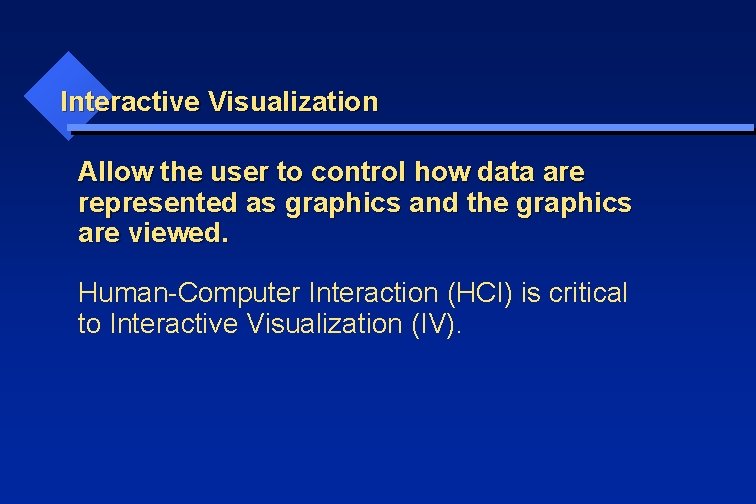

Interactive Visualization Allow the user to control how data are represented as graphics and the graphics are viewed. Human-Computer Interaction (HCI) is critical to Interactive Visualization (IV).

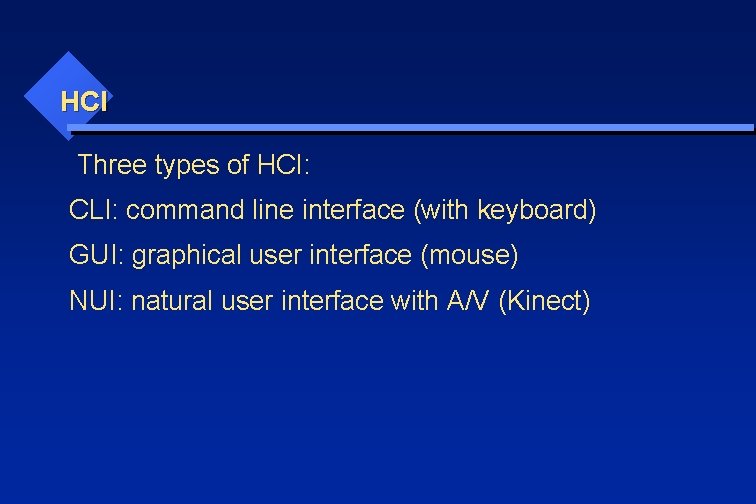

HCI Three types of HCI: CLI: command line interface (with keyboard) GUI: graphical user interface (mouse) NUI: natural user interface with A/V (Kinect)

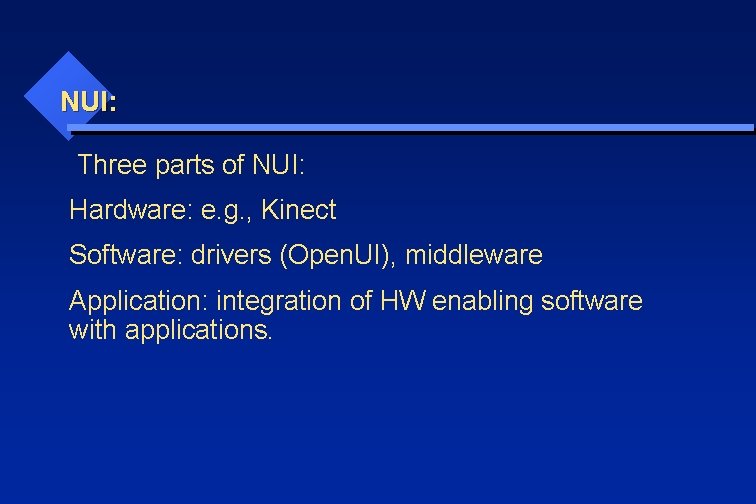

NUI: Three parts of NUI: Hardware: e. g. , Kinect Software: drivers (Open. UI), middleware Application: integration of HW enabling software with applications.

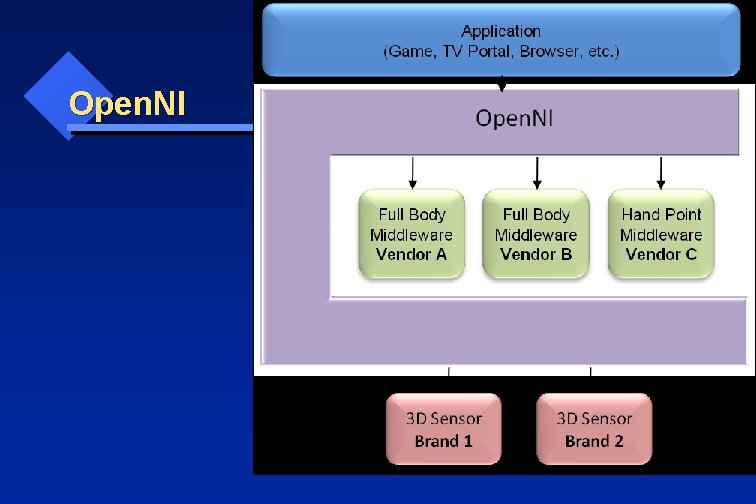

Open. NI

Open. NI Production Nodes: • a set of components that have a productive role in the data creation process required for Natural Interaction based applications. • the API of the production nodes only defines the language. • The logic of data generation must be implemented by the modules that plug into Open. NI. • E. g. for a production node that represents the functionality of generating hand-point data, the logic of hand-point data generation must come from an external middleware component that is both plugged into Open. NI, and also has the knowledge of how to produce such data.

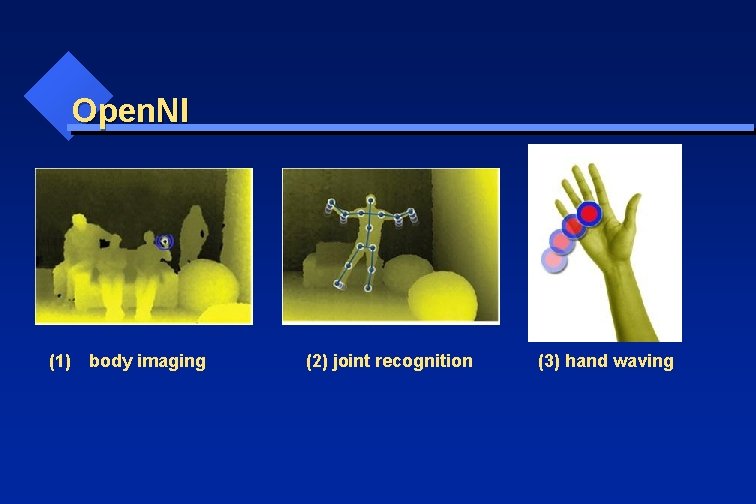

Open. NI (1) body imaging (2) joint recognition (3) hand waving

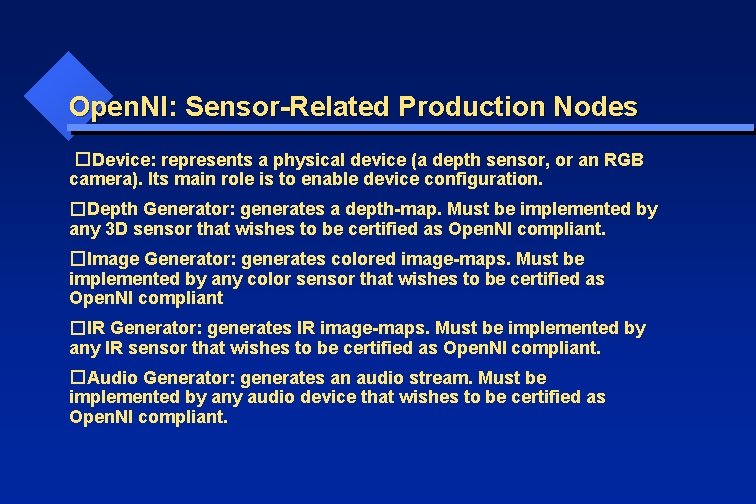

Open. NI: Sensor-Related Production Nodes � Device: represents a physical device (a depth sensor, or an RGB camera). Its main role is to enable device configuration. � Depth Generator: generates a depth-map. Must be implemented by any 3 D sensor that wishes to be certified as Open. NI compliant. � Image Generator: generates colored image-maps. Must be implemented by any color sensor that wishes to be certified as Open. NI compliant � IR Generator: generates IR image-maps. Must be implemented by any IR sensor that wishes to be certified as Open. NI compliant. � Audio Generator: generates an audio stream. Must be implemented by any audio device that wishes to be certified as Open. NI compliant.

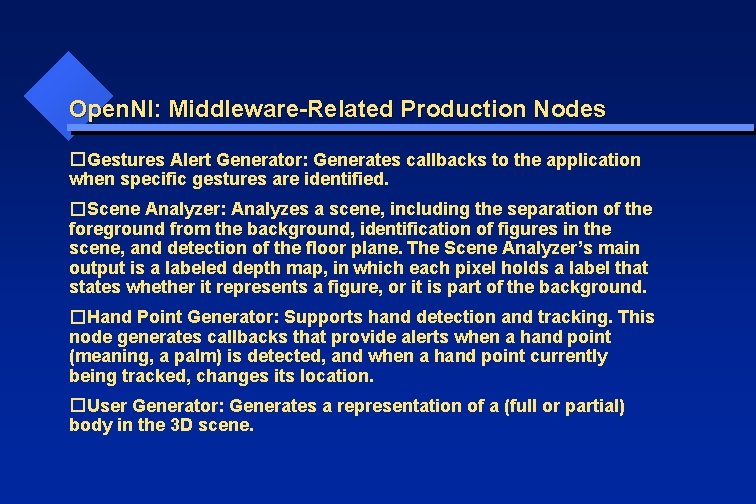

Open. NI: Middleware-Related Production Nodes � Gestures Alert Generator: Generates callbacks to the application when specific gestures are identified. � Scene Analyzer: Analyzes a scene, including the separation of the foreground from the background, identification of figures in the scene, and detection of the floor plane. The Scene Analyzer’s main output is a labeled depth map, in which each pixel holds a label that states whether it represents a figure, or it is part of the background. � Hand Point Generator: Supports hand detection and tracking. This node generates callbacks that provide alerts when a hand point (meaning, a palm) is detected, and when a hand point currently being tracked, changes its location. � User Generator: Generates a representation of a (full or partial) body in the 3 D scene.

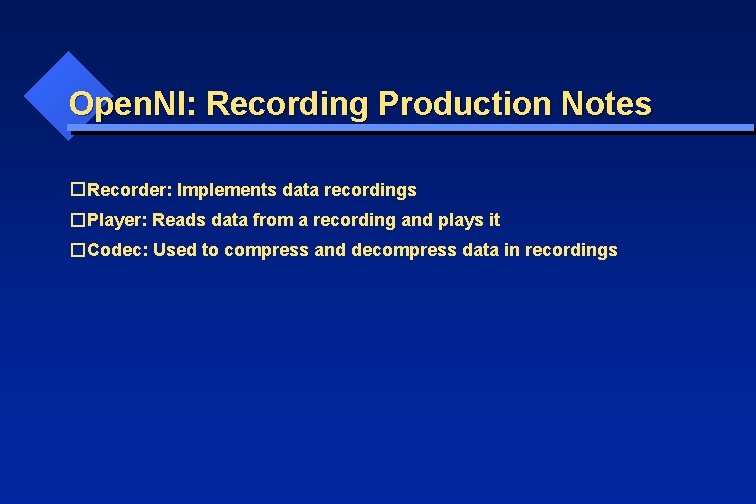

Open. NI: Recording Production Notes � Recorder: Implements data recordings � Player: Reads data from a recording and plays it � Codec: Used to compress and decompress data in recordings

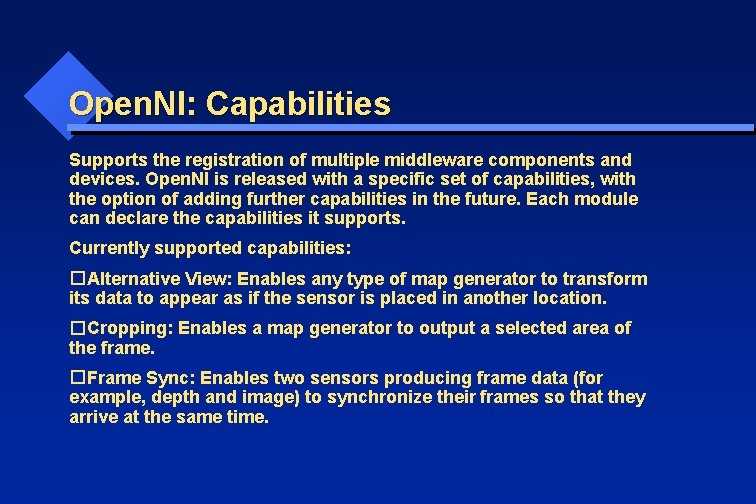

Open. NI: Capabilities Supports the registration of multiple middleware components and devices. Open. NI is released with a specific set of capabilities, with the option of adding further capabilities in the future. Each module can declare the capabilities it supports. Currently supported capabilities: � Alternative View: Enables any type of map generator to transform its data to appear as if the sensor is placed in another location. � Cropping: Enables a map generator to output a selected area of the frame. � Frame Sync: Enables two sensors producing frame data (for example, depth and image) to synchronize their frames so that they arrive at the same time.

Open. NI: Capabilities Currently supported capabilities: � Mirror: Enables mirroring of the data produced by a generator. � Pose Detection: Enables a user generator to recognize when the user is posed in a specific position. � Skeleton: Enables a user generator to output the skeletal data of the user. This data includes the location of the skeletal joints, the ability to track skeleton positions and the user calibration capabilities. � User Position: Enables a Depth Generator to optimize the output depth map that is generated for a specific area of the scene.

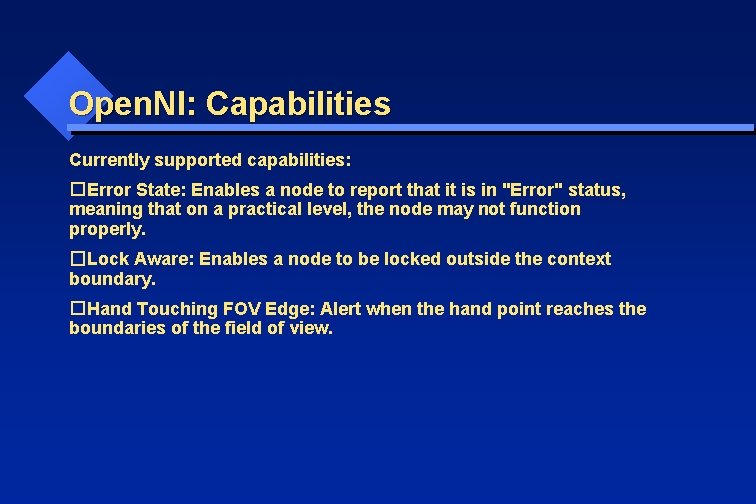

Open. NI: Capabilities Currently supported capabilities: � Error State: Enables a node to report that it is in "Error" status, meaning that on a practical level, the node may not function properly. � Lock Aware: Enables a node to be locked outside the context boundary. � Hand Touching FOV Edge: Alert when the hand point reaches the boundaries of the field of view.

Open. NI: Generating and Reading Data • Production nodes that also produce data are called Generator. • Once these are created, they do not immediately start generating data, to enable the application to set the required configuration. • The xn: : Generator: : Start. Generating() function is used to begin generating data. • The xn: : Generator: : Stop. Generating stops it. • Data Generators "hide" new data internally, until explicitly requested to expose the most updated data to the application, using the Update. Data request function. • Open. NI enables the application to wait for new data to be available, and then update it using the xn: : Generator: : Wait. And. Update. Data() function.

Interactive Visualization with a Game Engine

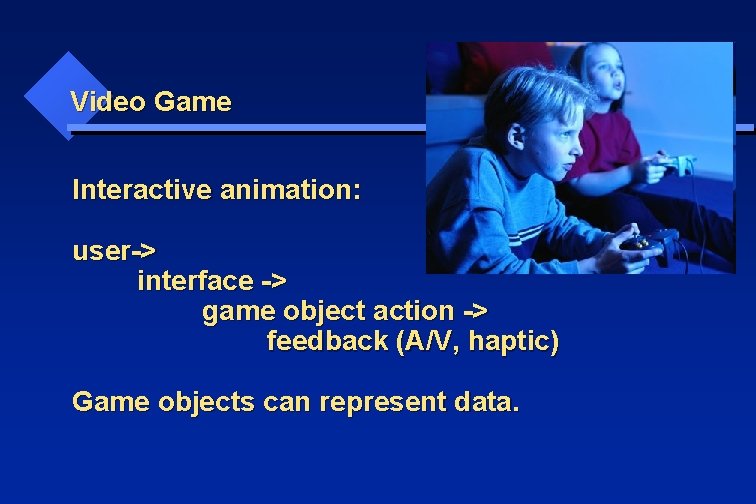

Video Game Interactive animation: user-> interface -> game object action -> feedback (A/V, haptic) Game objects can represent data.

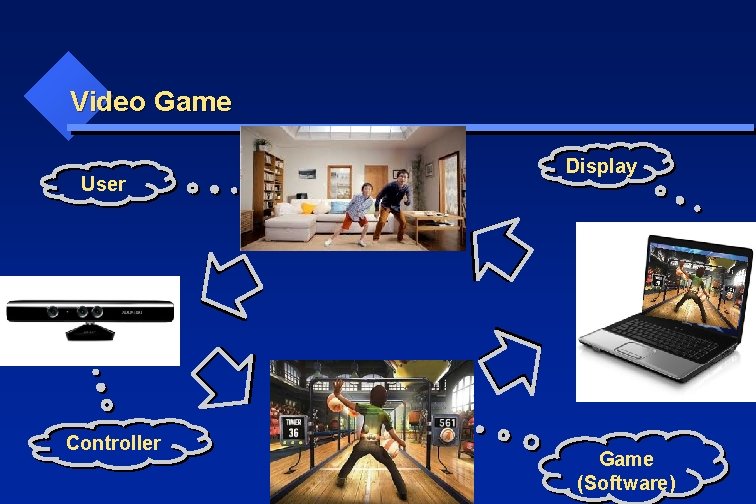

Video Game User Controller Display Game (Software)

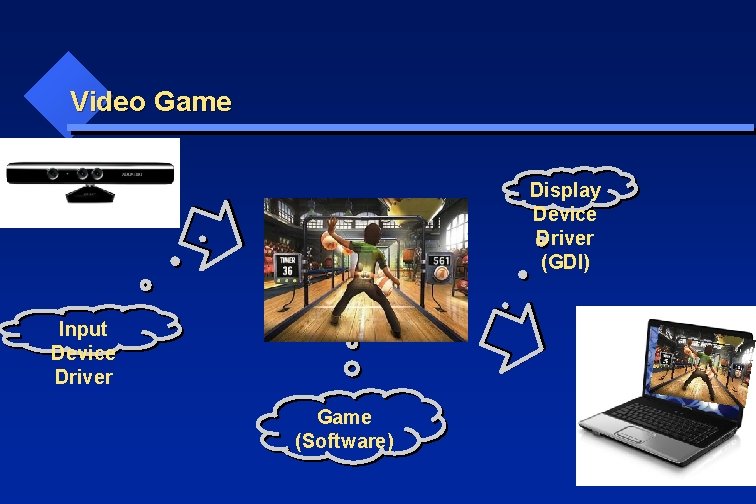

Video Game Display Device Driver (GDI) Input Device Driver Game (Software)

Software for Kinect-based game development Open. NI: a general-purpose framework for obtaining data from 3 D sensors Sensor. Kinect: the driver for interfacing with the Microsoft Kinect NITE: a skeleton-tracking and gesture-recognition library Unity 3 D: a game engine Zig. Fu: Unity Package for Kinect (Assets and Scripts)

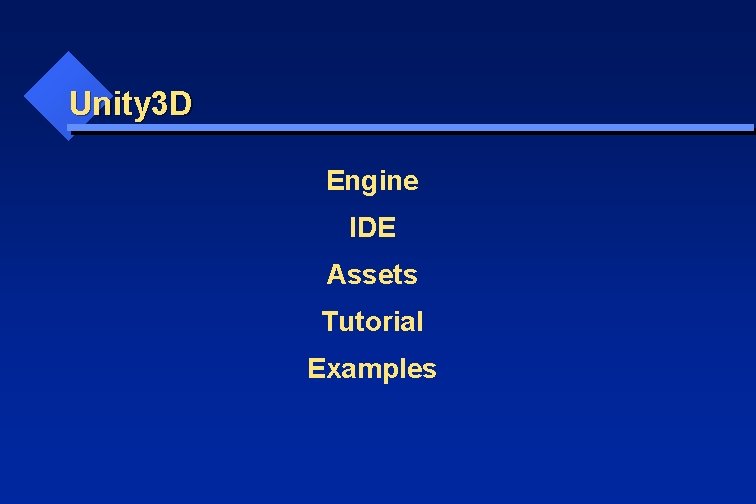

Unity 3 D Engine IDE Assets Tutorial Examples

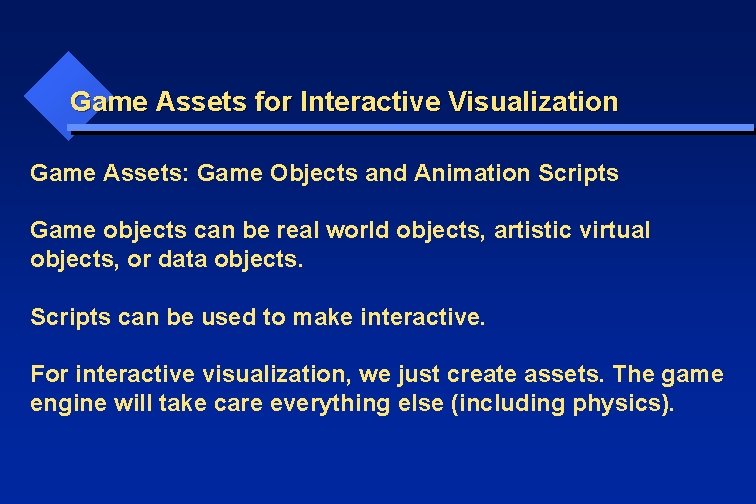

Game Assets for Interactive Visualization Game Assets: Game Objects and Animation Scripts Game objects can be real world objects, artistic virtual objects, or data objects. Scripts can be used to make interactive. For interactive visualization, we just create assets. The game engine will take care everything else (including physics).

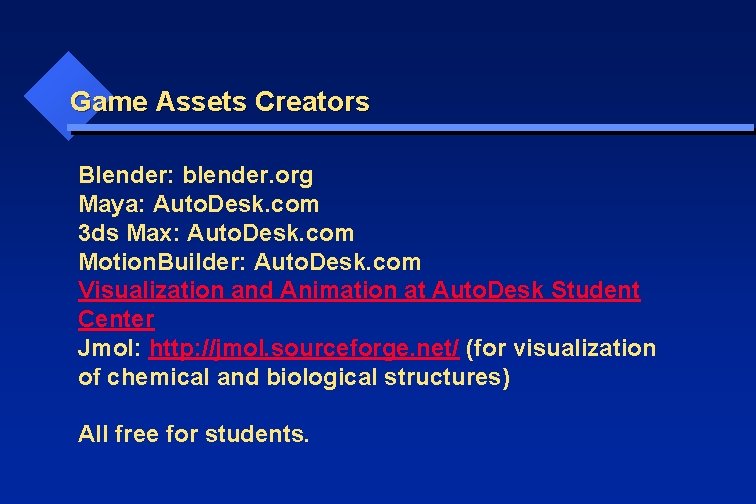

Game Assets Creators Blender: blender. org Maya: Auto. Desk. com 3 ds Max: Auto. Desk. com Motion. Builder: Auto. Desk. com Visualization and Animation at Auto. Desk Student Center Jmol: http: //jmol. sourceforge. net/ (for visualization of chemical and biological structures) All free for students.

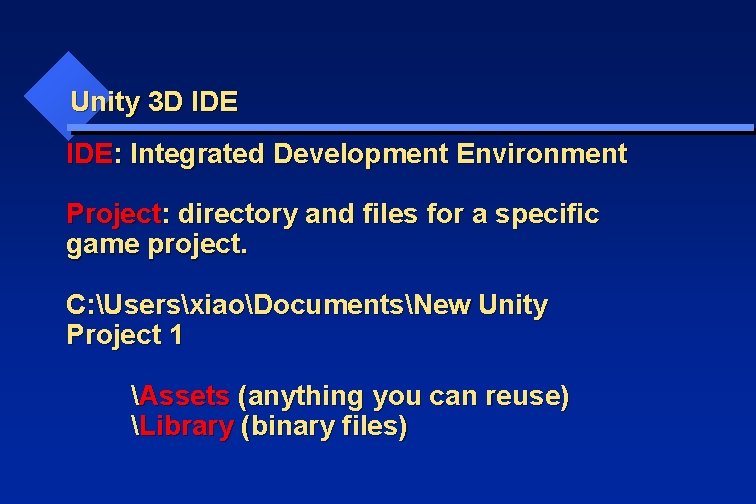

Unity 3 D IDE : Integrated Development Environment Project: directory and files for a specific game project. C: UsersxiaoDocumentsNew Unity Project 1 Assets (anything you can reuse) Library (binary files)

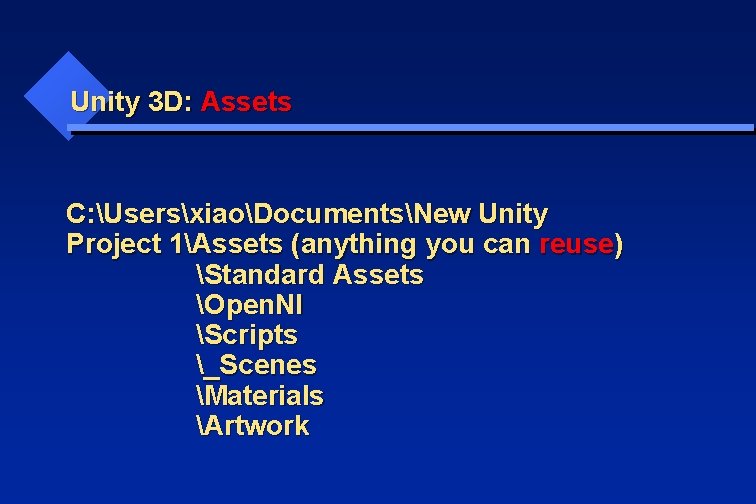

Unity 3 D: Assets C: UsersxiaoDocumentsNew Unity Project 1Assets (anything you can reuse) Standard Assets Open. NI Scripts _Scenes Materials Artwork

Unity 3 D: Standard Assets C: UsersxiaoDocumentsNew Unity Project 1AssetsStandard Assets Objects: (Look) Tree Terrain Charater Lights: (Look) Light Flares Light Cookies Code: (Feel: control, interaction, animation, …) Scripts

Unity 3 D: Objects C: UsersxiaoDocumentsNew Unity Project 1AssetsStandard AssetsCharater: Prefab: (Predefined Objects) First Person, 3 rd Person Source: Prototype (Look) Constructor. FBX Materials (properties) Textures (images) Scripts (Feel: actions) Java Scripts: Third. Person. Controller. js C#: Mouse. Look. cs

Unity 3 D: Scripts Languages: Interpreted : Java Script Compiled: C# Usages: General: under ProjectScripts Exit. On. Escape. cs Objects: attached to objects

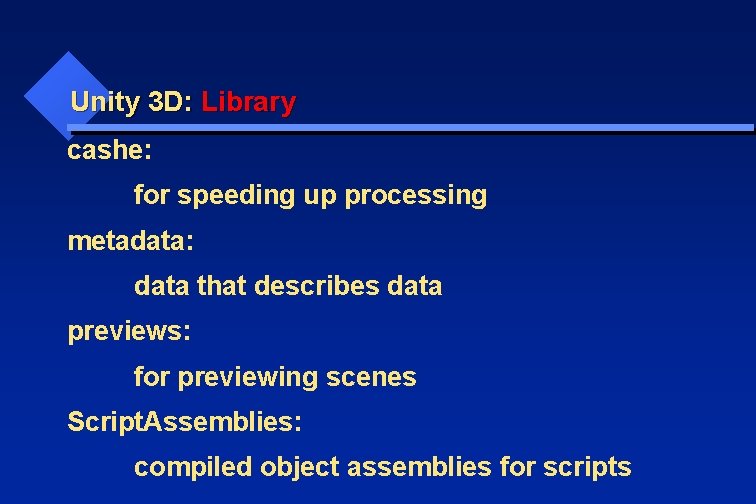

Unity 3 D: Library cashe: for speeding up processing metadata: data that describes data previews: for previewing scenes Script. Assemblies: compiled object assemblies for scripts

Unity 3 D: GUI • Start Unity • File->Create Project • Select Assets (Character, Lights, Scripts, Sky, Select Assets ( Terrain, Tree) • Assets->Import Package->Custom Package Unity. Open. NIBindings-v 1. 4. unitypackage • File->New Scene File->Save Scene

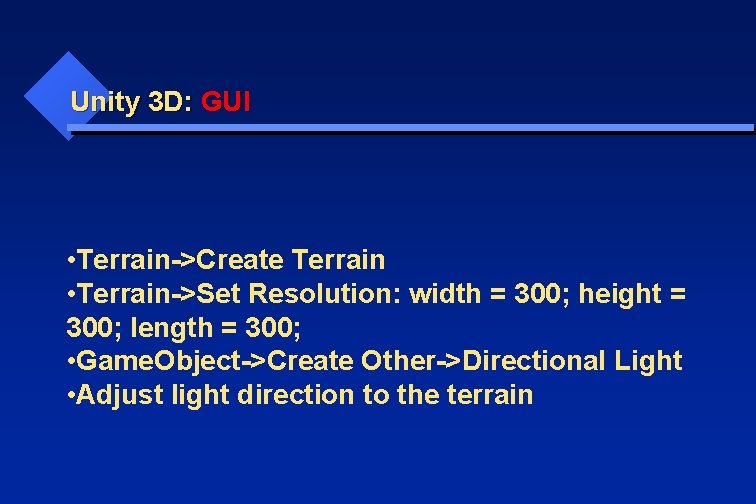

Unity 3 D: GUI • Terrain->Create Terrain • Terrain->Set Resolution: width = 300; height = 300; length = 300; • Game. Object->Create Other->Directional Light • Adjust light direction to the terrain

Unity 3 D: Game Objects • Background Objects: Terrain and Sky • Terrain: elevation grid, adjustable height, texture, • Sky: texture, static view • Add-ons: trees, stones, … • Foreground Objects: • Objects can be animated.

Unity 3 D: Game Objects • Rigid Objects: non-deformable with physical properties (gravity, inertial). • Non-rigid Objects: • Deformable: changeable geometry • Breakable: changeable topology. • Intangible Objects: No predefined shape. Fire, clouds, …

Summary Interaction NUI Kinect Visualization Game Object Game Engine
