Interactive Systems Technical Design Seminar work: Augmented reality Juha-Matti Malila Matti Yli-Olli

Introduction • Definition • An augmented reality system generates a composite view for the user. It is a combination of the real scene viewed by the user and a virtual reality scene generated by the computer that augments the scene with additional information.

Motivation • Augmented Reality enhances a user's perception of and interaction with the real world • The virtual objects display information that the user cannot directly detect with his own senses. • The information conveyed by the virtual objects helps a user perform real-world tasks

Implementation • Generic components of AR device • Tracking • Graphics • Display

Implementation • Example: requirements of a mobile AR system • Head-mounted display with a resolution of at least 800 x 600 pixels • Ability to digitize at least one video stream with 256 colors at a frame rate of 256 pics/second • Network connection with a minimum transfer speed of 100 kbit/s • System architecture has to be modular and scalable • The speed of the system bus has to be at least 19, 5 MB/s • Self-sustained in energy and small enough to be carried along • Includes position and orientation detection

Applications • Medical visualization • Maintenance and repair • Entertainment • Military applications • Navigation

Applications • Image guided surgery • Collaboration between MIT AI lab and Brigham and Women’s Surgical Planning lab • Will enable surgeons to visualize internal structures through an automated overlay of 3 D reconstructions of internal anatomy on top of live video views of a patient • Construct 3 D models using scans such as MRI (Magnetic Resonance Imaging) and CT (Computed Tomography Imaging) • Segment data to distinguish between tissue types and surface render the data

Image guided surgery • Set up in operating room consists of: • Portable cart containing a Sun Ultra. SPARC • Hardware to drive the laser scanner • Flashpoint tracking system

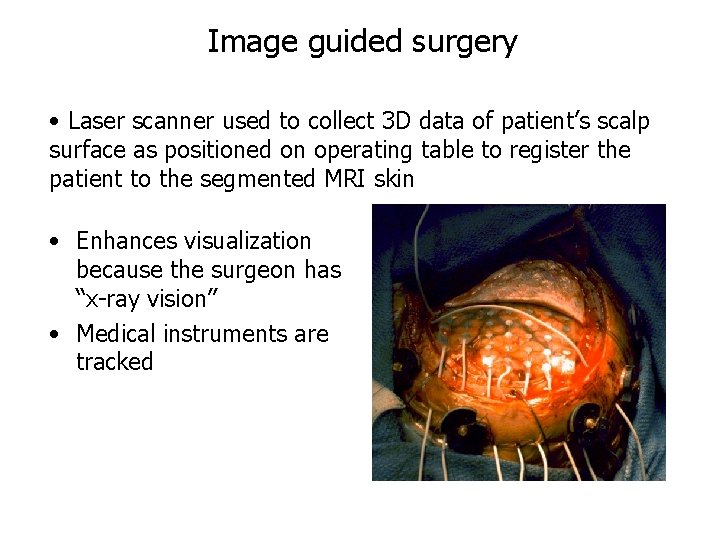

Image guided surgery • Laser scanner used to collect 3 D data of patient’s scalp surface as positioned on operating table to register the patient to the segmented MRI skin • Enhances visualization because the surgeon has “x-ray vision” • Medical instruments are tracked

Strengths / Advantages • • • Used for over 200 neurosurgical cases Used 1 -2 times/week Achieves high positional accuracy Reduces operating time from eight hours to five Monetary savings are huge Makes surgeons more confident

Limitations / Weaknesses • Still need a human to operate • Expensive

Selected Industrial Players • Spor. TVision – AR applications for sport TV • Microvision – NOMAD • NOMAD Videos: http: //www. microvision. com/vid_nmd_testim_index. htm

Selected International Research Groups and Projects • National University of Singapore – Mixed Reality Lab • Research projects • • 3 D Empodied Mixed Reality Interaction Wearable Computer Interaction Natural Feature Tracking Human Electronics 3 D Live Head Mounted Display Video Table - Video Clip

Selected Finnish Research Groups and Projects • VTT Information Technology – Multimedia Group • VIAPOR (Video Image Augmenting, Processing and Object Recognition) • http: //mango 2. vtt. fi: 84/tte/samba/project/tte 32/index. html • Research topics: • Entertainment applications • Gesture interaction and CAD conferencing • Displays and trackers • Object recognition methods VTT Video Clip

Companies and Research Groups in Oulu • Cy. Phone – Media Phone • Prototype • Outside navigation and displaying device • Uses GPS, GSM and WAP • Cyphone user case

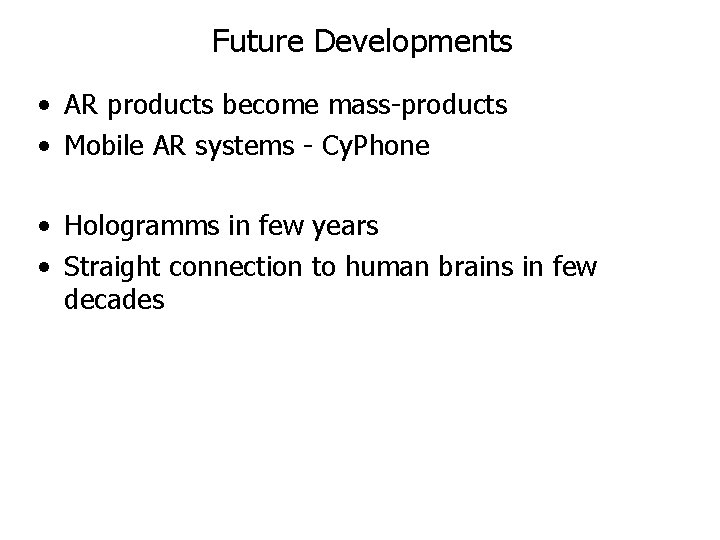

Future Developments • AR products become mass-products • Mobile AR systems - Cy. Phone • Hologramms in few years • Straight connection to human brains in few decades
